Italian Gelato ICETEAM 1927 STARGEL 4 User manual

INSTRUCTION MANUAL
STARGEL 4
AFFIX
PLATE OF
CHARACTERISTICS
Code IC193-009922_00
Italian Gelato Concepts Pty Limited
Unit 1, 37 Mortimer Road
Acacia Ridge Qld 4110
Bris Office: [phone]
Syd Office [phone]
Email: [email protected]
www.italiangelato.com.au

- 2 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
Rev.: 00 Date: 2018/03 Modications:
Editor: AM Veried: LP Approved: RL
We wish to thank you for purchasing one of ICETEAM 1927 machines.
To the best guarantee, since 1993 ICETEAM 1927 has submitted its own Quality
System to the certication according to the international Standard ISO 9001.
Nowadays ICETEAM 1927 production has got UNI-EN-ISO 9001 Certied Quality
System.
ICETEAM 1927
Via Emilia, 45 - 40011 Anzola dell'Emilia (Bologna) - Italy
Tel. [phone] - Fax [phone]
This manual contains a TRANSLATION OF THE ORIGINAL INSTRUCTIONS and may not
be reproduced, transmitted, transcribed, led in a data retrieval system or translated into other
languages, without the prior written permission of ICETEAM 1927.
The purchaser has the right to reprint it for his own ofce use.
ICETEAM 1927 policy pursues a steady research and development, thus it reserves the right to
make changes and revisions whenever deemed necessary and without being bound to notifying
the purchaser.
Moreover, ICETEAM 1927 machines comply with the following European
Directives:
- “Machinery” Directive 2006/42/EC,
- “Low Voltage” Directive 2014/35/EU,
- “EMC” Directive 2014/30/EU,
- “PED” Directive 2014/68/EU,
- Regulation 2004/1935/EC relating to “Materials and articles in contact
with foodstuffs”
- Regulation 2023/2006/EC "Good manufacturing practice for materials
and articles intended to come into contact with food"

Stargel 4
- 3 - Stargel 4 - 2018/03 - Rev. 00
EN
TABLE OF CONTENTS
FOREWORD SEC.............................................................................................................. 5
FOREWORD............................................................................................................ 5
INSTRUCTION MANUAL........................................................................... 5
PURPOSE....................................................................................................... 5
STRUCTURE OF THE MANUAL........................................................................ 5
ADDITIONAL DOCUMENTATION .................................................................... 5
CONVENTIONAL SYMBOLS.............................................................................. 6
QUALIFICATION OF THE PERSONNEL SYMBOLS............................... 6
SAFETY.................................................................................................................... 7
WARNINGS.............................................................................................................. 7
SEC. 1 RECEIPT, HANDLING, OPENING OFTHE PACKAGING
1.1 RECEIPT.................................................................................................................. 9
1.1.1 PACKED MACHINE LIFTING .................................................................... 9
1.1.2 PROHIBITED LIFTING MEANS................................................................. 9
1.2 PACKAGING OPENING....................................................................................... 9
1.3 MACHINE STORAGE......................................................................................... 10
1.4 DISPOSAL OF PACKAGING MATERIALS..................................................... 10
1.5 WEEE...................................................................................................................... 10
SEC. 2 GENERAL INFORMATION
2.1 GENERAL INFORMATION ................................................................................11
2.1.1 MANUFACTURER IDENTIFICATION DATA...........................................11
2.1.2 CUSTOMER/USER IDENTIFICATION DATA..........................................11
2.1.3 INFORMATION ON MAINTENANCE SERVICE.....................................11
2.1.4 INFORMATION FOR USERS .....................................................................11
2.2 INFORMATION ABOUT THE MACHINE....................................................... 12
2.2.1 GENERAL INFORMATION....................................................................... 12

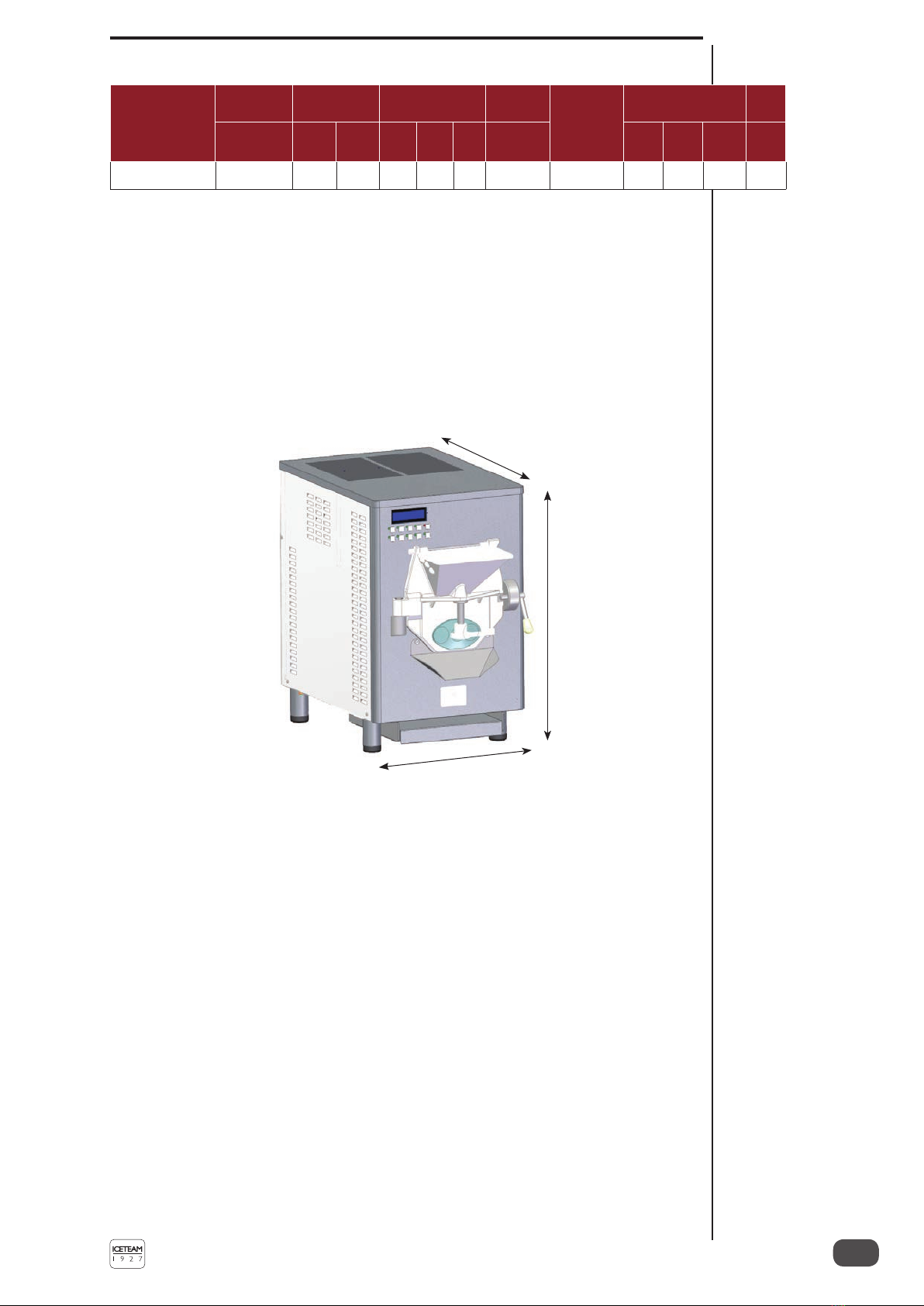

2.2.2 TECHNICAL FEATURES........................................................................... 13
2.2.3 MACHINE LAYOUT................................................................................... 13
2.3 INTENDED USE.................................................................................................... 14
2.4 NOISE..................................................................................................................... 14
SEC. 3 INSTALLATION
3.1 ROOM NECESSARY FOR MACHINE USE..................................................... 15
3.2 MACHINE WITH AIR-COOLED CONDENSER............................................. 15
3.3 MACHINES WITH WATER-COOLED CONDENSER................................... 15
3.3.1 WATER VALVE ADJUSTMENT ................................................................ 16
3.4 ELECTRIC CONNECTION................................................................................ 16
3.4.1 EQUIPOTENTIAL CONNECTION............................................................ 16
3.4.2 REPLACING THE POWER CABLE.......................................................... 16
3.5 CLEANING............................................................................................................ 17
3.6 TOP-UPS................................................................................................................. 17
3.7 MACHINE TESTING........................................................................................... 17
SEC. 4 INSTRUCTIONS FOR USE
4.1 MACHINE SAFETY WARNINGS ...................................................................... 19
4.1.1 MACHINE CONFIGURATION.................................................................. 19
4.2 CONTROLS........................................................................................................... 20
4.2.1 ELECTRONIC CONTROL PANEL............................................................ 20
4.2.2 OPERATOR FUNCTIONS.......................................................................... 20

- 4 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
4.3 ICE-CREAM PRODUCTION (FREEZING CYCLE)...................................... 23
4.4 USER PROGRAMMING ..................................................................................... 25
4.5 PROCESS AUTOSETUP...................................................................................... 26
4.6 PROCESS ENABLE/DISABLE........................................................................... 26
SEC. 5 SAFETY DEVICES
5.1 MACHINE SAFETY SYSTEMS ......................................................................... 27
5.1.1 OPERATOR SAFETY SYSTEMS............................................................... 27
5.2 ALARMS................................................................................................................ 28
5.2.1 BLACKOUT................................................................................................ 28
SEC. 6 DISASSEMBLY, CLEANING AND REASSEMBLYOF PARTS
IN CONTACT WITH THE PRODUCT
6.1GENERAL INFORMATION........................................................................................... 29
6.2 WASHING CONDITIONS ................................................................................... 29
6.3 TIPS......................................................................................................................... 29
6.4 HOW TO USE CLEANING/SANITIZING SOLUTION.................................. 30
6.5 CLEANING............................................................................................................ 30
6.6 SPIGOT DOOR REMOVAL................................................................................ 30
6.7 BEATER REMOVAL............................................................................................ 31
6.7.1 SEAL CHECK .............................................................................................. 31
6.8 SANITIZATION.................................................................................................... 32
6.9 HYGIENE............................................................................................................... 32
SEC. 7 MAINTENANCE
7.1SERVICE TYPE................................................................................................................ 33
7.2 WATER COOLING............................................................................................... 34
7.3 AIR COOLING...................................................................................................... 34
7.4 ORDERING SPARE PARTS................................................................................ 34
7.5 SUPPLIED SPARE PARTS TABLE.................................................................... 35
SEC. 8 TROUBLESHOOTING
8.1. TROUBLESHOOTING........................................................................................ 37

Stargel 4
- 5 - Stargel 4 - 2018/03 - Rev. 00
EN
FOREWORD
INSTRUCTION MANUAL
TheEuropeanCommunitydirectionsonsafetystandardsaswellasonfreecirculationofindustrial
products within the E.C. were taken into due account when editing this manual.
PURPOSE
This handbook was conceived taking machine users' needs into due account.
Topics relevant to a correct use of the machine have been analyzed in order to keep unchanged
in the long run quality features characterizing ICETEAM 1927 machines all over the world.
A signicant part of this manual refers to the conditions necessary for the machine use and to the
necessary procedures during cleaning as well as routine and special maintenance.
Nevertheless, this manual cannot cover any possible need in detail. In case of doubts or missing
information, please contact:
ICETEAM 1927 Via Emilia, 45/A - 40011Anzola Emilia (Bologna) - Italy
Tel. +39 051 - 6505330 - Fax +39 051 - 6505331
STRUCTURE OF THE MANUAL
This manual is divided in sections, chapters and sub chapters for an easy reference.
Section
A section is the part of the manual identifying a specic topic related to a machine part.
Chapter
A chapter is that part of a section describing an assembly or concept relevant to a machine part.
Sub chapter
It is that part of a chapter detailing the specic component of a machine part.
It is necessary that each person involved in the machine operation reads and understands those
parts of the manual of his/her own concern, and particularly:
- The operator must read the chapters concerning machine start-up and operation of machine
components.
- A skilled engineer involved in the installation, maintenance, repair, etc., of the machine
must read all parts of this manual.
ADDITIONAL DOCUMENTATION
Along with an instruction manual, each machine is also supplied with additional documentation:
- Supplied spare parts: A list of spare parts which is delivered together with the machine
for its routine maintenance.
- Wiring diagram: a diagram of wiring connections is placed in the machine.
- Installation sheet: To be completed by the installer. Return a copy to the customer,
the dealer and the manufacturer in order to activate the machine
warranty
Before using the machine read carefully the instruction manual.
Carefully read safety instructions.

- 6 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
CONVENTIONAL SYMBOLS
CAUTION: ELECTRIC SHOCK HAZARD
The staff involved is warned that the non-observance of safety rules in carrying out the operation
described may cause an electric shock.
CAUTION: DANGER FROM HIGH TEMPERATURES
This warns the staff involved that failure to abide by safety rules in carrying out the operation
described involves the risk of burns and scalds.
CAUTION CRUSHING HAZARD
This warns the staff involved that failure to abide by safety rules in carrying out the operation
described involves the risk of suffering crushed ngers or hands.
CAUTION: GENERAL HAZARD
The staff involved is warned that the operation described may cause injury if not performed
following safety rules.
NOTE
It points out signicant information for the personnel involved.
WARNINGS
This warns the personnel involved that the non-observance of warning may cause loss of data
and damage to the machine.
PERSONAL PROTECTION DEVICES
This symbol on the side means that the operator must use personal protection against an implicit
risk of accident.
QUALIFICATION OFTHE PERSONNEL SYMBOLS
The personnel allowed to operate the machine can be differentiated by the level of preparation
and responsibility in:
OPERATOR
Unqualied personnel, without any specic technical abilities, capable of carrying out simple
jobs, such as: operating the machine using the commands available on the keypad, the loading
andunloadingofproductsusedduringproduction, the loading of any consumable materials, basic
maintenance operations, (cleaning, simple blockages, inspections of the instrumentation, etc.).
QUALIFIED ENGINEER
He/she is a skilled engineer, capable of operating the machine under normal conditions; he/she is
able to carry out operations on mechanical parts and all adjustments, as well as maintenance and
repairs. He/she is qualied for interventions on electrical and refrigeration components.
ICETEAM 1927 ENGINEER
He/she is a qualied engineer the manufacturer entrusted with complex operations under particular
conditions or in accordance with agreements made with the machine's user.

Stargel 4
- 7 - Stargel 4 - 2018/03 - Rev. 00
EN
SAFETY
When using industrial equipment and plants, one must be aware of the fact that moving parts
(rotary motion), high voltage components, as well as parts subject to high temperatures may cause
serious damage to persons and things.
The persons in charge of safety must ensure that:
 any incorrect use or handling is avoided;
the safety devices are neither removed nor tampered with;
the machine is regularly serviced;
only original spare parts are used, especially in the case of safety-related components (e.g.:
protection microswitches, thermostats).
suitable personal protective equipment is used;
high care is taken during hot product processing.
To achieve the above, the following is necessary:
- at the work station an instruction and maintenance manual relevant to the machine should be
available;
-such documentation must be carefully read and the instructions must be strictly followed;
-onlyadequatelyskilledpersonnelshould be assigned to electrical equipment;thisapplianceis
not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety;
- Access is forbidden to children or any unauthorized persons.
- Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT!
Make sure that the personnel do not perform operations out of their range of knowledge and
responsibility (refer to “Qualication of the personnel symbols”).
NOTE:
According to the standard in force, a QUALIFIED ENGINEER is a person who, thanks to:
- training, experience and education,
- knowledge of rules, prescriptions and interventions on accident prevention,
- knowledge of machine operating conditions,
It is able to realize and avoid any danger and has also been allowed by the person in charge
of plant safety to carry out all kinds of interventions.
WARNINGS
- Before connecting the machine to the mains, check that machine voltage indicated on the
machine identication plate corresponds with the mains (see par. 1.1.1). When installing
the machine, insert a single-phase differential magnetothermal protection switch on both
poles of the line; required specications are: with 3-mm contact gap as a minimum , type-B
magnetothermal section with 10Arated current, type-B differential section with 30 mArated
differential tripping current (if not available, use type B).
- Never perform operations on the machine using your hands, both during production and
cleaning. Before carrying out any maintenance operation, make sure that the machine is in
“STOP” position and that the main switch has been cut out.
- It is forbidden to wash the machine by means of a jet of pressurized water.
- It is forbidden to remove panels in order to reach the machine internal parts before
disconnecting it from the power supply.
- The place of installation must not be exposed to water sprays, high moisture, heat or steam
sources.
- Do not store explosive substances or spray cans inside the machine, nor aerosol cans
containing ammable propellant.
- ICETEAM 1927 will not be held responsible for any accidents that might happen during
operation, cleaning and/or servicing of its machines, if the specied warnings have not been
fully complied with.

- 8 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN

Stargel 4
- 9 - Stargel 4 - 2018/03 - Rev. 00
EN
1. RECEIPT, HANDLING, OPENING OFTHE
PACKAGING
1.1 RECEIPT
- Before opening the packaging, check that it does not feature breakages caused by impacts during
transport.
- In case of damage to packaging for which you may assume damages to the content, contact the
insurance company immediately, leaving everything as you found it.
1.1.1 Packed machine lifting
Packaging lifting must be performed inserting
lifter forks completely in the area between pallet
feet, distributing machine weight so that packaging
barycenter is balanced.
1.1.2 Prohibited lifting means
Lifting means or systems not meeting safety
requirements shall not be used. Such characteristics
are:
- The lifting capacity is inferior to the machine
weight or lifter design characteristics are not
adequate (e.g.: short forks).
- Non-conforming or worn ropes or cables.
1.2 PACKAGING OPENING
Use suitable tools to open the wooden protection packaging.
1- Remove nails starting from above until the machine is
uncovered but still xed to the pallet (packaging platform).
2- Remove protective canvas in which the machine is wrapped.
3- Visually check that the machine was not damaged during
transport.
Cardboard packaging is closed externally by steel bands.
1- Hold an extremity of the external bands with your hands and
cut them using shears.
2- Remove the cardboard by pulling it upwards.
3- Remove polystyrene and the polypropylene sack protecting
the machine.
4- Cut the bands that lock the machine.
WARNING
Protect your hands with gloves since there is a
risk of getting hurt by wood splinters while cutting
the bands if they are not held rmly during this
operation.
NO!
NO!
NO!
Fig. 1
Fig. 2
Fig. 3

- 10 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
1.3 MACHINE STORAGE
The machine must be stored in a dry and damp-free place.
Before storing the machine, wrap it in a cloth in order to protect it against dust or other impurities.
IMPORTANT:
If storing a packed machine, do not superimpose the packing crates.
1.4 DISPOSAL OF PACKAGING MATERIALS
When opening the packing crate, divide packing stuff per type and get rid of them according to
laws in force in machine installation country.
1.5 WEEE (Waste Electrical and Electronic Equipment)
In conformity with the European Directives 2006/66/EC, on batteries and accumulators and waste
batteries and accumulators, and 2002/96/EC, also known as WEEE, the presence of the symbol
on the side of the product or packaging means that the product must not be disposed of with
normal urban waste. Instead, it is the user’s responsibility to dispose of this product by returning
it to a collection point designated for the recycling of unused electrical and electronic equipment.
Separate collection of this waste helps to optimize the recovery and recycling of any reclaimable
materials and also reduces the impact on human health and on the environment.
For more information concerning the correct disposal of this product, please contact your local
authority or the retailer where this product was purchased.
NO!
Fig. 7

Stargel 4
- 11 - Stargel 4 - 2018/03 - Rev. 00
EN
2. GENERAL INFORMATION
2.1 GENERAL INFORMATION
2.1.1 Manufacturer identication data
The machine is provided with an identication plate with the manufacturer's data, machine type
and serial number assigned to it when it was manufactured.
2.1.2 Customer/user identication data
CUSTOMER:.....................................................................................................
ADDRESS:.........................................................................................................
TELEPHONE:....................................................................................................
Machine Serial No.:............................................................................................
Machine delivery date:.......................................................................................
Manual delivery date:.........................................................................................
2.1.3 Information on maintenance service
All operations of routine maintenance are here described in section “Maintenance”; any additional
operation requiring technicaloperation on the machine must be agreed upon with themanufacturer,
who will also examine the possibility of a factory technician eld operation.
2.1.4 Information for users
- The machine manufacturer can be contacted for any explanation and information about the
machine operation or any modications aimed at improving the machine's efciency.
- In case of need, please call the local distributor - or the manufacturer, if no distributor is
available in the country of the user.
- The manufacturer's service department is available for any information about operation, and
requests of spare parts and service.
- The manufacturer reserves the right to make any changes deemed necessary to the machine
described in this manual without prior notice.
- The descriptions and illustrations contained in this document are not binding.
- All copyrights on this manual belong to ICETEAM 1927.
Refr.
A
B
C
F
G
E
H
D I
Legend:
A Serial number
B Machine type
C Voltage
D Main-switch amperometric
value
E Gas type and weight
F Machine code
G Condensation
H Frequency
I Power input
J Rated current
K IP code
L Climate class
M Greenhouse effect gas quan-
tity

- 12 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
2.2 INFORMATION ABOUT THE MACHINE
2.2.1 General information
Counter-top machines intended to be used only in closed rooms and for commercial purposes such
as ice cream and pastry workshops, for ice cream, low-fat ice cream or fruit ice cream production.
The machines are equipped with an electronic control keypad to access all the functions.
STARGEL 4 manufacturers produce ice cream through its direct extraction.
ICETEAM 1927 recommends using high quality mix for ice cream production in order to satisfy
your customers, even the most demanding ones.
Any saving made to the prejudice of quality will surely result into a loss much bigger than the
saving itself.
Bearing in mind the above statements, please take heed of the following suggestions:
Choose high quality natural ingredients and create your own mix or buy it from trustworthy
suppliers.
Closely follow instructions given by your supplier for the preparation of mixes.
Do not alter your supplier's recipes, by adding, for instance, water or sugar.
 Taste your ice cream before serving and start selling only if it is entirely satisfactory.
Make sure your staff always keeps the machine clean.
Have your machine serviced always by companies authorized by ICETEAM 1927.
LEGEND:
1Control panel
2Cylinder spigot door
3Extractable tub support
4Drip tray
3
1
2
4

Stargel 4
- 13 - Stargel 4 - 2018/03 - Rev. 00
EN
2.2.2 Technical features
2.2.3 Machine layout
* The hourly production and the mix quantity for each ice cream can vary, according to the
temperature and the type of mix used and the increase in volume (over-run) desired.
** Other supply voltage ratings are available. For specic values, refer to the identication plate applied to the machine
and on the rst page of this manual.
MODEL
Hourly
production * Mix quantity for ice cream Power supply ** Installed power Condenser Dimensions cm Net weight
liters Min.
kg Max. kg Volt Hz Ph kW Width Depth Height kg
STARGEL 4 20/30 1.5 4 230 50 1 2.3 Air/Water 475 650 760 130
T
H
P

- 14 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
2.3 INTENDED USE
Stargel 4 models must only be used conforming with contents of paragraph 2.2.1 "General
Information", within the functional limits listed below.
Voltage:...........................................±10%
Min. air temperature in °C:.............10°C
Max. air temperature in °C: ............43°C
Min. water temperature: .................10°C
Max. water temperature:.................30°C
Min. water pressure: .......................1 bar (0.1 MPa)
Max. water pressure:.......................5 bar (0.5 MPa)
Max. air relative humidity: .............85%
- Any use of the machine non compliant with the intended use is not allowed.
2.4 NOISE
The equivalent continuous A-weighted sound pressure level in a workplace for water-cooled as
well as air-cooled machines is less than 70 dB(A).

Stargel 4
- 15 - Stargel 4 - 2018/03 - Rev. 00
EN
3 INSTALLATION
3.1 ROOM NECESSARY FOR MACHINE USE
The machine must be installed in such a way that air can freely circulate all around its sides.
Enough room must be left free around the machine, in order to enable the operator to act without
constraint and also to immediately leave working area, if necessary.
The minimum room for accessing the working area should be at least 150 cm, which takes into
account the space taken up by open doors, if any.
50 cm
20 in
10 cm
4 in
10 cm
4 in
150 cm
59 in
3.2 MACHINE WITH AIR-COOLED CONDENSER
Machines with air-cooled condenser must be installed at least 50 cm away from the top wall in
order to allow free air circulation around the condenser.
NOTE:
An insufcient air circulation affects operation and output capacity of the machine.
3.3 MACHINE WITH WATER-COOLED CONDENSER
Machines with water-cooled condenser must be installed no closer than 10 cm to side walls in
order to allow free air circulation around the condenser.
Machines tted with a water-cooled condenser need to be connected to running water supply or
to a cooling tower.
Water must have a pressure of 1 Bar (0.1 MPa) at least, and a ow rate at least equal to the
estimated hourly consumption foreseen.
Connect inlet pipe marked by plate “Water Inlet” to water supply installing a shut-off valve, and
outlet pipe marked by plate “Water Outlet” to a drain pipe, installing a shut-off valve.
WARNING
Machines must be installed with a suitable non-return valve in compliance with local
reference standards.

- 16 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
3.4 ELECTRICAL CONNECTIONS
The power supply system must comply with the national regulations in force in the place of
installation and provided with an efcient ground connection.
The manufacturer is not responsible for any malfunction or for injury to persons and/or damage
to property resulting from connection to a non-compliant electrical system.
The appliance must be installed according to the current regulations for electrical installation, by
competent and qualied technical personnel meeting the technical and professional requirements
provided for by the legislation in force in the country of installation.
Before connecting the machine to the mains, check that the mains characteristics meet those of
the machine specied in the identication plate applied to the machine itself.
Check that the power supply network is provided with a disconnection device, in compliance with
the installation rules, ensuring complete disconnection from the mains for each pole (differential
circuit breaker), in the conditions of overvoltage category III. The opening distance of contacts
must be at least 3 mm.
Check that the trip level of the differential circuit breaker is ≤ 30mA.
The machine is supplied with power cable; in case of three-phase machine with neutral, the blue
conductor of the power supply cable must be connected to the system neutral.
WARNINGS
The machine is tted with an electric supply cable including a yellow/green cable, which
MUST be connected to an appropriate grounding of the electric system.
3.4.1 Equipotential connection
Connection to external equipotential terminal is indicated by symbol .
It is present on the side or on the back of the machine, not to be connected to the protection ground.
The conductor to be used has a cross-section at least equivalent to the one of the connected con-
ductor with greatest cross-section.
3.4.2 Replacing the power cable
If the machine power cable is damaged, replace it immediately with a cable with the same features.
Replacement must be carried out by qualied personnel only.
Beater rotation
ForStargel 4 machines, the beater rotation relative to the freezing cycle section is counterclockwise.
3.3.1 Water valve adjustment
IMPORTANT:
If water valve must be reset, this operation shall be carried out by skilled personnel, only.
Valve adjustment must be carried out in such a way that no water ows when machine is off and
lukewarm water ows when machine is on.
NOTE:
Water consumption increases if temperature of inlet water is above 20 °C.
WARNING!
Do not leave the machine in a room with temperature below 0°C without rst draining
water from condenser circuit (see Sec. 7 of the manual).

Stargel 4
- 17 - Stargel 4 - 2018/03 - Rev. 00
EN
3.5 CLEANING
Eliminate dust from your machine and remove the protective product which was spread on it
before delivery.
Use a soft cloth and water, with addition of a mild soap-detergent if necessary.
WARNING
Avoid using solvents, alcohol or detergents that could damage
machine parts or pollute the functional production parts.
3.6 TOP-UPS
Motor installed in the machine is of the type with lubrication for life; no action of checking/
replacing or topping up is necessary.
Gas lling necessary to the circuit is carried out at ICETEAM 1927 factory during the machine
post production testing; top-ups or lling are not required if the machine is new.
If any gas top-up or lling becomes necessary, this must be made solely by qualied engineers,
able to determine the reason of such occurrence.
3.7 MACHINE TESTING
A post-production test is carried out on the machine at ICETEAM 1927 premises; the required
operational and production functions are inspected and veried.
Machine test at the end user's premises must be carried out by authorized technical personnel or
by one of ICETEAM 1927 engineers.
After positioning the machine and connecting it properly to the supply lines, proceed with the
operations related to the functional check and with the operating test of the machine.

- 18 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN

Stargel 4
- 19 - Stargel 4 - 2018/03 - Rev. 00
EN
4. INSTRUCTIONS FOR USE
4.1 MACHINE SAFETY WARNINGS
When using industrial equipment and plants, one must be aware of the fact that moving parts
(rotary motion), high voltage components, as well as parts subject to high temperatures, etc. may
cause serious damage to persons and things.
The persons in charge of safety must ensure that:
- Any incorrect use or handling is avoided
- Safety devices are not removed or tampered with
- The machine is regularly serviced
- Only original spare parts are used especially as far as those components with safety functions
are concerned (e.g.: protection microswitches, stop buttons, differential switches, etc.)
- Suitable personal protective equipment is used
- High care must be paid during hot product processing.
To achieve the above, the following is necessary:
- The use and maintenance manual relating to the machine is available at the working place.
- Such documentation must be carefully read and the instructions must be strictly followed.
- Only suitably skilled personnel should be assigned to electrical equipment. This appliance
is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
- Make sure that no technician will ever carry out interventions outside his/her own knowledge
and responsibility sphere;
- Children should be supervised to ensure that they do not play with the appliance.
4.1.1 Machine conguration
The machine has a motor to drive the beater, and a cooling system with water-cooled or air-cooled
condenser.
To make ice cream, feed mix into the cylinder and start the automatic production cycle, until ice
cream reaches the ideal consistency set by ICETEAM 1927; use the minimum and maximum
mix quantity for ice cream specied in the chart under paragraph 1.2.2. When the cycle ends,
the ice cream is ready to be extracted through the spigot door and dispensed directly into a tub.
WARNING
To make product extraction easier, only use the plastic spatula supplied. Never use metal
spatulas as these could damage the machine.
Finished
product
Mix

- 20 -
Stargel 4
Stargel 4 - 2018/03 - Rev. 00
EN
4.2 CONTROLS
4.2.1 Electronic control panel
The machine has an electronic control panel on the operator side; each button has a specic
symbol according to its function.
4.2.2 Operator functions
STOP Button
The machine is stopped in this mode and the display shows:
STOP
It is possible to access the other functions from this position.
STOP has priority over any other function.
MIXING SPEED CHANGE key (freezer)
By pressing the key
STOP
stargel 4
from Freezing, Extraction or Mixing, the Increase and
Decrease LEDs turn on. Press on the relevant keys to change Mixing speed.
STOP
stargel 4
STOP
stargel 4
STOP
stargel 4
INCREASE Button
This button increases the values that can be edited both for Programming and for
those functions where edits are permitted. The relevant LED turns on, indicating that
Increase function can be used.
DECREASE Button
This button decreases the values that can be edited both for Programming and for
those functions where edits are permitted. The relevant LED turns on, indicating that
Decrease function can be used.
From Stop, pressing and holding this button allows the user to run theAUTOSETUP
of processes, namely Set values (Consistency) are reset to their default values.
It is also used to reset alarm messages.
STOP
stargel 4
STOP
stargel 4
