iTALK TV KT-IH0932I Parts list manual

IPTV HD STB
【K
KT T- -I IH H0 09 93 32 2I I】

Usage Instructions

Contents
1 Package opening guidelines ............................................................. 4
2 Introduction of product ...................................................................... 6
2.1 Products and accessories ............................................................ 6
2.2 Front panel ................................................................................... 7
2.3 Rear panel.................................................................................... 8
2.4 Remote control button icon and function ...................................... 9
3 First usage ...................................................................................... 13
3.1 Preparing for installation............................................................. 13
3.2 Cable and power connection ...................................................... 14
3.3 Network settings......................................................................... 15
3.3.1 Fast connection：.................................................................. 16
3.3.2 Manual connection： ............................................................. 19
4 Introduction of function.................................................................... 29
4.1 Video playing.............................................................................. 29
4.2 Play/Pause ................................................................................. 30
4.3 Fast forward/Fast rewind ............................................................ 30
4.4 Stop/Back ................................................................................... 30
4.5 My box........................................................................................ 30
4.6 Personal ..................................................................................... 31
5 Dealing with problems..................................................................... 31
6 Safety guidelines............................................................................. 36
7 Technology index ............................................................................ 39
8 Product specifications ..................................................................... 41
9 Contact information ......................................................................... 41

1 Package opening guidelines
1 Before operating the machine, please make
sure that you have read the instructions
2 Do not open the lid by yourself, so as to
avoid electrical shock and damage.
3 When the machine is not used for a long time,
please unplug the power
4 Do not touch the power line with wet hands,
when the liquid flows into the machine, please
turn off the power immediately to avoid fire and
electrical shock.
5 Please install the machine in the ventilation
and no heat source environment.

6 Please put the machine horizontally to
avoid unnecessary damage.
7 When the machine is transferred between the
two places with large temperature difference,
please wait for 1 to 2 hours and then boot.
8 Please notice these when placing the
machine: the ventilation / temperature
suitable avoid direct light / water splashing,
avoid severe vibration.
9 Do not put heavy objects on this
machine.

2 Introduction of product
KT-IH0932I IPTV HD STB is a multi-function network intelligent
terminal, can provide functions including live TV, video on demand, etc.
2.1 Products and accessories
The following is the basic accessories we provide you with.
NO. Accessories Remark
1 KT-IH0932I HD STB 1
2 IR remote control
1
3 Network cable 1
4 AV video cable
1
5 Wireless WIFI stick 1
6 HDMI video cable
1
7 Power adapter 1

8 Usage instruction 1
Notice ：
This list of accessories is only for reference, please subject to the actual
packing list. If the accessories are lost or damaged, please contact your
dealer in time. Please take good care of packing box and all actual
accessories in order to replace your product.
2.2 Front panel
No. Name Function description
1 IR Infrared indicator light, light flashing indicates
the STB receives the remote control signal.
2 LINK Data indicator light, when the box connecting
the network cable, the light is green, or is red.
3 POWER Power indicator light, it is green when the
machine is working normally, and is red when
the machine standby.

2.3 Rear panel
No. Name Function description
1 Power DC 12V 1.5A power input
2 Network 10/100M Base-T, The opened Ethernet port or
Ethernet port or ADSL modem in the connected
indoor.
3 COAXIAL Digital coaxial
Video Composite video signal output port
Left sound
channel
Analog audio output L-left sound channel
4
Right
sound
channel
Analog audio output R-right sound channel
5 HDMI HD HDMI output port
6 USB USB2.0
7 WIFI port Wireless WIFI stick port

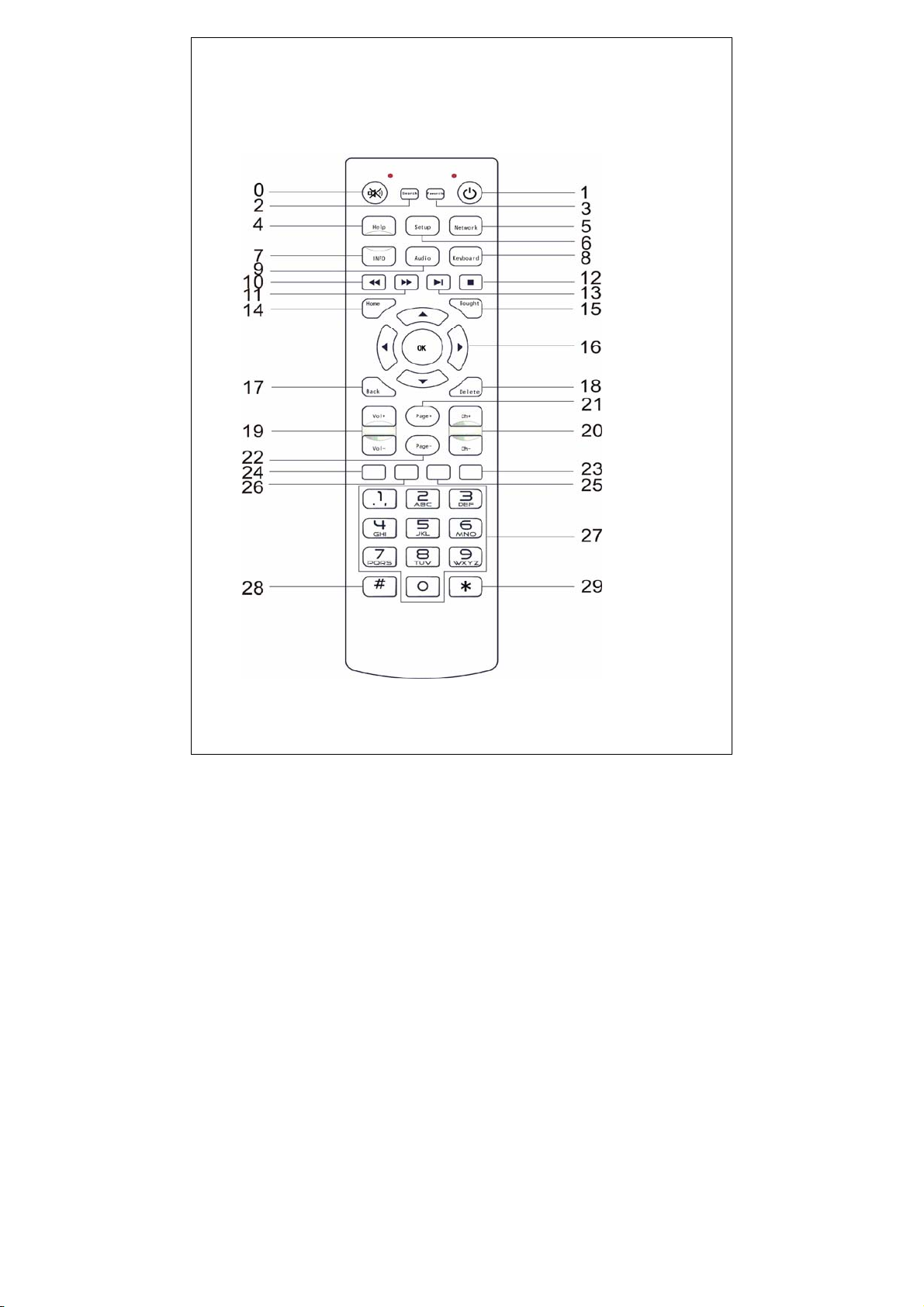

.4 Remote control button icon and function

No. Name Function description
0 Mute Turn on and off the sound
1 Power Switching between boot and standby mode
2 Search Press into the search page(Temporarily not
supporting this function)
3 Favorites Press into the favorites page(Temporarily
not supporting this function)
4 Help Press to open the help page (Temporarily
not supporting this function)
5 Network Press to open network settings page
6 Setup Press into the my box page
7 Information Press into the user information
page(Temporarily not supporting this
function)
8 Soft
keyboard
Press it to open the soft keyboard
9 Sound
channel
Switch the sound channel mode
(Temporarily not supporting this function)
10 Fast rewind Fast rewind on VOD programming
11 Fast forward Fast forward on VOD programming

No. Name Function description
12 Stop VOD: press to stop playing;
Channel live: press exit the channel
13 Play/Pause VOD: press the first time to pause, and
press again to start playing;
Channel live: press the first time to pause,
press again to start time-shifting playback;
for details, please refer to the screen
prompts
14 Home page The home page of TV listings
15 Bought Press into my order(Temporarily not
supporting this function)
16 Direction/
selection
Select direction, press OK key to confirm
17 Back Electronic program: back to previous page
VOD: back to selection page
18 Delete Clean up the entered numbers or character
19 Volume
Control
Control the volume up or down

No. Name Function description
20 Channel
Control
Press up key or down key to select the
channel
21 Page+ Page up
22 Page- Page down
23 Red Function key 1
24 Green Function key 2
25 Yellow Function key 3
26 Blue Function key 4
27 Number key To input the number and character
28 # To switch input method
29 * *

3 First usage
3.1 Preparing for installation
KT-IH0932I hardware installation requires the following
components：
A KT-IH0932I HD STB
A HDMI or AV cable
A IR remote control
A power adapter
A network cable or WIFI stick
One pair of AA batteries (The components we provide not
including this)

3.2 Cable and power connection
The power plug into a power outlet, For STB and TV connection,
please refer to the following figure.
Wired network connection：

Wireless network connection：
3.3 Network settings
The first usage of STB user need to set network, you can choose quick
connection or manual connection.

3.3.1 Fast connection：
1、Wired connection: You just connect the network cable to the STB
before switching on the box, the system can connect the internet
automatically after booting；
2、Wireless connection：

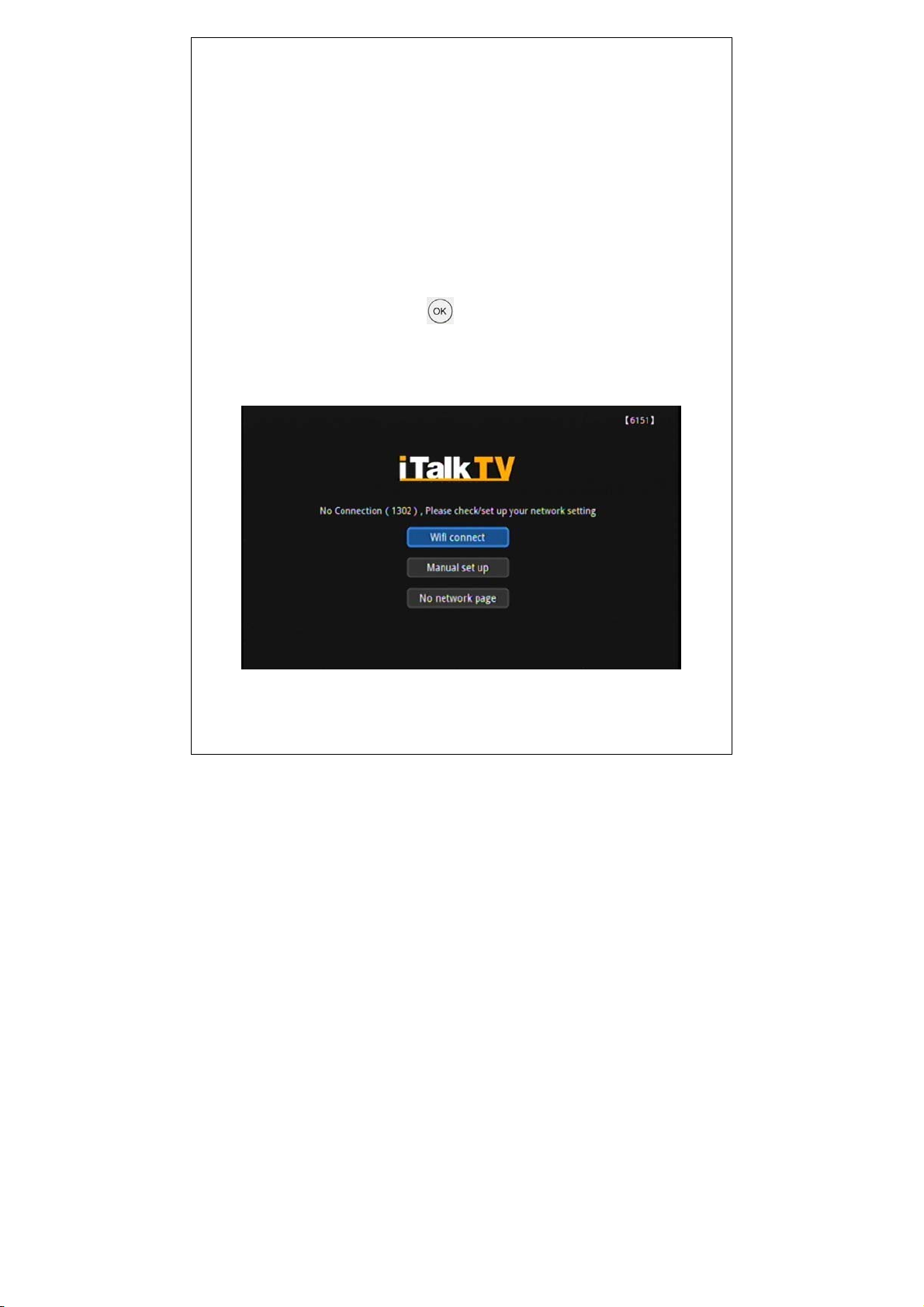

1) You can enter into the "Network settings" from the broken network
tip page or pressing the key on the remote control to select
"My box" on the home page (You can also go directly through the
"Network" key of remote control), and then select "WIFI connect"
option, such as figure 1,2.

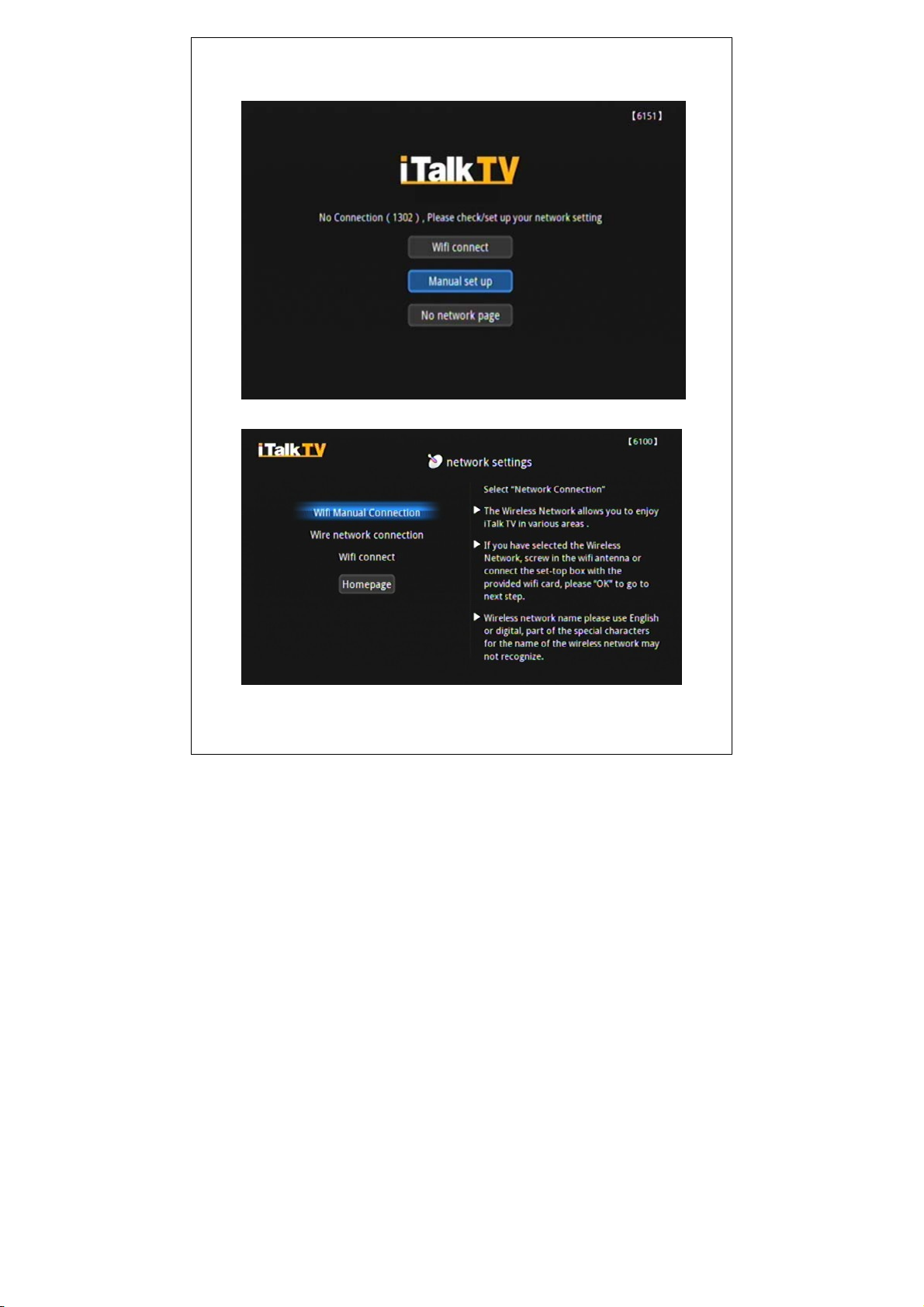

Figure 1：Broken network tip page

2) Select your wireless network：
Please select the your wireless network name from the list of wireless
networks (figure 3) the box searched out, then enter the password input
page through pressing the remote control key to select the "OK" option
(figure 4).
Figure 2：Network settings

3) Enter the selected wireless network password：
¾Click "Done" after entering the password you set, the system
will connect the network automatically.
¾About the wireless network password information, please
see the parameter settings of router you use.
Figure 3: Wireless network list page

3.3.2 Manual connection：
If you need to specify the IP address, manually specify the wireless
network, and other specify operations, please select "Manual set up".
You can enter into the "Network settings" through selecting "Manual set
up" on the broken network tip page or pressing the key on the
remote control to select "My box" of the home page (You can also
directly through pressing "Network" key of remote control such as figure
1, 2).
Figure 4：Password input page

Figure 2：Network setting home page
Figure 1: Broken network tip page
