itbe 3500001545 User manual

Perfectly
Funtional.
Assembly Guide
Model: 3500001545 / 3500001537
1000012209 - 15/03/2021
Easy Fit Floating Cabinet
2 Doors

Do not place the parts directly onto the loor.
Use a cardboard sheet or a mat to place the
parts, during the separation and assembly.
In order to ease the assembly, you should
separate and identify the parts irst
2
Tools Needed (not supplied)
STANLY
5/16”

IDENTIFICATION OF PARTS
3
P3
P4
P9
P8
P5
P1
P2
P7
P6
LEFT SIDE
RIGHT SIDE
LEFT DOOR
RIGHT DOOR
REAR
SHELF
CEILING
TOP BACK
BOTTOM BACK
P10
FRAME
P10
FRAME
Warning -
Maximum distributed weight supported.
Lbs
26 Lbs
26 Lbs
N°
DESCRIPTION BLACK MATTE WHITE MATTE BLUE MATTE ORANGE MATTE GREY MATERIAL LENGTH WIDTH THICKNESS
P1 LEFT SI DE 3000010377 3000010438 - - - STEEL 1 PC 25,31" 11,29'' 6,57''
P2 RIGHT SIDE 3000010376 3000010437 - - - STEEL 1 PC 25,31" 11,29'' 6,57''
P3 CEILING 3000010375 3000010436 - - - STEEL 1 PC 27,46'' 11,26'' 0,93''
P4 REAR 3000010374 3000010435 - - - STEEL 1 PC 27,52'' 10,92'' 1,25''
P5 SHELF 3000010373 3000010434 - - - STEEL 1 PC 27,52'' 10,39'' 0,59''
P6 TOP BACK 3000009215 3000009336 - - - STEEL 1 PC 26,46'' 11,85'' 0,65''
P7 BOTTOM BACK 3000009216 3000009337 - - - STEEL 1 PC 26,46'' 12,17'' 0,65''
P8 DOOR RI GHT - 3000009576 - 3000011196 3000009570 STEEL 1 PC 23,71'' 13,22'' 0,65''
P9 DOOR LEFT - 3000009578 - 3000011195 3000009572 STEEL 1 PC 23,71'' 12,93'' 0,65''
P10 FRAME 3000010372 3000010433 - - - STEEL 2 PC 3,91'' 27,54'' 0,59''
QUANTITY
IDENTIFY THE COLOR OF YOUR CABINET
DIMENSION

4
Assembled product:
H: W: L: 25.19’’ 27.55’’ 11.22’’
F8
3000004163
Qty. 4
Qty. 2
3000009645 - WHITE
3000009643 - BLACK
3000009649 - BLUE
3000009647 - GREY
F7
3000011192 - ORANGE
1000010136
Qty. 2
F6
1000012285
Qty. 4
F1
1000000281 - WHITE
1000007352 - BLACK
1000010221 - BLUE
1000012613 - ORANGE
Qty. 4
F4
3000008219
Qty. 1
F5
100000016
Qty. 4
F2
SCREW 1-49/64 in. X 3/16 in.
1000009033
Qty. 1
F3
HEXAGON 4mm

STEP 1
STEP 2
1 -
6
Attach the FRAMES on the LEFT SIDE and RIGHT SIDE
parts in the indicated direction.
Check the alignment of the holes on the fitted parts
1 -
LEFT SIDE
RIGHT SIDE
5
LEFT SIDE
RIGHT SIDE
FRAME
FRAME
Position the smooth face up.

STEP 3 1 -
With the end of F3, smash the safety claw, locking the
FRAMES to the LEFT SIDE and RIGHT SIDE.
F3
LEFT SIDE
RIGHT SIDE
STEP 4 Identify the cutout on the top end of the BOTTOM BACK part.
1 -
6
BOTTOM BACK
4x

BOTTOM BACK
67
STEP 5 1 -
Attach the BOTTOM BACK part on the LEFT SIDE, RIGHT
SIDE and FRAME parts.
2 -
Slide the BOTTOM BACK part to support on the LEFTand
RIGHT sides parts.
STEP 6
Attach the BOTTOM BACK part, on the LEFT SIDE,
RIGHT SIDE and FRAME parts.
1 -
BOTTOM BACK
F3
2 -
Slide BOTTOM BACK part to support on the LEFT and
RIGHT sides parts.
BOTTOM BACK
2x

STEP 7 1 -
Attach the joint of the front of the REAR part under
the BOTTOM BACK part.
2 -
Lower the REAR part as indicated.
REAR
STEP 8
Check all the fittings before moving forward.
1 -
REAR
8

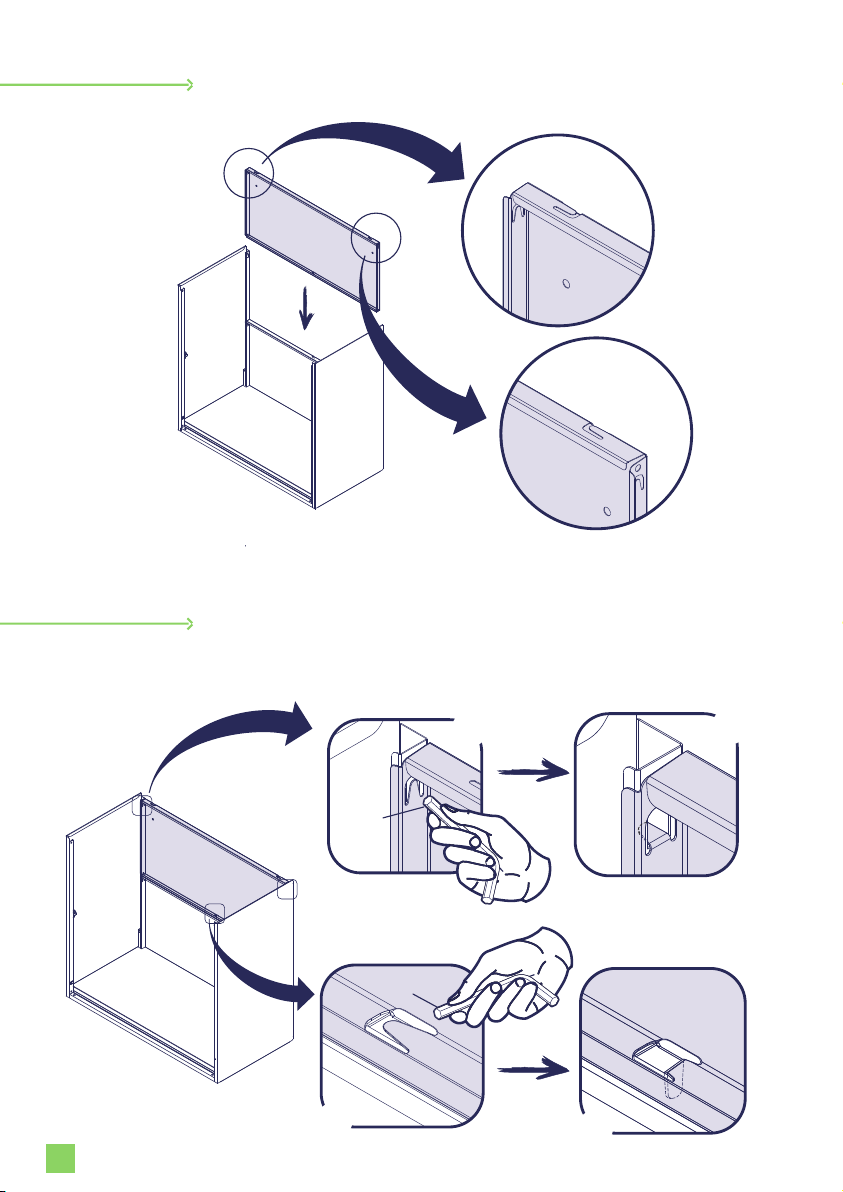

STEP 9 1 -
Attach the TOP BACK part with both cutouts facing up,
on theLEFT and RIGHT sides parts.
2 -
Attach the TOP BACK part onto the BOTTOM SIDE part.
TOP BACK
STEP 10
With the end of F3, smash the safety claw.
1 -
1x
2x
2x
F3
F3
TOP BACK
6
9
1x

CEILING
CEILING
STEP 11
Attach the CEILING part on the
LEFT and RIGHT sides parts.
1 -
Pull the front of the CEILING part.
2 -
10
ATTENTION! You may need assistance of
another person to complete this step.
The sides need to be hold in order to
attach the celling part as shown below.
2x
HELPER
CEILING

CEILING
STEP 12 With the end of F3, smash the safety claw, locking the
TOP BACK part to the CEILING part.
1 -
STEP 13
Slightly turn the SHELF part and place it inside the cabinet,
as indicated.
1 -
P5
SHELF
SHELF
SHELF
Check all the fittings before continuing.
2 -
6
11
2x 2x
2x
2x
2x
F3

STEP 14
0°
CABINET HEIGHT
5/16”
F5
F5
1X
Using the F5 template, make markings on the wall
as indicated.
1 -
It is necessary to use a level.
2 -
Drill the wall over the marked points.
3 -
STEP 15
12
Important - The Cabinet must be attached to the wall.
Use the cardboard template to make marks on the wall.
It is important to use a level.
2x
F2
F1
F1
2X
F2
2X
1 - Insert the bushing F1 into the hole.
2 - Insert screw F2 into the bushing.

11
STEP 16
STEP 17
613
1 -Fit the cabinet into the F2 screw.
0°
Align the cabinet with the use of a level.
1 -
Mark the wall through the holes in the bottom of the cabinet.
2 -
2x

STEP 19
STEP 18
14
1 -Move the cabinet away.
5/16”
2 - Drill the wall over the marked points.
F2
2X
F1
1 - Insert the bushing F1 into the hole.

STEP 20
STEP 21
615
1 - Position cabinet through the F2 screws that are already
2 - Insert screw F2 through part BACK.
attached to the wall.
3 -Turn the screw using the REAR part clockwise.
4x
F2
F1
2X
F4
4X
4x
F4
F2
Press the F4 parts against the heads of the F2 screws.
1 -

STEP 22
STEP 23
1 -Attach the F6 into the FRAME part.
2x
F6
F6
2X
16
Attach the F7 handle to the LEFT DOOR and
RIGHT DOOR as indicated below.
1 -
F7
2X
F7
F7
CLICK !
CLICK !
F7
F7
DOOR RIGHTDOOR LEFT

STEP 24
STEP 25
617
1 - Glue F8 to the RIGHT DOOR part in the indicated area.
F8
4X
RIGHT DOOR
LEFT DOOR
F8
2x
F8
2x
2 - Finish engaging part F8 through the pivoting wrench as shown below.
Attach the RIGHT DOOR to the right side of the enclosure on
parts F5 and FRAME.
1 -
F5
LEFT DOOR
RIGHT DOOR F5

18
Important - In order to avoid severe or even
fatal injuries, follow the instructions carefully.
