itbe 3500001553 User manual

Perfectly
Funtional.
Assembly Guide
Model: 3500001553 / 3500001565 / 3500001566
1000012239 - 08/09/2020
For Home Cabinet
3 Drawers

Do not place the parts directly onto the loor.
Use a cardboard sheet or a mat to place the
parts, during the separation and assembly.
In order to ease the assembly, you should
separate and identify the parts irst
2
Tools Needed (not supplied)

P6
TOP BACK
P5
BOTTOM BACK
P1
RIGHT SIDE
P2
LEFT SIDE
P4
REAR
P3
CEILING
55lb
P11
DRAWER FRONT
WITH LOCK
P8
DRAWER’S LEFT SIDE
P9
DRAWER’S BACK
P7
DRAWER’S RIGHT
SIDE
31lb
P10
DRAWER’S
BOTTOM
3
IDENTIFICATION OF PARTS
P12
DRAWER’S
FRONT
P8
DRAWER’S LEFT SIDE P9
DRAWER’S BACK
P7
DRAWER’S RIGHT
SIDE
31lb
P10
DRAWER’S
BOTTOM
P12
DRAWER’S
FRONT
P8
DRAWER’S LEFT SIDE P9
DRAWER’S BACK
P7
DRAWER’S RIGHT
SIDE
31lb
P10
DRAWER’S
BOTTOM
Warning - Maximum distributed weight supported.
Lbs
Nº
DESCRIPTION BLACK MATTE WHITE MATTE GREY MATERIAL LENGTH WIDTH THICKNESS
P1 RIGHT SIDE 3000010643 3000010563 - STEEL 1 PC 29,96'' 18,21'' 1,82''
P2 LEFT SI DE 3000010642 3000010562 - STEEL 1 PC 29,96'' 18,21'' 1,82''
P3 CEILING 3000010641 3000010561 - STEEL 1 PC 30,26'' 18,11'' 1,38''
P4 REAR 3000010640 3000010560 - STEEL 1 PC 30,26'' 18,11'' 1,38''
P5 BOTTOM BACK 3000010592 3000010469 - STEEL 1 PC 27,50'' 13,56'' 0,57''
P6 TOP BACK 3000010633 3000010539 - STEEL 1 PC 27,50" 13,56'' 0,57''
P7 DRAWER'S RIGHT SIDE - - 3000010672 STEEL 3 PC 16,14'' 6,79'' 0,73''
P8 DRAWER'S LEFT SI DE - - 3000010671 STEEL 3 PC 16,14'' 6,79'' 0,73''
P9 DRAWER'S BACK - - 3000010673 STEEL 3 PC 26,45'' 6,79'' 0,73''
P10 DRAWER'S BOTTOM - - 3000010669 STEEL 3 PC 26,41'' 16,22'' 0,40''
P11 DRAWER'S FRONT WITH LOCK 3000010647 - 3000010555 STEEL 1 PC 27,36'' 8,82'' 0,98''
P12 DRAWER'S FRONT 3000010646 - 3000010552 STEEL 2 PC 27,36'' 8,82'' 0,98''
QUANTITY
IDENTIFY THE COLOR OF YOUR CABINET
DIMENSION

Assembled product:
H: W: L:32.3’’ 30.3’’ 18.1’’
Hardware list
F18
1000011849
Qty. 57
F9
1000008368
Qty. 4
4
F13
1000011850
Qty. 1x
F15
1000010159
Qty. 1x
Locking nut, no key tightening required.
F1
1000011853
Qty. 24
SCREW M8X12
F2
1000011851
Qty. 24
NUT M8
HEXAGON 5mm
SCREW 4,8 X 9,5mm

STEP 1
STEP 2
6
1 -
Fit the REAR inside part LEF SIDE and RIGHT SIDE.
5
2 -
Align the two holes in the corners and screw F1 and F2 to it.
1 -
Fit the CELING inside part LEFT SIDE and RIGHT SIDE.
2 -
Align the two holes in the corners and screw F1 and F2 to it.
REAR
LEFT SIDE
RIGHT SIDE
REAR
LEFT SIDE
RIGHT SIDE
REAR
LEFT SIDE
RIGHT SIDE
8x
F2
8x
F1
8x
F2
8x
F1
12
CEILING
1
2

180°
180°

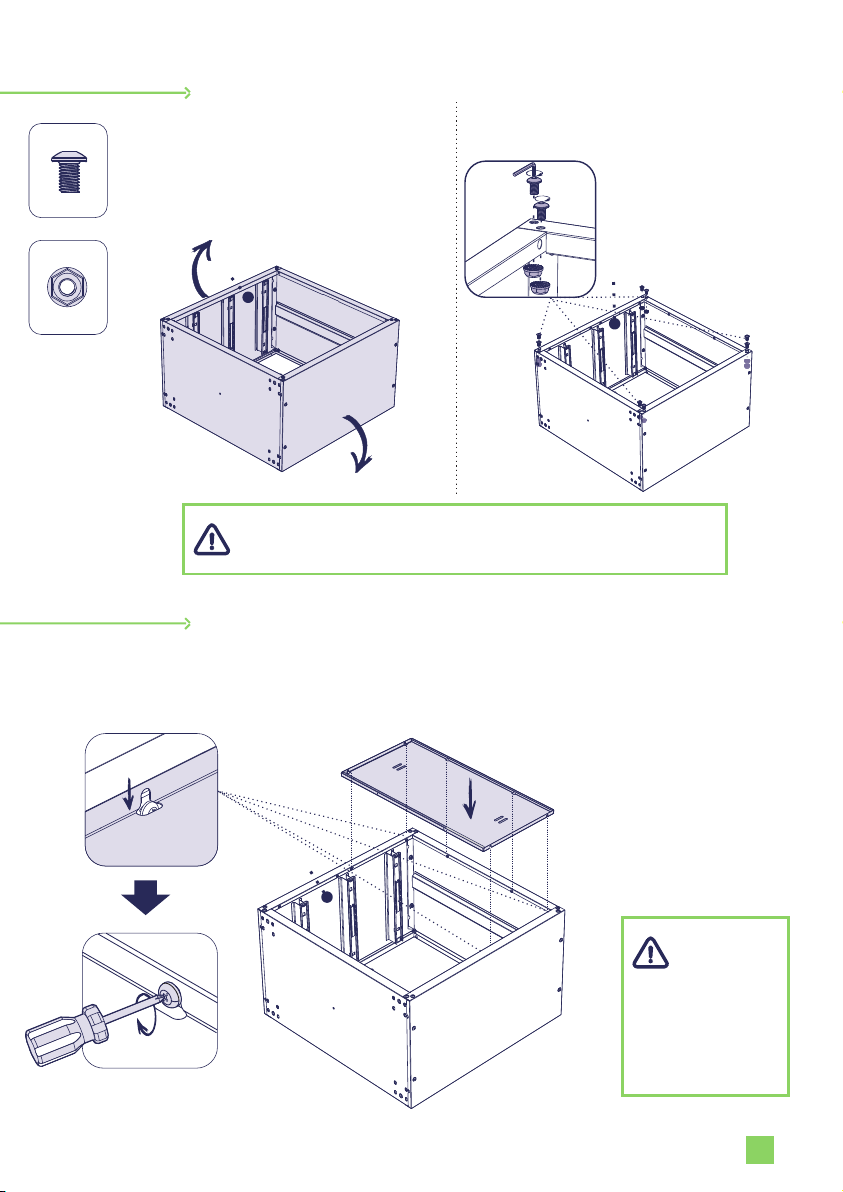

STEP 3
STEP 4
6
1 -
Turn the cabinet with the back
side upwards.
2 -
Align the holes and screw F1 and
F2 to it to each corners.
Check if all parts are correctly
positioned to ensure product alignment.
Important -
1 -
Fit the TOP BACK into the RIGHT SIDE, LEFT SIDE and
CEILING. Check if all parts are supported over the bolts holes.
2 -
After fitting the parts, screw the bolts until locked.
Position part P10
on the P5 side
to assemble
the cabinet.
Important
REAR
LEFT SIDE
RIGHT SIDE
CEILING
RIGHT SIDE
TOP BACK
RIGHT SIDE
8x
F2
8x
F1
REAR
LEFT SIDE
CEILING
LEFT SIDE
REAR
CEILING
2
1

STEP 5
STEP 6
6
1 -
Fit the BOTTOM BACK into the RIGHT SIDE, LEFT SIDE
and the REAR. Check if all parts are supported over the
bolts holes.
7
2 - After fitting the parts, screw the bolts until locked.
1 -
Screw the leveling leg F9 into each of the four rivet nuts
located at the corners of the cabinet as shown. To level the
height or the cabinet, turn the Leveling Leg either clockwise
or counterclockwise to align it.
LEFT SIDE
REAR
BOTTOM BACK
TOP
BACK
REAR
RIGHT SIDE
LEFT SIDE
CELING
2
1
4x
F9

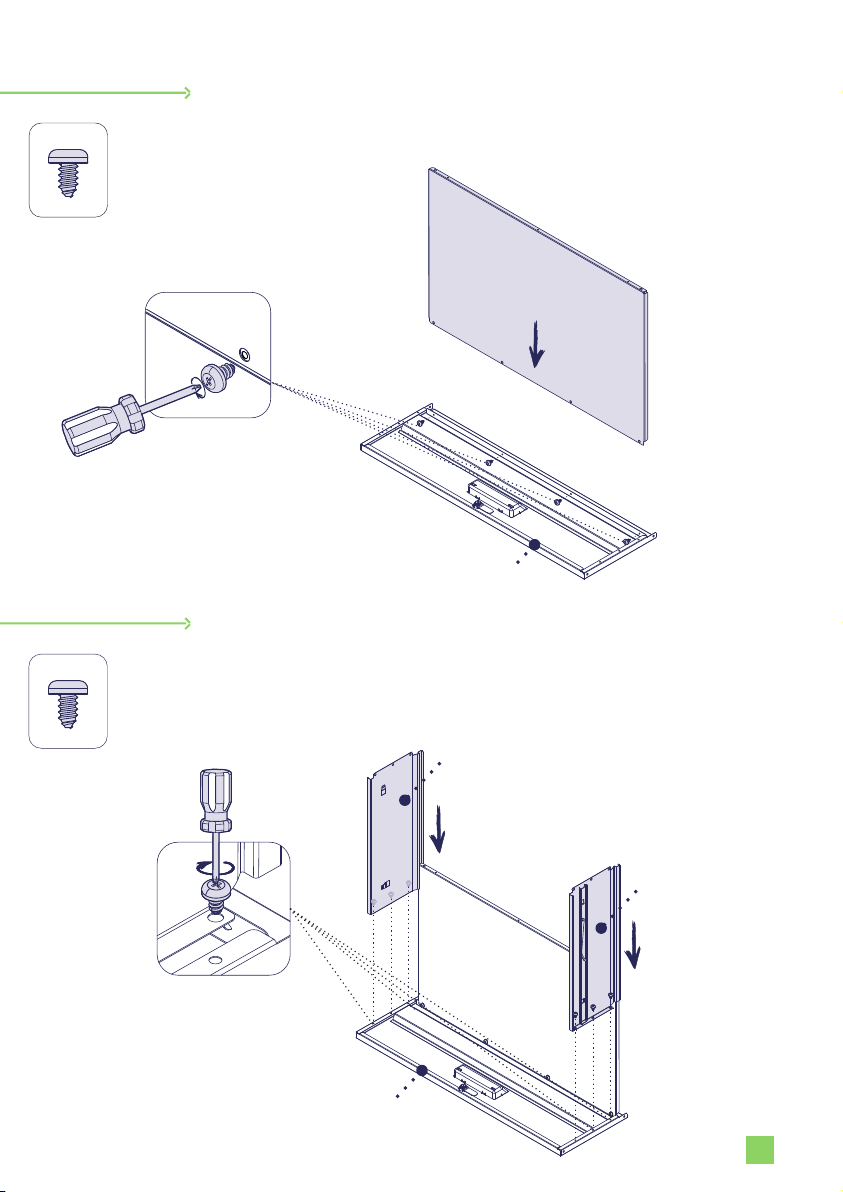

STEP 7
STEP 8
8
1 -
Fit the DRAWER’S BOTTOM in the DRAWER’S FRONT or
DRAWER’S FRONT WITH LOCK.
2 - Screw the two parts with F18.
1 -
Align the DRAWER´S RIGHT SIDE and DRAWER´S LEFT SIDE
to the DRAWER´S BOTTOM, until it fits the DRAWER´S
FRONT.
2 -
Screw them with F18.
4x
F18
DRAWER´S BOTTOM
DRAWER´S FRONT OR
DRAWER’S FRONT WITH LOCK
DRAWER´S RIGHT SIDE
DRAWER´S LEFT SIDE
DRAWER´S FRONT
DRAWER´S BOTTOM
6x
F18

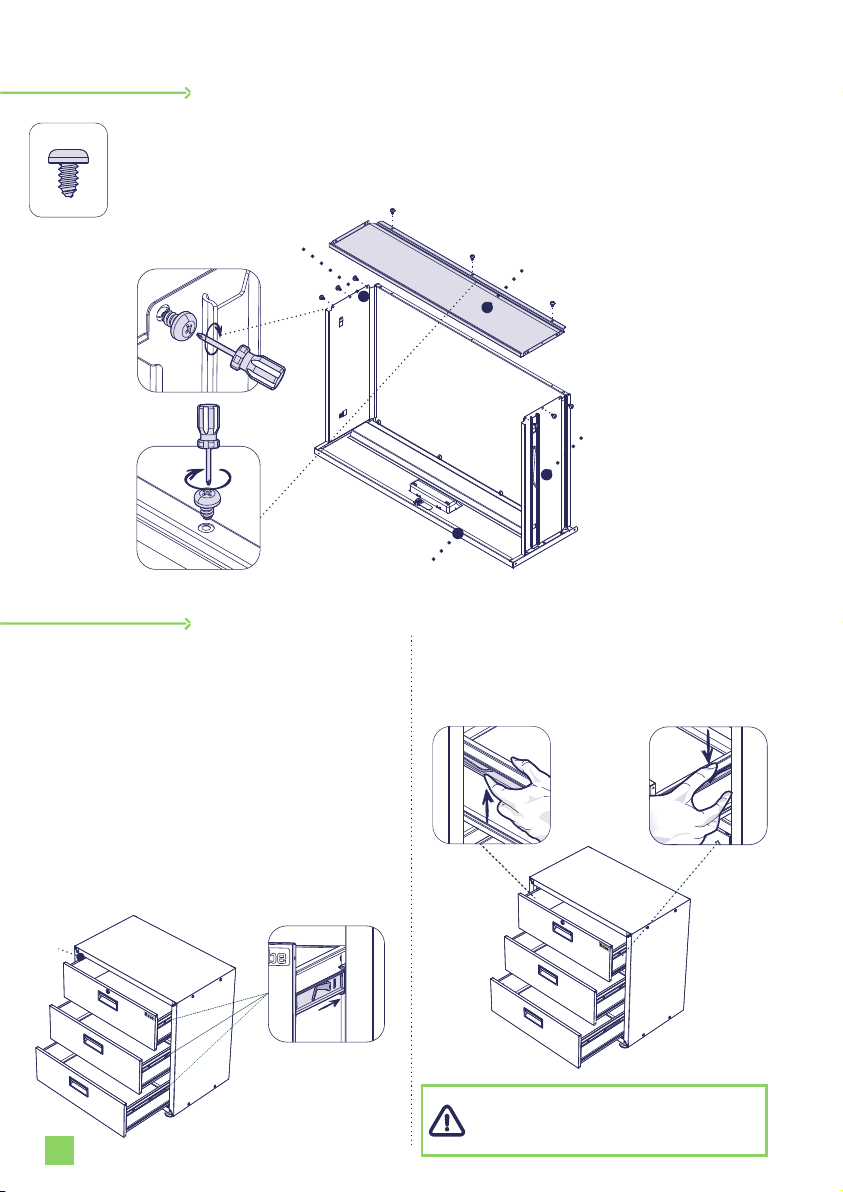

STEP 9
STEP 10
69
1 -
Fit the drawers - already assembled -
between parts SIDES, through the
drawer slides.
2 - The pocedure for removing the drawer
is illustrated above.
Important -
Repeat this steps to
assemble the other two
drawers.
2 -
Check if the drawer slides on both
sides are properly fitted. If they are not
properly fitted, the drawer will not close
completely. Slide the drawer in and out
totest it and be sure it is sliding
smoothly.
1 -
Insert the DRAWER´S BACK over the DRAWER´S BOTTOM
and between the DRAWER´S RIGHT SIDE and
DRAWER´S LEFT SIDE.
2 - Then, screw the DRAWER´S BACK to the DRAWER´S RIGHT
SIDE, DRAWER´S LEFT SIDE and DRAWER´S BOTTOM,
with F18.
RIGHT
SIDE
LEFT SIDE
CEILING
9x
F18
DRAWER´S RIGHT SIDE
DRAWER´S BOTTOM
DRAWER´S FRONT
DRAWER´S BACK
DRAWER´S LEFT SIDE
Left Right
