ITC DOSTEC-50 User manual

ENGLISH
DOSTEC-50

INDEX
1.-GENERAL DESCRIPTION 4
2.-UNPACKING AND STORAGE 5
3.-TECHNICAL FEATURES 6
4.-OPERATION 9
5.- INSTALLATION
General considerations 9
Electric connection 10
Hydraulic connection 11
General installation scheme 13
6.- START UP 14
7.- MAINTENANCE
Parts list Dostec piston 16
Parts list Dostec diaphragm 20
Periodical maintenance 24
Problems: causes and solutions 25
CE APPROVAL DECLARATION 26
WARRANTY 26
SAFETY RULES
To avoid personal or enviromental damages and to guarantee a proper
operation of the equipment, the staff in charge of the installation, set up and
maintenance of the equipment must follow the instructions of this manual,
specially those recommendations and warnings explicitly detailed. In addition,
specific instructions for the chemical products to be dosed should be followed.

INDEX
1.-GENERAL DESCRIPTION 4
2.-UNPACKING AND STORAGE 5
3.-TECHNICAL FEATURES 6
4.-OPERATION 9
5.- INSTALLATION
General considerations 9
Electric connection 10
Hydraulic connection 11
General installation scheme 13
6.- START UP 14
7.- MAINTENANCE
Parts list Dostec piston 16
Parts list Dostec diaphragm 20
Periodical maintenance 24
Problems: causes and solutions 25
CE APPROVAL DECLARATION 26
WARRANTY 26
SAFETY RULES
To avoid personal or enviromental damages and to guarantee a proper
operation of the equipment, the staff in charge of the installation, set up and
maintenance of the equipment must follow the instructions of this manual,
specially those recommendations and warnings explicitly detailed. In addition,
specific instructions for the chemical products to be dosed should be followed.

4 5
It is made up as follows:
Motor
Cylinder
Block
Regulator
Injection valve
1.- GENERAL DESCRIPTION
DOSTEC-50 dosing pumps are heavy duty, high precission, piston pumps for
dosing liquid products.
This series allows many injection possibilities depending on the head being
chosen. The available heads are from 330 to 1000 l/h for the piston series, and
from 207 to 870 l/h for the diaphragm series.
DOSTEC-50 dosing pumps are manufactured with materials that can resist
most chemicals products, even acids. They are designed for all sorts of
processes where it is necessary to dose a product into a hydraulic network,
such as: food, textile, chemical industry, water treatments, etc. (See materials
in Technical Features). In case there is any doubt about compatibility of
materials with the products to be used please contact ITC S.L. Technical
Service.
Dosing flow of each module is adjustable independently with no need to stop
the pump from 0% to 100% of its capacity.
Code formulation
2.- UNPACKING AND STORAGE
The original packing is prepared so that carriage and storing of the product do
not cause any damage to the product, as long as this is done far from heat
sources and in dry, ventilated spaces.
Inside packing we include:
- DOSTEC-50 dosing pump
- Handbook 3
- Oil (700cm )
Suction valve
L: 1HP 3 Ph
M: 1HP 2Ph
71 - L P 43 - P77 P P X
P : Piston
D : Diaphragm
1
2 : 7,5 mm
3 : 10 mm
4 : 15 mm
: 5 mm
P: PP - PEUHMW/PTFE
I :AISI316- AISI316/PTFE
F: PVDF - ---- / PTFE
T: PTFE - ---- / PTFE
A: PP - AISI316 / ----
P77: 77 mm Piston
P95: 95 mm Piston
P110: 110 mm Piston
D142: 142 mm Diaphragm
D163: 163 mm Diaphragm
ø
ø
ø
ø
ø
INJECCION DIAMETER MATERIAL
Cylinder - Piston/ Membrane
MOTOR
X: 1”1/4
Y: 1”1/4 NPT
CONNECTION
VALVE
Body - Ball
P: PP - Soda.
B: PP - Boro.
I: SS 316
F: PVDF - Boro.
T: PTFE - Boro.
3
4: 120 Stroke/min.
5: 144 Stroke/min.
: 60 Stroke/min.
FREQUENCY
HEAD STROKE

4 5
It is made up as follows:
Motor
Cylinder
Block
Regulator
Injection valve
1.- GENERAL DESCRIPTION
DOSTEC-50 dosing pumps are heavy duty, high precission, piston pumps for
dosing liquid products.
This series allows many injection possibilities depending on the head being
chosen. The available heads are from 330 to 1000 l/h for the piston series, and
from 207 to 870 l/h for the diaphragm series.
DOSTEC-50 dosing pumps are manufactured with materials that can resist
most chemicals products, even acids. They are designed for all sorts of
processes where it is necessary to dose a product into a hydraulic network,
such as: food, textile, chemical industry, water treatments, etc. (See materials
in Technical Features). In case there is any doubt about compatibility of
materials with the products to be used please contact ITC S.L. Technical
Service.
Dosing flow of each module is adjustable independently with no need to stop
the pump from 0% to 100% of its capacity.
Code formulation
2.- UNPACKING AND STORAGE
The original packing is prepared so that carriage and storing of the product do
not cause any damage to the product, as long as this is done far from heat
sources and in dry, ventilated spaces.
Inside packing we include:
- DOSTEC-50 dosing pump
- Handbook 3
- Oil (700cm )
Suction valve
L: 1HP 3 Ph
M: 1HP 2Ph
71 - L P 43 - P77 P P X
P : Piston
D : Diaphragm
1
2 : 7,5 mm
3 : 10 mm
4 : 15 mm
: 5 mm
P: PP - PEUHMW/PTFE
I :AISI316- AISI316/PTFE
F: PVDF - ---- / PTFE
T: PTFE - ---- / PTFE
A: PP - AISI316 / ----
P77: 77 mm Piston
P95: 95 mm Piston
P110: 110 mm Piston
D142: 142 mm Diaphragm
D163: 163 mm Diaphragm
ø
ø
ø
ø
ø
INJECCION DIAMETER MATERIAL
Cylinder - Piston/ Membrane
MOTOR
X: 1”1/4
Y: 1”1/4 NPT
CONNECTION
VALVE
Body - Ball
P: PP - Soda.
B: PP - Boro.
I: SS 316
F: PVDF - Boro.
T: PTFE - Boro.
3
4: 120 Stroke/min.
5: 144 Stroke/min.
: 60 Stroke/min.
FREQUENCY
HEAD STROKE

67
A B C D E F G H
415 460 230 241 204 210 212 122 mm
16.3 18 9 9.5 8 8.2 8.3 4.8 in
Piston
3.- TECHNICAL FEATURES
DIMENSIONS
A B C D E F G H
392 440 270 241 224 210 212 122 mm
15.4 17.3 10.6 9.5 8.8 8.2 8.3 4.8 in
D163
D142
Diaphragm
392 440 250 241 214 210 212 122 mm
15.4 17.3 9.8 9.5 8.4 8.2 8.3 4.8 in
l/h GPH bar PSI m ft
l/h GPH
FLOW 60Hz
71-LP33-P77 167 44 200 53 12 174 9 30
71-LP34-P77 250 66 300 79 12 174 9 30
71-LP33-P110 330 87 400 106 5,5 80 7 23
71-LP43-P77 330 87 400 106 12 174 9 30
71-LP34-P95 375 100 450 119 7,5 109 9 30
*71-LP53-P77 400 106 - - 12 174 9 30
71-LP34-P110 500 132 600 159 5,5 80 7 23
71-LP44-P77 500 132 600 159 11 160 9 30
*71-LP54-P77 600 159 - - 9 131 9 30
71-LP44-P95 750 198 900 238 7,5 109 8 26
*71-LP54-P95 900 238 - - 6 87 7 23
71-LP44-P110 1000 264 1200 317 5,5 80 5 16
*71-LP54-P110 1200 317 - - 4,5 65 3 10
FLOW 50Hz
PRESSURE
**Suction
lift
CODE
*Can not work at 60Hz
** Suction lift when dosing head an suction pipe are full. Tested with water at 20ºC
A
B
C
D
E
F
G
H
1”1/4
ELECTRIC CURRENT: As specified in the motor plate
POWER: 0.74 KW (1 Hp)
PROTECTION : IP-55
MATERIALS: PISTON: P.E.U.A.P.M. / PVDF / AISI 316
DIAPHRAGM: Elastomer base reinforced with fiber and
P.T.F.E clothing
RETENTION: FPM
CYLINDER: P.P. / PVDF / AISI 316
VALVE(body): P.P / PVDF / AISI 316
VALVE(ball) : glass / glass borosilicate / AISI 316
SHAFT: Aluminium
RING GEAR : Bronce
PINION: Steel
BLOCK: Aluminium cast
ECCENTRIC SHAFT: Steel
NOISE LEVEL dB(A): minor than 70
WEIGH: 21 Kg (46 lb)
71-LD31-D142 104-134 27-35 124- 160 33-42 10 145 9 30
71-LD32-D142 156-201 41-53 186- 241 49-64 10 145 9 30
71-LD33-D142 207-267 55-71 249- 321 66-85 10 145 9 30
*71-LD51-D142 249-321 66-85 - - 10 145 9 30
71-LD33-D163 260-342 69-90 312- 411 82-109 7 102 8 26
71-LD42-D142 311- 401 82-106 373- 481 99-127 10 145 9 30
71-LD43-D142 415-535 110- 141 498- 642 132-170 10 145 8 26
71-LD34-D163 435-522 115- 138 522- 627 138-166 5 73 8 26
*71-LD53-D142 510-642 135-170 - - 9 131 8 26
71-LD43-D163 520-685 137-181 624- 822 165-217 7 102 7 23
*71-AD53-D163 648-822 171-217 - - 6 87 5 16
71-AD44-D163 870-1045 230-276 1044-1254 276-331 5 73 4 13
*71-LD54-D163 1080-1254 285-331 - - 4 58 2 6
Piston
Diaphragm

67
A B C D E F G H
415 460 230 241 204 210 212 122 mm
16.3 18 9 9.5 8 8.2 8.3 4.8 in
Piston
3.- TECHNICAL FEATURES
DIMENSIONS
A B C D E F G H
392 440 270 241 224 210 212 122 mm
15.4 17.3 10.6 9.5 8.8 8.2 8.3 4.8 in
D163
D142
Diaphragm
392 440 250 241 214 210 212 122 mm
15.4 17.3 9.8 9.5 8.4 8.2 8.3 4.8 in
l/h GPH bar PSI m ft
l/h GPH
FLOW 60Hz
71-LP33-P77 167 44 200 53 12 174 9 30
71-LP34-P77 250 66 300 79 12 174 9 30
71-LP33-P110 330 87 400 106 5,5 80 7 23
71-LP43-P77 330 87 400 106 12 174 9 30
71-LP34-P95 375 100 450 119 7,5 109 9 30
*71-LP53-P77 400 106 - - 12 174 9 30
71-LP34-P110 500 132 600 159 5,5 80 7 23
71-LP44-P77 500 132 600 159 11 160 9 30
*71-LP54-P77 600 159 - - 9 131 9 30
71-LP44-P95 750 198 900 238 7,5 109 8 26
*71-LP54-P95 900 238 - - 6 87 7 23
71-LP44-P110 1000 264 1200 317 5,5 80 5 16
*71-LP54-P110 1200 317 - - 4,5 65 3 10
FLOW 50Hz
PRESSURE
**Suction
lift
CODE
*Can not work at 60Hz
** Suction lift when dosing head an suction pipe are full. Tested with water at 20ºC
A
B
C
D
E
F
G
H
1”1/4
ELECTRIC CURRENT: As specified in the motor plate
POWER: 0.74 KW (1 Hp)
PROTECTION : IP-55
MATERIALS: PISTON: P.E.U.A.P.M. / PVDF / AISI 316
DIAPHRAGM: Elastomer base reinforced with fiber and
P.T.F.E clothing
RETENTION: FPM
CYLINDER: P.P. / PVDF / AISI 316
VALVE(body): P.P / PVDF / AISI 316
VALVE(ball) : glass / glass borosilicate / AISI 316
SHAFT: Aluminium
RING GEAR : Bronce
PINION: Steel
BLOCK: Aluminium cast
ECCENTRIC SHAFT: Steel
NOISE LEVEL dB(A): minor than 70
WEIGH: 21 Kg (46 lb)
71-LD31-D142 104-134 27-35 124- 160 33-42 10 145 9 30
71-LD32-D142 156-201 41-53 186- 241 49-64 10 145 9 30
71-LD33-D142 207-267 55-71 249- 321 66-85 10 145 9 30
*71-LD51-D142 249-321 66-85 - - 10 145 9 30
71-LD33-D163 260-342 69-90 312- 411 82-109 7 102 8 26
71-LD42-D142 311- 401 82-106 373- 481 99-127 10 145 9 30
71-LD43-D142 415-535 110- 141 498- 642 132-170 10 145 8 26
71-LD34-D163 435-522 115- 138 522- 627 138-166 5 73 8 26
*71-LD53-D142 510-642 135-170 - - 9 131 8 26
71-LD43-D163 520-685 137-181 624- 822 165-217 7 102 7 23
*71-AD53-D163 648-822 171-217 - - 6 87 5 16
71-AD44-D163 870-1045 230-276 1044-1254 276-331 5 73 4 13
*71-LD54-D163 1080-1254 285-331 - - 4 58 2 6
Piston
Diaphragm

9
4.- OPERATION
The rotational motion of the motor is transmitted by the gear box that consists of
two major components, the pinion (A) and the ring gear (B). The pinion and the
ring gear are linked to an axis with an eccentric bearing (C) that pushes the shaft
(D) which is threaded to the diaphragm or the piston (E). The return movement is
made by the spring (F).
While the pump is running the stroke length can be regulated by the flow regulator
knob (G). It increase or reduce the discharge or suction’s strokes, either the piston
or the diaphragm, changing the injection flow. The dosing flow can be adjusted
between 0% and 100%.
The flow can be adjustable through an inverter, which will vary the engine speed of
the pump and will allow regulate the dosing flow between 10% and 100%.
DIAPHRAGM PUMP

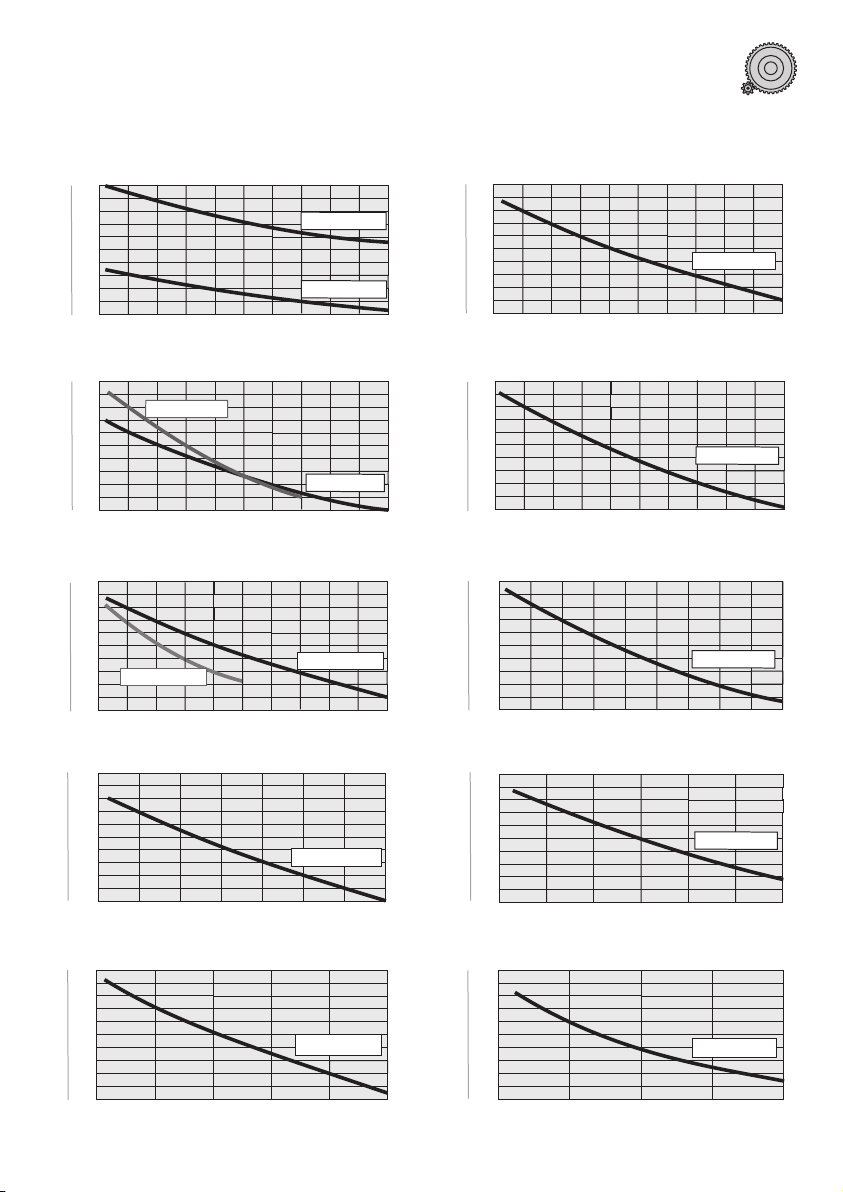

FLOW - PRESSURE GRAPHICS
212mm
122mm
4,8 in
8,3 in
5.- INSTALLATION
GENERALITIES
To install this pump it is advisable to choose places protected from water,
away from heat sources and with air renewal.
Place the pump vertically over a totally rigid surface to achieve a proper
lubrication of all inner elements. Anticipate which will be the room you will
need to comfortably do the basic maintenance and install / desinstall the
pump.
Fix the pump on the chosen
flat surface by means of 4
screws.
8
L/H
4
3
25Bars
1
400-
430-
460-
490-
520-
l/h
GPH
110-
115-
125-
130-
135-
58
43
29 72 PSI
14
550-
145-
9
8
710
6130
116101 145
87
L/H
4
3
25Bars
1
100-
120-
140-
160-
180-
l/h
58
43
29 72 PSI
14
200-
9
8
710
6130
116101 145
87
L/H
432 Bars
1
1050-
1100-
1150-
1200-
1250-
l/h
GPH
5843
29 PSI
14
1300-
71LD54-D163
L/H
4
3
25Bars
1
200-
215-
230-
245-
260-
l/h
GPH
135-
140-
160-
155-
165-
58
43
29 72 PSI
14
275-
170-
71-LD33-D142
9
8
710
6130
116101 145
87
71-LD31-D142
71-LD32-D142
L/H
4
3
25Bars 1
600-
700-
650-
l/h
58
43
29 72 PSI
14
850-
6
87
750-
71LD53-D163
L/H
4
3
25Bars
1
260-
300-
320-
l/h
58
43
29 72 PSI
14
340-
9
8
710
6130
116101 145
87
71LD51-D142
280-
71LD33-D163
800-
71LD34-D163
71LD43-D142
Bars
l/h
640 -
680 -
720 -
6
5
43
27
1
560 -
600 -
520 -
GPH
170-
180-
190-
150-
160-
140-
PSI
87
72
5843
29 101
14
71LD43-D163
L/H
432 5 Bars 1
860-
900-
940-
980-
l/h
GPH
230-
240-
250-
260-
270-
5843
29 72PSI 14
1060-
280-
71LD44-D163
L/H
4
3
25Bars
1
310-
350-
330-
l/h
58
43
29 72 PSI
14
410-
9
8
710
6130
116101 145
87
370-
71LD42-D142
390-
L/H
4
3
25Bars
1
500-
560-
530-
l/h
58
43
29 72 PSI
14
650-
98
7
6
130
116
101
87
590-
71LD53-D142
620-
GPH
66-
74-
78-
82-
86-
90-
GPH
27-
32-
37-
42-
47-
52-
70-70-
GPH
52,5-
56,5-
60,5-
64,5-
68,5-
72.5-
GPH
85-
90-
95-
100-
105-
150-
145-
140-
120-
105-
GPH
210-
220-
170-
180-
160-
GPH
280-
300-
310-
320-
330-
340-
200-
190-
290-
1020-
B
E
FA
D
G
C

9
4.- OPERATION
The rotational motion of the motor is transmitted by the gear box that consists of
two major components, the pinion (A) and the ring gear (B). The pinion and the
ring gear are linked to an axis with an eccentric bearing (C) that pushes the shaft
(D) which is threaded to the diaphragm or the piston (E). The return movement is
made by the spring (F).
While the pump is running the stroke length can be regulated by the flow regulator
knob (G). It increase or reduce the discharge or suction’s strokes, either the piston
or the diaphragm, changing the injection flow. The dosing flow can be adjusted
between 0% and 100%.
The flow can be adjustable through an inverter, which will vary the engine speed of
the pump and will allow regulate the dosing flow between 10% and 100%.
DIAPHRAGM PUMP
FLOW - PRESSURE GRAPHICS
212mm
122mm
4,8 in
8,3 in
5.- INSTALLATION
GENERALITIES
To install this pump it is advisable to choose places protected from water,
away from heat sources and with air renewal.
Place the pump vertically over a totally rigid surface to achieve a proper
lubrication of all inner elements. Anticipate which will be the room you will
need to comfortably do the basic maintenance and install / desinstall the
pump.
Fix the pump on the chosen
flat surface by means of 4
screws.
8
L/H
4
3
25Bars
1
400-
430-
460-
490-
520-
l/h
GPH
110-
115-
125-
130-
135-
58
43
29 72 PSI
14
550-
145-
9
8
710
6130
116101 145
87
L/H
4
3
25Bars
1
100-
120-
140-
160-
180-
l/h
58
43
29 72 PSI
14
200-
9
8
710
6130
116101 145
87
L/H
432 Bars
1
1050-
1100-
1150-
1200-
1250-
l/h
GPH
5843
29 PSI
14
1300-
71LD54-D163
L/H
4
3
25Bars
1
200-
215-
230-
245-
260-
l/h
GPH
135-
140-
160-
155-
165-
58
43
29 72 PSI
14
275-
170-
71-LD33-D142
9
8
710
6130
116101 145
87
71-LD31-D142
71-LD32-D142
L/H
4
3
25Bars 1
600-
700-
650-
l/h
58
43
29 72 PSI
14
850-
6
87
750-
71LD53-D163
L/H
4
3
25Bars
1
260-
300-
320-
l/h
58
43
29 72 PSI
14
340-
9
8
710
6130
116101 145
87
71LD51-D142
280-
71LD33-D163
800-
71LD34-D163
71LD43-D142
Bars
l/h
640 -
680 -
720 -
6
5
43
27
1
560 -
600 -
520 -
GPH
170-
180-
190-
150-
160-
140-
PSI
87
72
5843
29 101
14
71LD43-D163
L/H
432 5 Bars 1
860-
900-
940-
980-
l/h
GPH
230-
240-
250-
260-
270-
5843
29 72PSI 14
1060-
280-
71LD44-D163
L/H
4
3
25Bars
1
310-
350-
330-
l/h
58
43
29 72 PSI
14
410-
9
8
710
6130
116101 145
87
370-
71LD42-D142
390-
L/H
4
3
25Bars
1
500-
560-
530-
l/h
58
43
29 72 PSI
14
650-
98
7
6
130
116
101
87
590-
71LD53-D142
620-
GPH
66-
74-
78-
82-
86-
90-
GPH
27-
32-
37-
42-
47-
52-
70-70-
GPH
52,5-
56,5-
60,5-
64,5-
68,5-
72.5-
GPH
85-
90-
95-
100-
105-
150-
145-
140-
120-
105-
GPH
210-
220-
170-
180-
160-
GPH
280-
300-
310-
320-
330-
340-
200-
190-
290-
1020-
B
E
FA
D
G
C

10
Min.
Max.
BLOCK
Oil list:
CEPSA SAE80W90
REPSOL EP 80W/90
SHELL SPIRLAXHD OIL 80W/90
ESSO GEAR OIL 80W/90
AGIP ROTRA MP 80W-90
MOBILUDE HD 80W-90
BP ENERGEAR HT 80W-90
CATROL HYPOYC
GULF GEAR MP SAE 80W 90
ELF TRANSGEAR HD 80W-90
Pull out the oil cap for transport , fill the pump with the SAE oil 80W90 being
supplied (or similar oil), up to the level shown on the screen and put on the
working cap (black with a hole).
Approximate oil contents 3 650 cm
ELECTRICAL CONNECTION
The electric protection of the motor must be installed and adjusted
following its nominal instensity (overloaded switch disjuntor). (See
wiring).
A disconnection dispositive must be installed in case of emergency.
The equipment must be protected to avoid untimely sudden starts.
11
ON
OFF
MOLDED CASE CIRCUIT BREAKER
(MCCB)
UVW
V1
W1
U1
230 V 400 V
V1
W1
U1
3,4 Amp 2 Amp
ON
OFF
L
N
THREE-PHASE CONNECTION (50/60 Hz)
To work at 230 V we will plug the motor in triangle. Installing a protection.
To work at 400 V it will be a star connection. Installing a protection.
SINGLE PHASE CONNECTION
To work at 230 V single-phase at 50 Hz we will connect directly the motor wire to
the adequate protection. To work at 60 Hz we will connect the connection box
plates as shown in the drawing.
MOLDED CASE CIRCUIT BREAKER
(MCCB)
230 VAC (50 Hz)
N
L
5,3 Amp.
W1
V1
U2
V2
W2
U1

10
Min.
Max.
BLOCK
Oil list:
CEPSA SAE80W90
REPSOL EP 80W/90
SHELL SPIRLAXHD OIL 80W/90
ESSO GEAR OIL 80W/90
AGIP ROTRA MP 80W-90
MOBILUDE HD 80W-90
BP ENERGEAR HT 80W-90
CATROL HYPOYC
GULF GEAR MP SAE 80W 90
ELF TRANSGEAR HD 80W-90
Pull out the oil cap for transport , fill the pump with the SAE oil 80W90 being
supplied (or similar oil), up to the level shown on the screen and put on the
working cap (black with a hole).
Approximate oil contents 3 650 cm
ELECTRICAL CONNECTION
The electric protection of the motor must be installed and adjusted
following its nominal instensity (overloaded switch disjuntor). (See
wiring).
A disconnection dispositive must be installed in case of emergency.
The equipment must be protected to avoid untimely sudden starts.
11
ON
OFF
MOLDED CASE CIRCUIT BREAKER
(MCCB)
UVW
V1
W1
U1
230 V 400 V
V1
W1
U1
3,4 Amp 2 Amp
ON
OFF
L
N
THREE-PHASE CONNECTION (50/60 Hz)
To work at 230 V we will plug the motor in triangle. Installing a protection.
To work at 400 V it will be a star connection. Installing a protection.
SINGLE PHASE CONNECTION
To work at 230 V single-phase at 50 Hz we will connect directly the motor wire to
the adequate protection. To work at 60 Hz we will connect the connection box
plates as shown in the drawing.
MOLDED CASE CIRCUIT BREAKER
(MCCB)
230 VAC (50 Hz)
N
L
5,3 Amp.
W1
V1
U2
V2
W2
U1

12 13
Recomendations for correct installation
Ø
L
L
Long discharge pipe: L>5m (16 ft)
Ø
Long suction pipe: L>2m (6.5ft)
Air in sutcion pipe
Siphon
** Pulsation dampener
h
p>h
*
* Spring check valve
*
* Anti siphon valve
RECOMENDED PIPE SIZE
RECOMENDED PIPE SIZE
SUCTION PIPE
DISCHARGE PIPE
Øint L < 5 m
30 800 500
40 1000 800
50 850
60 900
70
Q max (l/h)
L < 2 m
Øint L < 2 m L < 10 m
30 1000
40 400
50 600
60
Q max (l/h)
1000
1000

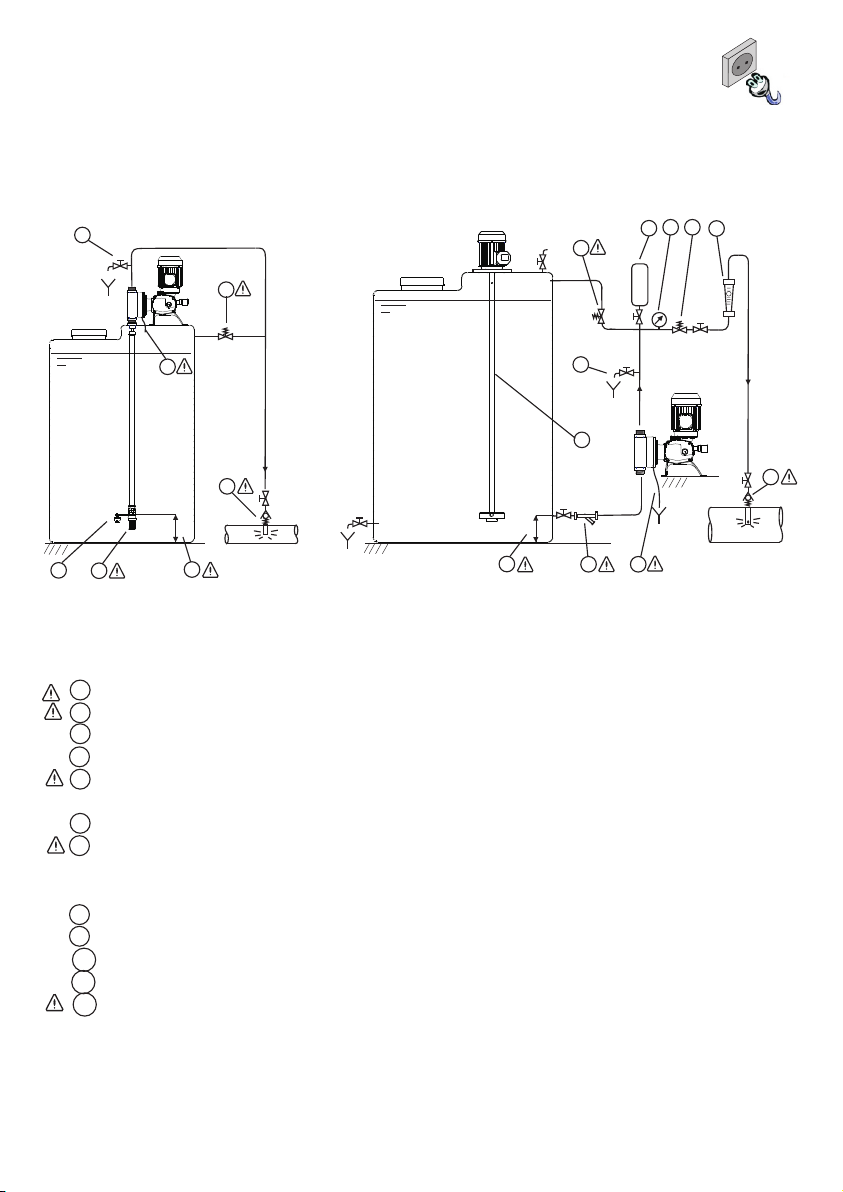

HYDRAULIC INSTALLATION
Installation examples
7
12
h
1
2
5
6
3
4
h
8910 11
125
6
7
12
1
2 Filter. It is important to install a filter (150 micron) in the suction pipe.
3 Level sensor
4 Agitator
5 Make sure to collect any liquid leakage from the cylinder’s vent/drain hole
in a proper container.
6 Prime valve / drain valve
7 Safety relief valve.Install a safety valve in a derivation as near as possible
from the pump, in order to protect it and the whole installation from possible
over-pressures. This derivation must derive liquid to a safe place.
8 Pulsation dampener
9 Pressure gauge
10 Pressure regulating valve
11 Flowmeter
12 Injection check valve
Avoid suctioning the undiluted particles from the bottom of the tank.

12 13
Recomendations for correct installation
Ø
L
L
Long discharge pipe: L>5m (16 ft)
Ø
Long suction pipe: L>2m (6.5ft)
Air in sutcion pipe
Siphon
** Pulsation dampener
h
p>h
*
* Spring check valve
*
* Anti siphon valve
RECOMENDED PIPE SIZE
RECOMENDED PIPE SIZE
SUCTION PIPE
DISCHARGE PIPE
Øint L < 5 m
30 800 500
40 1000 800
50 850
60 900
70
Q max (l/h)
L < 2 m
Øint L < 2 m L < 10 m
30 1000
40 400
50 600
60
Q max (l/h)
1000
1000
HYDRAULIC INSTALLATION
Installation examples
7
12
h
1
2
5
6
3
4
h
8910 11
125
6
7
12
1
2 Filter. It is important to install a filter (150 micron) in the suction pipe.
3 Level sensor
4 Agitator
5 Make sure to collect any liquid leakage from the cylinder’s vent/drain hole
in a proper container.
6 Prime valve / drain valve
7 Safety relief valve.Install a safety valve in a derivation as near as possible
from the pump, in order to protect it and the whole installation from possible
over-pressures. This derivation must derive liquid to a safe place.
8 Pulsation dampener
9 Pressure gauge
10 Pressure regulating valve
11 Flowmeter
12 Injection check valve
Avoid suctioning the undiluted particles from the bottom of the tank.

14
6.- START UP AND REGULATION
STAND: Check that the pump is properly installed in its stand.
OIL: Take off re-filling lid and fill the pump with the provided oil:
SAE 80 W 90 or equivalent.
Check the oil level shown on the oil peep hole
Lubricants list:
CEPSA SAE 80W 90
REPSOL EP 80W/90
SHELL SPIRLAX HD OIL 80W/90
ESSO GEAR OIL 80W/90
AGIP ROTRA MP 80W-90
MOBILUDE HD 80W-90
BP ENERGEAR HT 80W-90
CASTROL HYPOYC
GULF GEAR MP SAE 80W 90
ELF TRANSGEAR HD 80W-90
CHECKING THE HYDRAULIC CIRCUIT: Check that all valves are
opened and that escapes from priming valves derive the liquid to a
proper receptacle.
ROTARY DIRECTION: Start up the pump to check that the rotary
direction coincides with the one shown by the arrow. To change rotary
direction invert two phases in the motor terminals box.
CHECKING OF PUMP: Check visually/auditorilly the proper working
of the pump.
15
A
B
DOSING FLOW
Through the micrometic regulator ,we will adjust the dosing flow from 0 to 100%
depending on the wished value. It is not advisable a regulation under 10%.
In order to check the dosing flow:
1.- Prime the pump immersing the suction pipe in a graduated receptacle (A).
2.- Mark in the receptacle the liquid level.
3.- Start up the pump and pour a known volume (V) of measured liquid in a
second receptacle (B).
4.- Measure the time (t) that goes between the start up of the pump and the
precise instant in which the liquid reaches the level of the mark receptacle A.
5.- The dosed flows corresponds to:
Q(l/h) = V (liters) / t (seconds) x 3600
91011
12
1
2
3
4
5
678
91011
12
1
2
3
4
5
678

14
6.- START UP AND REGULATION
STAND: Check that the pump is properly installed in its stand.
OIL: Take off re-filling lid and fill the pump with the provided oil:
SAE 80 W 90 or equivalent.
Check the oil level shown on the oil peep hole
Lubricants list:
CEPSA SAE 80W 90
REPSOL EP 80W/90
SHELL SPIRLAX HD OIL 80W/90
ESSO GEAR OIL 80W/90
AGIP ROTRA MP 80W-90
MOBILUDE HD 80W-90
BP ENERGEAR HT 80W-90
CASTROL HYPOYC
GULF GEAR MP SAE 80W 90
ELF TRANSGEAR HD 80W-90
CHECKING THE HYDRAULIC CIRCUIT: Check that all valves are
opened and that escapes from priming valves derive the liquid to a
proper receptacle.
ROTARY DIRECTION: Start up the pump to check that the rotary
direction coincides with the one shown by the arrow. To change rotary
direction invert two phases in the motor terminals box.
CHECKING OF PUMP: Check visually/auditorilly the proper working
of the pump.
15
A
B
DOSING FLOW
Through the micrometic regulator ,we will adjust the dosing flow from 0 to 100%
depending on the wished value. It is not advisable a regulation under 10%.
In order to check the dosing flow:
1.- Prime the pump immersing the suction pipe in a graduated receptacle (A).
2.- Mark in the receptacle the liquid level.
3.- Start up the pump and pour a known volume (V) of measured liquid in a
second receptacle (B).
4.- Measure the time (t) that goes between the start up of the pump and the
precise instant in which the liquid reaches the level of the mark receptacle A.
5.- The dosed flows corresponds to:
Q(l/h) = V (liters) / t (seconds) x 3600
91011
12
1
2
3
4
5
678
91011
12
1
2
3
4
5
678

16 17
DOSTEC-50 Piston
61801-P/F/I
61802-P/F/I
*61353 (Boro.)
61803-P/F/I
61808(FPM)
61-011-P/F/I
*61-885-P (Boro.)
61801-P/F/I
61802-P/F/I
61302 (Vidrio)
61803-P/F/I
61808(FPM)
61808(FPM)
61-010-P/F/I
*61-875-P (Boro.)
61302 (Vidrio)
*61353 (Boro.)
61-880-P (NPT) 61-870-P (NPT)
61807-P (NPT)
61807-P(NPT)
66344(x4)
62451
71309(x4)
71308
71306
62166(x4)
62129
61336
61337
71-031
64310
28010 (3ph)
28012 (1ph)
71304
62352(x4)
71139
71107(2c/min)
71137(1c/min)
(2,4c/min)
71-015(c15-7,5)
71-016(c10-5)
71310
71303
71105(15mm)
71104(10mm)
71156(7,5mm)
71155(5mm)
71311 71310 71307 71102
71313(x4)
60300
60301
66334
66344
60109
71112(c10-5)
60314 71-030 (c15-7,5)
71-029 (c10-5)
60315
71111(c15-7,7)
60333
62166(x4)
71138
71106(2c/min)
71136(1c/min)
(2,4c/min)
71124
61-131-/C
61-134-/C (P95)
61-136-/C (P77)
(P110)
71130.1-P
71131.1-P (P95)
71132.1-P (P77)
(P110)
71123
61137
61138 (P95)
63424 (P77)
(P110)
61-010-P/F
61-875-P
71322 (x6)
61-011-P/F
61-855-P
71129
71314
64412

16 17
DOSTEC-50 Piston
61801-P/F/I
61802-P/F/I
*61353 (Boro.)
61803-P/F/I
61808(FPM)
61-011-P/F/I
*61-885-P (Boro.)
61801-P/F/I
61802-P/F/I
61302 (Vidrio)
61803-P/F/I
61808(FPM)
61808(FPM)
61-010-P/F/I
*61-875-P (Boro.)
61302 (Vidrio)
*61353 (Boro.)
61-880-P (NPT) 61-870-P (NPT)
61807-P (NPT)
61807-P(NPT)
66344(x4)
62451
71309(x4)
71308
71306
62166(x4)
62129
61336
61337
71-031
64310
28010 (3ph)
28012 (1ph)
71304
62352(x4)
71139
71107(2c/min)
71137(1c/min)
(2,4c/min)
71-015(c15-7,5)
71-016(c10-5)
71310
71303
71105(15mm)
71104(10mm)
71156(7,5mm)
71155(5mm)
71311 71310 71307 71102
71313(x4)
60300
60301
66334
66344
60109
71112(c10-5)
60314 71-030 (c15-7,5)
71-029 (c10-5)
60315
71111(c15-7,7)
60333
62166(x4)
71138
71106(2c/min)
71136(1c/min)
(2,4c/min)
71124
61-131-/C
61-134-/C (P95)
61-136-/C (P77)
(P110)
71130.1-P
71131.1-P (P95)
71132.1-P (P77)
(P110)
71123
61137
61138 (P95)
63424 (P77)
(P110)
61-010-P/F
61-875-P
71322 (x6)
61-011-P/F
61-855-P
71129
71314
64412

18
LIST OF PARTS DOSTEC-50 (Piston)
19
CODE DESCRIPTION UNITS
28010 Electric motor 750w (1cv) 3ph T80 B14 230/400 1
28012 Electric motor 750w (1cv) 1ph 50hz T80 B14 high torque 1
60109 Regulator knob Dostec 1
60300 Oil peep hole 1
60301 Regulator knob plug 1
60314 O-ring 17x3,5 NBR 1
60315 O-ring 6,5x2 NBR 1
60333 Screw M4x8 DIN 913 A-2 1
61-131/-C Piston 1000 l/h D110 lock EF 1
61-134/-C Piston 750 l/h D95 lock EF 1
61-136/-C Piston 500 l/h D77 lock EF 1
61137 Seal 1000 l/h FPM 2
61138 Seal 750 l/h FPM 2
61336 Drain plug ½ 1
61337 Filler plug ½” 1
62129 Bellow FPM 1
62166 Screw M6x16 Din 912 A2 8
62352 Screw M6x12 Din 933 A2 4
62451 Bearing 6202 zz 1
63424 Seal 78x87x6 FPM 500 l/h 2
64310 O-ring 55,5x3,5 NBR 1
64412 O-ring 44x2 FPM 1
66334 Nut M6 Din 934 A2 1
66344 Washer D6 Din 125 A2 5
71102 Block lid D50 1
71104 Eccentric shaft 10mm 1
71105 Eccentric shaft 15mm 1
71106 Ring gear 2 stroke D50 1
71107 Pinion 2 stroke D50 1
71111 Regulation rod p1,5mm D50 1
71112 Regulation rod p1 mm D50 1
71123 Cylinder spacer D50 1
71124 Protection disc D50 1
71129
71130.1-P Cylinder 1000 l/h s ring plate PP 1
71131.1-P Cylinder 750 l/h s ring plate PP 1
71132.1-P Cylinder 500 l/h s ring plate PP 1
71136 Ring gear 1 stroke D50 1
71137 Pinion 1 stroke D50 1
71138 Ring gear 2,4 stroke D50 1
71139 Pinion 2,4strokes D50 1
71155 Eccentric shaft 5 D50 1
71156 Eccentric shaft 7,5 D50 1
71129 Ring plate for piston cylinder D160 1
71303 Wedging piece Din 6885-a (8x7x25) 1
71304 Screw M6x10 Din 913 8.8 1
71306 O-ring 70 x 2,5 NBR 1
71307 O-ring 125x2,5 NBR 1
Ring plate for piston cylinder 1
71308 O-ring 77 x 2 NBR 1
71309 Elastic washer Din137-b (34x26x0,4) 3
71310 Bearing 6304zz ( 20x52x15 ) 2
71311 Bearing 6308zz (40x90x23) 1
71313 washer M6 Nord-lock 4
71314 Screw M5x12 DIN914 A2 1
71322 Tornillo M8x150 DIN912 A2 6
ASSEMBLIES
71-015 Block D50 p1.5mm assembly 1
71-016 Block D50 p1mm assembly 1
71-029 Regulator p 1mm D50 assembly 1
71-030 Regulator p 1,5 mm D50 assembly 1
71-031 Rod slider D50-P assembly 1
VALVES
61-010-P/F/I Suction check valve 1 1/4 1
61-011-P/F/I Discharge check valve 1 1/4 1
61-875-P/ Suction check valve 1 1/4 PP Borosilicate 1
61-085-P Discharge check valve 1 1/4 PP Borosilicate 1
MAINTENACE KIT (valves+seals+bellow)
71-071-P Maintenance kit Dostec-50 P77 PP 1
71-072-P Maintenance kit Dostec-50 P95 PP 1
71-073-P Maintenance kit Dostec-50 P110 PP 1
Materials code: -P= Polypropylene
-F= PVDF
-I= SS 316
-C= ceramic

18
LIST OF PARTS DOSTEC-50 (Piston)
19
CODE DESCRIPTION UNITS
28010 Electric motor 750w (1cv) 3ph T80 B14 230/400 1
28012 Electric motor 750w (1cv) 1ph 50hz T80 B14 high torque 1
60109 Regulator knob Dostec 1
60300 Oil peep hole 1
60301 Regulator knob plug 1
60314 O-ring 17x3,5 NBR 1
60315 O-ring 6,5x2 NBR 1
60333 Screw M4x8 DIN 913 A-2 1
61-131/-C Piston 1000 l/h D110 lock EF 1
61-134/-C Piston 750 l/h D95 lock EF 1
61-136/-C Piston 500 l/h D77 lock EF 1
61137 Seal 1000 l/h FPM 2
61138 Seal 750 l/h FPM 2
61336 Drain plug ½ 1
61337 Filler plug ½” 1
62129 Bellow FPM 1
62166 Screw M6x16 Din 912 A2 8
62352 Screw M6x12 Din 933 A2 4
62451 Bearing 6202 zz 1
63424 Seal 78x87x6 FPM 500 l/h 2
64310 O-ring 55,5x3,5 NBR 1
64412 O-ring 44x2 FPM 1
66334 Nut M6 Din 934 A2 1
66344 Washer D6 Din 125 A2 5
71102 Block lid D50 1
71104 Eccentric shaft 10mm 1
71105 Eccentric shaft 15mm 1
71106 Ring gear 2 stroke D50 1
71107 Pinion 2 stroke D50 1
71111 Regulation rod p1,5mm D50 1
71112 Regulation rod p1 mm D50 1
71123 Cylinder spacer D50 1
71124 Protection disc D50 1
71129
71130.1-P Cylinder 1000 l/h s ring plate PP 1
71131.1-P Cylinder 750 l/h s ring plate PP 1
71132.1-P Cylinder 500 l/h s ring plate PP 1
71136 Ring gear 1 stroke D50 1
71137 Pinion 1 stroke D50 1
71138 Ring gear 2,4 stroke D50 1
71139 Pinion 2,4strokes D50 1
71155 Eccentric shaft 5 D50 1
71156 Eccentric shaft 7,5 D50 1
71129 Ring plate for piston cylinder D160 1
71303 Wedging piece Din 6885-a (8x7x25) 1
71304 Screw M6x10 Din 913 8.8 1
71306 O-ring 70 x 2,5 NBR 1
71307 O-ring 125x2,5 NBR 1
Ring plate for piston cylinder 1
71308 O-ring 77 x 2 NBR 1
71309 Elastic washer Din137-b (34x26x0,4) 3
71310 Bearing 6304zz ( 20x52x15 ) 2
71311 Bearing 6308zz (40x90x23) 1
71313 washer M6 Nord-lock 4
71314 Screw M5x12 DIN914 A2 1
71322 Tornillo M8x150 DIN912 A2 6
ASSEMBLIES
71-015 Block D50 p1.5mm assembly 1
71-016 Block D50 p1mm assembly 1
71-029 Regulator p 1mm D50 assembly 1
71-030 Regulator p 1,5 mm D50 assembly 1
71-031 Rod slider D50-P assembly 1
VALVES
61-010-P/F/I Suction check valve 1 1/4 1
61-011-P/F/I Discharge check valve 1 1/4 1
61-875-P/ Suction check valve 1 1/4 PP Borosilicate 1
61-085-P Discharge check valve 1 1/4 PP Borosilicate 1
MAINTENACE KIT (valves+seals+bellow)
71-071-P Maintenance kit Dostec-50 P77 PP 1
71-072-P Maintenance kit Dostec-50 P95 PP 1
71-073-P Maintenance kit Dostec-50 P110 PP 1
Materials code: -P= Polypropylene
-F= PVDF
-I= SS 316
-C= ceramic

20
DOSTEC-50
21
63331(x4)
71214.1
71215.1-P/F (D163)
-P/F (D142)
63332
71321 (x6) (D163)
(x6) (D142)
71226
71225 (D163)
(D142)
71221
71222 (D163)
(D142)
66344(x4)
71139
71107(2c/min)
71137(1c/min)
(2,4c/min)
62451
71309(x4)
71308
71306
61336
61337
71304
62352(x4)
28010 (3ph)
28012 (1ph)
62166(x4)
71217 (D142)
71218 (D163)
62129
71-032
64310
71310
71138
71106(2c/min)
71136(1c/min)
(2,4c/min)
71303
71105(15mm)
71104(10mm)
71156(7,5mm)
71155(5mm)
71311 71310
60314
71307 71102
71313(x4)
60300
60301
66334
66344
60109
60315
60333
62166(x4)
71-030 (c15-7,5)
71-029 (c10-5)
71-015(c15-7,5)
71-016(c10-5)
71112(c10-5)
71111(c15-7,7)
61-010-P/F
61-875-P
71212
71213 (D163)
(D142)
61801-P/F/I
61802-P/F/I
*61353 (Boro.)
61803-P/F/I
61808(FPM)
61-885-P (Boro.)
61-011-F
61801-P/F/I
61802-P/F/I
61302 (Vidrio)
61803-P/F/I
61808(FPM)
61808(FPM)
61-875-P (Boro.)
61-010-F
61302 (Vidrio)
*61353 (Boro.)
61-880-P (NPT) 61-870-P (NPT)
61807-P (NPT)
61807-P(NPT)
