Product description
1. GENERAL DESCRIPTION

(smartphone, tablet), locally (via Ethernet and Wi-Fi) and remotely (on the website: www.itc-cloud-
manager.com).
2. TRANSPORTATION AND HANDLING
The original packaging is designed to ensure that the device can be transported and stored without
being damaged, provided that this is done in dry, well-ventilated areas away from heat sources.
Included inside the packaging:
- GATE
- Instruction manual
INSTALLATION DIAGRAMS
CONNECTION BETWEEN GATE AND WTRTEC
CONNECTION BETWEEN GATE AND DOSMART

5
Product description
3. TECHNICAL CHARACTERISTICS
Power supply: 100-240 Vac 50-60 Hz. 12 Vdc
Power: 6 W
IP65 protection
Case material: ABS
Operating temperature: 0…45ºC / 32…113ºF
Maximum relative humidity: 0.95% non-condensing

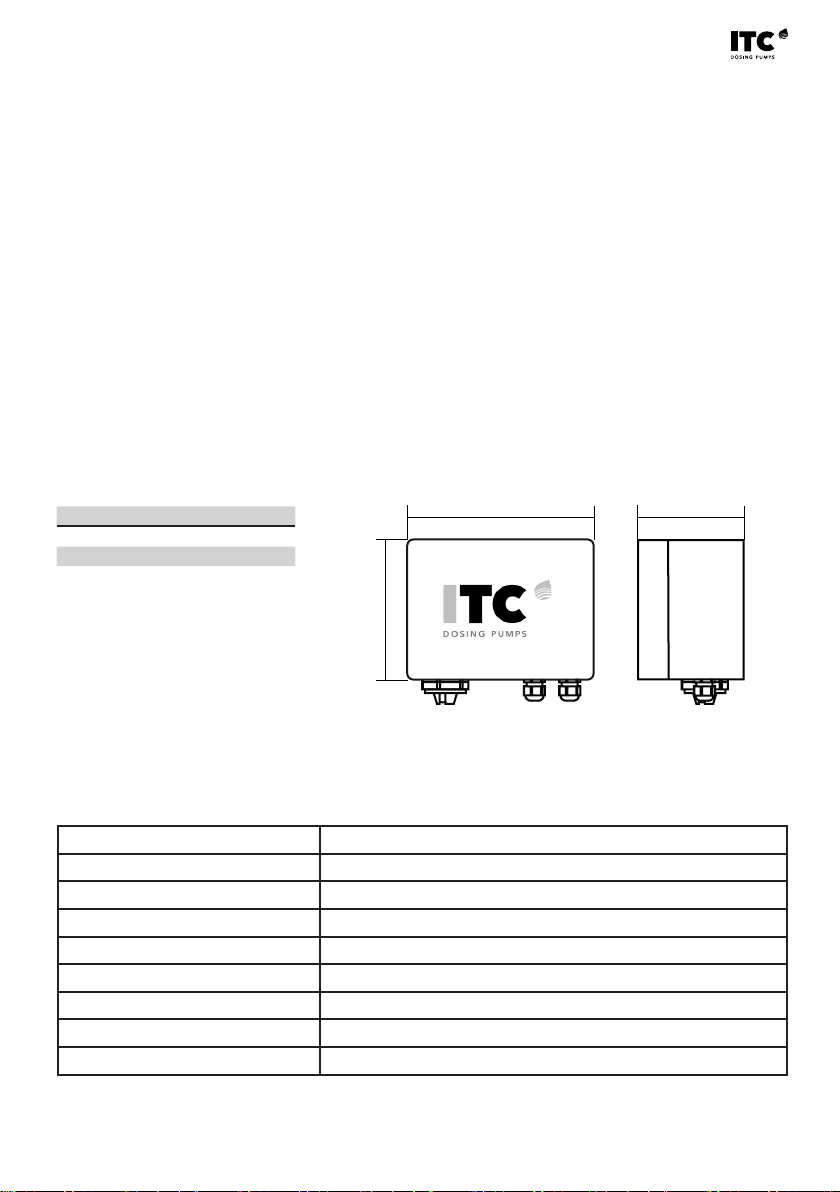

Dimensions
Inputs
230 Vdc power supply Power supply
100-240 Vac power supply Power supply
Outputs
12 Vdc output To power CL420MB sensor
Communications
RS485 port Connection to the ITC device
mm inches
A 160 6.29
B 120 4.72
C 90 3.54
A
B
C
Code Description
01-001 WC3000 communications module GATE.
01-002 WTRpro communications module GATE.
01-003 Cl420MB sensor communications module GATE.
01-004 Dostec AC communications module GATE.
01-005 TLM communications module GATE.
01-006 WTRTEC communications module GATE.
01-006-IN Built-in WTRTEC communications module GATE.
01-007 DOSmart communications module GATE.
AVAILABLE MODELS

6
Installation
4. OPERATION
4.1 Functional diagram of the GATE


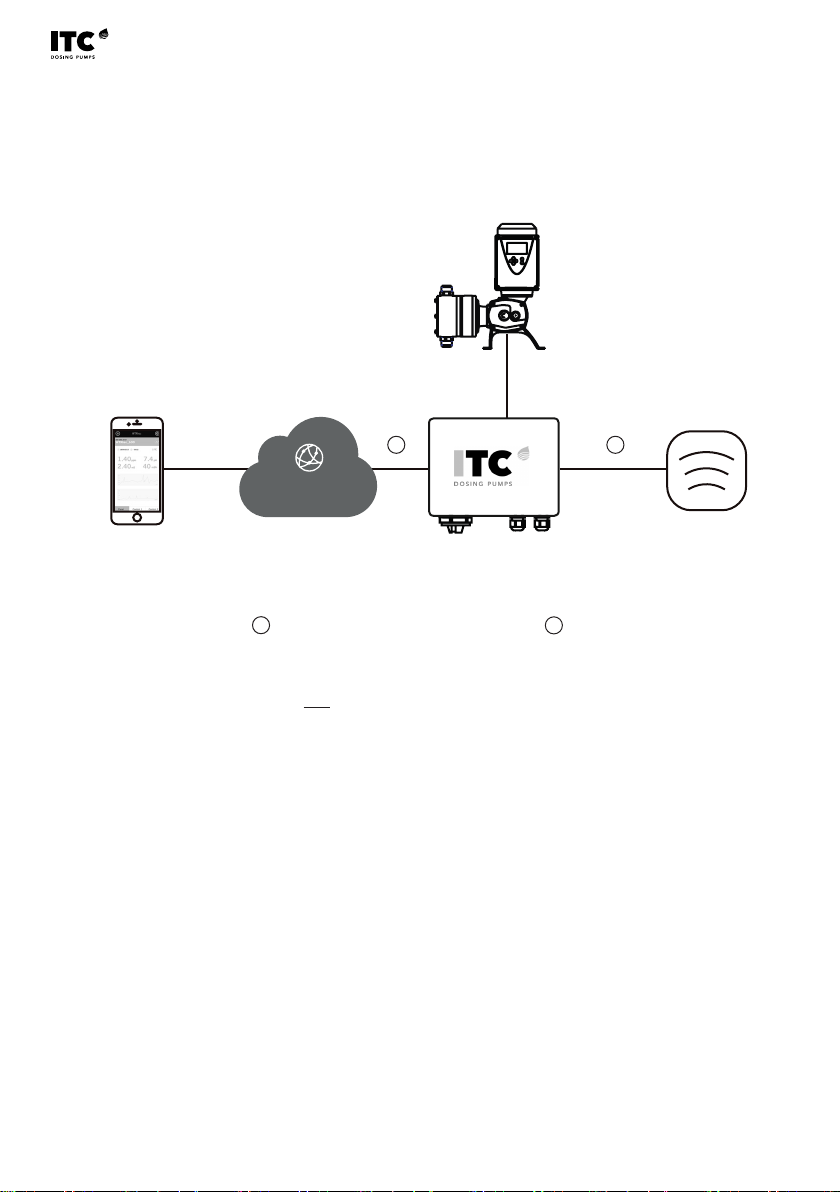

(smartphone, tablet), locally A(via Ethernet and Wi-Fi) and remotely B(on the website: www.
itc-cloud-manager.com).
NB: Each GATE can only be connected to ONE ITC device.
A
B
INTERNET
Router 4G/5G
ITC Device (AC Pump or Controller)
Wi-Fi without
Internet
access
Smartphone/Tablet/PC

7
Installation

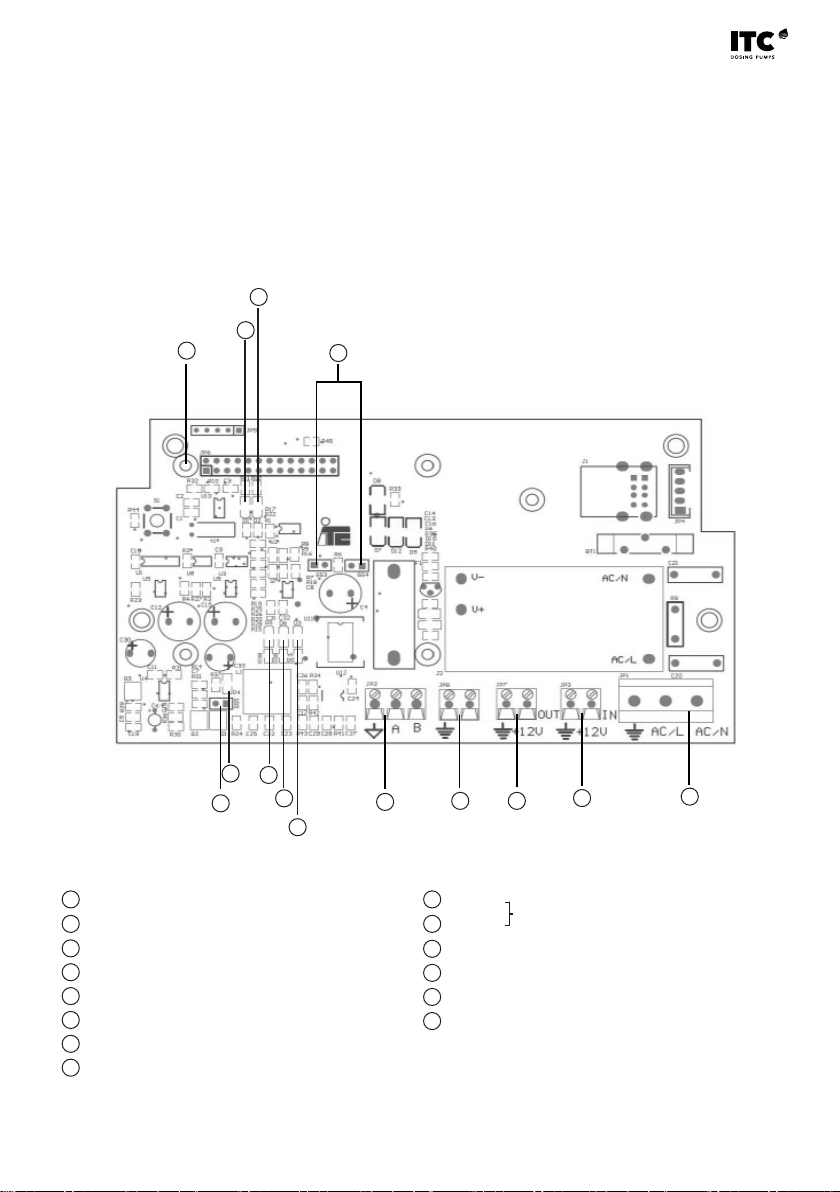

Reset / pairing button
GS3 / GS4 jumpers
GS5 jumper
RS485 output
Internal use
12 V OUT
12 Vdc power supply
110-240 V 50/60 Hz power supply
D1 LED
D2 LED
D3 LED - 5 V power
D4 LED - CPU power supply
D5 LED - 5 V isolated power
D6 LED - 12 V power
1
2
3
4
5
6
7
8
5. INSTALLATION
A place that is protected from water, away from heat sources and direct sunlight should be chosen for
its installation.
We recommend separating the GATE’s cables from any cables that may generate electrical noise.
5.1. Wiring
12
345678
9
10
11
12
13
14
9
10
11
12 13
14
TLM device initialisation

8
Installation

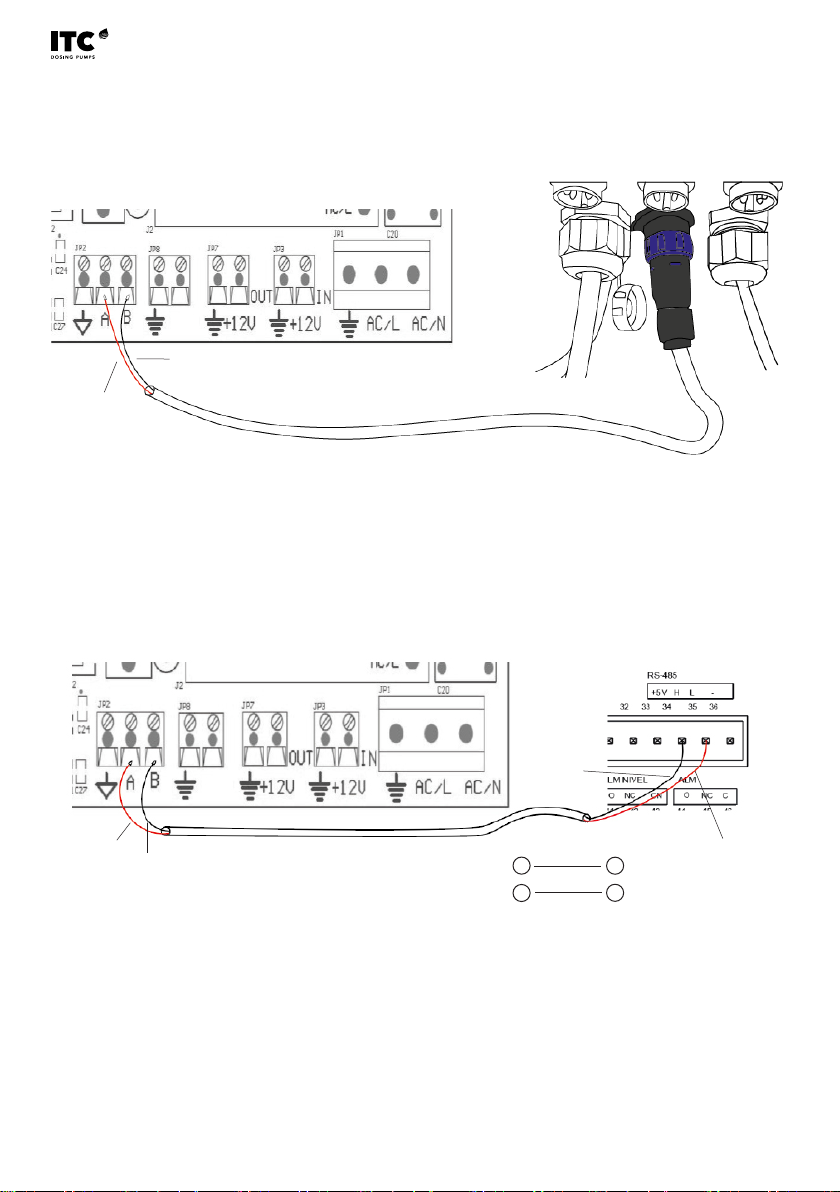

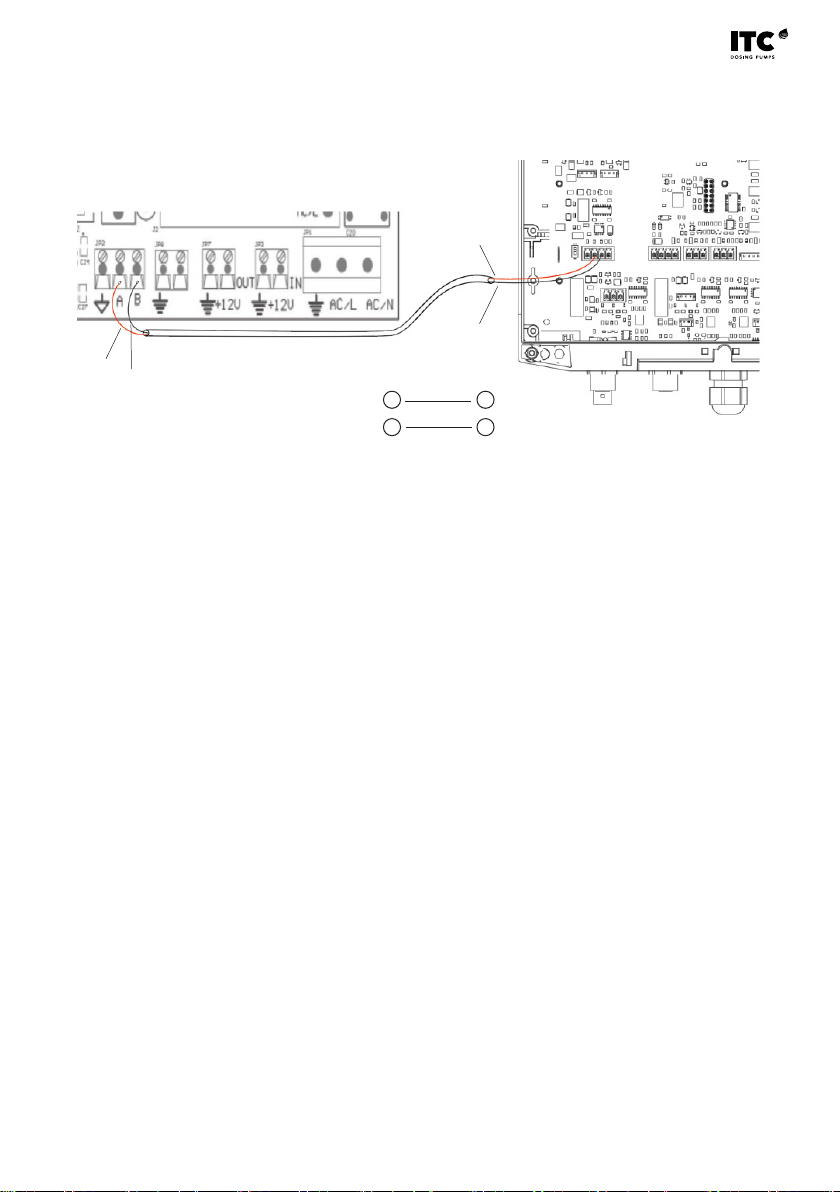

5.2.1 Controller 3000 Series
5.2.2 Dostec AC / Dosmart
Cable 01-019 included with GATE 01-001.
RED
BLACK
RS485 (01-019)
GATE
C3000
RS485 (01640)RED RED
BLACK
BLACK
GATE DOSTEC AC / Dosmart
H
A L
B
CONNECTIONS
5.2. Connection between devices
Cable 01640 is an option. Ordered by the metre.

9
Installation
5.2.3 WTR
GATE
WTRTEC
BLACK
RED
RED
BLACK
RS485 (01640)
A A
B
CONNECTIONS
Cable 01640 is an option. Ordered by the metre.
B

10
Start-up
6. START-UP

To work with a connection to the cloud, follow the steps below:
1


A
or
B
). You will need an internet connection to do it.
A

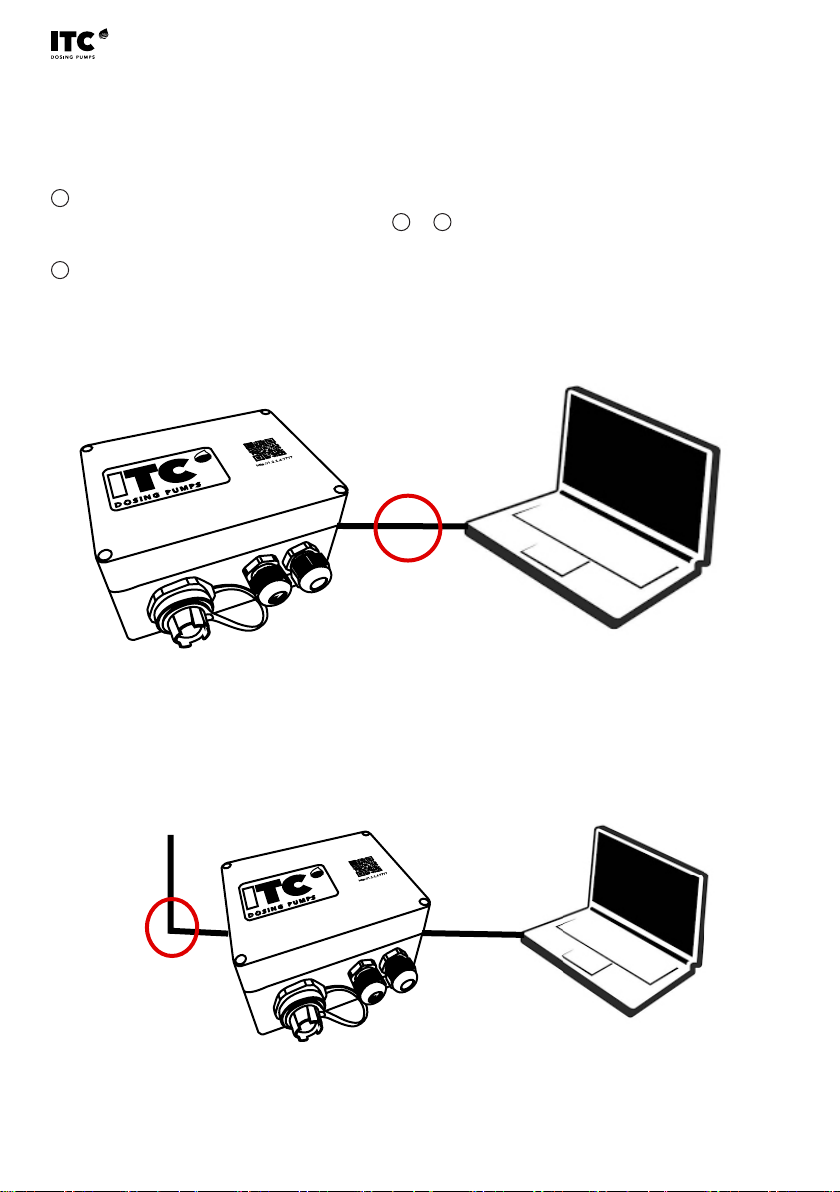

Via Ethernet
- Connect your computer to the GATE via the Ethernet cable
-Turn on the GATE
110V-240V 50/60Hz
POWER

11
Start-up

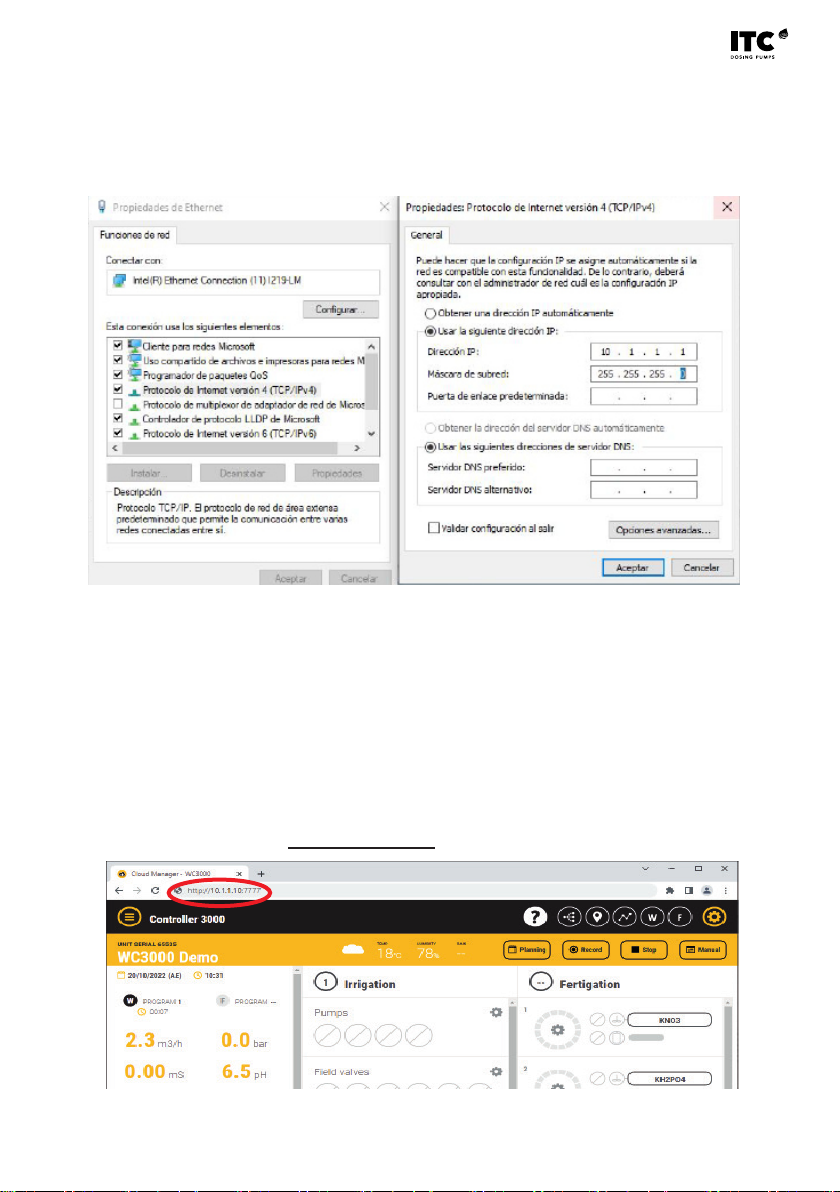

-  on the computer with the following settings:
- IP Address: 10.1.1.1
- Subnet mask: 255.255.255.0
- Default gateway: <leave blank>

- In the Windows search box, open the Control Panel
- View by: Category -> Select "View network status and tasks", in the “Network and Internet”
category.
- Identify your active network and click on "Ethernet".
- Then select "Properties".
- Search for the option “Internet Protocol version 4 (TCP/IPv4)” and then click on properties.

- Go to the GATE’s webpage > http://10.1.1.10:7777

12
Start-up
B

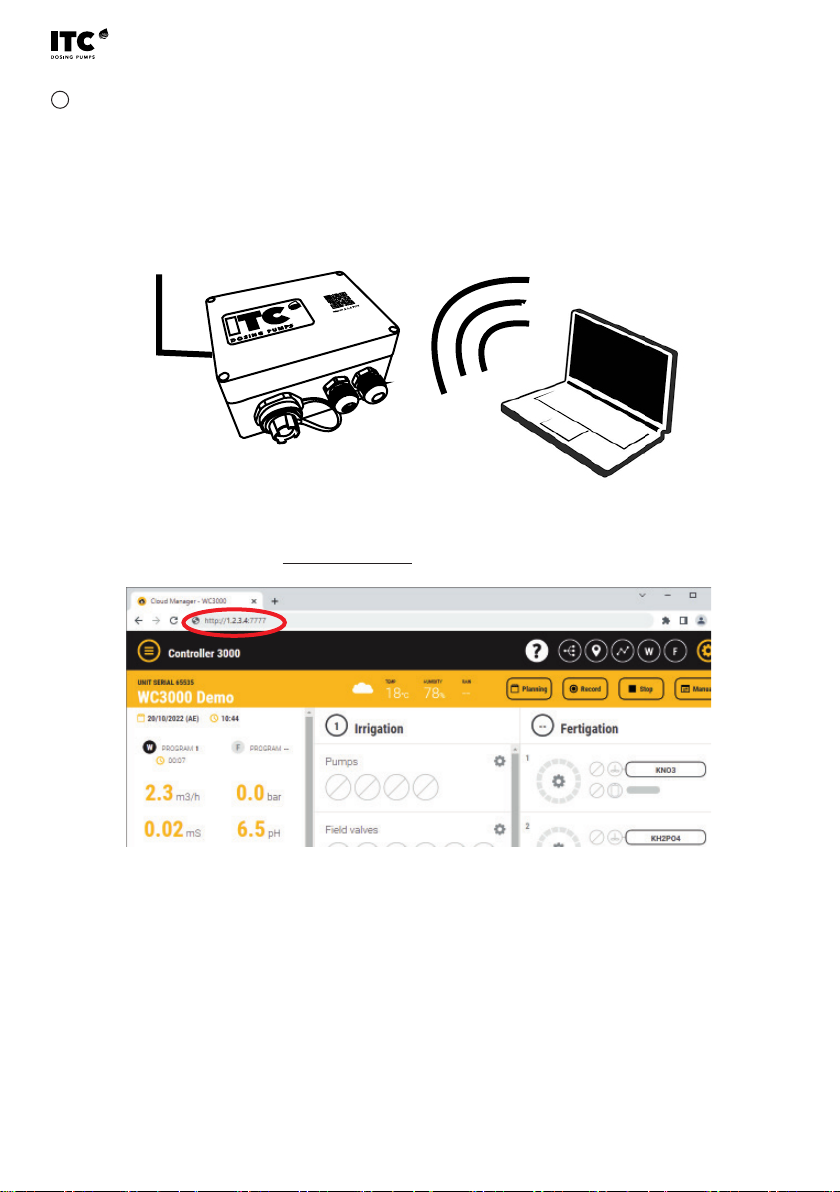

Via Wi-Fi
- Connect to the GATE’s Wi-Fi network > "ITC GATE-xxxxxx” with the password "webscada".
Where "xxxxxx" > are the 6 digits of the GATE's serial number.
- Go to the GATE’s webpage > http://1.2.3.4:7777
110V-240V 50/60Hz
POWER

13
Start-up
2
The GATE's webpage

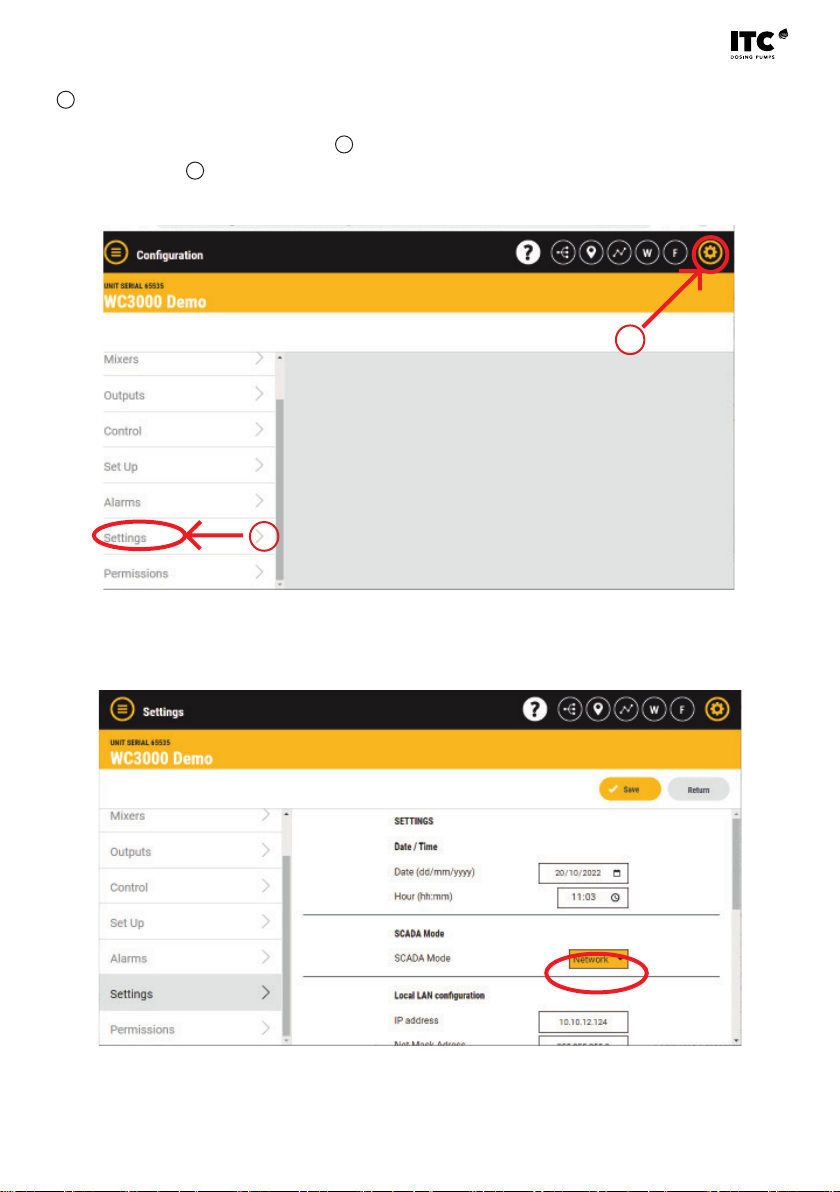

- Click on the "CONFIGURATION” icon
- Select "Settings"
- " in the "Network” option
1
2
1
2

14
Start-up

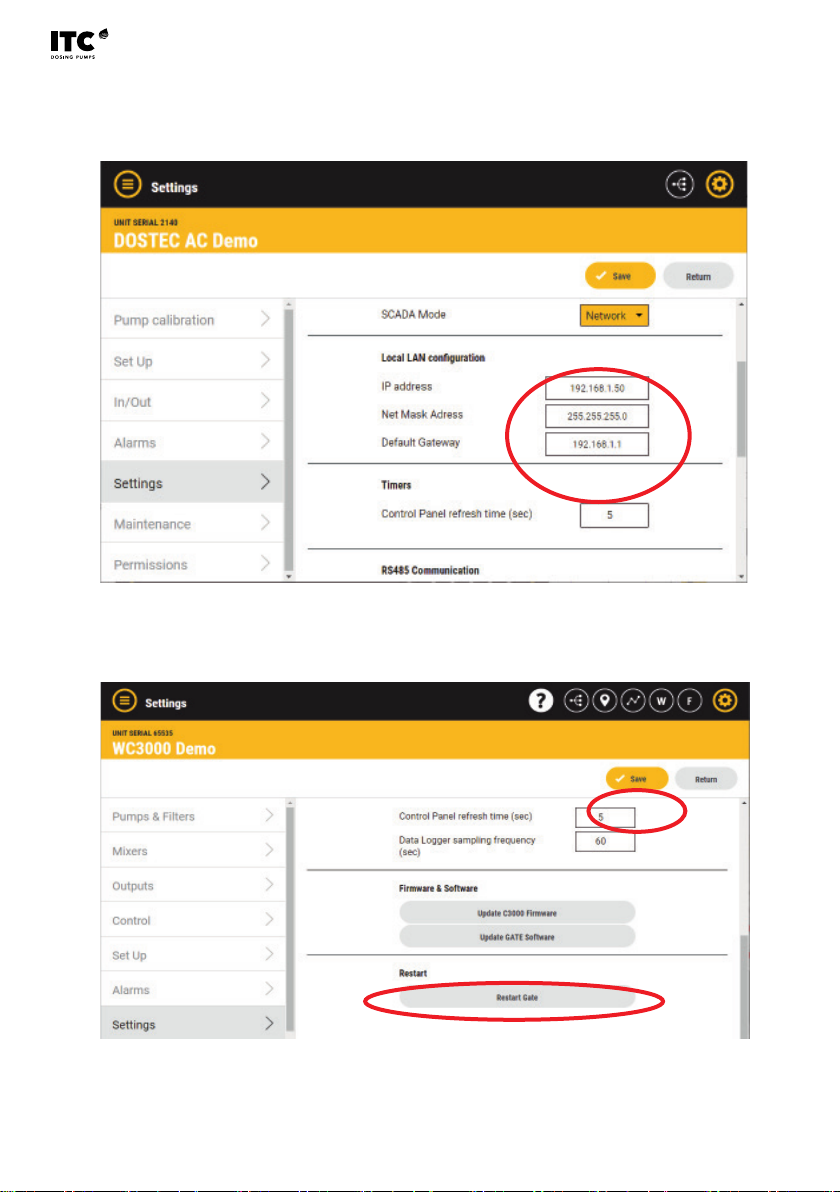

enter an IP address, NetMask and Default Gateway, according to the
available Local Network.
- " and then "Restart Gate".

15
Start-up
- Contact your provider to obtain your cloudmanager username and password.
- Connect the GATE to the Router via Ethernet (either directly or via a switch), and connect the
controller via RS485. Wait for 3 minutes.
- Visit https://www.itc-cloud-manager.com to view the connected device.
INTERNET
0
mS
2.5
PH
m3h 10.5
7.6
1
001
ºC 21.0

16
Maintenance
7. MAINTENANCE
7.1 The unit is greyed out in cloudmanager
ERROR CAUSE SOLUTION
The GATE has no internet
connection.
The internet service is not down. Contact your ISP.
The Ethernet cable is damaged or
not working properly.
Replace the Ethernet cable.
The GS5 jumper is not open. Open the GS5 jumper and wait
for 5 - 10 minutes.
The GATE’s internal Ethernet
cable is damaged.
Contact [email protected]
The ITCGATE-xxxx network
is not being detected.
The GATE’s microSD card is not
working properly.
Replace the microSD card with
another supplied by ITC.
Incorrect SCADA MODE
setting.
SCADA MODE is set to LOCAL. Change the SCADA MODE
setting to "Network".
See point 6. START-UP.
 
correctly.
Change the IP conguration.
See point 6. START-UP.
7.2 The unit is not being displayed in cloudmanager
ERROR SOLUTION
The unit is not being displayed in cloudmanager. Contact your provider or [email protected].

17
Maintenance
7.3 The unit is shown in red in cloudmanager
ERROR CAUSE SOLUTION
󰀨 It is not connected to the power
supply.
Connect the GATE to the power
supply.
The error keeps happening
while connected to a
WTRTEC / Dosmart /
Dostec AC device.
The RS485 / Modbus


Follow your device’s manual to
change the RS485 / Modbus
conguration.
The GS3 and GS4 jumpers are
closed in version 4 of the board.
Open the GS3 and GS4 jumpers.
The GS3 and GS4 jumpers are
open in version 2 of the board.
Close the GS3 and GS4 jumpers.
Bad RS485 cable connection
between the GATE and the
device.
Connect the RS485 cable
correctly.
See point 5.2 Connection between
devices.
The RS485 cable is close to other
cables that generate too much
noise.
Try to separate the RS485 cable
from any cables that may cause
interference by generating noise.
The error keeps happening
while connected to a
Controller 3000 series
device.
The GS3 and GS4 jumpers are
closed in version 4 of the board.
Open the GS3 and GS4 jumpers.
The GS3 and GS4 jumpers are
open in version 2 of the board.
Close the GS3 and GS4 jumpers.
Bad RS485 cable connection
between the GATE and the
device.
Connect the RS485 cable
correctly.
See point 5.2 Connection between
devices.
The C3000’s internal RS485 cable
is poorly connected.
Connect the cable correctly.
The RS485 cable is close to other
cables that generate too much
noise.
Try to separate the RS485 cable
from any cables that may cause
interference by generating noise.
