ITT i-ALERT 2 User manual

Installation, Operation,
and Maintenance Manual
i-ALERT®2 Equipment Health Monitor

Table of Contents
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 1
Table of Contents
Introduction and Safety .......................................................................................................... 2
Introduction ............................................................................................................................. 2
Inspect the package ................................................................................................................ 2
Limited warranty ...................................................................................................................... 2
Safety ...................................................................................................................................... 3
Safety terminology and symbols ............................................................................................. 3
Safety regulations for Ex-approved products in potentially explosive atmosphere ................. 3
Product approval standards .................................................................................................... 4
Product Description ................................................................................................................ 9
General description i-ALERT®2 Condition Monitor .................................................................. 9
Installation ............................................................................................................................. 10
Installation ............................................................................................................................. 10
Attach the i-ALERT®2 Equipment Health Monitor to the pump ........................................... 10
Commissioning, Startup, Operation, and Shutdown ......................................................... 13
Activate the i-ALERT®2 Equipment Health Monitor ............................................................... 13
Reset the i-ALERT®2 Equipment Health Monitor .................................................................. 14
i-ALERT®2 Equipment Health Monitor routine operation ....................................................... 15
Maintenance ........................................................................................................................... 16
Guidelines for i-ALERT®2 Equipment Health Monitor disposal ............................................. 16
Troubleshooting .................................................................................................................... 17
i-ALERT®2 Equipment Health Monitor troubleshooting ......................................................... 17

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual2
Introduction and Safety
Introduction
Purpose of this manual
The purpose of this manual is to provide necessary information for:
• Installation
• Operation
• Maintenance
CAUTION:
Failure to observe the instructions contained in this manual could result in personal injury and
property damage, and may void the warranty. Read this manual carefully before installing and
using the product.
NOTICE:
Save this manual for future reference and keep it readily available.
Requesting other information
For instructions, situations, or events that are not considered in this manual or in the sales
documents, please contact your ITT representative. Always specify the exact product type and
identification code when requesting technical information or spare parts.
Inspect the package
1. Inspect the package for damaged or missing items upon delivery.
2. Note any damaged or missing items on the receipt and freight bill.
3. File a claim with the shipping company if anything is out of order.
If the product has been picked up at a distributor, make a claim directly to the distributor.
Limited warranty
Goulds Pumps, Inc. ("Goulds") warrants to the original purchaser that your i-ALERT®2
Equipment Health Monitor (the "Product") shall be free from defects in materials and
workmanship under normal use for a period of one (1) year from the date of shipment. This
Limited Warranty does not cover software embedded in the Product and the services provided
by Goulds to owners of the Product.
Due to the varied ways that Product(s) can be accessed and/or configured during use, battery
life is excluded from warranty. It is your responsibility to backup any data, software, or other
materials you may have stored or preserved on the Product. It is likely that such data, software,
or other materials will be lost or reformatted during service, and Goulds will not be responsible
for any such damage or loss. Recovery and reinstallation of software programs and user data
are not covered under this Limited Warranty. The Limited Warranty does not apply to any
software, even if packaged or sold with the Product or embedded in the Product. We are not
liable for any damage a mobile app may inflict on companion product
To view the full details of the Limited Product Warranty please go to: www.i-alert.com/warranty

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 3
Safety
WARNING:
• The operator must be aware of the pumpage and take appropriate safety precautions to
prevent physical injury.
• Risk of death, serious personal injury, and property damage. Installing, operating, or
maintaining the unit using any method not prescribed in this manual is prohibited.
Prohibited methods include any modification to the equipment or use of parts not provided
by ITT. If there is any uncertainty regarding the appropriate use of the equipment, please
contact an ITT representative before proceeding.
• Installation, Operation and Maintenance manuals clearly identify accepted methods for
disassembling units. These methods must be adhered to.
Observe all safety messages highlighted in other sections of this manual.
Safety terminology and symbols
About safety messages
It is extremely important that you read, understand, and follow the safety messages and
regulations carefully before handling the product. They are published to help prevent these
hazards:
• Personal accidents and health problems
• Damage to the product
• Product malfunction
Hazard levels
Hazard level Indication
DANGER: A hazardous situation which, if not avoided, will
result in death or serious injury
WARNING: A hazardous situation which, if not avoided, could result in death or serious injury
CAUTION: A hazardous situation which, if not avoided, could result in minor or moderate injury
NOTICE: • A potential situation which, if not avoided,
could result in undesirable conditions
• A practice not related to personal injury
Safety regulations for Ex-approved products in potentially
explosive atmosphere
Description of ATEX
The ATEX directives are a specification enforced in EU for electrical and non-electrical
equipment. ATEX deals with the control of potentially explosive atmospheres and the
standards of equipment and protective systems used within these atmospheres. The relevance

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual4
of the ATEX requirements is not limited to Europe. You can apply these guidelines to
equipment installed in any potentially explosive atmosphere.
Description of ETL The ETL Mark is proof of product compliance to North American safety standards. Authorities
Having Jurisdiction(AHJs) and code officials across the US and Canada accept the ETL Listed
Mark as proof of product compliance to published industry standards.
Description of IECEx
The IECEx certificates of conformity attest that a sample of the Ex product, have been
independently tested and found to comply with the International Standards. It also attests that
the manufacturing site has been audited to verify that the manufacturer’s quality system meets
IECEx requirements.
Safety regulations regarding the Battery
Do not charge, short circuit, crush, dissemble, heat above 100°C (212°F), incinerate or expose
contents to water.
Personal requirements
ITT disclaims all responsibility for work done by untrained and unauthorized personnel.
These are the personnel requirements for Ex-approved products in potentially explosive
atmospheres:
• All users must know about the risks of electric current and the chemical and physical
characteristics of the gas and/or vapor present in hazardous areas.
• The installation for Ex-approved products must be made in conformity to the international
or national standards (IEC/EN 60079-17).
Product approval standards
https://www.ittproservices.com/aftermarket-products/monitoring/i-alert2-condition-monitor/
country-certifications/
Radio Certifications
North America USA and Canada certifications
Standards tested to:
UL 913
UL 60079-0
UL 60079-11
CSA-C22.2 No. 157-92
CSA-C22.2 No. 60079-0:11
CSA-C22.2 No. 60079-11:14
Markings USA:
Class I, II, III; Division 1; Groups C, D, E, F, G
Class I; Zone 0, AEx ia IIB Ga (Groups C & D)
Markings Canada:
Class I, II, III; Division 1; Groups C, D, E, F, G
Ex ia IIB Ga (Groups C & D)
Ambient temperature: -40°C to 60°C | -40°F to 140°F

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 5
Figure 1: North America USA and Canada
Europe and Worldwide certifications
Standards tested to:
ATEX
EN 60079-0:2012
EN 60079-11:2012
EN 60079-26:2007+COR1:2011
EN 50303:2000
IECEx
IEC 60079-0:2011
IEC 60079-11:2011
IEC 60079-26:2006
ATEX & IECEx Markings
I M1 Ex ia I Ma
II 1G Ex ia IIB T4 Ga
II 1D Ex ia IIIC Da T200°C Da
Ambient Temperature: -40°C to +60°C | -40°F to +140°F
Figure 2: ATEX & IECEx Markings
Electromagnetic Compatibility Certifications (EMC)
Standards for testing i-ALERT®2 Equipment Health Monitor
Radiated Emissions
FCC 47CFR 15 Subpart B:2014
EN 61000-6-4:2007
Electro-Static Discharge Immunity Test
(EN 61000-4-2:1995 per EN 61000-6-2:2007 +AMD 1 Cor 12)
(EN 61000-4-2:2009 per ETSI EN 301 489-1 V1.9.2
Radiated, Radio-Frequency, Electromagnetic Immunity

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual6
(EN 61000-4-3:2002 per EN 61000-6-2:2007 +AMD 1 Cor 12)
(EN 61000-4-3:2006+A1:2008+A2:2010 per ETSI EN 301 489-1 V1.9.2
Power Frequency Magnetic Field Immunity Test
(EN 61000-4-8 1993 per EN 61000-6-2:2007 +AMD 1 Cor 12)
Standards for testing Bluetooth radio
Industry Canada, Interference-Causing Equipment Standard for Information Technology
Equipment (ITE)
ICES-003 Issue 5 August 2012
Electromagnetic compatibility (EMC). Generic standards. Immunity for industrial environments
CENELEC EN 61000-6-2:2007 +AMD 1 Cor 12
Electromagnetic compatibility (EMC) Generic standards - Emission standard for industrial
environments
CENELEC EN 61000-6-4:2007
Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
ETSI EN 301 489-1 V1.9.2 (2011-09)
ElectroMagnetic Compatibility (EMC) standard for radio equipment;
Part 17: Specific conditions for Broadband Data Transmission Systems
ETSI EN 301 489-17 V2.2.1 (2012-09)
FCC Regulatory Information
The FCC identifier for the radio module contained in the i-ALERT®2device is FCC ID:
T7VPAN17.
The radio module in the i-ALERT®2 device meets the requirements for modular transmitter
approval as detailed in FCC public Notice DA00-1407. Transmitter Operation is subject to the
following two conditions:
1. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
The FCC requires the user to be notified that any changes or modifications made to this device
that are not expressly approved by ITT may void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help
RF Exposure
To comply with FCC RF Exposure requirements, do not modify, remove or change the antenna
on the radio module contained within the i-ALERT®2 device.
The radiated output power of the radio with mounted ceramic antenna (FCC ID: T7VPAN17) is
far below the FCC radio frequency exposure limits. Nevertheless, the radio shall be used in
such a manner that the potential for human contact during normal operation is minimized.

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 7
Industry Canada Certification
The radio module contained in the i-ALERT®2 device is licensed to meet the regulatory
requirements of Industry Canada (IC), license: IC: 216Q-PAN17.
IC Notice
The radio module within the i-ALERT®2 device complies with Canada RSS-GEN Rules. The
device meets the requirements for modular transmitter approval as detailed in RSS-GEN.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
European R&TTE declaration of conformity
The Bluetooth module contained within the i-ALERT®2 device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. As a result of the
conformity assessment procedure described in Annex III of the Directive 1999/5/EC.
The i-ALERT®2 device can be used in the following countries: Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
The Netherlands, the United Kingdom, Switzerland, and Norway.
Korean radio regulatory statement (Korea KC RRA)
Figure 3: Korea KC RRA
Figure 4: Korea Class/Notification

Introduction and Safety
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual8
Taiwan radio regulatory statement
Figure 5: Taiwan radio regulatory statement
RoHS
China RoHS Table
Figure 6: China RoHS table

Product Description
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 9
Product Description
General description i-ALERT®2 Condition Monitor
Description The i-ALERT®2 Equipment Health Monitor is a compact, battery-operated monitoring device
that continuously measures the vibration and temperature of the pump. The i-ALERT®2
Equipment Health Monitor uses blinking red LED and wireless notification to alert the pump
operator when the pump exceeds vibration and temperature limits. This allows the pump
operator to make changes to the process or the pump before catastrophic failure occurs. The
Equipment Health Monitor is also equipped with a single green LED to indicate when it is
operational and has sufficient battery life.
The i-ALERT®2 Equipment Health Monitor also contains a Bluetooth radio that communicates
to certain Bluetooth 4.0 equipped devices through a mobile application.
Data is shared between the i-ALERT®2 Equipment Health Monitor, the mobile application,
phone, and the data servers.
The i-ALERT®2 Equipment Health Monitor will communicate sensor related data (such as
vibration, temperature, runtime information, and device statistics) stored in the device to the
mobile application. The mobile application will send commands to the device.
The Mobile application will back up device data as well as app usage information on the data
servers.
The data servers will send the mobile application equipment technical data.
For full details about data storage and rights please review the Privacy Policy.
Alarm mode The i-ALERT®2 Equipment Health Monitor enters alarm mode when either vibration or
temperature limits are exceeded over two consecutive readings within a 10 minute period.
Alarm mode is indicated with 1 (one) red flashing LED within 2 (two) second intervals.
Warning and alarm values
Variable Limit
Temperature (default) 80°C | 176°F
Vibration Alarm (0.1-1.5 ips) 100% increase over the baseline level
Vibration Warning (0.1-1.5 ips) 75% increase over the baseline level
Battery life The i-ALERT®2 Equipment Health Monitor battery is not replaceable. You must replace the
entire unit once the battery runs out of power. The battery life is not covered as part of the
standard 5-year pump warranty.
The following determines the “normal operating conditions” in which the 3-year battery life is
determined:
• Temperature: 18°C | 65°F
• Dashboard connections (including trend download): Once per day
• FFT and Time Waveform usage: One tri-axial request per 14 days
• Operation time in Alarm: 25% of time

Installation
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual10
Installation
Installation
Attach the i-ALERT®2 Equipment Health Monitor to the pump
CAUTION:
Always wear protective gloves. The equipment and the i-ALERT®2 device can be hot.
Mounting options
Figure 7: Mounting options
Mill a Slot Drill and Tap Epoxy1
Screw: ¼-28 x 1.125in Screw: ¼-28 x 1.5in Screw: ¼-28 x 1.125in
Slot: 2.25in L x 1.6in W Tap: ¼-28 UNF x ¼in deep Epoxy: application specific
Temperature: **** Temperature: *** Temperature: **
Vibration: **** Vibration: *** Vibration: ***
Prep Time: ** Prep Time: *** Prep Time: ****
Epoxy1Not included
Epoxy recommendation
The epoxy used should be a two-part putty in stick form (not liquid) type, which contains
metallic particles in order to enhance heat transfer. Epoxy of this type is commonly found at
hardware and home improvement stores. The temperature range required and specific
application determine the epoxy choice. Mount i-ALERT®2 device to base using provided ¼-28
cap screw. Torque screw to 6 lb-ft. using a 5/32" size Allen Head wrench prior to the application
of the epoxy.
Location selection The i-ALERT®2 device should be mounted on pumps or other rotating equipment as shown in
the first image under “Mounting Options" (above) with the LED’s aligned with the shaft in order
to maintain the preferred axis orientation shown below. Care should be taken to locate the
device over the bearings, and to avoid placement on compliant surfaces such as coupling
guards, and other light sheet metal. It is preferable to have one device over each bearing, but if
that is not possible, monitoring the drive end is essential.

Installation
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 11
Figure 8: Location selection
The temperature seen by the i-ALERT®2 temperature sensor maybe different from the surface
temperature of the object it is mounted to. Mounting the i-ALERT®2 directly to the machine will
give the most accurate reading. The differences are due to the temperature gradient that exists
between the i-ALERT®2 and the machines surface. This gradient can be greater when the
ambient temperature is very different from the surface temperature.
Table 1: Temperature difference based on mounting method
Mounting method Approximate difference in temperature reading
i-ALERT®2 directly mounted to machine -11°C | -20°F
I-ALERT®2 mounted on adapter -22°C | -40°F
App installation and registration
For installation guidance, video links can be found at the following site:
http://www.ittproservices.com/aftermarket-products/monitoring/i-alert2-condition-monitor/
To download the latest App, search for" i-ALERT®2 condition monitor" in the Apple App Store.
To access the App it is necessary to create an account using a valid email in the registration
tab on the login page.

Installation
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual12

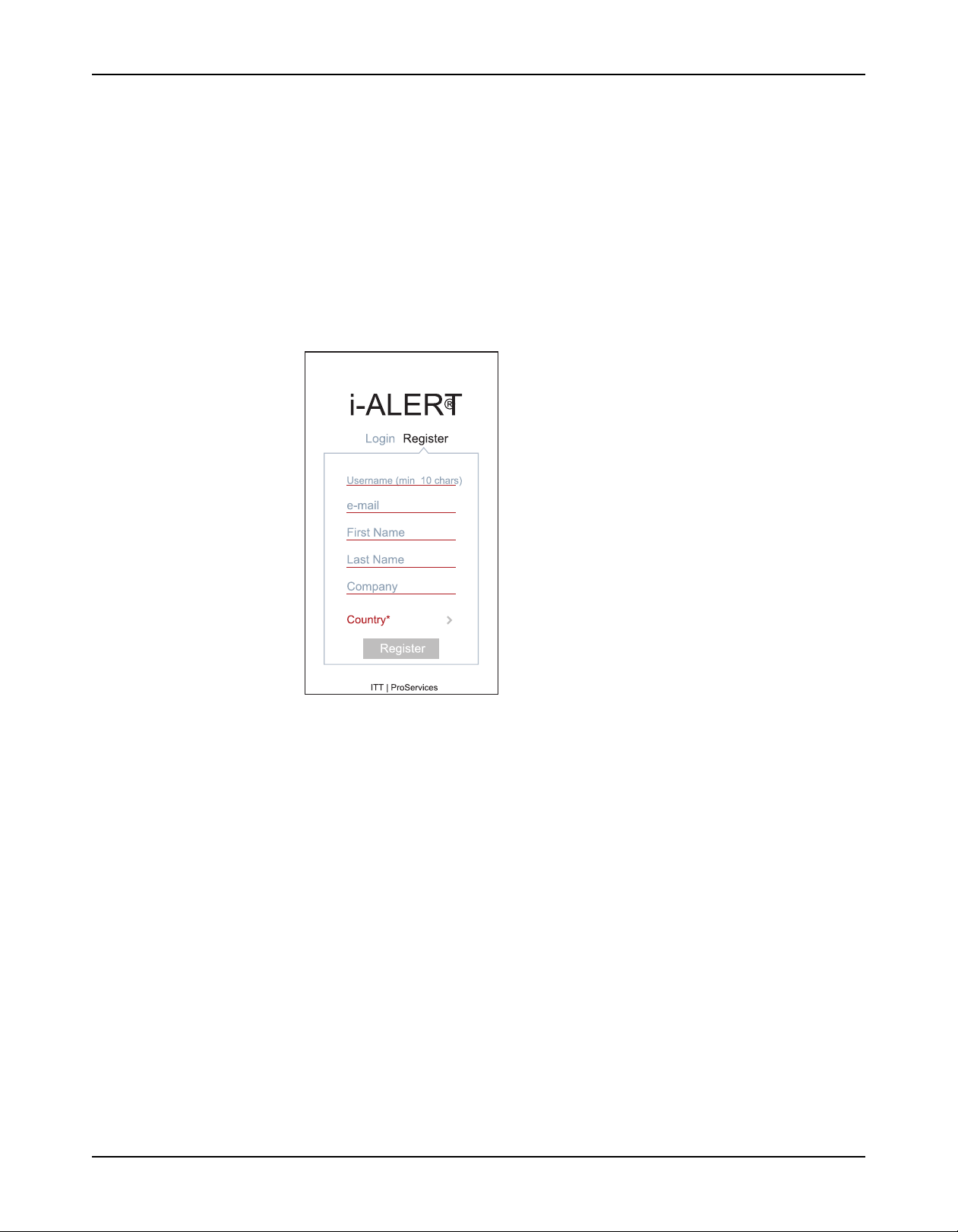

Figure 9: i-ALERT®2 registration

Commissioning, Startup, Operation, and Shutdown
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 13
Commissioning, Startup, Operation, and
Shutdown
Activate the i-ALERT®2 Equipment Health Monitor
Figure 10: i-ALERT®2 Equipment Health Monitor activation
Steps to activate the i-ALERT®2 Equipment Health Monitor
1. Remove the sticker.
2. The i-ALERT®2 will look for light.
NOTICE: If in a dark environment use light source to activate.
3. When activated a sequence of flashing LEDs will start to indicate that the unit is powered
on.
4. When sequence is completed the green LED will flash every 5 sec under normal operating
conditions.
WARNING:
• Contains Lithium battery.
• Do not crush or disassemble.
• Never heat the condition monitor to temperatures in excess of 100°C | 212°F. Heating to
these temperatures could result in death or serious injury.
CAUTION:
Always wear protective gloves. The pump and condition monitor can be hot.

Commissioning, Startup, Operation, and Shutdown
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual14
Reset the i-ALERT®2 Equipment Health Monitor
Figure 11: i-ALERT®2 Equipment Health Monitor reset
The LEDs correspond to an i-ALERT®2 Equipment Health monitor function.
When using the magnet over the BlueTooth icon you can change an i-ALERT®2 Equipment
Health monitor function. Lifting a magnet off on an LED will
Sequence LED When you lift the magnet off
1 Red Nothing
2 Blue Bluetooth is turned OFF/ON
3 Green Unit is shut down
4 After flashing all colors stops Unit is reset

Commissioning, Startup, Operation, and Shutdown
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 15
i-ALERT®2 Equipment Health Monitor routine operation
Measurement interval
The measurement interval for the condition monitor during normal and alarm operation is 5
minutes.
When the monitor measures a reading beyond the specified temperature and vibration limits,
the appropriate red LED flashes (after 2 consecutive readings). After the process or pump
condition that causes the alarm is corrected, the condition monitor returns to normal mode after
one normal-level measurement.
Alarm mode The condition monitor’s alarm mode is activated after two consecutive readings. When the
alarm mode is on, you should investigate the cause of the condition and make necessary
corrections in a timely manner.
Magnetic device considerations
Be careful when you use magnetic devices in close proximity of the condition monitor, such as
magnetic vibration-monitoring probes or dial indicators. These magnetic devices can acciden-
tally activate or deactivate the condition monitor resulting in improper alarm levels or loss of
monitoring.
Wireless integration
A Bluetooth Low Energy Radio is utilized to communicate condition monitoring information to a
mobile Smart device that the operator can easily view and react to.

Maintenance
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual16
Maintenance
Guidelines for i-ALERT®2 Equipment Health Monitor disposal
Precautions
WARNING:
• Never heat the condition monitor to temperatures in excess of 100°C | 212°F. Heating to
these temperatures could result in death or serious injury.
• Never dispose of the condition monitor in a fire. This could result in death or serious injury.
Guidelines This Product Contains Lithium Thionyl Chloride therefore the local Waste management
companies can provide assistance in the disposal of the device that contain this type of battery.

Troubleshooting
i-ALERT®2 Equipment Health Monitor Installation, Operation, and Maintenance Manual 17
Troubleshooting
i-ALERT®2 Equipment Health Monitor troubleshooting
Symptom Cause Remedy
There are no red, green, or blue
flashing LED. The battery is dead. Replace the equipment health monitor.
The unit is in sleep mode. Activate the condition monitor us-
ing magnet.
The unit is malfunctioning. Consult your ITT representative
for a warranty replacement.
The red LED is flashing, but the
temperature and vibration are at
acceptable levels.
The baseline is set below normal
operating limits. Check the temperature and vibra- tion levels and request new base-
line. Or manually change alarm
limits.
The unit is malfunctioning. Consult your ITT representative
for a warranty replacement.
For connection issues with smart devices, please visit www.i-ALERT.com
For ITT’s privacy Policy, click here: http://itt.com/privacy/
For User SW License Agreement, click here: http://www.ittproservices.com/AppPrivacyPolicy

Visit our website for the latest version of this
document and more information:
http://www.i-alert.com
Form IOM.i-ALERT2.en-US.2016-11/KPA/0920
