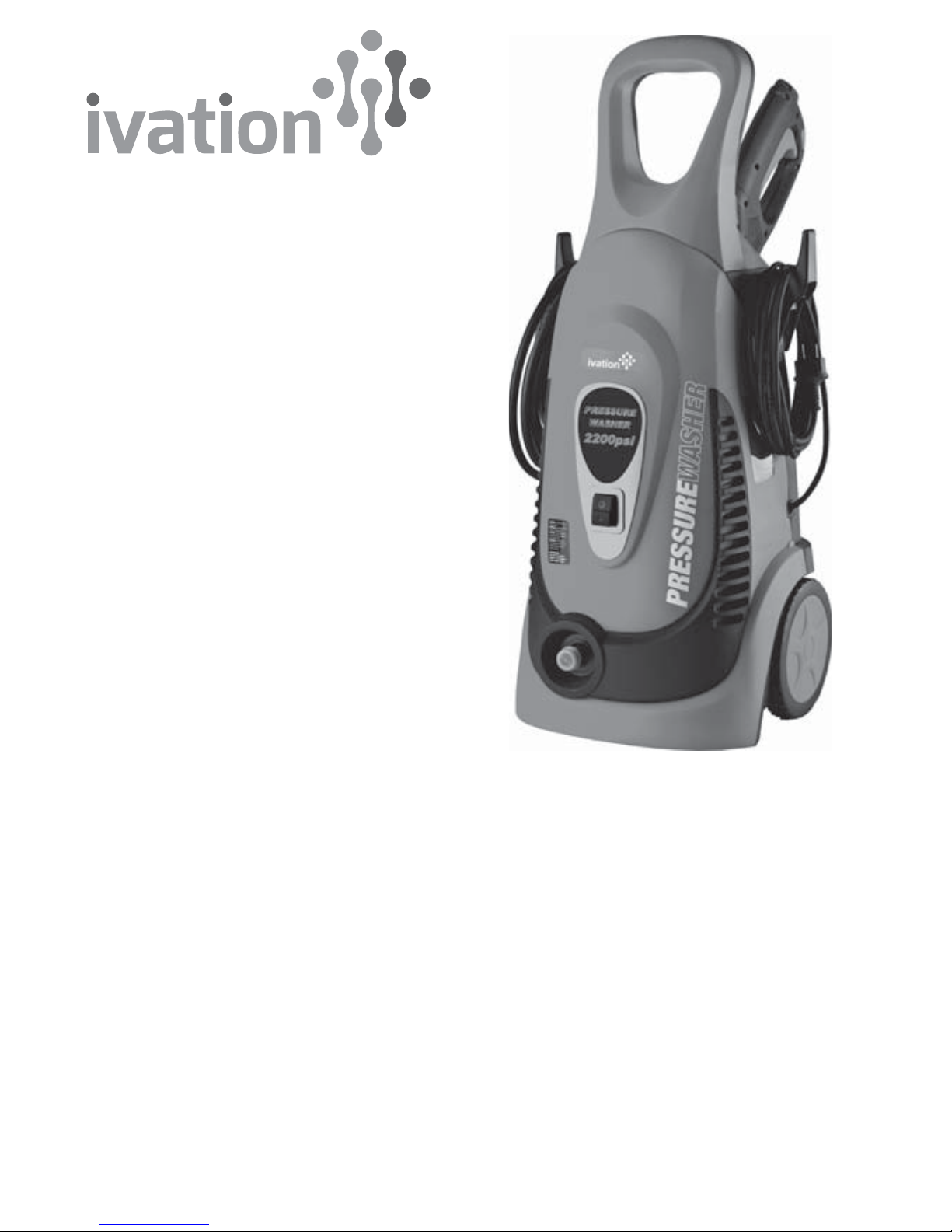

Ivation IVA-9175L User manual

Pressure
Washer
User Guide
WARNING: READ THIS USER GUIDE BEFORE OPERATING THE UNIT.
The Ivation pressure washer removes loose paint, mold, grime, dust, mud, and
dirt. It can be used on vehicles and surfaces such as wood decking and concrete.
This User Guide is intended to provide you with guidelines to ensure that
operation of this product is safe and does not pose risk to the user. Any use that
does not conform to the guidelines described in this User Guide may void the
limited warranty.
Please read all directions before using the product and retain this guide
for reference.
This product is covered by a limited one-year warranty. Coverage is subject to
limits and exclusions. See warranty for details.

Contents
Parts .............................................................................................................................. 3
Safety Precautions..................................................................................................... 4
Basic Operation ........................................................................................................... 6
Assembly...................................................................................................................... 7
Optional Filter............................................................................................................10
Self-suction Function...............................................................................................11
Troubleshooting Guide .............................................................................................12
Technical Data ...........................................................................................................14
Box Contents .............................................................................................................14
2

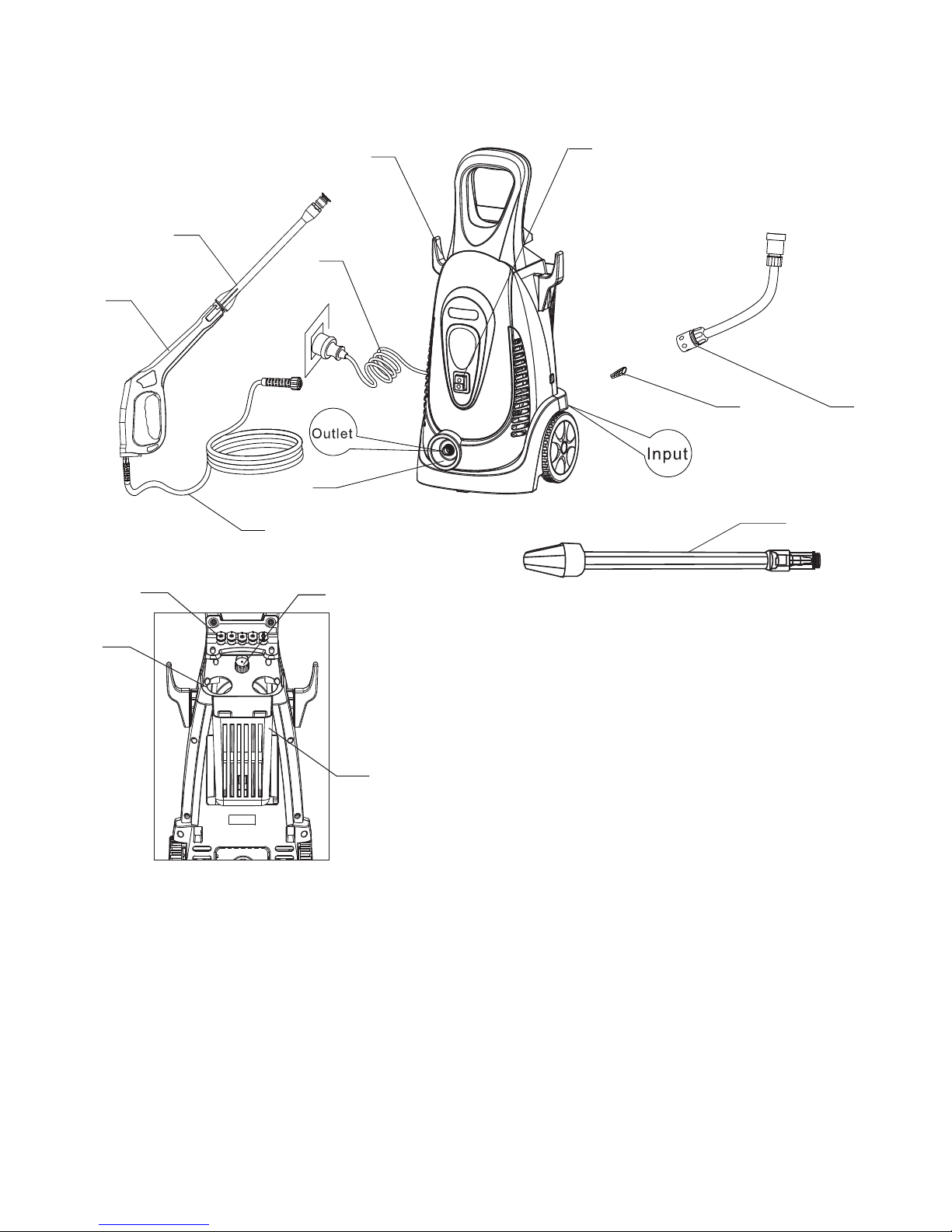

Parts
1
1 Spray Wand
2 Spray Gun Handle
3 High Pressure Hose
4 Holder
5 Power Cord
6 Housing
7 Power Switch
8 Input Water Filter
9 Water Input Hose (not included)
10 Turbo wand
11 Gun Plug Hole
12 Detergent Input
13 Basket
14 Onboard Nozzle Storage
2
3
5
47
6
89
10
11
12
13
14
3

Safety Precautions
Do not use the appliance with flammable or toxic liquids, or any products
that are not compatible with the correct operation of this appliance. EXPLOSION OR
POISONING HAZARD
Do not direct the water jet toward the unit itself, electrical parts or equipment, or
power outlets. ELECTRIC SHOCK HAZARD
Do not direct the water jet toward people or animals. Keep people and animals a
minimum of 16 yards away. INJURY HAZARD
Do not touch the plug or socket with wet hands. ELECTRIC SHOCK HAZARD
Do not allow children or impaired persons to use the appliance. INJURY HAZARD
Do not use the appliance outdoors in the rain. SHORT CIRCUIT HAZARD
Do not use the appliance if the electrical cord is damaged. ELECTRIC SHOCK AND
SHORT CIRCUIT HAZARD
Do not use the appliance if any of its components, electrical parts, high pressure
hose, or safety mechanisms are damaged. EXPLOSION AND ELECTRIC SHOCK HAZARD
Do not jam the trigger in the open position. ACCIDENT HAZARD
Do not move the appliance by pulling electrical cable. SHORT CIRCUIT AND ELECTRIC
SHOCK HAZARD
Connect only to an adequate power supply in compliance with all applicable
regulations. Use only with GFCI (Ground Fault Circuit Interrupter) outlets. ELECTRIC
SHOCK AND SHORT CIRCUIT HAZARD
Do not tamper with or attempt to adjust safety valves, settings, or mechanisms.
EXPLOSION HAZARD
Do not move the appliance by pulling the high pressure hose. EXPLOSION HAZARD
When directed towards tires, tire valves or other pressurized components, the high
pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always keep the
jet at a distance of at least 12 feet away. EXPLOSION HAZARD
Do not use this appliance to clean fragile objects. DAMAGE HAZARD
Check that the electrical supply voltage and frequency correspond to those specified on the
appliance data plate.
Do not alter the original diameter of the spray head nozzles
Make sure the high pressure hose is free is unobstructed and away from sharp objects.
Do not leave the appliance unattended. ACCIDENT HAZARD
4

Do not use the appliance after drinking alcohol, taking medication, or if you are tired and
not alert.
Do not direct water jet towards weakened or fragile structures. DAMAGE HAZARD
Use only extension cords with waterproof plug and socket.
Do not pull the power cord.
WARNING! The intake water temperature must not exceed 104ºF/40ºC. The water
supply pressure must not exceed 0.7 MPa.
IMPORTANT! When the trigger is released, water stops flowing through the pump. The
motor automatically turns off to protect the pump from overheating. Operation will resume
when the trigger is re-engaged.
Before starting up your machine, please check it carefully for any defects. If you find any, do
not start up your machine. Contact the manufacturer.
Do not operate the machine if the power cord or other components are damaged.
Use only with cleaning agents that are recommended for use with power
washers. Never use with corrosive, toxic, or flammable liquids.
Use this appliance only for its intended purpose.
CAUTION: High pressure may cause the machine to rebound. Take appropriate measures to
protect yourself from slipping.
Do not wear loose clothing or jewelry while operating the unit.
It is strongly advised that the operator wear safety glasses, protective rubber gloves,
protective headwear, ear protectors, and non-slip, protective footwear.
To avoid unintentional starting, do not carry the plugged-in machine with your finger on
the trigger. Make sure the switch is off before plugging in the machine.
Stand on a dry, level surface when operating the unit. Do not lay down or tilt the machine.
Use only the nozzles and components supplied.
Always switch the machine off before disconnecting it from the power source.
Always unplug the machine when it is not in use.
Store the unit in a cool, dry environment. Do not place in areas prone to high humidity or
temperature extremes.
Before operating the unit, always check that the screws AND CONNECTORS are tightened
and that no parts are broken, worn, or missing.
Do not use water that is dirty, gritty or contains any chemical products.
This machine is not meant to pump hot water. Never connect it to a hot water supply.
Do not cover or modify the spray wand or the spray nozzles in any way.
The operating temperature must be between 32˚ F (0˚ C) and 104˚ F (40˚ C).
In the event of a problem, or if pausing operation: Switch the unit off and unplug it. Relieve
pressure by pulling trigger gun. Shut off the water supply and disconnect the hose.
5

Basic Operation
To Start Operation
1. Place the machine in its upright position on a flat, stable, level surface.
2. Check the water entry filter to make sure it is free of blockage.
3. If using detergent, use a product specifically designed for power washers.
Use with the foaming nozzle ONLY.
4. Connect the desired nozzle to the spray wand -- or use the turbo wand
without an interchangeable nozzle -- and the wand to the spray gun handle.
Make sure the nozzle is firmly connected to the spray wand before using to
avoid injury or property damage from highly pressurized water.
5. Connect the gun handle to the high pressure hose.
6. Make sure the hose is not coiled or twisted.
7. Connect the hose to the water output on the front of the machine.
8. Connect your water supply hose to the water entry of the machine.
9. Connect other end of the supply hose to water source.
10. Press the gun trigger and turn on the water to expel the air inside the machine.
11. Plug in and turn on the machine.
12. Hold the gun firmly.
13. CAUTION: High pressure may cause the machine to rebound.
To Stop Operation
1. Turn off the power switch.
2. Shut off the water supply.
3. Unplug the unit.
4. Disconnect garden hose.
5. Press the trigger and discharge all residual water from the nozzle.
6. Engage the gun safety catch.
7. Drain any detergent and wash out the tank.
8. Store the unit in a cool, dry environment. Do not place in areas prone to high
humidity or temperature extremes. (Ambient temperature should be between
32°F - 90° F).
9. The unit may be treated with non-corrosive, non-toxic antifreeze before
storing it away for winter.
6

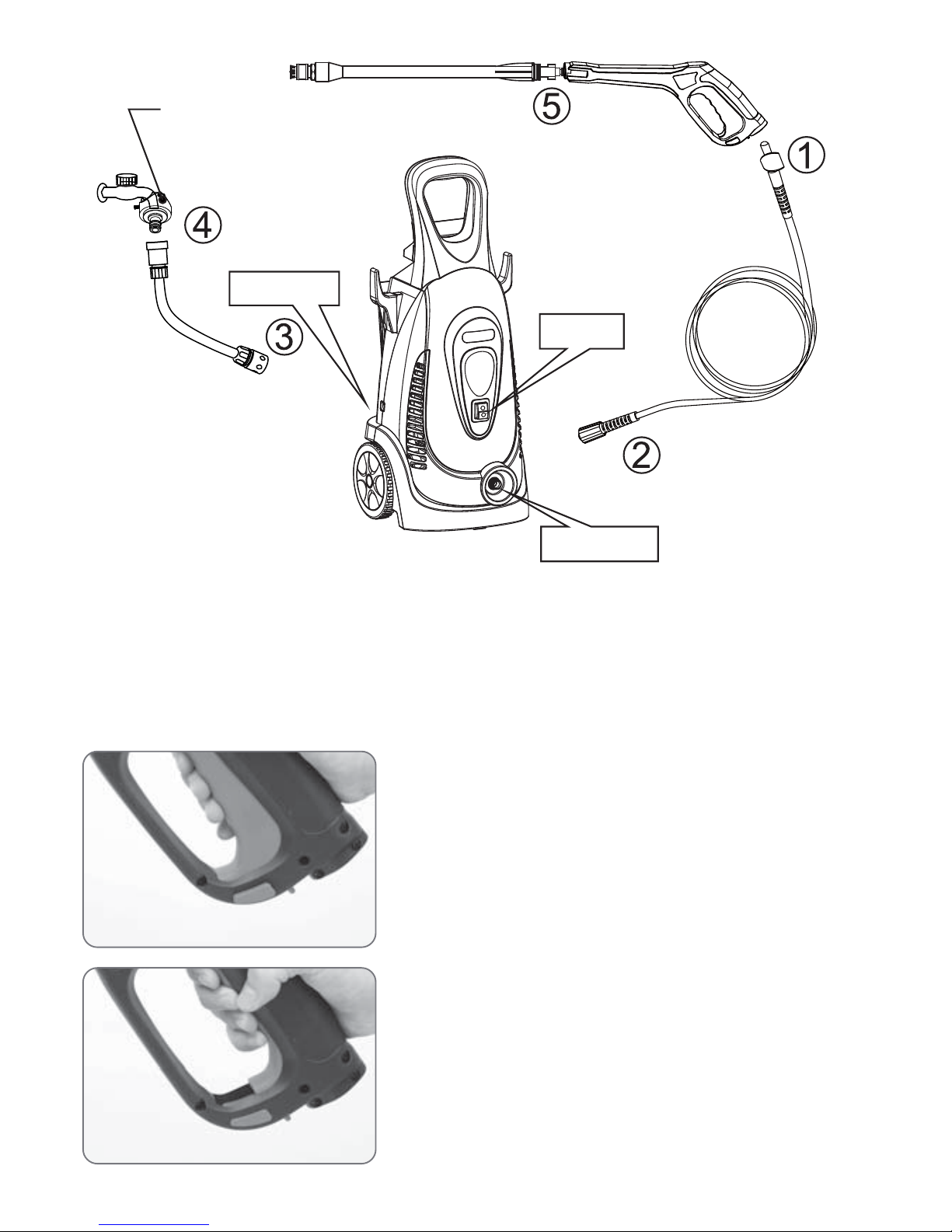

Assembly:
Water supply
Switch
Water inlet
Water oulet
Recommended Process:
(1) Hose to gun →(2) hose to water outlet →(3) water inlet hose to quick
connector attaching to unit →4) water inlet hose to tap →(5) spray wand
to gun. Set the wand to low pressure step. Open the tap and trigger the gun to
remove the air in the unit. Connect to power. Turn on the appliance. Set to
high pressure.
Locked position: locking button on the side of
the handle protrudes; trigger is locked.
Locking button pressed in; trigger is unlocked.
7

Connect pressure hose to gun handle. Lock in
place by sliding the switch on the bottom to the
left as shown.
To unlock, push the switch to the right as shown.
To connect nozzle to high pressure hose: Pull
down the metal collar on the hose. Insert the
nozzle. Make sure the nozzle clicks in firmly.
Release the collar.
Attach wand to gun handle by firmly pushing in
and then turning clockwise.
8

Unscrew the cap on the built-in tank and add
detergent. Follow detergent manufacturer’s
instructions.
Connect the high pressure hose to the outlet
port in the front of the unit by pushing the hose
in and turning the screw collar to secure.
Connect your garden hose to the water input
port in the back of the unit.
9

Optional Filter
Use if you have hard water and other water conditions. Please read the following
instructions carefully.
1. Take filter out of bag, open the
transparent tube and take the
seal ring out.
3. Find the input screw
shown below.
Note: Clean the filter frequently.
4. Take off the cover on
the input tube.
5. Connect the filter in
picture 2 to the input
tube In picture 4.
6. Attach the input screw in
picture 3 to the other end of
the filter.
7. Connect the Input hose
to the input screw.
2. Place the seal ring into the
cap as shown and reconnect
the tube.
10

Self-suction Function
This function permits the pressure washer to pump standing water from a well,
tank, basin or other source, and will work when the water level is approximately
1 – 1.5m (39 – 59 inches) high. If the machine will not pump after 1 minute, turn
it off and check if:
The inlet hose is submerged
The water level is less than 1.5m high
The hose, wand or filter is blocked
The nozzle is producing too much pressure
Note: Water flow will be slower than when unit is connected to a running
water supply.
11

Troubleshooting Guide
12

Make sure you are using the
(black) foam nozzle
13

Technical Data
Motor: Brush 1800W
Maximum Pressure: 150bar (2200psi)
Flow: 7.0Lmin (1.8gpm)
Voltage/Frequency: 110-240V, -/50Hz
G.W/N.W: 14.3/13.3Kg
Electrical Diagram of Brush Motor
Made in China
Ivation is a trademark of
C&A IP Holdings, LLC
©2015 All right reserved
Box Contents
Item
Pressure Washer
Gun Handle
Spray Wand
Turbo Wand
Cleaning Pin
Cord Holder
Hose Holder
Storage Basket
0° Nozzle
15° Nozzle
25° Nozzle
40° Nozzle
Foam Nozzle
1
1
1
1
1
1
1
1
1
1
1
1
1
Quantity Item Quantity
14
Distributed by
C & A Marketing
2 Bergen Turnpike
Ridgefield Park, NJ 07660
[e-mail]
