IvCar H1 User manual

"IvCar " product manual
1、Please say voice command after you hear the indication voice;
2、When long press the screen, the apk will pop-up The gesture
operation dialog box to show the operation method；
3、When using this product requires Internet network, Some part of
the function will not be able to use when there is no internet network；
4、This product does not support dual card mobile phone and tablet；
Special notices:

Bluehand
Control handle
1 2
1.1 the product appearance
Connecting rod
The cigarette lighter plug
2.1A high-power USB
charging port
1.2 The bluehand puts
Insert the bluehand to the car cigarette lighter.
With the bluehand, you can conveniently make and answer calls
hands-free and listen to music from your compatible
device. You can also initiate a voice assistant from your smart phone
(Siri for Apple, other voice assistant for Android), which allows the user
control the smart phone by natural voice.
The bluehand can be paired with Bluetooth devices and connected to a
compatible mobile phone and music player at the same time. The
bluehand can be connected to the audio system by FM Radio or an AUX
cable. The bluehand supports a USB interface which allows the user to
charge the smart phone or other devices.

43
1.3 control buttons
The call control button: Telephone/hang up
Music control button: Play/pause the music
FM control + / - : FM transmission frequency increase/decrease.
Track control: music Previous/Next
Voice control button: Start the voice control/answer or reject
FM transmission frequency display: Display the current FM
transmission frequency
quality audio output: connect the headset or car stereo AUX input
1
2
3
4
5
6
78
100.0
FM+
telephone control
next
FM-
Previous
The media play
button
FM transmission frequency
display screen
voice control
button
Notice: Press and hold "FM +" and "FM -" two seconds to start
automatically searches for FM transmit frequency

65
1.4 connection
FM 100.0
Cigarette lighter to charge
FM 100.0
Bluetooth connection
FM radio transmit
Connect to the car-audio
Software installation
1、 Insert the bluehand to the car cigarette lighter.
2、For the fist time using, Long press the call control button unitl the lights
flashing rapidly the set the bluehand to the pairing mode
3、Enter the mobile phone Bluetooth Settings, open the Bluetooth functions,
and then search the Bluetooth devices, and find YWT - Bluehand,Click to
connection . When connection successful the Led of bluehand will turn on.
And the bluehand will auto reconnection in the next time use
4、Press the FM+ and FM- and hold until the Screen began to scan, and
waiting for 30 second the screen number is stable.
5、Turn the FM receiver radio frequency to the same as the screen displayed.
notices: when there is more noise on the car-audio you can redo the 4 &5 item
or adjust the Radio frequency to a blank channel and tuning the Bluehand FM
to the same as car-audio, if there is some pop noise on car-audio, please
turndown the phone volume

7
2.1 The main interface
Main functions include: calls, text messages, navigation, music, weather
and agents, driving, and man-machine chat, etc.
The main interface is as follows:
8

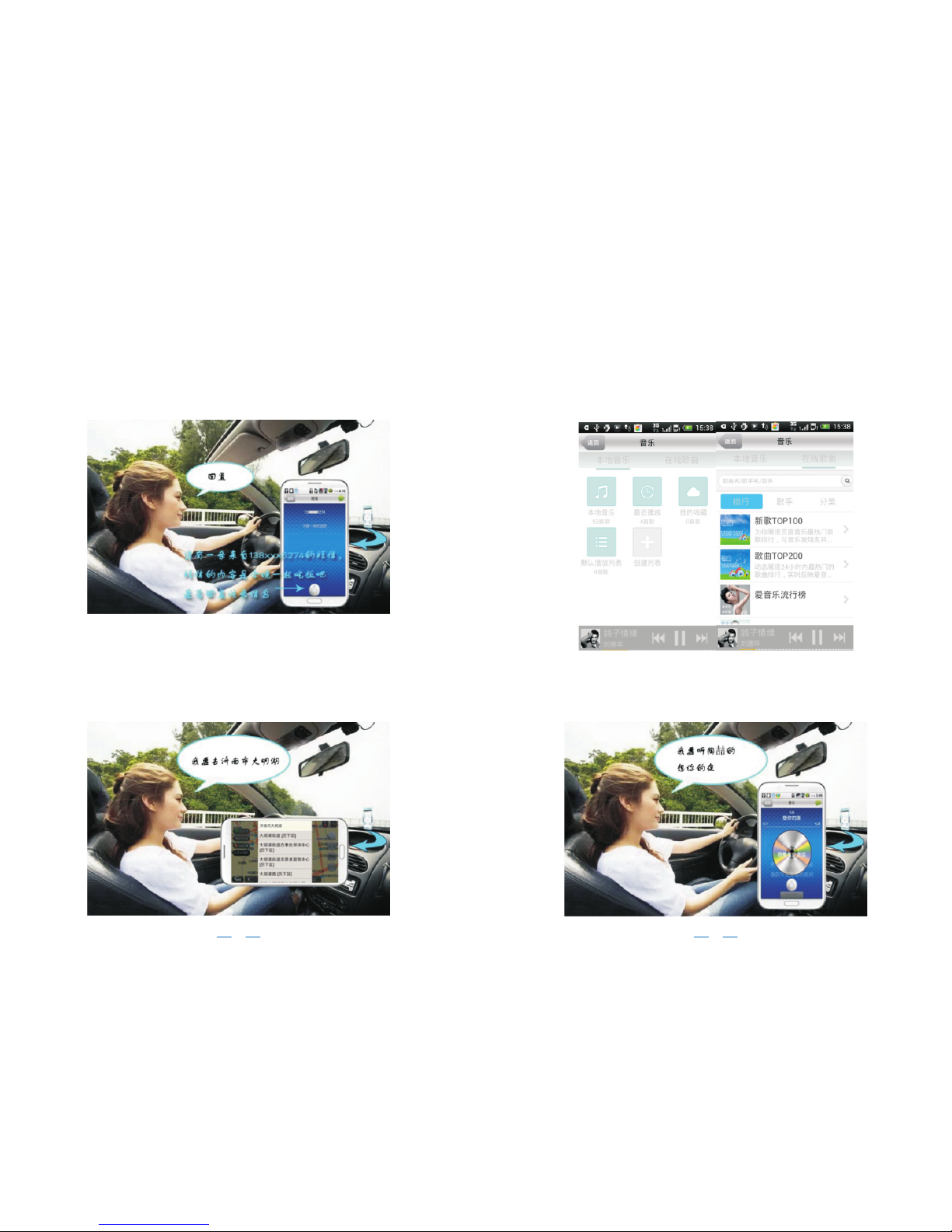

2.2 call
Call operation as follows:
2.3 text messages
software instructions
通话 短信
导航 坐席
Short messages interface as follows:

9
Receiving short messages interface as follows:
2.4 navigation
导航操作界面如下图：
10
2.5
The diagram as below:
Enter to music interface, through gestures to delimit screen operation,
such as adjust the volume and switch songs(long press the screen will
pop up gestures message), please show picture as below:
music
Enter to music interface, this interface divided into two parts functions,
the local music and online music

11
2.6 ：
2.7
2.8
12

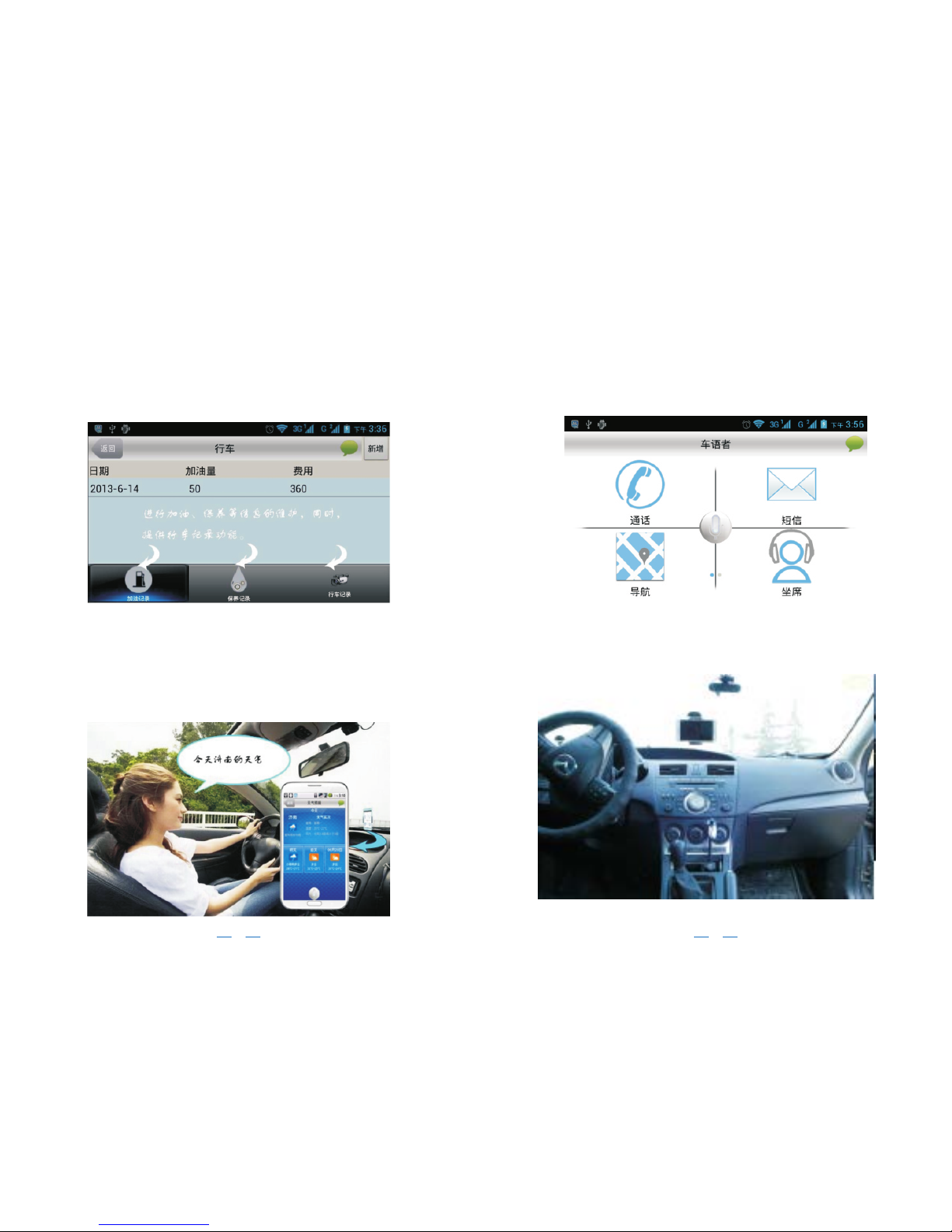

driving
Enter the traffic management interface, please show the picture below:
Refueling and maintenance information such as maintenance can
be performed at the same time, it is also provide driving record function.
weather
The interface is as below:
Agent
At operating below:
Main screen click at the user can choose 1 or 2, a key or a key
navigation operation

→
→
→
→
→
ntelligent secretary
Intelligent communication
Artificial reclined at the table
Chang to listen to all the way
Voice navigation
→
→
→
→
→
通话 短信
导航 坐席

FCC ID :
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
changes or modifications not expressly approved by the party
responsible for compliancecould void the user's authority to operate
the equipment.NOTE: This equipment has been tested and found to
comply with the limits for aClass B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.If this equipment does cause
harmful interference to radio or television reception,which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
