INSTALLATION DIRECTIVE
MAY 2006 EDITION
TECHNOLOGICAL EXCELLENCE

INSTALLATIONDIRECTIVE MAY 2006
2V08 ENT M75 -M11 -M12
We strongly recommend that you carefully read the indica-
tions contained in this document: compliance with them
protects the engine against irregular operation and assures
its reliability, safeguarding sea-going and maintenance person-
nel against accident hazards.
The indications contained in this directive pertain to the
V08 ENT M75 -M11 -M12 engines and complement the
IVECO MOTORS publication “Guide to the Installation of
Marine Engines”, the reader should refer to for anything that
is not explained herein.
For more complete information about the engine, please
refer to the appropriate technical brochure.
Use of fuels and oils with different characteristics from
those set out in the operation and maintenance manual may
compromise the regular operation of the engine, limiting its
performance, reliability and working life.
Exclusive use of IVECO Original Parts is a necessary condi-
tion to maintain the engine in its original integrity.
Tampering, making modifications and using non original parts
can jeopardize the safety of boat engineers and users.
To obtain spare parts, you must indicate:
- Commercial code, serial number and indications shown
on the engine tag;
- Part number of the spare as per spare part catalog.
The information provided below refer to engine charac-
teristics that are current as of the publication date. IVECO
MOTORS reserves the right to make modifications at any
time and without advance notice, to meet technical or
commercial requirements or to comply with local legal and
regulatory requirements.
We refuse all liability for any errors and omissions.
The reader is reminded that the IVECO MOTORS Technical
Assistance Network is always at the Customer’s side with its
competence and professionalism.
Publication IVECO MOTORS edited by:
IVECO PowerTrain
Advertising & Promotion
Pregnana Milanese (MI)
www.ivecomotors.com
Printed P3D64V001 E - May 2006 Edition
FOREWORD

INSTALLATIONDIRECTIVE 3
V08 ENT M75 -M11 -M12
MAY 2006
Page
CONTENTS
Indications for consultation
The different versions of the motors are generally shown
using the same pictures and descriptions, however important
differences are shown separately.
1. WARNINGS AND CAUTIONS 4
2. ENGINE PARTS AND COMPONENTS 6
3. INSTALLATION OVERVIEW 10
4. GENERAL INSTALLATION CRITERIA 11
5. TECHNICAL DATA FOR INSTALLATION 12
6. IDENTIFICATION DATA 14
7. FUEL LINE 15
8. ELECTRICAL EQUIPMENT 17
9. MAIN ANALOG INSTRUMENT PANEL 26
10. SECONDARY ANALOG INSTRUMENT PANEL 30
11. DRILLING PLANS FOR ANALOG PANELS 31
12. CUSTOMIZED INSTRUMENT PANEL 32
13. SENSORS FOR DETECTION
AND INSTRUMENT PANEL SIGNALLING 34
14. PREPARING THE ENGINE FOR FIRST START-UP 37
15. TESTS BEFORE THE FIRST START-UP 37
16. FIRST ENGINE START 38
17. EDC ECU INDICATION LIGHTS 40
18. UNDERWAY CHECKS 43
19. PREPARING THE ENGINE
FOR LONG IDLE PERIODS 44
20. ELECTRIC DIAGRAMS 46
21. APPENDIX 53

INSTALLATIONDIRECTIVE MAY 2006
4V08 ENT M75 -M11 -M12
To obtain the best engine performance, it is essential not to
deviate from the mission profile for which it was produced
and set up.The engine must not be used for purposes other
than those stated by the manufacturer. IVECO MOTORS is
willing to examine any need for particular installations befo-
rehand. Use of an electronically controlled injection system,
in providing the engine with performance benefits, requires
that the installer and maintenance specialist comply with
some fundamental rules, which will become more and more
commonplace as use of such equipment becomes progressi-
vely more widespread. Boat outfitters and maintenance spe-
cialists are invited to closely follow the instructions contained
herein. No modifications to the engine, its accessories and
components, are allowed.
Failure to comply with the instructions that follow shall
void the warranty and relieve IVECO MOTORS of all
liabilities.
For personnel safety
Specialists and installers are cautioned to comply with
workplace safety rules and to adopt prescribed individual
protection devices when working.
oDrain the cooling, lubrication and fuel lines only after
the fluids have duly cooled. The pressurized cap of the
coolant line may be opened only after the engine has
duly cooled.
oBatteries contain a highly corrosive sulphuric acid solu-
tion: must never be upset and must be handled with
the utmost caution to prevent spillage. Ensure that the
battery compartment is adequately ventilated.
Handling
The engine must be handled by experienced personnel,
using the prescribed tool or a rocker arm that keeps the
lifting lines parallel and with adequate equipment in terms
of capacity and size.The two eyebolts provided for lifting the
engine alone must always be used simultaneously.
Installation
oKnife switches or battery breakers may be used on the
power supply line of the engine electronic unit, provided
they are not used to shut off the engine.
oDo not modify the wiring harnesses; their length may
not be modified: use only available extensions.
oDo not use electronic device wiring harnesses not com-
pliant with the IVECO MOTORS directive, in terms of
length, type of conductor, location, clamping, connection
of the shielding and earth braids.
oTo avoid any interference, the wiring harnesses of the
different on-board electronic devices must follow diffe-
rent paths from those of the engine electronic systems.
oDo not connect any extraneous user device to the engi-
ne electrical equipment.
oDo not energize the on-board electrical system of the
boat without first verifying that there are no short cir-
cuits.
oDo not branch pipes off to draw fuel from the engine
supply lines.
oDo not make any change to the engine’s hydraulic circui-
ts and components.
oDo not execute arc welding operations before removing
the electronic units from their seating, placing them at an
adequate safety distance.
oDo not subject electronic units to temperatures excee-
ding 80°C.
oDo not paint electrical components and their connec-
tions.
oDo not alter the data contained in the engine control
electronic unit.
oComply with prescribed procedures and torque values
when tightening threaded elements.
Start-up
oReady the engine following the procedure set out in
Chapter 14.
oWhen starting the engine the first time, have suitable
means available to cut off air intake in case of a runaway
condition.
oStart the engine after ensuring that it is complete with
every part specified by the manufacturer and required
by the installation, without attempting to start it with
caps and occlusions to the lubrication, cooling and fuel
feed lines.
oCheck that the fluid lines are perfectly sealed, especially
lines for fuels and lubricants, which may cause fires and
consequent harm to persons and equipment.
oMake sure that the various pipelines are not in contact
with warm surfaces or moving parts.
oThe installing yard is required to carry out tests to
verify the functional compatibility between the electri-
cal-electronic equipment of the engine and the other
electronic equipment present on the boat.
Tests and tuning up
oNever disconnect the batteries when the engine is run-
ning.
oRemove the electrical connections from the batteries
before any operation on the electrical system.
oEnsure that the battery terminals comply with the exact
polarity, are properly tightened and protected against
accidental short circuits and corrosion phenomena.
1. WARNINGS AND CAUTIONS

INSTALLATIONDIRECTIVEMAY 2006 5
V08 ENT M75 -M11 -M12
oDo not connect or disconnect electrical connections
when electrical power supply is on.
oDo not cause sparks in the attempt to verify the presen-
ce of electrical voltage.
oDo not draw fuel through unfiltered lines.
oDo not clean the engine and its parts with corrosive or
abrasive detergent substances, to avoid compromising
the integrity of electrical connections.
oThe engine fluids and air, coolant, and oil filters discar-
ded after use must be properly stored and delivered to
appropriate collection centres.
Long engine inactivity periods
Before long periods of inactivity, ready the engine following
the procedure set out in Chapter 19.

INSTALLATIONDIRECTIVE
6V08 ENT M75 -M11 -M12 MAY 2006
2. ENGINE PARTS AND COMPONENTS

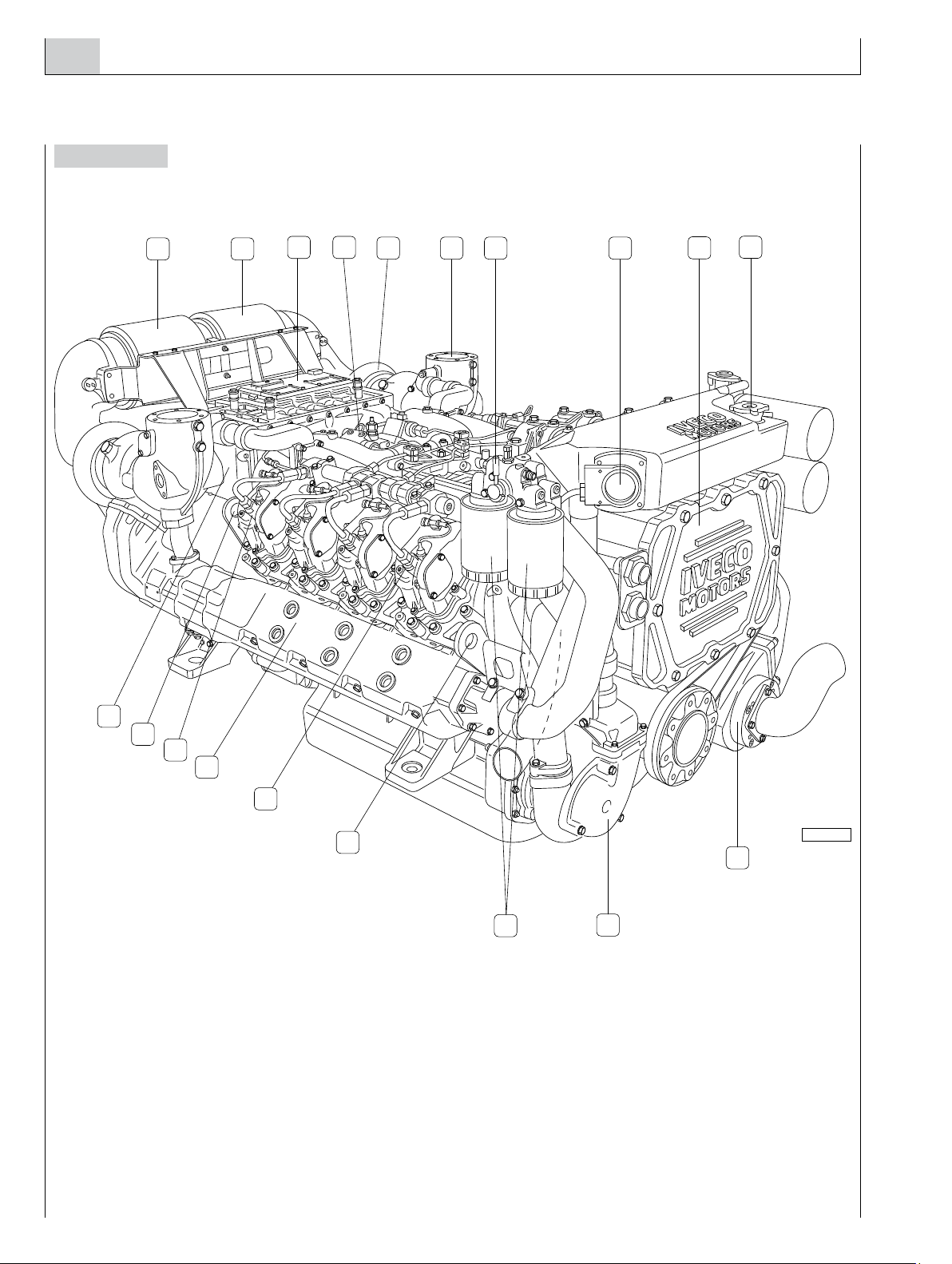

Figure 1A
05_001_V
9
4
12
10
3
112
11
8
14
15
13
5 6 7
18
16
17
1. Intake air filter - 2. EDC Electronic Central Unit - 3. Common rail high pressure injection pump - 4. Cooled turbo-charger -
5. Exhaust gas outlet - 6. Lever for switching fuel filters - 7. Engine coolant level sensor - 8. Water/water heat exchanger -
9. Pressurization cap for coolant tank - 10. Sea water pump - 11. Engine coolant pump - 12. Fuel filters - 13. Lifting padeyes -
14. Cylinder 1 electro-injector - 15. Cooled exhaust manifold - 16. Cylinder 4 electro-injector - 17. Lifting padeyes -
18. Air-sea water heat exchanger.

INSTALLATIONDIRECTIVE 7
V08 ENT M75 -M11 -M12
MAY 2006
Figure 1B
05_008_V
9
15
13
10
11
16
20
7
127
3 6
12
8
14
5
4
17
19
23
22
21
24
18
1. Engine coolant tank - 2. Pressurization cap for coolant tank - 3. Exhaust gas outlet - 4. Cooled turbo-charger - 5. Common rail high
pressure injection pump - 6. EDC Electronic Central Unit - 7. Intake air filter - 8. Air-sea water heat exchanger - 9. Lifting padeyes -
10. Cylinder 8 electro-injector - 11. Lubricating oil dipstick - 12. Lubricating oil refill cap - 13. Cylinder 5 electro-injector - 14. Cooled
exhaust manifold - 15. Lifting padeyes - 16. Location of the low pressure fuel transfer pump - 17.Tap and fitting for lubricating oil
transfer - 18. Sacrificial anode - 19. Lubrication oil transfer electrical pump - 20. Sea water intake - 21. Alternator - 22. Lubricating
oil filters - 23. Engine coolant pump - 24. Electrical equipment wiring connectors.

INSTALLATIONDIRECTIVE
8V08 ENT M75 -M11 -M12 MAY 2006
05_002_V
3
6
14
9
15
11
13
12
7
54
12
8
16
10

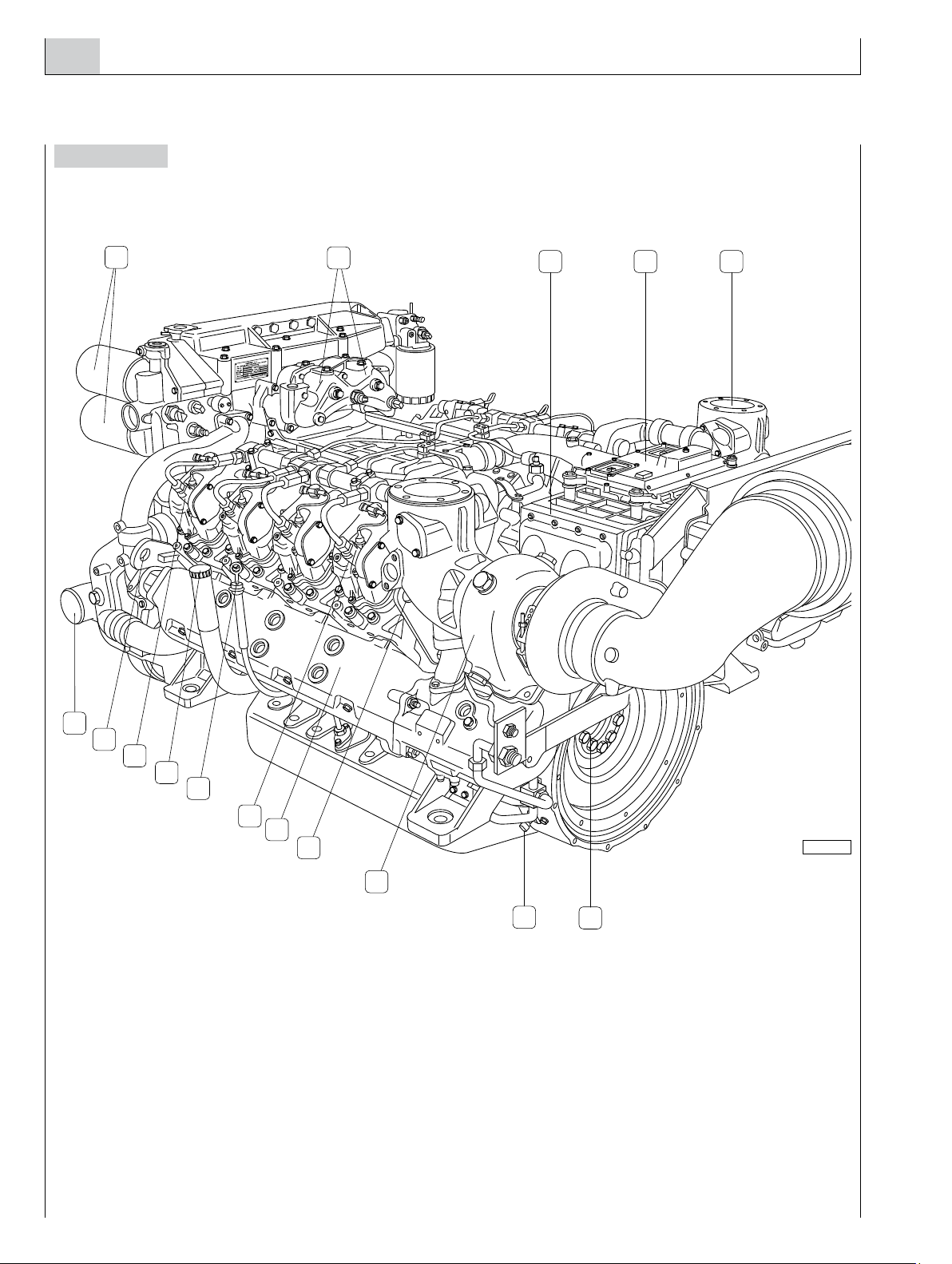

Figure 2A
1. Lubricating oil filters - 2. Location of thermostatic valves - 3. Air-sea water heat exchanger - 4. EDC Electronic Central Unit -
5. Exhaust gas outlet - 6. Fuel inlet and outlet fittings - 7. Crankshaft sensor - 8. Cooled turbo-charger - 9. Lifting padeyes -
10. Cooled exhaust manifold - 11. Cylinder 8 electro-injector - 12. Lubricating oil dipstick - 13. Lubricating oil refill cap -
14. Cylinder 5 electro-injector - 15. Lifting padeyes - 16. Sea water intake.

INSTALLATIONDIRECTIVE 9
V08 ENT M75 -M11 -M12
MAY 2006
05_009_V
5
1
7
11
10
8
9
6
32 4
12
Figure 2B
1. Exhaust gas outlet - 2. EDC Electronic Central Unit - 3. Air-sea water heat exchanger - 4. Location of thermostatic valves -
5. Fuel filters - 6. Lifting padeyes - 7. Cylinder 1 electro-injector - 8. Cooled exhaust manifold - 9. Cylinder 4 electro-injector -
10. Lifting padeyes - 11. Cooled turbo-charger - 12. Sacrificial anode (placed on the air/water heat exchanger).

INSTALLATIONDIRECTIVE MAY 2006
10 V08 ENT M75 -M11 -M12
3. INSTALLATION OVERVIEW
Figure 3
The figure shows the set of components of an installation,
including those supplied with the engine equipment, standard
or optional, and those supplied or produced by the yard.
It provides a comprehensive picture of the operations
required to install the engine.
Components arrangement and illustrations are not binding
but merely indicative, subject to the choices made by yard
engineers according to their skills, available spaces and the
prescriptions set out herein.
05_003_V
1 2 3 4 5
6
7
8
9
1011
3
1. Main instrument panel - 2.Throttle actuator - 3. Exhaust gas outlet - 4. Fuel return pipe to tank - 5. Fuel suction pipe -
6. Prefilter with priming pump - 7. Sea water outlet from air/water heat exchanger - 8.To the filtered sea water intake -
9. Sea water decanter filter - 10. Sea water outlet from water/water heat exchanger - 11. Electrical system cabinet.

INSTALLATIONDIRECTIVEMAY 2006 11
V08 ENT M75 -M11 -M12
4. GENERAL INSTALLATION CRITERIA
Accessibility
The engine must be located in such a way as to allow filling
and draining engine liquids when doing servicing operations.
Moreover, the relay box and the diagnostic push-button
present on it must be accessible, also when underway.
Anchoring
If anchoring is accomplished by interposing shock mounts,
they must be able to support the engine’s mass and the lon-
gitudinal thrust exerted by the propeller shaft in motion.
If rigid mounting is adopted, particular care must be given to
support alignment and co-planarity.
Information on dimensions and fastening values are provided
in the “Installation Diagram”.
Combustion and ventilation air
Compliance with prescriptions on the quantity of air
required for combustion and ventilation assures a regular
operation of the engine even in adverse conditions and it
enables to deliver its maximum rated power (1).
Sea water line
It must be provided with an intake capable of preventing
the entry of foreign bodies into the suction pipes. Between
the intake and the pump, it is best to interpose a gate to be
closed in emergencies or for extended idle periods and a
filter to stop the smaller impurities; it is also recommended
to install a suitably dimensioned and easily replaced zinc
anode.
The engine sea water line was provided by the manufacturer
with protection anodes to be replaced periodically.
The rubber hoses positioned along the pipeline shall be suffi-
ciently rigid not to create choked areas caused by crushing (1).
Engine pre-heating
If the engine usage profile requires immediate delivery of
power at the highest rpm’s, it is recommended to install an
auxiliary pre-heater on the closed cooling loop.
Exhaust gas outlet
The exhaust gas outlet conduits shall be compliant with the
guidelines contained in the IVECO MOTORS publication
“Guide to the installation of marine engines”; it also provides
indications to compute the dimensions of the exhaust pipe-
lines, which is the Yard’s responsibility.
Electric - electronic equipment
Provide a suitable arrangement of the relay box, and of the
optional electronic unit referring to the dimensions and posi-
tion of the wire harnesses and the relative connectors.
Both units must be anchored in such a way as to dampen the
vibrations and stresses undergone by the hull while under-
way and/or induced by the engine’s operation.
NOTE: Information about optional equipment are described
in the Chapter 21.
(1) The EDC engine electronic control is programmed to
reduce maximum deliverable power if the operating
parameters measured by the sensors show that criti-
cal conditions have been reached, and if exceeded the
engine could be damaged.

INSTALLATIONDIRECTIVE
12 V08 ENT M75 -M11 -M12 MAY 2006
5. TECHNICAL DATA FOR INSTALLATION
V08 ENT
M75
V08 ENT
M11
V08 ENT
M12
Engine intake and ventilation air when underway
Static vacuum allowed downstream of the air filter
kPa
mmH
2
O
≤3.5
≤350
≤3.5
≤350
≤3.5
≤350
Engine air intake flow rate
m
3
/h
≥3050 ≥- ≥4000
Engine room ventilation air flow rate (excluding engine air intake)
m
3
/h
≥7950 ≥- ≥6600
Static vacuum allowed in the engine room
kPa
mmH
2
O
≤0.1
≤10
≤0.1
≤10
≤0.1
≤10
Temperature allowed in the engine room
°C
≤45 ≤- ≤40
Maximum engine room temperature exceed outside temperature
°C
≤15 ≤15 ≤15
Exhaust gas outlet
Allowed static back pressure
kPa
mmH
2
O
≤10
≤1000
≤10
≤1000
≤10
≤1000
Temperature at maximum power (turbocharger inlet)
°C
510 ± 25 - 660 ± 25
Flow rate at maximum power
kg/h
3550 - 4800
Riser outer diameter
mm
inches
-
-
-
-
-
-
Dry exhaust outer diameter
mm
inches
105
4
105
4
105
4
Diameter of circumference of distance between 6 locking holes
mm
inches
127
5
127
5
127
5
Fuel supply
Low pressure pump delivery at maximum rpm
l/h
400 400 400
Fuel temperature to allow maximum power
°C
≤70 ≤70 ≤70
Inner diameter, intake pipe
mm
≥14 ≥14 ≥14
Inner diameter, return pipe
mm
≥8 ≥8 ≥8
Thread on prefilter fittings
M
14 x 1.5 14 x 1.5 14 x 1.5
Thread on engine fittings inches
UIC
1/2 1/2 1/2
Allowed intake vacuum
kPa
mmH
2
O
≤50
≤5000
≤50
≤5000
≤50
≤5000
Allowed intake pressure
kPa
mmH
2
O
≤20
≤2000
≤20
≤2000
≤20
≤2000
Open sea water cooling line
Intake pipe outer diameter
mm
inches
101
4
101
4
101
4
Pump delivery at maximum rpm
l/h
61000 - 78000
Allowed intake vacuum
kPa
mmH
2
O
≤20
≤2000
≤20
≤2000
≤20
≤2000
Discharge pipeline outer diameter from air/water heat exchanger
mm
inches
51
2
51
2
51
2
Discharge pipeline diameter outer from water/water heat exchanger
mm
inches
89
3½
89
3½
89
3½

INSTALLATIONDIRECTIVE 13
V08 ENT M75 -M11 -M12
MAY 2006
Figure 4
Dimensions
V08 ENT
M75
V08 ENT
M11
V08 ENT
M12
Gear box oil heat exchanger
Thread on the intermediate engine fittings inches UIC
- - -
Allowed engine inclination angles
Maximum longitudinal in continuous operation (static + dynamic) degrees/360 +20° +20° +20°
Maximum transversal in continuous operation(static + dynamic) degrees/360 ± 22°30’ ± 22°30’ ± 22°30’
Longitudinal for lubricating oil level check with standard dipstick degrees/360 0 ÷ 10° 0 ÷ 10° 0 ÷ 10°
Power takeoffs (optional)
2-race front pulley for “V” belts
Reference diameter mm - - -
Race dimension mm - - -
Power available per belt at 650 rpm kW
CV
-
-
-
-
-
-
Power available per belt at 1300 rpm kW
CV
-
-
-
-
-
-
2-race front pulley + elastic joint for flange
Torque available in engine axis Nm
kgm
-
-
-
-
-
-
2-race front pulley + elastic joint for crankshaft
Torque available in engine axis Nm
kgm
-
-
-
-
-
-
Radial force resulting from belt tension (*) N - - -
(*) For direction of the resulting radial force between 60° and 300° with reference to vertical axis
Moment of inertia of rigidly added masses (*) kgm2- - -
Dimension in millimetres (inches)
2120 (83.4) 1220 (48)
1182 (46.5)
05_004_V

INSTALLATIONDIRECTIVE
14 V08 ENT M75 -M11 -M12 MAY 2006
6. IDENTIFICATION DATA
Figure 6
Figure 5
The engine identification data are stenciled on a tag positioned over the engine coolant tank
Viale dell'Industria, 15/17 - 20010 Pregnana Mil.se MI - ITALY
ENGINE TYPE
ENGINE DWG
ENGINE S/N
COMMERC. TYPE / VERSION
POWER SET CODE
HOMOLOGATION No
ENGINE FAMILY
POWER (KW)
AND SPEED (RPM)
YEAR OF BUILD
S. p. A.
04_039_C
05_002_V

INSTALLATIONDIRECTIVE 15
V08 ENT M75 -M11 -M12
MAY 2006
7. FUEL LINE
Figure 7
For the installation, the following connections are required:
- from the tank to the prefilter
- from the prefilter to fitting to engine inlet
- from engine outlet fitting to the tank recirculation
Prefilter
The prefilter with priming pump, supplied separately from
the engine, must be fastened near the tank, in a relatively low
point of the line to allow for easy replacement the filtering
cartridge and/or the operation of the hand pump. Avoid the
use of additional mesh or paper filters along the feed lines
between prefilter and engine. To avoid introducing impuri-
ties in the feeding lines inside the engine, do not place filter
cartridges pre-filled with fuel in the system.
Materials Characteristics
The fuel tank and the suction and return assembly must
withstand the continuous abrasion caused by a flow of fuel
oil of 250 l/h at a temperature of 90°C without noticeable
deformation or wear or release of material. Use of metal
tanks, preferably made of iron alloys, is allowed, provided
they are connected to the negative terminal of the battery
to prevent the accumulation of electrostatic charges.
Tanks must be provided with vents to avoid exceeding an
internal pressure of ± 5kPa (± 0.5 m of H2O column); their
shape and the suction assembly must be such as to assure a
suction at the maximum longitudinal and transverse inclina-
tion allowed for the boat, with a residual quantity of fuel oil
considered “reserve”.
The suction inlet should be positioned in such a way as to
avoid taking in sludge.The return flow must be in such a way
as to facilitate the mixing of the returning fuel with the fuel
in the tank. If the tank is lower than the filter, then the return
pipe must always be submerged.The pipes and union fittings
of the fuel line must withstand a fuel oil flow rate of 250
l/h at a temperature of 90°C and a pressure of 3 bar (300
kPa) without noticeable deformation, wear or release of
material. Metal tubes, preferably made of iron alloys, are rec-
ommended, taking care to connect each individual segment
to engine ground to avoid the accumulation of electrostatic
charges and inserting a vibration damper elastic joint on each
segment. The pipes used must be certified according to the
relevant Countries’ rules or to the standards issued by clas-
sification Bodies.
05_012_V
1
2
4
5
678
3

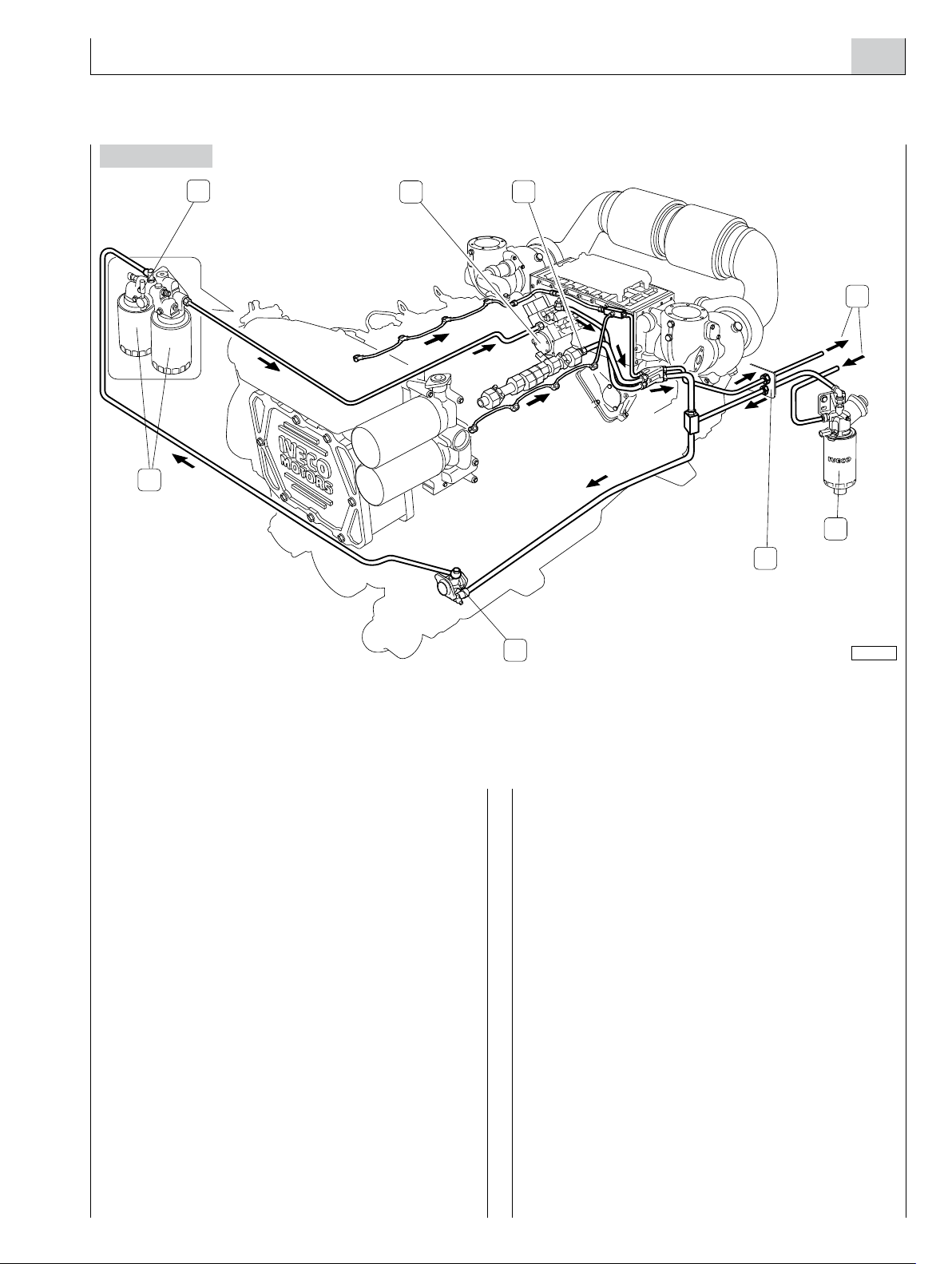

1. Return and suction flows from the tank - 2. Prefilter - 3. Fuel fitting support - 4. Low pressure supply pump -
5. Fuel filters - 6. Lever for switching fuel filters - 7. Common rail high pressure injection pump - 8. Rail overpressure valve.

INSTALLATIONDIRECTIVE
16 V08 ENT M75 -M11 -M12 MAY 2006
Fuel supply system scheme
Figure 8
Hydraulic connections
Figure 9

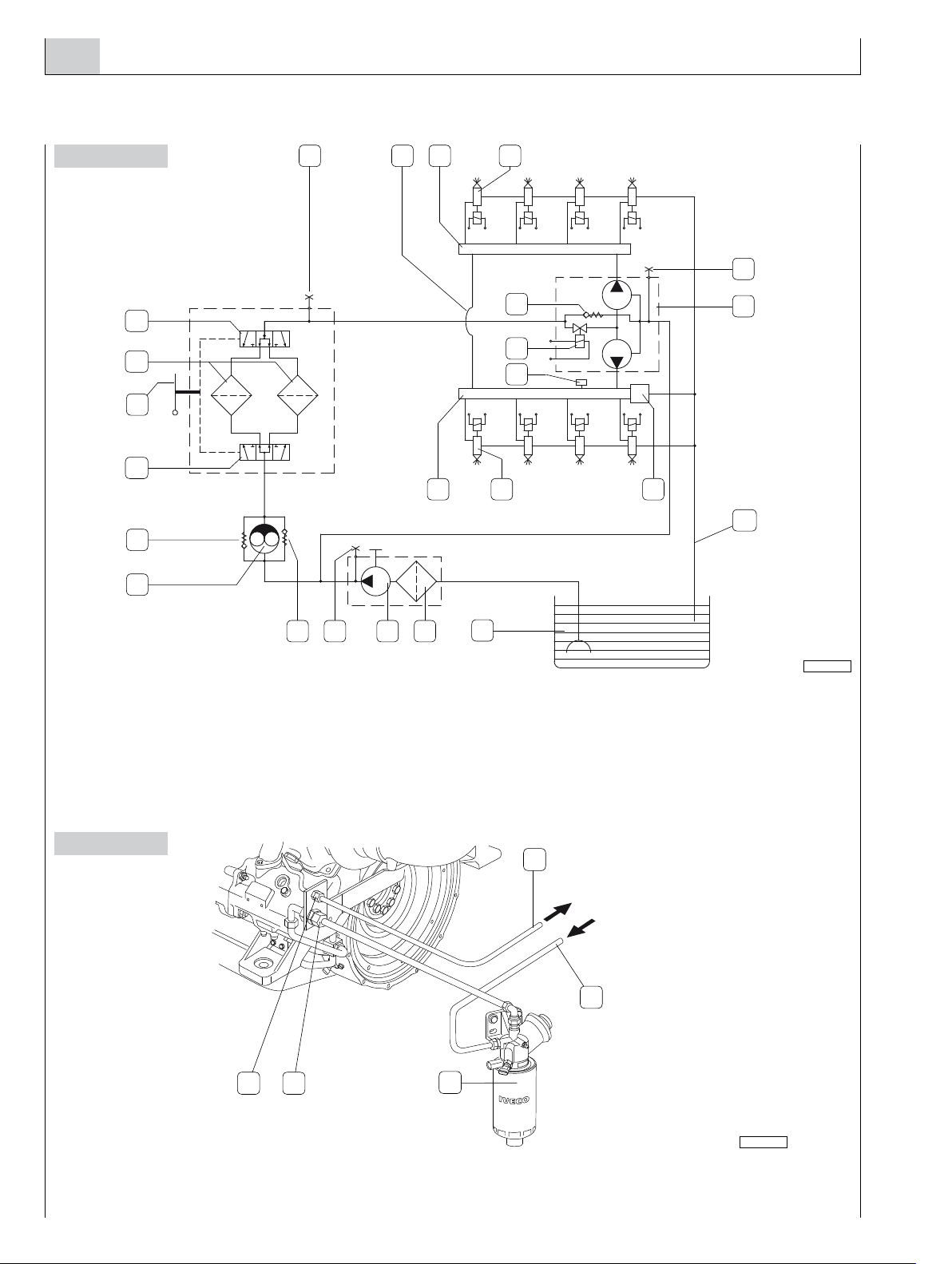

1.Vent fitting - 2. Compensation duct between two rails - 3. Common rail - 4. Electro-injector - 5. Low pressure limiter valve -
6.Vent fitting - 7.Twin-cylinder high pressure pump - 8. Pressure control solenoid valve - 9. Pressure sensor - 10. Common rail
overpressure valve - 11. Low pressure recirculation duct - 12. Fuel tank - 13. Prefilter - 14. Manual priming pump - 15.Vent fitting -
16. Recirculation valve for low pressure pump - 17. Low pressure mechanical feed pump - 18. By-pass valve for low pressure pump -
19. Lever for switching filters - 20. Fuel filters - 21. Filter exclusion valves.
1. Fitting for fuel outflow to the tank - 2. Fitting for for fuel inflow from prefilter - 3. Prefilter -
4. Fuel inlet pipe from the tank - 5. Fuel return pipe to the tank.
05_014_V
1
6
15 12 14 13
3 4 10
7
16
3 42
11
19
20
18
17
5
8
9
21
21
3
1 2
5
4
05_015_V

INSTALLATIONDIRECTIVE 17
V08 ENT M75 -M11 -M12
MAY 2006
8. ELECTRICAL EQUIPMENT
Figure 10

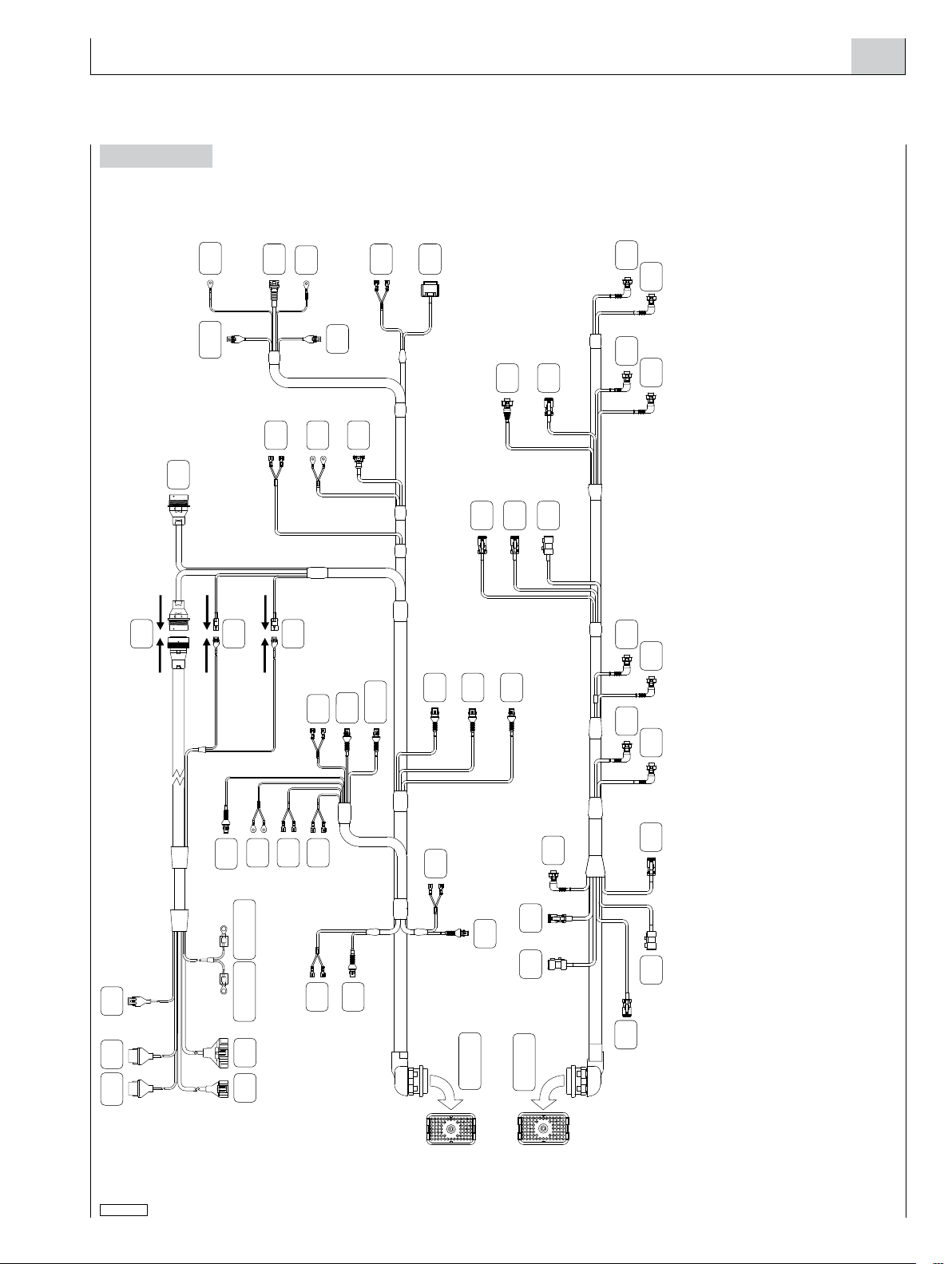

The electrical equipment of the engine comprises a series of
components provided separately from the engine to enable
an easy and diversified installation, according to the Yard’s
design choices.The need to make accessible, at sea or under-
way, the controls to the electrical components and to the
connector for diagnostics contained in the relay box may be
met through different installation arrangements.
Along with the coupling of all connectors provided in the
wire harnesses, completing the installation also requires the
connecting wire harness (12) for the sensor to detect the
presence of water in fuel (5), to complete the power line and
to connect the accumulator to the engine wire harness.
The connection of the J3 connector enables the electric
connection of the control module to the lubricating oil
pouring pump.
The JC connector is set for the connection to the emergency
stop button.
05_013_V
4
5
1
18
3
17
2
16
15
14
13
12
7
11
10
98
6
1. Indicator and control panel - 2. Electronic Central Unit - 3. Power line for electric starter motor and alternator - 4. Sedimenting
prefilter - 5. Sensor to detect the presence of water in the fuel - 6. Control unit of the lubrication oil transfer electrical pump -
7. JG Connector - 8. JG1 Connector for control unit of the lubrication oil electrical pump - 9. JC Connector - 10. JF1 and JF2
connectors - 11. Relay box - 12.Wiring harness to be manufactured by the yard - 13. M Connector - 14. J4 Connector for the
electrical pre-lubrication pump - 15. J3 Connector for the electrical lubricating oil pump - 16. JA Connection - 17. JB Connection -
18. Instrument panel wire harness.

INSTALLATIONDIRECTIVE
18 V08 ENT M75 -M11 -M12 MAY 2006
Synoptic
The wire harnesses provided with the engine include the connectors for all optional components which may be ordered and
their connections to the JB connector for the indication and control panel.
Figure 11
JB
JA
J1
J2
JG JG1
JF2 JF1
GEAR BOX
ALTERNATOR
ELECTRIC STARTER
MOTOR
RELAY
BOX BATTERY
EDC
ELECTRONIC
CENTRAL
UNIT
INDICATIONS AND
ALARMS SENSORS
05_006_V
11 2 53 4 6
V08 ENT M
INDICATIONS AND
ALARMS SENSORS
THROTTLE POSITION
SENSOR
EDC COMPONENTS
ELECTRO-INJECTORS
1. Connector for instrument panel connection wire harness - 2. Engine wire harness - 3. Connector for control unit of the
lubrication oil transfer electrical pump - 4. Connector for control unit of the electrical pre-lubrication oil -
5. Interface wire harness - 6. Power line.

INSTALLATIONDIRECTIVE 19
V08 ENT M75 -M11 -M12
MAY 2006
Wire harness
Figure 12
05_005_V
4
6
5
¬
%$#¬*
¬
%$#¬*
0/0
0/
¬"
)3
+
8
/
--
''
3
0!
*"
'.
6)

&
*
*'
* *
"!44 n"!44

&
*
*#
*'
7)
'(
4'#
( 0
0&
*
-
:
&
3
6
02
!
#
!0 "%
%
%
%
%
%
%
%
*!
+
/
 
 
 
 






  
 
 
 
 
 
   



 

  























 


































 





















 



 

A. Fuel temperature sensor - AP. Atmospheric pressure sensor - B. Crankshaft sensor for EDC - C. Camshaft sensor - E1/E8. Electro-injectors - F. Engine coolant temperature sensor for EDC - GG.Alternator - GH. Grid heater power relay - GN. Neutral gear sensor (in installation with no sensor, do not remove the cap of the GN connector to avoid
compromising start engine function) - H. Combustion air pressure sensor for EDC - J. Low coolant level sensor (for alarm) - JB. Instrument panel connection wire harness -
JC. Emergency shut-off push-button (optional, installer’s responsibility) - J3. Connector for lubrication oil transfer electrical pump - J4. Connector for pre-lubrication electrical
pump - JF1, JF2. Relay box - JG. Lubrication oil transfer electrical pump control unit - JG1. Pre-lubrication electrical pump control unit - K,K1. Clogged air filter sensors (for alarm) -
M. Sensor to detect water in the fuel prefilter (for alarm) - MM. Electric starter motor - O,O1. Exhaust gas temperature sensors (for gauge) - P. Combustion air temperature
sensor for EDC - PA.Throttle position sensor - PF. Rail pressure control solenoid valve - PO. Lubrication oil transfer electrical pump - POP. Pre-lubrication electrical pump -
PR. Rail pressure sensor - S. Oil temperature sensor for EDC - S1. Engine oil temperature sensor (for gauge) - SI. Gear oil temperature sensor - T. Coolant temperature sensor (for gauge) - TGC. Power relay for electric starter motor insulation (provision) - U. Clogged oil filter sensor (for alarm) - V. Engine oil pressure sensor for EDC - V1. Engine oil
pressure sensor (for gauge) - VI. Gear oil pressure sensor - WI. Low gear oil pressure sensor - X. Clogged blow-by filter sensor - Z. Clogged fuel filter sensor (for alarm).

INSTALLATIONDIRECTIVE MAY 2006
20 V08 ENT M75 -M11 -M12
Power supply line
The power network must be carried out in order to avoid
using both the structure of engine and the structure of the
hull (if this is metallic). For this purpose the electrical starter
motor and the alternator required for this equipment are
characterized by the presence of the terminals for electrical
connections both with the positive and with the negative
pole of the battery.
1. Alternator - 2. Electrical starter motor - 3. Battery -
4. Engine wire harness.
The power supply line, to be built by the yard, comprises:
oA. Connection between the negative pole of the battery
and the terminal “–B” of the electric starter motor
realized with a conductor having a cross section of at
least 95 mm2;
oB. Connection between the positive pole of the batte-
ry and the terminal “30” of the electrical starter motor
realized with a conductor having a cross section of at
least 50 mm2;
oC. Connection between the “30” terminal of the alter-
nator to the positive “+B” terminal of the electric starter
motor, to close the power supply and recharge circuit
of the battery realized with a conductor having a cross
section of at least 50 mm2.
oD. Connection between the “−B” terminal of the alter-
nator to the positive “−B” terminal of the electric starter
motor, to close the power supply and recharge circuit
of the battery realized with a conductor having a cross
section of at least 50 mm2.
The connection of the electric equipment of the engine to
the battery has to be carried out via the two eyed terminals,
“+B” and “–B”, present on the wiring harness.
Figure 13
-
 )'3" ,
 n"
Equipment power supply
05_113_C
B
C 4
1
2
A 3D
CAUTION
If magneto-thermal protecting breakers are installed on
the wiring lines of the engine control system, they must
not be used to stop the engine and in any case they must
be activated only a few seconds after shut-off.
