Ivoclar digital PrograMill Dry User manual

ivoclardigital.com
PrograMill Dry
Operating Instructions

Table of contents
1 Welcome 4
About this document 4
Used symbols 4
Structure of safety notes 4
2 General safety instructions 5
3 Operating regulations 7
Intended use 7
Controlling the machine through software 7
Maintenance and cleaning 7
Spindle 7
Unattended operation 7
Transportation and storage 8
4 Machine overview 9
Front side of the machine 9
Connection panel 9
Working chamber door 9
Working chamber 10
Accessories container 10
Anti-soiling concept 11
CNC computer 11
Sound emission 11
Location of the identification plate & serial num-
ber 11
Axes 12
Linear axes 12
Rotational axes 12
Technical data 13
5 Installing the machine 14
Checking the scope of delivery 14
Choosing the installation site 15
Machine installation (schema) 16
Establishing the electric connection 17
Removing the transport protection 17
Installing the pneumatics 18
Overview compressed air regulator 18
Installing the pneumatic hose 19
Adjusting the air pressure with the compressed
air regulator 19
Installing the air extraction system 20
Requirements for the suction unit 20
Installing the suction unit 20
Connecting the CNC computer 21
6 Operation: Preparing jobs 22
Starting the machine 22
Starting the machine with a tool in the collet
chuck 22
Switching off the machine 23
Mounting and removing materials 23
Mounting discs in the working chamber 23
Managing tools 25
Inserting and exchanging tools 25
7 Operation: Processing jobs 27
Starting jobs 27
Aborting milling 27
Job interruptions and job abortions 28
How to proceed in case of a job interruption 28
How to proceed in case of a machine mal-
function 28
How to proceed in case of a tool breakage 28
How to proceed in case of a power failure 29
Emergency opening of the working chamber
door 29
8 Maintenance and do-it-yourself 31
Preventive maintenance 31
Where to get service? 31
Cleaning the working chamber 31
Cleaning the collet 32
Checking the compressed air regulator 34
Checking the water separator for condensate 34
Exchanging/ cleaning the contaminated filter
cartridge 34
Cleaning the housing 34
Exchanging the main fuse 35
Calibrating the axes 35
Replacing the tool magazine inserts 35
Updating the software and firmware 36
Updating the manufacturing software 36
Updating the firmware of the machine 36
Maintenance table 37
9 Disposal 39
Disposing of the machining residues 39
Disposing of the machine 39
10 Troubleshooting guide 40
Index 43
Operating Instructions:PrograMill Dry
Version: 11/19/2020
EN 3

1 Welcome
Thank you for your purchase of this PrograMill Dry
dental machine. The machine is delivered to you with
pride and confidence. It was produced using the latest
techniques and strict quality control.
These operating instructions were prepared to help
you understand all functions of your new dental
machine. It should also help you keep the machine in
good conditions so that you may enjoy many hours of
productive work.
You may find updates to this document at:
www.ivoclarvivadent.com
About this document
This document is designed and released for the
following groups/ individuals:
nOperator
nDental technician
nQualified dental staff member
nCNC technician
nAuthorized Ivoclar Vivadent service partner
Used symbols
Instructions
Single or general instruction
1. Numbered action step
Result
Other symbols
Cross reference
nList (first level)
List (second level)
1. Numbered image labels
Correct or Do this
Incorrect or Do not let this happen or Don't do
this
Information to make work more efficient
Important information without any danger for
people or objects
Additional information
User interface description
[Buttons]
<KEYS>
User interface text
Text that you need to enter
Structure of safety notes
SIGNAL WORD
Type and source of hazards
Further explanations and consequences when
ignoring the hazard.
Instructions to avoid the hazard.
The following signal words may be used:
DANGER
DANGER indicates a hazardous situation which will
result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which can
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which can
result in minor or moderate injury.
NOTICE
NOTICE indicates a situation which can lead to phys-
ical damage of the product or in the surrounding areas.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
Welcome
EN 4

2 General safety
instructions
DANGER
Incorrect operation of the machine
Before installing, maintaining and operating
the machine, read all documents provided
with the machine.
If it is unclear how to operate the machine in any
way, do not use the machine and contact your ser-
vice partner.
Ensure that every user has access to the operating
instructions.
Instruct every user on safe and proper machine
handling.
Danger to life due to an electric shock
If you come into contact with electrically
charged parts, you can suffer from an electric
shock. Water increases the risk significantly.
Do not remove the housing of the machine.
Only have qualified electricians work on any elec-
tric equipment.
Ensure that an operational Residual Current
Device/ Ground Fault Circuit Interrupter is installed
on the electric circuit of the machine.
Run power cables so that they cannot be damaged
by sharp edges.
Before switching on the machine, check power
cables for damage.
Before unplugging the power cable, switch off the
machine at the main power switch.
In the following cases, disconnect the
machine from the electrical source imme-
diately and prevent it from being restarted:
nWhen machine connections or electric cables are
damaged
nBefore you check or run electric cables
Replace damaged cables with original man-
ufacturer's spare parts.
Never perform any troubleshooting while the
machine is operating.
Only have authorized service partners repair the
machine.
Do not touch the machine with wet or damp hands.
Never put any machines or devices which are
powered by electricity under the machine.
Do not place objects on the machine.
WARNING
Respiratory diseases when processing harmful
materials
If you inhale harmful materials during their processing,
your respiratory tracts may be damaged.
Always use a suitable air extraction system during
dry machining.
Use a suction device with an extra-fine particle fil-
ter.
Avoid materials which damage your health.
Crushing hazard and risk of cutting injuries through
moving machine parts
Through the moving axes and the rotating spindle you
can suffer bruises and cuts.
Only use the machine when the working chamber
door is completely closed and undamaged during
machining.
Store the key for the emergency release in a place
where only authorized persons have access.
Do not circumvent or deactivate safety devices of
the machine.
Check the machine regularly for damage, espe-
cially the safety devices.
Have damaged safety devices repaired by autho-
rized service partners only.
Use only original manufacturer’s equipment and
original spare parts in the machine.
Keep children and animals away from the
machine.
Do not remove the housing of the machine.
Service mode: Risk of cutting injuries and bruises as
well as hazards through ejected debris
If you operate the machine in any “Service Mode” with
the working chamber door open, the risk of injury is
increased significantly.
Operate the machine in “User“mode only unless
you have been authorized by Ivoclar Vivadent to
use other modes.
Even if you are an authorized user, use the
“Service Modes” only when necessary.
While in any “Service Mode”: Do not reach
into the working chamber while the axes are
moving or during machining.
PrograMill Dry – General safety instructions EN 5
Operating Instructions:PrograMill Dry
Version: 11/19/2020

While in any “Service Mode”: Everyone
within reach of the machine must wear pro-
tective eye wear.
Hearing damage due to loud noise
If you are regularly exposed to loud machining noise,
you may suffer from hearing loss and tinnitus.
If loud noise cannot be avoided, wear ear
protection during machining.
Risk of injuries through loose pneumatic components
under air pressure when connections are open
Loose pneumatic components can move extremely
fast and unpredictably and may cause injury.
Before you run the pneumatic hoses, close the
compressed air supply valve.
Before you check the pneumatic hoses and pneu-
matic connections, set the air pressure to a min-
imum value.
In case of defective machine connections
and pneumatic hoses, disconnect the
machine from the external compressed air supply
and the electrical source.
Contact your service partner if connections are
damaged or defective.
CAUTION
Risk of injuries when opening or closing the working
chamber door
When you open or close the working chamber door,
the moving working chamber door may crush your
fingers. Objects on the machine may fall and cause
injuries or damage.
When you open and close the working chamber
door, use one hand and keep the other hand away
from the machine.
When you close the working chamber door, ensure
your hands do not get caught between the door
and the machine housing.
Do not place objects on the machine.
Trip, fall and slipping hazards
Run cables in such a way that persons can-
not trip over them.
Keep the working environment and instal-
lation site clean.
Risk of cutting injuries and burns
If you touch tools or sharp edges on materials or the
machine, you may suffer from cuts. If you touch the hot
spindle body or hot tools, you may suffer from burns.
Wear gloves when you perform manual work
at the machine or materials / tools.
Reduced ability to act with insufficient lighting
In case of an insufficient lighting your judgment and /
or your precision may be reduced.
Ensure that the lighting in your working envi-
ronment is sufficient.
Risk of injury in case of malfunctions caused by
insufficient maintenance
If you do not maintain the machine as required,
malfunctions may occur which can lead to injuries.
Take note of the intervals and conditions men-
tioned in the maintenance table in the operating
instructions. Carry out the respective maintenance
tasks accordingly.
Health risks through constant malpositioning if your
working environment is not sufficiently ergonomic
Over the long run, an improper or one-sided posi-
tioning can be a risk to your health.
Set up an ergonomic work environment.
Ensure the seat height and monitor position is
ideal and the lighting is sufficient.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – General safety instructions
EN 6

3 Operating regulations
If you violate the following regulations, you may lose
your entitlement to benefits.
NOTICE
Machine damage if you violate these regulations
If you violate the following regulations, your machine
may get damaged and/ or cause damage in the
surrounding area(s).
Thoroughly follow all instructions and information
in this section.
Intended use
The machine and the manufacturing software have
been designed for the commercial processing of
approved dental materials by specially trained
persons. The processed objects require additional
work before their use on patients.
Only process materials that you can select in the
manufacturing software.
Only use the machine in a commercial envi-
ronment.
Before creating jobs, verify if the objects being pre-
pared may be utilized at the place of use according
to local and/ or national regulations or other autho-
rized organizations or entities (e.g. professional
associations, health authorities). In particular, verify
if the material is approved for the machined object
type and if the object type is designed in accord-
ance with applicable regulations. Neither the man-
ufacturing software nor the machine will inform you
about possible regulatory infringements, but will
execute jobs in accordance with the preferences
and materials set by the user.
Verify that each object type and each material in
your jobs are authorized manufacturing materials.
If mandated by local or national regulations, obtain
relevant authorization from the responsible organi-
zations or entities (e.g. professional associations,
health authorities).
Only import objects into the manufacturing software
which correspond to the object types that you can
select in the manufacturing software. While you
can import/ manufacture any other objects as well,
neither the manufacturing software nor the
machine are designed for these other objects and
should not be used in this way.
Do not manufacture implants or parts of objects
that are designed to have contact with implants.
These parts include parts of two-part abutments
which contain the connection geometry for the
implant.
Controlling the machine through software
You control the machine through specially designed
applications which are supplied with the machine.
Always use the latest program version that officially
supports your machine.
Before installing or operating the machine, read
the documentation for the applications.
Ensure that your CNC computer meets all system
requirements.
Maintenance and cleaning
Maintenance and cleaning is part of standard machine
usage.
Clean and maintain the machine as required. Only
then can the machine reach a long service life.
Spindle
The spindle of your machine is a high-precision instru-
ment.
Do not use unbalanced tools at high rotational
speeds. Such an imbalance puts a great strain on
the spindle’s ball bearings, which can cause the
bearings to be damaged.
When working in the working chamber, do not
apply manual pressure against the spindle.
Unattended operation
If the machine runs unattended, the risk of material
damage is increased.
Only allow unattended operation of the machine to
occur if the following conditions are met:
nThe national and local laws allow it.
nThe working chamber of the machine is com-
pletely clean.
nUnauthorized users cannot access the machine.
nThe room in which the machine is located has an
automatic fire detection system.
PrograMill Dry – Operating regulations EN 7
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Transportation and storage
WARNING
Injuries caused by unsafe transportation
If you transport the machine unsafely, the machine
may slip and cause injuries.
Always transport unpacked machines indi-
vidually and do not stack them.
Ensure that only trained personnel transport the
machine to and from the installation site.
Ensure that the housing of the machine is com-
pletely closed.
Always transport the machine in an upright posi-
tion.
Transport and position the machine with as many
people as required for the weight of the machine in
accordance with local and/ or national laws and
regulations.
Before carrying an unpacked machine, install the
carrying aid that was provided with the machine
and ensure that all components are properly fixed.
Do not use a different carrying aid.
Grab unpacked machines only at the
handles of the carrying aid. Do not tilt the
machine when carrying it.
NOTICE
Short-circuit hazard when the machine is too cold
If the machine is transported from a cold environment
into a warmer environment, a short circuit may occur
caused by condensate.
Before switching on the machine after trans-
portation, ensure the following:
nThe ambient air has the allowed temperature.
nThe machine has the same temperature as the
ambient air. This will take at least 48 hours.
nThe machine is completely dry.
The supplement about the carrying aid and
transport lock is delivered with the machine.
It is also downloadable at
https://www.ivoclarvivadent.com.
Ensure that the following conditions are met during
the whole transport and/ or storage period:
nPermitted ambient conditions for storage / trans-
port:
– Ambient temperature (storage/ transport):
between -20°C (-4 °F) and 60°C (140 °F)
– Relative air moisture: max. 80%, non-
condensing
Preparing transportation or storage
Before transporting or storing your machine, the
following preparations are necessary:
1. Remove all materials from the working chamber.
2. Clean the working chamber. Ensure that the work-
ing chamber is completely dry.
3. Install the transport lock. For this, follow the cor-
responding steps on the supplement.
4. Ensure that the housing of the machine is com-
pletely closed.
5. Switch off the machine at the main power switch.
6. Disassemble the machine components by fol-
lowing the installation instructions in reverse
order.
7. If you need to carry the machine, install the car-
rying aid. For this, follow the corresponding steps
on the supplement.
8. In case of overseas transport, take proper mea-
sures against corrosion.
Repackaging
To repack the machine after preparing its trans-
portation or storage, the following steps are necessary:
1. If possible, use the original packaging. If the orig-
inal packaging is not available, use a packaging
of similar size and quality.
2. Pack the machine and its accessories securely.
3. Protect the packaging against slipping. If
machines are properly packed and protected
against slipping, they may be stacked.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Operating regulations
EN 8

4 Machine overview
With your PrograMill Dry, you can process discs of
different materials to create high quality objects for the
dental sector. You can find a list of the materials which
you can process with the machine in the manu-
facturing software.
The machine is designed for dry machining.
Front side of the machine

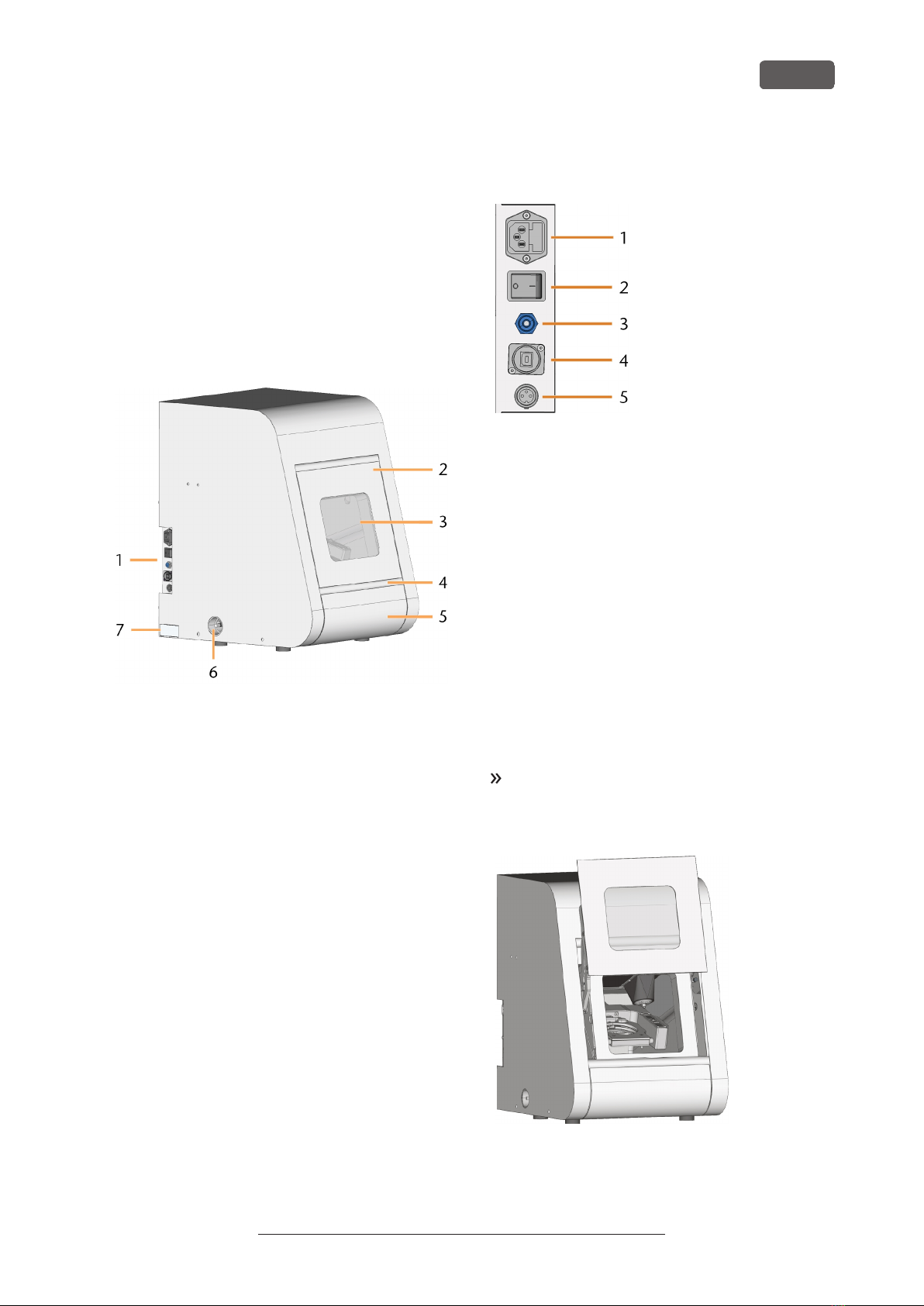

FIG. 1 – FRONT SIDE OF THE MACHINE
1. Connection panel
2. Working chamber door
3. View window to the working chamber
4. Recessed grip for opening the working cham-
ber door
5. Accessories container
6. Suction opening for the air extraction system
7. Identification plate
Connection panel
FIG. 2 – CONNECTION PANEL
1. Power connection including glass fuse T6.3A
L250V
2. Main power switch
3. Pneumatic connection (6 mm push-in fitting)
4. USB port
5. Suction control connection
Working chamber door
The working chamber door locks the working chamber
and protects the user from injuries during operation.
You can open and close the working chamber door
manually.
You cannot open the door when the machine is
switched off or while the axes are moving.
To open or close the working chamber door, pull it
upwards or push it downwards with your hand. Use
the recessed grip of the door.
FIG. 3 – WORKING CHAMBER DOOR
PrograMill Dry – Machine overview EN 9
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Working chamber
You can mount materials and insert tools into the
working chamber. This is where the materials are
processed.

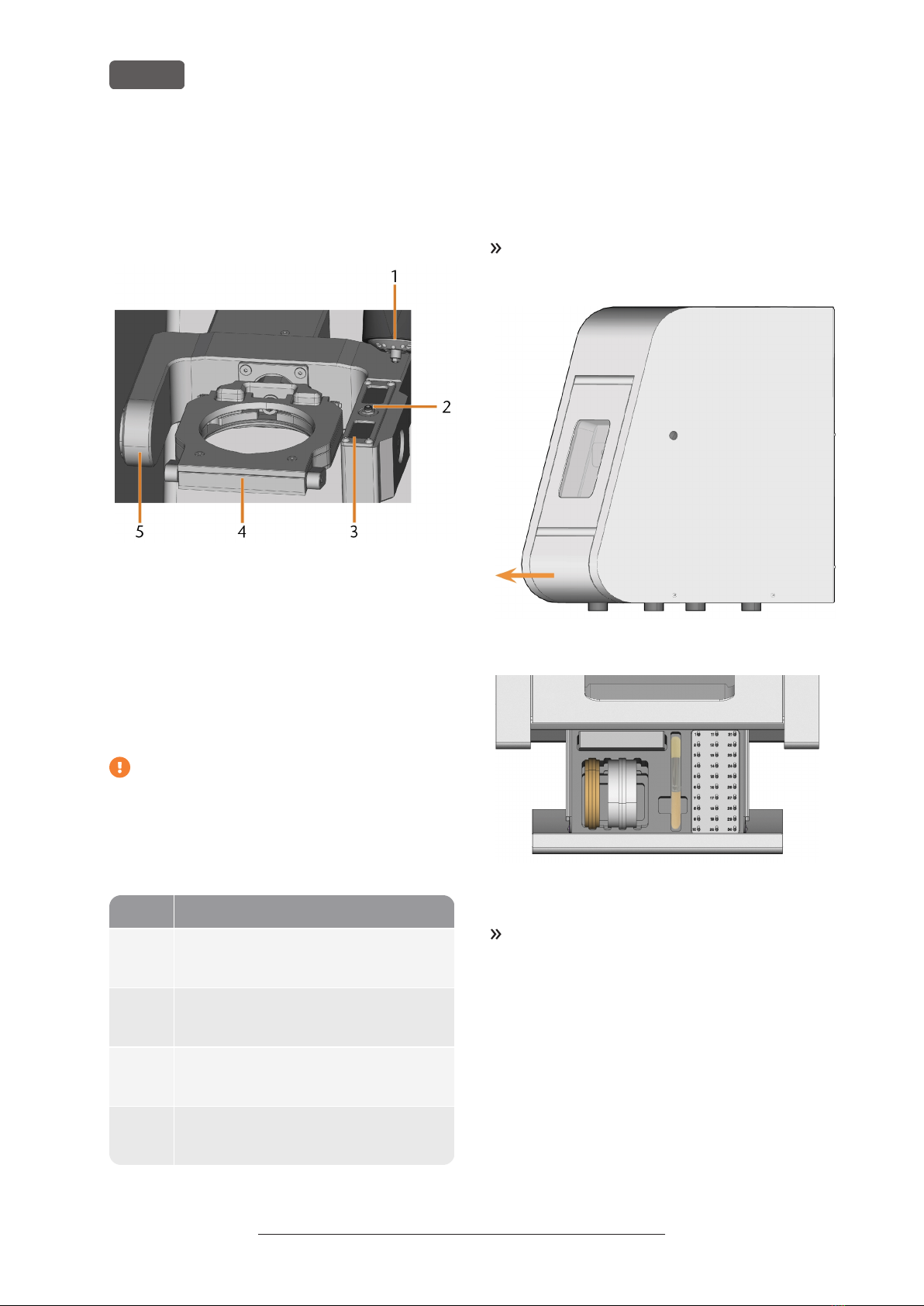

FIG. 4 – WORKING CHAMBER
1. Spindle with collet chuck for picking up tools
2. Measuring key
3. Tool magazine
4. Material holder; rotational axis A
5. Rotational axis B
Colours of the working chamber lighting
If the working chamber lighting is insufficient,
provide additional lighting.
The machine illuminates the working chamber in
different colours. The colour will change depending on
the state of the machine. You will find the colours and
respective machine status in the following table:
Colour Status
Green The machine is ready for operation.
You can open the working chamber door.
White The machine is ready for operation.
The working chamber door is open.
Blue The machine is operating.
The working chamber door is locked.
Red A machine malfunction has occured.
The working chamber door is locked.
Accessories container
In the accessories container below the working
chamber, you can store materials, tools, and the
spindle service set.
To access the accessories container, manually pull
it out of the machine.
FIG. 5 – OPENING THE ACCESSORIES CONTAINER
FIG. 6 – ACCESSORIES CONTAINER (MATERIALS AND TOOLS
NOT PROVIDED)
To close the accessories container, push it into the
machine until it is completely closed.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Machine overview
EN 10

Anti-soiling concept
The anti-soling concept decreases the soiling and
wear of sensitive machine parts.
NOTICE
Machine damage when dry machining without an air
extraction system
When dry machining, an operational external air
extraction system must be installed. Otherwise, the
machine will get soiled over time and become
defective.
Always use a correctly installed and operational
external air extraction system during dry machin-
ing.
The anti-soiling concept consists of:
nThe external air extraction system | An
external suction unit creates a vacuum in the
working chamber and extracts machining debris
from it.
nAir that is emitted into the working chamber |
Blows machining debris away from the spindle
and other machine parts.
nThe internal vacuum sensor | Constantly mon-
itors the vacuum in the working chamber.
The anti-soiling concept does not replace the
regular cleaning of the machine. Without
regular cleaning, the machine life decreases
significantly.
CNC computer
To work with the machine, use the PrograMill CAM PC
with the PrograMill CAM software and PrograMill CNC:
nPrograMill CAM | A CAM application for creating
and calculating virtual jobs.
nPrograMill CNC | A CNC application for
machining jobs and maintaining the machine.
To create and design the dental objects you also need
a CAD application (sold separately by specialist
dealers).
Sound emission
The actual sound emission of the machine varies
heavily depending on the manufacturing material and
the machining conditions.
If the machine is exceptionally loud, check the fol-
lowing operating conditions:
nCleanliness of the material holder
nCondition of the tools
nMaterial quality
If loud noise cannot be avoided, wear ear pro-
tection during machining.
Sound measurement
Measuring conditions:
nProcessing material: CoCr
nTool status: new
nMeasured value: sound power level (distance:
1m)
nMeasurement according to ISO 3746, survey
method 3
Established sound emission:
Operating condition
A-weighted
sound pres-
sure level
Processing 71 dB(A)
All other operating conditions
(tool change, movement of the
axes etc.)
<70 dB(A)
Location of the identification plate &
serial number
The identification plate of the machine contains identi-
fying information such as the serial number. You can
find the identification plate and machine serial number
at the following location:  Front side of the machine –
on page9
PrograMill Dry – Machine overview EN 11
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Axes
This maschine has 5 axes: 3 linear and 2 rotational
axes.
Linear axes
The spindle moves along these axes.
FIG. 7 – PROGRAMILL DRY:LINEAR AXES
Rotational axes
The material holder rotates about these axes.
FIG. 8 – PROGRAMILL DRY:ROTATIONAL AXES
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Machine overview
EN 12

Technical data
Dimensions (W/D/H)
Unit Value
Footprint (approx.) mm
in
375 x 260
14.8 x 10.2
Housing fully closed
(approx.)
mm
in
450 x 545 x 630
17.7 x 21.5 x 24.8
Minimum required space
for operation (approx.)
mm
in
800 x 795 x 720
17.7 x 27.4 x 26.8
Base system
Unit Value
Weight (approx.) kg/lbs
lbs
91
201
Axes
– Rotational axis A/ B
5
360°/ ± 35°
Overvoltage category
(IEC60664-1)
II
External compressed air supply
Unit Value
Min./ max. air pressure bar
psi
6/ 8
90/ 120
Recommended air pres-
sure
bar
psi
7
100
Air consumption
(approx.)
l/min
cfm
40/50 (at 6/8 bar)
1.4/1.8 (at 90/120 psi)
Air purity (ISO 8573-
1:2010)
Solid matter particles:
class 3
Water: class 4
Maximum oil content:
class 3
External air extraction system
Unit Value
Minimum extraction
capacity
l/min
cfm
2,500 (at 220 hPa)
88.3 (at 3.2 psi)
Suction device Designed for the commer-
cial use in the dental
sector, such as
PrograMill Suction Unit;
Equipped with a filter of
the filter class M
Ambient conditions
Unit Value
Relative air moisture 80%, non-condensing
Ambient temperature for
storage/transport
°C
°F
-20 – 60
-4 – 140
Ambient temperature for
operation
°C
°F
10 – 35
50 – 95
Location type Indoor
Maximum height above
mean sea level
m
ft
2,000
6,561
Ambient air (IEC60664-1) Dust free, pollution
degree 2
Spindle
Unit Value
Model SFK 300P (synchronous)
Maximum rotational
speed
rpm 60,000
Nominal power under
continuous operation
(S1)
W 300
Nominal power under
uninterrupted periodic
operation (S6)
W 450
Peak power (Pmax) W 500
Diameter collet chuck mm 3
Tool changer
Unit Value
Maximum tools in
magazine
16
Maximum tool length mm 40
Standard material holder
Unit Value
Min./ max. disc diameter mm 98.5/ 98.8
Maximum disc height mm 40
Min. / max. height of the
disc margin
mm 9.8/ 10.5
Connections
Unit Value
Pneumatic connection,
push-in fitting (diameter)
mm 6
Power connection VAC
Hz
W
100 – 240
50/60
600
Glass fuse T6.3A L250V
USB port 2.0 B
Data port for supported
suction unit or switching
unit
Yes
Hose connection for
external air extraction
system (diameter)
mm 45
PrograMill Dry – Machine overview EN 13
Operating Instructions:PrograMill Dry
Version: 11/19/2020

5 Installing the machine

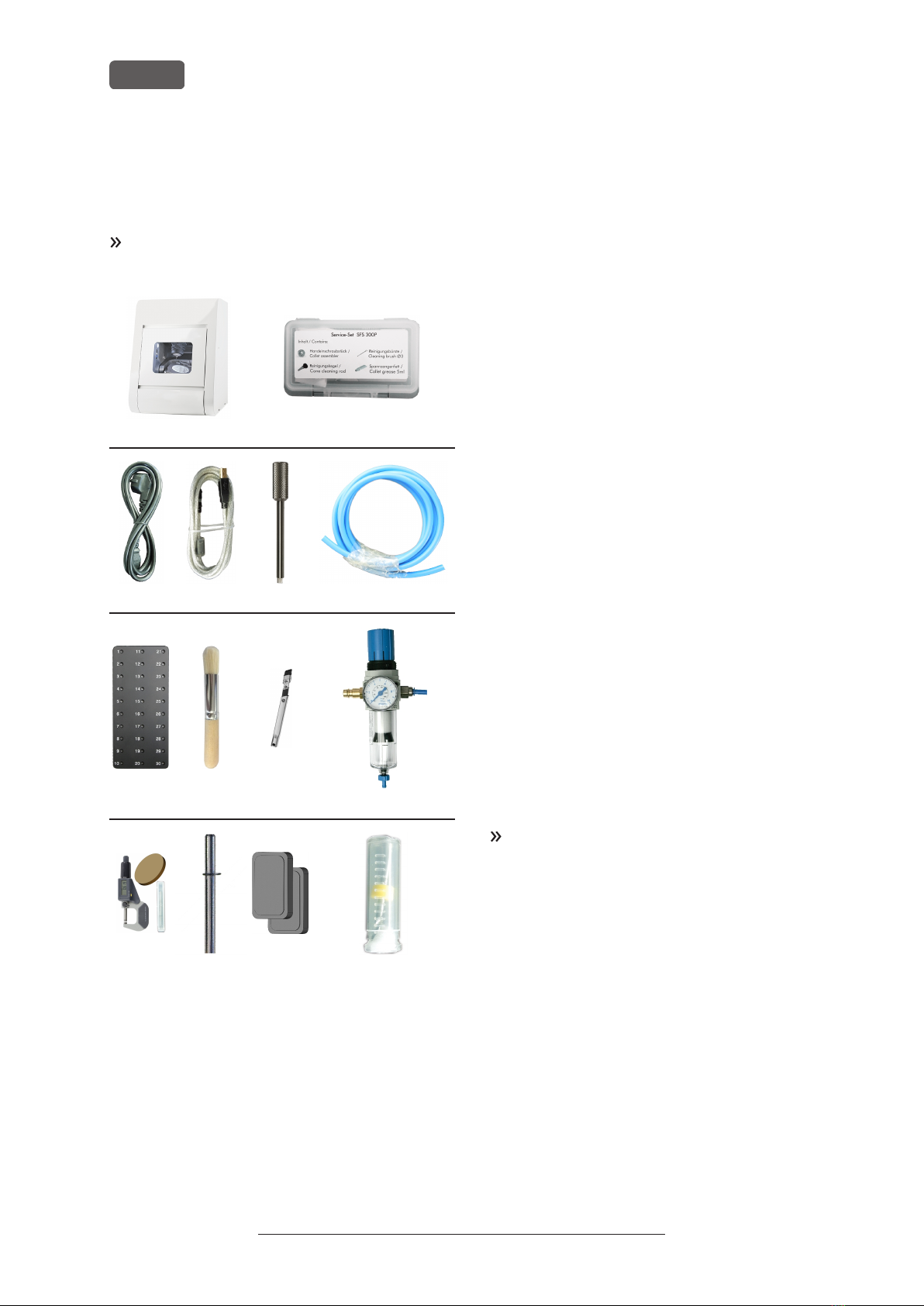

Checking the scope of delivery
Unpack the machine and ensure that you have
received the following items:
1 2
3 4 5 6
7 8 9 10
11 12 13 14
1. 1xPrograMill Dry machine
2. 1xSpindle service set
3. 1xPower cable
4. 1xUSB cable
5. 1xKey for the emergency release of the work-
ing chamber door
6. 1xPneumatic hose
7. 1xAdministrated tool board (ATB) in the
accessories container
8. 1x Cleaning brush for the material holder
9. 1 x Crevice nozzle (for cleaning the working
chamber)
10. 1xCompressed air regulator
11. 1 x Calibration set: 1 micrometer, 3 calibration
discs for manufacturing test and calibration
specimen, 1 radius cutter with 2 teeth (P200-
R2-40)
12. 1xMeasuring pin
13. 2xTool magazine inserts
14. 1xDrill bit(2.8mm) for tool positions
Not depicted:
nThis document
n1 x Carrying aid for transporting the machine
n1 x Transport lock in the working chamber
n1 x Supplement about removing the carrying aid
and transport lock
n4 x Spare screw for the tool magazine cover
nAdapter connection to suction unit
nZirconium oxide tools
Keep the packaging of the machine, the carrying
aid and the transport lock for future transports.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Installing the machine
EN 14

Choosing the installation site
The installation site must meet the following criteria:
nFirm and even surface, must be able to carry the
weight of the machine.
nAlternating current source.
nAn operational Residual Current Device/ Ground
Fault Circuit Interrupter on the electric circuit of
the machine.
nMachine requires an external air extraction sys-
tem.
nMachine requires an external compressed air
supply.
nAccess to the internet.
You can find specific values and additional require-
ments in the chapter on technical data.  Technical
data – on page13
Distances to maintain
NOTICE
Damaging of the machine if safety distances are not
maintained
If you do not maintain the safety distances, the
movable parts of the housing can collide with
obstacles when being opened and get damaged. If the
ventilation openings are covered, the machine may
overheat and get severely damaged.
Ensure that the following safety distances are
always maintained.

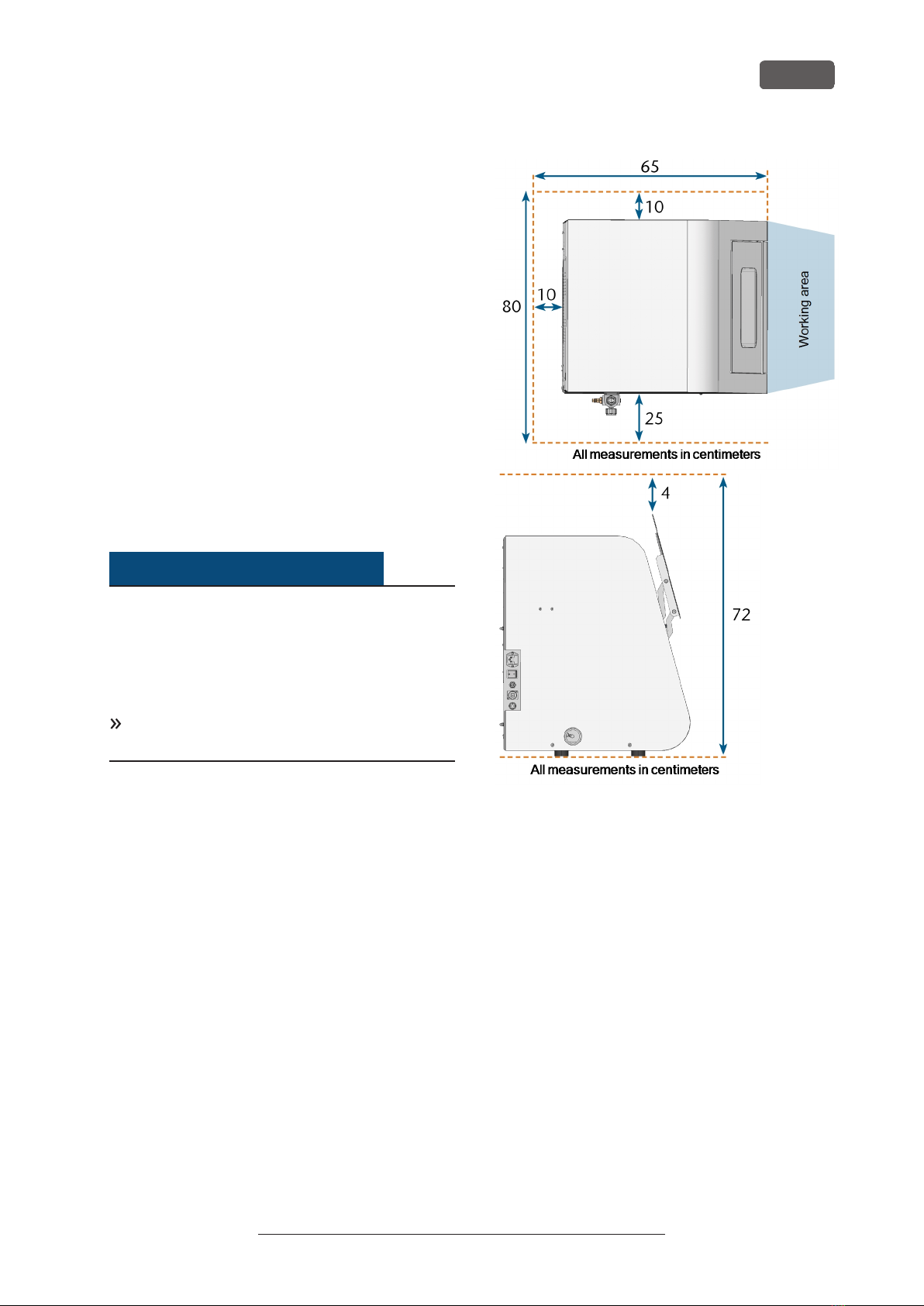

FIG. 9 – DISTANCES TO MAINTAIN
PrograMill Dry – Installing the machine EN 15
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Machine installation (schema)
FIG. 10 – MACHINE INSTALLATION (SCHEMA)
1. Power connection
2. USB cable
3. Pneumatic hose
4. Suction device
5. External compressed air supply
6. Data cable for PrograMill Suction Unit
7. Suction hose
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Installing the machine
EN 16

Establishing the electric connection
NOTICE
Damaging of the machine through heavy voltage
fluctuations and power surges
Heavy voltage fluctuations and power surges can
disrupt the control unit and can cause system failures.
Connect the machine to a dedicated current circuit
or ensure that no devices are connected that can
cause heavy voltage fluctuation when switched on.
If heavy voltage fluctuations cannot be avoided,
install a surge protector that protects the machine
from heavy voltage fluctuations.
NOTICE
Short-circuit hazard when the machine is too cold
If the machine is transported from a cold environment
into a warmer environment, a short circuit may occur
caused by condensate.
Before switching on the machine after trans-
portation, ensure the following:
nThe ambient air has the allowed temperature.
nThe machine has the same temperature as the
ambient air. This will take at least 48 hours.
nThe machine is completely dry.
The machine requires a continuous power supply for
proper operation.
1. Plug the provided power cable into the power con-
nection at the connection panel of the machine.
2. If power failures occur regularly at the installation
location or if there are frequent voltage fluc-
tuations, install an Uninterruptible Power Supply
(UPS).
If a power failure occurs during job execu-
tion, the tool may break and the material
may be destroyed.
3. Insert the plug of the cable into a socket that is pro-
tected by a Residual Current Device/ Ground
Fault Circuit Interrupter.
Removing the transport protection
Before operating the machine for the first time, you
must remove the transport lock. The transport lock
prevents the spindle from getting damaged during
transport.
1. Ensure the following:
nThe machine is connected to the electrical
source.
nThe CNC computer
is not connected to the
machine.
2. Switch on the machine at the main power switch.
3. Open the working chamber door.
4. Switch off the machine at the main power switch.
You can now move the axes of the machine.
5. Remove the transport lock as shown in the sup-
plement.
PrograMill Dry – Installing the machine EN 17
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Installing the pneumatics
WARNING
Risk of injuries through leaking compressed air and
lashing pneumatic hoses
Open or loose pneumatic connections can cause
severe injuries.
Ensure that during installation and maintenance of
the pneumatic hoses and of the compressed air
regulator compressed air is not conducted through
the hoses and connections.
Before conducting compressed air through the
hoses and connectors, verify that the hoses are
securely inserted into the correct connectors and
that they are not damaged. This also applies to the
compressed air regulator.
Do not conduct compressed air through damaged
hoses and connectors.
NOTICE
The spindle may suffer bearing damage and electrical
damage if the compressed air is contaminated
The incoming compressed air must be dry and oil-free
according to ISO 8573-1:2010 because the
compressed air regulator only serves as an indicator
for contaminated air.
Air purity according to ISO 8573-1:2010
Solid
matter
particles
class 3 Filtration degree better than
5µm for solid particles
Water class 4 Maximum pressure dew
point: +3°C (37.4 °F)
Maximum
oil content
class 3 Maximum oil content
1mg/m3
Ensure that the compressed air meets the above
requirements.
Only connect the machine to the compressed air
supply if the compressed air regulator is properly
installed.
Connect the machine to the compressed air supply
only via the provided compressed air regulator.
You can find specific values and additional require-
ments in the chapter on technical data.  Technical
data – on page13
The machine requires the compressed air for the
following tasks:
nFor the opening and closing of the collet chuck
during tool changes.
nFor the spindle sealing air which prevents foreign
bodies from entering the spindle.
nFor the sealing air in the working chamber that
keeps machining debris away from sensitive
machine parts.

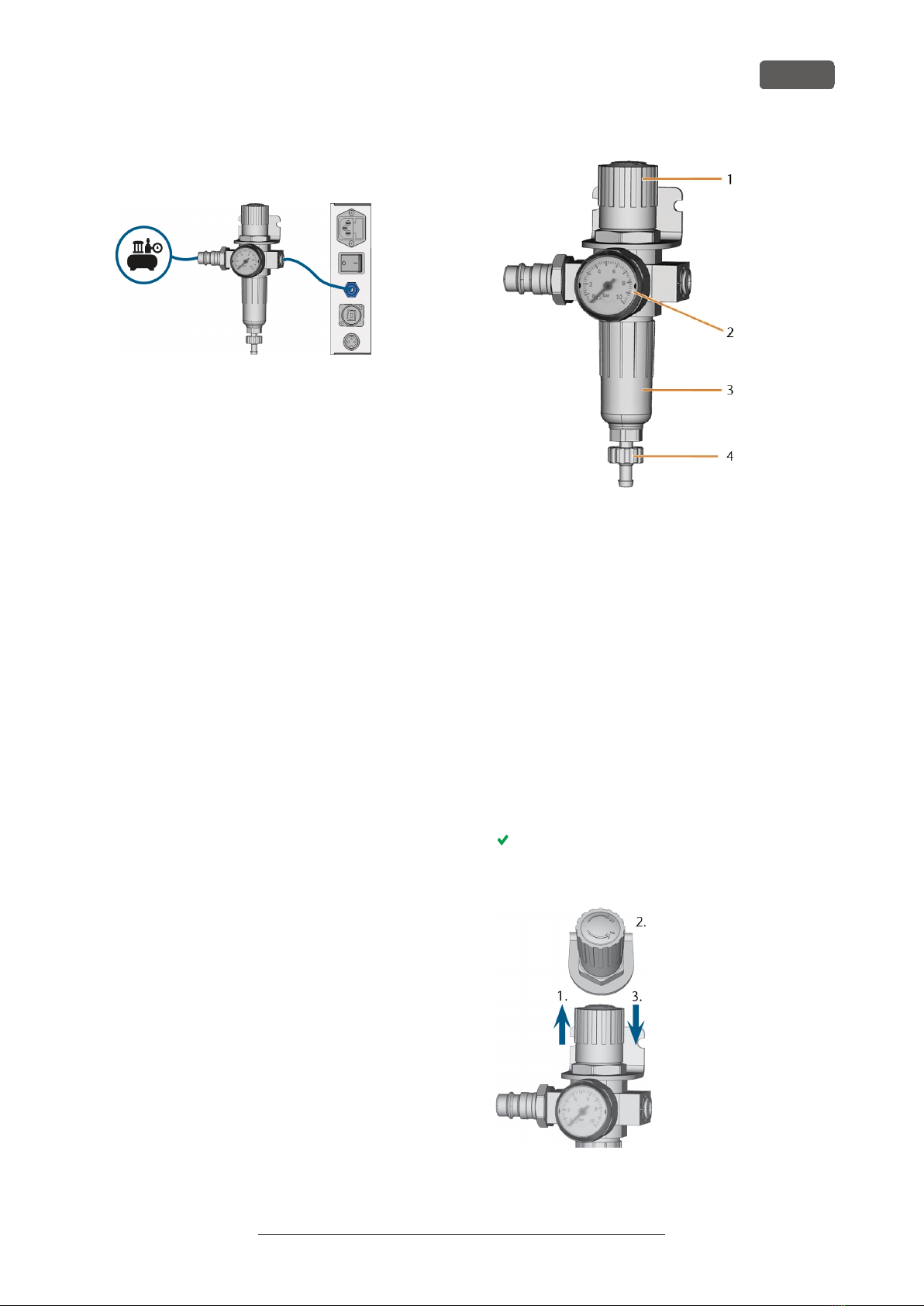

Overview compressed air regulator
The machine is connected to the external air supply
via a compressed air regulator. You can use this regu-
lator to monitor and regulate the pressure of the
incoming air.
The compressed air regulator is supplied with the
machine and needs to be mounted on the side of the
machine housing when installing the machine. The
regulator has the following connections:
n1/8” internal thread, fitted with male compressed
air connector to connect the external compressed
air supply
n6 mm push-in fitting to connect the machine.
NOTICE
Failure of the water separator caused by a wrong
alignment of the compressed air regulator
The compressed air regulator must always be
mounted in an upright position because otherwise
the water separator will not work.
Mount the compressed air regulator in an upright
position.
On the left side of the machine are two bores which
you can use to mount the compressed air regulator on
the machine.
Mount the compressed air regulator in an upright
position, using the oval-head screws provided in
the bores.
FIG. 11 – MOUNTING THE COMPRESSED AIR REGULATOR
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Installing the machine
EN 18

Installing the pneumatic hose
FIG. 12 – INSTALLING THE PNEUMATIC HOSE
1. Connect the main external compressed air sup-
ply.
2. Use the provided pneumatic hose to connect the
right pneumatic connection of the compressed air
regulator to the pneumatic connection of the
machine.
3. Connect the external compressed air supply to
the left pneumatic connection of the compressed
air regulator.
4. Thoroughly verify that all external pneumatic
hoses are properly seated in their corresponding
connections and that the hoses and connectors
are undamaged.
5. If all hoses and connectors are properly installed
and undamaged, open the external compressed
air supply valve.
Adjusting the air pressure with the com-
pressed air regulator
Setting the air pressure is only necessary if the air pres-
sure shown by the pressure gauge does not lie
between the minimum and maximum air pressure. You
can find specific values and additional requirements in
the chapter on technical data.
FIG. 13 – COMPRESSED AIR REGULATOR: REGULATING AND
MONITORING THE AIR PRESSURE
1. Rotary knob for pressure regulation
2. Pressure gauge for monitoring the outgoing
air pressure
3. Bowl of the water separator
4. Discharge screw
1. Pull the rotary knob on top of the compressed air
regulator slightly upwards.
2. Turn the rotary knob in the desired direction:
nTurn it towards "+" to increase the pressure
nTurn it towards "–" to reduce the pressure
3. Push the rotary knob down again.
The knob is locked and cannot be changed inad-
vertently.
FIG. 14 – SETTING THE AIR PRESSURE
PrograMill Dry – Installing the machine EN 19
Operating Instructions:PrograMill Dry
Version: 11/19/2020

Installing the air extraction system
Ivoclar Vivadent recommends the use of the PrograMill
Suction Unit.
Requirements for the suction unit
You can find specific values and additional require-
ments in the chapter on technical data.  Technical
data – on page13
Use a suction device with the following properties
only:
nDesigned for the commercial use in the dental
sector, such as PrograMill Suction Unit
nEquipped with a filter of the filter class M
nEquipped with safety devices which protect you
from static discharges (e. g. through an anti-static
suction hose)
nMinimum extraction capacity: 2,500 l/min
(88.3 cfm)
Installing the suction unit
You can install the suction unit as follows:
1. Read the documentation for the suction unit. Fol-
low the operating and safety instructions at any
time.
2. Check if the connection of the suction hose has
an outer diameter of 45mm. If the diameter is dif-
ferent, either adjust the hose or use the adapter
delivered with the machine.
3. Insert the suction hose of the suction unit into the
opening for the air extraction of the machine.
Ensure that the suction hose is properly seated.
FIG. 15 – INSERTING THE SUCTION HOSE INTO THE
MACHINE
4. If you want the machine to automatically switch
the suction unit on and off:
Connect the data cable provided by the manu-
facturer of the suction to the suction control
connection of the machine. The operating
instructions of the suction unit contains further
details.
5. Continue with the installation of the suction unit as
described in the documentation of the unit.
Operating Instructions:PrograMill Dry
Version: 11/19/2020
PrograMill Dry – Installing the machine
EN 20
