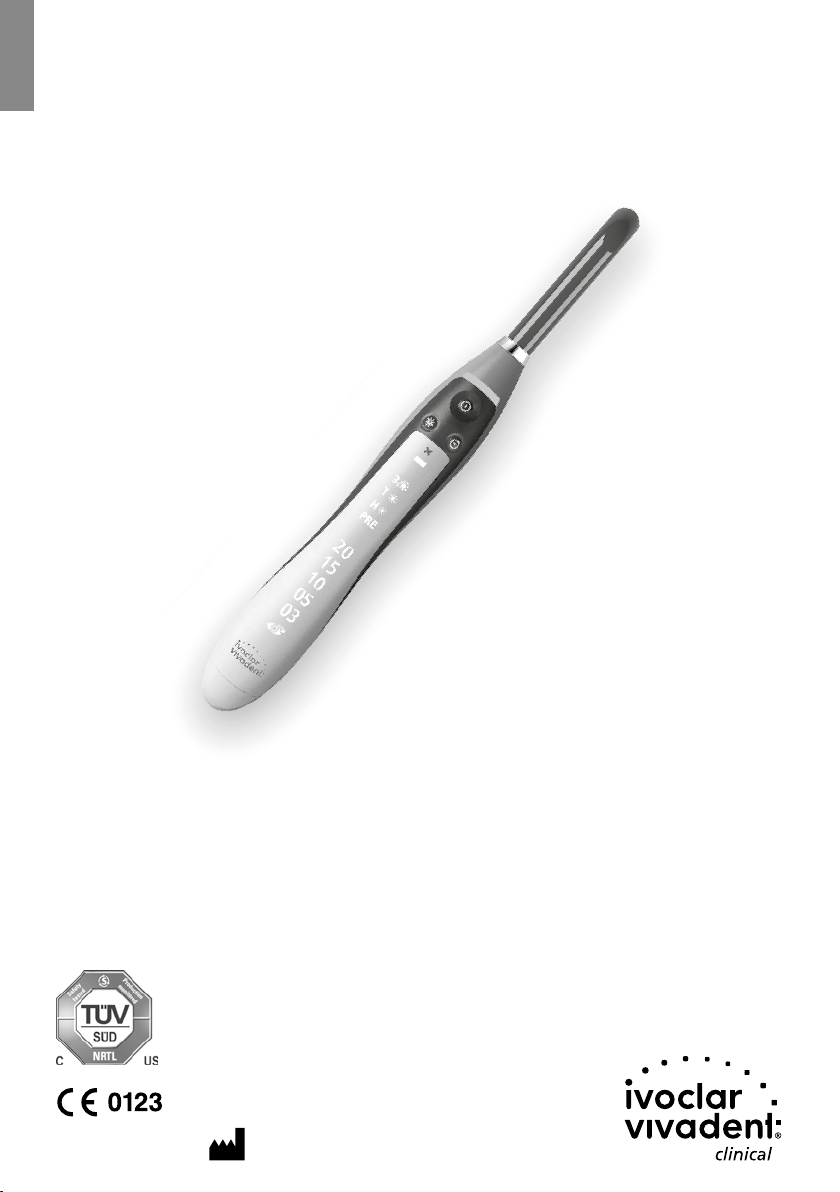

Bluephase®PowerCure
The intelligent curing light
Rx ONLY
In USA distributed by
Ivoclar Vivadent Inc.,
175 Pineview Drive,
Amherst, NY 14228, USA
For dental use only!
Made in Austria
Manufacturer
Ivoclar Vivadent AG
9494 Schaan/Liechtenstein
www.ivoclarvivadent.com
EN Instructions for Use
Page 2
DE Gebrauchsinformation
Seite 20
FR Mode d’emploi
Page 38
IT Istruzioni d’uso
Pagina 56
ES Instrucciones de uso
Pagina 74
PT Instruções de uso
Página 92
Appendix
Page 110

2
Dear Customer
Optimum polymerization is an important
requirement for all light cured materials in order to
consistently produce high quality restorations. The
curing light selected also plays a decisive role in this
respect. Therefore, we would like to thank you for
having purchased Bluephase® PowerCure.
Bluephase® PowerCure is a high-quality medical
device which has been designed according to
the latest standard of science and technology in
compliance with the relevant industry standards.
These Instructions for Use will help you safely start
up the device, make full use of its capabilities and
ensure a long service life.
Should you have any further questions, please do not
hesitate to contact us (see addresses on the reverse
page).
Your Ivoclar Vivadent Team

3
English
1. Product Overview 4
1.1 List of parts
1.2 Indicators on the charging base
1.3 Indicators on the handpiece
1.4 Operating the light
2. Intended Purpose and Safety 7
2.1 Normal use
2.2 Indications
2.3 Signs & symbols
2.4 Safety notes
2.5 Contraindications
3. Start-Up 10
4. Operation 13
5. Maintenance and Cleaning 16
6. What if … ? 18
7. Warranty /Procedure in Case of Repair 19
8. Product Specifications 19
Table of Contents

4
1. Product Overview
1.1 List of parts
1.2 Indicators on the charging base
Charging base with integrated radiometer and
Click & Cure function:
• Indicator is dark: Battery is charged
• Indicator shows battery symbol: Battery is charging
• Indicator shows light intensity: Measurement has been
carried out
Handpiece
Handpiece support
Anti-glare shield
Anti-glare cone
10>9 mm light guide
Start/Stop button
Time selection button
Program selection
button
Charging base
Power pack
Power cord
Protective sleeves
Battery

5

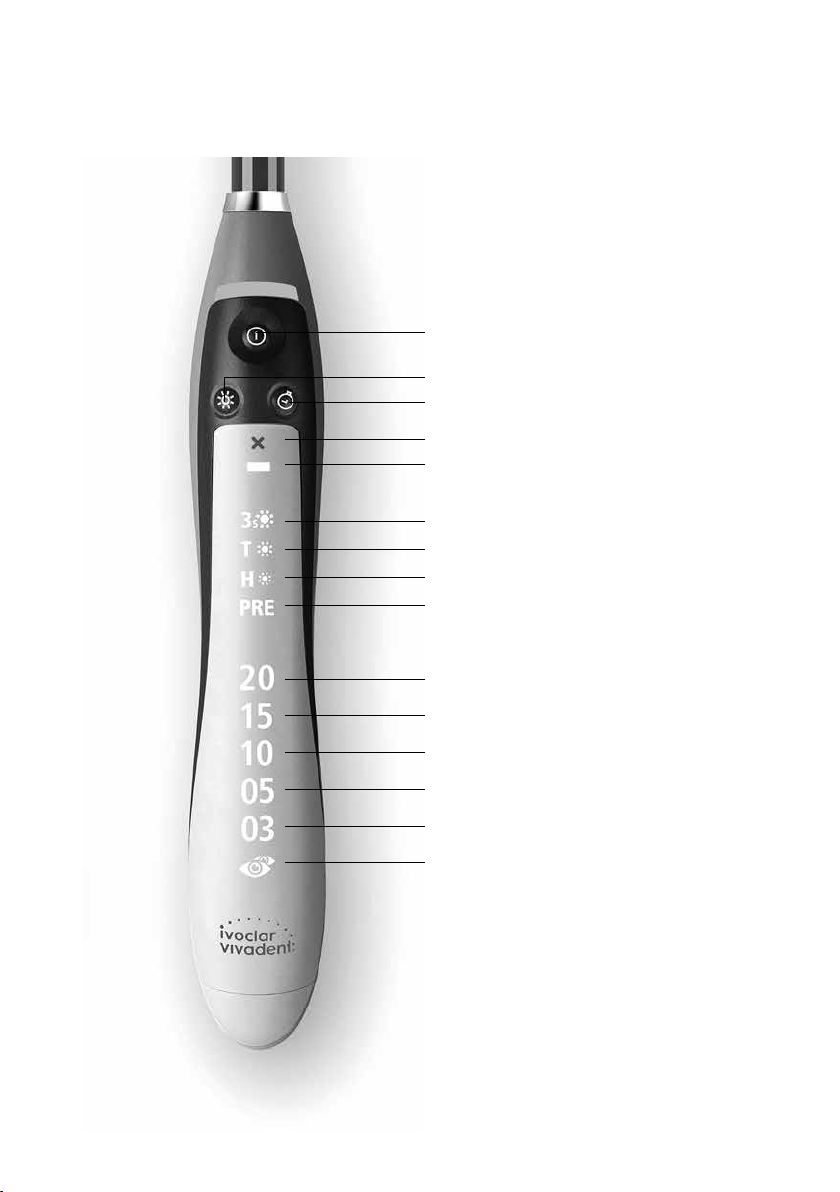

1.3 Indicators on the handpiece
Curing program / light intensity
Curing times High Power
Start/Stop button
Time selection button
Error indicator
Battery indicator
High Power / 1,200 mW/cm2
Turbo / 2,000 mW/cm2
3sCure / 3,000 mW/cm2
PreCure (preset to 2s) / 950 mW/cm2
20 seconds / 1,200 mW/cm2
15 seconds / 1,200 mW/cm2
10 seconds / 1,200 mW/cm2
5 seconds / 2,000 mW/cm2
3 seconds / 3,000 mW/cm2
Polyvision activated (see chapter 4)
Program selection button

6
1.4 Operating the light
Start/Stop button
To trigger/abort the
curing process
Time selection button
To select the desired
curing time
Program selection button
To select the desired curing
program

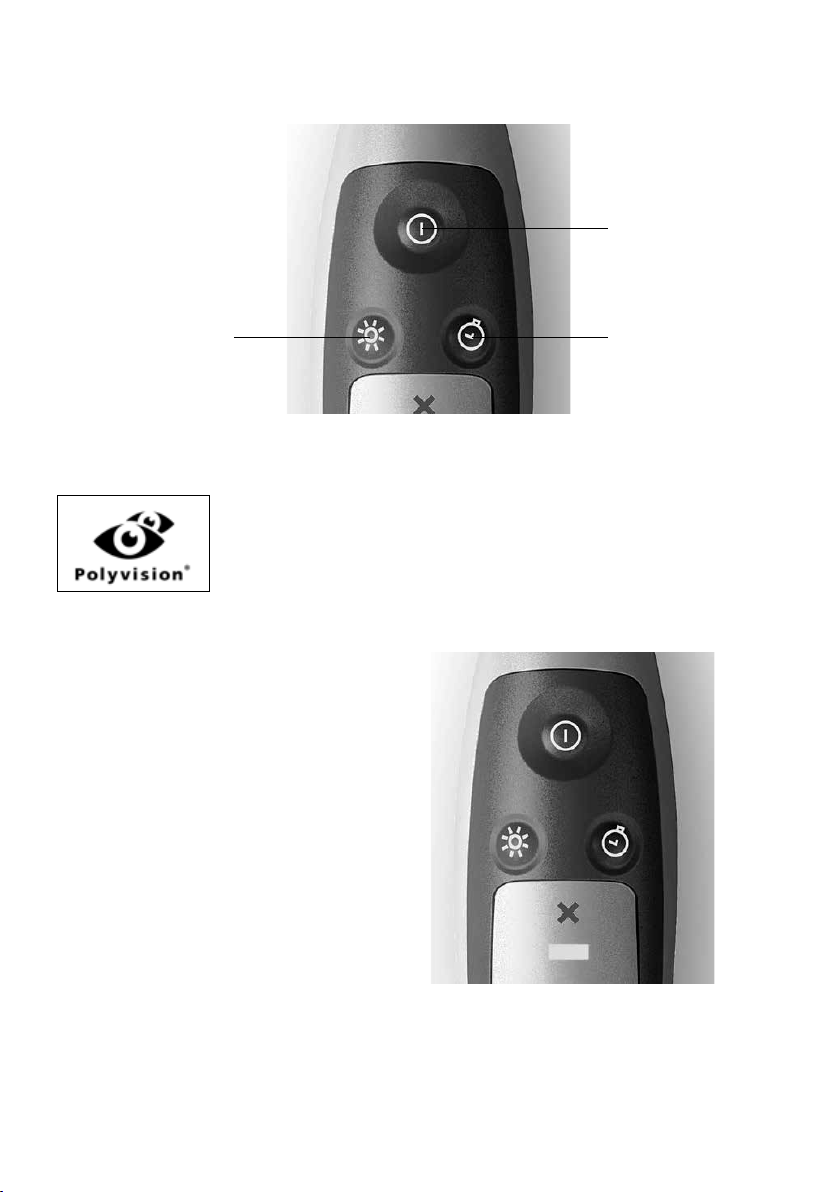

The polyvision function is activated by long pressing (>2 s) the program or time selection
button (see 4. Operation). To confirm that polyvision is activated, the handpiece will beep
and vibrate for a short time and the polyvision indicator will light up. Renewed long
pressing of the program or time selection button results in the polyvision function being
deactivated; the handpiece will not vibrate.
With the handpiece switched on, the current charging
status is shown on the handpiece as follows:
• No indicators lit up on the handpiece:
Battery sufficiently charged
Curing capacity of minimum 20 minutes in the
High Power program, approx. 15 minutes in the
Turbo program and approx. 8 minutes in the 3sCure
program.
• Battery symbol on the handpiece is flashing orange:
Battery weak
Time/intensity can still be set and a polymerization time
of approx. 6 minutes in the High Power program, approx.
4 minutes in the Turbo program, or 30 cycles in the
3sCure program are left. Place the device into the
charging base as soon as possible.
• Battery symbol on the handpiece is flashing orange
and a red “x” is shown:
Battery completely discharged
The light can no longer be activated and the curing time
can no longer be set. However, the handpiece can be
used in the Click & Cure corded mode.
Activating/deactivating polyvision

7
2. Intended Purpose and Safety
2.1 Normal use
Bluephase PowerCure is an LED curing light that
produces blue light. It is used for the polymerization of
light-curing dental materials directly in the oral cavity of
patients. The curing light is intended for use by the
dentist or dental assistant at the dental practice, medical
practice or hospital. Intended use also assumes the
observation of the notes and regulations in these
Instructions for Use. The curing light must only be
operated by trained dental personnel.
The 3sCure program (3,000 mW/cm2) must only be used
for direct restorations in the posterior region (Class I & II)
in combination with Tetric PowerFill, Tetric PowerFlow
or Adhese Universal. Do not use the 3sCure program in
cases of deep cavities (caries profunda).
Normal use: light-curing of dental materials
2.2 Indications
With its broadband Polywave® LED technology,
Bluephase PowerCure is suitable for the polymerization
of all light-curing dental materials curing in the
wavelength range of 385–515 nm. These materials
include restoratives, bonding agents/adhesives, bases,
liners, fissure sealants, temporaries, as well as luting
materials for brackets and indirect restorations, such as
ceramic inlays.
2.3 Signs and symbols
Contraindication
Symbols on the curing light
Double insulation
(device complies with safety class II)
Protection against electrical shock
(BF type apparatus)
Observe Instructions for Use
Observe Instructions for Use
The Instructions for Use are stored on the website of
Ivoclar Vivadent AG (www.ivoclarvivadent.com).
Caution
The curing light must not be disposed of in
the normal domestic waste. Information
regarding disposal of the device can be found
on the respective national Ivoclar Vivadent
homepage.
Recyclable
AC voltage
DC voltage
2.4 Safety notes
Bluephase PowerCure is an electronic device and
a medical product which is subject to IEC 60601-1
(EN 60601-1) and EMC directives IEC 60601-1-2
(EN60601-1-2), as well as the 93/42/EEC Medical Device
Directive. The curing light complies with the relevant
EU regulations.
The curing light has been shipped from the
manufacturer in a safe and technically sound condition.
In order to maintain this condition and to ensure risk-
free operation, the notes and regulations in these
Instructions for Use must be observed. To prevent
damage to equipment and risks for patients, users and
third parties, the following safety instructions must be
observed.
Safety notes for the "3sCure program" (3,000 mW/cm2):
– Avoid direct exposure of the gingiva, oral mucous
membrane or skin.

8
2.5 Contraindications
Materials whereby polymerization is activated
outside the wavelength range of 385– 515 nm
(no such materials known to date). If you are
not sure about certain products, please ask
the manufacturer of the corresponding
material.
Do not charge or use the appliance near
flammable or combustible substances.
Never use without light guide.
The use of a light guide other than the one
provided in the delivery form is not
admissable.
Using the device stacked on or close to other
equipment should be avoided because
correct function can be disrupted. If such use
is unavoidable, the device needs to be
monitored and checked for correct function.
Portable and mobile high-frequency
communication devices may interfere with
medical equipment. The use of mobile
phones during operation is not allowed.
Caution – The use of controls or adjustment
devices or performing procedures other than
those specified herein may result in
hazardous radiation exposure.
Never use without eye protection for patients
and users.
If the light emission window cannot be
optimally placed in relation to the composite
restoration, the restoration must be
polymerized using a conventional method. If
soft tissue exposure to the curing light cannot
be avoided, the 3sCure program must not be
used, as exposure may result in damage of
the soft tissues.
Warning
This unit should not be used near flammable
anaesthetics or mixtures of flammable
anaesthetics with air, oxygen or nitric oxide.
In the case of serious adverse events in
connection with the product, please contact
Ivoclar Vivadent AG, Bendererstrasse 2,
9494 Schaan, www.ivoclarvivadent.com,
and your local health authorities.
Usage and liability
– Bluephase PowerCure must only be employed for its
intended use. Any other uses are contraindicated. Do
not touch defective, open devices. Liability cannot be
accepted for damage resulting from misuse or failure
to observe the Instructions for Use.
– The user is responsible for testing Bluephase
PowerCure for its use and suitability for the intended
purposes. This is particularly important if other
equipment is used in the immediate vicinity of the
curing light at the same time.
– Use only original spare parts and accessories from
Ivoclar Vivadent. The manufacturer does not accept
any liability for damage resulting from the use of other
spare parts or accessories.
– The light guide is an applied part and may warm up to
a maximum of 45 °C (113 °F) at the interface to the
handpiece during operation.
– Keep out of the reach of children!
– For use in dentistry only!
Operating voltage
Before switching on, make sure that
a) the voltage indicated on the rating plate complies with
the local power supply and
b) the unit has acquired the ambient temperature.
Do not touch the exposed contacts of the connection
plug (power pack). If the battery or power pack are used
separately (i.e. during start-up), contact with patients or
third parties must be prevented.

9
Assumption of impaired safety
If it has to be assumed that safe operation is no longer
possible, the power must be disconnected and the
battery removed to avoid accidental operation. This may
be the case, for example, if the device is visibly damaged
or no longer works correctly. A complete disconnection
from the power supply is only ensured when the power
cord is disconnected from the power source. Ensure that
the device can be quickly and easily disconnected at any
time.
Eye protection
Direct or indirect exposure of the eyes must be
prevented. Prolonged exposure to the light is unpleasant
for the eyes and may result in injury. To optimize user
safety, the device has been equipped with intelligent
anti-glare protection. For this, the "polyvision" function
must be activated (see 4. Operation). With the polyvision
function activated, the Bluephase PowerCure
automatically senses if the handpiece is outside of the
mouth and automatically switches off the light if it has
been activated inadvertently. If a protective sleeve is
used, this function is not available.
In addition, we also recommend using the anti-glare
protective equipment supplied. Individuals who are
sensitive to light, who take photosensitizing drugs, have
undergone eye surgery, or work with the apparatus (or
in its vicinity) for long periods of time, should not be
exposed and should wear protective orange goggles
that absorb light below a wavelength of 515 nm. The
same applies for patients.

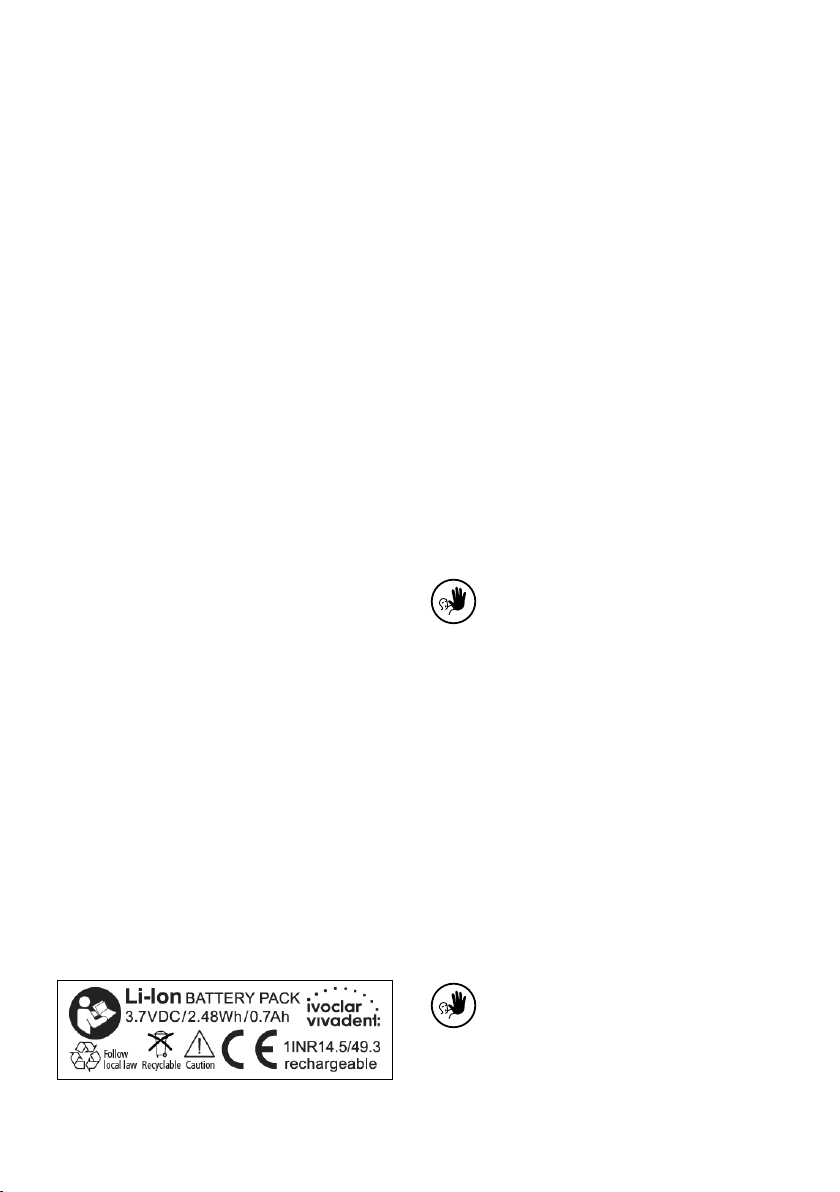

Battery
Caution: Use only original spare parts for
Bluephase PowerCure, particularly Ivoclar Vivadent
batteries and charging bases. Do not short circuit
battery. Do not touch the battery contacts. Do not store
at temperatures above 40 °C / 104°F (or 60°C / 140°F
for a short period). Always store batteries charged. The
storage period must not exceed 6 months. May explode
if disposed of in fire.
Please note that lithium-ion batteries may react with
explosion, fire and smoke development if handled
improperly or mechanically damaged. Damaged lithium-
ion batteries must no longer be used.
The electrolytes and electrolyte fumes released during
explosion, fire and smoke development are toxic and
corrosive. Do not touch leaking batteries with bare
hands. In case of contact with the eyes or skin,
immediately wash with copious amounts of water.
Avoid inhalation of fumes. In case of indisposition, see a
physician immediately. Remove electrolyte residue from
surfaces by washing/wiping with a moist cloth. Wash
contaminated pieces of clothing immediately.
Heat development
As is the case with all high-performance lights, the high
light intensity results in a certain heat development. Pro-
longed exposure of areas near the pulp and soft tissues
may result in irreversible damage. Therefore, this high-
performance curing light must only be operated by
trained professionals.
Generally, the recommended curing times,
particularly in areas near the pulp, must be
observed. Using more than two 3sCure cycles
on the same tooth within a period of 30
seconds and direct contact with the gingiva,
oral mucous membrane or skin must be
strictly avoided. In addition, the light
emission window must remain positioned
exactly on the material to be cured during the
entire duration of the curing cycle (e.g. by
holding it in place using a finger). If soft tissue
exposure cannot be avoided, work with
reduced light intensity. Polymerize indirect
restorations at intermittent intervals of
10 seconds in the High Power program and
1 x 5 seconds each in the Turbo program or
use external cooling with an air stream. The
instructions regarding curing programs and
curing times must be observed (see Selecting
the curing program).
After several curing cycles on the same
tooth, there is a risk that the pulp suffers
damage caused by the increased
temperature!

10
Check the delivery for completeness and any possible
transportation damage (see List of parts). If parts are
damaged or missing, contact your Ivoclar Vivadent
representative.
Charging base
Before you switch on the device, make sure that the
voltage mentioned on the rating plate complies with
your local power supply.
Slide the connection plug of the power pack into the
socket on the underside of the charging base. Tilt it
slightly and apply slight pressure until you hear and feel
it snap into place. Place the charging base on a suitable,
flat table top.
Connect the power cord with the power supply and the
power pack. Make sure that the power cord is easily
accessible at all times and and can easily be disconnect-
ed from the power supply. The charging base will briefly
display "Bluephase PowerCure" as ticker text on the
screen.
3. Start-Up
Handpiece
Unpack the handpiece from the packaging and detach
the light guide by pulling it out. Then clean the
handpiece and light guide (see Maintenance and
Cleaning). After cleaning, reinsert the light guide.
For reasons of hygiene, we recommend using a
disposable protective sleeve for each patient
(see Maintenance and Cleaning). Make sure to fit the
protective sleeve snugly to the light guide. Sleeves
enclosed in the delivery form may be used or sleeves can
be purchased per country specific regulations. Then,
attach the anti-glare cone or anti-glare shield to the light
guide.

11

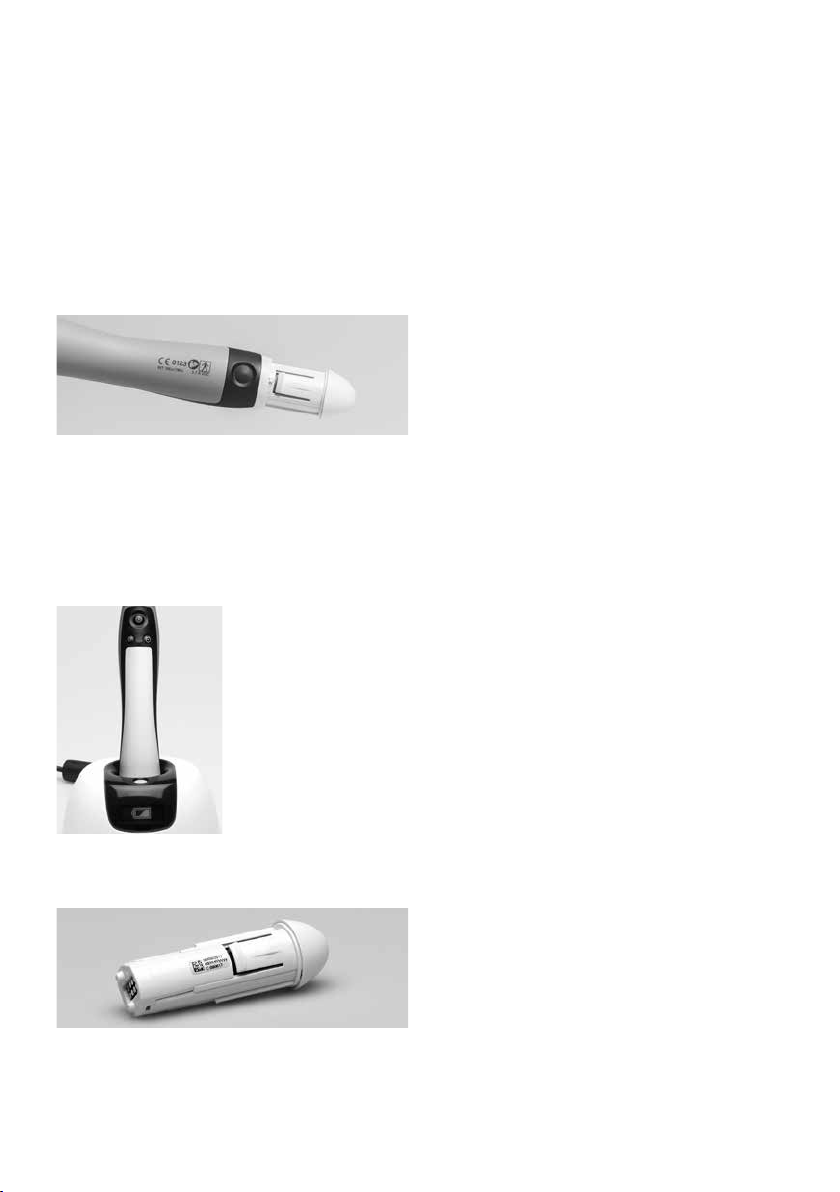

Battery
The battery must be fully charged before it is used for
the first time! When fully charged, the battery features a
curing capacity of at least 20 minutes in the High Power
program, approx. 15 minutes in the Turbo program and
approx. 8 minutes in the 3-second curing program
(3sCure).
Slide the battery straight into the handpiece until you
hear and feel it click into place.
Gently place the handpiece in the corresponding rest in
the charging base without using any force. If a hygiene
sleeve is used, please remove it before you charge the
battery. If possible, always use the light with a fully
charged battery. This will prolong the service life. We
therefore recommend placing the handpiece into the
charging base after each patient. If the battery is
fully discharged, the charging time is 2 hours.
The battery is an expendable part that typically needs to
be replaced after approximately 2.5 years. See battery
label for the age of the battery.
Battery: charging status
The current charging status is displayed on the
handpiece as described on page 6.

12
Click & Cure corded operation
Bluephase PowerCure can be used in corded operation
mode at any time and particularly when the battery is
completely empty.
For corded operation, release the battery by pressing on
the release button on the lower part of the handpiece
and then pull the battery out of the handpiece
completely.
Then remove the power pack from the underside of the
charging base. Do not pull on the power cord.
Insert the connection plug straight into the handpiece
until you hear and feel it click into place.
During corded operation, the charging base cannot
charge the battery, since it is not connected to a power
source.
A complete disconnection from the power supply is only
ensured when the power cord is disconnected from the
power socket.
Measuring the light intensity
The integrated radiometer allows the light intensity
(mW/cm2) to be measured easily and quickly while the
charging base is connected.
To measure the light intensity, place the tip of the light
guide, without protective cover, flush into the marked
recess on the upper side of the charging base. Then
activate the light and read the value displayed on
the screen. Measurement accuracy is in the range of
+/– 10%. If the light intensity is below 400 mW/cm2,
the screen will display "LOW". Measure the light
intensity of the curing light only with the accompanying
charging base supplied in the delivery form.

13
4. Operation
Disinfect contaminated surfaces of the curing light as
well as light guides and anti-glare cones before each use.
Additionally, the light guide can be sterilized using the
autoclaves intended for this purpose (see chapter
Maintenance and Cleaning). Furthermore, make sure
that the emitted light intensity permits adequate
polymerization. For that purpose, inspect the light guide
for contamination and damage and check the light
intensity at regular intervals (see paragraph Measuring
the light intensity).
Selecting the curing program and curing time
Bluephase PowerCure is equipped with 5 selectable
curing times and 4 curing programs for different
indications. Use the Time/Program selection button to
set the desired curing time and/or the light intensity.
H(High Power Program), 1,200 mW/cm2:
The following curing times can be selected in the
High Power program: 10, 15 or 20 seconds.
T(Turbo Program), 2,100 mW/cm2:
The curing time is set to 5 seconds in the Turbo program
and cannot be changed.
3s(3sCure program), 3,050 mW/cm2:
In the 3sCure program, the curing time is set to
3 seconds and cannot be changed. The 3sCure program
can be activated no more than twice in direct succession.
After the two curing cycles have been conducted, a
30-second break is necessary for safety reasons before
the next curing cycle can be activated.
PRE (PreCure Program), 950 mW/cm2:
The PreCure program is used to tack cure light-curing,
adhesive luting composites (Variolink Esthetic) in order
to facilitate the removal of excess material. If other luting
composites are used, the distance from the light guide
to the composite must be increased or several curing
cycles must be conducted. The curing time of the
PreCure program is preset to 2 seconds and cannot be
altered.
Repeated consecutive curing cycles (more
than 2 curing cycles in succession) on the
same tooth entail the risk that the pulp may
become damaged due to the increase in
temperature.
The PreCure program must not be used for
conventional light-curing!
Start/Stop button
Time selection button
High Power (1,200 mW/cm2)
Turbo (2,000 mW/cm2)
3sCure (3,000 mW/cm2)
PreCure (950 mW/cm2)
Curing times
Polyvision activated
Program selection button

14
Observe the Instructions for Use of the material
applied when selecting the curing time and intensity.
The curing recommendations for composite materials
apply to all shades and, if not mentioned otherwise in
the Instructions for Use, to a maximum layer thickness
of 2 mm. Generally, these recommendations apply to
situations where the emission window of the light guide
is placed directly over the material to be polymerized.
Increasing the distance between the light source and the
material will require the curing time to be extended
accordingly. For instance, if the distance to the material
is approx. 8 mm, the effective light output is reduced by
approx. 50%. In this case, the recommended curing time
has to be doubled.
1) The information provided herein applies to the
10>9 mm light guide supplied in the delivery form.
2) The information regarding heat development and
burn hazards must be taken into consideration
(see Safety notes).
Curing times HIGH POWER
1,200 mW/cm2
TURBO
2,000 mW/cm2
3sCure
3,000 mW/cm2
3sCure System
Tetric PowerFill / Tetric PowerFlow
4 mm 10 seconds 5 seconds 3 seconds1)
Adhese Universal 10 seconds –– 3 seconds1)
Restorative
materials
Composites
• 2 mm 2)
IPS Empress Direct /
IPS Empress Direct Effect
Tetric EvoCeram / Tetric EvoFlow
10 seconds 5 seconds ––
• 4 mm 3)
Tetric EvoCeram Bulk Fill /
Tetric EvoFlow Bulk Fill
10 seconds 5 seconds ––
Indirect restorations /
cementation
materials
Variolink Esthetic LC 4) /
Variolink Esthetic DC 5)
per mm ceramic:
10 seconds per surface
per mm ceramic:
5 seconds per surface ––
Multilink Automix 5) / SpeedCEM Plus 5) per mm ceramic:
20 seconds per surface
per mm ceramic:
2 x 5 seconds
per surface
––
Temporary materials Telio CS Link
Telio CS Inlay/Onlay
10 seconds per surface
10 seconds
10 seconds per surface
5 seconds ––
Miscellaneous
Helioseal F Plus 10 seconds –– ––
IPS Empress Direct Color
IPS Empress Direct Opaque
MultiCore Flow / Multicore HB
20 seconds
20 seconds
20 seconds
5 seconds
2 x 5 seconds
2 x 5 seconds
––
1) The 3sCure program may only be used on the occlusal surfaces of Class I & II
restorations in the posterior region and may not be used at all in cases of caries
profunda, or deep cavities.
2) Applies to a maximum layer thickness of 2 mm and provided that the Instructions
for Use of the respective material do not state any other recommendation
(which may be the case, e.g. with certain dentin shades)
3) Applies to a maximum layer thickness of 4 mm and provided that the Instructions
for Use of the respective material do not state any other recommendation
(which may be the case, e.g. with certain dentin shades)
4) Applies to light-curing
5) Applies to optional light-curing

15
Polyvision - Automatic assistant with intelligent
anti-glare protection
Bluephase PowerCure features a
fully automated "polyvision"
assistant for safe polymerization.
This feature enables the curing light
to automatically sense if the
handpiece is inadvertently moved from its position
during the curing procedure. To prevent any associated
reduction in the amount of energy being transferred, the
device will start to vibrate to alert the user to the
improper use and will automatically extend the curing
time by 10%. If the handpiece is significantly shifted
away from its initial position (e.g. out of the oral cavity),
the light will automatically switch off so that the curing
process can be restarted and carried out correctly.
In addition, polyvision also acts as intelligent anti-glare
protection. Polyvision ensures that the curing light
cannot be used outside the mouth. The light can only be
activated once the light guide is positioned directly over
the material to be polymerized. This protects the
operator and patient from being blinded by the light.
If a protective sleeve is used, this function is not
available. Contamination of the light guide may affect
the functionalities of the polyvision assistant.
The automatic assistant is there to support the user. It
does not obviate the need for monitoring by the user.
If you do not want to use the assistant, you can
deactivate it at any time by long pressing (> 2 seconds)
the Time or Program selection button. The symbol on
the handpiece (see 1.3 Indicators on the handpiece) then
disappears.
Measuring the light intensity
We recommend checking the light intensity emitted by
the curing light at regular intervals using the integrated
radiometer in order to be sure that the materials are
adequately cured and the composite fillings are of a high
and lasting quality (see 3. Start-Up).
Cure Memory function
The last settings used, together with the combination of
curing program and curing time, are automatically
saved.
Start/Stop
The light is switched on by means of the Start/Stop
button. It is recommended that the emission window of
the light guide is placed directly on the material to be
polymerized. Once the selected curing time has elapsed,
the curing program is automatically terminated. If
desired, the light can be switched off before the set
curing time has elapsed by pressing the Start/Stop
button again.
Acoustic signals
Acoustic signals can be heard for the following functions:
– Start (Stop)
– Every 10 seconds
– Curing time and program change
– Inserting battery
– Error message (when anti-glare protection is activated
or curing cycle aborted)
– Error message when attempting to activate the 3sCure
program during the 30-second waiting time that
follows after the program has been used twice in
succession.
Light intensity
The light intensity is maintained at a consistent level
during operation. If the supplied 10>9 mm light guide is
used, the light intensity has been calibrated to
1,200 mW/cm2± 10% in the High Power program.
In the Turbo program, the light intensity is calibrated to
2,100 mW/cm2± 10%. In the 3-second program (3sCure),
the light intensity is calibrated to 3,050 mW/cm2± 10%.
If another light guide than the one supplied is used, it
directly influences the emitted light intensity.
When focussing light guides (10>9 mm) or Pin-Point
light guides (6>2 mm) are used, the diameter of the
light entry is larger than the diameter of the light
emission window. The incident blue light is therefore
concentrated over a smaller area. As a result, the emitted
light intensity is increased.
Pin-Point light guides are suitable for spot-on
polymerization, e.g. to tack veneers in place before
removing excess material. For complete polymerization,
the light guide must be changed.

16
5. Maintenance and Cleaning
For reasons of hygiene, we recommend using a
disposable protective sleeve for each patient. Make sure
to fit the protective sleeve closely to the light guide. Use
either the sleeves enclosed in the delivery form or other
suitable and approved single-use protective sleeves.
Disinfect contaminated surfaces of the device and anti-
glare cones (FD 366/Dürr Dental, Incidin Liquid/Ecolab,
CaviCide/Metrex Research). Sterilize the light guide
before each use if disposable protective sleeves are not
used. Make sure that no liquids or other foreign
substances enter the handpiece, charging base and
particularly the power pack during cleaning (risk of
electrical shock). Disconnect the charging base from the
power source when cleaning it.
Cleaning the housing

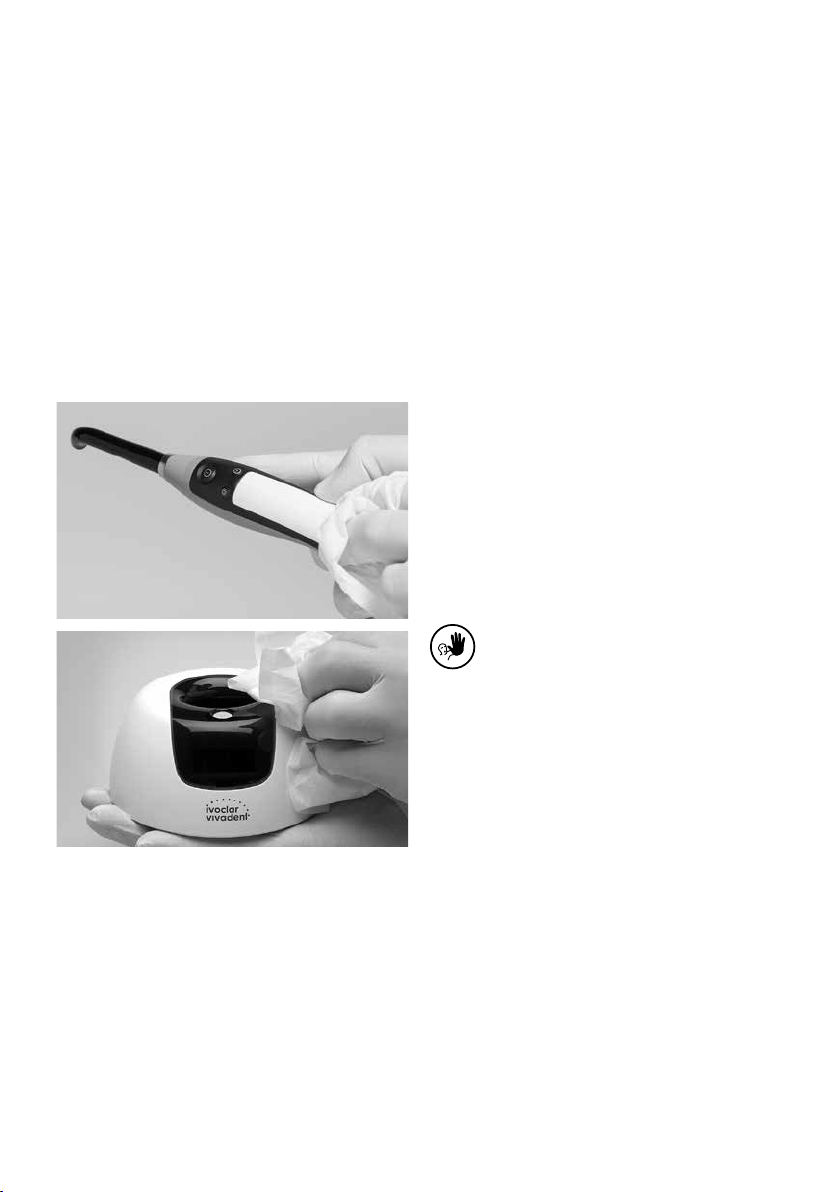

Wipe the handpiece and handpiece holder with a
customary aldehyde-free disinfecting solution. Do not
clean with highly aggressive disinfecting solutions
(e.g. solutions based on orange oil or with an ethanol
content of more than 40%), solvents (e.g. acetone), or
pointed instruments, which may damage or scratch the
plastic. Clean dirty plastic parts with a soapy solution.
Pre-treating the light guide
Before cleaning and/or disinfecting the light guide,
pretreat it. This applies to both automated and manual
cleaning and disinfection:
– Remove substantial contamination immediately after
use or 2 hours after that at the latest. For this purpose,
thoroughly rinse the light guide under running water
(for at least 10 seconds). Alternatively, use a suitable
aldehyde-free disinfecting solution to remove any
adherent blood.
– To remove contamination manually, use a soft brush or
soft cloth. Partially polymerized composite can be
removed with alcohol and a plastic spatula, if
necessary. Do not use sharp or pointed objects, as they
may scratch the surface.
Manually cleaning and disinfecting the light guide
For manual cleaning, place the light guide in an
instrument cleaning solution (e.g. ID 212 forte/
Dürr Dental) for the recommended reaction time
(15 minutes). Make sure that the light guide is
sufficiently immersed in cleaning solution (cleaning bath
with sieve insert and lid). Observe the instructions for
use of the disinfectant manufacturer when using
cleaning and disinfectant solution.
When cleaning and disinfecting, please make
sure that the agents used are free of:
– organic, mineral and oxidizing acids
(the minimum admissible pH value is 5.5)
– alkaline solutions (the maximum admissible
pH value is 11)
– oxidizing agent (e.g. hydrogen peroxide)
After the cleaning process, remove the light guide from
the solution and thoroughly rinse it under running water
(20 +/– 2 °C / 36 +/– 4 °F ) for at least 10 seconds.
Mechanical cleaning and disinfection of the light guide
(Disinfector/CDU (cleaning and disinfection unit))
As an alternative, cleaning and disinfection can be
carried out mechanically: Neodisher® MediClean forte,
Dr. Weigert, 0.5 %, according to cleaning program,
e.g. cleaning 55 °C (131 °F) (+5 °C (41 °F)/–0 °C), 5–10 min,
disinfection 90 °C (194 °F) (+5 °C (41 °F)/–0 °C), 5–10 min.

17
Sterilization of the light guide
Thorough cleaning and disinfecting is imperative to
ensure that the subsequent sterilization is effective. Use
only autoclave sterilization for this purpose: 3x pre-
vacuum, sterilization time (exposure time at sterilization
temperature) is 4 minutes at 134 °C (273 °F); pressure
should be 2 bar (29 psi). Use nationally approved
sterilization pouches. Dry the sterilized light guide
(10 min) using either the special drying program of your
steam autoclave or hot air. The light guide has been
tested for up to 200 sterilization cycles.
Checking the light guide
After that, check the light guide for damage. Hold it
against the light. If individual segments appear black,
glass fibres are broken. If this is the case, replace the
light guide with a new one. If you can still see signs of
contamination on the light guide, the cleaning and
disinfecting procedure must be repeated.
Disposal
The curing light must not be disposed
of as normal houshold waste. Dispose
unserviceable batteries and curing lights
according to the corresponding legal
requirements in your country.
Batteries must not be incinerated.

18
6. What if …?

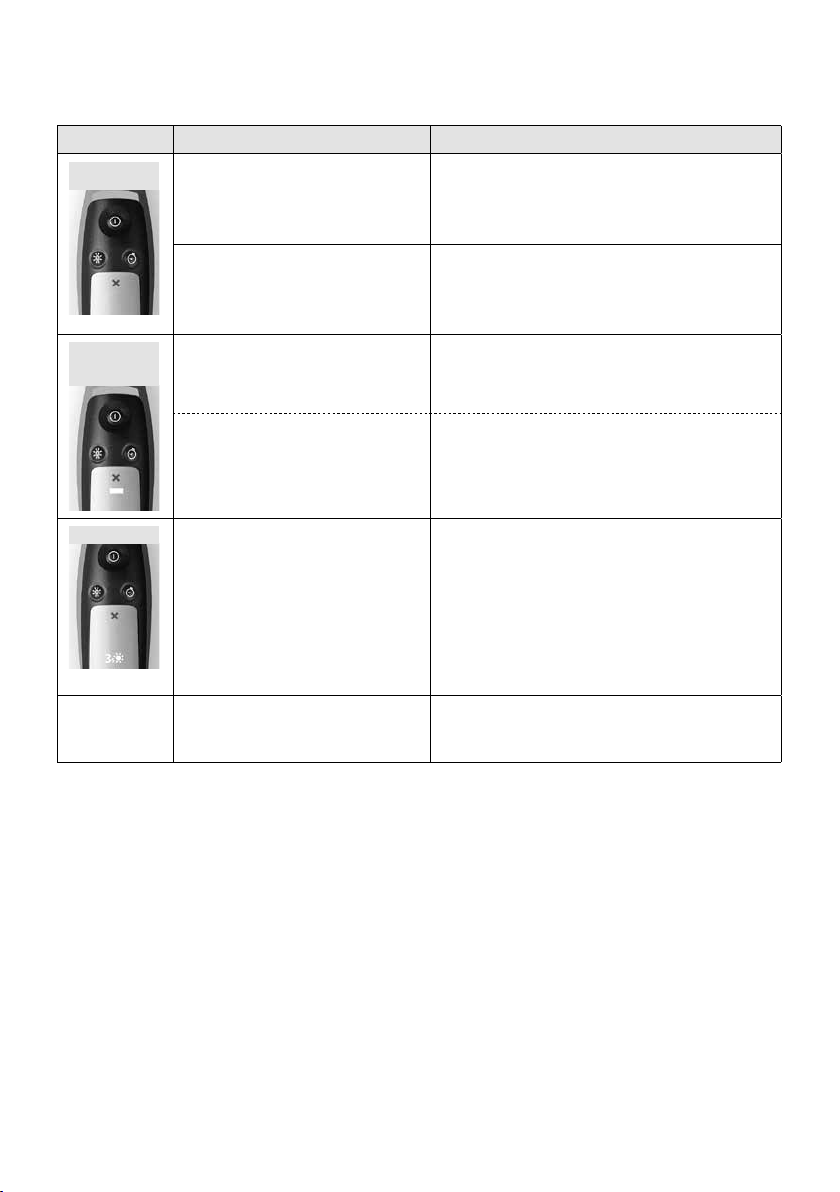

Indicator Causes Error rectification
Red “x”
lights up
The device is overheated. Allow the device to cool down and try again after a
certain time. If the error persists, please contact your
dealer or your local Service Centre.
Electronic component of the
handpiece is defective.
Remove and reinsert the battery. If the error persits,
please contact your dealer or your local Service
Centre.
Red “x” and
battery symbol
light up
Battery empty Place the device in the charging base and charge it.
Battery contacts dirty Remove battery and clean the battery contacts.
3s flashes In the 3sCure program, the curing time
is set to 3 seconds and cannot be
changed. The 3sCure program can be
used no more than twice in direct
succession.
After two consecutive curing cycles, an extended
waiting time of 30 seconds is necessary for safety
reasons before the next curing cycle can be started.
If for compelling reasons an additional curing cycle is
required before the prescribed interval of 30 seconds
has elapsed, the 3sCure program can be activated
again by selecting it anew with the program selection
button.
The charging base
is not illuminated
during charging
– Power pack not connected or
defective
– Battery fully charged
Check if the power pack is correctly positioned in
the charging base or if the power pack is connected
to the power supply by means of the power cord.

19
7. Warranty / Procedure
in Case of Repair
8. Product Specifications
The warranty period for Bluephase PowerCure is 3 years
from the date of purchase (battery: 1 year). Malfunctions
resulting from faulty material or manufacturing errors
are repaired free of charge during the warranty period.
The warranty however does not confer rights to
compensation for any material or non-material damage.
The apparatus must only be used for the intended
purposes. Any other uses are contraindicated. The
manufacturer does not accept any liability resulting from
misuse and warranty claims cannot be accepted in such
cases. This is particularly valid for:
• Damage resulting from improper handling, especially
incorrectly stored batteries (see Product Specifications:
Transportation and storage conditions).
• Damage to components resulting from wear under
standard operating conditions (e.g. battery).
• Damage resulting from external influences, e.g. blows,
drops to the floor.
• Damage resulting from incorrect set-up or installation.
• Damage resulting from connecting the unit to a power
supply, the voltage and frequency of which do not
comply with the ones stated on the rating plate.
• Damage resulting from improper repairs or
modifications that have not been carried out by
certified Service Centres.
In case of a claim under warranty, the complete
apparatus (handpiece, charging base, battery, power
cord and power pack) must be returned, carriage paid, to
the dealer or directly to Ivoclar Vivadent, together with
the purchase document. Use the original packaging with
the corresponding cardboard inserts for transportation.
Repair work may only be carried out by a certified
Ivoclar Vivadent Service Centre. In case of a defect that
cannot be rectified, please contact your dealer or your
local Service Centre (see addresses on the reverse side).
A clear description of the defect or the conditions under
which the defect occurred will facilitate locating the
problem. Please enclose this description when returning
the apparatus.
The product has been developed solely for use in dentistry. Processing should be carried out strictly
according to the Instructions for Use. Liability cannot be accepted for damages resulting from failure
to observe the Instructions or the stipulated area of application. The user is responsible for testing the
products for their suitability and use for any purpose not explicitly stated in the Instructions.
Light source Ivoclar Vivadent Polywave®LED
Wavelength range 385–515 nm
Light intensity 3sCure program: 3,050 mW/cm2± 10 %
Turbo program: 2,100 mW/cm2± 10 %
High Power program: 1,200 mW/cm2± 10 %
PreCure program: 950 mW/cm2± 10 %
Operation 3 min on / 7 min off (intermittent)
Light guide 10>9 mm, autoclavable
Signal transmitter Beeps every 10 seconds and every time the
Start/Stop button or the Time/Program
selection button is activated or the anti-glare
protection is enabled or the curing process is
aborted and 30-second waiting time after the
3sCure program has been used twice in
succession
Dimensions of the
handpiece
L = 170 mm, B = 30 mm, H = 30 mm
Weight of the handpiece 135 g (including battery and light guide)
Operating voltage of the
handpiece
3.7 VDC with battery
5 VDC with power pack
Operating voltage of the
charging base
5 VDC
Power supply Input: 100–240 VAC, 50–60 Hz max 1 A
Output: 5 VDC / 3 A
Manufacturer: EDAC POWER ELEC.
Type: EM1024B2
Operating conditions Temperature +10 °C to +35 °C
Relative humidity 30 % to 75 %
Ambient pressure 700 hPa to 1060 hPa
Dimensions of the
charging base
D = 110 mm, H = 55 mm
Weight of the charging
base
145 g
Charging time Approx. 2 hours (with the battery empty)
Power supply of the
handpiece
Li-Ionen battery
Transportation and
storage conditions
Temperature –20 °C to +60 °C
Relative humidity 10 % to 75 %
Ambient pressure 500 hPa to 1060 hPa
The curing light has to be stored in closed,
roofed rooms and must not be exposed to
severe jarring.
Battery:
– Do not store at temperatures above
40 °C / 104 °F (or 60 °C / 140 °F for a short
period). Recommended storage temperature
15–30 °C / 59–86 °F
– Keep the battery charged and store no longer
than 6 months.
Delivery form 1 Charging base with power cord and power
pack
1 Handpiece
1 Handpiece support
1 Light guide 10>9 mm
1 Anti-glare shield
3 Anti-glare cones
1 Pack of sleeves (1x 50 pcs)
1 Instructions for Use

20
Liebe Kundin, lieber Kunde,
Eine optimale Aushärtung ist die Basis für eine
dauerhaft hohe Qualität von Restaurationen
mit lichthärtenden Materialien. Hierzu trägt
entscheidend das gewählte Polymerisationsgerät
bei. Deshalb freut es uns, dass Sie sich für
Bluephase® PowerCure entschieden haben.
Hierbei handelt es sich um ein hochwertiges
Medizinprodukt, welches auf der Basis der gültigen
Normen nach dem heutigen Stand von Wissenschaft
und Technik gefertigt wird.
Die Gebrauchsinformation erklärt Ihnen, wie Sie
das Lichtgerät sicher in Betrieb nehmen, seinen
vollen Leistungsumfang auf einfache Weise nutzen
und für eine lange Verwendung pflegen können.
Bei Fragen stehen wir Ihnen gerne zur Verfügung
(Adressen siehe hintere Umschlagseite).
Ihr Ivoclar Vivadent Team
