IWAKI PUMPS APN-085-W User manual

Read this manual before use of product
APN-085-W
Instruction Manual
IWAKI
Gas-Liquid Transfer Pump

Thank you for selecting the IWAKI APN series gas-liquid transfer
pump. This instruction manual deals with "Safety Instructions",
"Outline", "Installation", "Operation" and "Maintenance" sections.
Please read through this instruction manual to ensure the opti-
mum performance, safety and service of your pump.
Important Instruction
WARNING
Nonobservance or misapplication of the
contents of “Warning” section could lead to
a serious accident which may result in death.
CAUTION
Nonobservance or misapplication of the
contents of “Caution” section could lead to
personal injury or property damage.
Types of Symbols
Indicates a prohibited action or procedure. Inside or near this cir-
cle, a concrete and practical image of the activity to be avoided is
depicted.
Indicates an important action or procedure which must be per-
formed or carried out without fail. Failure to follow the instruc-
tions herein can lead to malfunction or damage to the pump.
For the Safe and
Correct Handling of the Pump
●"Safety Instruction" section deals with important details about
handling of the product. Before use, read this section carefully for
the prevention of personnel injury or property damage.
●Observe the instructions accompanied with "WARNING" or
"CAUTION" in this manual. These instructions are very impor-
tant for protecting pump users from dangerous situations.
●The symbols on this instruction manual have the following meanings:
For exportation
Technology related to the use of goods in this instruction manual falls
in the category of technology contained in the Foreign Exchange
Order Attachment, which includes complementary export control of
technology. Please be reminded that export license, which is issued
by the Ministry of Economy, Trade, and Industry could be required,
when this is exported or provided to someone even in Japan.
Contents
Safety Instructions ·········································································· 1
Outline 1. Unpacking & Inspection·······································3
2. Operating principle··············································· 3
3. Identification code ················································4
4. Specifications························································4
5. Outer dimension····················································5
6. Performance curve················································ 5
7. Overview & Label················································· 6
8. Part names & Structure ········································6
Installation 1. Before installation················································· 8
2. Installation/Tubing/Electrical wiring················· 10
Operation 1. Before operation·················································· 12
2. Pump operation··················································· 13
Maintenance 1. Troubleshooting ·················································· 15
2. Maintenance & Inspection ································· 15
3. Wear part replacement········································ 17
This instruction manual should be kept on hand by the end user
for quick reference.
Contact us or your nearest dealer if you have any questions.

- 1 -
Prohibited
Electrical shock
Prohibited
Prohibited
Prohibited
No remodeling
Caution
Caution
Wear protectors
WARNING
● Turn off power
Risk of electrical shock. Dismantling/assem-
bling the pump unit without turning off power
may cause an electrical shock. Before
engaging in any maintenance or inspec-
tion work, be sure to turn off the pump and
related devices.
● For specified application only
The use of the pump in any application other
than those clearly specified may result in
injury or damage. Use the pump in a speci-
fied condition.
● No modification
Do not modify the pump. We are not respon-
sible for any accidents or damage due to
modification.
● Wear protective clothing
Always wear protective clothing such as a
mask so as not to take in toxic fume during
pipework or dismantlement.
● Specified power only
Do not apply any power other than the speci-
fied one on the nameplate. Otherwise dam-
age or fire may result.
● Restriction on operators
The pump should be handled by a quali-
fied person with a full understanding.
● Ventilation
Poisoning may result when handling a
toxic or odorous liquid. Keep good ventila-
tion in a working area.
● Operating and Storage conditions
Do not install or store the pump in the fol-
lowing places where...
1. Ambient temperature exceeds 40ºC or
falls below 0ºC.
2. Under a flammable/corrosive atmos-
phere.
● Countermeasure against efflux
Take protective measures against the acci-
dental efflux caused by diaphragm break-
age.
● Do not wet the pump
If a liquid spills over electric parts or wires,
a fire or electrical shock may result. Install
the pump in a place free from liquid spill-
age.
CAUTION
Prohibited
Safety Instructions

● Install an earth leakage breaker
Risk of electrical shock. Do not use the
pump without an earth leakage breaker.
Purchase separately.
● Damaged power cable
Do not use any damaged power cable for
the prevention of a fire or electrical shock.
The cable is not replaceable, so that the
whole pump unit needs to be replaced
when the cable is damaged.
● Pump disposal
Dispose of any used or damaged pump in
accordance with local laws and regulations
(Consult a licensed industrial waste prod-
ucts disposing company.).
● Earth connection
Always earth the pump in order to reduce
the risk of electrical shock.
- 2 -
Prohibited
Electrical shock
Electrical shock
Prohibited
CAUTION CAUTION
Safety Instructions
● Damaged pumps
Do not use any damaged pump. Using a
damaged pump may lead to an electric leak
or shock.
● Stop operation
Finding any abnormality, stop operation
immediately and inspect/solve problems.
● Pump dismantlement
Dismantlement should be carried out within
the descriptions in this instruction.
● Do not damage a power cable
Risk of fire or electrical shock. Do not
scratch, modify, or pull a power cable. The
cable can also be damaged when it is heat-
ed or loaded with a heavy thing.
● Do not place the pump close to water
The pump is not dust-/water-proof construc-
tion. The use of the pump in a humid place
or a place where the pump can get wet may
result in electrical shock or short-circuit.
Grounding
Electrical shock

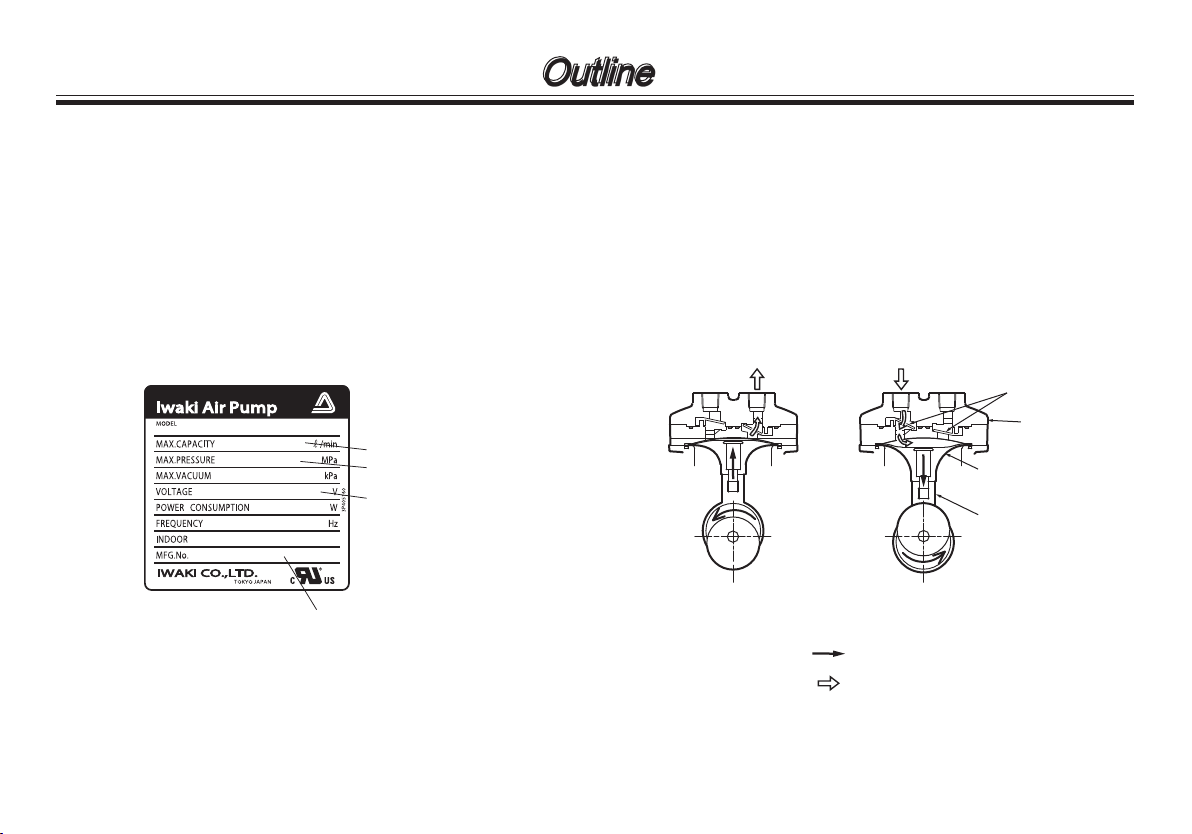

2. Operating principle
The APN-085-W is a gas-liquid transfer pump with a small
size diaphragm and special valves, and is designed for
built-in application.
The rotary motion of the motor is converted via a con-
necting rod to the reciprocation of the diaphragm in the
pump chamber, where the mixture of gas and liquid is
transferred from the inlet to outlet.
- 3 -
Before use, check the specification, limitation and hazardous
nature of the pump.
1. Unpacking & Inspection
On unpacking the product, check the following points. If
you find any problems, contact your nearest distributor.
1. Check the information on the nameplate to see that the
product is delivered as per order.
2. Check for transit damage, deformation, and loose bolts.
Outline
Flow rate
Discharge pressure
Power voltage
Manufacturing No.
OUTIN
OUTIN
Pump head
(Pump chamber)
Diaphragm
Connecting rod
Valve
: Diaphragm reciprocation
: Flow direction
Discharge process Suction process

- 4 -
3. Identification code
APN - P 085 EX - E4 - W 02
a b c d e f g
a. Pump head
No code : Single
P : Twin parallel
b. Series name
c. Diaphragm materials
E : EPDM
V : FKM
d. Pump connection
X : Thread connection (Rc1/8)
e. Rated voltage
E4 : 220V/240VAC with a Cabtyre cable
f. Gas-liquid transfer type
g. Special specification
No code : Standard
01-99 : Special design
Outline
4. Specifications
■ Pump 50Hz, 220/240V
Type
Max. air
ow
(L/min)
Max. dis-
charge
pressure
(MPa)
Max.
vacuum
(kPa)
Motor Connec-
tion Weight
(kg)
Lowest
starting
temp.
(°C)
Power
con.
(W)
Output
(W)
Rated
current
(A)
Thread
APN-085E 3
0.05
34.66
48 20 0.22 Rc1/8
2.5
5
APN-085V 37.33
APN-P085E 534.66 2.8
APN-P085V 37.33
NOTE1. Observe the maximum discharge pressure of
0.05MPa.
NOTE2. Allowable gas temperature range is 0-40°C.
NOTE3. Allowable liquid temperature range is 5-40°C.
NOTE4. Allowable ambient temperature range is 0-40°C.
Observe the lowest starting temperature at the start
of operation.
NOTE5. Both the inlet and outlet of the pump are Rc1/8 female
thread connections (JIS taper pipe thread).
■ Wet end material
Parts Model
V E
Pump head GFRPP
Diaphragm FKM EPDM
Valve
Valve seat GFRPP
Gasket FKM EPDM
GFRPP : Glass fiber reinforced polypropylene
FKM : Fluorine-contained rubber
EPDM : Ethylene propylene diene monomer

6. Performance curve
■ APN-085-W (Single)
■ APN-P085-W (Twin parallel)
- 5 -
Outline
82.4
ø71
13 13
(126)
5
(174)
2-Rc1/8
2-Rc1/8
2-Rc1/8
(198)
(190) 13 13
ø71
82.4
(126)
5
0.05
34.66
APN-085E
21.33
7.99
101.32
47.99
61.32
74.66
87.99
0
123456
APN-085V
Discharge pressure
(MPa)
AIR FLOW
(L/min)
Vacuum pressure
(kPa) [abs]
50Hz
7.99
47.99
21.33
34.66
74.66
87.99
61.32
101.32
0
0.05
1 2 3456
APN-P085E
APN-P085V
Discharge pressure
(MPa)
AIR FLOW
(L/min)
Vacuum pressure
(kPa) [abs]
50Hz
5. Outer dimension
■ APN-085-W (Single)
■ APN-P085-W (Twin parallel)

- 6 -
Outline

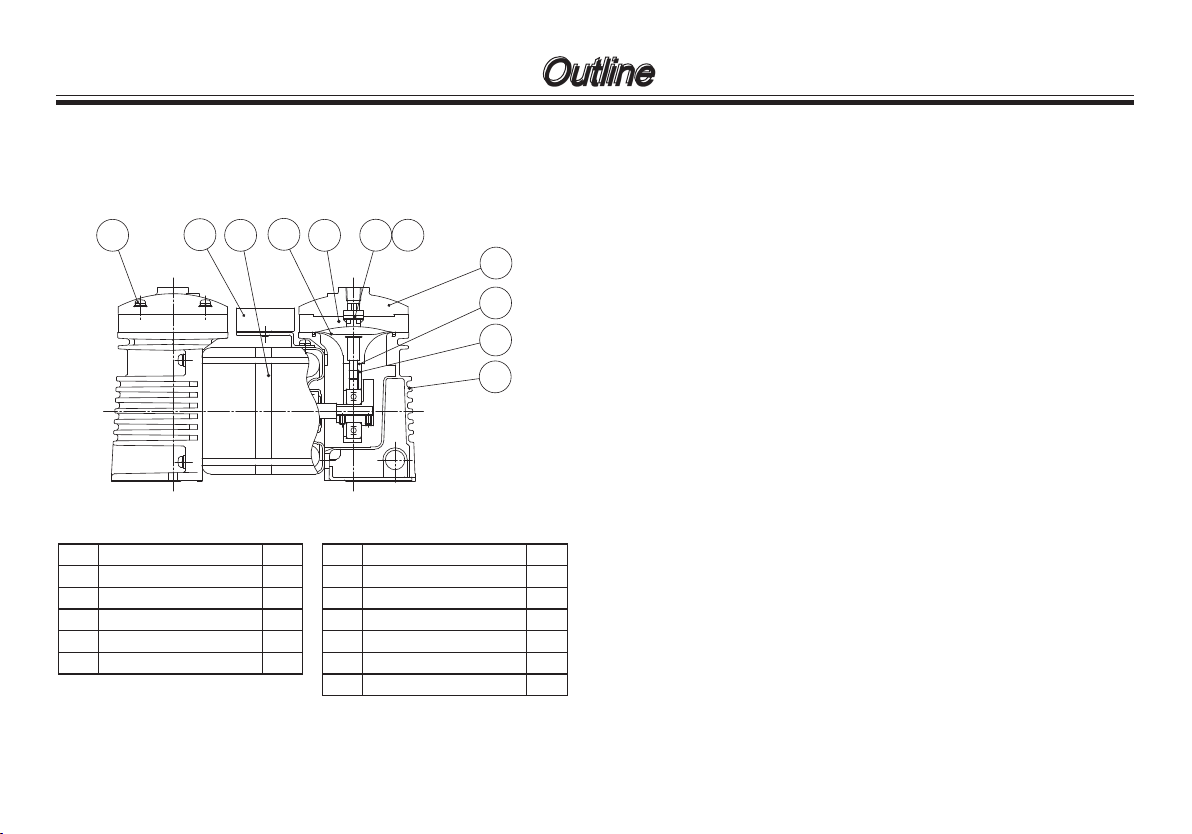

8. Part names & Structure
■ APN-085-W
No. Part names Q'ty No. Part names Q'ty
1 Pump head 1 20 Bracket 1
2Valve 240 Motor 1
3 Valve seat 1 46 Capacitor 1
4Diaphragm 162 Small screw 4
19 Connecting rod unit 1 set 79 Plate washer 1
38 Gasket 2
7. Overview & Label
The illustration below shows an APN-085-W single head type.
Pump head
Name plate
Model and MFG. No.
(Production number)
are described.
Pump body
(Driven unit)
An installation location
should be free from liq-
uid spillage.
Base
Anchor the pump with
M5 screws.
Outlet Inlet
Motor
Lead wire
Connect to corre-
sponding terminals
through crimp con-
nectors.
Caution label
Earth terminal
Be sure to earth
the pump.
62
40 4 321
46
20
19
79
38

- 7 -
Outline
46
20
62
1
19
40 43238
79
■ APN-P085-W
No. Part names Q'ty No. Part names Q'ty
1 Pump head 2 20 Bracket 2
2Valve 440 Motor 1
3 Valve seat 2 46 Capacitor 1
4Diaphragm 262 Small screw 8
19 Connecting rod unit 2 set 79 Plate washer 2
38 Gasket 4

- 8 -

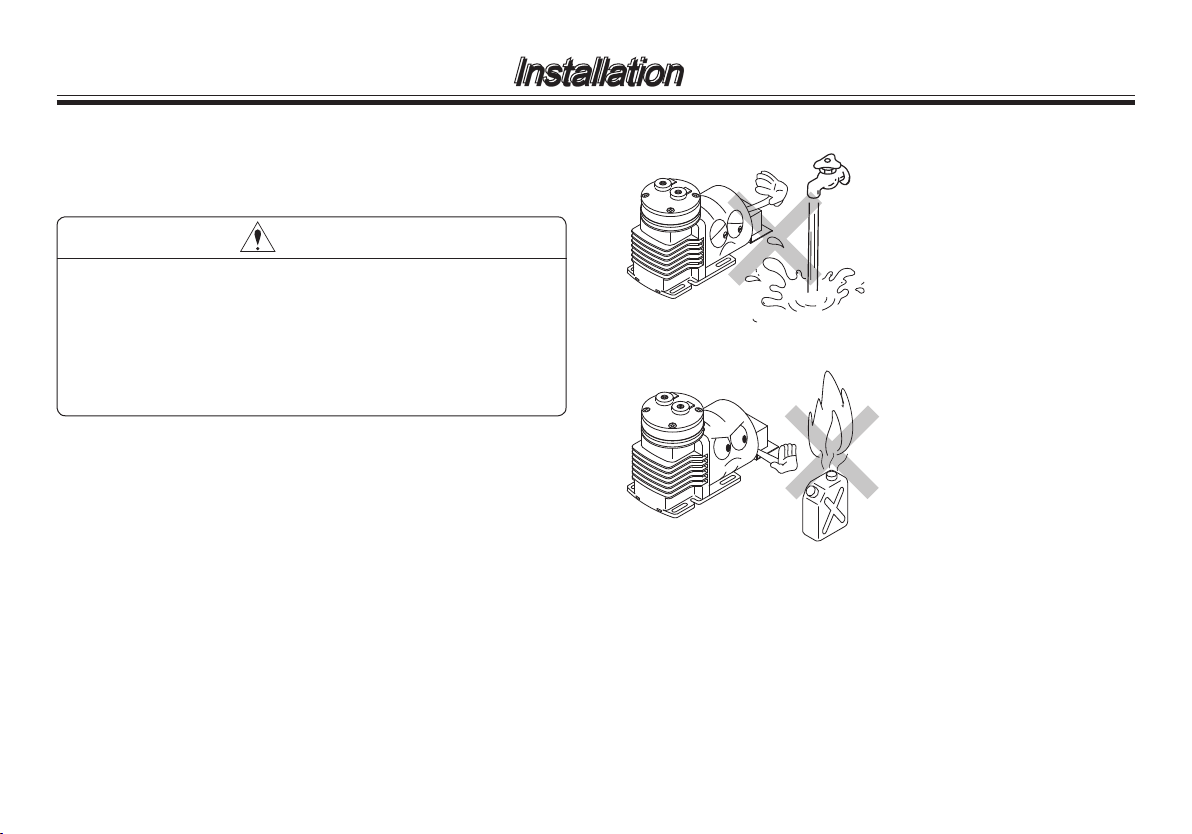

■ Instruction for use
● Do not install the pump in a
place where the pump can
get wet.
● Do not install the pump in a
corrosive or flammable gas
atmosphere. Keep good ven-
tilation in a working area.
● Ambient temperature should
not fall below 0°C or exceed
40°C. Observe the allowable
gas temperature range of 0
and 40°C and liquid tempera-
ture range of 5 and 40°C.
1. Before Installation
Read through this instruction manual before use. Carry
out installation work with a full understanding.
● No fire
Keep the pump away from flammable object.
● Damaged pump
Risk of electrical leakage and electrical shock.
Do not use a damaged pump.
CAUTION
Installation

- 9 -
Installation
● Observe the rated voltage
specified on the name plate.
Applying any voltage than
the rated one may result in
failure.
● Surface temperature may
rise high in operation but it
dose not mean failure.
Do not touch the pump body
directly or place the objects
which may be deformed by
heat close to the pump.
● Do not use the pump in
a dusty place. Be sure to
provide the inlet with a filter
to prevent foreign mat-
ters from getting into the
pump. Otherwise, the pump
performance may reduce
or the lives of valves and
diaphragm may remarkably
shorten.
● Do not tube two or more
pumps in series. It may pre-
vent the motor from starting
and lead to a burn out.
● The APN-P085-W is
designed to be tubed in par-
allel only. Do not tube it in
series.
Risk of burn
Provide a filter
OUT
IN
OUT
IN
IN
IN
OUT
OUT
IN
OUT
OUT
IN
Parallel
Series
?V

- 10 -
Installation

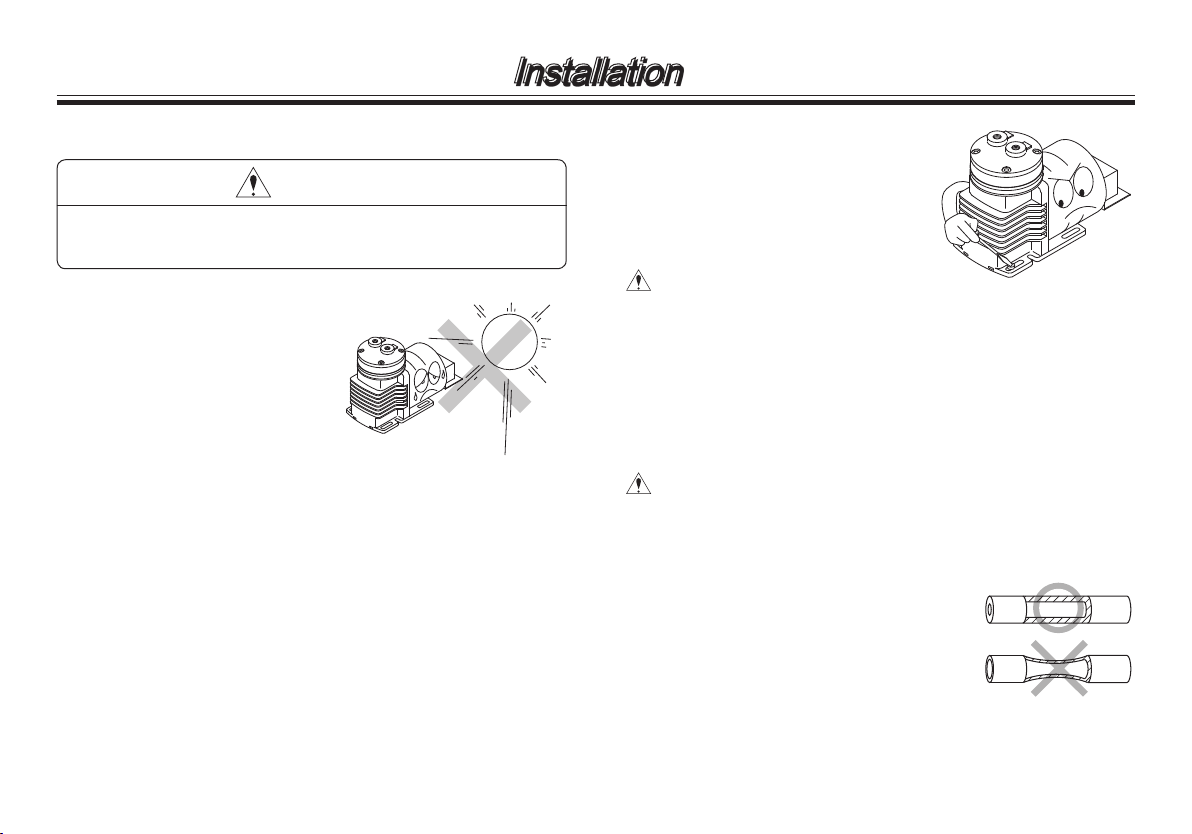

2. Installation/ Tubing/ Electrical wiring
2.1 Installation
1. Do not expose the pump to
direct sunlight, vibration and
wind & rain.
2. Keep good ventilation. The
pump should always be free
from the possibility of getting
wet.
3. Ambient temperature should
not fall below 0°C or exceed
40°C. Observe the allowable
maximum ambient humidity
of 90%RH.
4. Install the pump in a clear
and level place.
Select a convenient place
for maintenance and inspec-
tion.
5. Pump fixation
Set the pump baseplate on a con-
crete foundation and fasten cor-
rosion-resistant M5 screws tightly
to prevent the pump from vibrating
during operation.
CAUTION
Do not install the pump on a wobbly pedestal.
2.2 Tubing
1. The short tubing with the minimum bends is optimal to
reduce resistance.
2. Avoid sharp turns or bends.
CAUTION
Do not have tubing bent or pressed. Otherwise, the tube
end may break.
3. Tubes and fittings
Provide tube fittings to the threaded
inlet and outlet (Rc1/8) of the pump. Use
chemically-resistant tubes or tempera-
ture-/pressure-resistant braided tubes as
necessary. Cut the tube ends and have
them flat before insertion.
Stop working upon sensing danger or abnormality.
WARNING

- 11 -
Installation
4. Tube size
For liquid transfer, a suction line bore should be ø4mm or
less. Otherwise, the motor is locked by overfeeding.
A discharge line bore should be ø8mm or more.
CAUTION
Use of a large tube bears the risk of coming off, causing
an air and a liquid leak.
5. Valve mounting
Install a ball valve in a suction line for adjusting an air/liquid
flow or the degree of vacuum and in a discharge line for
shutoff or the convenience of maintenance.
6. Tube and fitting connection
Wrap a sealing tape to the thread of tube fittings and screw
them into the inlet and outlet of the pump. And then fit and
slide tubes down onto the fittings as far as they will go.
NOTE: If suction line connection is imperfect, the pump sucks
air and it prevents the pump from bringing out full per-
formance.
2.3 Electrical wiring
Electrical wiring must be done by a qualified person who has
a full knowledge of safety. We are not responsible for personal
injury or property damage due to nonobservance of this warn-
ing. Contact us or your nearest distributor for wiring as neces-
sary.
■Before wiring
1. Confirm that power is disconnected before work.
2. Wiring work should be done in accordance with relevant
electric work requirements. Use the recommended wiring
accessories.
3. Observe the rated voltage specified on the name plate.
4. Earth the pump through the earth terminal.
5. Install the leakage breaker as necessary. When it has func-
tioned, turn off power and check/solve problems to restore a
normal state.

- 12 -
● Dropping or subjecting the
pump to strong impact, fail-
ure may result.
Handle the pump with care.
● The pump can not start with
full discharge/suction pres-
sure or full liquid. Remove
pressure or liquid before
operation.
● After a long period of stop-
page, pump performance at
the beginning of operation
becomes occasionally unsta-
ble. In this case, warm the
pump up for 10 minutes with
no discharge line pressure.
● Always use a suction valve
to adjust an air/liquid flow.
● If the compressed air or
liquid (higher pressure
than atmospheric pres-
sure) is transferred to the
pump, sharp deterioration
to the lives of the valves,
diaphragm and bearing
may result. The suction line
pressure should be equal
to atmospheric pressure or
vacuum pressure.
● Do not use solvents such as
benzine, alcohol, thinner for
maintenance or cleaning,
otherwise a coat discolours
or comes off.
1. Before operation
Suction pressure
Suction valve
No load operation
Keep a discharge
valve full open.
↓
↓
Suction valve
Do not apply suction line
pressure
↓
Operation

- 13 -
2. Pump operation
■ Start-up
1. Before pump operation, check
that each tube connection is
secured.
2. Check that a suction tube is
connected to the inlet and a dis-
charge tube is connected to the
outlet.
CAUTION
If a suction line and a discharge
line are connected the other way
around, pumping process is
inverted.
3. Check that the pump is firmly
fixed on a mounting position.
■Operation
Operate the pump according to the following steps.
No. Procedure Contents
1Check tubing, wir-
ing and voltage.
● Check installation, tubing and wiring
are properly done and wiring system
is fused.
● Check the spec label to see if power
supply voltage is correct.
2 Open valves. ●
Fully open both discharge and suction lines.
3Supply power to the
pump.
● After checking the items 1 and 2. Turn
on power and start the pump.
● Smooth starting may not be obtained
when ambient temperature is 10ºC or
below. In this case, run the pump with
no discharge line pressure for a few
minutes to warm it up.
● Smooth starting may not be obtained
when the pump chamber is lled with
liquid. Get rid off liquid before operation.
4Adjust air ow.
● After the pump has reached a speci-
ed stroke rate, initiate full scale
operation.
● Always adjust an air ow by a suction
valve.
5
Points to be
checked during
operation
● After starting, check a pressure gauge
to see if suction and discharge line pres-
sure are correct and an air ow meter to
see if the specied air ow is obtained.
● Keep a suction line pressure at or
below atmospheric pressure.
● In case electric power has failed while
the pump is running, switch off main
power. Otherwise, the motor may not re-
start or may burn out depending on a line
pressure at the time of power recovery.
Operation

- 14 -
Operation
■ Stop and Storage
Before a long period of stoppage (1 week or more)...
● Release pressure and turn off main power.
● Make sure both supply air and gas are stopped.
Before resuming operation...
● Operation may occasionally be upset in the beginning. In
this case warm up the pump under no load operation in
advance.
● Follow the "■ Operation" table to resume operation.

- 15 -
1. Trouble shooting
Turn off power on sensing danger and check the follow-
ing. In case trouble can not be solved, contact us or your
nearest distributor.
Phenomenon
Causes
Pump does not run. Pump stops running. Poor air ow or discharge pressure Pump makes noise.
Measures
No power distribution Check wiring.
Motor trouble (disconnection or capacitor failure) Replace the motor.*
Wrong tubing or poor connection Check and x tubing.
Pump head mounting screws are loose. Tighten the screws.
Diaphragm insertion is loose. Tighten diaphragm.
Diaphragm is damaged. Replace diaphragm.
Filter is clogged. Remove foreign matters.
Valves are worn. Replace valves.
Motor-Bracket xing screws are loose. Secure them.
Eccentric shaft has worn. Replace the connecting rod.*
Connecting rod bearing has worn. Replace the connecting rod.*
Motor bearing has worn. Replace the motor.*
Voltage reduction Increase voltage to the rated level.
Higher suction pressure than atmospheric Reduce suction pressure.
Condensation in the pump head Dry up the pump.
Contact us for the measures marked with *.
2. Maintenance & Inspection
Handling of the pump, maintenance and inspection should
be carried out within this instruction manual. Do not handle
the pump beyond the descriptions in this manual.
We are not responsible for personal injury or property dam-
age due to nonobservance of this warning. Contact us or
your nearest distributor as necessary.
■ Daily inspection
Pay attention to the following items during operation. Stop
operation on sensing danger and solve problems on the trou-
ble shooting section. If pump performance has remarkably
reduced, replace wear parts.
No. Check that... Measure
1 pump operation is normal.
• Apply correct voltage and
amperage.
• Adjust discharge/suction
pressure.
2there is no noise or vibration
problem.
• Unusual noise/vibration may
occur when pump operation
is not normal.
3
there is no air leak or air
ingress from pump parts and
tubing connections.
• Retighten connections.
Maintenance

- 16 -
■ Wear parts
If pump performance has remarkably reduced, replace dia-
phragms and valves with new ones. Wear part duration varies
with the pressure, temperature and characteristics of gas/
liquid. The estimated life below is calculated based on continu-
ous operation with clean water in a room temperature range of
0-40°C.
Application Load range Estimated life
Valve Diaphragm Gasket
Gas transfer All range 8000hr 8000hr 8000hr
Liquid transfer No load 4000hr 4000hr 4000hr
*The above lives are reference values and not warranted.
■ Cleaning
Turn off power and wait until the pump has cooled down. Then
clean off the surface of the pump with a wet cloth. Use a neu-
tral detergent for greasy dirt as necessary and dry it with a dry
cloth.
Check the pump surface has dried up before operation.
CAUTION
Risk of electrical shock. Do not wet electric parts or wir-
ing.
■ Storage
Protect the pump from dust during storage.
Do not store the pump in the following places where...
• Ambient temperature falls below 0°C or exceeds 40°C.
• Under a flammable or corrosive atmosphere.
• Under heavy dust or high humidity.
• Under direct sunlight or wind & rain.
• Under vibration.
Maintenance

- 17 -
Maintenance

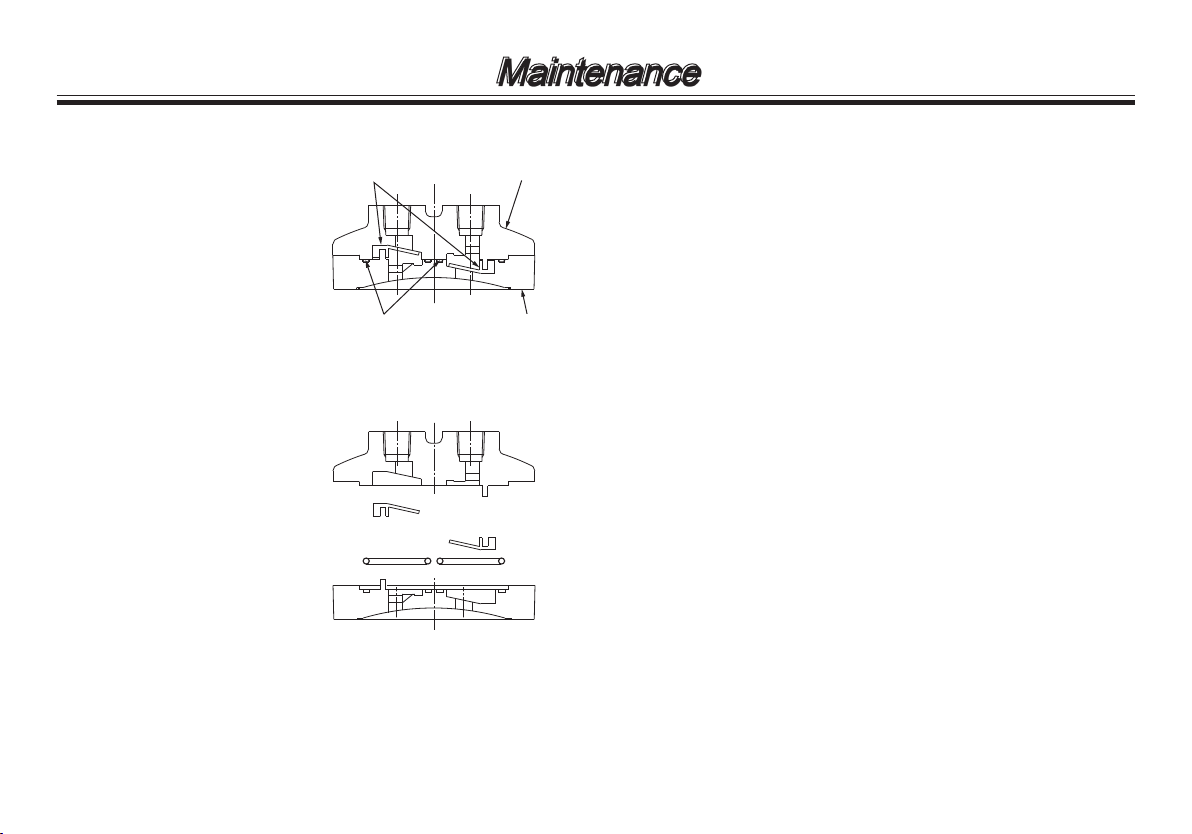

3. Wear part replacement
For a long period of operation wear parts need to be
replaced periodically.
CAUTION
● Turn off power before work
Risk of electrical shock. Be sure to turn off power to
stop the pump and related devices before work.
● Do not touch the pump or pipe with bare bands
Risk of burning. The surface temperature
of the pump or pipe gets high in or right
after operation.
● Wear protective clothing
Always wear protective clothing such as a
mask so as not to take in toxic fume during
pipework or dismantlement.
See page 6 "8. Part names & Structure" as necessary.
■ Diaphragm replacement
1. Unscrew the pump head fix-
ing screws and take out the
pump head, valves, gaskets
and valve seat.
2. Turn the diaphragm anti-
clockwise so as to detach it
from the rod.
3. Mount a new diaphragm into
the rod and fasten as far as
it will rotate.
4. Push down the diaphragm
until it bottoms out and then
reassemble and secure the
above parts onto the bracket
with the screws by 1.37N•m.
Screw
Pump head
Gasket
Bracket
Con rod
Valve
Valve seat
Plate washer
Diaphragm

- 18 -
Maintenance
■ Valve & Gasket replace-
ment
1. Unscrew the pump head
fixing screws and dismantle
the pump head unit.
2. Replace old valves and gas-
kets with new ones and then
reassemble the pump head
unit.
3. Supply air into the pump
head unit through the inlet
and check the air is dis-
charged through the outlet.
4. Push down the diaphragm
until it bottoms out and then
secure the unit onto the
bracket with the screws by
1.37N•m.
IN OUT
Pump head
Gasket
Valve
Valve seat
NOTE1. For the APN-P085 twin parallel type, finish either
pump head first and then start with the other.
NOTE2. Do not loosen the motor-bracket fixing screws during
maintenance work.
NOTE3. Contact your nearest distributor for the replacement of
the connecting rod and the motor.
