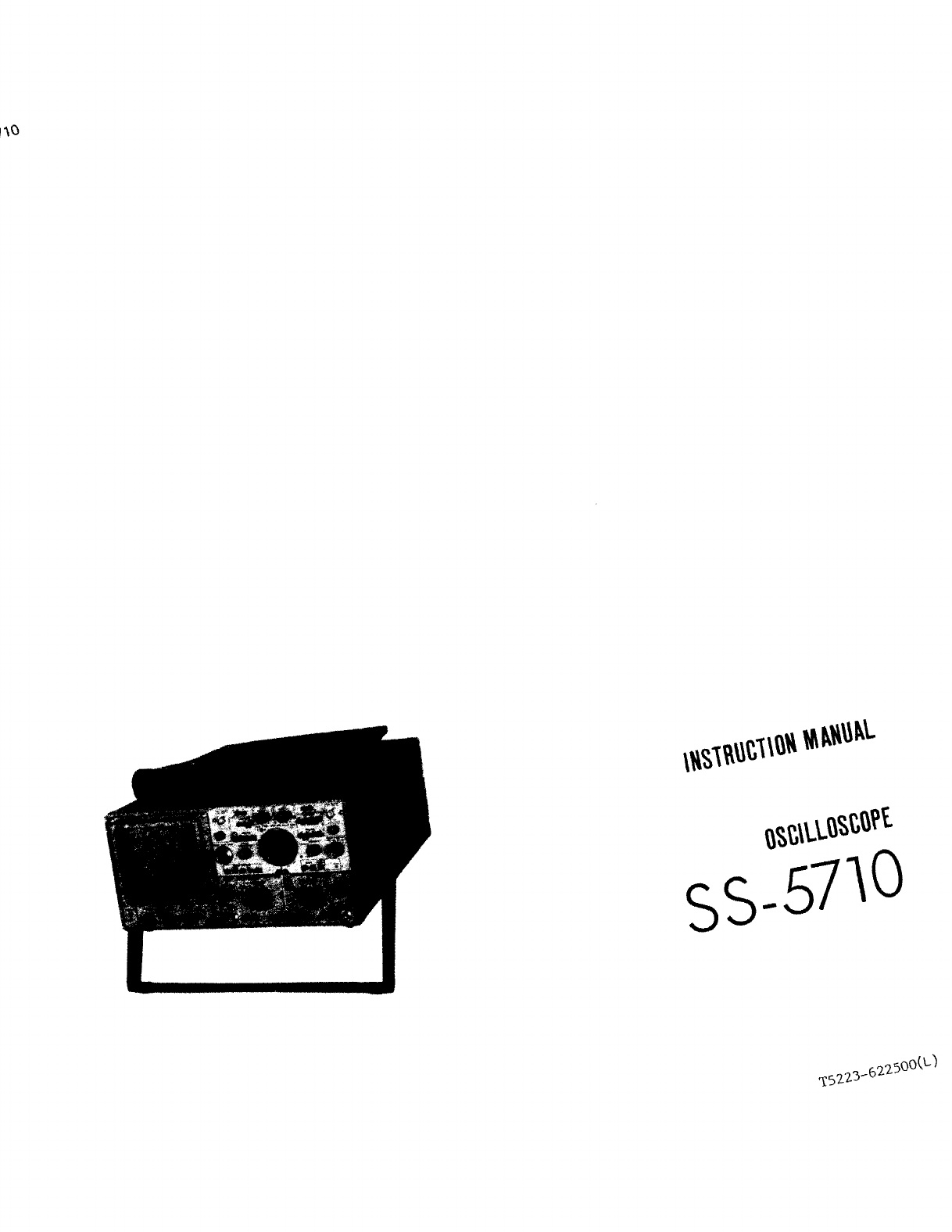

Iwatsu SS-5710 User manual

\\~t\ll\\~t\Wl
ss-57\0

SS-5710
ii

SS-5710
SECTION 1
1-1
1-2
1-2-1
1-2-2
1-2-3
1-2-4
1-2-5
1-2-6
1-2-7
1-2-8
1-3
1-4
1-5
SECTION 2
2-1
2-2
2-3
2-3-1
2-3-2
2-3-3
2-4
2-4-1
2-4-2
2-4-3
2-4-4
2-4-5
2-4-6
2-5
2-5-1
2-5-2
2-5-3

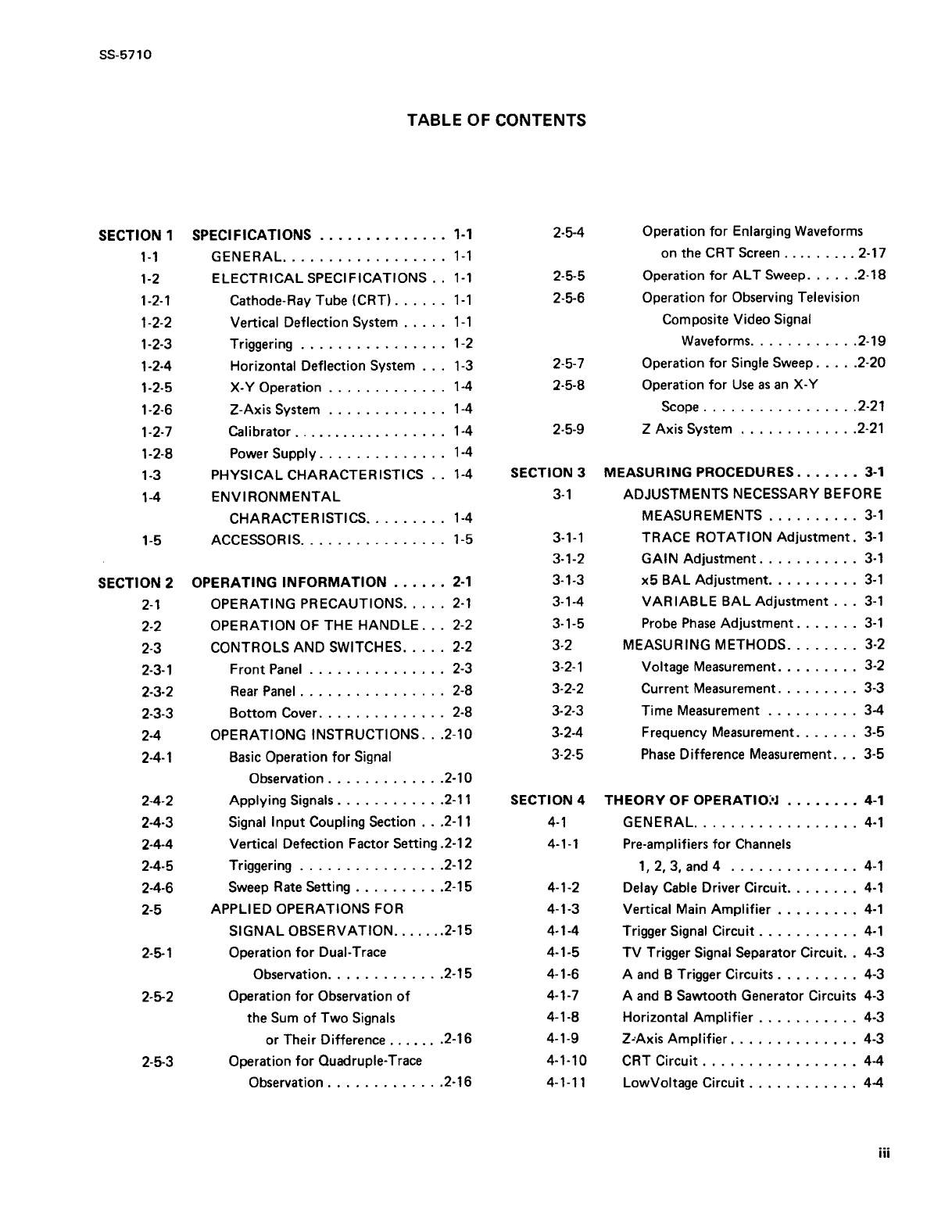

TABLE OF CONTENTS
SPECIFICATIONS •............. 1-1
GENERAL. ................. 1-1
ELECTRICAL SPECIFICATIONS .. 1-1
Cathode-Ray Tube (CRT) ...... 1-1
Vertical Deflection System ..... 1-1
Triggering . . . . . . . . . . . . . . . . 1-2
Horizontal Deflection System . . . 1-3

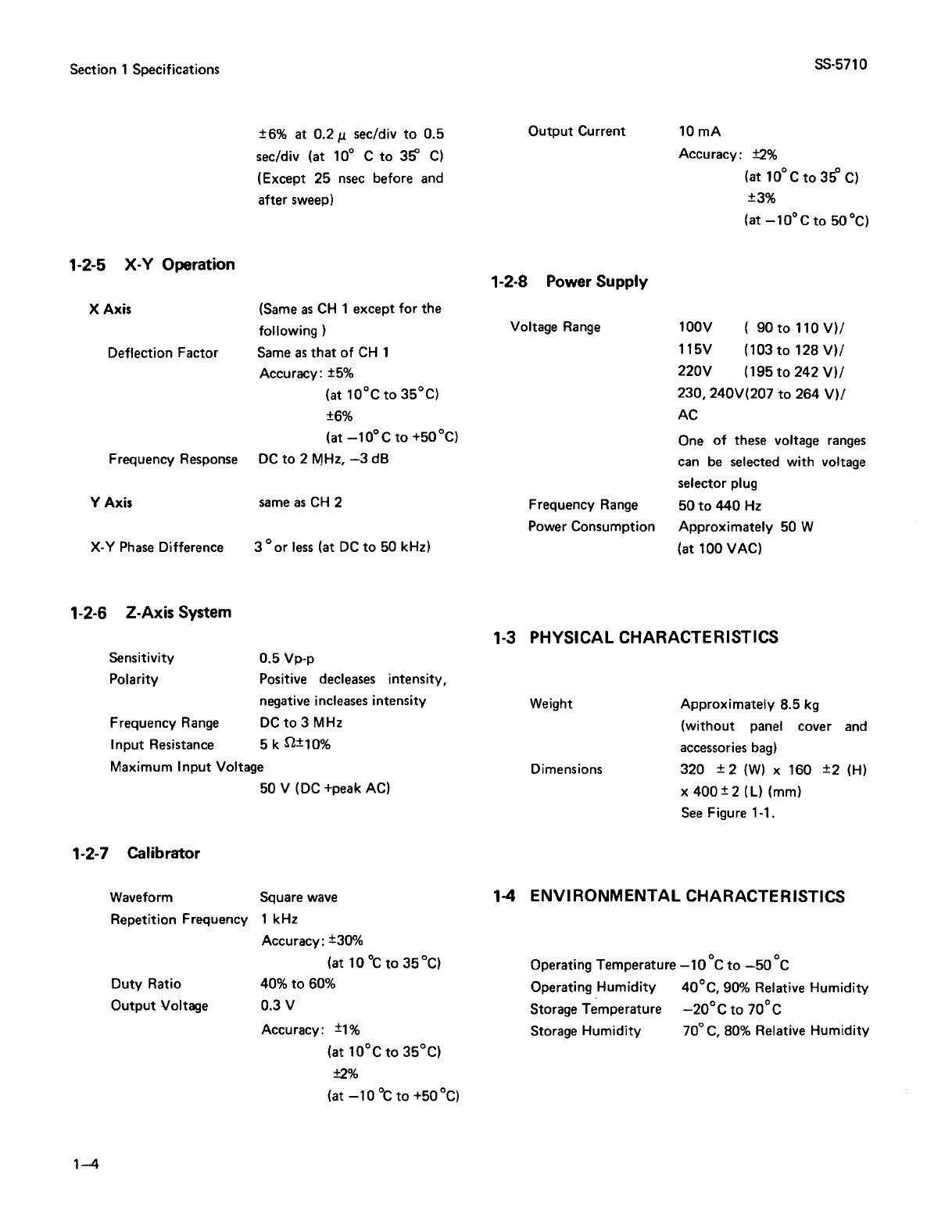

X- Y Operation . . . . . . . . . . . . . 1-4
Z-Axis System . . . . . . . . . . . . . 1-4
Calibrator . . . . . . . . . . . . . . . . . . 1-4
Power Supply . . . . . . . . . . . . . . 1-4
PHYSICAL CHARACTERISTICS .. 1-4
ENVIRON MENTAL
CHARACTERISTICS ......... 1-4

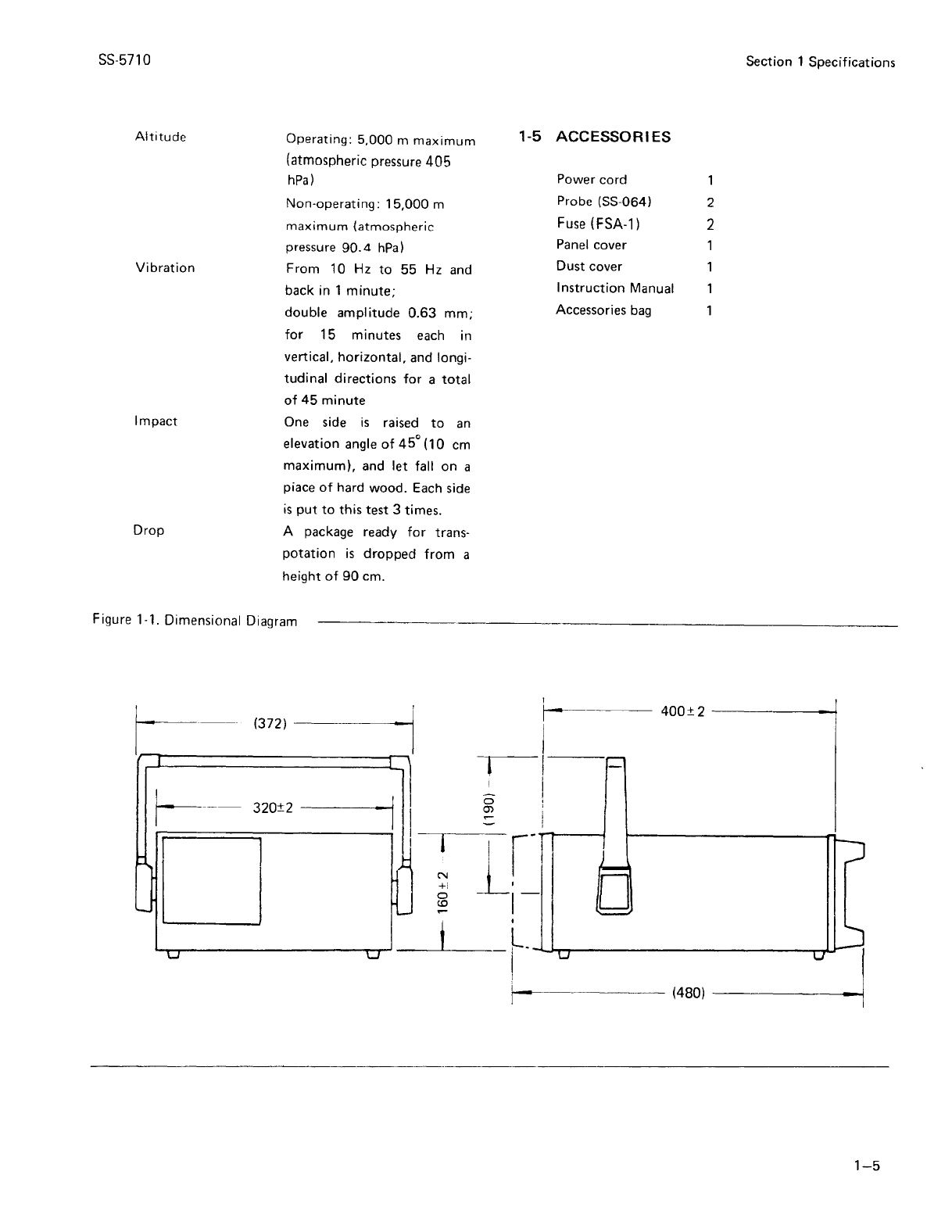

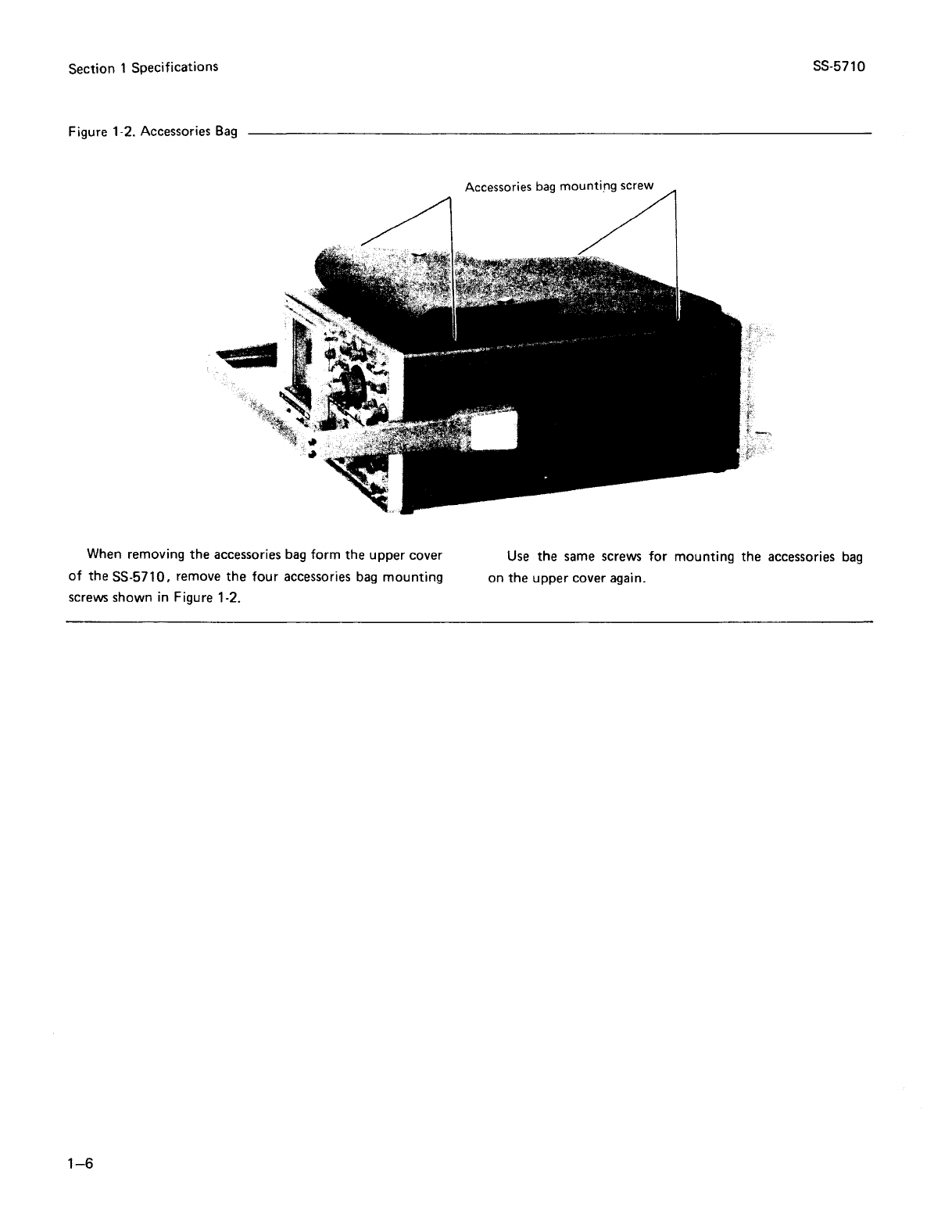

ACCESSORIS ................ 1-5
OPERATING INFORMATION ...... 2-1

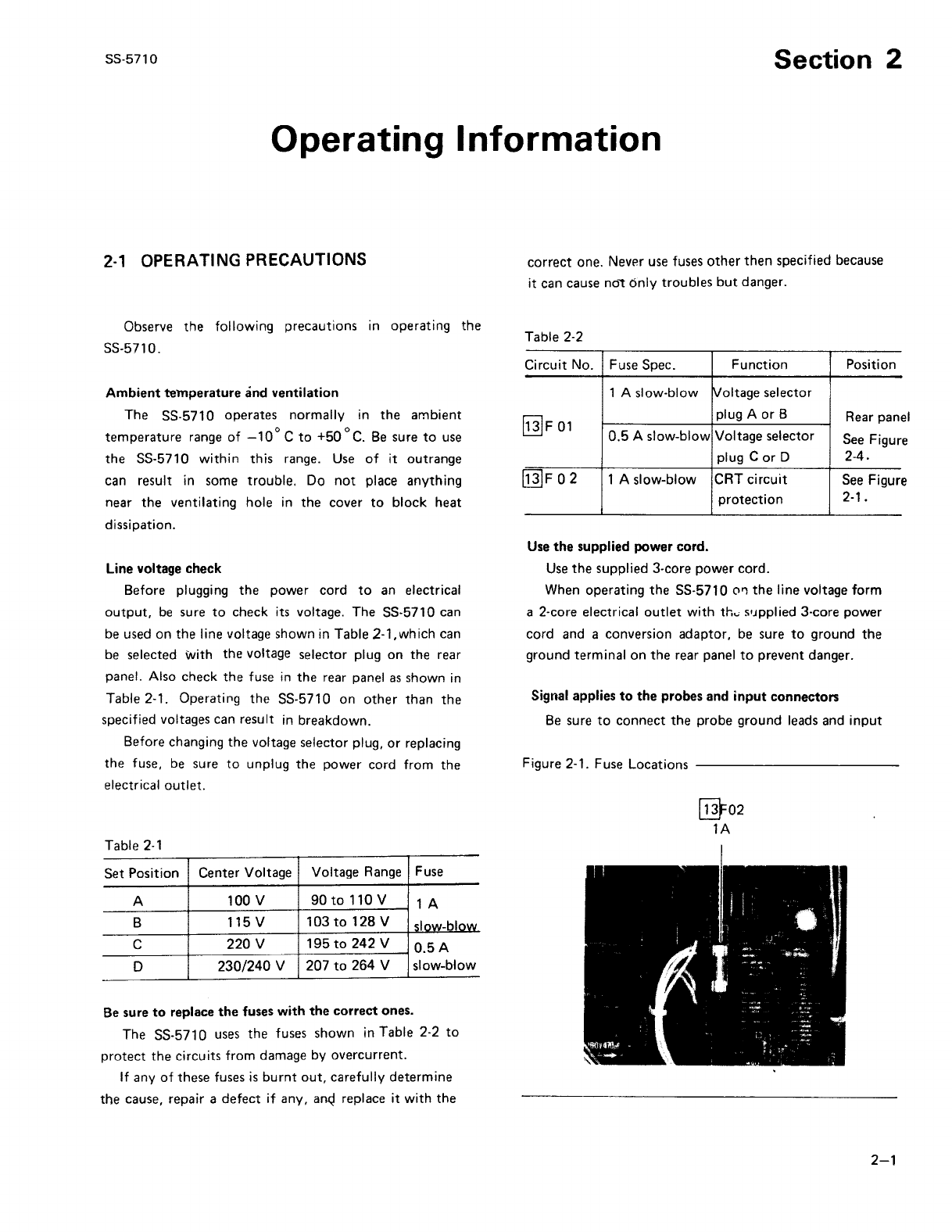

OPERATING PRECAUTIONS ..... 2-1

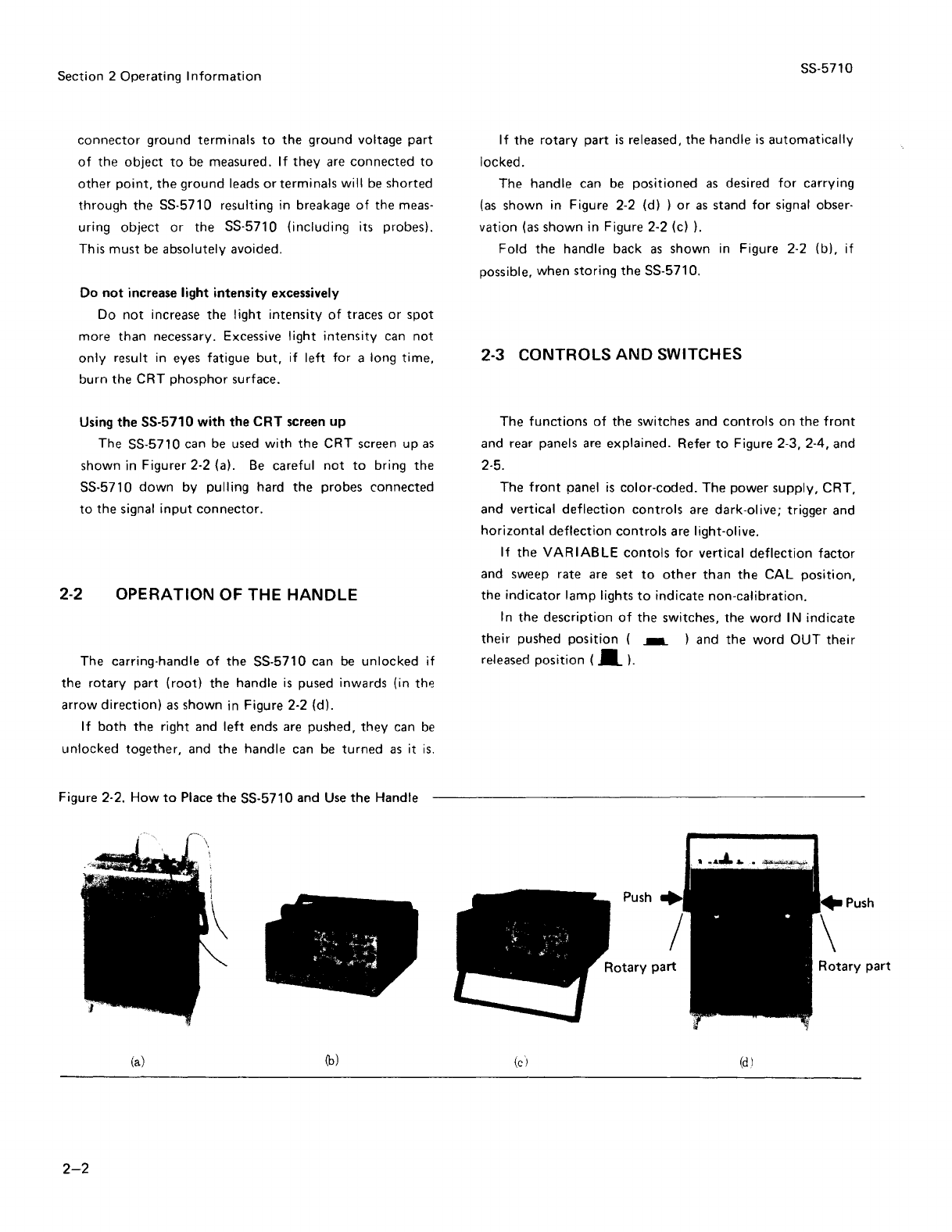

OPERATION OF THE HANDLE ... 2-2
CONTROLS AND SWITCHES ..... 2-2

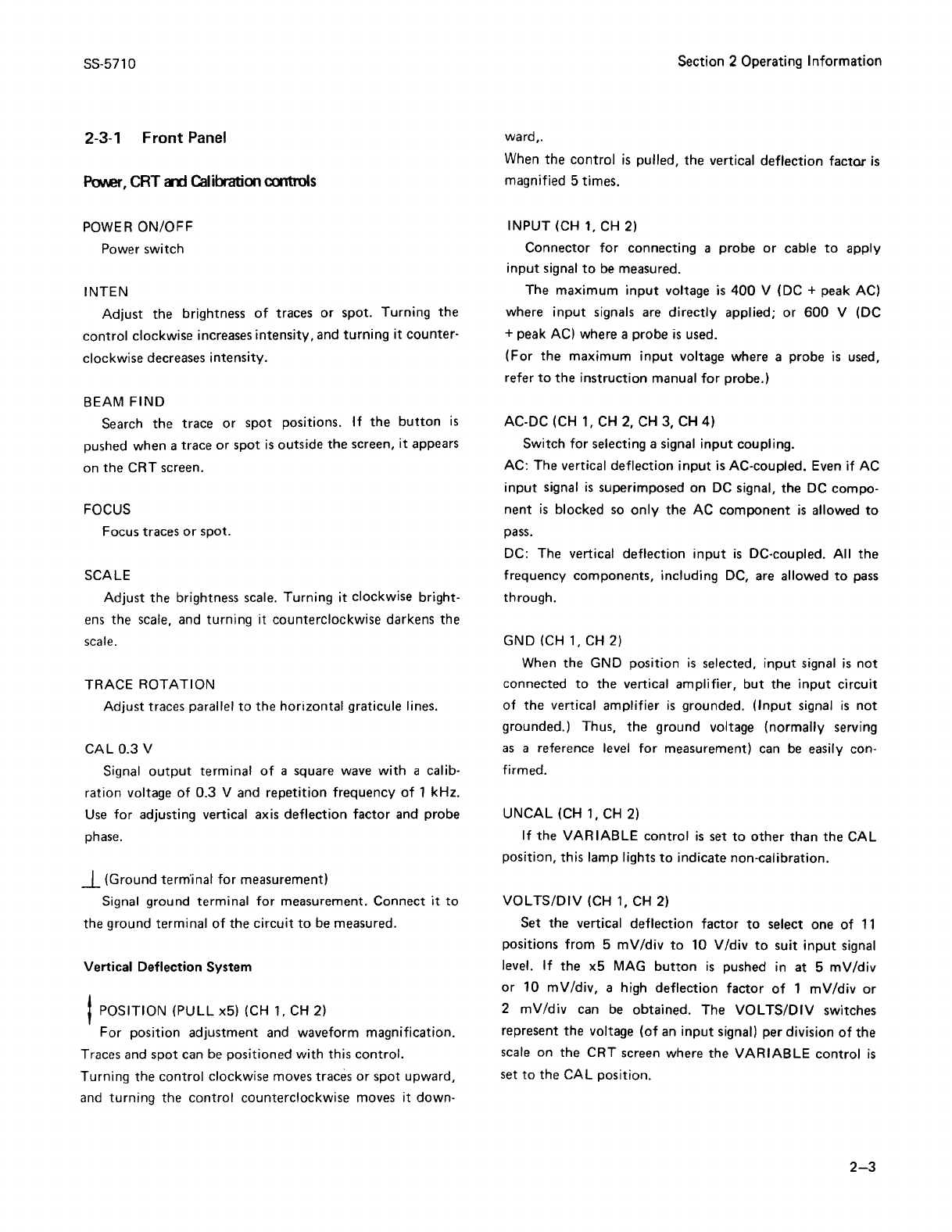

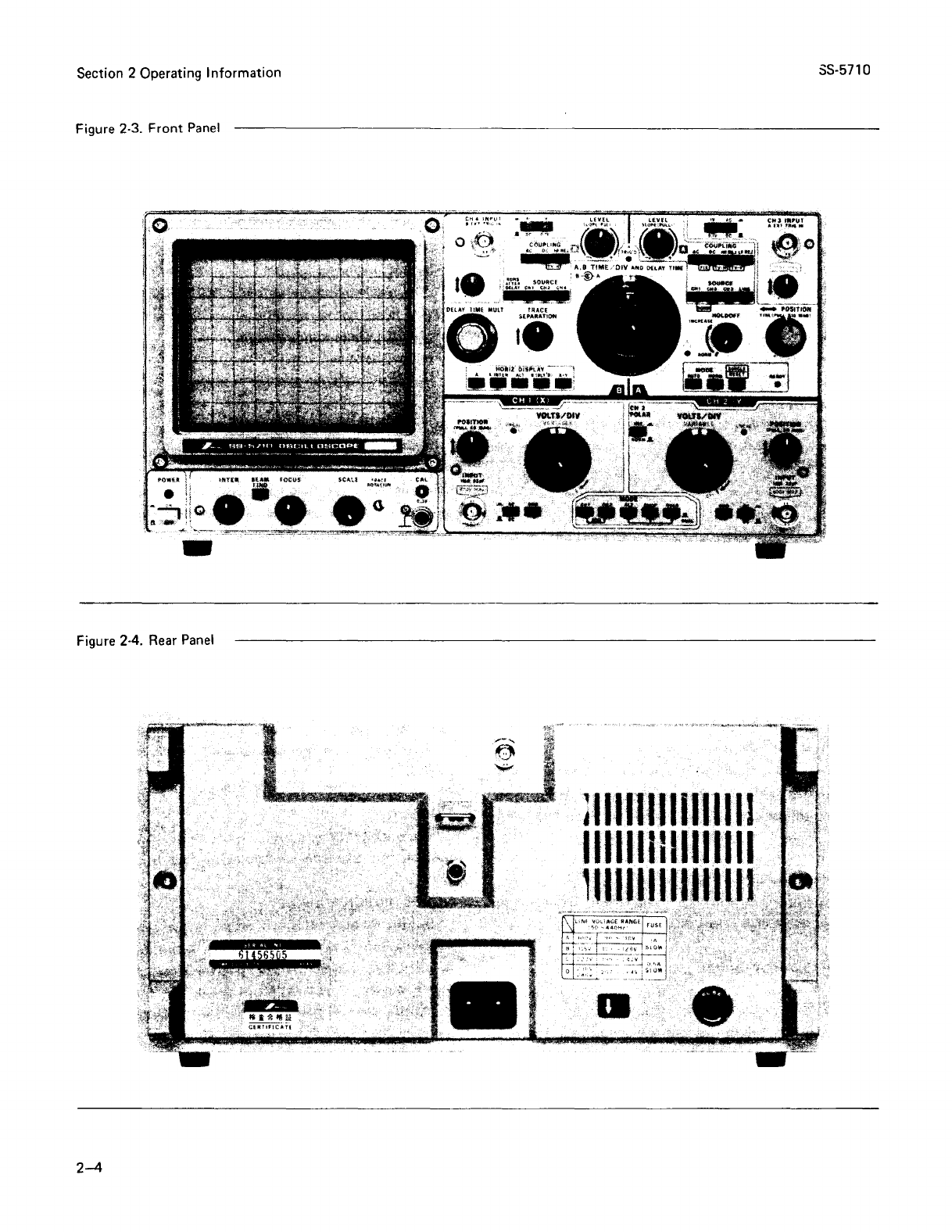

Front Panel ............... 2-3

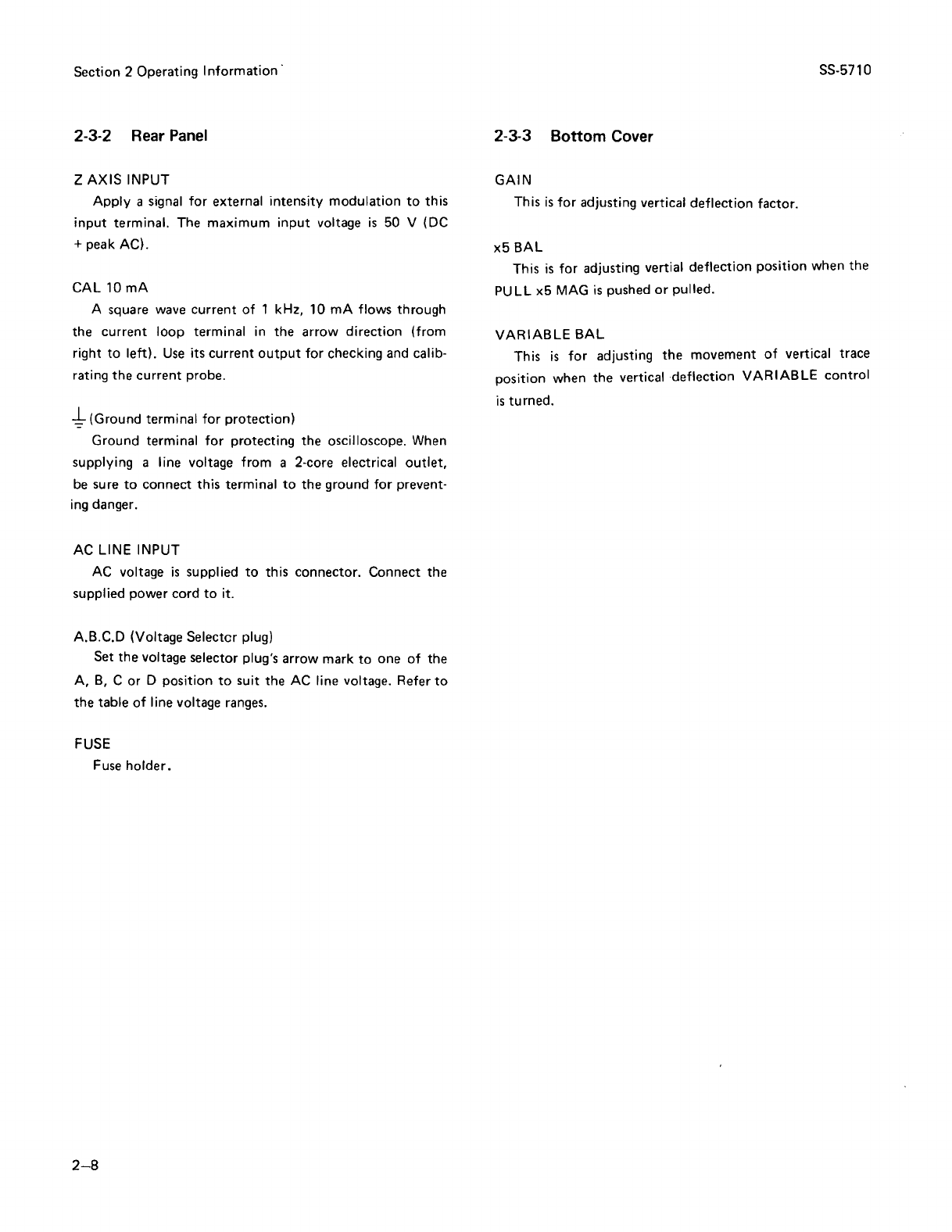

Rear Panel . . . . . . . . . . . . . . . . 2-8
Bottom Cover. . . . . . . . . . . . . . 2-8
OPERATIONG INSTRUCTIONS ... 2-10
Basic Operation tor Signal
Observation ............. 2-10
Applying Signals ............ 2-11
Signal Input Coupling Section ... 2-11
Vertical Defection Factor Setting .2-12
Triggering
................ 2-12
Sweep Rate Setting .......... 2-15
APPLIED OPERATIONS FOR
SIGNAL OBSERVATION ....... 2-15
Operation
for Dual-Trace
Observation
............. 2-15
Operation
for Observation of
the Sum of Two Signals
or Their Difference ....... 2-16
Operation
for Quadruple-Trace
Observation
............. 2-16
2-5-4
2-5-5
2-5-6
2-5-7
2-5-8
2-5-9
SECTION 3
3-1
3-1-1
3-1-2
3-1-3
3-1-4
3-1-5
3-2
3-2-1
3-2-2
3-2-3
3-2-4
3-2-5
SECTION 4
4-1
4-1-1
4-1-2
4-1-3
4-1-4
4-1-5
4-1-6
4-1-7
4-1-8
4-1-9
4-1-10
4-1-11
Operation
for Enlarging Waveforms
on the CRT
Screen ......... 2-17
Operation
for AL T Sweep ...... 2-18
Operation
for Observing Television
Composite Video Signal
Waveforms. . . . . . . . . . . .2-19
Operation
for Single Sweep ..... 2-20
Operation for Use as an X- Y
Scope
................. 2-21
Z Axis System ............. 2-21
MEASURING PROCEDURES .•.•.•. 3-1
ADJUSTMENTS NECESSARY BEFORE
MEASUREMENTS .......... 3-1
TRACE ROTATION Adjustment. 3-1
GAl N Adjustment . . . . . . . . . . . 3-1
x5 BAL Adjustment .......... 3-1
VARIABLE BAL Adjustment ... 3-1
Probe Phase Adjustment . . . . . . . 3-1
MEASURING METHODS ........ 3-2
Voltage Measurement
......... 3-2
Current Measurement. . . . . . . . . 3-3
Time Measurement . . . . . . . . . . 3-4
Frequency Measurement
....... 3-5
Phase Difference Measurement ... 3-5
THEORY OF OPERATIO:•J •....... 4-1
GENERAL .................. 4-1
Pre-amplifiers for Channels
1, 2, 3, and 4 . . . . . . . . . . . . . . 4-1
Delay Cable Driver Circuit ........ 4-1
Vertical Main Amplifier ......... 4-1
Trigger Signal Circuit ........... 4-1
TV Trigger Signal Separator Circuit .. 4-3
A
and B Trigger Circuits ......... 4-3
A
and B Sawtooth Generator Circuits 4-3
Horizontal
Amplifier ........... 4-3
Z.:Axis Amplifier . . . . . . . . . . . . . . 4-3
CRT Circuit
................. 4-4
LowVoltage Circuit
............ 4-4
iii

4-1-12
SECTION 5
5-1
5-1-1
5-1-2
5-1-3
5-1-4
5-2
5-2-1
5-2-2
5-2-3
5-2-4
5-2-5
5-2-6
5-2-7
5-2-8
SECTION 6
6-1
6-2
6-3
6-4
6-5
6-6
6-7
6-7-1
6-7-2
6-7-3
Calibration Voltage
and
Current Generator Circuit. ..... 4-4

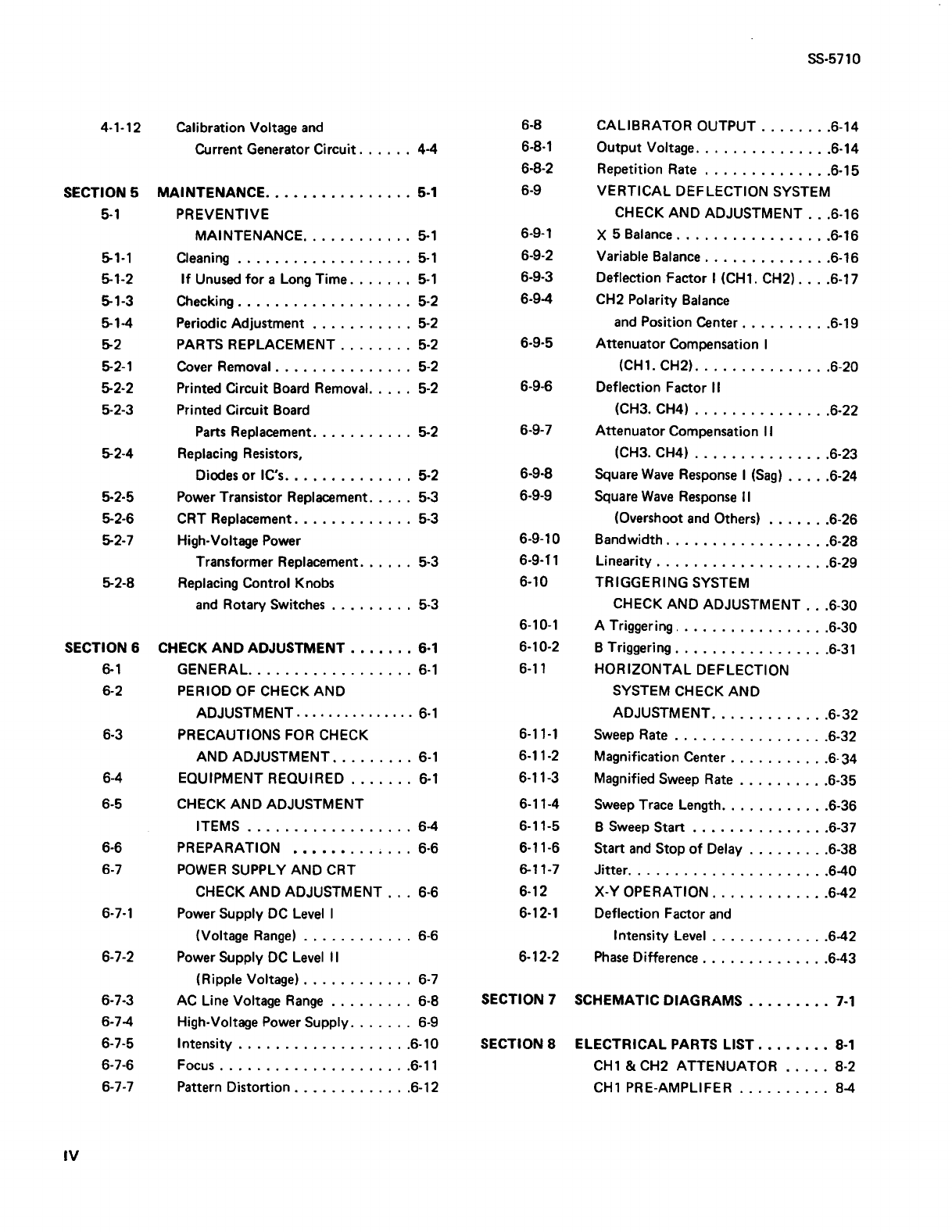

MAINTENANCE •••••••••••••••• 5-1
PREVENTIVE
MAINTENANCE ............ 5-1
Cleaning ................... 5-1
If Unused for a Long Time . . . . . . . 5-1
Checking . . . . . . . . . . . . . . . . . . • 5-2
Periodic Adjustment
........... 5-2
PARTS REPLACEMENT ........ 5-2
Cover Removal • . . . . . . . . . . . . . .
5-2
Printed Circuit Board Removal. . . . . 5-2
Printed Circuit Board
Parts Replacement. . . . . . . . . . . 5-2
Replacing Resistors,
Diodes
or IC's •..•.......... 5-2
Power Transistor Replacement. . . . . 5-3
CRT Replacement . . . . . . . . . . . . . 5-3
High-Voltage Power
Transformer Replacement. . . . . . 5-3
Replacing Control Knobs
and Rotary Switches ......... 5-3
CHECK AND ADJUSTMENT ••••••• 6-1
GENERAL. .•............... 6-1
PERIOD OF CHECK AND
ADJUSTMENT ............... 6-1
PRECAUTIONS FOR CHECK
AND ADJUSTMENT ......... 6-1
EQUIPMENT REQUIRED ....... 6-1
CHECK AND ADJUSTMENT
ITEMS .................. 6-4
PREPARATION ••••••... , ... 6-6
POWER SUPPLY AND CRT
CHECK
AND ADJUSTMENT ... 6-6
Power Supply
DC Level I
(Voltage Range) ............ 6-6
Power Supply
DC Level II
(Ripple Voltage) ............ 6-7
AC Line Voltage Range ......... 6-8
6-7-4 High-Voltage Power Supply
....... 6-9
IV
6-7-5
6-7-6
6-7-7
Intensity ................... 6-10
Focus ..................... 6-11
Pattern Distortion ............. 6-12
6-8
6-8-1
6-8-2
6-9
6-9-1
6-9-2
6-9-3
6-9-4
6-9-5
6-9-6
6-9-7
6-9-8
6-9-9
6-9-10
6-9-11
6-10
6-10-1
6-10-2
6-11
6-11-1
6-11-2
6-11-3
6-11-4
6-11-5
6-11-6
6-11-7
6-12
6-12-1
6-12-2
55-5710
CALIBRATOR OUTPUT ........ 6-14
Output Voltage. . . . . . . . . . . . . . .6-14
Repetition Rate
.............. 6-15
VERTICAL DEFLECTION SYSTEM
CHECK AND ADJUSTMENT ... 6-16
X 5 Balance
.•...•........... 6-16
Variable Balance
.............. 6-16
Deflection Factor I (CH1. CH2)
.... 6-17
CH2 Polarity Balance
and Position Center
.......... 6-19
Attenuator Compensation I
(CH 1. CH2) ............... 6-20
Deflection Factor II
(CH3. CH4) ............... 6-22
Attenuator Compensation
II
(CH3. CH4) ............... 6-23
Square Wave Response I (Sag) ..... 6-24
Square Wave Response II
(Overshoot and Others) ....... 6-26
Bandwidth
.................. 6-28
Linearity
................... 6-29
TRIGGERING SYSTEM
CHECK AND ADJUSTMENT ... 6-30
A Triggering ................. 6-30
B Triggering ................. 6-31
HORIZONTAL DEFLECTION
SYSTEM CHECK
AND
ADJUSTMENT ............. 6-32
Sweep Rate . . . . . . . . . . . . . . . . .6-32
Magnification Center
........... 6- 34
Magnified
Sweep Rate .......... 6-35
Sweep Trace Length ............ 6-36
B Sweep Start ............... 6-37
Start and Stop of Delay ......... 6-38
Jitter ...................... 6-40
X-Y OPERATION ............. 6-42
Deflection Factor
and
Intensity Level ............. 6-42
Phase Difference .............. 6-43
SECTION 7 SCHEMATIC DIAGRAMS .•••.•.•. 7-1
SECTION 8 ELECTRICAL PARTS LIST .•.••••• 8-1
CH1 & CH2 ATTENUATOR ..... 8-2
CH1 PRE-AMPLIFER .......... 8-4

SS-5710

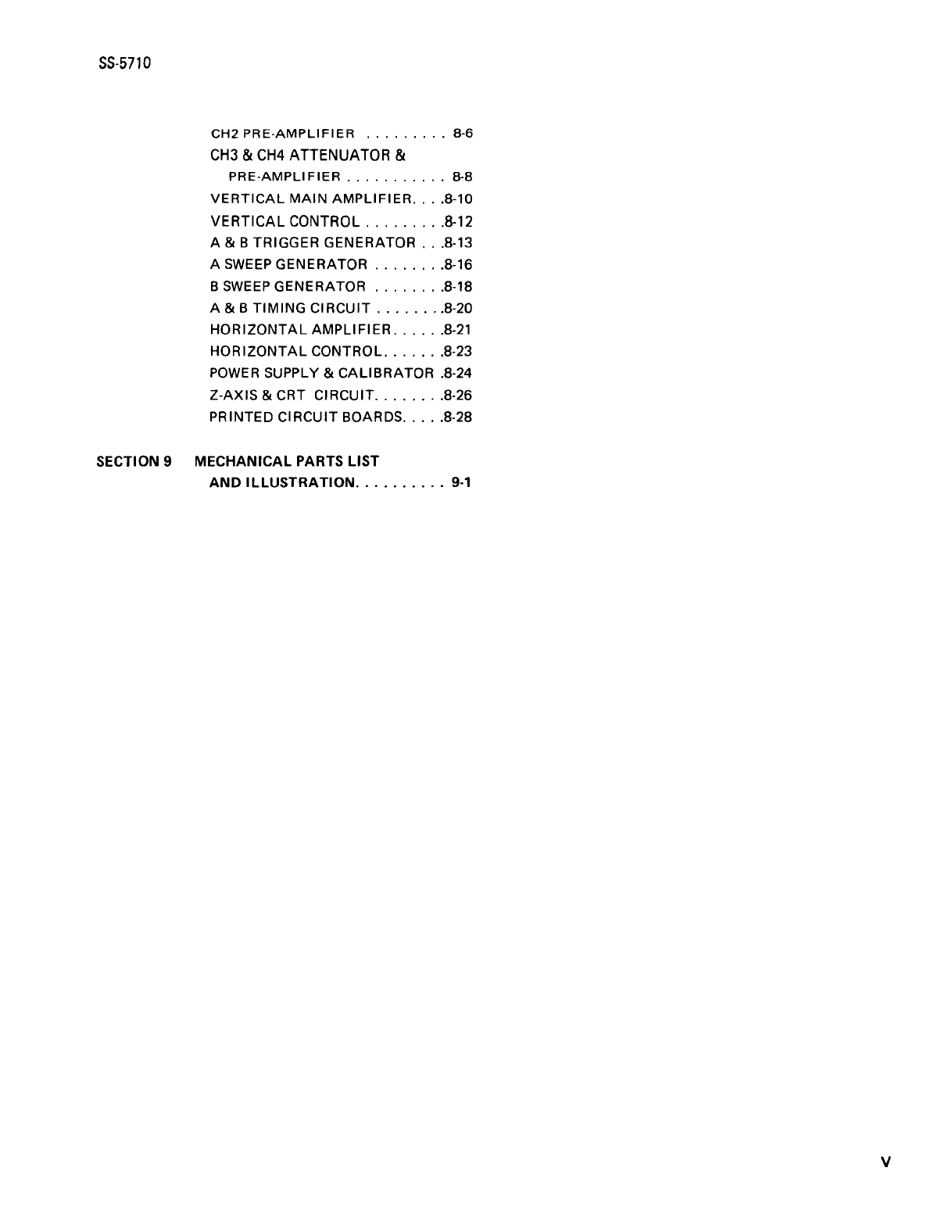

CH2 PRE-AMPLIFIER ......... 8-6
CH3 & CH4 ATTENUATOR &
PRE-AMPLIFIER ........... 8-8
VERTICAL MAIN AMPLIFIER .... 8-10
VERTICAL CONTROL ......... 8-12
A & B TRIGGER GENERATOR ... 8-13
A
SWEEP GENERATOR ........ 8-16
B
SWEEP GENERATOR ........ 8-18
A & B
TIMING CIRCUIT ........ 8-20
HORIZONTAL AMPLIFIER ...... 8-21
HORIZONTAL CONTROL. ...... 8-23
POWER SUPPLY & CALIBRATOR .8-24
Z-AXIS & CRT CIRCUIT ........ 8-26
PRINTED CIRCUIT BOARDS ..... 8-28
SECTION 9 MECHANICAL PARTS LIST
AND ILLUSTRATION .......... 9-1
v

SS-5710

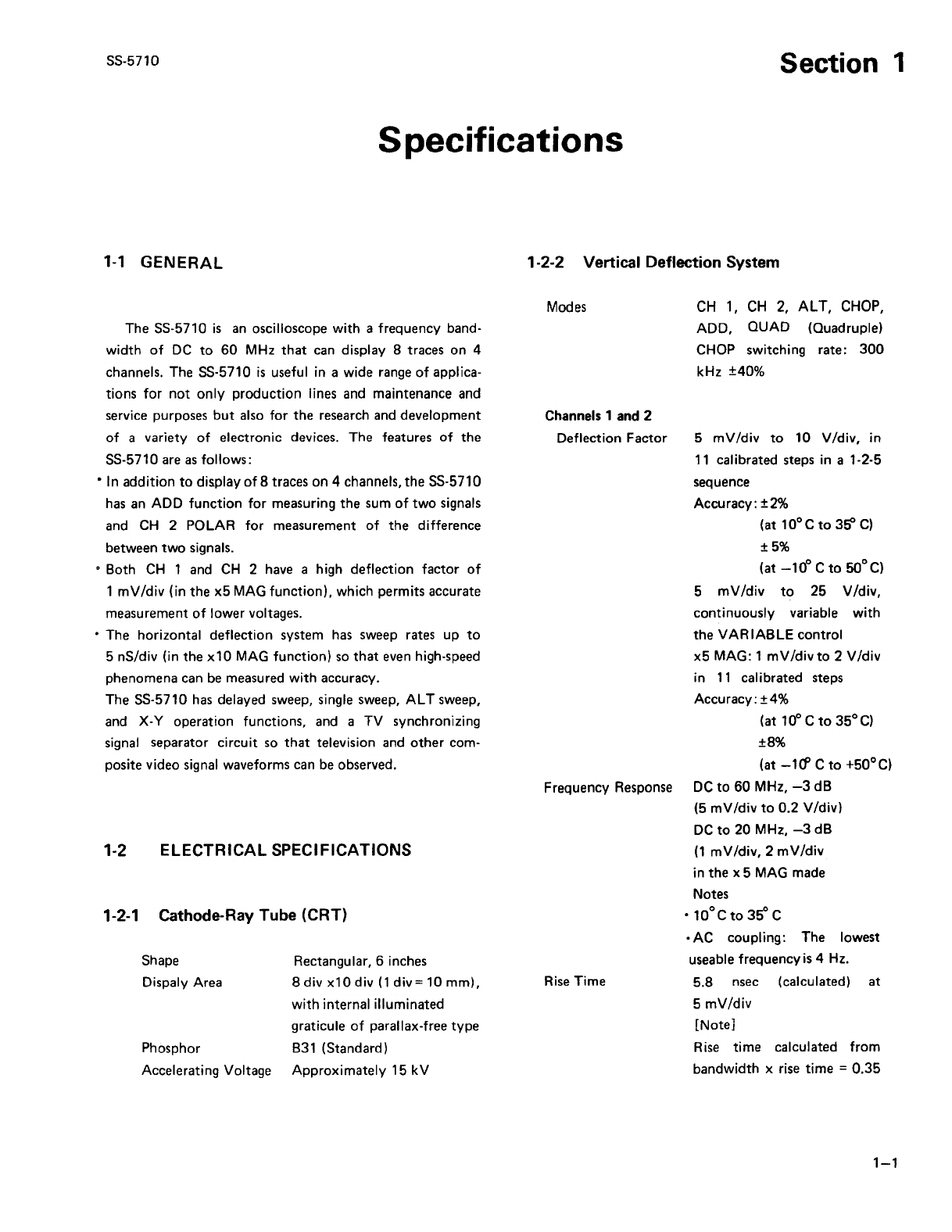

SS-5710 Section 1
Specifications
1-1 GENERAL
The SS-5710 is an oscilloscope with a frequency band-
width of DC to 60 MHz that can display 8 traces on 4
channels. The SS-5710
is useful in a wide range of applica-
tions for not only production lines and maintenance and
service purposes
but also for the research and development
of a variety of electronic devices. The features of the
SS-5710 are as follows:
• In addition to display of 8 traces on 4 channels, the SS-571 0
has an ADD function for measuring the sum of two signals
and
CH 2 POLAR for measurement of the difference
between
two signals.
• Both CH 1 and CH 2 have a high deflection factor of
1 mV/div (in the x5 MAG function), which permits accurate
measurement
of lower voltages.
• The horizontal deflection system has sweep rates up to
5 nS/div (in the x10 MAG function) so that even high-speed
phenomena
can be measured with accuracy.
The SS-5710
has delayed sweep, single sweep, AL T sweep,
and X-Y operation functions, and a TV synchronizing
signal separator
circuit so that television and other com-
posite video signal waveforms can be observed.
1-2 ELECTRICAL SPECIFICATIONS
1-2-1 Cathode-Ray Tube (CRT)
Shape
Dispaly Area Rectangular, 6 inches
8 div x10 div (1 div= 10 mm),
with internal illuminated
graticule
of parallax-free type
Phosphor B31 (Standard)
Accelerating Voltage
Approximately 15 kV
1-2-2 Vertical Deflection System
Modes
Channels 1 and 2
Deflection Factor
CH 1, CH 2, AL T, CHOP,
ADD, QUAD (Quadruple)
CHOP switching rate: 300
kHz ±40%
5 mV /div to 10 V /div, in
11 calibrated steps in a 1-2-5
sequence
Accuracy: ±
2%
(at 10°C to 300 C)
±5%
(at -10° C to 50° C)
5 mV/div to 25 V/div,
continuously variable with
the VARIABLE control
x5 MAG: 1 mV/divto 2 V/div
in 11 calibrated steps
Accuracy:
±4%
(at 10° C to 35°C)
±8%
(at
-1rf C to +50°C)
Frequency Response DC to 60 MHz, -3 dB
Rise Time
(5
mV/div to 0.2 V/div)
DC to 20 MHz, -3 dB
(1 mV/div, 2 mV/div
in the x 5 MAG made
Notes
• 10°C to 35° C
•
AC coupling: The lowest
useable frequency
is 4 Hz.
5.8
nsec (calculated) at
5
mV/div
[Note]
Rise time calculated from
bandwidth x rise time = 0.35
1-1

Section 1 Specifications

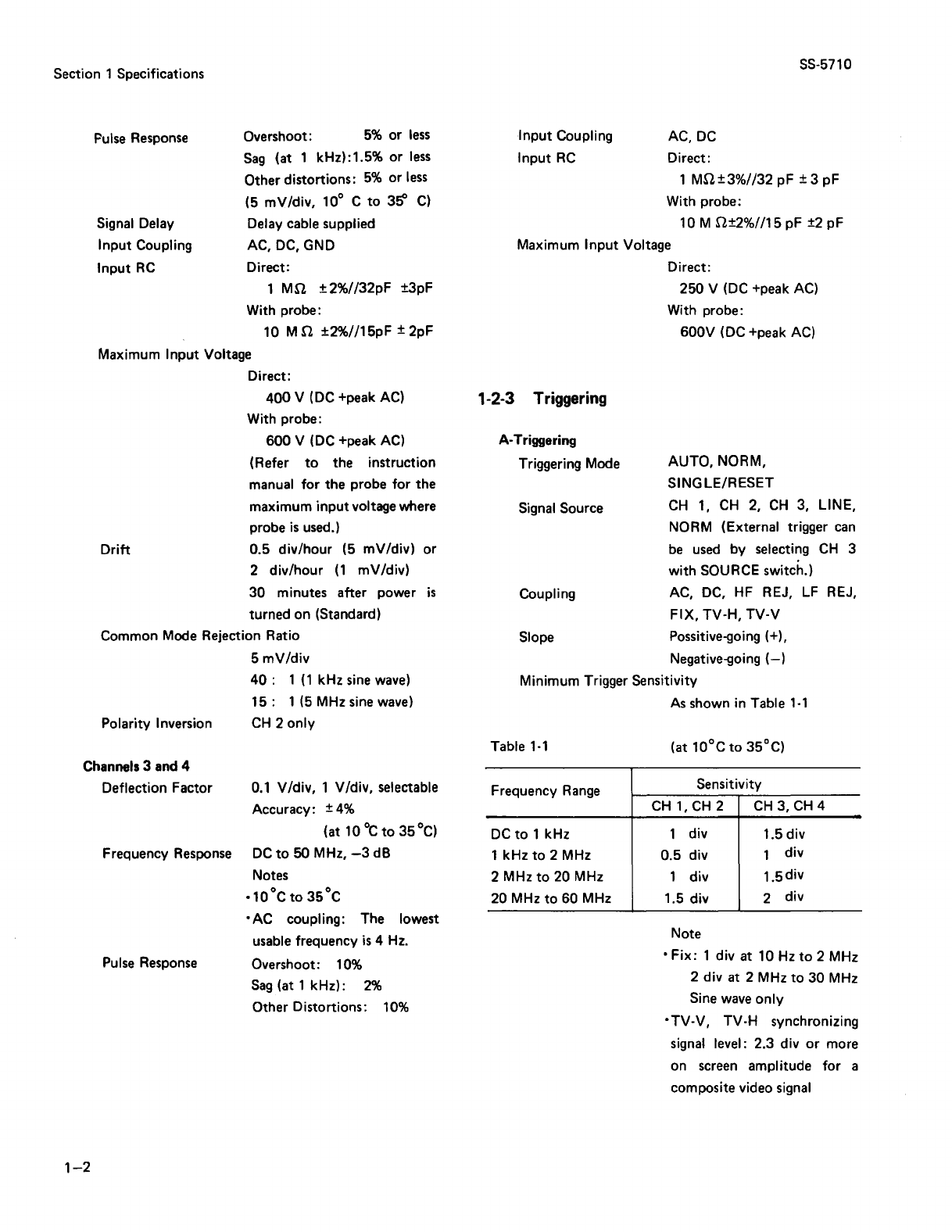

Pulse Response
Signal Delay
Input Coupling
Input RC
Overshoot: 5% or less
Sag (at 1 kHz):1.5% or less
Other distortions: 5% or less
(5 mV/div, 10° C to 3SO C)
Delay cable supplied
AC, DC, GND
Direct:
1
Mil ±2%//32pF ±3pF
With probe:
10 M i1 ±2%//15pF ± 2pF
Maximum
Input Voltage
Direct:
Drift
400 V (DC +peak AC)
With probe:
600 V (DC +peak AC)
(Refer
to the instruction
manual
for the probe for the
maximum
input voltage where
probe
is used.)
0.5 div/hour (5 mV /div) or
2 div/hour (1 mV/div)
30 minutes after power is
turned on (Standard)
Common Mode Rejection Ratio
5
mV/div
Polarity Inversion
40 : 1 (1 kHz sine wave)
15 : 1 (5 MHz sine wave)
CH 2 only
Channels 3 and 4
1-2
Deflection Factor 0.1 V/div, 1 V/div, selectable
Accuracy: ±
4%
(at 10 °C to 35°C)
Frequency Response DC to 50 MHz, -3 dB
Notes
Pulse Response
•10°Cto35°C
•AC coupling: The lowest
usable frequency is 4 Hz.
Overshoot: 1 0%
Sag (at 1 kHz): 2%
Other Distortions: 10%
Input Coupling
Input RC
AC,DC
Direct:
SS-5710
1 Mi1±3%//32 pF ± 3 pF
With probe:
10M 11±2%//15 pF ±2 pF
Maximum
Input Voltage
Direct:
1-2-3 Triggering
A- Triggering
Triggering Mode
Signal Source
Coupling
Slope
250 V (DC +peak AC)
With probe:
600V (DC +peak AC)
AUTO, NORM,
SINGLE/RESET
CH 1, CH 2, CH 3, LINE,
NORM (External trigger
can
be used by selecting CH 3
with SOURCE switch.)
AC, DC, HF REJ, LF REJ,
FIX, TV-H, TV-V
Possitive-going (+),
Negative-going
(-)
Minimum Trigger Sensitivity
Table
1-1
Frequency Range
DC to 1 kHz
1 kHz
to 2 MHz
2 MHz to 20 MHz
20 MHz to 60 MHz
As shown in Table 1-1
Sensitivity
CH 1I CH 2 CH 3, CH 4
1 div 1.5 div
0.5 div 1 div
1 div
1.5div
1.5 div 2 div
Note
• Fix: 1 div at 10Hz to 2 MHz
2 div at 2 MHz
to 30 MHz
Sine wave only
·TV-V, TV-H synchronizing
signal level: 2.3 div or more
on
screen amplitude for a
composite video
signal

SS-5710
B- Triggering
Signal Sources
Coupling
Slope
composed of 7 parts video
signal
and 3 parts synchro-
nizing signal
·Trigger signals are attenuated
in the
following frequency
ranges depending on coupling
AC: 10 Hz or less
HF REJ: 10 kHz or higher
LF REF: 10 kHz
or lower
·AUTO sweep mode: The
lowest useable frequency
is
50 Hz.
RUNS AFTER DELAY I CH
1, CH 2, CH 4 (External
trigger
can be used by select-
ing CH 4 with SOURCE
switch.)
AC, DC, HF REJ, TV-H
Positive-going (+),
negative-going
(-)
Minimum Trigger Sensitivity
As showm in Table 1-1
However,
Sensitivity
of 20 MHz to 60
MHz is 2 div at CH 1, CH2.
1-2-4 Horizontal Deflection System
Modes
A-Sweep
Sweep Rates
A, A INTEN, AL T,
B
(DLT'D), X-Y
50 nsec/div to 0.5 sec/div,
in 22 calibrated
steps in a
1-2-5 sequence
50 nsec/div to 1.25 sec/div, "
continuously variable with
the VARIABLE control
Accuracy I (Over center 8
divisions):
±
3% at 50 nsec/div to
5 msec/div
Hold-Off Time
B-Sweep
Delay
Sweep
Rates
Section 1Specifications
±4% at 10 msec/div
to
0.5 sec/div
(at
10°C to 35 °C)
± 5% (at -10 °C to +50°C)
Accuracy II (Over any 2 of
the center 8 divisions):
±
5% (at -10° C to +50°C)
Variable with the HOLDOFF
control
Continuous delay (RUNS
AFTER DELAY), triggered
delay
50 nsec/div to 50 nsec/div,
in 19 calibrated
steps in a
1-2-5 sequence
Accuracy I (Over center 8
divisions):
±3% (at 10 ° C
to 35° C)
±5% (at -10° C to +50°C)
Accuracy II (Over 2 of the
center 8 divisions):
±5% (at
-10° C to +5(f C)
Time Difference Measurement
Delay
Jitter
0.5 psec to 5 sec
Accuracy: ± 2% of reading
±0.01 graduation
(Minimum
graduation of DELAY TIME
MULT dial)
1/20,000 or less
Sweep Magnification 10 times
(Maximum
sweep rate: 5 nsec/
div)
Accuracy I
of magnified sweep
rate (Over center 8 divisions)
±
5% at 50 nsec/div to 0.1
J.L sec/div
±
4% of 0.2 psec/div to 0.5
sec/div (at 10° C to 35° C)
Accuracy II of magnified
sweep rate (Over any 2 of the
center 8 divisions):
±
10% at 50 nsec/div to
0.1 J.Lsec/div
1-3

Section 1 Specifications
±6% at 0.2
J.l sec/div to 0.5
sec/div (at 10° C to 3s> C)
(Except 25 nsec before and
after sweep)
1-2-5 X-V Operation
X Axis
(Same as CH 1 except for the
following)
Deflection Factor Same as that of CH 1
Accuracy:
±5%
(at 10°C to 35°C)
±6%
(at
-10°C to +50°C)
Frequency Response DC to 2 MHz, -3 dB
Y Axis same as CH 2
X- Y Phase Difference 3 ° or less (at DC to 50 kHz)
1-2-6 Z-Axis System
Sensitivity
Polarity
Frequency Range
0.5 Vp-p
Positive
decleases intensity,
negative
incleases intensity
DC to 3 MHz
Input Resistance 5 k n±1 0%
Maximum Input Voltage
50 V (DC +peak AC)
1-2-7 Calibrator
1-4
Waveform Square wave
Repetition Frequency 1 kHz
Accuracy: ±30%
Duty Ratio
Output Voltage
(at 10 °C to 35°C)
40%
to 60%
0.3 v
Accuracy: ±1%
(at 10°C to 35°C)
±2%
(at -10 °C to +50°C)
Output Current
1-2-8 Power Supply
Voltage Range
Frequency Range
Power Consumption
10mA
Accuracy: ±2%
SS-5710
(at 10°C to 35° C)
±3%
(at
-10°C to 50°C)
100V ( 90
to 110 V)/
115V (103to128V)/
220V (195 to 242 V)/
230, 240V(207 to 264 V)/
AC
One of these voltage ranges
can be selected with voltage
selector plug
50
to 440Hz
Approximately 50 W
(at 100 VAC)
1-3 PHYSICAL CHARACTERISTICS
Weight
Dimensions
Approximately 8.5 kg
(without panel cover and
accessories bag)
320 ± 2 (W) X 160 ±2 (H)
x 400± 2 (L) (mm)
See Figure 1-1.
1-4 ENVIRONMENTAL CHARACTERISTICS
. 0 0
Operatmg Temperature -10 C to -50 C
Operating
Humidity 40°C, 90% Relative Humidity
Storage Temperature -20°C to 70°C
Storage Humidity
70° C, 80% Relative Humidity

SS-5710
Altitude
Vibration
Impact
Drop
Operating: 5,000 m maximum
(atmospheric pressure 405
hPa)
Non-operating: 15,000 m
maximum (atmospheric
pressure 90.4
hPa)
From 10 Hz to 55 Hz and
back in 1
minute;
double amplitude 0.63 mm;
for 15 minutes each in
vertical,
horizontal, and longi-
tudinal directions for a total
of 45 minute
One side is raised to an
elevation angle of 45° ( 10 em
maximum), and let fall on a
piace
of hard wood. Each side
is put to this test 3 times.
A package ready
for trans-
potation is dropped from a
height
of 90 em.
Figure 1-1. Dimensional Diagram
t···~· (372)
. I
,.-,
I
1-
320±2
- I I
D I
I
.....
-
.__
w
L.J
Section 1 Specifications
1-5
ACCESSORIES
Power cord
Probe (SS-064) 2
Fuse ( FSA-1)
2
Panel cover
Dust cover
Instruction Manual
Accessories
bag
1-5

Section 1 Specifications
Figure 1-2. Accessories
Bag
When removing the accessories bag form the upper cover
of the SS-5710, remove the four accessories bag mounting
screws shown in Figure 1-2.
1-6
SS-5710
Accessories bag mounti_ng screw
Use the same screws for mounting the accessories bag
on the upper cover again.

SS-5710 Section 2
Operating Information
2-1 OPERATING PRECAUTIONS
Observe the following precautions in operating the
SS-5710.
Ambient t1!mperature and ventilation
The SS-5710 operates normally in the ambient
temperature range of -10 °C to +50 ° C. Be sure to use
the SS-5710 within this range. Use of it outrange
can result in some trouble. Do not place anything
near the ventilating hole in the cover to block heat
dissipation.
Line voltage check
Before plugging the power cord to an electrical
output, be sure to check its voltage. The SS-571 0 can
be used
on the line voltage shown in Table 2-1,which can
be selected with
the voltage selector plug on the rear
panel. Also check
the fuse in the rear panel as shown in
Table 2-1. Operating the SS-5710 on other than the
specified voltages can result in breakdown.
Before changing
the voltage selector plug, or replacing
the fuse, be sure to unplug the power cord from the
electrical outlet.
Table 2-1
Set Position
Center Voltage Voltage Range Fuse
A
100 v
90 to 110 V 1 A
B
115 v
103 to 128 V slow-blow
c
220 v
195 to 242 V
0.5A
D
230/240 v
207 to 264 V slow-blow
Be sure to replace the fuses with the correct ones.
The SS-571 0 uses the fuses shown in Table 2-2 to
protect the circuits from damage by overcurrent.
If any of these fuses is burnt out, carefully determine
the cause, repair a defect if any, an.Q replace it with the
correct one. Never use fuses other then specified because
it can cause no'l
only troubles but danger.
Table 2-2
Circuit No. Fuse Spec.
Function
Position
1 A slow-blow Voltage selector
plug A
orB
Rear pan
el
(}]F 01
0.5 A slow-blow Voltage selector See Figur
e
plug CorD
2-4.
~F02
1 A slow-blow
CRT circuit
See Figur
protection
2-1.
Use the supplied power cord.
Use the supplied 3-core power cord.
When operating
the SS-571 0 0'1 the Iine voltage form
a 2-core electrical
outlet with th.; srjpplied 3-core power
cord and a conversion adaptor, be sure to ground the
ground terminal on the rear panel to prevent danger.
Signal applies to the probes and input connectors
Be sure to connect the probe ground leads and input
Figure 2-1. Fuse Locations------------
@}=o2
1A
2-1
e

Section 2 Operating Information
connector ground terminals to the ground voltage part
of the object to be measured. If they are connected to
other point, the ground leads or terminals will be shorted
through the SS-5710 resulting in breakage of the meas-
uring object or the SS-5710 (including its probes).
This
must be absolutely avoided.
Do not increase light intensity excessively
Do not increase the light intensity of traces or spot
more than necessary. Excessive light intensity can not
only result in eyes fatigue but, if left for a long time,
burn the CRT phosphor surface.
Using the SS-5710 with the CRT screen up
The SS-5710 can be used with the CRT screen up as
shown in Figurer 2-2 (a). Be careful not to bring the
SS-571 0 down by pulling hard the probes connected
to the signal input connector.
2-2 OPERATION OF THE
HANDLE
The earring-handle of the SS-571 0 can be unlocked if
the rotary part (root) the handle is pused inwards (in the
arrow direction) as shown in Figure 2-2 (d).
If both the right and left ends are pushed, they can be
unlocked together, and the handle can be turned as it is.
Figure 2-2. How to Place the SS-5710 and Use the Handle
(a)
(b)
2-2
SS-5710
If the rotary part is released, the handle is automatically
locked.
The handle can
be positioned as desired for carrying
(as shown in Figure 2-2 (d) ) or as stand for signal obser-
vation (as shown in Figure 2-2 (c) ).
Fold the handle back as shown in Figure 2-2 (b), if
possible, when storing the SS-5710.
2-3 CONTROLS AND SWITCHES
The functions of the switches and controls on the front
and rear panels are explained. Refer to Figure 2-3, 2-4, and
2-5.
The front panel is color-coded. The power supply, CRT,
and vertical deflection controls are dark-olive; trigger and
horizontal deflection controls are light-olive.
If the VARIABLE contols for vertical deflection factor
and sweep rate are set to other than the CAL position,
the indicator lamp lights to indicate non-calibration.
In the description of the switches, the word IN indicate
their pushed position ( .-_ ) and the word OUT their
released position (A).
(c) (d)

SS-5710
2-3-1 Front Panel
Po.ner, CRT em 011 ibration controls
POWER ON/OFF
Power switch
INTEN
Adjust the brightness of traces or spot. Turning the
control clockwise increases intensity, and turning it counter-
clockwise decreases intensity.
BEAM FIND
Search the trace or spot positions. If the button is
pushed when a trace or spot is outside the screen, it appears
on the
CRT screen.
FOCUS
Focus traces or spot.
SCALE
Adjust the brightness scale. Turning it clockwise bright-
ens the scale, and turning it counterclockwise darkens the
scale.
TRACE ROTATION
Adjust traces parallel to the horizontal graticule lines.
CAL 0.3 V
Signal output terminal of a square wave with a calib-
ration voltage of 0.3 V and repetition frequency of 1 kHz.
Use for adjusting vertical axis deflection factor and probe
phase.
_L (Ground term·inal for measurement)
Signal ground terminal for measurement. Connect it to
the ground terminal of the circuit to be measured.
Vertical Deflection System
~ POSITION (PULL x5) (CH 1, CH 2)
For position adjustment and waveform magnification.
Traces and spot can be positioned with this control.
Turning the control clockwise moves traces or spot upward,
and
turning the control counterclockwise moves it down-
Section 2 Operating Information
ward,.
When the
control is pulled, the vertical deflection factor is
magnified 5 times.
INPUT (CH 1, CH 2)
Connector
for connecting a probe or cable to apply
input signal to be measured.
The
maximum input voltage is 400 V (DC + peak AC)
where input signals are directly applied; or 600 V (DC
+peak AC) where a probe is used.
(For the maximum input voltage where a probe is used,
refer to the instruction manual for probe.)
AC-DC (CH 1, CH 2, CH 3, CH 4)
Switch for selecting a signal input coupling.
AC: The vertical deflection input is AC-coupled. Even if AC
input signal is superimposed on DC signal, the DC compo-
nent is blocked so only the AC component is allowed to
pass.
DC: The vertical deflection input is DC-coupled. All the
frequency components, including DC,
are allowed to pass
through.
GND (CH 1, CH 2)
When the
GND position is selected, input signal is not
connected to the vertical amplifier, but the input circuit
of the vertical amplifier is grounded. (Input signal is not
grounded.) Thus, the ground voltage (normally serving
as a reference level for measurement) can be easily con-
firmed.
UNCAL (CH 1, CH 2)
If the VARIABLE control is set to other than the CAL
position, this lamp lights to indicate non-calibration.
VOL TS/DIV (CH 1, CH 2)
Set the vertical deflection factor to select one of 11
positions from 5 mV /div to 10 V /div to suit input signal
level. If the x5 MAG button is pushed in at 5 mV/div
or 10 mV/div, a high deflection factor of 1 mV/div or
2 mV/div can be obtained. The VOLTS/DIV switches
represent the voltage
(of an input signal) per division of the
scale on the CRT screen where the VARIABLE control is
set to the CAL position.
2-3

Section 2 Operating Information SS-5710
Figure 2-3. Front Panel
Figure 2-4. Rear Panel
2-4

SS-5710

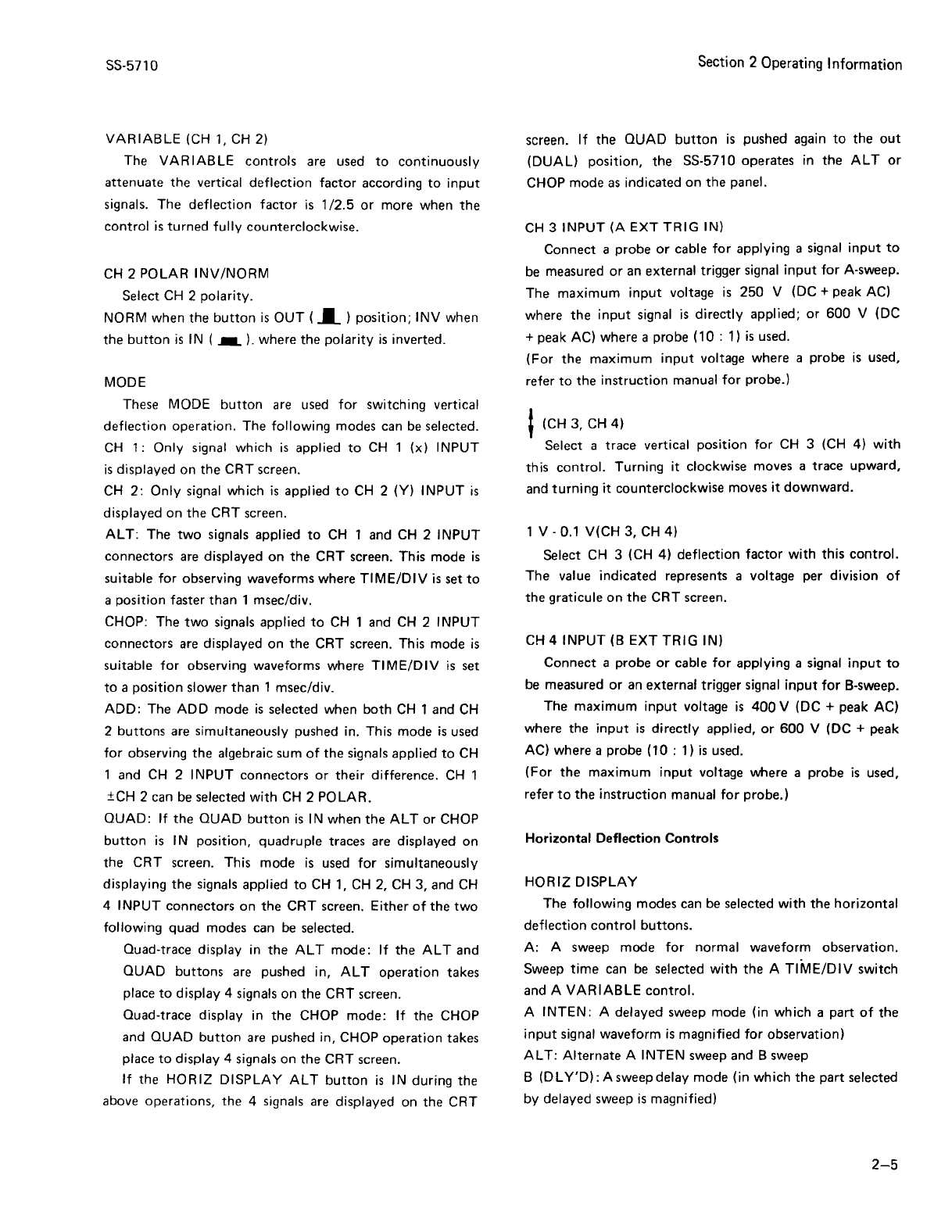

VARIABLE (CH 1, CH 2)
The VARIABLE controls are used to continuously
attenuate the vertical deflection factor according to input
signals. The deflection factor is 1/2.5 or more when the
control is turned fully counterclockwise.
CH 2 POLAR INV/NORM
Select CH 2 polarity.
NORM when the button is OUT (_a_) position; INV when
the
button is IN (_._).where the polarity is inverted.
MODE
These MODE button are used for switching vertical
deflection operation. The following modes can be selected.
CH 1: Only signal which is applied to CH 1 (x) INPUT
is displayed on the CRT screen.
CH
2: Only signal which is applied to CH 2 (Y) INPUT is
displayed on the CRT screen.
AL T: The two signals applied to CH 1 and CH 2 INPUT
connectors are displayed on the CRT screen. This mode is
suitable for observing waveforms where TIME/DIV is set to
a position faster than 1 msec/div.
CHOP: The two signals applied to CH 1 and CH 2 INPUT
connectors are displayed on the CRT screen. This mode is
suitable for observing waveforms where TIME/DIV is set
to a position slower than 1 msec/div.
ADD: The ADD mode is selected when both CH 1 and CH
2
buttons are simultaneously pushed in. This mode is used
for observing the algebraic sum of the signals applied to CH
1 and CH 2 INPUT connectors or their difference. CH 1
±
CH 2 can be selected with CH 2 POLAR.
QUAD: If the QUAD button is IN when the AL Tor CHOP
button is IN position, quadruple traces are displayed on
the
CRT screen. This mode is used for simultaneously
displaying the signals applied
to CH 1, CH 2, CH 3, and CH
4 INPUT connectors on the CRT screen. Either of the two
following quad modes can be selected.
Quad-trace display in the
AL T mode: If the AL T and
QUAD buttons are pushed in, AL T operation takes
place
to display 4 signals on the CRT screen.
Quad-trace display in the CHOP mode:
If the CHOP
and QUAD button are pushed in, CHOP operation takes
place
to display 4 signals on the CRT screen.
If the HORIZ DISPLAY ALT button is IN during the
above operations, the 4 signals
are displayed on the CRT
Section 2 Operating Information
screen. If the QUAD button is pushed again to the out
(DUAL) position, the SS-5710 operates in the AL T or
CHOP mode as indicated on the panel.
CH 3
INPUT (A EXT TRIG IN)
Connect a probe or cable for applying a signal input to
be measured or an external trigger signal input for A-sweep.
The
maximum input voltage is 250 V (DC+ peak AC)
where
the input signal is directly applied; or 600 V (DC
+peak AC) where a probe (10: 1) is used.
(For the maximum input voltage where a probe is used,
refer
to the instruction manual for probe.)
~ (CH 3, CH 4)
Select a trace vertical
pos1t1on for CH 3 (CH 4) with
this control. Turning it clockwise moves a trace upward,
and
turning it counterclockwise moves it downward.
1 V- 0.1 V(CH 3, CH 4)
Select CH 3 (CH 4) deflection factor with this control.
The value indicated represents a voltage per division of
the graticule on the CRT screen.
CH 4
INPUT (B EXT TRIG IN)
Connect a probe or cable for applying a signal input to
be measured or an external trigger signal input for B-sweep.
The
maximum input voltage is 400 V (DC + peak AC)
where the
input is directly applied, or 600 V (DC + peak
AC) where a probe
(1 0 : 1) is used.
(For the maximum input voltage where a probe is used,
refer
to the instruction manual for probe.)
Horizontal Deflection Controls
HORIZ DISPLAY
The following modes can be selected with the horizontal
deflection control buttons.
A: A sweep mode for normal waveform observation.
Sweep time can be selected with the A TIME/DIV switch
and A
VARIABLE control.
A INTEN: A delayed sweep mode (in which a part of the
input signal waveform is magnified for observation)
AL T: Alternate A INTEN sweep and B sweep
B
(DLY'D): A sweep delay mode (in which the part selected
by delayed sweep is magnified)
2-5

Section 2 Operating Information

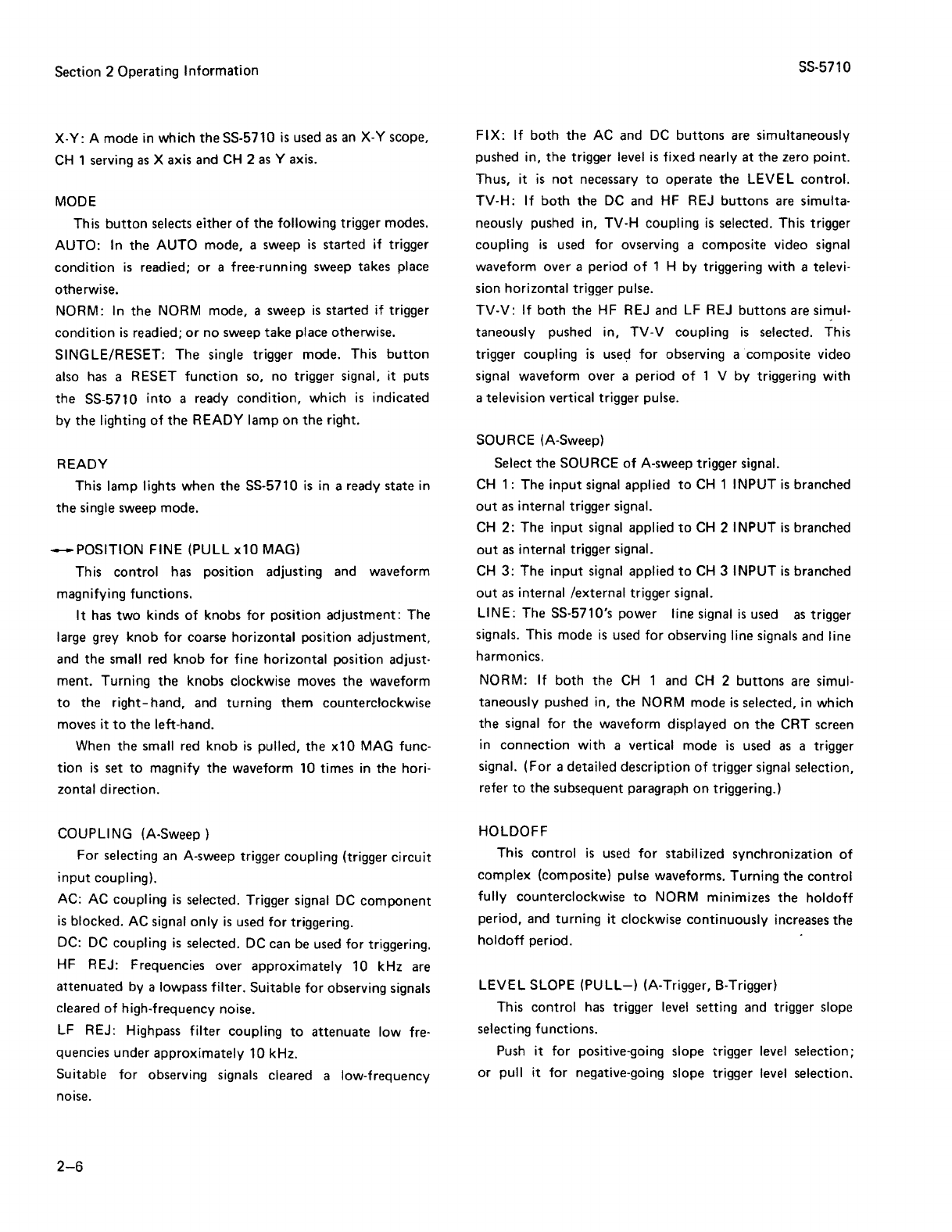

X-Y: A mode in which the SS-5710 is used as an X-Y scope,
CH 1 serving as X axis and CH 2 as Y axis.
MODE
This button selects either of the following trigger modes.
AUTO: In the AUTO mode, a sweep is started if trigger
condition is readied; or a free-running sweep takes place
otherwise.
NORM: In the NORM mode, a sweep is started if trigger
condition is readied; or no sweep take place otherwise.
SINGLE/RESET: The single trigger mode. This button
also has a RESET function so, no trigger signal, it puts
the
SS-571 0 into a ready condition, which is indicated
by the lighting of the READY lamp on the right.
READY
This lamp lights when the SS-5710 is in a ready state in
the single sweep mode.
---POSITION FINE (PULL x1 0 MAG)
This control has position adjusting and waveform
magnifying functions.
It has two kinds of knobs for position adjustment: The
large grey
knob for coarse horizontal position adjustment,
and the small red knob for fine horizontal position adjust-
ment. Turning the knobs clockwise moves the waveform
to the right- hand, and turning them counterclockwise
moves it to the left-hand.
When the small red knob
is pulled, the x1 0 MAG func-
tion is set to magnify the waveform 10 times in the hori-
zontal direction.
COUPLING (A-Sweep)
For selecting an A-sweep trigger coupling (trigger circuit
input coupling).
AC: AC coupling
is selected. Trigger signal DC component
is blocked. AC signal only is used for triggering.
DC: DC coupling is selected. DC can be used for triggering.
HF REJ: Frequencies over
approximately 10 kHz are
attenuated by a lowpass filter. Suitable for observing signals
cleared of high-frequency noise.
LF REJ: Highpass
filter coupling to attenuate low fre-
quencies under approximately 10 kHz.
Suitable
for observing signals cleared a low-frequency
noise.
2-6
SS-5710
FIX: If both the AC and DC buttons are simultaneously
pushed in, the trigger level
is fixed nearly at the zero point.
Thus, it is not necessary to operate the LEVEL control.
TV-H: If both the DC and HF REJ buttons are simulta-
neously pushed in, TV-H coupling is selected. This trigger
coupling is used for ovserving a composite video signal
waveform over a period
of 1 H by triggering with a televi-
sion horizontal trigger pulse.
TV-V: If both the HF REJ and LF REJ buttons are simul-
taneously pushed in, TV-V coupling is selected. This
trigger coupling
is use<;J for observing a composite video
signal waveform over a period
of 1 V by triggering with
a television vertical trigger pulse.
SOURCE (A-Sweep)
Select the SOURCE of A-sweep trigger signal.
CH 1: The input signal applied to CH 1 INPUT is branched
out as internal trigger signal.
CH 2: The input signal applied to CH 2 INPUT is branched
out as internal trigger signal.
CH 3: The input signal applied to CH 3 INPUT is branched
out as internal /external trigger signal.
L1 NE: The SS-571 O's power Ii ne signal is used as trigger
signals. This mode
is used for observing line signals and line
harmonics.
NORM: If both the CH 1 and CH 2 buttons are simul-
taneously pushed in, the NORM mode is selected, in which
the signal for the waveform displayed on the CRT screen
in connection
with a vertical mode is used as a trigger
signal. (For a detailed description of trigger signal selection,
refer
to the subsequent paragraph on triggering.)
HOLDOFF
This control is used for stabilized synchronization of
complex (composite) pulse waveforms. Turning the control
fully counterclockwise to NORM minimizes the holdoff
period, and turning it clockwise continuously increases the
holdoff period.
LEVEL SLOPE (PULL-) (A-Trigger, 8-Trigger)
This
control has trigger level setting and trigger slope
selecting functions.
Push it for positive-going slope trigger level selection;
or pull it for negative-going slope trigger level selection.

SS-571 0
A TRIG'D
This lamp lights to indicate a triggering state.
A, B TIME/DIV and DELAY TIME
The outer knob is for A TIME/DIV and DELAY TIME,
and the inner knob forB TIME/DIV.
The A TIME/DIV AND DELAY TIME control has
22 A-sweep positions from 50 nsec/div to 0.5 sec/div, and
selects delays in A
INTEN sweep orB (DL Y'D) sweep.
The value
of each position of the control represents a sweep
rate and delay
time per division on the CRT screen where
the A
VAR lAB LE control is turned fully clockwise to the
CAL position.
The B
TIME/DIV control has 19 B-sweep positions
from 50 nsec/div to 50 msec/div, but no VARIABLE control.
A VARIABLE
Provides continuously the varies A-sweep rate. If the
control is turned fully counterclockwise, the value of where
the
TIME;biV switch is set at least 2.5 times or more.
A
UNCAL
This lamp lights to indicate that A sweep rate is uncali-
brating state when A
VARIABLE control is out of CAL
position.
DELAY TIME MULT
This potentio-meter selects the amount of delay time
between the start
of A sweep and the start of B sweep.
Section 2 Operating Information
COUPLING (B-Sweep)
For selecting a B-trigger coupling (trigger circuit coup-
ling).
If the DC and HF REJ buttons are simultaneously
pushed in,
TV-H is selected.
All functions are the same as those of A-sweep except
for LF REJ, TV-V and FIX.
SOURCE (8 -Sweep)
The SOURCE
buttons are used for selecting 8-sweep
trigger signals and a
type of delay (continuous delay or
triggered delay).
RUNS AFTER DELAY: When the button is IN, RUNS
AFTER DELAY is selected for continuous delay.
CH 1: Function is the same as that of A-sweep.
CH 2: Function is the same as that of A-sweep.
CH 4: The input signal applied to CH 4 INPUT is branched
out as trigger signal. This function corresponds to the
external trigger
function of a dual-trace oscilloscope.
(If the CH 1, CH 2, or CH 4 button is pushed in, the
triggered delay mode
is selected.)
t TRACE SEPARATION
This controi is used for moving the B-sweep waveform
above the A INTEN sweep waveform on the CRT screen
when the
HORIZ DELAY button AL Tis IN. If the contol
is turned fully counterclockwise, the A INTEN sweep and
B-sweep waveforms overlap, and when the
control is turned
fully clockwise, the B-sweep wavefrom moves 4 divisions
or more.
2-7

Section 2 Operating Information·
2-3-2 Rear Panel
Z AXIS INPUT
Apply a signal for external intensity modulation to this
input terminal. The maximum input voltage is 50 V (DC
+peak AC).
CAL 10 rnA
A square wave current of 1 kHz, 10 rnA flows through
the current
loop terminal in the arrow direction (from
right to left). Use its current output for checking and calib-
rating the current probe.
~(Ground terminal for protection)
Ground terminal for protecting the oscilloscope. When
supplying a line voltage from a 2-core electrical outlet,
be sure to connect this terminal to the ground for prevent-
ing danger.
AC LINE INPUT
AC voltage is supplied to this connector. Connect the
supplied power cord to it.
A.B.C.D (Voltage Selector plug)
Set the voltage selector plug's
arrow mark to one of the
A, B, C or D position to suit the AC line voltage. Refer to
the table of line voltage ranges.
FUSE
Fuse holder.
2-8
SS-5710
2-3-3 Bottom Cover
GAIN
This is for adjusting vertical deflection factor.
x5 BAL
This is for adjusting vertial deflection position when the
PULL x5 MAG is pushed or pulled.
VARIABLE BAL
This is for adjusting the movement of vertical trace
position when the vertical deflection
VARIABLE control
is turned.
