PNEUMATIC MAGNET IXTUR MRP-20NK
Original User Manual

Ixtur Ltd / MRP-20NK
1
Content
Introduction and Warnings ............................................................................................................................ 2
Technical Specifications ................................................................................................................................ 3
Holding Force .................................................................................................................................................. 4
Installing the Device ....................................................................................................................................... 7
Using the Ixtur MRP-20NK Pneumatic Magnet .......................................................................................... 8
Maintenance and Inspections ....................................................................................................................... 9
Warranty ........................................................................................................................................................... 9
Patent Pending ................................................................................................................................................ 9
Declaration of Conformity .............................................................................................................................. 9

Ixtur Ltd / MRP-20NK
2
Introduction and Warnings
MRP-20NK is a pneumatic magnet meant for gripping ferromagnetic parts in lifting, work holding or
automation applications. It is suitable for plates and round objects. The magnet’s state, attached or
detached, is changed pneumatically. MRP-20NK pneumatic magnet doesn’t need compressed air
to keep its state. Air pressure is needed only to change the state from attached to detached or vice
versa.
•Please read this manual carefully before deployment to ensure safe use of the device.
•This device includes a source of magnetic field. A fluctuating magnetic field is produced
during the use in the proximity of the device.
•This device produces a magnetic field that may interfere with medical devices such as
metallic implants or cardiac pacemakers. Do not use this device and keep out of close
proximity unless you have approval from the manufacturer of the medical device or from
your physician.
•Do not disassemble or replace the parts of the device. Only pneumatic connectors are user
changeable.
•The device must not be used for lifting or transporting people.
•The permitted holding force must not be exceeded.
•Always pay special attention to the factors that may decrease the holding force of the
magnet.
•Do not operate a damaged or malfunctioning device.
•The designer and manufacturer of the system, which this device will be integrated into,
should always ensure that the complete system meets the local and national safety
regulations.

Ixtur Ltd / MRP-20NK
3
Technical Specifications
Dimensions:
-Length: 80.0 mm
-Width 54.8 mm
-Height: 114.0 mm
-Weight: 2.4 kg
Capacity:
-Rated holding force: 590 N (S355 S 4 mm plate)
-Rated holding force: 380 N (S355 cylinder ø 14 mm)
-Rated lifting capacity for plate with safety factor 3: 20 kg (S355 S 4 mm)
-Rated lifting capacity for solid round object with safety factor 3: 13 kg (ø 14 mm)
-Residual holding capacity: 0.1 kg
The residual gripping capacity, i.e. the gripping capacity when the magnet is OFF,
varies based on the material and geometry of the gripped part. In extreme cases, parts
up to 0.1 kg may stay attached. The residual capacity is greatest as long as the part
continuously stays in contact with the magnet after the magnet has been turned from
ON to OFF. If the amount of residual capacity is critical to the application, pretesting
with the actual part is recommended.
Environmental conditions:
-Operating temperature: 0 °C … +50 °C
-Storage temperature: -20 °C … +50 °C
-Humidity 0 % … 90 %
-IP67 (The device is protected from dust and temporary immersion up to 1 m)
Requirements for compressed air:
-Recommended pressure: 6.0 bar
-Functional range: 5.0 … 8.0 bar
-Water separation
-Particle filter ≤5µm
Information related to medical implants
-Safety distance for a person with active implanted device is 50 cm of air or other non-
magnetic material. The distance is measured from the magnet or magnetic material
attached to it.
oMaximum static magnetic field of MRP-20NK is 200 mT on the gripping surface.
oInterference with active implanted devices, e.g. cardiac pacemakers – Action level for expo-
sure to static magnetic fields is 0,5 mT [Directive 2013/35/EC].

Ixtur Ltd / MRP-20NK
4
Holding Force
Holding force and rated lifting capacity of MRP-20NK can only be applied when the forces are per-
pendicular to the magnet's gripping surface.
The following factors affect magnet’s holding force:
-Material properties
-Thickness of the load
-Distance between gripping surface and attached load (airgap)
-Object diameter when lifting round part
Holding force and lifting capacity of MRP-20NK pneumatic magnet are rated with steel EN S355.
Most other steel materials produce lower holding force. Also hardened steel produces lower hold-
ing force.
Material’s capacity to conduct magnetic field depends on its thickness. A thinner material has
weaker capacity compared to a thicker material. Increasing material thickness increases the mate-
rial’s capability to conduct magnetic field until the magnet’s specific maximum value is reached.
See figure 2: MRP-20NK holding force in proportion to plate thickness. Figure 2 is made for plate,
but same principle is valid also for pipe wall thickness when round parts are lifted.
Any material that separates the magnet's gripping surface from the surface of the load reduces the
total magnetic holding force. Reduction can be caused by non-magnetic materials or by materials
with weak magnetic qualities, such as, zinc or paint or similar coating, rust, frost or air. The dis-
tance between the surfaces caused by materials above is commonly called as airgap.
Surfaces must be clean and the airgap zero to achieve rated holding force. The load surface must
also be flat and it must occupy the gripping surface of the device completely. See figure 3: MRP-
20NK holding force in proportion to airgap.
In case of round parts, the magnet’s holding force depends also on part’s diameter. See figure 4:
MRP-20NK holding force in proportion to round part diameter. The graph is valid for a solid cylin-
der.
Figure 1. The gripping surface and magnetic poles of MRP-20NK.

Ixtur Ltd / MRP-20NK
5
Figure 2. MRP-20NK holding force in proportion to plate thickness.
Figure 3. MRP-20NK holding force in proportion to airgap.

Ixtur Ltd / MRP-20NK
6
Figure 4. MRP-20NK holding force in proportion to diameter of a solid cylinder.
The holding forces specified in this document are valid for steel EN S355. Most other
magnetic materials result in lower holding force.
The rated lifting capacities are valid for plates of 4 mm thick. Thinner loads lead to
lower lifting capacities.
When lifting a piece from a stack, also the piece below the lifted piece can be attached
to the magnet.
The forces caused by acceleration must be considered. For example, sudden moves
cause stronger forces than slow and smooth moves. Sudden moves may drop the load.
Before magnet attachment, make sure that the magnet's gripping surface and the load
material surface are clean of foreign materials to minimize the airgap that reduces the hold-
ing force.
Due to residual magnetism, the magnet's lifting surface may contain small magnetic
particles or pieces which reduce the holding force.
The load material surface may bend, which produces an airgap and reduces the hold-
ing force. Especially thin materials may cause this effect.
Do not lift the load higher than necessary. Unnecessary elevation of the load during
lifting increases the risk of damage or injury.

Ixtur Ltd / MRP-20NK
7
Installing the Device
MRP-20NK pneumatic magnet can be mounted either from side(s) or from top. Mounting is done
using M6 screws (4 pcs.) according to Figure 5. The pneumatic connections are made with 4.0 mm
hose.

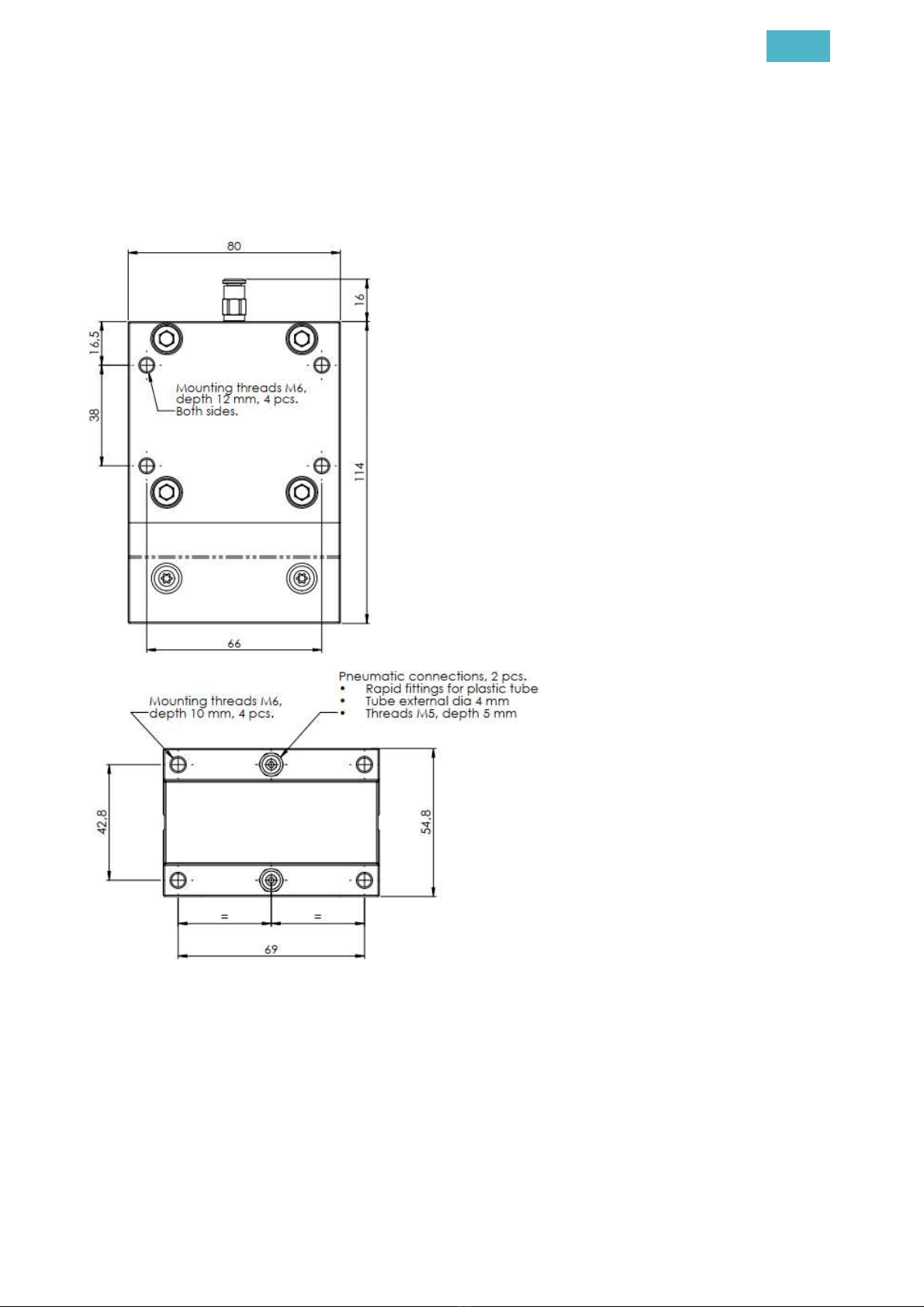

Figure 5. Mounting dimensions of MRP-20NK.
When the MRP-20NK magnet is turned ON, a magnetic field is generated between the steel plates
of the magnet.
The installation construction around the magnet must not short-circuit the magnetic field. The parts
of the installation that connect the MRP-20NK steel plates together must be made of non-magnetic
material, e.g. aluminum or stainless steel.

Ixtur Ltd / MRP-20NK
8
Figure 6. Magnetic field of MRP-20NK.
Using the Ixtur MRP-20NK Pneumatic Magnet
The front (logo side) and back steel plates of MRP-20NK have a pneumatic connector. When the
air pressure in the back side pneumatic connection is 6.0 bars higher than in the front side connec-
tion, the magnet is set ON (attach the metal). When the air pressure in the front side pneumatic
connection is 6.0 bars higher than in the back side connection, the magnet is set OFF (detach the
metal). The same pressure in both air hose contacts keeps the magnet’s current state. Even if the
pressure is lost, the magnet keeps the current state. For more accurate air pressure information,
look at the Technical Specifications of this user’s manual.
Short circuiting the magnetic field between the steel plates of MRP-20NK reduces the holding
force and may cause the lifted object to drop. The load must be the only magnetic material in con-
tact with both plates.

Ixtur Ltd / MRP-20NK
9
Maintenance and Inspections
MRP-20NK pneumatic magnet is maintenance free.
If MRP-20NK pneumatic magnet has been dropped or it has been exposed to severe impact, the
magnet must be inspected for any damages.
Do not use the device if you notice any damage or malfunction.
Warranty
The MRP-20NK Magnet has a 12 months warranty from the date of delivery. The warranty covers
material and manufacturing defects. Warranty does not cover defects caused by a misuse of the
device against the regulations and instructions in this manual. The warranty does not cover normal
wear and tear.
Patents
U.S. Pat. No. 9,613,738.
Several patent applications are pending related to MRP-20NK and Ixtur magnet technology.
Declaration of Conformity
Declaration of incorporation of partly completed machinery
Directive 2006/42/EC
We hereby declare that this partly completed machinery, Pneumatic Magnet MRP-20NK, complies
with the essential requirements of the Directive 2006/42/EC on Machinery and the following har-
monized standards have been applied and fulfilled:
-EN ISO 12100:2010
-ISO/TR 14121-2:2007
-EN 13155:2003+A2:2009
The technical documents of partly completed machinery is compiled in accordance with section B
of Annex VII of Directive 2006/42/EC, that can be transmit, in response to a reasoned request by
the national authorities.
Partly completed machinery must not be put into service until the final machinery into which it is to
be incorporated has been declared in conformity with the provisions of the Directive 2006/42/CE on
Machinery.

INCORPORATION OF PARTLY COMPLETED MACHINERY
Trans ation of the origina
Directive 2006/42/EC
Ixtur Oy
Ixtur OyIxtur Oy
Ixtur Oy
Varespe ontie 6
21500 KAARINA
Fin and
Hereby dec ares that the fo owing part y comp eted machinery
Description
DescriptionDescription
Description Pneumatic Magnet
Mode
ModeMode
Mode MRP-20NK
ID number
ID numberID number
ID number 811A … 999A
fu fi s the fo owing essentia requirements of Directive 2006/42/EY:
•Annex I: 1.1.2 a, 1.1.3, 1.1.5, 1.3.2, 1.3.4, 1.5.10
The technica documents of part y comp eted machinery is compi ed in accordance with section B of Annex VII of the
Directive 2006/42/EC.
The fo owing harmonized standards have been app ied:
•EN 13155:2003+A2:2009
•EN ISO 12100:2010
•ISO/TR 14121-2:2007
A re evant information about the part y comp eted machinery wi be transmitted by post or e ectronica y, in re-
sponse to a reasoned request by the nationa authorities.
Part y comp eted machinery must not be put into service unti the fina machinery into which it is to be incorporated
has been dec ared in conformity with the provisions of the Directive 2006/42/CE.
Person authorized to compi e the technica documentation:
Juho Suominen, Address: Varespe ontie 6, FI-21500 Kaarina, Fin and
The origina document of this dec aration is pub ished in Finnish 6. 6. 2018
P ace and date: Kaarina 6. 6. 2018
Markku Oksanen
Managing Director
Ixtur Oy
