J Plus JLT733A User manual

J Plus, Inc
JLT733A User Manual
Version 1.0 Rev. 8
Feb 25, 2020
Copyright©2019 J Plus, Inc
The information contained herein is the property of J Plus and is provided without liability of errors, omissions,
and mistakes. No part maybe reproduced or copied without written permission or contract.

J Plus, Inc
Revision History
www.juniglobal.com J Plus Proprietary and Confidential 2 / 98

J Plus, Inc
Contents
1
Introduction................................................................................................................................................. 8
1.1
Overview ............................................................................................................................................. 8
1.2
Type of Small Cell................................................................................................................................8
1.3
Benefits ............................................................................................................................................... 8
1.4
Network Block Diagram........................................................................................................................9
2
System Features ...................................................................................................................................... 10
2.1
JLT733A System Main Functions ......................................................................................................10
2.1.1
3GPP Standards ................................................................................................................................10
2.2
JLT733A System Specifications.........................................................................................................12
2.3
JLT733A Main Functions ...................................................................................................................12
2.4
Equipment Specifications...................................................................................................................14
2.5
Environmental Specifications.............................................................................................................14
2.6
RF Specifications ...............................................................................................................................15
2.6.1
Downlink transmission (for 20MHz BW).............................................................................................15
2.6.2
Uplink Reception (for 20MHz BW) .....................................................................................................15
2.7
RF Block Description..........................................................................................................................16
2.8
Digital block Description.....................................................................................................................17
2.9
Software block Description.................................................................................................................18
2.9.1
LTE protocol Stack.............................................................................................................................19
2.9.2
Security ............................................................................................................................................. 20
2.9.3
Management ......................................................................................................................................20
3
Interface and LED Description ................................................................................................................. 21
3.1
Interface and Connector.....................................................................................................................21
3.2
LED.................................................................................................................................................... 22
4
Initial Connection...................................................................................................................................... 23
4.1
Cable Connection...............................................................................................................................23
4.2
Connection Test.................................................................................................................................24
5
Connection via Web GUI.......................................................................................................................... 24
6
Web GUI Operation.................................................................................................................................. 26
6.1
Web GUI Menu...................................................................................................................................26
6.2
Configuration Menu............................................................................................................................31
6.2.1
General Menu.....................................................................................................................................31
6.2.1.1
Network Interface...............................................................................................................................31
6.2.1.2
Network Function ...............................................................................................................................34
6.2.1.3
Security Gateway...............................................................................................................................34
6.2.1.4
DHCP Server......................................................................................................................................35
6.2.1.5
CWMP............................................................................................................................................... 35
6.2.1.6
Clock sync & SYS time settings.........................................................................................................36
6.2.1.7
WAN Port ...........................................................................................................................................37
6.2.1.8
Statistics Report.................................................................................................................................37
6.2.1.9
Optional Settings................................................................................................................................38
6.2.1.10 Static Routing.....................................................................................................................................38
6.2.1.11 SAS ................................................................................................................................................... 39
6.2.2
PKI Menu............................................................................................................................................39
6.2.2.1
eNodeB ............................................................................................................................................. 40
6.2.2.2
CA Certificates ...................................................................................................................................42
6.2.2.3
CMPv2................................................................................................................................................42
6.2.3
LTE Menu.......................................................................................................................................... 44
6.2.3.1
Basic.................................................................................................................................................. 47
6.2.3.2
RF...................................................................................................................................................... 48
6.2.3.3
S1AP ................................................................................................................................................. 49
www.juniglobal.com J Plus Proprietary and Confidential 3 / 98

J Plus, Inc
6.2.3.4
MR..................................................................................................................................................... 50
6.2.3.5
Neighbor Cell......................................................................................................................................52
6.2.3.6
UTRA Frequency................................................................................................................................56
6.2.3.7
UTRA Neighbor Cell...........................................................................................................................61
6.2.3.8
GERAN Frequency.............................................................................................................................66
6.2.3.9
GERAN Neighbor Cell........................................................................................................................70
6.2.3.10 DSCP Mapping...................................................................................................................................75
6.2.3.11 CSG................................................................................................................................................... 75
6.2.3.12 REM/SON...........................................................................................................................................76
6.2.3.13 ESON ................................................................................................................................................ 77
6.2.4
Administrations Menu.........................................................................................................................78
6.2.4.1
Settings ............................................................................................................................................. 78
6.2.4.2
Upgrade Firmware..............................................................................................................................82
6.2.4.3
Log Setting.........................................................................................................................................83
6.2.4.4
Debug Mask Setting...........................................................................................................................84
6.2.4.5
Analysis Log Report & Password Change.........................................................................................85
6.2.4.6
Remote Authentication.......................................................................................................................86
6.2.4.7
Reboot............................................................................................................................................... 87
6.3
Information Menu ...............................................................................................................................88
6.3.1
Update Period ....................................................................................................................................88
6.3.2
Device Info .........................................................................................................................................89
6.3.3
CPU/Memory......................................................................................................................................90
6.3.4
Process ..............................................................................................................................................90
6.3.5
Status ................................................................................................................................................ 91
6.3.6
DHCP Info..........................................................................................................................................93
6.3.7
IEEE1588 Info....................................................................................................................................93
6.3.8
GPS Info............................................................................................................................................ 94
6.3.9
MME IP.............................................................................................................................................. 94
6.3.10
RIP Info ............................................................................................................................................. 95
6.3.11
SAS Info.............................................................................................................................................95
6.3.12
LTE Statistics Menu ...........................................................................................................................96
6.3.12.1 UE List................................................................................................................................................96
7
Product Safety and RF Exposure Compliance......................................................................................... 96
Appendix 1. Abbreviation .................................................................................................................................... 97
www.juniglobal.com J Plus Proprietary and Confidential 4 / 98

J Plus, Inc
List of Figures
Figure 1: Types of Small Cell.................................................................................................................................8
Figure 2: Benefits of Small Cell..............................................................................................................................8

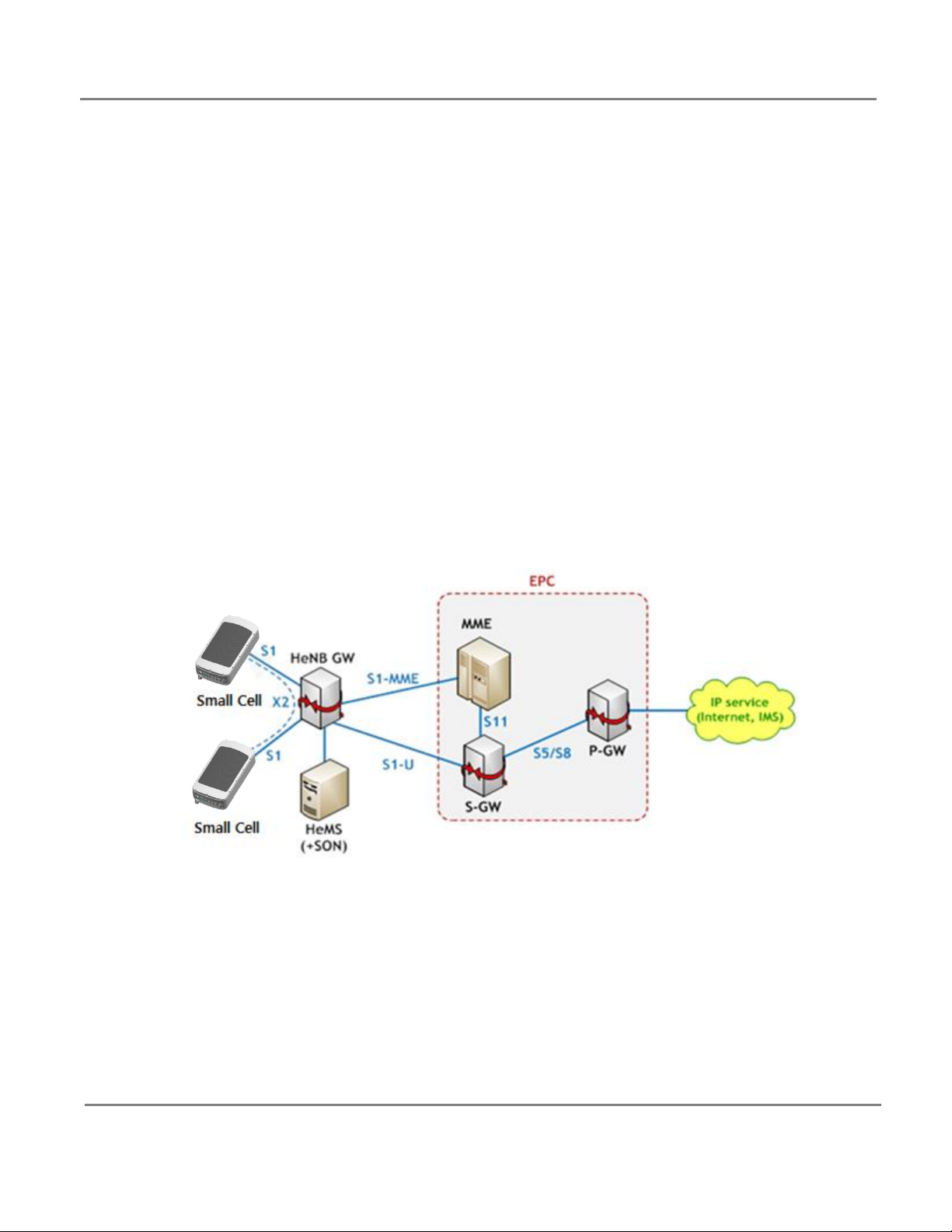

Figure 3: JLT733A and EPC Network Diagram .....................................................................................................9

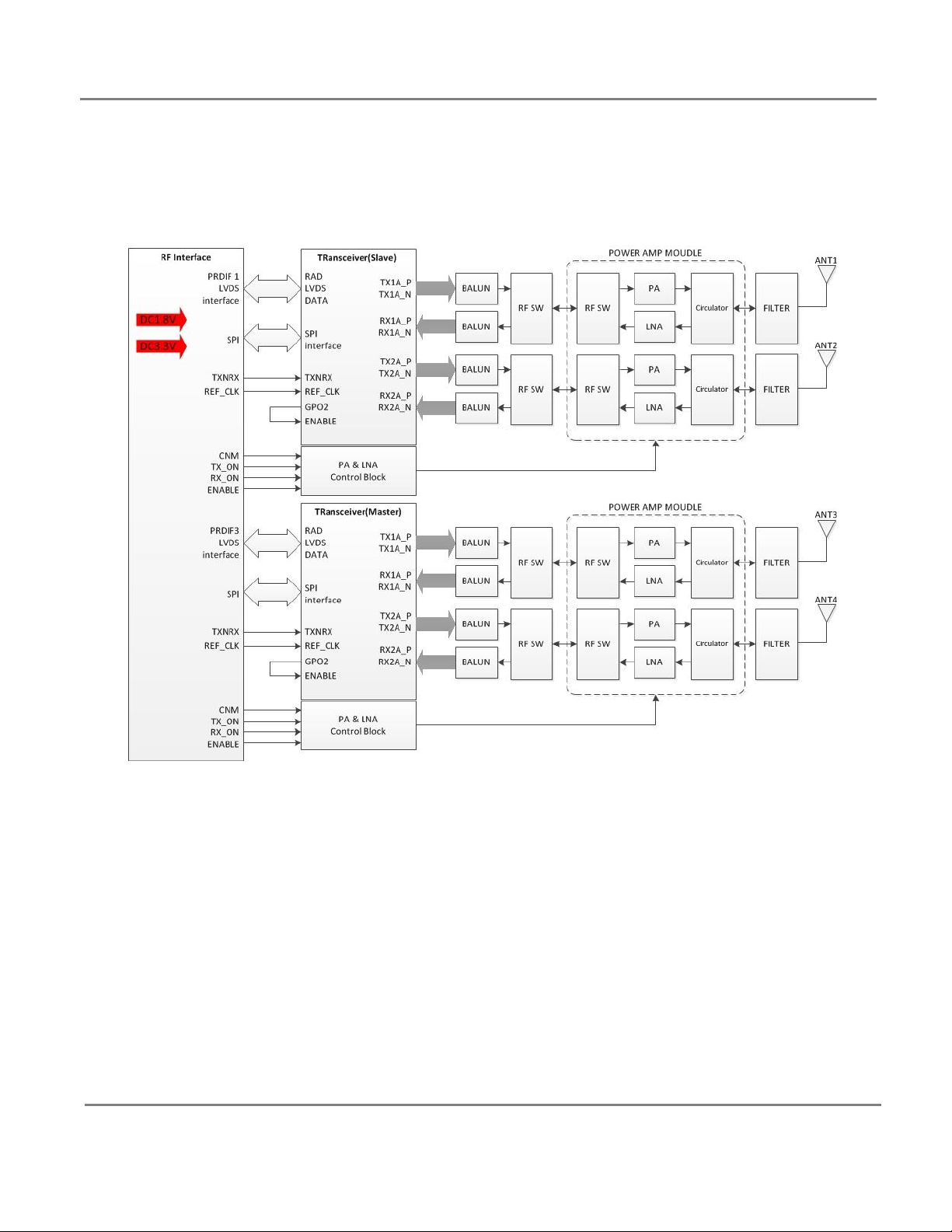

Figure 4: RF Block Diagram.................................................................................................................................16
Figure 5: Software Block Diagram........................................................................................................................18
Figure 6: Interface & Connector...........................................................................................................................21
Figure 7: LED Description....................................................................................................................................22
Figure 8: Small Cell Direct Connection for Management.....................................................................................23
Figure 9: Small Cell Connection for Management via Network ...........................................................................23
Figure 10: Ping Test from Control PC to Small Cell via local MGMT Port...........................................................24
Figure 11: Web GUI of Small Cell........................................................................................................................24
Figure 12: Pop-up Window for Sign-in.................................................................................................................25
Figure 13: Main Page of Small Cell Web UI.........................................................................................................25
Figure 14: DHCP Configuration for Network Connection.....................................................................................31
Figure 15: Network connection configuration page..............................................................................................32
Figure 16: Static IP outcome after rebooting device............................................................................................32
Figure 17: Vlan Configuration...............................................................................................................................33
Figure 18: Registered Vlan Info............................................................................................................................33
Figure 19: Network Function................................................................................................................................34
Figure 20: Security-GW IP Address Configuration...............................................................................................34
Figure 21: CWMP Setup Menu ............................................................................................................................35
Figure 22: Clock sync and System time settings .................................................................................................36
Figure 23: WAN Port Setup Menu........................................................................................................................37
Figure 24: Statistics Report setup Menu..............................................................................................................37
Figure 25: Optional Setting...................................................................................................................................38
Figure 26: Static Routing......................................................................................................................................38
Figure 27: eNodeB Private Key and Certificate ...................................................................................................41
Figure 28: Trusted CA Certificates.......................................................................................................................42
Figure 29: CMPv2 ............................................................................................................................................... 43
Figure 30: eNodeB Basic Configuration MENU (CA Disable)..............................................................................44
Figure 31: eNodeB Basic Configuration MENU (CA Enable) ..............................................................................45
Figure 32: CA Enable/Disable MENU ..................................................................................................................46
Figure 33: RF Un-block........................................................................................................................................48
Figure 34: RF Block..............................................................................................................................................48
Figure 35: MME Setup .........................................................................................................................................49
Figure 36: A1 - A5, B1, B2 MR Setup menu........................................................................................................51
Figure 37: Neighbor Cell configuration page........................................................................................................53
Figure 38: Neighbor Cell Add Confirmation Window............................................................................................53
Figure 39: Registered Neighbor Cell Information.................................................................................................54
Figure 40: Neighbor Cell Modify Confirmation Window .......................................................................................54
Figure 41: Neighbor Cell Delete Confirmation Window .......................................................................................55
Figure 42: Mobility to UTRA setup on UTRA Frequecny menu ...........................................................................57
Figure 43: Mobility to UTRA save confirmation on UTRA Frequency menu........................................................57
Figure 44: Add UTRA Frequency and Confirmation ............................................................................................58
Figure 45: New UTRA Frequency Registered......................................................................................................58
Figure 46: Modify Registered UTRA Frequency and Confirmation Window........................................................59
Figure 47: Delete registered UTRA Frequency and Confirmation.......................................................................59
Figure 48: Result of registered UTRA Frequency deletion ..................................................................................60
Figure 49: Mobility to UTRA setup on UTRA Neighbor Cell menu ......................................................................62
Figure 50: Mobility to UTRA setting and confirmation on UTRA Neighbor Cell...................................................62
Figure 51: Add UTRA Neighbor Cell and Confirmation........................................................................................63
www.juniglobal.com J Plus Proprietary and Confidential 5 / 98

J Plus, Inc
Figure 52:New UTRA Neighbor Cell Registered..................................................................................................63
Figure 53: Modify Registered UTRA Neighbor Cell and Confirmation Window...................................................64
Figure 54: Modify Confirmation Window ..............................................................................................................64
Figure 55: Result of Registed UTRA Neighbor Cell Deletion...............................................................................65
Figure 56: Mobility to GERAN setup on GERAN Frequency menu.....................................................................67
Figure 57: Mobility to GERAN setting and confirmation on GERAN Frequency menu........................................67
Figure 58: Add GERAN Frequency and confirmation window.............................................................................68
Figure 59: New GERAN Frequency registered....................................................................................................68
Figure 60: Modify GERAN Frequency and confirmation window.........................................................................69
Figure 61: Delete GERAN Frequency..................................................................................................................69
Figure 62: Mobility to GERAN setup menu ..........................................................................................................71
Figure 63: Mobility to GERAN setting and confirmation window..........................................................................71
Figure 64: Add GERAN Neighbor Cell and confirmation window ........................................................................72
Figure 65: GERAN Neighbor Cell registered .......................................................................................................72
Figure 66: Modify GERAN Neighbor Cell and confirmation window....................................................................73
Figure 67: Delete GERAN Neighbor Cell and confirmation window ....................................................................73
Figure 68: Result of GERAN Neighbor Cell Deletion...........................................................................................74
Figure 69: DSCP Mapping Configuration.............................................................................................................75
Figure 70: CSG Setup..........................................................................................................................................75
Figure 71: REM / SON Setup...............................................................................................................................76
Figure 72: ESON Setup........................................................................................................................................77
Figure 73: Save Settings..................................................................................................................................... 78
Figure 74: Save Confirmation Window.................................................................................................................78
Figure 75: Export Configuration File.....................................................................................................................79
Figure 76: Import Configuration............................................................................................................................80
Figure 77: Browsing Window for Importing Configuration File.............................................................................80
Figure 78: Import Error Message .........................................................................................................................80
Figure 79: Auto Reboot Configuration..................................................................................................................81
Figure 80: Firmware Upgrade Menu ....................................................................................................................82
Figure 81: Screen after Selecting the New Firmware ..........................................................................................82
Figure 82: Notification Screen during Firmware Upgrade Process......................................................................82
Figure 83: Log Setting..........................................................................................................................................83
Figure 84: eNodeB Debug Mask Settings............................................................................................................84
Figure 85: Analysis Log Report & Password Change..........................................................................................85
Figure 86: Remote Authentication Configuration.................................................................................................86
Figure 87: Reboot Menu.......................................................................................................................................87
Figure 88: Reboot Confirmation Window .............................................................................................................87
Figure 89: Update Period.....................................................................................................................................88
Figure 90: Device Information Menu....................................................................................................................89
Figure 91: CPU/Memory Information....................................................................................................................90
Figure 92: Process Information............................................................................................................................90
Figure 93: Software and Hardware Status Menu.................................................................................................91
Figure 94: Alarm Occurrence History...................................................................................................................92
Figure 95: DHCP Client Info.................................................................................................................................93
Figure 96: IEEE1588 Info.....................................................................................................................................93
Figure 97: GPS Info..............................................................................................................................................94
Figure 98: MME IP .............................................................................................................................................. 94
Figure 99: LTE RIP Information............................................................................................................................95
Figure 100: SAS Information................................................................................................................................95
Figure 101: UE List.............................................................................................................................................. 96
www.juniglobal.com J Plus Proprietary and Confidential 6 / 98

J Plus, Inc
List of Tables
Table 1: 3GPP Release 10 Standard Specifications ...........................................................................................11
Table 2: System Specification..............................................................................................................................12
Table 3: Main Functions.......................................................................................................................................13
Table 4: System Specifications............................................................................................................................14
Table 5: Environmental Specifications.................................................................................................................14
Table 6: RF Specifications for DL Transmissions ................................................................................................15
Table 7: RF Specifications for UL Receptions .....................................................................................................15
Table 8: Interface & Connector Description .........................................................................................................21
Table 9: LED Description .....................................................................................................................................22
Table 10: Description of Small Cell Web GUI Menu for CA Disabled..................................................................28
Table 11: Description of Small Cell Web GUI Menu for CA Enable.....................................................................30
Table 12: Basic Configuration Parameter Information.........................................................................................47
Table 13: Description of MR parameter ...............................................................................................................50
Table 14: Description of Neighbor Cell Parameter...............................................................................................52
Table 15: Description of UTRA Frequency Parameter.........................................................................................56
Table 16: Description of UTRA Neighbor Cell Parameter....................................................................................61
Table 17: Description of GERAN Frequency Parameter .....................................................................................66
Table 18: Description of GERAN Neighbor Cell Parameter.................................................................................70
Table 19: Description of Log Setting....................................................................................................................83
Table 20: FCC Requirements of RF Exposure to Human ………………………………………………………….…98
www.juniglobal.com J Plus Proprietary and Confidential 7 / 98

J Plus, Inc
1 Introduction
1.1Overview
JLT733A is Pico LTE small cell. LTE small cell is a wireless network system based on 3GPP LTE (Long Term
Evolution) technology; LTE small cell improves 3G technology’s shortcomings of relatively slow transmission
speed with high cost. This new generation wireless network system provides high speed data throughput with
relatively economic cost using the existing Internet line or low cost backhaul.
1.2Type of Small Cell
LTE small cell has a core similarity with WiFi technology where both system provide wireless traffic in
residentials and hotspots as inFigure 1. Difference is that WiFi uses ISM band while LTE small cell uses
commercial frequency band operating within the commercial LTE network.Generally, small cell can easily be
installed like WiFi AP while Picocell is recommended to be installed after cell planning by wireless operators.
Figure 1: Types of Small Cell
1.3Benefits
To satisfy the customer needs, LTE system must provide fast packet transmission with low cost to support high
speed multimedia data service. With LTE small cell deployment, existing public Internet network can be shared
wirelessly, thus it can offload the data traffic as Wi-Fi does. It can also provide the coverage extension effect
with providing LTE service inside the buildings. The high efficiency with low cost makes the LTE small cell
attractive to wireless operator to create new business model. Therefore, it brings better service experience to
their customers.
Figure 2: Benefits of Small Cell
www.juniglobal.com J Plus Proprietary and Confidential 8 / 98

J Plus, Inc
1.4Network Block Diagram
Pico LTE small cell, JLT733A, provides wireless access to LTE UE, and it is connected to MME (Mobility
Management Entity) for control plane signaling via S1-MME logical interface. For the user data service,
JLT733A is connected to S-GW (Serving-Gateway) via S1-U logical interface. Connection between EPC and
LTE small cells may go through HeNB-GW instead of directly getting connected to EPC. S-GW is connected to
P-GW (PDN-Gateway) for external network access including Internet service.
JLT733A supports IPSec with Security-GW when it is deployed in public network. It carries out either USIM-
based or Certificate-based authentication procedure for creating IPSec tunnel to Security-GW located in front of
HeNB-GW. Security-GW may co-locate with HeNB-GW. In addition, it has been proved in the field to work
seamlessly with our cutting-edge management system HeMS and SON server for plug and play-based
configuration including automatic parameter setting, alarm reporting, statistics gathering and interference
mitigation.
Figure 3: JLT733A and EPC Network Diagram
www.juniglobal.com J Plus Proprietary and Confidential 9 / 98

J Plus, Inc
2 System Features
The JLT733A is Pico Base Station which supports a wide range of LTE interfaces. It provides an ideal cost-
effective alternative to macro deployments for coverage and capacity needs, suitable for vertical market
business including smart grid network and services at railways, campuses, mines, oil drilling sites, bay area,
and harbors.
2.1JLT733A System Main Functions
2.1.1 3GPP Standards
JLT733A supports 3GPP Release 10 and complies with following specifications.
TS Number
Title
Telecommunication
management;
Performance
Management (PM); Performance
32.453
measurements Home enhanced Node B (HeNB) Subsystem (HeMS).
Telecommunication management;
Performance
Management (PM); Performance
32.425
measurements Evolved Universal Terrestrial Radio Access Network (E-UTRAN)
Telecommunication management; Home enhanced Node B (HeNB) Operations,
32.592
Administration, Maintenance and Provisioning (OAM&P); Information model for Type 1
interface HeNB to HeNB Management System (HeMS)
Telecommunication management; Home enhanced Node B (HeNB) Operations,
32.593
Administration, Maintenance and Provisioning (OAM&P); Procedure flows for Type 1
interface HeNB to HeNB Management System (HeMS)
Telecommunication management; Home enhanced Node B (HeNB) Operations,
32.594
Administration, Maintenance and Provisioning (OAM&P); XML definitions for Type 1
interface HeNB to HeNB Management System (HeMS)
Telecommunication management; Self-Organizing Networks (SON); Self-healing concepts
32.541
and requirements
Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) radio
36.104
transmission and reception
36.211
Evolved Universal Terrestrial Radio Access (E-UTRA); Physical channels and modulation
36.212
Evolved Universal Terrestrial Radio Access (E-UTRA); Multiplexing and channel coding
36.213
Evolved Universal Terrestrial Radio Access (E-UTRA); Physical layer procedures
36.214
Evolved Universal Terrestrial Radio Access (E-UTRA); Physical layer; Measurements
36.300
Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal Terrestrial
www.juniglobal.com J Plus Proprietary and Confidential 10 / 98

J Plus, Inc
Radio Access Network (E-UTRAN); Overall description; Stage 2
36.314
Evolved Universal Terrestrial Radio Access (E-UTRA); Layer 2 – Measurements
Evolved Universal Terrestrial Radio Access (E-UTRA); Medium Access Control (MAC)
36.321
protocol specification
Evolved Universal Terrestrial Radio Access (E-UTRA); Radio Link Control (RLC) protocol
36.322
specification
Evolved Universal Terrestrial Radio Access (E-UTRA); Packet Data Convergence Protocol
36.323
(PDCP) specification
Evolved Universal Terrestrial Radio Access (E-UTRA); Radio Resource Control (RRC);
36.331
Protocol specification
36.412
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); S1 signaling transport
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); S1 Application Protocol
36.413
(S1AP)
36.414
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); S1 data transport
36.422
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); X2 signaling transport
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); X2 Application Protocol
36.423
(X2AP)
36.424
Evolved Universal Terrestrial Radio Access Network (E-UTRAN); X2 data transport
29.281
General Packet Radio System (GPRS) Tunneling Protocol User Plane (GTPv1-U)
33.401
3GPP System Architecture Evolution (SAE); Security architecture
Table 1: 3GPP Release 10 Standard Specifications
www.juniglobal.com J Plus Proprietary and Confidential 11 / 98

J Plus, Inc
2.2 JLT733A System Specifications
JLT733A system specifications are described in Table 2.
Item
Remarks
Supporting standards
Interface
Access type
Synchronization
SON
Data service
Voice service
Handover
Redirection
Table 2: System Specification
2.3 JLT733A Main Functions
Main functions provided by JLT733A are listed in the Table 3.
Category
Functions
Attach / Detach
Initial Access
Tracking Area Update
E-RAB Setup
E-RAB
E-RAB Release
E-RAB Modify
S1AP- Reset
S1AP- Setup
S1AP
S1AP- MME Configuration Update
S1AP- eNB Configuration Update
www.juniglobal.com J Plus Proprietary and Confidential 12 / 98
System specifications
3GPP Release 10 specified in Table 1
S1-U / S1-MME / X2-CP / X2-U
Open / Closed
IEEE 1588v2 (optional), GPS, Air Sync (In-band)
Sniffing, Optimal output transmission, Automatic
PCI allocation, EARFCN allocation, ANR
PS, SMS, MMS, Video call
VoLTE, CSFB, Emergency calling
S1 / X2 Handover
To UTRAN and GERAN

J Plus, Inc
X2AP – Reset
X2AP
X2AP – Setup
X2AP –eNB Configuration Update
MIB
Broadcast Message
SIB1,SIB2,SIB3,SIB4,SIB5,SIB6, SIB7, SIB9, SIB10, SIB11, SIB12
DL / UL HARQ
PHY
2x2 MIMO
RR (Round-Robin)
Scheduler
PF (Proportional Fairness)
Data service
Voice service (VoLTE)
Supporting services
Video service
SMS, MMS
International roaming
PWS
CMAS, ETWS
S1 Handover
Handover
X2 Handover
2G / 3G Interworking
CSFB w / o SI, Blind redirection
Manual Neighbor Management
ANR (Automatic Neighbor Relation) function based on UE’s measurement
Neighbor Management
report
ANR function based on built-in REM function (under development)
Small cell authentication function (USIM-based, Certificate-based)
Security
Tunneling function to Security-GW (Se-GW)
Encryption between UE and small cell, message integrity function
Plug and play, ANR, automatic PCI, EARFCN and TAC allocation (under
SON
development)
Synchronization
IEEE 1588v2 (optional), GPS, Air Sync (In-band)
Table 3: Main Functions
www.juniglobal.com J Plus Proprietary and Confidential 13 / 98

J Plus, Inc
2.4Equipment Specifications
Item
Remarks
Active Users
128 Users in the future
Bandwidth
WAN
MGMT
Integrated LTE Antenna
Patch Antenna
Integrated GPS Antenna
Power Consumption
Max.
Rated Input Voltage
21.4(W) x 12.2(H) x 5.9(D) in
Dimension
Without Bracket
Volume
35.2lb (TBD)
Weight
Without Bracket
Material
IP Grade
Cooling
Table 4: System Specifications
2.5Environmental Specifications
Item
Remarks
Operating Temp.
-22 – 131℉
Operating Humidity
Storage Temp.
-40 – 158℉
Storage Humidity
Table 5: Environmental Specifications
www.juniglobal.com J Plus Proprietary and Confidential 14 / 98
Specification
100 Users
10 / 20MHz
RJ-45, 100/1000 BASE-T
RJ-45, 100/1000 BASE-T
14dBi (Max)
RHCP
85W (TBD)
100 – 240Vac
543(W) x 310.8(H) x 149(D) mm
Without Bracket
25.15 Liter
16.0Kg (TBD)
Without Bracket
Aluminum + ASA
IP67
Nature Convection
Specification
-30 – 55 °C
0 – 95%
-40 – 70 °C
0 – 95%

J Plus, Inc
2.6RF Specifications
2.6.1 Downlink transmission (for 20MHz BW)
Item
Remarks
Frequency Range
20MHz Channel
Maximum Output Power
(per 10 and 20MHz Channels)
Conducted Power
29.01 dBm for QPSK
29.99 dBm for 16QAM
EVM
64QAM
RS Power
ACLR
Spurious Emission
Table 6: RF Specifications for DL Transmissions
2.6.2 Uplink Reception (for 20MHz BW)
Item
Remarks
Frequency Range
10 / 20MHz BW
Sensitivity
Others
Table 7: RF Specifications for UL Receptions
www.juniglobal.com J Plus Proprietary and Confidential 15 / 98
Specification
Band 48
EIRP
46.01 dBm for QPSK
46.99 dBm for 16QAM
≤8%
±2.1dB
≤-45dBc
Category A
Specification
Band48
≤-96.5dBm
3GPP Standard

J Plus, Inc
2.7RF Block Description
JLT733A is based on LTE TDD technology consisting of downlink and uplink transmitted through different
frequencies. Explanation for each path is described below:
Figure 4: RF Block Diagram
A. Downlink (Tx)
RF signal from transceiver enters Power AMP module through BALUN and a Filter. In Power AMP module,
the signal is generated as the maximum level and this signal is transmitted via ANT after passing Filter (out
of band’s noise removal)
B. Uplink (Rx)
The RF signal from ANT enters filter (out of band’s noise removal) and then enters Power AMP module.
This signal is amplified via LNA and then enters Transceiver via a Filter and BALUN.
www.juniglobal.com J Plus Proprietary and Confidential 16 / 98

J Plus, Inc
2.8Digital block Description
JLT733A is equipped with 4Giga Byte DDR3 SDRAM and CPU(Intel/T3300) operating at 1000MHz
A. Modem Chip
Intel’s T3300 Wireless Base Station System on Chip (“Transcede “T3300”) delivers the required
performance for next generation wireless networks such as Long Term Evolution (LTE), in a single System
on Chip (SoC).
This SoC combines the latest Reduced Instruction Set Computer (RISC) processor technology with a high-
performance Digital Signal Processing (DSP) array supporting a simplified programming model. The device
offers hardware acceleration for application specific tasks, and a rich set of interfaces and features, which
allow the Transcede 3300 to provide a completely integrated solution covering the needed processing
capability from Internet Protocol (IP) (for example, S1) packets to IQ samples at extremely low power.
B. IEEE 1588v2
IEEE 1588v2 is a standard for precision time synchronization in local area networks. It works using
exchange of special Precision Time Protocol (PTP) frames.
C. Ethernet
www.juniglobal.com J Plus Proprietary and Confidential 17 / 98

J Plus, Inc
JLT733A has two external ports: WAN, MGMT ports.
D. RF
This block communicates with the RF transceiver (AD9363) and the baseband chip (T3300) is controlled by
RF-SPI, and I/Q data is controlled by LVDS interface.
E. Power
The voltage range of power supplied by external source is 9V. It goes into power IC (DC/DC step down
converter and LDO etc.)
2.9Software block Description
Figure 5: Software Block Diagram
www.juniglobal.com J Plus Proprietary and Confidential 18 / 98

J Plus, Inc
2.9.1 LTE protocol Stack
The LTE Protocol Stack is composed of LTE protocols defined in 3GPP Release 10.
▪PDCP (Packet Data Convergence Protocol)
Delivery and handling of user / control data including header compression and ciphering (defined in TS
36.323)
▪RLC (Radio Link Control)
Data delivery between MAC and PDCP including segmentation and ARQ (defined in TS 36.322)
▪MAC (Media Access Control)
Protocol mapping between transport channels and logical channels (defined in TS 36.321)
▪RRC (Radio Resource Control)
Protocol to handle control plane signaling (defined in TS 36.331)
▪S1AP (S1 Application Protocol)
Signaling protocol between HeNB and EPC (defined in TS 36.413)
▪X2AP (X2 Application Protocol)
Signaling protocol between HeNBs to handle UE mobility (defined in TS 36.423)
▪GTP (GPRS Tunneling Protocol)
Tunneling protocol for user plane (defined in TS 29.281)
▪SCTP (Stream Control Transmission Protocol)
Transport protocol for S1 and X2 control interfaces (defined in TS 36.412)
The LTE Protocol Stack also includes blocks to support following higher layer functions.
▪RRM (Radio Resource Management)
Management and control of radio resources including admission control and packet scheduling
▪Mobility
Handling of mobility between cells with same or different frequencies through S1 and X2 links
▪QoS (Quality of Service)
Provides QoS functions according to bearer types and associated parameters
▪SON (Self Organizing Network)
Provides automatic configuration and parameter optimizations
▪REM (Radio Environment Monitoring)
Measurement to identify surrounding cells for SON and ANR
www.juniglobal.com J Plus Proprietary and Confidential 19 / 98

J Plus, Inc
2.9.2 Security
Security Layer covers security functions to interface with external entities and protect small cells from various
security threats using built-in cryptographic functions.
▪Secure Boot
Performs device integrity checks upon booting to verify all HeNB components
▪Digital Certificates
Handles X.509 Certificates for HeNB security procedures
▪IKEv2 (Internet Key Exchange Version 2)
Protocol between HeNB and Security Gateway to establish SAs (security associations)
▪TrE (Trusted Environment)
Trustworthy environment for the execution of sensitive functions and the storage of sensitive data
▪CMPv2 (Certificate Management Protocol Version 2)
Protocol for obtaining X.509 certificates through a PKI (Public Key Infrastructure)
2.9.3 Management
Management Layer provides management capabilities for HeNB and interfaces with upper layer managing
entities.
▪TR-069
HTTP / SOAP based Management protocol between HeNB and HeMS
▪TR-196
Data model for provisioning of HeNB services
▪Fault Management
Provides standard interfaces to manage HeNB faults and alarms
▪Performance Management
Provides standard interfaces to manage HeNB performance data
▪Configuration Management
Provides standard interface for HeNB configuration and provisioning
▪Time Synchronization
Provides time synchronizing protocols (IEEE1588, NTP)
▪Logging
Provides logging capabilities through built in volatile and non-volatile storages.
▪Database
Maintains an internal database to manage configurations, statistics and status
www.juniglobal.com J Plus Proprietary and Confidential 20 / 98
