Jøtul C 24 User manual

Jøtul C 24
UK - Installation and Operating Instructions 3
Conformiteitsverklaring - België 22
NL - Installatiehandleiding en Technische gegevens 2 3
Déclaration de conformité - la Belgique 42
FR - Manuel d’installation et d’utilisation 43
Jøtul C 24
Manual Version P05
Monterings- og bruksanvisningen må oppbevares under hele produktets levetid. These instructions must be kept
for future references. Wir empfehlen Ihnen, die Montage- und Bedienungsanleitung für spätere Zwecke sorgfältig
aufzubewahren. Ce document doit être conservé pendant toute la vie de l’appareil.

2
EU no. 215/1186 - 24/04/2015
Datasheet / Fiche Technique / Ficha técnica /
Scheda dati / Datasheet / Datenblatt
Requirements / Exigences / Requisitos / Requisiti /
Vereisten / Forderungen
Supplier /
Fabricante /
Fornitore /
Vereisten /
Lieferant:
Jøtul AS
Product models
Produits concernés
Modelos
Modelli
Product modellen
Varianten der Feuerstelle
Jøtul C 24
Energy efficiency class / Classe énergétique / Clase de
eficiencia energética / Classe energetica / Energie
efficiëncy klasse / Energieeffizienz-Klasse
A
Direct heat output / Puissance réelle de sortie / Potencia
calorifica emitida / Emissione di calore diretta / Directe
warmte afgifte / Nennwärmeleistung
7,0 kW
Energy efficiency index / Index de rendement énérgétique/
Índice de eficiencia energetica / Indice di efficienza
energetica / Energie efficiëncy index / Energieeffizienz-
Index
104,1
Efficiency at nominal heat output / Rendement à
puissance nominale / Eficiencia al rendimiento nominal /
Efficienza alla potenza nominale / Efficiency bij nominale
warmte afgifte / Wirkungsgrad bei Nennheizleistung
78 %
xAny specific precautions that shall be taken when the
local space heater is assembled installed or
maintained.
xToutes les précautions spécifiques doivent être prises
lors de l’assemblage, l’installation ou l’entretien de
l’appareil.
xCualquier precaución específica que deba tenerse en
cuenta durante el montaje, instalación o
mantenimiento del equipo de calefacción
xPrecauzioni specifiche da prendere quando il
riscaldatore viene assemblato, installato o mantenuto
in uno spazio.
xEventuele specifieke voorzorgsmaatregelen die
worden genomen wanneer de plaatselijke
ruimteverwarming wordt gemonteerd, geïnstalleerd of
onderhouden.
xBesondere Maßnahmen bei Montierung, Installation
und Wartung.
xFire safety precautions such as safety distances when
installing, national standards, local codes and
regulations. See the Instructions manual.
xLes précautions d'incendie telles que les distances de
sécurité lors de l'installation, le suivi des normes, les
codes locaux et les règlementations nationales. Veuillez
lire le manuel d’installation.
xPrecauciones frente a incendios como distancia de
seguridad en la instalación, estándares nacionales,
códigos locales y reglamentos. Lea el manual de
instalación.
xPrecauzioni per la sicurezza antincendio come le distanze
di sicurezza durante l'installazione, le normative nazionali
e locali. Leggere il manual.
xBrandveiligheidsmaatregelen, zoals veiligheids-
afstanden bij installatie, nationale normen, lokale
codes en voorschriften. Leesௗde installatiehandleiding.
xFür brenntechnische Verhältnisse, wie z.B.
Aufstellbedingungen und nationale Forderungen.
Siehe die Montage- und Bedienungsanleitung.

3
ENGLISH
1.0 Regulatory
information
Installation of a fi replace must be according to local codes
and regulations in each country.
All local regulations, including those that refer to national
and European standards, shall be complied with when
installing the product.
Both an installation manual with technical data and a general
user and maintenance manual accompany the product. The
installation can only be taken into use after it has been checked
by a qualifi ed inspector.
An approval label made of heat resistant material is located
on the heat shield at the back of the product. This contains
information about identifi cation and documentation for the
product.
2.0 Technical data
Material: Cast iron
Finish: Black paint
Type of fuel: Wood
Max. log length: 50 cm
Smoke outlet: Top
Flue pipe dimension: Ø 150 mm/177 cm2 cross
section
Outside air connector: Flexible aluminium pipe
Ø80 mm/Ø100 mm
2 connectors for
hot air outlet: Flexible aluminium pipe Ø
150 mm
Weight: Approx. 136 kg
Optional extras: Frame wide, Fan, outside
air connection kit Ø 100
mm, Adaptorfor fl ue pipe.
Product dimensions, distances: See Fig. 1
Technical data in accordance with 13229
Nominal heat output: 7.0 kW
Flue gas fl ow rate: 5.9 g/s
Recommended chimney draught: 12 Pa
Effi ciency: 78%@7.0 kW
CO emissions (13% O2): 0.06%
OGC emissions (13% O2) 32 mg/Nm3
Dust emissions 5 mg/Nm3
Flue gas temperature: 295°C
Operation: Intermittent
Intermittent operation means normal use of a fi replace. This
means that to refuel the fi re, you add more wood as soon as
the previous load of wood has burned down to embers.
Table of contents
1.0 Regulatory information ........................... 3
2.0 Technical data ......................................... 3
3.0 Safety ....................................................... 7
4.0 Installation .............................................. 7
5.0 Daily use ................................................ 18
6.0 Servicing ................................................ 20
7.0 Maintenance .......................................... 21
8.0 Optional Equipment ............................. 21
9.0 Recycling ............................................... 21
10.0 Guarantee terms .................................... 21
On all our products there is a
label indicating the serial number
and year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number
when contacting your retailer or
Jøtul.
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC
SP
EN
Serial no.
Register your fi replace at jotul.com for a
25-year warranty.

4

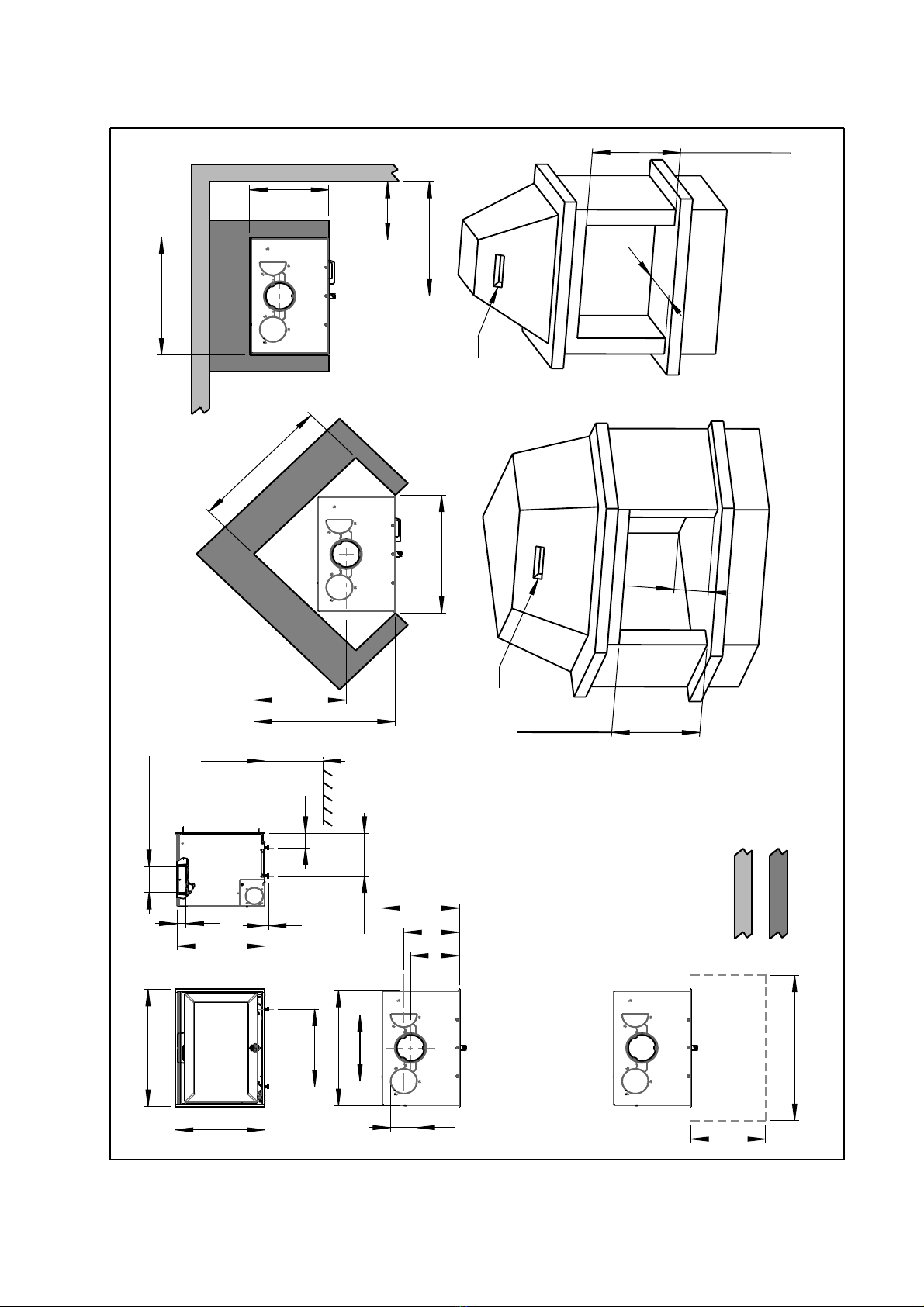

Jøtul C 24 inclusive optional wide frame
Fig. 1A Product Min. installation measurements
Floor plate measurments. X/Y Acc.to national standards and regulations
X
Y
900138-P00
Floor
= Opening in surround using optional wide frame
= Legs adustable up 20mm
= Minimum distance to combustible floor
= Frame adjustable out 40mm
Combustible wall
Non combustible wall Jøtul JGFW-5 Firewall
50mm thick
= Alternative insulation. See chapter 4.3
I
II
III
I
II
III
V
V
IV
IV
I
IV
IV
0
0
330
20
316
87
256
466(Legs)
156 Smoke outlet
499
50
441
755
558
694 400
515
715
100
886
690
353
538
443
100
1232
700
443
886
100
278
456
539
101
50
50
50
50
50
100
50
150
ENGLISH

5
ENGLISH
Jøtul C 24 inclusive optional narrow frame
Fig. 1B Product Min. installation measurements in
exsisting approved hart
Floor plate measurments. X/Y Acc.to national standards and regulations
900138-P00
= Legs adjustable up 20mm
= Minimum distance to combustible floor
= Frame adjustable out 40mm
= Frame outside hart wall
Combustible wall
Non combustible wall
Floor
X
Y
= free opening 100cm²
I
II
III
V
IV
I
III
II
III
III
IV
( 700)
IV
( 700)
IV
( 505)
IV
( 505)
V
V
450
515
450
690
353
805
710
805
820
525
515
705
510
466 87
256
156Smoke outlet
20
499
50
330
316
441
694 400
425
875.1
278
150
710

6
Fig. 2
900138-P00
Combustible material
Non combustible material
500 cm²
350 cm²
= Alternative insulation. See chapter 4.3
500 cm²
350 cm²
Insulated chimney
= Use a steel plate under the insulation if nessesary
= Distance to furniture (combustibles)
Jøtul JGFW-5 FireZall
50mm thick
I
I
II
III
III
Alternative placements
of air inlet adaptor
Air inlet adaptor
II II
80
100
62
50
Min. 450 500
1050
500Min. 450
Min. 20
50
ENGLISH

7
ENGLISH
3.0 Safety
NB! To guarantee optimal performance and safety, Jøtul
stoves must be fi tted by a qualifi ed installer.
Any modifi cations to the product by the distributor, installer or
consumer may result in the product and safety features not
functioning as intended. The same applies to the installation of
accessories or optional extras not supplied by Jøtul. This may
also be the case if parts that are essential to the functioning and
safety of the fi replace have been disassembled or removed.
In all these cases, the manufacturer is not responsible or liable
for the product and the right to make a complaint becomes null
and void.
Keep the door closed during use (the product is not approved
for use with open door
3.1 Fire Prevention Measures
There is a certain element of danger every time you use your
fi replace. The following instructions must therefore be followed:
• The minimum safety distances when installing and using
the fi replace are given in fi g. 1A and fi g. 1B.
• Ensure that furniture and other fl ammable materials are not
too close to the fi replace. Flammable materials should not
be placed within 1,05 metre of the fi replace.
• Allow the fi re to burn out. Never extinguish the fl ames with
water.
• The fi replace becomes hot when lit and may cause burns
if touched.
• Only remove ash when the fireplace is cold. Ash can
contain hot embers and should therefore be placed in a
non-fl ammable container.
• Ash should be placed outdoors or be emptied in a place
where it will not present a potential fi re hazard.
In case of chimney fi re:
• Close all hatches and vents.
• Keep the fi rebox door closed.
• Check the loft and cellar for smoke.
• Call the fi re service.
Before use after a fi re an expert must check the fi replace and
the chimney in order to ensure that it is fully functional.
4.0 Installation
The Jøtul C 24 is a cassette stove that is designed to fi t inside
an existing fi replace hearth (Fig. 1 B). This requires a minimum
hearth opening of HxWxD = 515x710x450 mm. If the frame is
placed on the outside of the hearth walls, the opening may be
reduced to HxWxD = 505x700x450 mm. NB! You must allow
space between the cassette and the masonry for thermal
expansion of the cassette stove.
The product also fi ts inside a new fi replace surround (Fig. 1 A).
The fi replace surround must have a minimum opening of HxWxD
= 515x715x490 mm. It is also important to allow space for
insulation around the surround. If using a wide frame (optional
extra), it will overlap openings to HxW = 558x755 mm.
A narrow frame is included with the product. It is possible to
move this frame and a wide frame (optional extra) up to 40
mm to make it easier to adapt the product for diff erent fl ue
pipe positions.
4.1 Floor
Foundation
You need to make sure the foundation is suitable for a fi replace.
See “2.0 Technical Data” for specifi ed weight.
Requirements for protection of wooden
fl ooring beneath the fi replace
The Jøtul C24 has a heat shield underneath to protect the fl oor
from radiated heat. The product can therefore be positioned
directly on a wooden fl oor that is covered by a sheet of metal
or other non-infl ammable material. The recommended minimum
thickness is 0.9 mm. The plate must cover the entire fl oor
surface within the surround.
We recommend the removal of any fl ooring that is not
attached to the foundation (“fl oating fl oors”) beneath the
installation.
Any floor covering of inflammable material, such as
linoleum, carpets, etc. must be removed from under the
fl oor plate.
Requirements for protection of
infl ammable fl oors in front of the
fi replace
The fl oor in front of the fi replace must be protected by a sheet
of metal or other non-infl ammable material. The recommended
minimum thickness is 0.9 mm. The fl oor plate must comply with
national laws and regulations.
Contact your local building authorities regarding restrictions and
installation requirements.
4.2 Ceiling
Distance from hot air vents in the top ( Fig. 1B-V or 500 mm.

8
4.3 Insulation requirements
When the cassette is fi tted into a surround with combustible
walls protected by insulating material, the following types
and thicknesses can be used:
50 mm Jøtul JGFW-5 fireproof board (specific thermal
conductivity = λ value = 0.06 W/mK)
50 mm (min. 38 mm) Rockwool (λ value = 0.046 W/mK)
50 mm (min. 31mm) Rockwool (λ value = 0.037 W/mK)
Other materials may be used. See Fig. 33 for minimum
insulation thicknesses for known Lambda (λ) values.
Note: The insulation must be mounted in a way that doesn`t
allow heat to be conducted through the securing materials
to the combustible walls.

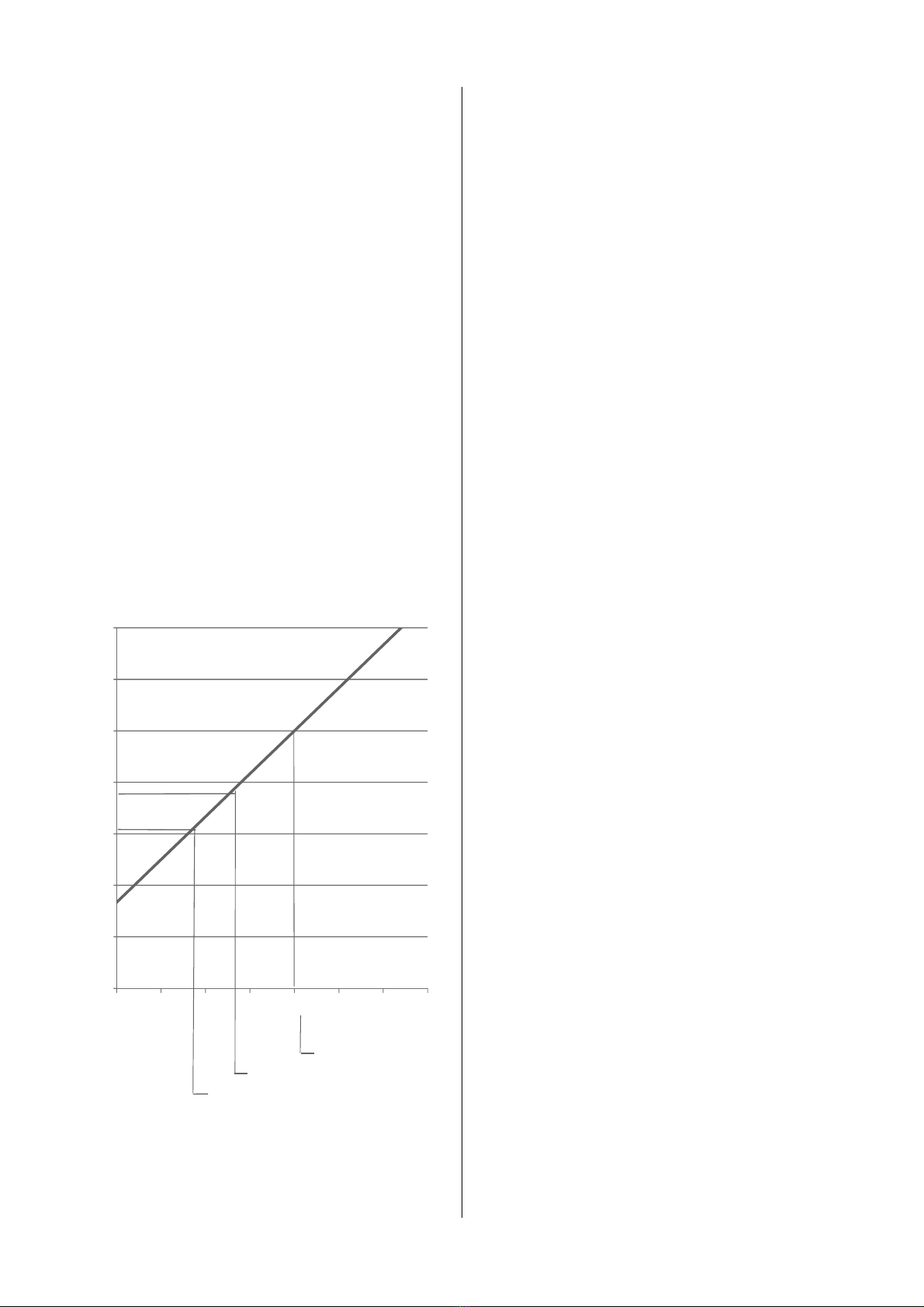

Fig 33
Minimum insulation thickness
Minimum Insulation Thickness
[mm]
Lambda value [W/mK]
JGFW-5 firewall
RockWool BB Lambda 0,046
RockWool BB Lambda 0,037
0
10
20
30
40
50
60
70
0,02 0,03 0,04 0,05 0,06 0,07 0,08 0,09
4.4 Outside air connection
Warning! You need to ensure an adequate supply of outdoor
air to the room in which the product is being installed. An
inadequate supply of air may cause smoke to be emitted into
the room. This is highly dangerous! Symptoms of this may be
the smell of smoke, feeling of tiredness, nausea and sickness.
If the house is tightly sealed and insulated and/or has a
mechanical air extraction system, the room should be fi tted
with vents or a separate duct to provide an additional supply
of outside air. Ducts in the room where the stove is installed
must be made of a non-combustible material such as a fl exible
aluminium pipe with an internal diameter of 80 or 100 mm.
A fresh air duct connector is included with the product. The
connector can be attached in three diff erent places (Fig. 2)
depending on how the duct is entering the surround or heart.
A kit for outside air connection with air duct, wall grille and
insulation is an optional extra. If outside air does not pass
through a separate duct, the lever (Fig. 27A) must be in the
open position. If the air to the product passes through an outside
air duct, the lever must be in the closed position. See Chapter
4.11 for installation of outside air connection.
4.5 Air circulation
If installing in a new fi replace surround (Fig. 2), air must be able
to circulate between the cassette and the masonry.
Min. circulation air:
Base: 350 cm2 free opening.
Top: 500 cm2 free opening.
This is a safety measure to ensure that the build-up of heat
inside the fi replace surround does not become too great and
that the output of heat to the room is adequate. If the product
is installed in an approved hearth, the opening in the base can
be omitted and the opening in the top can be 100 cm2. See
Chapter 4.6.
4.6 Hot air distribution / fan
One or two ducts with an internal diameter of 150 mm can be
connected to distribute the heated air from the cassette. Hot
air ducts must be made of a heat-resistant, non-combustible
material, for example, fl exible aluminium ducts. These can
become very hot and it is important that they do not come into
contact with any combustible material. Two connectors for the
ducts are included with the product (ducts are not included).
The problem of paint changing colour just above the cassette
is reduced by the use of hot air ducts. A fan (optional extra) can
be fi tted inside the product to increase hot air distribution. This
can be fi tted regardless of whether ducts for hot air distribution
have been installed or not. The fan should be fi tted before
the product is installed. See the instruction manual for fan
installation (included with the fan).
ENGLISH

9
ENGLISH
4.7 Chimney and fl ue pipe
• The fi replace can be connected to chimneys and fl ue pipes
approved for solid fuel fi replaces with fl ue gas temperatures
as specifi ed in «2.0 Technical Data».
• The cross-section of the chimney must be at least that of the
fl ue pipe. Use «2.0 Technical Data» to calculate the correct
chimney cross-section. NB! The minimum recommended
chimney length is 3.5 m.
• For recommended chimney draught, see «2.0 Technical
Data». If the draught is too strong, action must be taken,
e.g. install and operate a fl ue pipe damper in order to reduce
the draught.
• The chimney and sweeping hatch must be inspected to
ensure they are tightly sealed to prevent leakage. If there is
a leak, less air will be pulled through the stove. Your local
fi re safety offi ce can carry out an inspection of the chimney.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the fi replace should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney. See Fig. 1 for
minimum dimensions.
• It is extremely important for connections to have a degree of
fl exibility. This is to prevent any movement in the installation
leading to the formation of cracks.
• It is important for the joints/flue pipes to be sealed
completely. Air leakage may cause malfunction.
• An adapter that makes it easier to install the fl ue pipe is
available as an optional extra. See Chapter 4.11.
• A fl ue gas bend that alters the direction of the fl ue gas by
more than 45° must be fi tted with a sweeping hatch. Note
that it is possible to sweep from the inside of the burn
chamber. See Chapter 7.2.
• NB: A correct and airtight connection is extremely important
for the function of the product.
• Weight must not be transferred from the fi replace structure
to the chimney. The fi replace structure must not hinder the
chimney’s ability to move, and must not be anchored to
the chimney.
4.8 Before installation
Make sure that the Jøtul C 24 fi ts inside the hearth or surround,
Fig. 1 shows the minimum dimensions. You must allow space
between the cassette and the masonry for thermal expansion
of the cassette stove. The hearth must be cleaned thoroughly
before installation. It is important to remove old soot and tar
that has collected in the hearth to prevent an unpleasant smell
in the room. Use a suitable detergent.
The standard product comes in a two packages.
• When the product is unpacked, remove the bag of screws
and the box with the outside air connector, 2 hot air outlet
connectors and the oven glove from the burn chamber.
• Also remove the ash pan, fi re grate and a wooden block
(used for transportation) just below the product’s smoke
outlet.
• Check the product for signs of damage and make sure that
the control handles work.
4.9 Door hinge reversal
It is possible to change the door of the Jøtul C 24 from left-
hinged to right. If you wish to change the hinges, this should
be done before installation. If you do not wish to change the
hinges, proceed to Chapter 4.10.

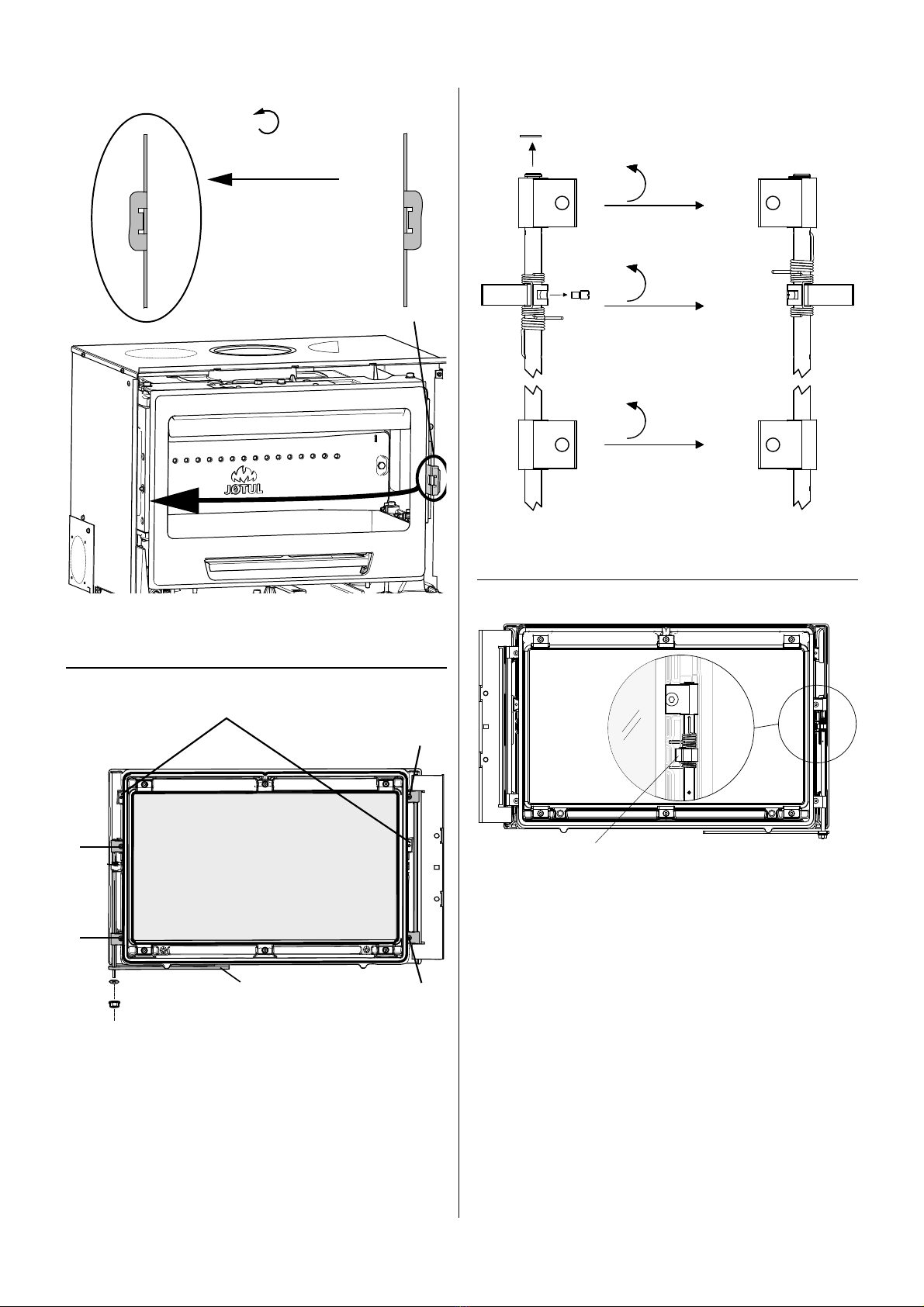

Fig. 3
12
1. Remove the side burn plates by lifting them slightly and
pulling out at the bottom.
Fig. 4
A
2. Loosen the 2 screws (Fig. 4A) holding the hinges in place.
Hold the door so that it does not fall down when loosening
the last screw.
3. Place the door face down on a fl at surface.

10
Fig. 5
180o
4. Remove the lock catch on the right-hand side of the product
and attach it to where the door hinges were on the left-hand
side.
Fig. 6
A
A
A
A
B
C
5. Remove the handle (Fig. 6B) from the door lock. Loosen
the 4 screws (Fig. 6A) holding the door lock and hinges in
place. Scrape any traces of glue off the surfaces (Fig. 6C).
Fig. 7
180°
180°
180°
6. Rotate the parts of the door lock axis by 180°.
Fig. 8
A
7. Install the door lock and hinge on the opposite side (Fig. 8).
8. Place the door on the product. Note: the position of the door
can be adjusted slightly by loosening the screws (Fig. 4A)
a little. Tighten the screws.
9. Refi t the handle.
ENGLISH

11
ENGLISH
Fig. 9
10. The door can also be adjusted upwards or downwards
slightly on the door lock side by forcing it into correct
position NB! The door cannot be fully closed when
adjusting it!
4.10 Assembly/installation with easy
access behind the product.
Installation
The product is heavy! Ensure you have help when
positioning and installing it.
If there is easy access behind the product, it can be placed
directly into the surround. When the product is in the right
position, the fuel pipe and outside duct, fan or hot air ducts can
be connected. If there is no access, or limited access, to the
rear of the product when it is in position, we recommend you
fi rst read Section 4.11 which gives examples of how to proceed.
1. Position the product in the surround so that the front part of
the product and the front part of the surround are aligned.
Fig. 10
AA
2. Unscrew the 4 screws (Fig. 10A) below the fi re grate using
a 5 mm Allen key from the bag of screws.
Fig. 11
B
A
3. Adjust the 4 leg screws (Fig. 11A) below the screws that you
just removed until the product is level. Use the 4 mm Allen
key (Fig.11B) from the bag of screws

12
Fig. 12
A
B
B
4. Remove the frame from its cardboard box and place it. Do
not fasten it yet. A wide frame is available as an optional
extra.
Fig. 13
A
B
5. If necessary, the 2 nuts (Fig.13A) can be loosened slightly
and the primary air vent (Fig.13B) can be pulled forward.
This makes it easier to reach. Next, tighten the nuts.

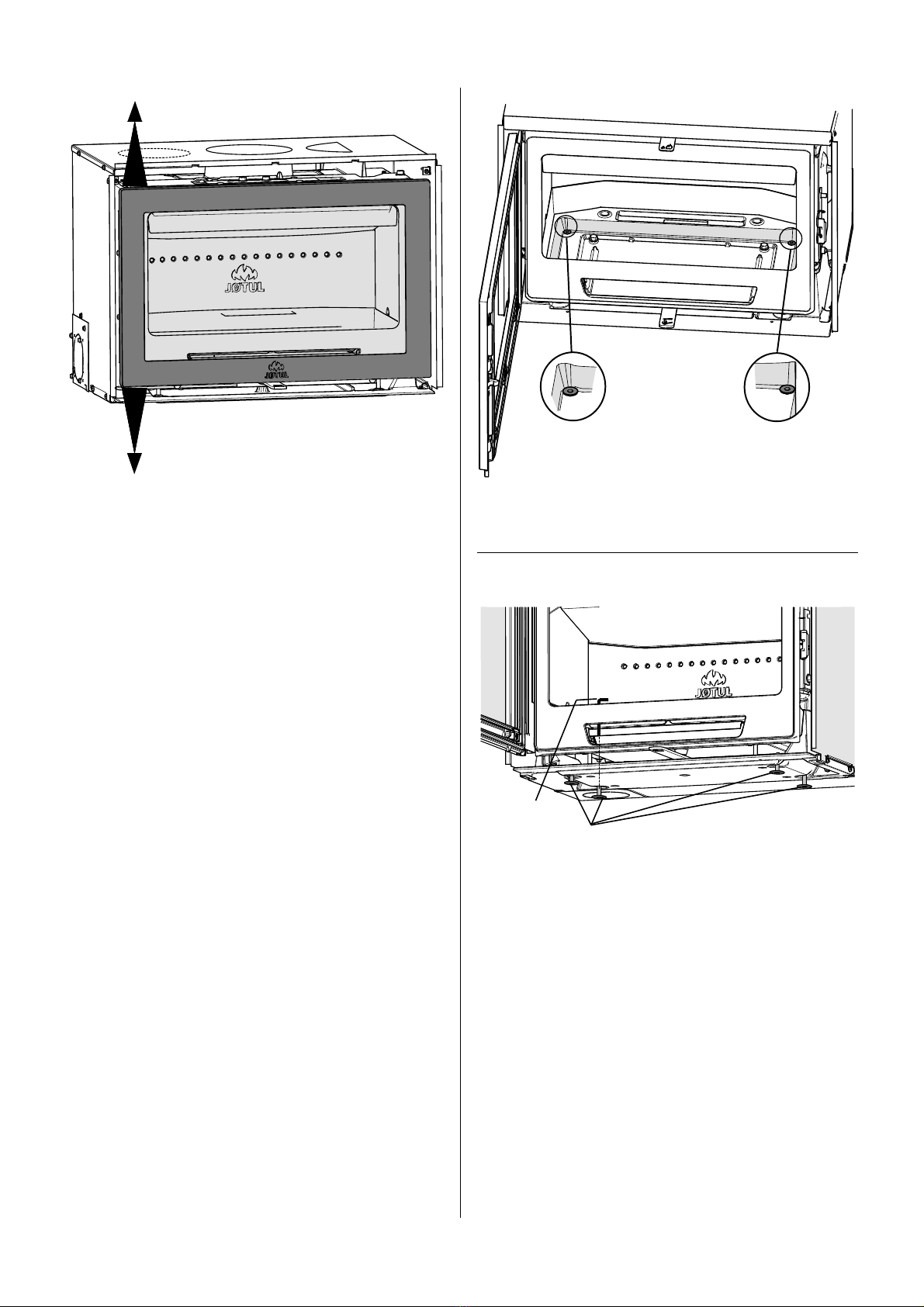

6. If everything looks right, put the 4 screws (Fig. 10 A) that
were removed back into place.

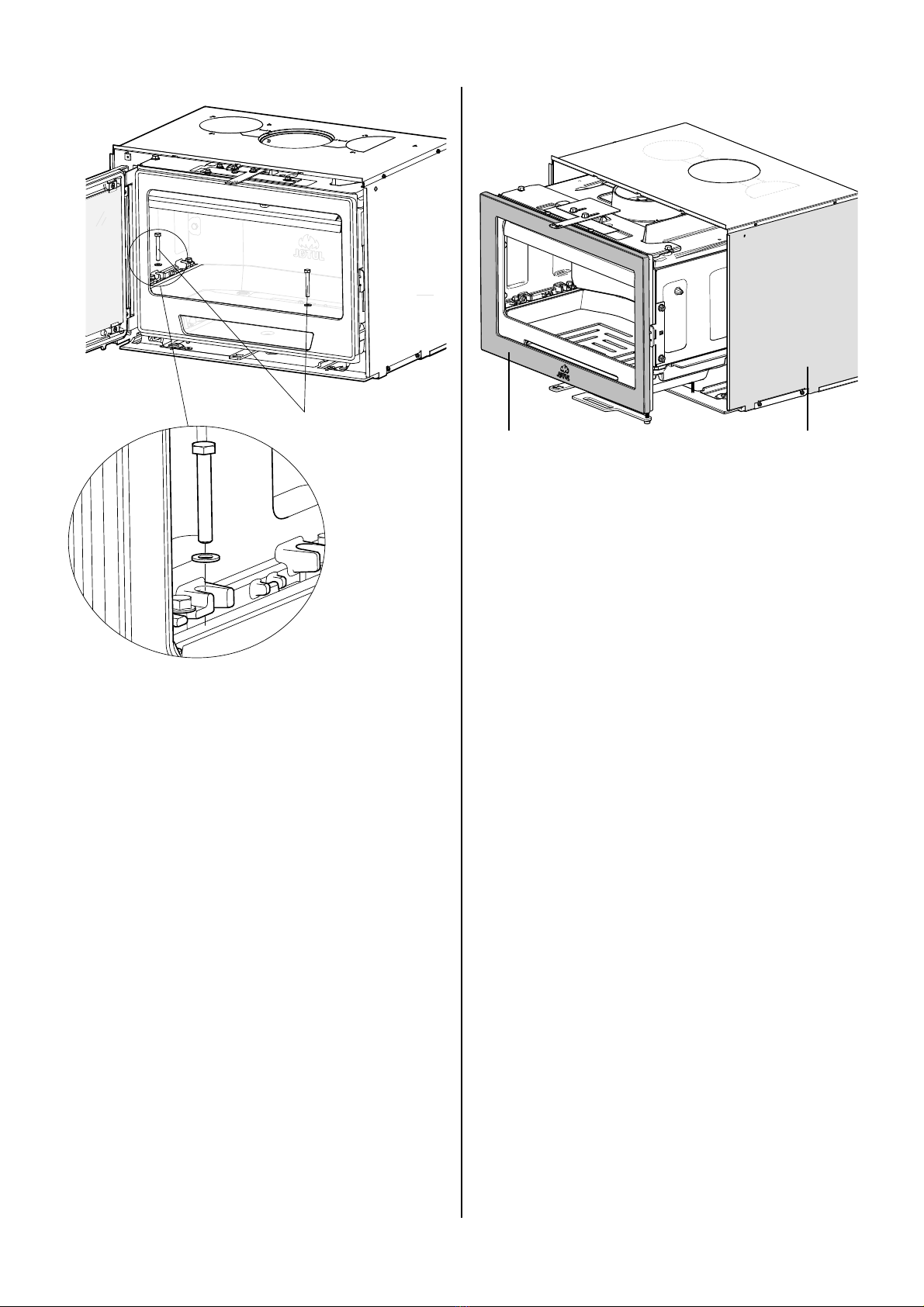

7. Secure the frame into place using the screws
(Fig. 12 A and B) from the bag in the frame’s box.
Fitting the fl ue pipe
Fig. 14
AA BB

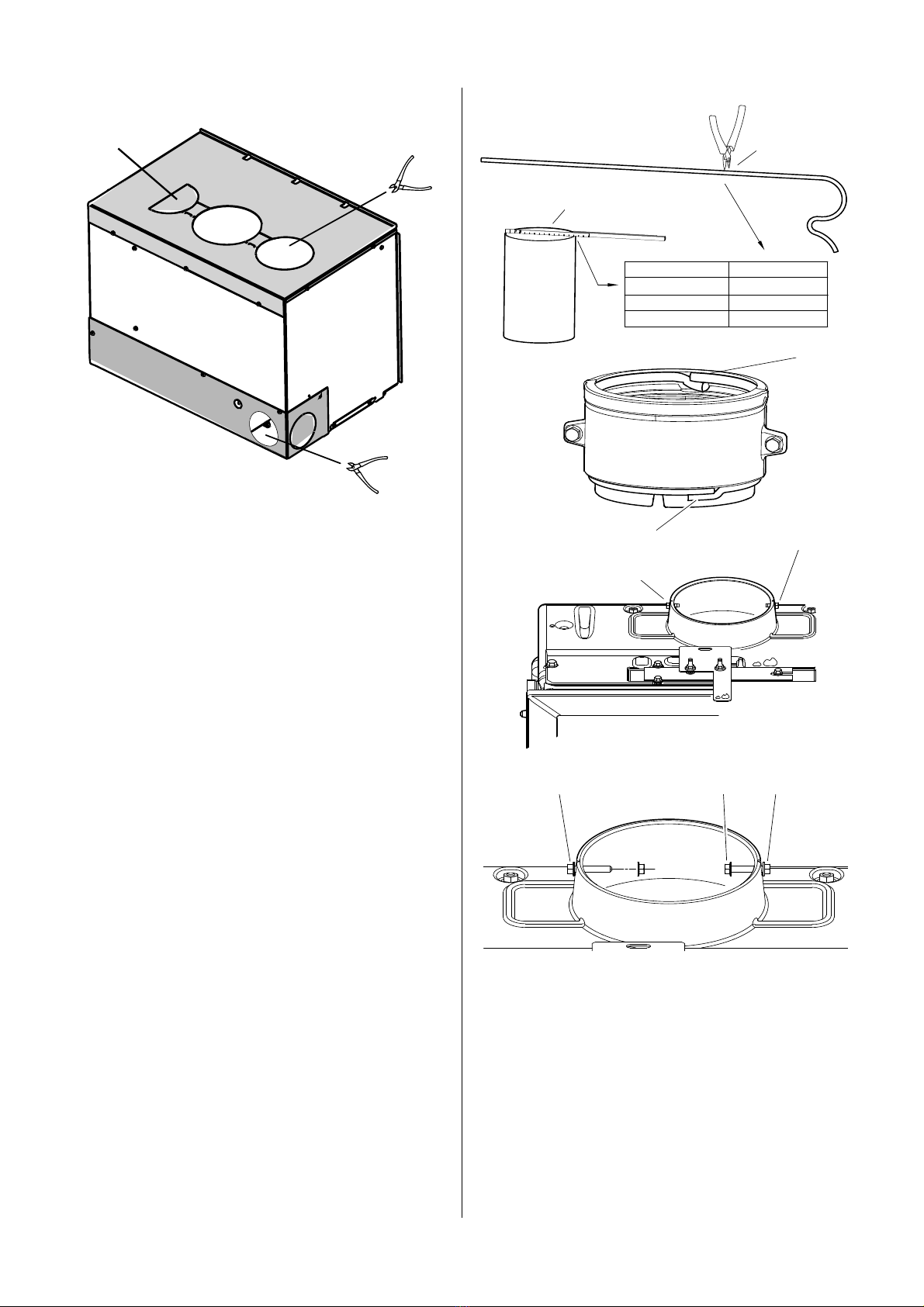

1. Open Open the 2 lugs (Fig. 14A) next to the smoke outlet
and remove the 2 screws (Fig. 14B) .
Fig. 15
35mm Ø8mm
A
2. Make 2 Ø 8 mm holes for the fi xing screws in the fl ue pipe.
Place the gasket (A) on the fl ue pipe.
3. Place the fl ue pipe on the connector and secure with screws
(Fig. 14). Next, close the lugs (Fig. 14A).
4. Refi t all loose parts that were removed from the product.
See Chapter 4.7
ENGLISH

13
ENGLISH
4.11 Assembly/installation with no access behind the product
The Jøtul C 24 can be installed without access to the rear of the product when placed inside a hearth or surround. Note that this
method of installation requires an optional fl ue pipe adapter (Fig. 21A)
Fig. 19
A
C
E
D
F
4cm
B
8cm
14cm
H
G
6cm
1. Remove the side burn plates, baffl e and exhaust defl ector as instructed in Chapter 6. No tools are required..

14
Fig. 18
AB
NB! Step 3 is only necessary if hot air ducts are
used!
3. Close the door and pull the entire burn chamber (Fig. 18A)
out of the convection chamber (Fig. 18B). NB! Place a
protective cover under the combustion chamber to prevent
damage to the fl oor.
4. Install the fl ue pipe (Fig. 19A) in the correct position so that it
fi nishes 4 cm above the cassette. See Fig. 1 for dimensions.
The brackets (Fig.19B) must be fastened securely to the
masonry. Use the expansion bolts that come with the adapter
kit (optional extra). Holes in the surround for the expansion
bolts are Ø6 mm. The brackets must not be lower than 14
cm above the cassette.
5. The screws (Fig. 19C) and nuts that hold the fl ue pipe in
place may be loosely tighten in order to allow the fl u pipe to
be slightly moved. The adaptor can then be moved easily to
the centre of the smoke outlet on the cassette.
6. Attach the connector (Fig. 19D) to the fl exible hot air duct
using a hose clip (Fig. 19E). Complete the installation in the
surround. The connector should be at the same height as
the top of the cassette.
7. Choose the most suitable position for the connector (Fig.
19F) if installing an outside air duct (see Fig. 2). Make holes
for the duct in the hearth or surround (Fig. 19G).
8. Make sure that the inlet air lever (Fig. 27A) is in the correct
position (closed).
Fig. 17
A
NB! Step 2 is only necessary if hot air ducts are
used!
2. Remove the 2 screws and washers (Fig. 17A).
ENGLISH

15
ENGLISH
Fig. 20
A
9. Cut out the appropriate openings in the convection chamber.
Note that the hole (Fig. 20A) for the hot air distribution is
crescent shaped.
10. Assemble the outside air connector (Fig. 19F) and attach
the fl exible outside air duct with a hose clip.
fi g. 31
1
2
5
676
3
45
15,4 cm 55 cm
15,2 cm 65 cm
15,0 cm 75 cm
14,8 cm 105 cm
5
• Measure the external diameter of the fl ue pipe.
• Cut a piece of the thick, self-adhesive gasket that is
provided.
• Apply the gasket to the adapter. Start with step 3 (Fig. 31).
• Apply the thin gasket as illustrated in step 4 (Fig. 31).
• Remove the two screws from the smoke outlet on the burn
chamber (Fig. 31-5).
• Fasten the two 35 mm screws (from the bag) as illustrated
in step 6 (Fig. 31).
• Fasten the two nuts outermost on the screws as illustrated
in step 7 (Fig. 31).

16
Fig. 21
A
11. Attach the fl ue pipe adapter (Fig. 21A). Secure the fl ue pipe
adapter with a bit of tape so that it does not fall down. The
convection chamber is now ready to be placed inside the
heart/surround. If installing a fan, this must be done now. A
separate instruction manual is provided with the fan.
Fig. 22
12. Put the convection chamber into place. If no hot air ducts
are being installed, the entire product can be put into place..
Fig. 23
A
A
B
C
13. See Fig. 10 and 11 if the entire product is placed inside the
surround/hearth.
14. Adjust the 4 leg screws (Fig. 23A) using the 4 mm Allen key
from the bag of screws until the product is level.
15. Test to see whether the frame (Fig. 12) fi ts and check that
the fl ue pipe adapter is aligned with the middle hole in the
convection chamber.
16. Drill 2 Ø10 mm plug holes (Fig. 23B) in the hearth and secure
the convection chamber in place with screws and washers from
the bag of screws.
17. If these screws do not grip well, there are two other
attachment options below the heat shield (Fig. 23C).
Fig. 24
A
18. Attach each hot air duct to the convection chamber using 3
tapping screws (Fig. 24A) from the bag of screws.
19. Place the burn chamber (Fig. 18A) inside the convection
chamber and secure with the screws (Fig. 17 A).
ENGLISH

17
ENGLISH
Fig. 25
A
BB
20. Pull the adapter (Fig. 25A) down fi rmly and tighten the
nuts (Fig. 25B) alternately to ensure the adapter is even.
If needed, use cement to seal between the fl ue pipe and
adaptor. Put the frame on (Fig. 12).
21. Refi t all loose parts that were removed from the product.
4.12 Performance check
Once the product has been assembled, always check the control
handles. These should move easily and work in a satisfactory
manner.
Fig. 26
A
CB
Closed
Closed Open
Open
The Jøtul C 24 is equipped with the following operating options:
Air vent (Fig. 26A)
Left position closed
Right position fully open
Ignition vent (Fig. 26B)
Left position closed
Right position fully open

18
Fig. 27
A
Closed
Open
• The inlet air lever (Fig. 27A) is behind the front. If an outside
air duct (Chapter 4.4) is installed, the lever must be in the
closed position. Turn it to the left.
• If an outside air duct is not installed, the lever must be in
the open position. Turn it to the right.
NB! The only time this lever needs to be set is when the
product is installed.
Lighting the fi re
• Open the ignition and air vents by turning the control levers
to the right. (Use a glove or something similar in case the
control levers are hot).
• Place two logs at the bottom of the burn chamber and pile
the kindling in layers.
• Finally, place a medium-sized log on the top of the pile.
• Place 2 or 3 briquettes or kindling sticks under the top layer
of kindling and light the fi re.
After lightning
• Close the ignition vent (Fig. 26 B) when the wood has caught
fi re properly and is burning well.
• You can then regulate the rate of combustion to give the
heat you want by adjusting the air vent (Fig. 26A).
• Check that afterburning (secondary combustion) starts. This
is best indicated by yellow () fl ames in front of the holes
under the baffl e (Fig. 26C).
• If the chimney draught is normal, the fi re will take care of
itself.
Important! An inadequate air supply can lead to poor
combustion, high emissions and a lower level of effi ciency
Adding fi rewood
• Stoke the stove frequently but only add small amounts of
fuel at a time.
• If the stove is fi lled too full, the heat created may cause
extreme stress in the chimney.
• Add fuel to the fi re in moderation.
• Avoid smouldering fi res as this produces the most pollution.
• The fi re is best when it is burning well and the smoke from
the chimney is almost invisible..
4.13 Warning against overheating
Never overstoke the fi replace!
Overheating occurs when there is too much fuel and/or too much
air so that too much heat develops. A sure sign of overheating
is when parts of the stove glow red. If this happens, reduce the
air vent opening immediately.
Seek professional advice if you suspect that the chimney is
not drawing properly (too much/too little draught). (See «4.7
Installation» (Chimney and fl ue pipe) for information.).
5.0 Daily use
Odours when using the fi replace for the fi rst
time!
When the fi replace is used for the fi rst time, it may emit an
irritating gas which may smell slightly. This is because the paint
on the outside is drying. The gas is not toxic but you should
open some windows to ensure the room is thoroughly ventilated.
Let the fi re burn with a high draught until all traces of the gas
have disappeared and no smoke or odours can be detected.
Keep the door closed during use (the product is not approved
for use with open door.
Please note! Parts of the wood-burning stove, especially the
outer
surfaces, become hot during use. Please exercise due care!
5.1 Operation
Heating advice
NB: Logs that have been stored outdoors or in a cold room
should be brought indoors 24 hours before use to bring
them up to room temperature.
There are various ways of heating the stove but it is always
important to be careful about what you put in the stove. See
the section on “Wood quality”.
Wood quality
The logs should be dried so that the moisture content is
no more than 20%.
To achieve this, the logs should be cut no later than in late
winter. They should be split and stacked in a way that ensures
good ventilation. The wood stacks should be covered to protect
the logs from rain. The logs should be brought indoors during
early autumn and stacked/stored for use in the coming winter
Be especially careful never to use the following materials
as fuel in your fi replace:
• Household rubbish, plastic bags, etc.
• Painted or impregnated timber (which is extremely toxic).
• Laminated wooden planks.
• Driftwood
These may harm the stove and are also pollutants
.
NB: Never use petrol, paraffi n, methylated spirit or similar
liquids to light the fi re. You may cause serious injury to
yourself and damage to the product.
ENGLISH

19
ENGLISH
Wood consumption
Wood consumption, at nominal heat output: Approx. 2.3 kg/h.
The size of the logs should be:
Kindling (fi nely split wood):
Length: 20 - 30 cm
Diameter: 2 - 5 cm
Quantity for kindling: 6 - 8 pieces
Wood (split wood):
Recommended length: 30 - 50 cm
Diameter: Approx. 8 cm
Stoking frequency: Approx. every 45 minutes
Fire size: 1.7 kg (nominal output)
Quantity required each time: 2 pcs.
Nominal heat output is achieved when the air vent is open
approximately 50% opening of the air vent.
5.2 Ash removal
Only remove ash when the fi replace is cold.
5.3 Using your stove in the spring
or autumn
In the transition period (spring/autumn), where there is less need
for heating, we recommend to make a single „top down“ lighting,
perhaps with one stoke up to ensure that the combustion
chamber lining burns clean again.
5.4 Using your stove in various
weather conditions
Wind blowing on the chimney can have a great eff ect on how
your
stove reacts in various wind conditions; you may need to adjust
the airfl ow to achieve good burning results. Fitting a damper
in the fl ue pipe may also help as it will give you the ability to
regulate the draught in changing wind conditions.
Fog can also have a great infl uence on how well a chimney
draws; you may again need to adjust the airfl ow settings to
achieve good burning results.
5.5 Chimney
The chimney is the engine that drives the fi replace and it’s
essential to have a good chimney in order for the fi replace
to function properly.
The draught in the chimney creates a vacuum in the stove.
The combustion air is also used for the airwash system that
keeps the window clear of soot.
The draught in the chimney is caused by the diff erence in
temperatures inside and outside the chimney. The greater the
temperature diff erence, the better the draught in the chimney.
It is therefore important to allow the chimney to reach operating
temperature before adjusting the air vents to restrict combustion
in the stove (a brickwork chimney takes longer to reach
operating temperature than a steel chimney).
It is particularly important to reach operating temperature as
quickly as possible on days on which the draught in the chimney
is poor due to unfavourable wind and weather conditions. Make
sure the fuel ignites as quickly as possible. Practical tip: Chop
the wood into much smaller pieces and use an extra fi relighter.
NB: If the stove has not been used for some considerable time,
it is important to check the chimney pipe for blockage.

20
6.0 Service
Warning! Any unauthorised changes to the product are
illegal! Only original spare parts may be used!
6.1 Replacing the burn plates

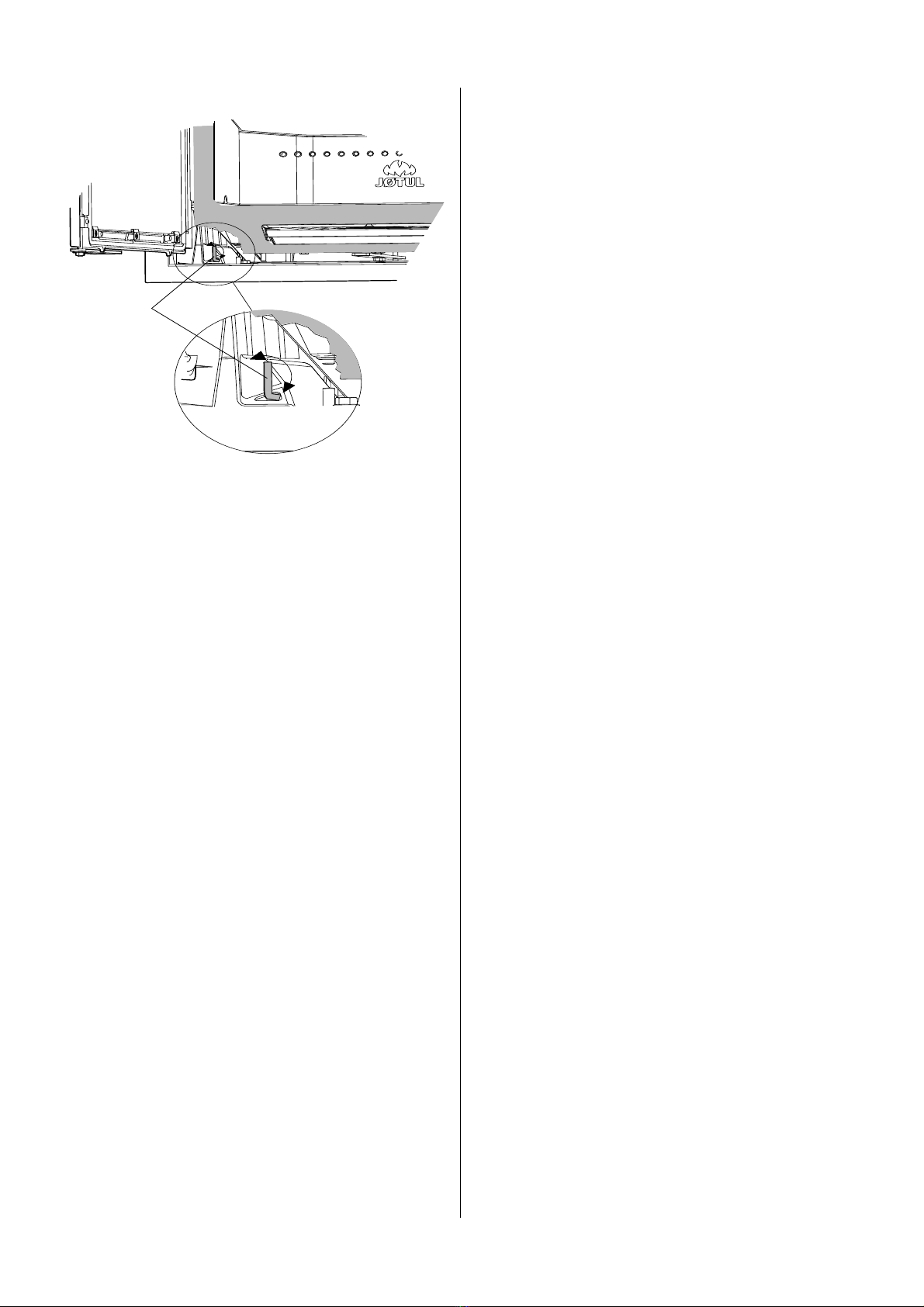

Fig. 28
ABA
Fig. 29
A Ø10mm B
1. Remove the side burn plates by lifting them slightly and
pulling out at the bottom (Fig 3).
2. Remove the screws (Fig 28A) and pull the back burn plate
out. Hold simutaneously the baffl e (Fig 28B) up so it does
not fall down. Please note that the seal on the back burn
plate needs to be replaced if damaged .
3. To install the burn plates, follow the same procedure in
reverse order
6.2 Replacing the baffl e/exhaust
defl ector
1. First remove the side burn plates (Fig.3). It is not necessary
to remove the back burn plate .
2. Pull the baffl e (Fig. 28B) forward and down at the front
edge. Turn it so that it is standing diagonally behind the
front, and lift it out.
3. Lift the back edge of the exhaust defl ector (Fig. 30A), push
it backwards and then down at the front edge.
4. To install them, follow the same procedure in reverse order.
Fig. 30
A
7.0 Maintenance
7.1 Cleaning and soot removal
Soot deposits may build up on the internal surfaces of the
fi replace during use. Soot is an insulator and will therefore
reduce the fi replace’s heat output. If soot deposits accumulate
when using the product, they can easily be removed by using
a suitable detargent.
In order to prevent a layer of water and tar from forming in the
fi replace, you should regularly allow the fi re to burn hot in order
to remove the layer. Your product should be cleaned internally
once a year to ensure the best heating eff ect. It is a good idea
to do this when cleaning the chimney and fl ue pipes.
ENGLISH
