Jøtul C 350 User manual

1
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Jøtul C 350
Winterport
Fireplace Insert
Keep these instructions for future reference.
Installation and Operating Instructions
for the United States & Canada
Jøtul C 350 Winterport
Fireplace Insert

2
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
NOTICE:
YOU SHOULD CONSULT THE AUTHO-
RITY HAVING JURISDICTION IN YOUR
LOCALE (SUCH AS MUNICIPAL BUILDING
DEPARTMENT, FIRE DEPARTMENT, FIRE
PREVENTIOIN BUREAU, ETC.) BEFORE
INSTALLATION TO DETERMINE THE NEED
TO OBTAIN A PERMIT.
Accepted For Use
City of New York
Department of Buildings
MEA 429-07-E
Jøtul North America, Inc.

3
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Table of Contents
Standards and Safety Notices
Standards / Codes ........................................................4
Safety Notices ............................................................... 5
Preparation ................................................................... 5
Unpacking the Firebox ............................................... 5
Specifications
Jøtul C 350 Winterport Fireplace Insert.................. 6
Installation
Masonry Fireplace Requirements ............................ 7
Factory-built Fireplace Requirements .................... 7
Chimney Height ............................................................ 7
Hearth Protection ........................................................ 8
Clearance to Combustibles ....................................... 9
Chimney Connection ................................................10
Firebox Installation ....................................................12
Surround Assembly ...................................................13
Operation
Wood Fuel .................................................................... 14
Air Control .................................................................... 14
Starting / Maintaining the Fire ................................15
Formation of Creosote ...............................................15
Blower .......................................................................... 16
Maintenance
Ash Removal .................................................................17
Glass Care ......................................................................17
General Maintenance ................................................ 18
Gaskets .......................................................................... 18
Illustrated Parts Breakdown
Parts List ............................................................... 20-21
Miscellaneous Replacement Parts ........................22
Appendix A
Baffle Assembly ...........................................................22
Door Knob Assembly .................................................22
Miscellaneous Replacement Parts .........................22
Warranty Statement ................................... 23
For Your Records...
Record the following information to help your
dealer determine what you will need should
your fireplace ever require parts or service.
The serial number and manufacturing date are
located on the permanent label on the back of
the firebox and also at the front of the blower
compartment. You may also wish to attach your
sales receipt to this manual for future reference.
Model: Jøtul C 350 Winterport Fireplace Insert
Serial Number:
Purchase Date:
Dealer Name;
Installed by:

4
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Standards & Approvals
The Jøtul C 350 Fireplace Insert has been tested and
listed to: U.S: ANSI/UL 1482
Canada: CAN/ULC-S628-93
New York City Department of Buildings
MEA 429-07-E
Tests performed by:
ITS, Intertek Testing Services, Middleton, WI
Manufactured and distributed by:
Jøtul North America
55 Hutcherson Dr.
Gorham, ME 04036
This heater meets the U.S. Environment Protection
Agency’s Phase II emissions limits for wood heaters
manufactured and sold after July 1, 1990.
This appliance is not approved for use in
mobile homes.
This appliance is listed to burn wood only.
Do not burn other fuels.
Read this manual before you install and
use your fireplace insert.
Save these instructions and make them
available to anyone using or servicing the
fireplace insert.
Installation and Operation Instructions for USA/Canada
Installation et fonctionnement pour Canada
SAFETY NOTICE: IF THIS SOLID FUEL ROOM HEATER IS NOT PROPERLY INSTALLED,
A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION DI-
RECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA. SAVE THESE IN-
STRUCTIONS FOR FUTURE REFERENCE.
Avis de sécurité: Une installation non appropriée de ce poêle de chauf-
fage risque de provoquer un incendie. Assurez votre sécurité en re-
spectant les directives d’installation suivantes. Consultez les autorités
locales du bâtiment ou de la prévention des incendies au sujet des
restrictions et exigences relatives aux inspections d’installations dans
votre région.
Tested and listed by ITS, Intertek Testing Services, Middleton, Wisconsin.
Tested to U.S. Standards: ANSI/UL 1482, Canadian Standards: CAN/ULC-S627-M93
Check Building Codes
When installing, operating and maintaining your
Jøtul C 350 Fireplace Insert, follow the guidelines
presented in these instructions, and make them
available to anyone using or servicing the stove.
Your city, town, county or province may require a
building permit to install a solid fuel burning appli-
ance.
In the U.S., the National Fire Protection Associa-
tion’s Code, NFPA 211, Standards for Chimneys,
Fireplaces, Vents and Solid Fuel Burning Appliances,
or similar regulations, may apply to the installation
of a solid fuel burning appliance in your area. For
further information on using your heater safely,
obtain a copy of the NFPA publication “Using Coal
and Wood Stoves Safely,” NFPA No. HS-8-1974. The
address of NFPA is 470 Atlantic Ave., Boston, MA
02210.
In Canada, the guideline is established by the CSA
Standard, CAN/CSA-B365-M93, Installation Code for
Solid-Fuel-Burning Appliances and Equipment.
Always consult your local building inspector or
authority having jurisdiction to determine what
regulations apply in your area.

5
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Safety Notices
• BURN SOLID WOOD FUEL ONLY
• DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE. DO NOT BURN Garbage OR
FLAMMABLE FLUIDS.
• IF THIS ROOM HEATER IS NOT PROPERLY
INSTALLED, A HOUSE FIRE MAY RESULT. TO
REDUCE THE RISK OF FIRE, FOLLOW THE
INSTALLATION INSTRUCTIONS. FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT
IN PROPERTY DAMAGE, BODILY INJURY, OR
LOSS OF LIFE.
• CONTACT THE LOCAL BUILDING OR FIRE
OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION REQUIREMENTS
IN YOUR AREA. WHEN NOT ADDRESSED IN
THIS MANUAL, OR BY LOCAL CODE AUTHORI-
TIES, INSTALLATION SPECIFICATIONS AND
REQUIREMENTS DEFER TO NFPA 211 OR CSA
B 365
• DO NOT CONNECT THIS FIREPLACE TO ANY
AIR DISTRIBUTION DUCT OR SYSTEM .
• EXTREMELY HOT WHILE IN OPERATION!
KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT WILL CAUSE SKIN BURNS.
• NEVER OPERATE THE FIREPLACE WITH A
CRACKED OR BROKEN GLASS PANEL.
• Install smoke detectors in the living areas
and bedrooms of your home. Test them
regularly and install new batteries twice
annually. When installed in the same room
as the stove, a smoke detector should be
located as far from the stove as possible to
prevent it from sounding when adding fuel
to the fire.
• Avoid creating a low pressure condition in
the room where the stove is operating. Be
aware that operation of an exhaust fan or
clothes dryer can create a low pressure area
and consequently promote flow reversal
through the stove and chimney system. The
chimney and building, however, always work
together as a system - provision of outside
air, directly or indirectly to an atmospheri-
cally vented appliance will not guarantee
proper chimney performance. Consult your
local Jøtul authorized dealer regarding spe-
cific installation/performance issues.
Installation
Preparation
We strongly urge you to have your authorized Jøtul
dealer install your new Jøtul C 350 Fireplace Insert.
• Check with local building officials to determine what
permits may be required before installation.
• Notify your insurance company before installing this
fireplace.
Unpacking the Fireplace
All firebox components of the Jøtul C 350 Fireplace In-
sert are contained within the carton on a single pallet.
As you unpack the contents, inspect each item for dam-
age. Notify your dealer of any damage such as dents,
cracked glass, or broken bricks.
Contents:
• Firebox Assembly - including Firebricks
• Steel Riser Bar
• Surround Panels (Breakdown on page 13)
• Stove Hardware Bag
• Fireplace Conversion Notice Plate
• Blower Power Cord • Blower Control Knob
• AC Power Receptacle Lead
• Receptacle Inlet Coverplate
• Door Knob parts • Firebox Locking Pin
Tools & Materials Required:
• work gloves • safety glasses
• tape measure • phillips screwdriver
• tin snips • power drill
• High-temperature sealant
• 1” (25 mm) masonry anchors or nails (two)
• 1/4” x 3/4” self-tapping screws (three)
• 10 mm (1/4”) open end wrench or socket driver
Removing the Firebox from Pallet

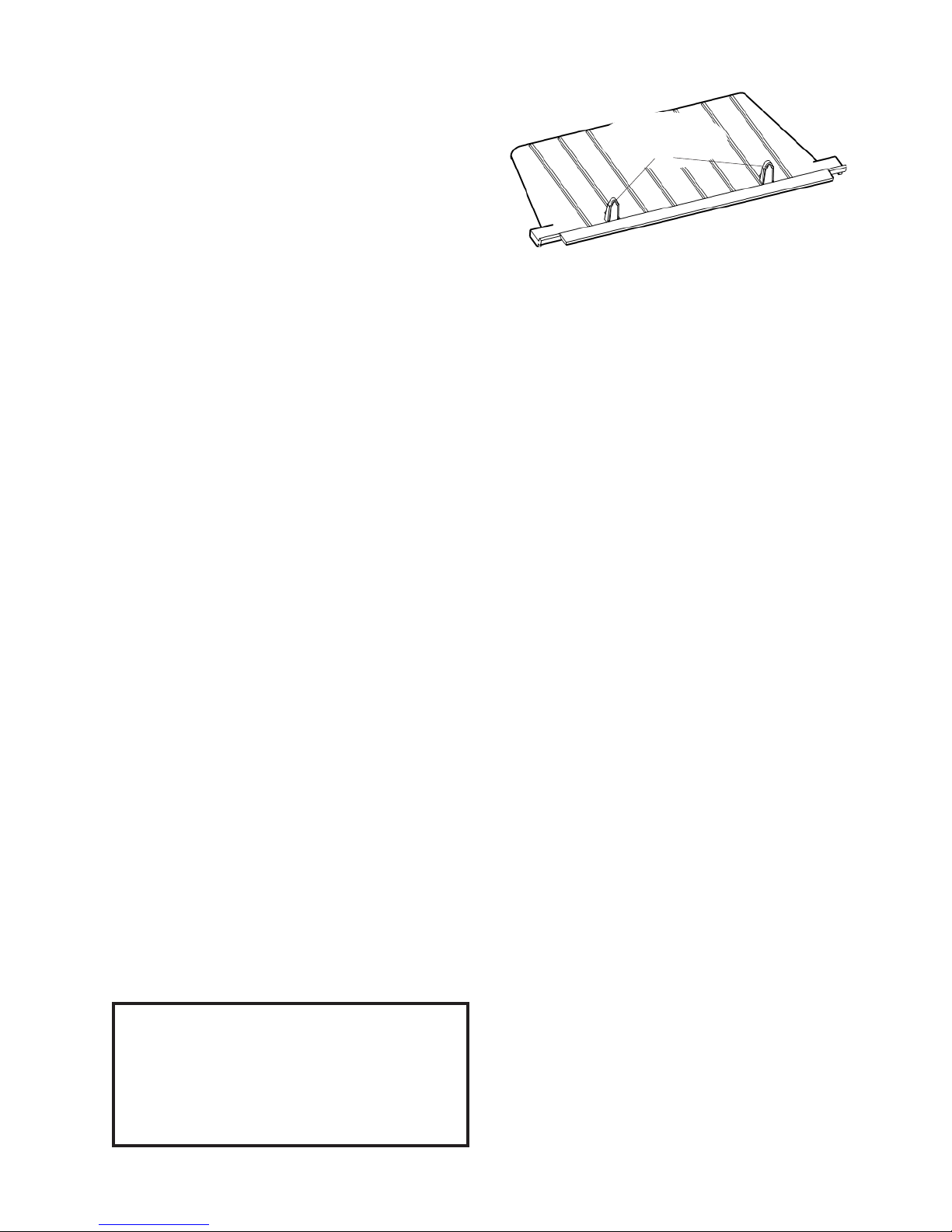

1. Remove the two screws that secure the steel Riser
Bar assembly to the back of the pallet. See page 8 to
determine if Riser Bar is required for your installa-
tion.
2. The firebox may be lightened by removing the door,
firebricks and baffle plates. See fig. 22, page 22.
3. The firebox is secured to the pallet by a steel bracket
on each side and one screw in the bottom at the
front. Use a 1/4 socket to remove these five screws
and lift the firebox to disengage the brackets. Dis-
card brackets.
4. Install the Blower Control Knob.

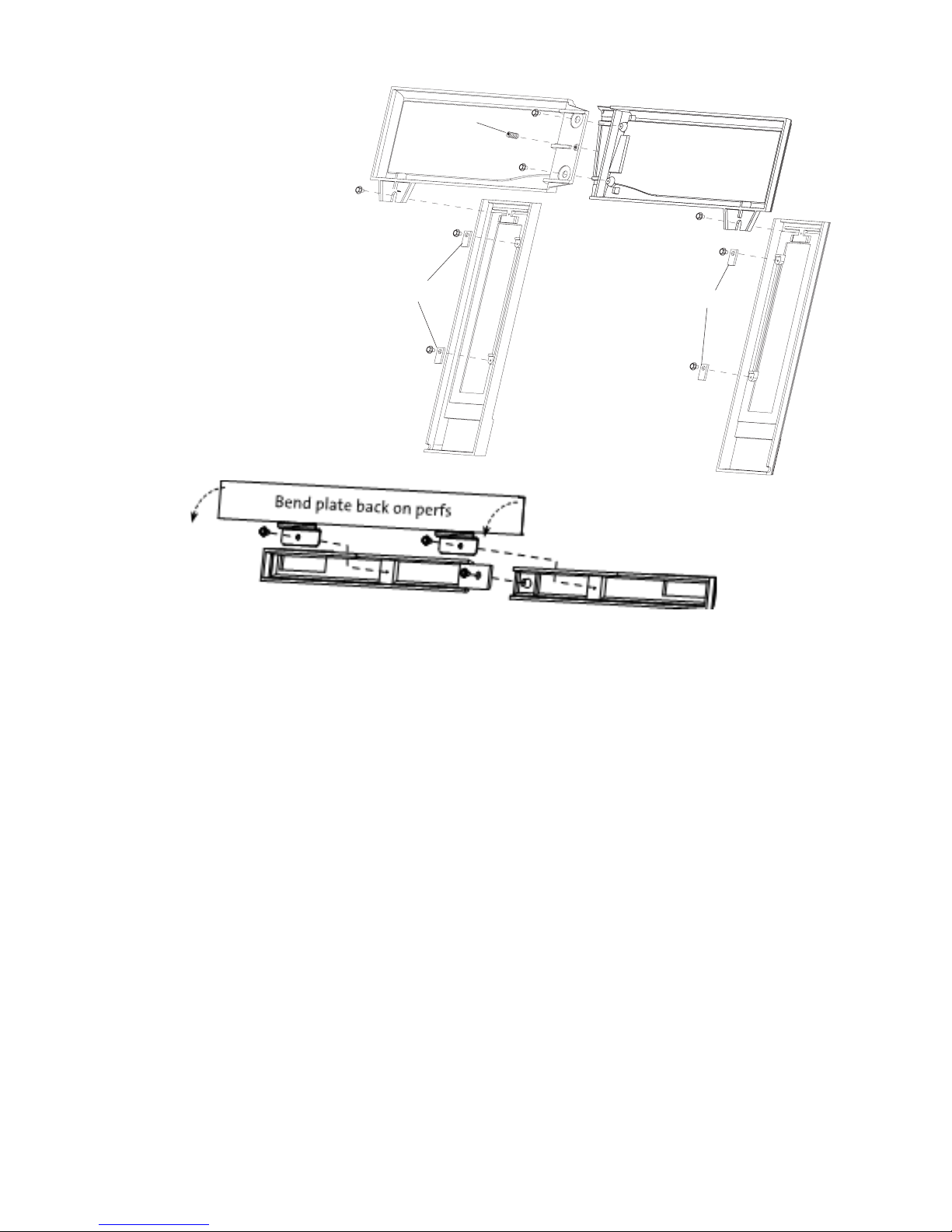

5. Install the Door Knob parts in the order shown in fig.
21, page 22.

6
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Jøtul C 350 Winterport
Specifications
Performance
Fuel: 20” Logs
Heat Output1: 40,000 BTU/hr. (4.1 kg/
hr.)
Heating Capacity2: Up to 1,300 sq. ft.
Overall Efficiency3: 71%
Emissions: 4.0 grams/hr.
Burn Time: Up to 7 hours
Dual Blowers: 110 cfm.
Shipping Weight: 425 lbs. (193 kg.)
1 Maximum Heat Output based on total ki-
lograms of dry wood burned in a one hour
period. Under specific EPA test conditions, this
heater has generated heat output rates rang-
ing from 11,420 to 34,200 BTU’s per hour. Heat
output in residential installations may vary
depending upon site-specific conditions.
The Jøtul C 350 Winterport Fireplace Insert meets U.S.
EPA emission limits for wood heaters sold after July
1990, and is tested and listed to ANSI/UL 1482, and
CAN/ULC S628.93. It is intended for installation in ac-
cordance with NFPA 211 or CAN/CSA B365.
2 7

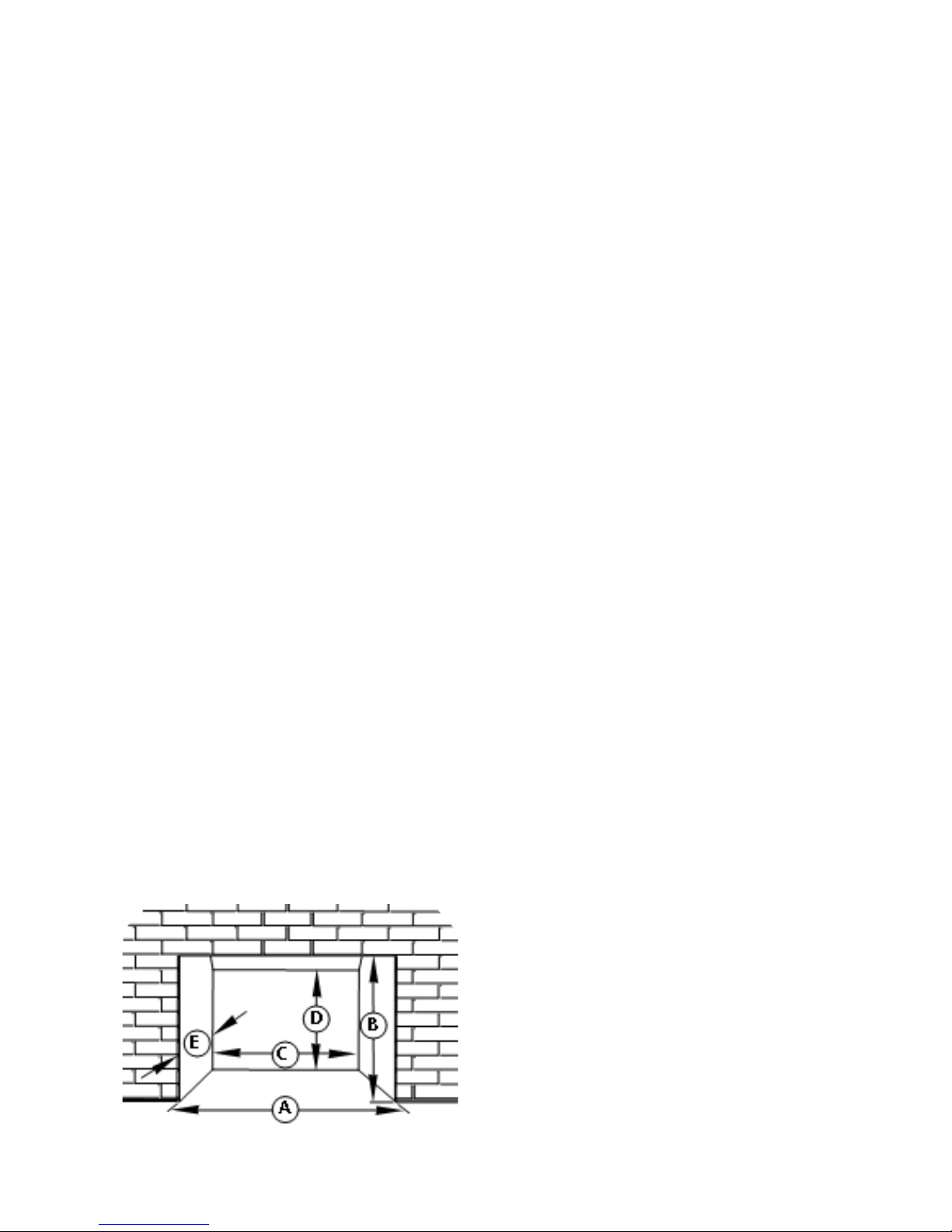

Figure 1. Critical dimensions.
2” 51 mm
2 Heating Capacity and Maximum Burn Time will vary
depending on design of home, climate, wood type
and operation.
3 Overall Efficiency is based on a burn rate of .99 kg
wood per hour.




Extended Surround Panel
156055 - Matte Black
156056 - Jøtul Iron Paint
For use with Riser Bar

7
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Installation
Masonry Fireplace Requirements
• The entire fireplace and chimney must be cleaned
and inspected before installation. The system
must meet local building code requirements.
• The structure and components must be free of
any defects such as cracks or broken bricks or flue
tiles. Any damage must be repaired before instal-
lation.
Any opening that may exist between the masonry
of the fireplace and the facing masonry must be
permanently sealed.
• The chimney must have a clay tile liner or a stain-
less steel liner utilizing a positive connection.
• Do not remove bricks or mortar from the fire-
place or chimney. However, masonry or steel may
be removed from the smoke shelf and adjacent
damper frame area to accommodate installation
of a chimney liner, provided that their removal
will not weaken the structure of the fireplace or
chimney, and will not reduce protection for com-
bustible materials.
• Chimney Height:
Minimum - 15 ft. ( 4.57 meters)
Maximum - 33 ft. (10.5 meters)
Factory-Built Fireplace Requirements
The Jøtul C 350 Winterport may be installed into a
factory-built fireplace with the following conditions:
• The factory-built fireplace must be listed per
UL 127 or ULC S610.
• Installation must include a full height listed chim-
ney liner meeting type HT requirements (2100F)
per UL 1777 (U.S.) or ULC S635 (CAN). The liner
must be securely attached to the insert flue collar
and the chimney top. Do not block off the flow of
air between the prefabricated chimney walls.
• The damper must be sealed to prevent passage of
room air into the chimney cavity.
• Circulating air chambers (i.e. in a steel fireplace
liner or metal heat circulator) may not be blocked.
• Air flow within and around the fireplace shall not
be altered by installation of the insert. The Sur-
round Panels comply with this requirement.
• Alteration of the fireplace is limited to
a) removal of the damper for liner installation
b) removal of external, nonfunctional trim which
must be stored within the fireplace for replace-
ment.
• Fireplace Conversion Notice PN 220508 must be
permanently attached to the back of the fireplace.
This metal label is included in the bag containing
this manual.
• Final approval is contingent on the authority hav-
ing local jurisdiction.
Minimum Fireplace Dimensions
A: Front Width * .......................................32” (813 mm)
B: Height** ....................................... 19 1/2” (495 mm)
C: Rear Width .................................. 22 3/4” (577 mm)
D: Rear Height** ............................ 16 3/4” (425 mm)
E: Depth ................................................. 16” (406 mm)
Figure 2. Minimum fireplace dimensions.
*NOTE: Width dimension accommodates clearance for Sur-
round attachment and blower power cord routing.
** Add 2” (51 mm) for use with optional Riser Bar.

8
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Hearth Protection Requirements
The floor area in front of fireplace insert must be
protected from live sparks and radiant heat.
• Materials: Hearth protection must be non
combustible insulating board, or the equiva-
lent mortared masonry material. Alternate
protection must composed of materials as
specified by NFPA 211.
• Protected Area: 16” Deep x 34 1/2” Wide, for
both the U.S. and Canada.
A) Front - The protection must extend at least
16 inches (406 mm) forward from the fire-
place insert door opening.
B) Sides - Protection must extend 17 1/4
inches (438 mm) to both sides of the center-
line of the insert. See fig 5.
• Flush Hearth:
Where the hearth construction is flush with
combustible floor materials, the insert must
be elevated with use of the 2” Riser Bar sup-
plied. See fig. 3.
• Raised Hearth:
Where the hearth construction is a minimum
of 2 1/2” thick, the insert may be installed
without use of the Riser Bar.
See fig. 4.
Figure 4. Minimum raised hearth requirement.
Riser Bar not required.
Min.
16” from
door
opening
2 1/2”
Figure 3. Required hearth protection if flush with
combustible floor materials. Riser Bar must be installed.
Min.
16” from
door
opening
2” Riser Bar
Combustible
Flooring

9
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Minimum Clearances
Clearances are measured from the hearth surface,
door opening, or centerline as noted below.
Add two inches to mantel and top trim clearance
when Riser Bar is installed.
A: Hearth Protection, width from centerline: ..........
..........................................................17 1/4” (438 mm)
B: Hearth Protection, forward from door opening:
...............................................................16” (406 mm)
C: To Side Trim, 1” max. thickness, from centerline ..
................................................................. 19 1/2” (495 mm)
D: To Side Room Wall, from centerline:.......................
...................................................... 54 1/2” (1384 mm)
E: To Top Trim, 1” max. thickness, from hearth:
............................................................... 39” (991 mm)
F: To Mantel, 3 1/2” max. depth, from hearth:
............................................................. 48” (1219 mm)
To Mantel, 11 1/2” max. depth: ..... 54” (1372 mm)
Figure 5. Minimum clearance to combustible materials
Figure 6. Mantel Clearance Detail - measured from
the hearth surface to the lowest mantel surface.
Riser Bar is not installed.
Add two inches to each clearance dimension when
Riser Bar is used.
Clearance to Combustible Materials
• There may be no combustible materials located
anywhere within 36” (914 mm) of the front of the
fireplace insert. This precaution includes items such
as drapes or doors that could swing into the area
within 36” of the insert.
• Specific clearance (open space) must be main-
tained between the fireplace insert and combus-
tible materials located above and to the side.
See figures 5-6 for minimum dimensions.
Mantel Clearances
Clearance reduction to mantel construction may be
made in conformance to NFPA 211 or CAN/CSA B365.

10
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
U.S. Requirement:
The insert is connected to a listed stainless steel
flexible connector that extends into the first chim-
ney flue tile liner. A sealed block-off plate must be
installed at the damper area of the existing fireplace.
See fig. 7.
For internal chimneys, (no sides of the chimney
exposed to the outside below the roofline,) a posi-
tive connection to the first flue tile is acceptable
provided the tile is no larger than 8” x 12”.
For external chimneys (one or more sides are ex-
posed to the outside below the roof line, including
garages), a positive connection to the first flue tile is
acceptable provided the tile is no larger than
8” x 8”.
A 6”, 7”, or 8” stainless steel liner, extending the
full height of the chimney, is required for all instal-
lations where the flue tile is greater than 8” x 12” for
internal chimneys, or 9” x 8” for external chimneys.
Canada Requirement:
The insert must be installed with a continuous chim-
ney liner of 6” (152 mm) diameter extending from
the fireplace insert to the top of the chimney. The
chimney liner must conform to the Class 3 require-
ments of CAN/ULC-S635, Standard for Lining Systems
for Existing Masonry or Factory-Built Chimneys and
Vents, or CAN/ULC-S640, Standard for Lining Sys-
tems for New Masonry Chimneys.
See fig. 8.
Do not use aluminum or galvanized steel pipe for
chimney connection components - these materials
are not suitable for use with solid fuel.
Installation
1. Remove the existing damper and linkage compo-
nents from the fireplace. Alternatively, you can
wire the damper plate to lock it in the open posi-
tion. Thoroughly clean the firebox and smokeshelf
area with a wire brush.
2. If the fireplace has been modified to accommo-
date installation, use anchors or masonry nails to
attach the metal Fireplace Conversion Notice Plate
(PN 220508) to the back wall of the masonry fire-
place firebox where it will be readily seen should
the insert be removed.
3. Install the Flex Connection plate according to the
manufacturer’s instructions. The sealing plate may
require trimming to accommodate your specific
fireplace damper.
Flex Con-
nector Pipe
extends at
least into
the first
flue tile

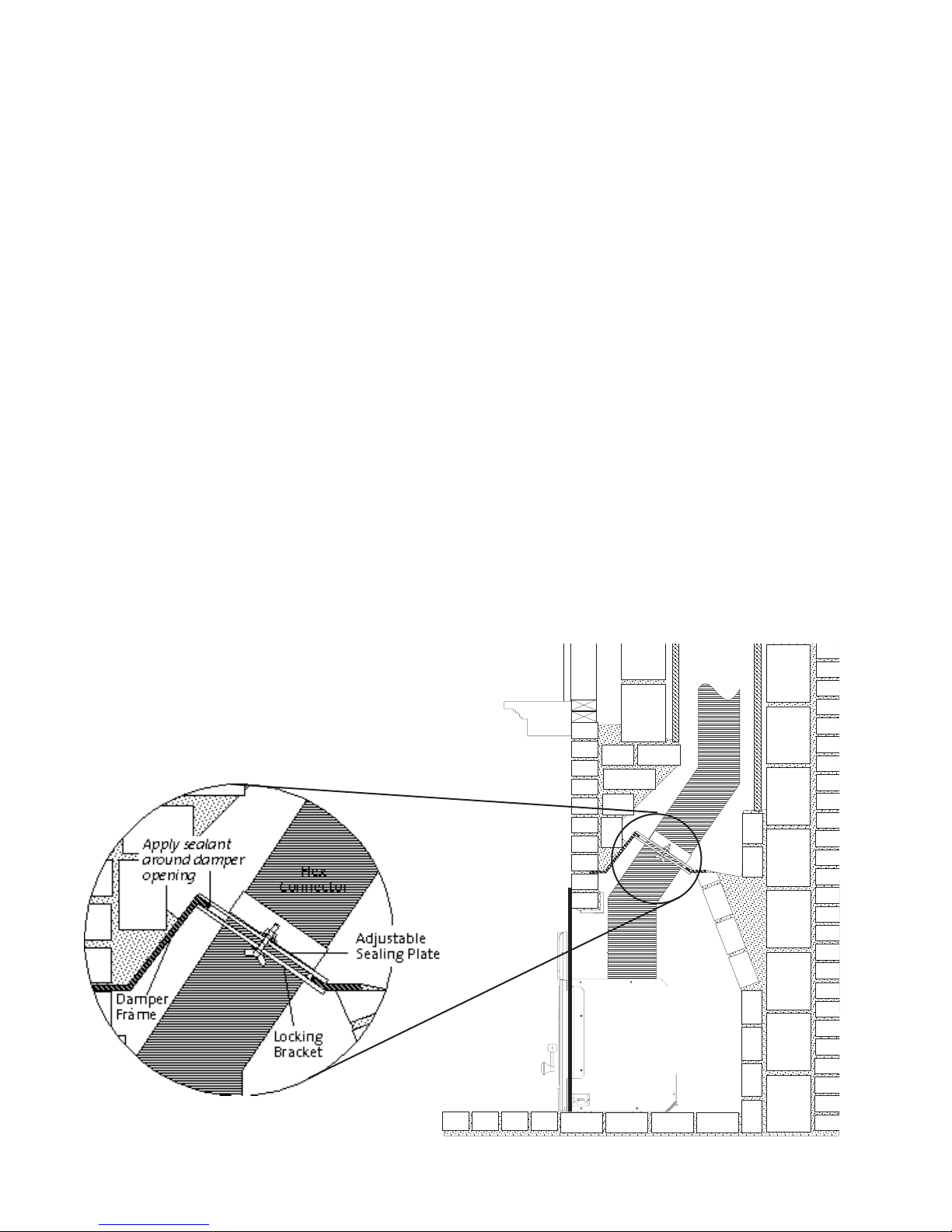

Figure 7. Positive Chimney Connection - U.S.
Attach Fireplace
Conversion
Notice Plate
to Rear Wall of
Fireplace

11
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Figure 9. Using the leveling bolts to adjust surround
assembly alignment.
Chimney Connection
This insert must be connected to a code-approved
masonry chimney or listed factory-built fireplace
chimney with a direct (positive) flue connector into
the first chimney liner section. The chimney size
should not be less than, nor more than, three times
greater than the cross-sectional area of the flue col-
lar.
The optional Jøtul Draw-Down Adaptor Kit
156073 is available to ease connection of the chim-
ney liner with the flue collar.
A positive connection must be made between the
fireplace insert and the chimney by one of the fol-
lowing approved methods.
Installing the Fireplace Insert
Leveling Bolts
The leveling bolts are used to compensate for ir-
regular hearth surfaces. More importantly, they also
provide a method of adjustment f0r the correct
vertical (plumb) and horizontal (level) alignment of
the surround assembly with the fireplace face and
hearth.
If you are installing the Bottom Trim section
with the Surround assembly, you must use the level-
ing bolts to level the front-to-back pitch of the fire-
box or the Surround assembly will be out of plumb.
See fig. 9 below.
Install the leveling bolts all the way into either
the Riser Bar or Firebox.
Bottom Trim
Riser Bar
Surround assembly out-of-plumb
with fireplace face
Fireplace Face
Leveling
bolt head
Surround assembly is plumb with
fireplace face
Attach
Fireplace
Conversion
Notice Plate
to Rear Wall
of Fireplace
Masonry or Listed
HT Prefabricated
Chimney Cap
Sealed connec-
tion to chimney
cap
Damper linkage
removed and
plate is removed
or locked open
Figure 8. Positive Chimney Connection - Canada.

12
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Install the Riser Bar
1. If appropriate to your installation (see pg. 8), posi-
tion the riser bar centered within the fireplace as
shown in fig. 10. The forward ends of the Riser Bar
should be aligned within 1/2 inch of the fireplace
face.
Install the Firebox
1. With the help of an assistant, slide the Firebox
into the fireplace cavity. If using a Riser Bar, the
Firebox must be engaged with the Riser by means
of the Locking Pin included in the hardware bag.
Pull the Left Blower forward out of the way to ac-
cess the Locking Pin hole in the firebox floor. See
figs. 10 and 11. When the front edge to the firebox
is aligned with the front edge of the Riser, the
Locking Pin hole will be aligned with the slot in
the top of the Riser Bar crossmember. Insert the
Locking Pin and pull the firebox out slightly proud
of the fireplace face to facilitate attaching the sur-
round panels. Relocate the blower.
Figure 12. AC power receptacle lead routing.
Figure 13. Receptacle Inlet Coverplate installation.
Figure 11. Insert Riser Bar Locking Pin.
2. Secure the flue connector to the firebox flue collar
using three 1/4” x 3/4” self-tapping screws.
3. Determine to which side the blower power cord
will be routed. Insert the AC power receptacle lead
through the appropriate inlet in the side of the
firebox. See fig. 12. Remove the #8 x 5/8” phillips
screw already in place and engage the receptacle
bracket with the tab in the inlet opening. Reinstall
the screw.
4. Plug the male quick-connector on the end of the
lead into the corresponding female connector on
the blower wire harness.
5. Plug the power cord into the receptacle.
6. Install the inlet coverplate over the inlet opening
on the other side of the firebox using the pre-
installed #8 x 5/8” screw. Fig. 13.
Inlet Tab
Male Quik-Connect
#8 x 5/8
Phillips
screw
#8 x 5/8
Phillips
screw
AC power receptacle har-
ness assembly
Riser Bar
Locking Pin
Hole
Figure 10. Riser Bar placement.
Levelling Bolts
Locking Pin Slot
L R
Surround
Bracket

13
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Figure 12.
Surround Panel assembly viewed
from backside.
Surround Assembly
All fasteners have already been installed in the ap-
propriate locations at the factory. You will need to
remove them, attach the parts together as described
below and reinstall the fasteners at those locations.
1. Layout the parts. Place the castings face down on
a protective surface such as carpeting, blankets or
a sheet of cardboard.
2. Attach the Breastplates to each other.
Use a 10 mm socket or wrench with two M6 x 10
hex head flange bolts. Adjust the set screw to
obtain parallel alignment of the two plates.
3. Attach the Leg plates. The Legs must be oriented
with the Hang Tabs on the inside edges as shown
in
fig. 12. Use the two remaining M6 x 12 hex head
flange bolts to attach the Legs to the Breastplate
assembly.
4. If the Riser Bar is used, attach the two Bottom
Surround Trim panels together with the single
M6 x 10 hex bolt. Attach the Trim Mounting Brack-
et to the back of the Bottom Trim assembly using
the other two M6 x 10 bolts. Be sure to orient the
bracket as shown in fig. 14.
Tools Required:
• 10 mm socket or wrench
Tighten just snug enough to allow for final adjust-
ment when the Surround assembly is attached to
the firebox.
Bend the perforated mounting plate down 90°
as shown in Fig 14. Insert and center the bracket
plate sandwiched between the firebox and the
Riser Bar.
5. If appropriate, attach the Extended Surround
Panel to the firebox. With the painted side facing
out, engage the hooked tabs on panel with the
slots in the backside of the Surround Brackets on
the firebox. Extend the blower power cord out
beyond the surround panel.
6. Attach the Assembly to the Firebox. Lift the entire
assembly upright and position it in front of the
insert firebox. The four Hang Tabs on the surround
legs must engage with the adjacent cutouts in the
two brackets on either side of the firebox opening.
The surround will easily engage with these brack-
ets if the firebox is slightly proud of the fireplace
opening.
Hang the surround assembly on the firebox and
push the entire unit into position so that the sur-
round is flush against the fireplace face.
Figure 14. Bottom Surround Trim assembly.
Trim Mounting
Bracket Plate
Right Bottom Trim
Left Bottom Trim
Left Leg
Right Leg
Right Breastplate Left Breastplate
Hang Tabs Hang Tabs
All fasteners are M6 x
10 mm hex head bolts,
pre-installed.
M6 x 10
Set Screw

14
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Operation
Read the following section carefully before building
a fire in your fireplace insert..
Fuel
This stove is designed to burn natural wood ONLY.
Wood that has been air-dried for a period of 6 to 14
months will provide the cleanest most efficient heat.
Frequent use of green or inadequately seasoned
wood is conducive to creosote accumulation and
generally poor performance.
DO NOT BURN...
•Coal •Treated or painted wood
•Garbage •Chemical Chimney cleaners
•Cardboard •Colored paper
•Solvents •Any synthetic fuel or logs
The burning of any of these materials can result in
the release of toxic fumes. NEVER USE GASOLINE,
GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHAR-
COAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START
OR “FRESHEN-UP” THE FIRE. Always keep such liq-
uids away from the heater at all times.
Air Control Settings
A single lever regulates the Primary Air flow that
controls the intensity of the fire and consequent heat
output and burn time. This lever is located within the
slot on the upper right front of the fireplace insert.
When first starting or reviving the fire, the
control lever should be set at the far right position
to allow the maximum amount of air into the stove.
See fig.15. After the fire is well-established, the lever
should be set at position to moderate incoming air to
maintain the desired long term heat output and/or
burn time.
In general, the more air made available to the
fuel will result in the hottest fire intensity and the
fastest fuel consumption. Alternatively, the less air
made available to the firebox will result in low heat
output and slow fuel consumption.
Use the following guide for best performance.
Burn Rate Air Control Setting Blower Speed
Low 1/8” Open Low / On at 30 min.
Med. Low 3/16” Open Low / On at 30 min.
Med. High 1/4” Open Low / On at 30 min.
High Max. Open High / On
Figure 15. Air Control Setting
Blower Settings / Air Control
  WARNING
NEVERALLOWTHEFIRETOREST
DIRECTLYONTHEGLASS.THE
LOGSSHOULDALWAYSBESPACED
ATLEASTONEINCHFROMTHE
GLASSTOALLOWFORPROPERAIR
FLOWWITHINTHESTOVE.
OPERATETHISFIREPLACEINSERT
ONLYWITHTHEFRONTDOORS
FULLYCLOSED.PARTIALLYOPENED
DOORSMAYRESULTINOVERFIRING.
ALSO,IFDOORSARELEFTPARTLY
OPEN,GASANDFLAMEMAYBE
DRAWNOUTOFTHESTOVEOPEN-
ING,CREATINGRISKSFROMBOTH
FIREANDSMOKE.
FULLY
OPEN
FULLY
CLOSED
1/8
3/16
1/4
Blower Speed Control

15
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Starting and Maintaining a Fire
Burn only solid wood directly on the bottom plate of
the stove. Do not elevate the fire in any way.
1. Set the Air Control Lever in the full open position. 2.
Crumple several sheets of newspaper directly on
the bottom plate..
2. Place several pieces of small dry kindling (approx.
1” in diameter) on top of the newspaper, with two
to three small logs (approx. 2” to 3” in diameter)
on top.
3. Light the fire and close the door. Gradually build
the fire by adding larger and larger logs as the fire
develops a bed of coals.
4. When you have added the final logs, adjust the Air
Control Lever to provide the desired fire intensity.
Experiment with a variety of air control set-
tings to determine the best one for your individual
circumstances. Remember that fuel characteristics,
chimney system condition, building design, and
weather conditions all affect the performance of
your fireplace insert. In time, you will discover how
these elements combine and how you can work with
them to achieve satisfactory performance.
Adding Fuel to the Fire
When reloading the stove while a bed of hot embers
still exists, follow this reloading procedure:
• Always wear stove gloves when tending to the
fire.
• Push the Air Control Lever to the full open position
(far right).
• Always wait a few seconds before opening the
door. This allows the renewed air circulation to
clear unburned gases from the firebox.
• Use a stove tool or poker to distribute the hot
embers equally around the firebox.
• Load the fuel, usually with smaller logs first.
Keep logs behind the andirons. See fig. 16.
• Close the doors and secure the latch.
• Wait 5 – 10 minutes for the fire to re-establish be-
fore adjusting the Air Control Lever for the desired
heat output. If a thick bed of live coals is present,
you may be able to add fuel and immediately set
the air control without waiting for the fire to be
re-established.
Creosote Formation
This appliance is designed to burn wood cleanly
and efficiently when operated as described in this
manual. However, when wood is burned slowly and
at low temperatures, tar and other organic vapors
are produced which condense on the relatively cooler
chimney flue surfaces to form creosote. Failure to
keep the chimney system free of creosote build up
could result in a chimney fire.
The creosote that accumulates in the chimney
is highly flammable and is the fuel of chimney fires.
To prevent chimney fires, it is important to have
the chimney flue and connector pipe inspected at
least twice monthly during the heating season and
cleaned whenever accumulation of 1/4” or more is
evident. A qualified chimney sweep or other autho-
rized service person can provide this service.
Figure 16.
Fuel load area - keep logs behind the andirons.
Break-in Period
The cast iron parts of your fireplace insert require a
break-in process to allow them to gradually adjust to
thermal expansion and contraction. This is accom-
plished by building a series of three or four fires, each
somewhat hotter than the last. Allow the fireplace
insert to cool completely before building the next
fire.
Limit the first fire to just kindling and a couple of
1 -2 inch logs and add progressively more and larger
logs to subsequent fires, keeping the Air Control set
to the fully open position.
It is normal for a new fireplace insert to emit
odor and possibly smoke during the first few fires.
This is characteristic of the burn-off of residues from
the manufacturing process and the curing of painted
surfaces. Open a window near the fireplace insert to
provide plenty of fresh air to the room during this
“seasoning” period.
NEVER OVERFIRE THE STOVE. IF ANY PART OF
THE STOVE OR CHIMNEY GLOWS, YOU ARE
OVERFIRING. A HOUSE FIRE OR SERIOUS DAMAGE
TO THE STOVE OR CHIMNEY COULD RESULT. IF
THIS CONDITION OCCURS, IMMEDIATELY CLOSE
THE AIR CONTROL.
Keep logs behind
Andirons

16
Jøtul C 350 Winterport 138376_Rev_H 8.2.10








 





























Blower Operation
Access the blower control panel by lifting the cast
iron lower grille up off the insert.
The dual blowers will enhance heat circulation
around the firebox and out into the room. In the
Automatic setting, the blowers are controlled by a
heat activated switch (snapstat) that will only func-
tion when the speed control is ON. After the fire has
been burning for a time, the snapstat will react to
the heat and activate the blowers. Conversely, the
blower will continue to operate until the snapstat
cools as the fire wanes. The blowers will then shut
off automatically.
The Manual setting overides the snapstat func-
tionality allowing blower operation regardless of
temperatures.
For best performance, do not turn the switch on
until after the fire is well-established.
If the blower is not needed, place the blower
control switch in the OFF position.
THISBLOWERMUSTBEELECTRI-
CALLYGROUNDEDINACCOR-
DANCEWITHLOCALCODESOR,IN
THEABSENCEOFLOCALCODES,
WITHTHECURRENTANSI/NFPA
70,NATIONALELECTRICALCODE
ORCSAC22.1-CANADIANELECTRI-
CALCODE.
THISUNITISSUPPLIEDWITH
ATHREE-PRONG(GROUNDING)
PLUGFORPROTECTIONAGAINST
SHOCKHAZARDANDSHOULDBE
PLUGGEDDIRECTLYINTOAPROP-
ERLYGROUNDEDTHREE-PRONG
RECEPTACLE.DONOTCUTOR
REMOVETHEGROUNDINGPRONG
FROMTHEPLUG.
ALWAYSDISCONNECTTHEPOW-
ERSUPPLYWHENPERFORMING
ANYSERVICEONTHEFIREPLACE
INSERT.
It is also important to remember that chimney
size, temperature and height all affect draft which in
turn affects the formation of creosote. An exterior
chimney, whether masonry or prefabricated steel,
will be exposed to cold outside temperatures, and
consequently, will be more prone to creosote accu-
mulation than an interior flue.
A chimney flue located within the home interior
will benefit from the insulating characteristics of the
building itself. Consequently, the flue system will be
less conducive to condensation of unburned gases
and minimal creosote accumulation will result..
As a general rule, try to avoid burning the insert
at the lowest air control settings. Although a low
setting will prolong burn time, it may also result in
incomplete combustion. In reducing the fire intensi-
ty, draft is weakened and the chimney flue cools. This,
together with the increase in unburned gases, leads
to rapid creosote accumulation.
Figure 18. C 350 Wiring diagram.
Color Key
BR - Brown
BL - Blue
BK - Black
G - Green
Figure 17. Blower and speed controls.
 





17
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Maintenance
Glass Care
Cleaning
Occasionally it will be necessary to clean the car-
bon deposits and fly ash off of the glass. If deposits
are allowed to remain on the glass for an extended
period of time, the glass may become etched and
cloudy.
Creosote deposits should burn off during the next
hot fire.
1. The glass must be COMPLETELY COOL.
2. Only use a cleaner that is specifically designed for
this purpose. DO NOT USE ABRASIVE CLEANING
AGENTS. The use of abrasives will damage the
glass, leaving a frosted surface. Crumpled newspa-
per is an especially good cleaning material.
3. Rinse and dry glass completely before lighting a
fire.
Glass Replacement
Always operate the doors slowly and cautiously to
avoid cracking or breaking the glass. Never use the
door to push wood into the firebox. If the glass
becomes cracked or broken follow the replacement
procedure below.
Ash Removal
Always wear stove gloves when handling ashes.
Ash removal will be required periodically depend-
ing on how frequently the stove is used. Use a steel
ash shovel and metal container with a tight-fitting
lid. NEVER USE A PAPER OR PLASTIC BAG AS AN ASH
RECEPTACLE.
The container of ashes should be placed on a
noncombustible floor or on the ground, well away
from all combustible materials, pending final dis-
posal. If the ashes are disposed of by burial in soil
or otherwise dispersed, they should be kept in the
closed container until all coals and cinders have
thoroughly cooled.
IMPORTANT:
NEVER OPERATE THE STOVE WITH A
CRACKED OR BROKEN GLASS PANEL.
Replace glass only with part # 156069
specifically designed for the Jøtul C 350
Winterport Fireplace insert. Do not use
substitutes. Replacement glass can be
ordered from your Jøtul dealer.
1. Remove the door from the stove and place on a
flat surface.
2. First loosen and then carefully remove all of the
glass clips from the inside of the door. See fig. 19.
3. Remove all pieces of the glass panel and gasket-
ing.
4. Remove all remaining debris from the glass area
using a wire brush.
5. Apply a small bead of gasket/stove cement and
the new gasket. Do not overlap the ends of the
gasket rope.
6. Orient the glass with the IR Coating label facing
out. Hold the glass at an angle to see the word
“COATED” located at the lower edge. This side
should face out when placed in the door. Center
the new glass panel over the gasket and loosely
reinstall the glass clips. Tighten the clips, alternat-
ing at opposite corners. Avoid applying uneven
pressure on the glass..
7. It may be necessary to retighten the glass clips
after the stove has burned and the gasketing has
seated.
Figure 19.
Replacing the
door glass and
gaskets.
Door Gasket
PN 100038
Glass Gasket
PN 200024
Glass Panel
PN 221719
M6 x 8 Pan
Hd Screw
PN 117505
Gasketed
Glass Clip
PN 153620

18
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
General Maintenance
Regular maintenance will assure proper perfor-
mance and prolong the life of your fireplace insert..
The following procedures do not take long and are
generally inexpensive. When done consistently, they
will help increase the life of your fireplace insert
and assure satisfactory performance.
• Thoroughly clean the insert. Enamel surfaces
should be cleaned with a moist cloth and pol-
ished dry..
• Empty firebox of all soot and ashes. Never use a
household vacuum cleaner to remove ashes. Only
a shop vac with a metal container is acceptable
and only when you are certain the ashes are cold.
• Inspect the firebox using a utility light inside and
out for cracks or leaks. Replace all cracked bricks
and repair leaks with furnace cement.
Removing the Insert for Cleaning
U.S. Direct-connection Only:
1. Disconnect the blower power cord from its out-
let.
2. Open the firebox door and pull the insert out
enough to disengage the surround panel assem-
blies by lifting up off of the brackets.
3. Remove the three screws that attach the flue
connector to the flue collar, and disengage the it
from the insert.
5. Pull the firebox and cabinet forward as a unit.
The flue connector, liner, and chimney can now
be inspected and cleaned.
6. See the Installation section of this manual for
reassembly procedures.
Canada Installations (Full Reline):
The chimney can be swept directly into a bucket
placed under the flue outlet, with removal of the
two cast iron baffle plates.
1. Push up on the Left Baffle to disengage its locat-
ing boss from the Secondary Air Tube.
2. Slide the Secondary Air Tube to one side to disen-
gage it from the opposite side Air Channel and
remove it from the firebox.
3. Lift the Right Baffle up and forward off of the
rear and side support shelves.
4. Repeat with the Left Baffle.
5. Re-assemble in the reverse order, being sure to
engage the nub on the Left Baffle with the hole
in the Secondary Air Tube.
Gaskets
Check door and glass gaskets for seal integrity.
The gaskets should be soft enough to be somewhat
resilient to the touch. Over time, gaskets will com-
press and harden. Replace worn-out or hardened
gaskets with the appropriate size material available
from your local Authorized Jøtul Dealer.
To check the seal of the front doors, close and latch
the doors on a dollar bill and slowly try to pull the
dollar bill free. The seal is too loose if the bill can be
easily removed. Adjust the door latch and test again.
Gasket Replacement
See the chart below for replacement gasket specifi-
cations. See also fig. 20 for locations.
1. Remove the old gasket material with a pliers and
thoroughly clean the channel with a wire brush.
2. Lay out the new gasket around the channel to de-
termine length. Trim the gasket to leave 1” excess.
2. Apply a small bead of furnace cement in the chan-
nel.
3. Lightly press the new gasket into the channel, be-
ing careful to avoid compressing or stretching it.
Trim the gasket further as necessary to allow the
tail end to slightly overlap the other end.
4. Wait ten minutes to allow the cement to set and
then close and latch the doors. Reopen the doors
and, using a damp cloth, wipe away any excess
cement that may be squeezed out from under the
gasket.
Replacement Gaskets
Glass
LD .250 Fiberglass Rope 52” 200024
Door
LD .350 Fiberglass Rope 70” 100034
Front
LD .360 Fiberglass Rope 78” 100034
Air Manifold, Outer
LD .250 SA Fiberglass Rope 30” 129644
Air Manifold, Inner
.125 x 8 mm Flat SA 20” 127215

19
Jøtul C 350 Winterport 138376_Rev_H 8.2.10

20
Jøtul C 350 Winterport 138376_Rev_H 8.2.10
Figure 20.
Use only genuine Jøtul replacement parts. Do not substitute parts from any other manufacturer. See your local Authorized Jøtul Dealer or contact us directly: Jøtul North America 55 Hutcherson Dr. Gorham, Maine 04038
Jøtul C 350 Winterport Illustrated Parts Diagram















 








 
  



























































 






