Welcome to the world of Jøtul.
Or rather to “The spirit of Jøtul”.
“The spirit of Jøtul” is all about a passion for warmth, which
has burned brightly since the company began in 1853.
This passion inspires our philosophy “Warmth in every detail”
which you can read about on the following pages.
To us heating is much more than physical warmth and cosiness,
and we apply this philosophy to every stove and fireplace we
create. That is why our products provide more than just warmth
and cosiness. They do of course fulfill both of these functions
extremely well, but all the products in this catalogue have so
much more to offer.
I and everyone else at Jøtul hope that you will appreciate our
broad range of stoves and fireplaces.
“The spirit of Jøtul” was first ignited in 1853 in Norway; it now
burns brightly throughout the world. We hope that it will
kindle and inspire you too.
Erik Moe, President & CEO
94449_gas_brochure.indd 2 9/5/07 9:57:42 AM

Contents
experience the spirit of Jøtul
Jøtul’s Warmth Philosophy 4
Jøtul GI 350 DV 6
Jøtul GI 450 DV Katahdin 8
Jøtul GI 550 DV 10
Jøtul Little Diamond series 12
Jøtul Great Diamond series 13
Jøtul Cathedral Arch series 14
Jøtul Grand Forge series 16
Jøtul GZ 550 DV II Acadia 18
Jøtul Quickface System™ 20
Features & Benets 21
Technical Specifications 22
General Information 27
94449_gas_brochure.indd 3 9/5/07 9:57:44 AM

4
Jøtul’s Warmth Philosophy
Where most people consider warmth to mean heating and
cosiness, experience has taught us there is much more to it
than that. In fact, there are six types of warmth: physical
warmth and atmospheric warmth, in addition to visual,
convenient, durable and sustainable warmth.
We combine our warmth philosophy, “Warmth in every detail”,
with a rich tradition for ne craftsmanship. In doing so we
design cast iron stoves and replaces that create the
ultimate warmth experience.
• Cleanburntechnology
• Outstandingheatingefciency
• Choiceofconvectedand/orradiatedheat
• Optimalre-viewingarea
• Air-controlledcalmames
• Air-controlledsmokeemission
• Air-washedglass
• Award-winningdesigners
• Broadrangeoftimelessmodels
• Varioussizeoptions
• Choiceofpaintorenamelnishes
Physicalwarmth
To us, heating is not about creating the highest
temperature, it is about creating the most
comfortable temperature. Due to an optimum
combination of convected and radiated heat
our products can provide the most comfortable heat,
in the most efficient manner. Furthermore, our clean
burn technology ensures that practically all the
particles and gases in the smoke are burned.
Atmosphericwarmth
Nothing creates an intimate atmosphere quite like
a gently crackling fire. And nothing calms you quite
like the image of a flame dancing hypnotically on a
glowing log. We have always believed in the seductive
powers of the visible flame. For this reason, we have
developed pioneering flame technology to achieve
the perfect flame at all times.
Visualwarmth
The atmosphere produced by a stove or fireplace is
largely dependent on the aesthetic message it sends out.
We aim to create a lasting impression in the home and
follow our own “design for generations” ideal to give
our stoves and fireplaces a timeless appeal. We collaborate
with acclaimed design houses in order to design award-
winning stoves and fireplaces that outlive trends and
retain their timeless beauty for decades.
94449_gas_brochure.indd 4 9/8/07 10:31:37 AM

5
• Easytooperate
• Problem-freemaintenance
• Wipe-cleanglassandenamelsurfaces
• Simpleinstallationandpartreplacement
• Dependablecastirondurability
• 10-yearmanufacturingguarantee
• Minimum10-yearpartavailability
• Castironheritagesince1853
• Minimalsmokeemissions
• Recycledmaterials
• Cleanburnproducts
Convenientwarmth
We put an enormous amount of effort into our hearth
products so our customers don’t have to. The hearth is
the center-piece of the home – it is an essential part of
everyday life – and for this reason it should represent total
functionality. Everything about a Jøtul product is geared
towards our customers’ convenience: it is easy to install,
easy to use, easy to clean and easy to maintain. Life is
already complicated enough, so we make its pleasures
a little easier to enjoy.
Durablewarmth
Owning a Jøtul stove or fireplace is a lasting experience.
Since 1853 we have employed the finest handcrafting
techniques in order to provide our customers with long-
lasting, durable warmth. Warmth they can trust. Because
where fire is involved, safety and security are vital. Cast iron
delivers the highest standard of strength and durability.
As one of the world’s oldest cast iron stove and fireplace
manufacturers, no company delivers a longer lasting
promise of quality.
Sustainablewarmth
Our understanding of warmth enables us to create the
ultimate experience of warmth. All the cast iron we use
is recycled. And by relying mostly on hydroelectric power
to smelt recycled iron, we keep polluting emissions to an
absolute minimum. Furthermore, our clean burn technology
ensures that our products boast the most efficient use of
energy which also reduces the volumes of particles emitted
locally. This means our customers can light their hearth
products with minimal effect on the environment.
94449_gas_brochure.indd 5 9/8/07 10:31:43 AM

6
Jøtul GI 350 DV
Direct Vent Gas Insert
We looked at almost every other gas insert around and we could not find many
with clean-face designs. So we designed our Jøtul GI 350 DV gas insert with
hidden controls, “Fire on the Floor™” design, and one of the largest fire viewing
areas of any gas insert in its size on the market. The Jøtul GI 350 DV won us
industry recognition with a Vesta Design and Technology Award for best new
gas insert for 2007. Offering a variety of fronts, cast iron or steel, and various
interior panel kits, the Jøtul GI 350 DV can be tailored to fit any home or hearth.
Enjoy the view!
Options
Little Diamond cast iron surround
(available in three colors - see page 12)
Little Diamond cast iron double doors
(available in three colors - see page 12)
Screen for open door fire viewing
Choice of four interior panel packages
Cathedral Arch Steel Front
(available in three finishes - see page 14)
Grand Forge Steel Front
(available in three finishes - see page 16)
Surround sizes: see page 22
Features
Revolutionary new JøtulBurner™
delivers unsurpassed gas burner
technology and flame picture
(Patent #7004751)
50% heat control turndown
Innovative Fire-on-the-Floor™ design
Variable speed blower with manual
override (60-125 cfm)
Leg levelers for adjustable firebox
height - up to 3 inches
Perfectly sized to retrofit into factory
built wood fireplaces
Conveniently located side mounted
gas valve and control assembly
Handcrafted ceramic fiber log set
burns with the glowing warmth of a
wood fire
Optional remote and wall thermostat
5 year limited warranty
94449_gas_brochure.indd 6 9/10/07 1:45:58 PM

Jøtul GI 350 DV Little Diamond
Jøtul GI 350 DV shown with Classic Matte Black
Paint, Little Diamond cast iron surround, plinth and
double doors. Additional options include antique
brick panel kit and firescreen
94449_gas_brochure.indd 7 9/5/07 9:58:04 AM

8
DirectVentGasInsert
The Jøtul GI 450 DV Katahdin gas insert offers your home tremendous heat
without losing any room space. Our classic cast iron design with furnace rated
direct vent heating performance is simple to install and easy to service. Named
after Mt. Katahdin, Maine’s highest peak, the Jøtul GI 450 DV Katahdin will
surely bring some Maine charm to your home.
Jøtul includes a standard cast iron surround (40” wide by 30” high) and offers
an optional wide cast iron surround (48” wide x 34” high). Also available are a
wall thermostat, fire screen, antique brick panels (molded from real brick), and
remote control for added convenience..
Jøtul GI 450 DV Katahdin
Options
Wall thermostat
Remote control
Wide cast iron surround (shown at right)
(must be used w/standard surround)
Fire screen
Antique brick panel kit (molded from real brick)
Available in three colors
Features
Panoramic flush face design
Crafted cast iron with unique
interior detailing and intricate
enameled decorative side panels
Sculpted cast iron surrounds add
classic decorative flair
Dramatic flame picture – realistic
ceramic fiber logs burn with the
warm glow of a wood fire
Enameled cast iron fettle
and andirons
Easy to install in virtually
any fireplace
Standard blower fan (60 - 125 cfm)
2” riser plinth included with every unit
Glass panel 29 1/4”W x 13 1/4”H – one
of the industry’s largest!
5 year limited warranty
Blue/Black Porcelain Enamel
Jøtul Iron™ Paint
Classic Matte Black Paint
94449_gas_brochure.indd 8 9/5/07 9:58:07 AM

Jøtul GI 450 DV Katahdin

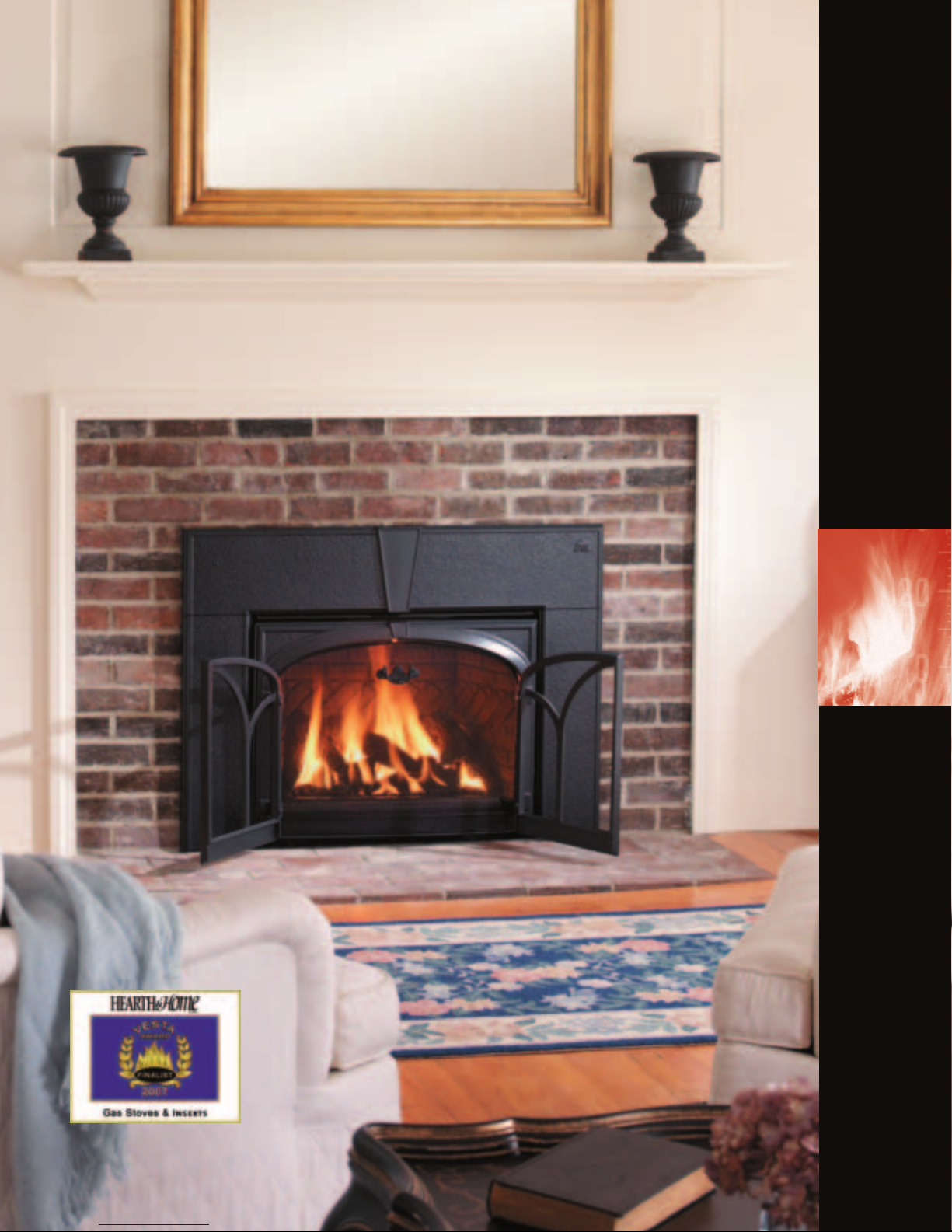

Jøtul GI 450 DV Katahdin Gas Insert shown here in
Blue/Black Porcelain Enamel, optional fire screen
and antique brick panel kit
94449_gas_brochure.indd 9 9/8/07 10:32:00 AM

10
Jøtul GI 550 DV
Direct Vent Gas Insert
It didn’t take us long to realize the Jøtul GI 350 DV needed a bigger sibling. And
naturally, we wanted the same features that distinguish these models from the
competition. So we designed our Jøtul GI 550 DV gas insert with hidden controls,
“Fire on the Floor™” design, and one of the largest fire viewing areas of any gas
insert in its size on the market. It got us more Vesta Design and Technology
recognition - a significant coup for our talented development staff! Offering a
variety of fronts, cast iron or steel, and various interior panel kits, the
Jøtul GI 550 DV can be tailored to fit any home or hearth. Enjoy the view!
Features
Revolutionary new JøtulBurner™
delivers unsurpassed gas burner
technology and flame picture
(Patent # 7004751)
50% heat control turndown
Optional remote and wall thermostat
Innovative Fire-on-the-Floor™ design
Variable speed heat activated blower
with manual override (60-125 cfm)
Leg levelers for adjustable firebox
height - up to 3 inches
Conveniently located side mounted
gas valve and control assembly
Handcrafted ceramic fiber log set
burns with the glowing warmth of a
wood fire
5 year limited warranty
Options
Great Diamond cast iron surround
(available in three colors - see page 13)
Great Diamond cast iron double doors
(available in three colors - see page 13)
Wide trim surround
Screen for open door fire viewing
Choice of four interior panel packages
Cathedral Arch Steel Front
(available in three finishes - see page 14)
Grand Forge Steel Front
(available in three finishes - see page 16)
Surround sizes: see page 24
Product name
94449_gas_brochure.indd 10 9/10/07 1:47:56 PM

Product name Jøtul GI 550 DV Great Diamond

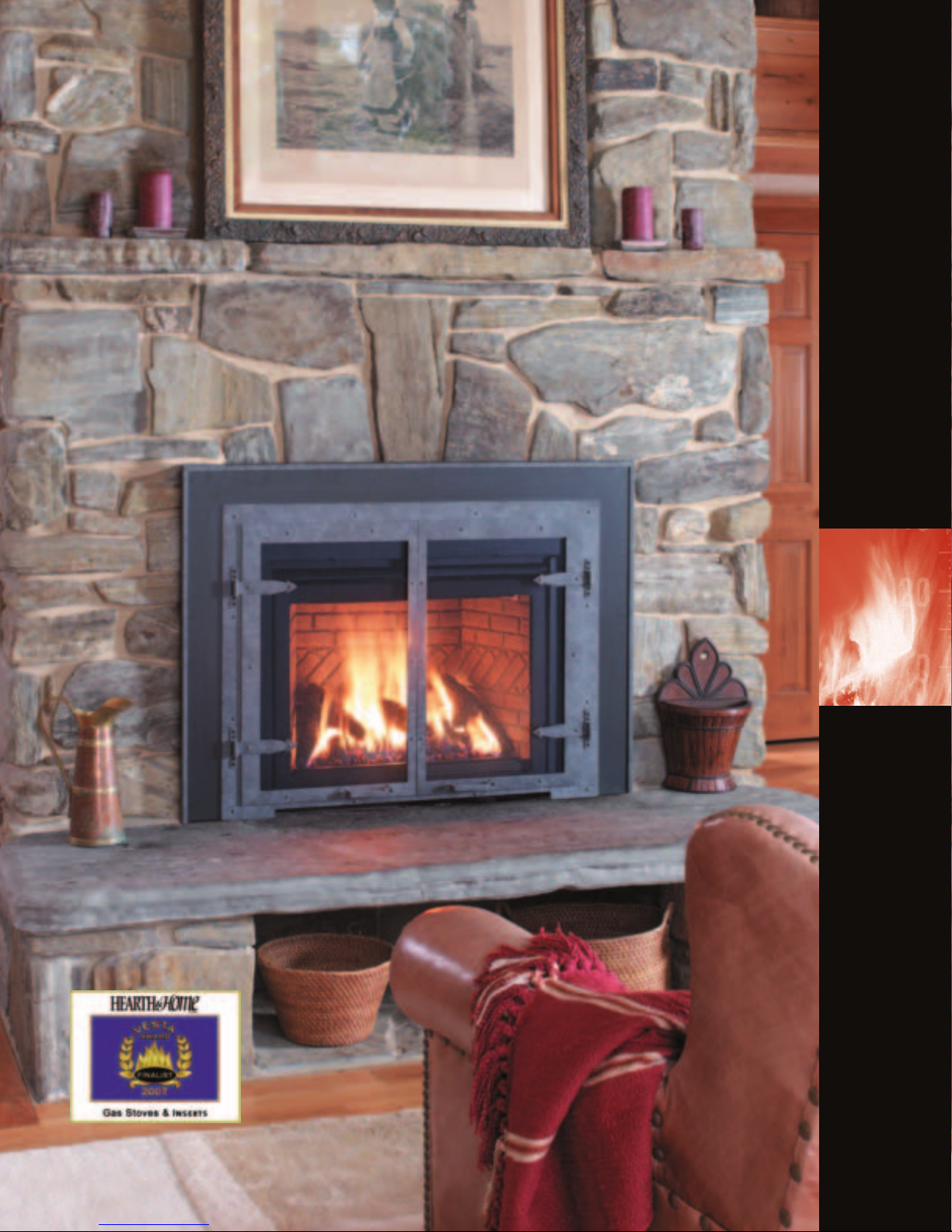

Jøtul GI 550 DV shown with Classic Matte Black
Paint, Great Diamond cast iron surround and double
doors. Additional options include border brick panel
kit and firescreen
94449_gas_brochure.indd 11 9/5/07 9:58:18 AM

12

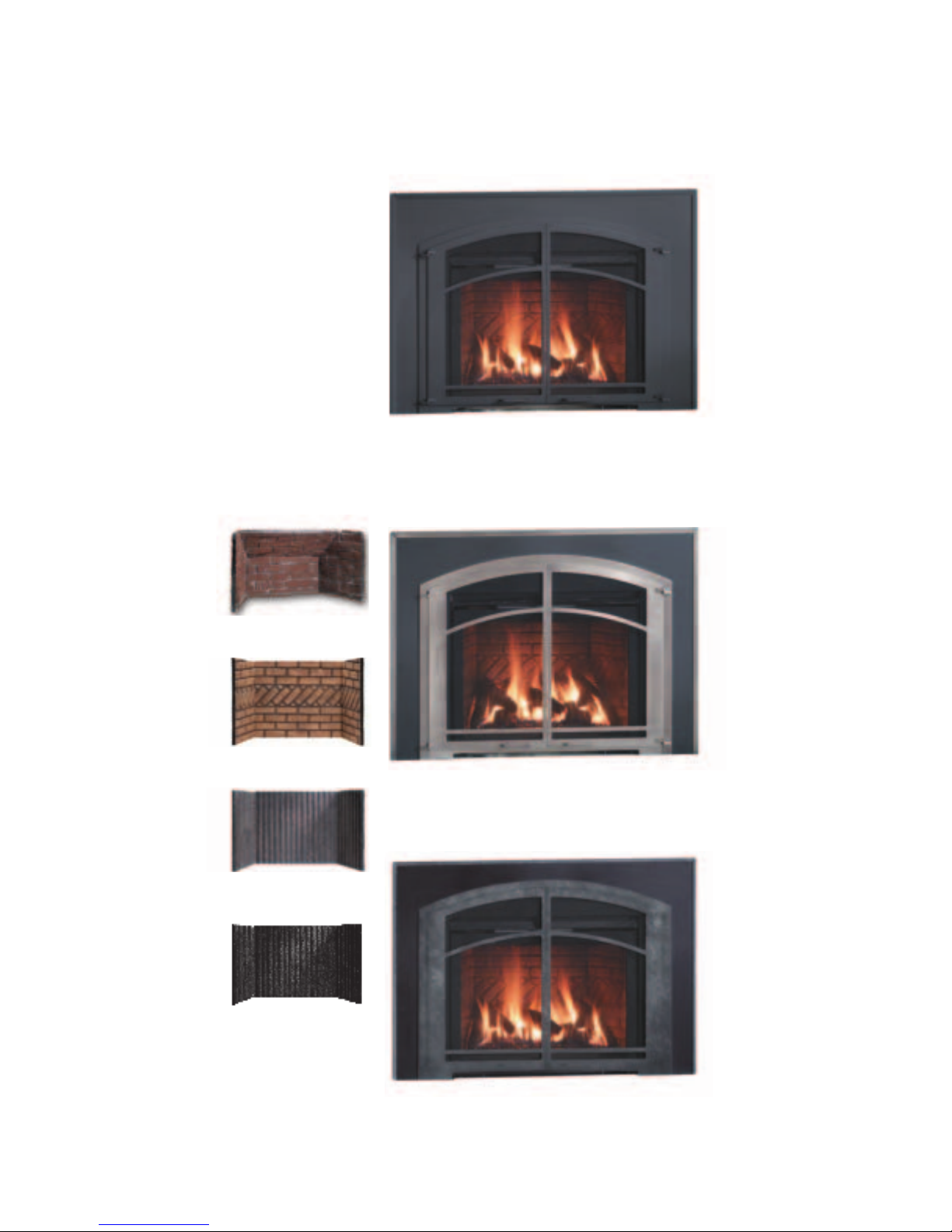

Jøtul Little Diamond Series
Available on GI 350 DV inserts
Little Diamond cast iron surround shown in Blue/Black
Porcelain Enamel with 2” plinth and optional antique brick kit
Little Diamond cast iron surround with standard steel
wide surround, 2” plinth and double doors shown in
Classic Matte Black Paint with optional antique brick kit
Little Diamond cast iron surround, double doors, and 2” plinth
shown in Classic Matte Black Paint, optional antique
brick kit and firescreen
Antique brick kit
Border brick kit
Gray Corduroy panel kit
Black Corduroy panel kit
Blue/Black Porcelain Enamel
Jøtul Iron™ Paint
Classic Matte Black Paint
94449_gas_brochure.indd 12 9/5/07 9:58:26 AM

13
Great Diamond cast iron surround shown in Classic
Matte Black Paint and optional border brick kit
Great Diamond cast iron surround and double doors
shown in Classic Matte Black Paint and optional
border brick kit
Great Diamond cast iron surround and double doors
shown in Classic Matte Black Paint, optional border
brick kit and firescreen
Jøtul Diamond Series
Jøtul Great Diamond Series
Available on GI 550 DV inserts
Antique brick kit
Border brick kit
Gray Corduroy panel kit
Black Corduroy panel kit
Blue/Black Porcelain Enamel
Jøtul Iron™ Paint
Classic Matte Black Paint
94449_gas_brochure.indd 13 9/5/07 9:58:32 AM

14
Cathedral Arch Front shown in Black Powder Coat
with optional border brick kit
Cathedral Arch Front shown in Natural Iron
with optional border brick kit
Cathedral Arch Front shown in Charcoal Gray Powder
Coat with optional border brick kit
Antique brick kit
Border brick kit
Gray Corduroy panel kit
Black Corduroy panel kit
Jøtul Cathedral Arch Series
Available on GI 350 DV and GI 550 DV inserts
94449_gas_brochure.indd 14 9/5/07 9:58:37 AM

Jøtul GI 550 DV Cathedral Arch
Jøtul GI 550 DV shown with Cathedral
Arch Front in Natural Iron with
optional border brick kit
94449_gas_brochure.indd 15 9/5/07 9:58:42 AM

16
Grand Forge Front shown in Black Powder Coat
with optional border brick kit
Grand Forge Front shown in Natural Iron
with optional border brick kit
Grand Forge Front shown in Charcoal Gray Powder Coat
with optional border brick kit
Jøtul Grand Forge Series
Available on GI 350 DV and GI 550 DV inserts
Antique brick kit
Border brick kit
Gray Corduroy panel kit
Black Corduroy panel kit
94449_gas_brochure.indd 16 9/5/07 9:58:49 AM

Jøtul GI 550 DV Grand Forge
Jøtul GI 550 DV shown with
Grand Forge Front in
Charcoal Gray Powder Coat and
optional border brick kit
94449_gas_brochure.indd 17 9/8/07 10:32:49 AM

18
Jøtul GZ 550 DV II Acadia
Direct Vent Gas Fireplace
We looked at almost every other zero clearance fireplace around and we couldn’t
find many fireplaces made of cast iron – all we saw was black tin.
So we designed a cast iron fireplace that’s not gussied up like a Victorian lady,
nor poor plain Jane. We combined the sculptural qualities of cast iron and Jøtul’s
new revolutionary cast iron and stainless steel burner, the JøtulBurner™,
to create a fireplace that’s sleek and elegant; restrained enough to enhance any
décor. The Jøtul GZ 550 DV II Acadia comes with many options – screens, arched
and rectangular faces, antique brick panels (molded from real brick), double
doors, remote control, blower fan and more.JøtulBurner™
Options
Antique brick panel kit
(molded from real brick)
Variable speed heat activated blower with
manual override
(60-125 cfm)
Screen for open door fire viewing
Multiple venting installations
Wall thermostat
Remote control
Jøtul Quickface System™ (see page 20)
Available in three colors
Blue/Black Porcelain Enamel
Jøtul Iron™ Paint
Classic Matte Black Paint
Features
Revolutionary new JøtulBurner™
delivers unsurpassed gas burner
technology and flame picture
(Patent # 70044751)
50% heat control turndown
Elegant cast iron surround panels
with Cascading Lattice™
Three position On/Off/T-stat switch
Gas conversion kit included with
every stove for use with propane
No electricity required to operate
Handcrafted ceramic fiber log set
burns with the warm glow of a
wood fire
Standard enameled cast iron fettle
and andirons
5 year limited warranty
94449_gas_brochure.indd 18 9/11/07 11:32:32 AM

Jøtul GZ 550 DV II Acadia
Jøtul GZ 550 DV II Acadia shown here
installed in a corner mantel cabinet with optional
Jøtul Quickface System™ accessories and antique
brick panel kit
94449_gas_brochure.indd 19 9/5/07 9:59:03 AM

20
Jøtul Quickface System™
(For Jøtul GZ 550 DV II Acadia)
It’s easy to change the look of your Jøtul GZ 550 DV II Acadia. By choosing one of
two face shapes, offered in two colors (Classic Matte Black or Brushed Stainless),
you can customize your Jøtul GZ 550 DV II Acadia to your particular décor or
mood. Or you can enhance your fire viewing experience with the cast iron
arched double doors option.
Quickly installed, the fully functional doors also allow use of an optional fire
screen. Add our antique brick panel kit, shown below, t0 provide a unique accent
of authenticity not available in any other zero clearance gas fireplace
or gas insert.
Here the brushed stainless Arched Face on the Jøtul GZ 550 DV II Acadia
enlivens this contemporary interior.
Arched Face Classic Matte Black,
with removable screen
(Also available in Brushed Stainless)
Rectangular Face Brushed Stainless,
with removable screen
(Also available in Classic Matte Black)
Arched Double Doors
(Available in Classic Matte Black, Jøtul Iron™
Paint or Blue/Black Porcelain Enamel)
Fire Screen
Antique Brick Panel Kit
94449_gas_brochure.indd 20 9/5/07 9:59:08 AM
