Jøtul FS 84 Advance User manual

Jøtul FS 84 Advance
The manuals which are enclosed with the product must be kept throughout the product’s entire service life. Les manuels fournis
avec le produit doivent être conservés pendant toute la durée de vie du produit.
UK - Installation and operating instructions 3
FR - Manuel d’installation et d’utilisation 36
Jøtul FS 84 Advance
Manual version P02

2
EU no. 215/1186 - 24/04/2015
Datasheet / Fiche Technique / Ficha técnica /
Scheda dati / Datasheet / Datenblatt
Requirements / Exigences / Requisitos / Requisiti /
Vereisten / Forderungen
Supplier /
Fabricante /
Fornitore /
Vereisten /
Lieferant:
Jøtul AS
Product models
Produits concernés
Modelos
Modelli
Product modellen
Varianten der Feuerstelle
Jøtul FS 84 – 370 Advance
Jøtul FS 162 – 370 Advance
Energy efficiency class / Classe énergétique / Clase de
eficiencia energética / Classe energetica / Energie
efficiëncy klasse / Energieeffizienz-Klasse
A
Direct heat output / Puissance réelle de sortie / Potencia
calorifica emitida / Emissione di calore diretta / Directe
warmte afgifte / Nennwärmeleistung
6,0 kW
Energy efficiency index / Index de rendement énérgétique/
Índice de eficiencia energetica / Indice di efficienza
energetica / Energie efficiëncy index / Energieeffizienz-
Index
104,1
Efficiency at nominal heat output / Rendement à
puissance nominale / Eficiencia al rendimiento nominal /
Efficienza alla potenza nominale / Efficiency bij nominale
warmte afgifte / Wirkungsgrad bei Nennheizleistung
78 %
x Any specific precautions that shall be taken when the
local space heater is assembled installed or
maintained.
x Toutes les précautions spécifiques doivent être prises
lors de l’assemblage, l’installation ou l’entretien de
l’appareil.
x Cualquier precaución específica que deba tenerse en
cuenta durante el montaje, instalación o
mantenimiento del equipo de calefacción
x Precauzioni specifiche da prendere quando il
riscaldatore viene assemblato, installato o mantenuto
in uno spazio.
x Eventuele specifieke voorzorgsmaatregelen die
worden genomen wanneer de plaatselijke
ruimteverwarming wordt gemonteerd, geïnstalleerd of
onderhouden.
x Besondere Maßnahmen bei Montierung, Installation
und Wartung.
x Fire safety precautions such as safety distances when
installing, national standards, local codes and
regulations. See the Instructions manual.
x Les précautions d'incendie telles que les distances de
sécurité lors de l'installation, le suivi des normes, les
codes locaux et les règlementations nationales. Veuillez
lire le manuel d’installation.
x Precauciones frente a incendios como distancia de
seguridad en la instalación, estándares nacionales,
códigos locales y reglamentos. Lea el manual de
instalación.
x Precauzioni per la sicurezza antincendio come le distanze
di sicurezza durante l'installazione, le normative nazionali
e locali. Leggere il manual.
x Brandveiligheidsmaatregelen, zoals veiligheids-
afstanden bij installatie, nationale normen, lokale
codes en voorschriften. Lees de installatiehandleiding.
x Für brenntechnische Verhältnisse, wie z.B.
Aufstellbedingungen und nationale Forderungen.
Siehe die Montage- und Bedienungsanleitung.

3
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC
SP
EN
Serial no.
On all our products there is a label
indicating the serial number and
year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number
when contacting your retailer or
Jøtul.
Table of contents
1.0 Relationship to the authorities ......................3
2.0 Technical data ..............................................3
3.0 Before installation.........................................6
4.0 Installation ................................................... 7
Low model ...................................................8
High model ..................................................16
Kitchen model .............................................26
5.0 Installation completed ................................34
6.0 Optional equipment .....................................34
1.0 Relationship to the
authorities
Jøtul FS 84 - Advance is a freestanding product, which can be
positioned against infl ammable walls at the distances described
in fi g. 1A and fi g. 1B.
The installation of a fi replace must take place in accordance
with each country’s laws and regulations. All local ordinances
must also be complied with when products are installed.
The product has been tested and documented as a freestanding
stove in accordance with EN 13240.
The rating plate for the freestanding product comes with the
installation instructions for the surround. It should be positioned
in a suitably visible place.
2.0 Tekniske data
Three options are available for the product:
• Low model
• High model
• Kitchen model
Material: Cast iron / concrete
Finish, burn chamber: Black paint
Type of fuel: Wood
Max. log length: 30 cm
Smoke outlet: Top, rear
Flue pipe dimension: Ø 150 mm
External air connection: Alu. fl ex - Ø 100 mm
Weight, burn chamber, approx.: 120 kg
Weight surround, low model, approx: 164 kg
Weight surround, high model, approx: 202 kg
Weight surround, kitchen model, approx. 202 kg
Height low model: 1660 mm
Height high model: 2071 mm
Height kitchen model: 2071 mm
Width, all models: 583 mm
Depth, all models: 501 mm
Min. distance to ceiling:
- low model: 750 mm
- high model: 510 mm
- kitchen model: 750 mm
Product dimensions, distances: See Fig. 1
ENGLISH

4
ENGLISH

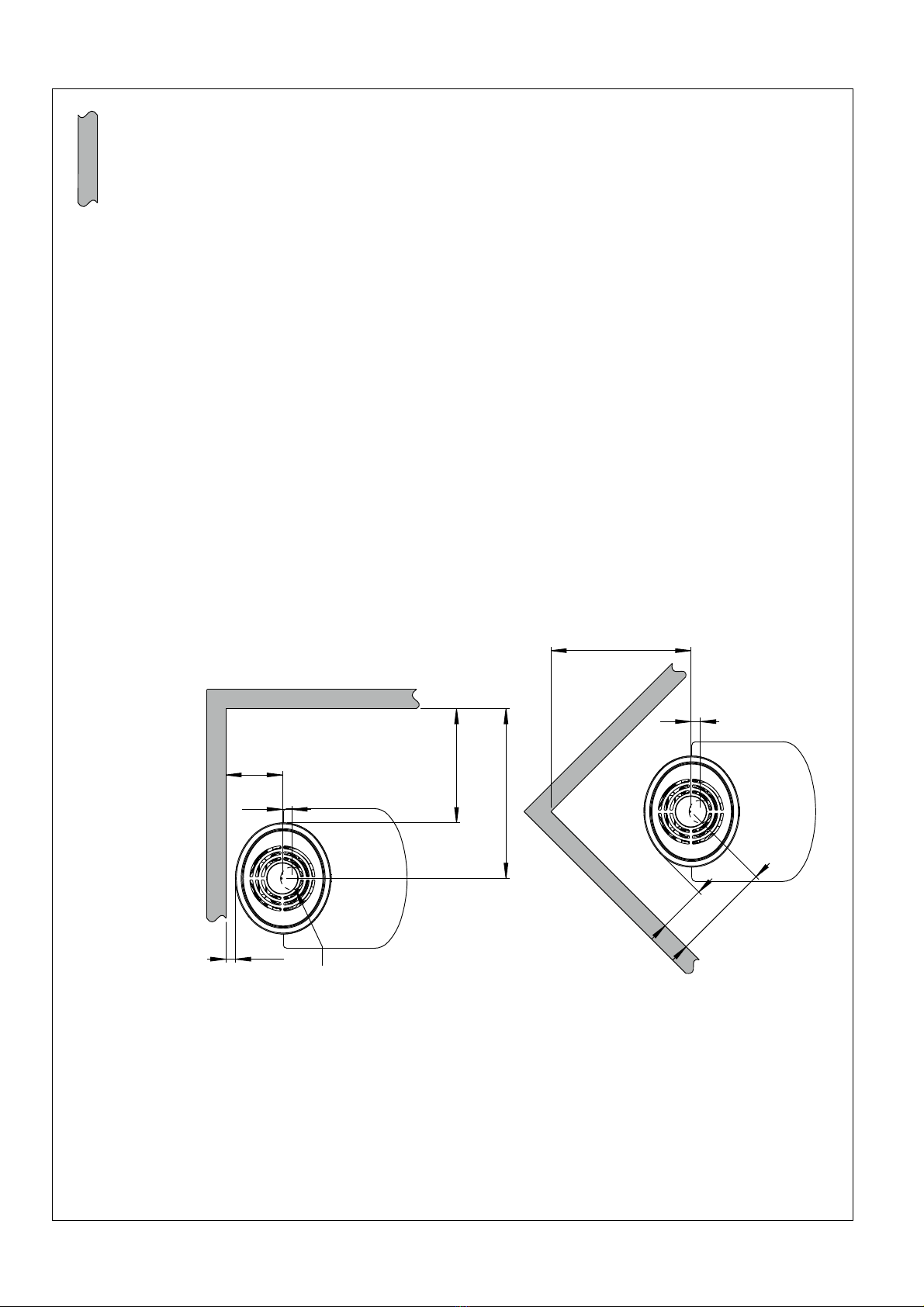

Fig. 1a
900222-P00
* Min. distance to ceiling
*750
1660
1350
584
160
414
414
2070 *510
160 1350
414
2070 *750
1764
367
828
Min. measurements floorplate X / Y = acc. to national standards
Hole in wall for Ø 100 mm external air supply
Y
X
Jøtul FS 84 Advance
Floor plate

5
ENGLISH
900222-P00
Hole in floor for outside air Ø 100 mm connection
Min. distance to combustible wall
** With the use of semi-insulated chimney or shielded flue pipe down towards the product
**50
50
**297
600
892
50
734
250
519
Fig. 1b
Combustible wall

6
3.0 Before installation
3.1 Distance to infl ammable material
See fi g. 1.
3.2 Foundations
You need to make sure the fl oor is suitable for the entire
installation. See “2.0 Technical data” for specifi ed weight.
Flooring that is not attached to the foundation – “fl oating fl oors”
– must be removed beneath the product.
Remember: If a steel chimney resting on the insert is being
used, the weight of the steel chimney must be taken into
account.
NB: It is extremely important to ensure that the product
is stable; the surface it is installed on must be completely
infl exible.
3.3 Floor covering
We recommend the removal of any fl ooring that is not attached
to the foundation (“fl oating fl oors”) beneath the installation.
Any fl oor covering of infl ammable material, such as linoleum,
carpets, etc. must be removed from under the installation area.
3.4 Floor plate
A plate made of steel or some other suitable non-infl ammable
metal (optional extra) is placed in front of the fi replace.
Contactyour localbuildingauthoritiesregardingrestrictions and
installation requirements.
3.5 Air circulation requirements
Air shall be allowed to circulate between the insert and the
brickwork.
Important! Ensure that air vents in the room where the
fi replace is located are not blocked.
3.6 External air
A fl exible supply tube for combustion air (optional equipment,
art. no. 51012164) can be installed through a hole in the back
of the surround, or else through the hole cut where marked in
the bottom plate.
3.7 Steel chimney
If a top-mounted steel chimney is used, an uninsulated pipe is
fi tted from the insert to approximately 10 mm over the top grate.
A 50 mm off set pipe (optional extra) must be used. Then fi t the
steel chimney in accordance with the operating instructions.
ENGLISH

7
ENGLISH
4.0 Installation
The product is heavy! Ensure you have help when positioning
and installing it.
Make sure that the door to the burn chamber is closed during
installation so that the product is not nose-heavy. The product
must be secured so that it does not topple over while you are
installing it.
The product is supplied together with 2 manuals:
• Jøtul FS 84 Advance
• Jøtul F 370 Advance
Use the acrylic sealant provided for all joints.
4.1 Prior to installation
• The standard product is supplied in two packages: the
burn chamber and surround with mounting sections.
• Control handle set.
Before installing the fi replace, check it carefully for any signs
of damage.
Preparations
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney.
• When the product is unpacked, take out the ash pan and
its contents, the fi re grate, burn plates, baffl e and exhaust
defl ector. These parts are to be reinstalled when the
installation is fi nished.
• Remove the top plate with the grate. These parts are not
to be used.

8
ENGLISH

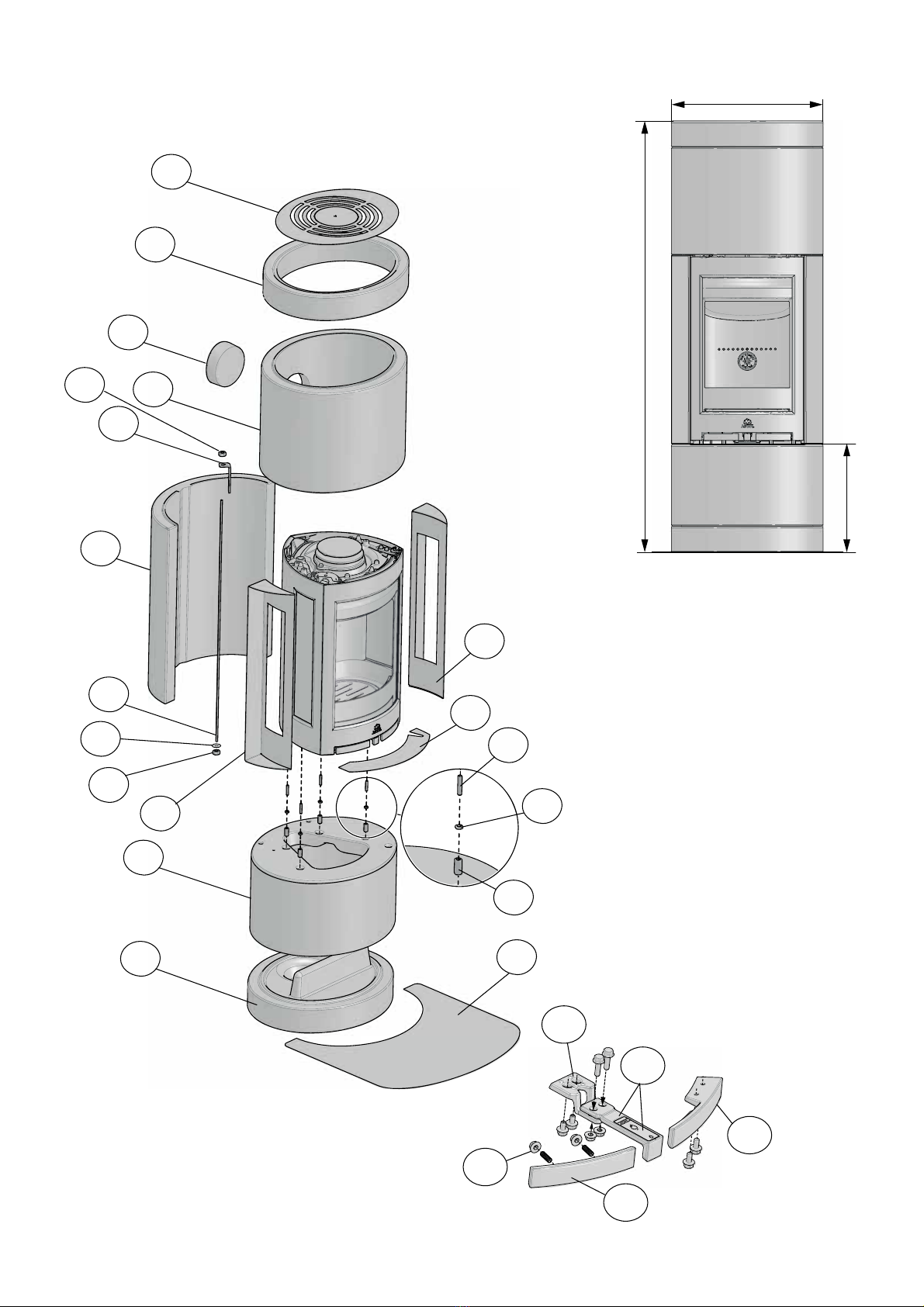

Jøtul FS 84 - low model
Fig. 1
9
14
13
8
10
12
2
17
1
11 15
3
23
18
4
6
7
5
5
1567
583
414
Parts for the low model:
Part 1 - Base
Part 2 - Thread bar
Part 3 - Stud bolt
Part 4 - Washer
Part 5 - Nut M6
Part 6 - Nut M8
Part 7 - Sleeve nut
Part 8 - Connection angle
Part 9 - Top grate
Part 10 - Rear section
Part 11 - Bottom plate
Part 12 - Cowl 1
Part 13 - Sealing plug
Part 14 - Top crown
Part 15 - Floor plate (optional extra)
Part 16 - Nut M6 with collar head
Part 17 - Side frame, left
Part 18 - Side frame, right
Part 19 - Door handle for surround
Part 20 - Air vent lever, plate for vent
Part 21 - Spacer, air vent lever
Part 22 - Handle dummy for surround
Part 23 - Ash lip
20
21
22
19
16

9
ENGLISH
4.2 Assembly of the Jøtul FS 84 - low
model
Fig. 2

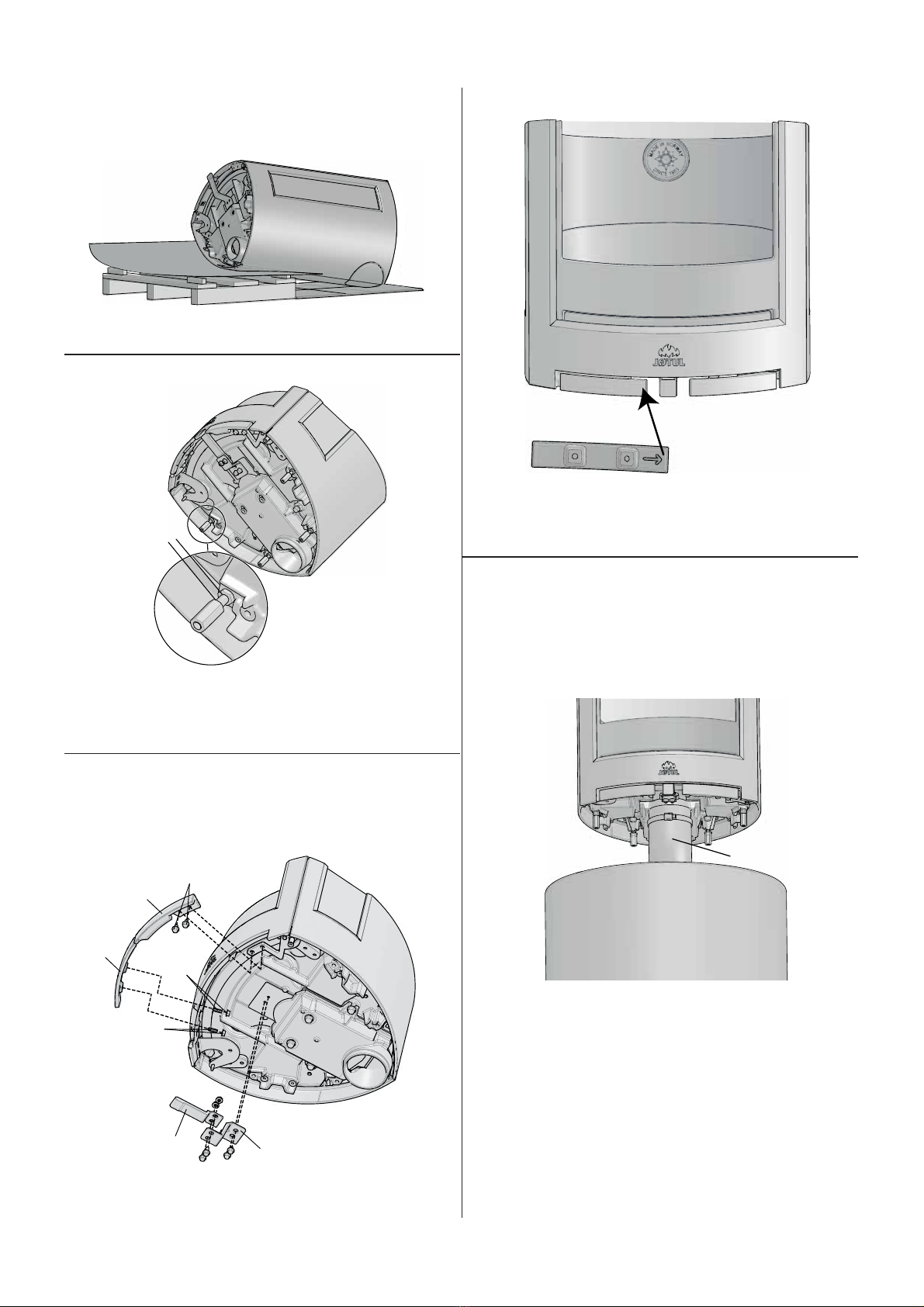

1. Spread the cardboard packaging over the fl oor, and lay the
stove down carefully on its side.
Fig. 3
6 mm
2. Screw in the 4 screws (fi g. 1 - part 3) approx. 10 mm and
lock in place with counter nuts. Then screw in the sleeve
nuts M8 x 30 (fi g. 1 - part 7) until about 6 mm away from the
counter nuts (fi g. 1 - part 6).
Replacing the control handle on the burn
chamber
The control handles on the Jøtul FS 84 Advance must be
replaced with the handles provided in the box.
Fig. 4
A
A
B
C
ED
A
3. Unscrew the stud bolts and nuts (A) and remove the handles
(B and C).
4. Unscrew the spacer (D) and lever (E).
5. Fit the new lever set in the same place.
Fig. 4 B
6. Make sure that the arrow on the inside of the lever is
pointing towards the centre of the handle set.
4.3 Outside air connection (optional
extra)
Fig. 5
A
• If the outside air connection (A) (item no. 51012164) is to
be used, this must be fi tted now. Refer to the manual for
the Jøtul F 370 Advance (item no. 10050848) and manual
(item no. 10026187) for Ø 100 mm outside air connection.

10
Fig. 6
A
B
7. When using outside air connection through the fl oor (optional
extra, item no. 51012164), this must be fi tted now. Make a
hole in the recess (A) for the external air hose at the rear of
the bottom section. Route the hose out through the hole in
the bottom section.

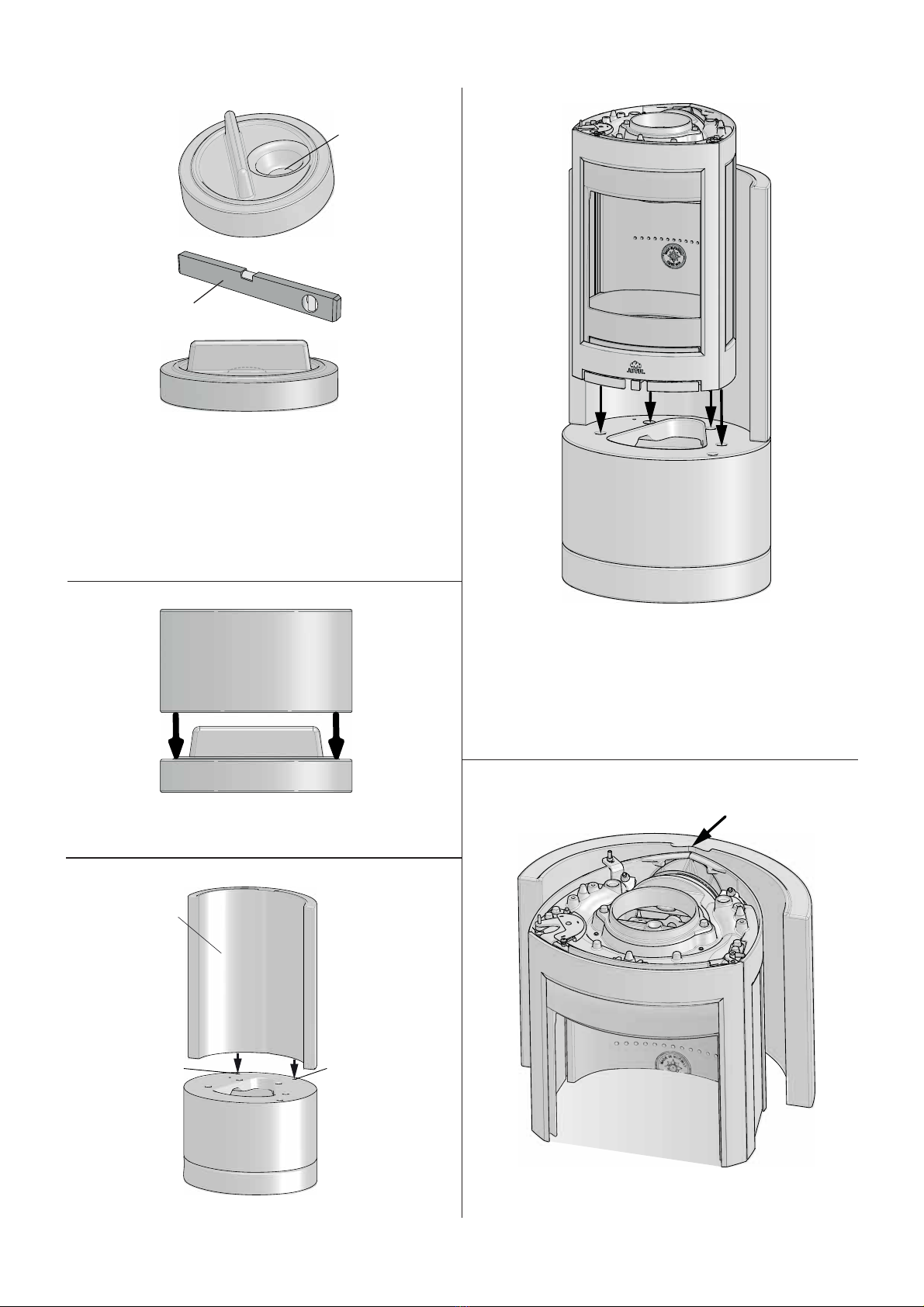

8. Put the bottom plate (fi g. 1 - part 11) in place. Check using
a spirit level (B) and adjust as necessary using adhesive or
mortar. NB: It is extremely important that the bottom
plate is steady and level.
Fig. 7
9. Insert the base (fi g. 1 - part 1) in the slots in the bottom
plate. Check that it is level.
Fig. 8
A
B
B
10. Put the back plate (A) in place. The rear section has two
protrusions that slot (B) into the base.
Fig. 9
11. Position the burn chamber in the four grooves in the base
(fi g. 1 - part 1). Level and adjust the burn chamber vertically
using the long nuts in the adjusting kit. Make sure the burn
chamber is fl ush with the front of the base. If using an
external air supply, make sure that the fl exible hose for the
outside air connection is not trapped. Route the hose out
through the hole in the rear of the base.
Fig. 10
A
12. Adjust the burn chamber to fi t the hollow (A) on the inside
of the rear plate.
ENGLISH

11
ENGLISH
Fig. 11
A
B
13. Push the thread bar (A) (fi g. 1 – part 2) through the hole
in the base and lock it underneath with a nut and washer.
Then slide the connection angle (B) (part 8) onto the
thread bar and hook it onto the insert. Lock in place with
nut. NB! Tighten the nut carefully
Fig. 12
AA
B

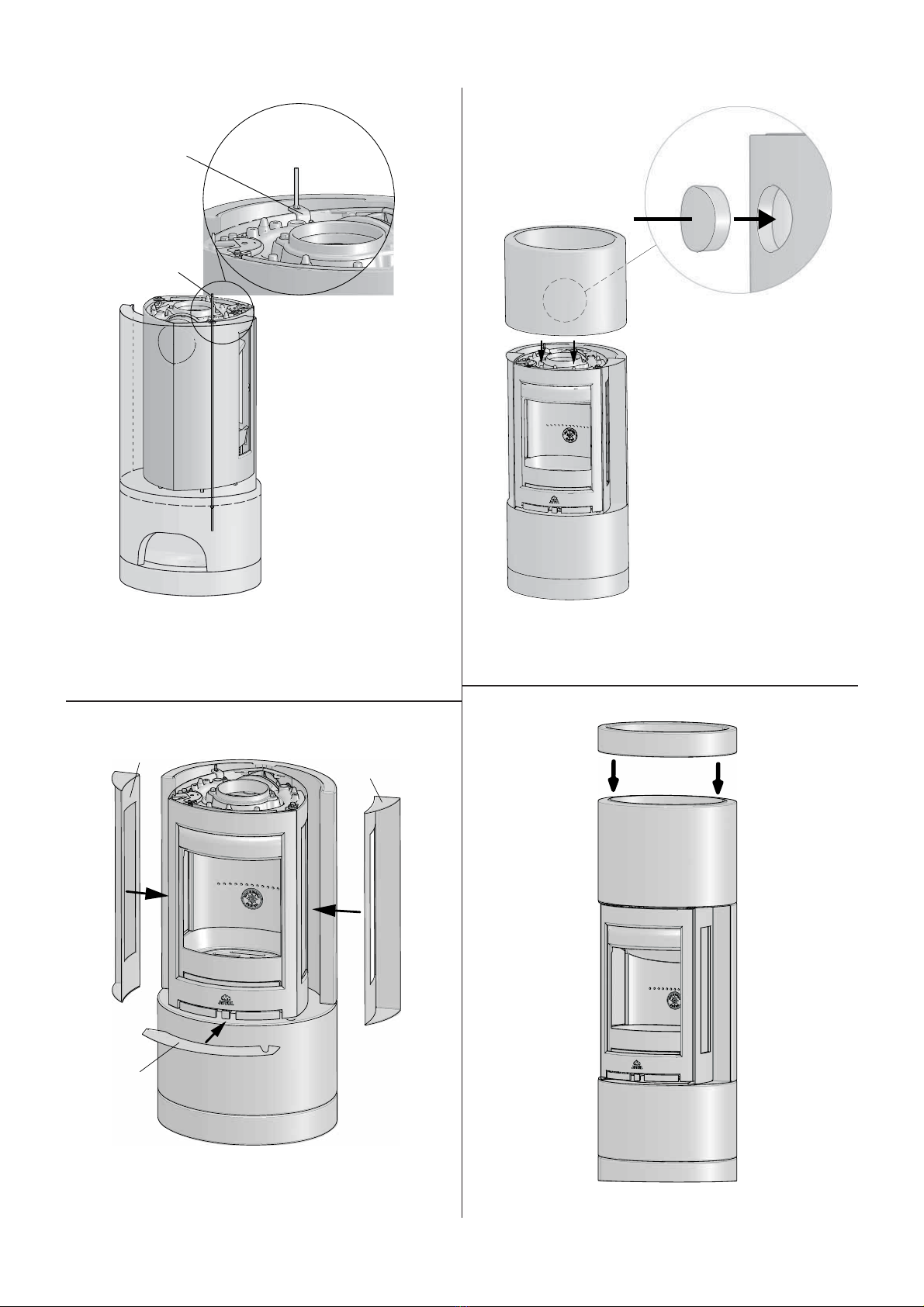

14. Move the side frames into position (A) (fi g. 1 - parts 17
and 18). NB: The side frames must be fl ush with the base
(fi g. 1 - part 1). Secure in place using acrylic adhesive.
15. Put the ash retainer in position (B) (fi g. 1- part 23).
Fig. 13
16. Position cowl 1 in the slots. NB: When top-mounting a fl ue
pipe, glue the sealing plug (fi g. 1 - part 13) in place using
acrylic adhesive.
Fig. 14

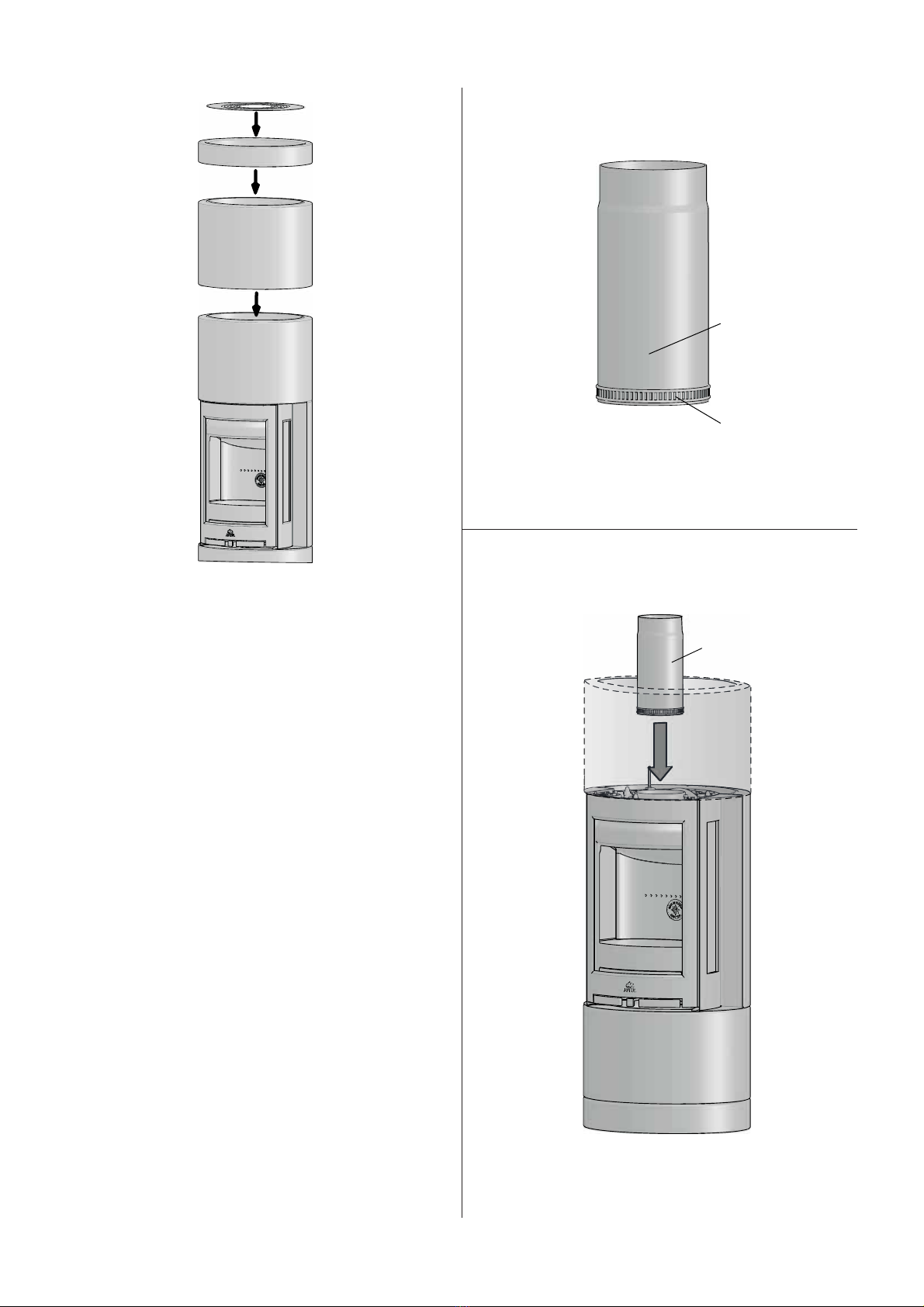

17. Put the top crown in place.

12
4.7 Chimney and fl ue pipe
• The fi replace must only be connected to a chimney and
fl ue pipe approved for solid fuel fi replaces with fl ue gas
temperatures as specifi ed in «2.0 Technical Data».
• The specifi ed distance to fl ammable materials, applies to
this stove.
• The stove must be installed with a CE approved fl ue.
• The distance of the fl ue pipe to combustible materials must
also be observed.
• The cross-section of the chimney must be designed to fi t
the fi replace. Use «2.0 Technical Data» to calculate the
correct chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney. See fi g. 1 for
minimum dimensions.
• With a rear outlet, use a fl ue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections
to have a degree of fl exibility. This is to prevent any
movement in the installation leading to the formation of
cracks.
• For recommended chimney draught, and fl ue pipe
dimension see “2.0 Technical Data”. NB: The chimney’s
diameter must be at least just as big as the fl ue pipe.
4.5 When using heat-accumulating
stones (optional extra)
Fig. 15
A
B

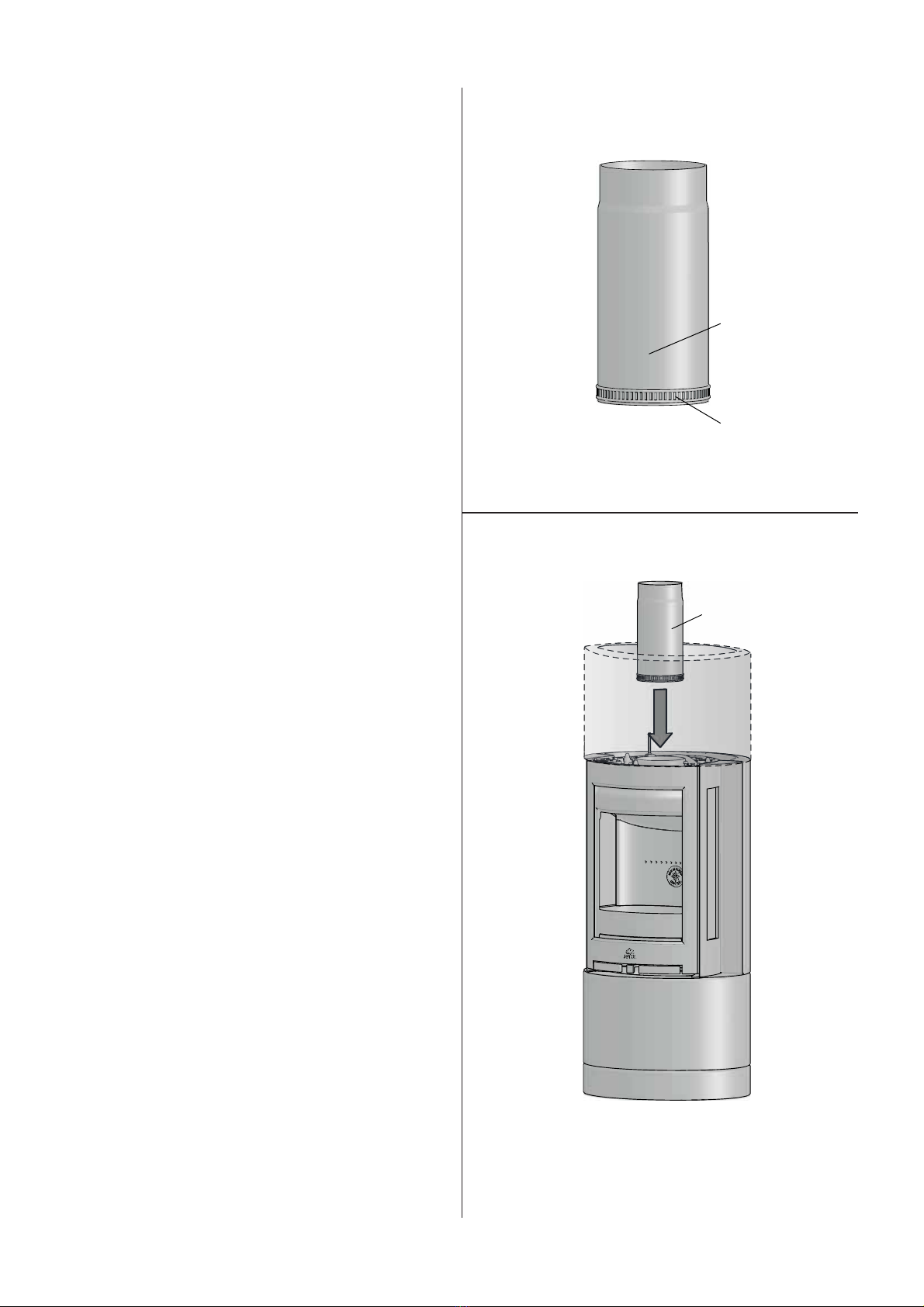

1. Fit the gasket (B) on the end of the fl ue pipe (A).
Fig. 16
A
2. Push the fl ue pipe (A) down into the top outlet.
ENGLISH

13
ENGLISH

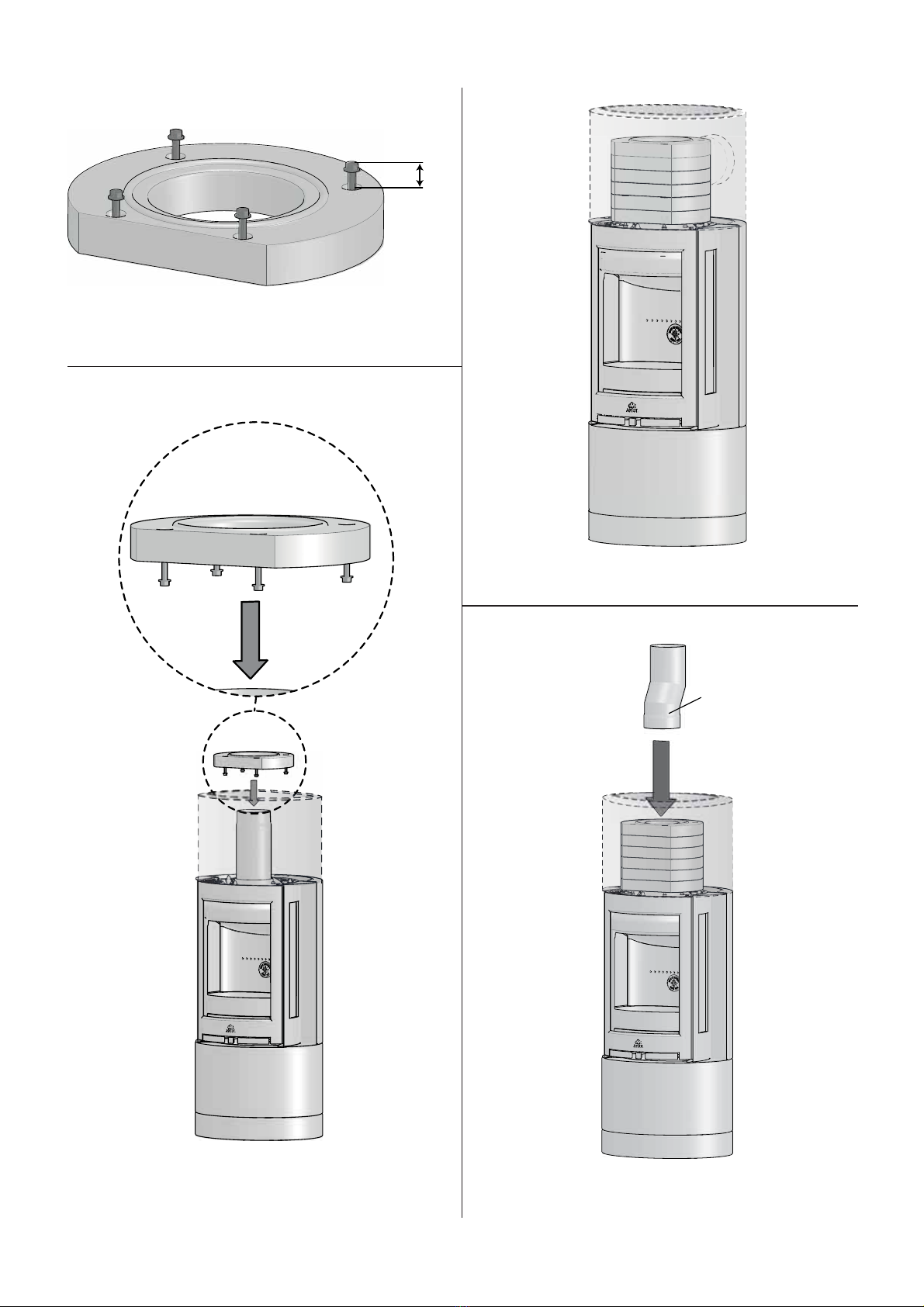

Fig. 17
Ca. 28 mm
3. Screw the screws into the fi rst stone. Let the screws stand
out 28 mm on the outside.
Fig. 18
4. Turn the stone round and push it down around the fl ue
pipe. Make sure the fl at side is facing forward. NB: Adjust
the screws so that the stones are stable.
Fig. 19
5. Place the other stones over the fi rst stone.
Fig. 20
A
6. Place the off set pipe in the fl ue pipe. Make sure the off set
pipe is facing backwards.

14
Fig. 21

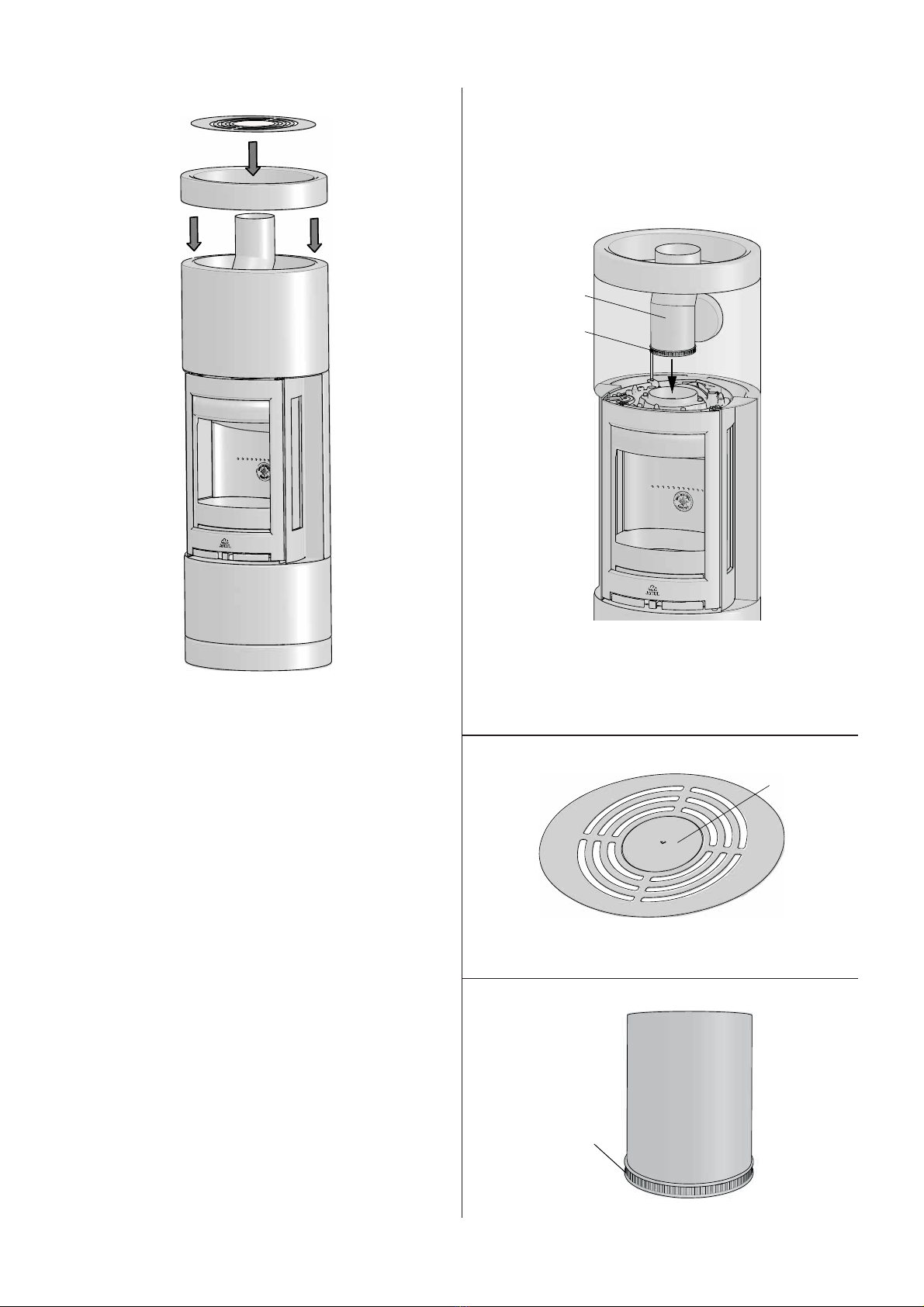

7. Put the top crown (fi g. 1 - part 14) in place. Cut out the
centre of the top grate (see fi g. 23) (fi g. 1 - part 9) and lay
it on the top crown.
4.6 Installation using top outlet
Flue pipe at top outlet
The product is assembled with the smoke outlet fi tted for a
top outlet as standard. Off set pipe, 50 mm, for a top outlet is
supplied as an optional extra.
Fig. 22
A
B
1. The product is assembled with the smoke outlet fi tted for a
top outlet as standard.
2. Place the gasket (B) on the edge of the off set pipe (A).
3. Fit an off set pipe, 50 mm (optional extra).
4. Make sure that the gasket is properly seated between the
off set pipe and the smoke outlet.
Fig. 23
A
5. For a top outlet, the centre section (A) of the grate must
be cut out fi rst.
Fig. 24
A
6. Fit the gasket (A) on the end of the fl ue pipe.
ENGLISH

15
Fig. 25
7. Thread the fl ue pipe through the top grate (fi g. 1 - part 9)
then place it in the off set pipe.
ENGLISH
4.7 Installation using rear outlet for fl ue pipe
Fig. 26
1. Use the smoke outlet fi tted for a top outlet. Fit the fl ue pipe
in accordance with the instructions from the smoke outlet
to the chimney through the hole in cowl 1 (fi g. 1 - part 12).
Fig. 27
• Fit the top grate (fi g. 1 - part 9).

16
20
21
22
19
16
ENGLISH
Jøtul FS 84 - High model
9
14
24
13
12
8
10
2
17
1
11
15
3
23
18
5
4
6
7
5
2071
583
414
414
Parts for the low model:
Part 1 - Base
Part 2 - Thread bar
Part 3 - Stud bolt
Part 4 - Washer
Part 5 - Nut M6
Part 6 - Nut M8
Part 7 - Sleeve nut
Part 8 - Connection angle
Part 9 - Top grate
Part 10 - Rear section
Part 11 - Bottom plate
Part 12 - Cowl 1
Part 13 - Sealing plug
Part 14 - Top crown
Part 15 - Floor plate (optional extra)
Part 16 - Nut M6 with collar head
Part 17 - Side frame, left
Part 18 - Side frame, right
Part 19 - Door handle for surround
Part 20 - Air vent lever, plate for vent
Part 21 - Spacer, air vent lever
Part 22 - Handle dummy for surround
Part 23 - Ash lip
Part 24 - Cowl 2
Fig. 1

17
ENGLISH
4. 2 Assembly of the Jøtul FS 84 -
high model
Fig. 2

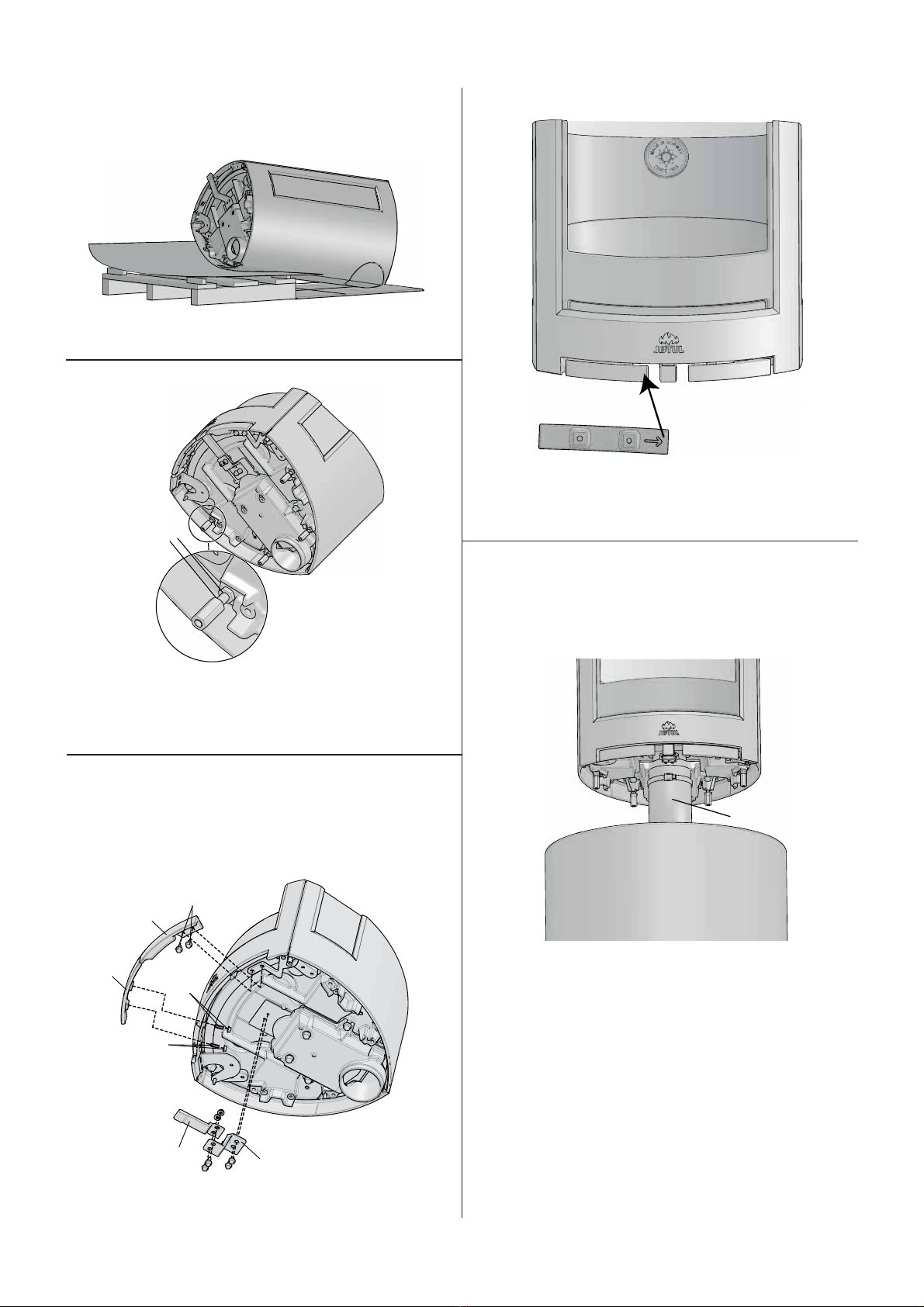

1. Spread the cardboard packaging over the fl oor, and lay the
stove down carefully on its side.
Fig. 3
6 mm
2. Screw in the 4 screws (fi g. 1 - part 3) approx. 10 mm and
lock in place with counter nuts. Then screw in the sleeve
nuts M8 x 30 (fi g. 1 - part 7) until about 6 mm away from
the counter nuts (fi g. 1 - part 6).
Replacing the control handle on the burn chamber
The control handles on the Jøtul FS 84 Advance must be
replaced with the handles provided in the box.
Fig. 4
A
A
B
C
ED
A
3. Unscrew the stud bolts and nuts (A) and remove the
handles (B and C).
4. Unscrew the spacer (D) and lever (E).
5. Fit the new lever set in the same place.
Fig. 4 B
6. Make sure that the arrow on the inside of the lever is
pointing towards the centre of the handle set.
4.3 Outside air connection (optional
extra)
Fig. 5
A
• If the outside air connection (A) (item no. 51012164) is to
be used, this must be fi tted now. Refer to the manual for
the Jøtul F 370 Advance (item no. 10050848) and manual
(item no. 10026187) for Ø 100 mm outside air connection.

18
Fig. 6
A
B
7. When using outside air connection through the fl oor (optional
extra, item no. 51012164), this must be fi tted now. Make a
hole in the recess (A) for the external air hose at the rear of
the bottom section. Route the hose out through the hole in
the bottom section.
8. Put the bottom plate (fi g. 1 - part 11) in place. Check using
a spirit level (B) and adjust as necessary using adhesive or
mortar. NB: It is extremely important that the bottom
plate is steady and level.
Fig. 7
9. Insert the base (fi g. 1 - part 1) in the slots in the bottom
plate. Check that it is level.
Fig. 8
A
B
B
10. Put the back plate (A) in place. The rear section has two
protrusions that slot (B) into the base.
Fig. 9
11. Position the burn chamber in the four grooves in the
base (fi g. 1 - part 1). Level and adjust the burn chamber
vertically using the long nuts in the adjusting kit. Make sure
the burn chamber is fl ush with the front of the base. If using
an external air supply, make sure that the fl exible hose for
the outside air connection is not trapped. Route the hose
out through the hole in the rear of the base.
ENGLISH

19
Fig. 10
A
12. Adjust the burn chamber to fi t the hollow (A) on the inside
of the rear plate.
Fig. 11
A
B
13. Push the thread bar (A) (fi g. 1 – part 2) through the hole
in the base and lock it underneath with a nut and washer.
Then slide the connection angle (B) (part 8) onto the
thread bar and hook it onto the insert. Lock in place with
nut. NB! Tighten the nut carefully.
Fig. 12
AA
B
14. Move the side frames into position (A) (fi g. 1 - parts 17 and
18). NB: The side frames must be fl ush with the base
(fi g. 1 - part 1). Secure in place using acrylic adhesive.
15. Put the ash retainer in position (B) (fi g. 1- part 23).
Fig. 13
16. Position cowl 1 in the slots. NB: When top-mounting a
fl ue pipe, glue the sealing plug (fi g. 1 - part 13) in place
using acrylic adhesive.
ENGLISH

20
Fig. 14
17. Position cowl 2 (optional extra). Put the top crown (fi g. 1 - part
14) in place. Cut out the centre of the top grate (fi g. 1 - part
9) (see fi g. 22) and lay it on the top crown. Use the acrylic
sealant provided for all joints.
4.4 Chimney and fl ue pipe
• The fi replace must only be connected to a chimney and
fl ue pipe approved for solid fuel fi replaces with fl ue gas
temperatures as specifi ed in «2.0 Technical Data».
• The specifi ed distance to fl ammable materials, applies to
this stove.
• The stove must be installed with a CE approved fl ue.
• The distance of the fl ue pipe to combustible materials must
also be observed.
• The cross-section of the chimney must be designed to fi t
the fi replace. Use «2.0 Technical Data» to calculate the
correct chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney. See fi g. 1 for
minimum dimensions.
• With a rear outlet, use a fl ue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections
to have a degree of fl exibility. This is to prevent any
movement in the installation leading to the formation of
cracks.
• For recommended chimney draught, and fl ue pipe
dimension see “2.0 Technical Data”. NB: The chimney’s
diameter must be at least just as big as the fl ue pipe.
4.5 When using heat-accumulating
stones (optional extra)
Fig. 15
A
B
1. Fit the gasket (B) on the end of the fl ue pipe (A).
Fig. 16
A
2. Push the fl ue pipe (A) down into the top outlet.
ENGLISH
