Jøtul GF 300 DV User manual

1
Installation and
Operation Instructions
Jøtul GF 300 DV Allagash
Direct Vent Gas Stove
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE
GAZ:
• Ne pas tenter d’allumer l’appareil.
• Ne touchez à aucum interrupteur. Ne pas
vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin. Suivez
les instructions du fournisseur.
• Si vou ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
– L’installatione l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
– Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout
autre appareil.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call you gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instruction.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualfied installer, service
agency or the gas supplier.
– In the Commonwealth of Massachusetts, a
carbon monoxide (CO) detector shall be
installed in the same room as the
appliance.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
AVERTISSEMENT: Assurez-vous de bien
suivreles instructions données dans cette
notice pour réduire auninimum le risque
d’incendie ou d’explosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
CAUTION:THESE INSTRUCTIONS MUST
REMAIN WITH THE HOMEOWNER.
ATTENTION :CES INSTRUCTIONS DOIVENT
DEMUERER AVEC LE PROPRIÉTERE D’UNE
MAISON.

2

3
Table of Contents
Service Tools ............................................. 4
Specifications ........................................... 4
General Information ............................... 5
Safety Information .................................. 6
Installation Requirements
Location ................................................ 6
Hearth Protection .............................. 6
Clearances ............................................ 7
Mantel & Trim ..................................... 7
Alcove .................................................... 7
Vent Requirements ................................. 8
Adding Restriction.............................. 8
Vertical Termination .......................... 9
Co-linear Termination.................... 12
Coaxial Chimney Conversion ...... 13
Horizontal Termination ................... 14
Vent Terminal Clearances ................ 15
Mobile Home Installation ................... 16
Fuel Conversion ..................................... 16
Gas Connection ..................................... 18
Gas Pressure ........................................... 19
High Altitude Adjustment .................. 19
Air Shutter Adjustment .......................20
Wall Thermostat ....................................20
Remote Control ......................................20
Log Set Installation ................................21
System Check ......................................... 22
Operation ................................................ 23
Maintenance .......................................... 24
Glass Replacement............................ 24
Optional Blower Installation .............. 25
Optional Brick Kit Installation............ 27
Illustrated Parts Breakdown ............... 28
Replacement Parts List......................... 29
Lighting Instructions ............ Back Cover
Jøtul GF 300 DV Allagash
Direct Vent Gas Heater
Manufactured and Distributed by:
Jøtul AS
Fredrikstad, Norway
Jøtul North America
55 Hutcherson Dr.
Gorham, Maine 04038
Test Standards
This appliance complies with National Safety
standards and is tested and listed by Intertek
Testing Services of Middleton,Wisconsin to ANSI
Z21.88-2005, ANSI Z21.88a/CSA 2.33a-2007,
CAN/CGA 2.17-M91 and CSA P.4. 01.2 for Canada.
DO NOT ATTEMPT TO ALTER OR MODIFY THE
CONSTRUCTION OF THE APPLIANCE OR ITS
COMPONENTS. ANY MODIFICATION OR
ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION AND LISTING OF THIS APPLIANCE.
THIS PRODUCT MUST BE
INSTALLED BY A LICENSED PLUMBER OR
GAS-FITTER WHEN INSTALLED IN THE
COMMONWEALTH OF MASSACHUSETTS.
We recommend that our gas
products be installed and
serviced by professionals who
are certified in the U.S. by the
National Fireplace Institute®
(NFI) as NFI Gas Specialists.
Accepted For Use
City of New York
Department of Buildings
MEA No. 369-04-E

4

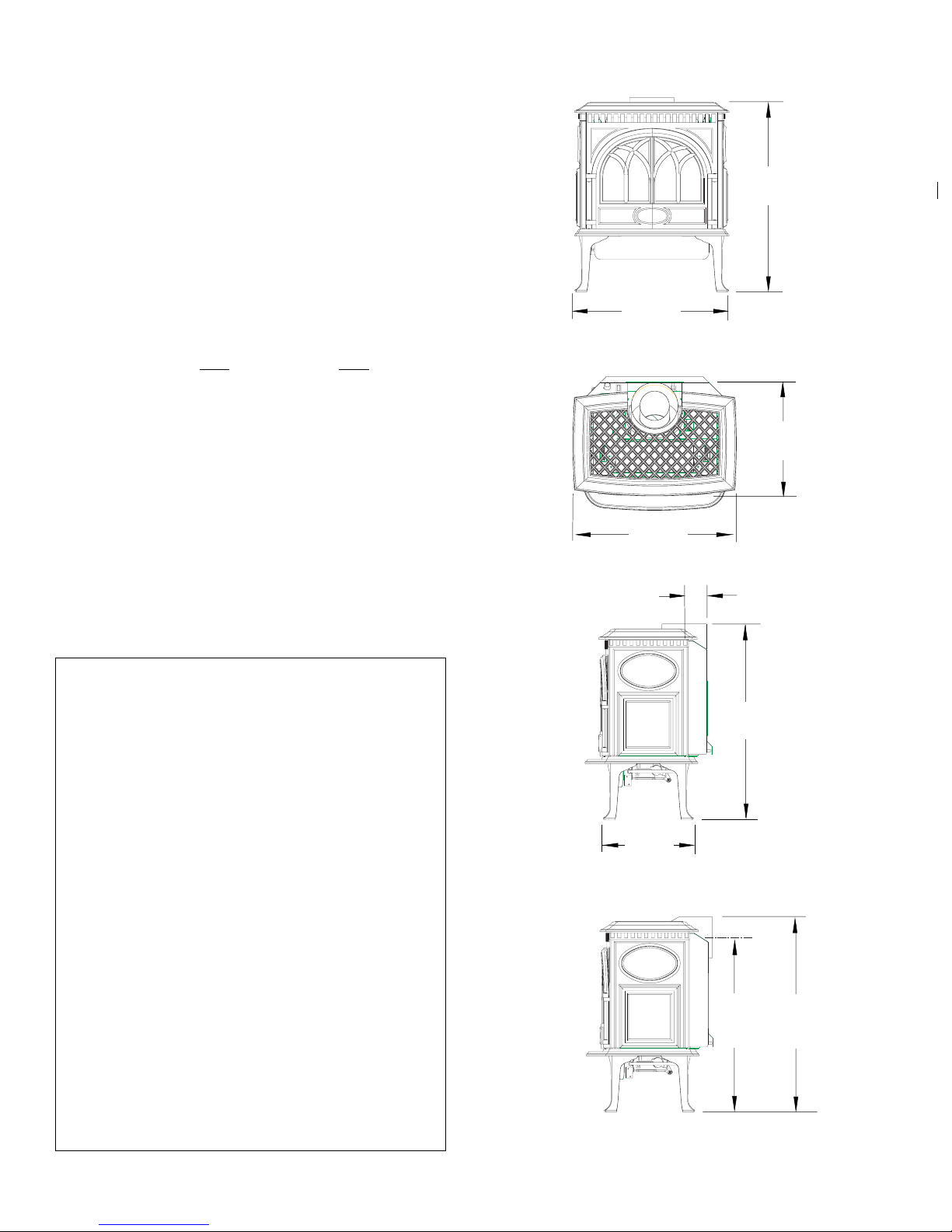

Specifications
GF 300 DV Specifications
Input Rates
Natural Gas
26,000 BTU/hr. maximum input
14,000 BTU/hr. minimum input
Propane
26,000 BTU/hr. maximum input
14,000 BTU/hr. minimum input
Inlet Pressure: MIN MAX
Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa)
Propane: 12.0 WC (2.99 kPa) 14.9 WC (3.71 kPa)
Manifold Pressure: MIN MAX
Natural Gas: 1.2 WC (.30 kPa) 3.8 WC (.95 kPa)
Propane: 2.9 WC (.722 kPa) 11.0 WC (2.74 kPa)
Piezo Ignitor / Standing Pilot
C
L
25 ”
635 mm
28 ”
711 mm
3 1/4”
83 mm
28 1/2”
724 mm
13”
330 mm
15 1/4”
500 mm
27 1/2”
698 mm
22 1/4”
565 mm
22 1/2”
572 mm
C
L
Suggested Tools for
Installation and Service
• External regulator (for Propane only)
• Piping which complies with local code
• Manual shutoff valve (T-Handle in Massachusetts)
• Sediment trap - if required by code
• Tee joint
• Pipe wrench
• Pipe sealant
• 10 mm open end wrench
• 1/2”, 7/16” open end wrench or deep socket
• Phillips head screwdriver
• Flat head screwdriver
• 1/4” nut driver
• 4 mm allen wrench
• Gloves
• Safety glasses
• Torx T20 screwdriver
• Leak test solution
• Reciprocating Saw
• Power Drill

5
Hardware Bag Contents
• Fuel Conversion Kit - LP .................................. 155372
• Ember Bag , 4 oz. ............................................ 220702
General Information
THIS HEATER MUST BE INSTALLED AND MAINTAINED
BY A QUALIFIED SERVICE AGENCY.
The installation and repair of this appliance must be
done by a qualified service person. Failure to prop-
erly install and maintain this heater could result in
an unsafe or hazardous installation, which may result
in a fire, explosion, property damage, personal injury or
loss of life.
This appliance should be inspected before use and at
least annually. More frequent cleaning may be
required due to excessive lint from carpeting,
bedding material, etc. It is imperative that control
compartments, burners, and circulating air passage-
ways of the appliance be kept clean.
THIS APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY OR FLUE SERVING ANY OTHER APPLIANCE.
The installation must conform to local codes. Your
local Jøtul dealer can assist you in determining what
is required in your area for a safe and legal installa-
tion. Some areas require a permit to install a gas
burning appliance. Always consult your local build-
ing inspector, or authority having jurisdiction, to
determine what regulations apply in your area.
CODE COMPLIANCE : Your local officials have final
authority in determining if a proposed installation is
acceptable. Any requirement that is requested by
the local authority having jurisdiction, that is not
specifically addressed in this manual, defaults to
local code. In the absence of local codes, the installa-
tion requirements must comply with the current
edition of National codes. In the U.S., these require-
ments are established in the National Fuel Code,
ANSI Z223.1.(NFPA 54) current edition. In Canada, the
codes have been established in CAN/CGA B149 Fuel
Installation Code, current edition..
Installer l’appareil selon les codes ou reglements
locaux, ou, en l’absence de tels reglements, selon les
Codes d’installation CAN/CGA-B149.
DO NOT OPERATE THIS STOVE IF ANY PART HAS BEEN
UNDER WATER. Call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which may have
been under water.
Ne pas se servir de cet appareil s’il a ete’ plonge dans
l’eau, completement ou en partie. Appeler un
technicien qualifie pour inspecter l’appareil et
remplacer toute partie du syste’me de controle et
toute commande qui ont ete plonges dans l’eau.
THIS FIREPLACE IS SHIPPED FROM THE FACTORY
FOR USE WITH NATURAL GAS ONLY. IF USE WITH
PROPANE IS DESIRED,THE APPLIANCE MUST FIRST
BE CONVERTED USING THE FUEL CONVERSION KIT
PROVIDED,#155372.CONVERSION SHOULD BE
MADE BEFORE THE APPLIANCE IS INSTALLED.
SEE PG. 17.
Glass Panel
Do not operate this appliance with the glass
front removed, cracked, or broken. Replacement
of the glass should be done by a licensed or
qualified service person. Only remove glass for
routine service. Always handle glass carefully.
Unpacking your stove
1. Remove the Top Plate of the stove by simply lifting it
straight off of the stove body.
2. To open the firebox, disengage the two Glass Frame
Latches located on top of the firebox. Pull each handle
forward to clear the latch from the notch in the frame.
3. Familiarize yourself with the installation requirements
specified in this manual, before beginning the instal-
lation.
Glass Frame
Latch

6
Location
In selecting a location for the stove, consider the
following points:
1) Heat distribution
2) Vent termination requirements
3) Gas supply line routing
4) Traffic areas, furniture, draperies, etc.
The GF 300 DV may be located on or near conven-
tional construction materials, however, proper clearance
to combustibles must be maintained in order to provide
adequate air circulation around the appliance. Also, it is
important to provide adequate access around the stove
for servicing and proper operation.
The clearance and hearth specifications listed in this
manual are the minimum requirements for combustible
material. A combustible material is anything that can
burn (i.e. sheet rock, wall paper, wood, fabrics etc.). These
surfaces are not limited to those that are visible and also
include materials that may be located behind non-
combustibles.
If you are not sure of the combustible nature of a
material, consult your local fire officials. Remember,“Fire
Resistant” materials are considered combustible: they are
difficult to ignite, but will burn. Also,“fire-rated” sheet
rock is considered combustible.
Hearth Requirements
The GF 300 DV gas stove CANNOT be installed directly on
carpeting, vinyl, linoleum or wood laminate flooring, such
as Pergo®.
If this appliance will be installed on any combustible
material OTHER THAN WOOD, a floor pad must be
installed that is either metal, wood, ceramic tile, stone, or
a listed hearth pad. This floor protection must extend
the full width and depth of the appliance. It is not
necessary to remove carpeting, vinyl or linoleum from
underneath the floor protection. See fig. 1.
Safety Information
During normal operation, the GF 300 DV gas stove will
reach high surface temperatures.Therefore:
Due to the high operating temperatures, this appli-
ance should be located out of traffic areas and away
from furniture and draperies.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away to
avoid burns and/or clothing ignition.
Young children should be supervised while they are in
the same room as the GF 300 DV gas stove.
Clothing or other flammable materials should not be
placed ON or NEAR the GF 300 DV gas stove. Surveiller
les enfants. Garder les vetements, les meubles,
l’essence ou autres liquides a vapeur inflammables
loin de l’appareil.
NEVER store or use gasoline or any other flammable
vapors or liquids in the vicinity of the GF 300 DV gas
stove.
Never burn any other materials in your GF 300 DV
Allagash gas stove, it is strictly designed for use with
natural gas or propane fuel ONLY.
Any safety screen, glass or guard removed for servicing
the appliance must be replaced prior to operating the
appliance.
Figure 1. Minimum Hearth Protection.
14”
(356 mm)
24”
(686 mm)

7
Alcove Installation
Maximum Alcove Depth: 24” (610 mm)
Minimum Alcove Width: 36” (914 mm)
Minimum Ceiling Height: 61” (1549 mm)
With Short Legs (6”): 58 3/4 (1486 mm)
3”
(76mm)
Figure 3. Parallel Installation Clearances.
Figure 4. Vent adaptor centerline at minimum clearance
to corner walls.
Figure 2. Mantel and Trim Clearance specifications.
Subtract 2 1/4” with Short Legs.
2”
(51 mm)
To Rear Wall
52 1/2
1334 mm
55 1/2
1410 mm
12.5
10.25
8
5.75
3.5
18 1/2
(419 mm)
Max. Mantel Depth
Min. Mantel Depth
Minimum Ceiling r Alc ve Height
61
1550 mm
54
1372 mm
58 1/2
1486 mm
57
1449 mm
28
711 mm
Max. T p Trim Depth = 1
46 1/2
1182 mm
Stove and Vent Clearance
Requirements
Minimum Clearances from the Stove
to Combustibles: See figs. 2-4.
Rear: 2” (51 mm)
Ceiling: 35 1/4” (870 mm)
Corner: 2” (51 mm)
Sides: 3” (76 mm) Mfg.Serial No.
after 30000
Left Side: 10” (254 mm) Mfg.Serial No. before 30000
Minimum Clearances from the Vent Pipe to
Combustibles:
Horizontal Run:
Off the top of the pipe 2” (51 mm)
Off the sides and bottom 1” (25 mm)
Vertical Run:
All sides 1” (25 mm)
11
280 mm
11
280 mm
2
51 mm
2
51 mm
HEARTH
30 1/2
775 mm
3”
(76mm)
AlcAlc
AlcAlc
Alcoo
oo
ovv
vv
ve dimensions re dimensions r
e dimensions re dimensions r
e dimensions resultesult
esultesult
esult frfr
frfr
fromom
omom
om
testtest
testtest
test cc
cc
configuronfigur
onfiguronfigur
onfiguraa
aa
ationstions
tionstions
tions,,
,,
,notnot
notnot
not stst
stst
stoo
oo
ovv
vv
vee
ee
e
clearclear
clearclear
clearancanc
ancanc
ance specificae specifica
e specificae specifica
e specifications.tions.
tions.tions.
tions.

8
SEALANT
Vent Restriction
The GF 300 DV is equipped with an Exhaust Restrictor
Plate which enables you to regulate the flow of exhaust
gas. The plate prevents overly strong draft that can cause
poor combustion and weak flame picture. Follow the
guidelines below, and on the following pages, to deter-
mine the correct restrictor plate setting for your particu-
lar installation configuration.
Exhaust Restrictor
The Exhaust Restrictor is an adjustable shutter located at
the top right side of the firebox. It is adjusted by moving
a pivot pin into one of four positions. It is set in the FULLY
OPEN (D) position at the factory. See Fig. 7. The four
positions correlate to the termination zones (A,B,C,D)
diagramed in figures 9-12. Consult these Vent Window
diagrams on pages 10-11 to determine the setting you
should use.
Additional restriction may be needed depending the
overall vent height. If necessary, use Simpson Dura-Vent
Restrictor Disk #929 or a similar part from the appropri-
ate vent manufacturer.
Adjusting Exhaust Restrictor Plate:
1. Use the Vent Window diagrams to determine which
setting position to use.
2. Remove the Top Plate.
3. Locate the pivot pin at the right side of the firebox top.
Use a 7 mm or 9/32 nut driver to loosen the nut on the
pivot pin and then push the pin to the left to disen-
gage it from the current factory-set position. Move the
pin forward and into the slot appropriate for your
specific vent configuration. See figs. 6 and 7.
4. Tighten the lock nut and replace the Top Plate.
Venting Requirements
The Jøtul GF 300 DV gas stove may be installed with a
vertical or horizontal termination and must conform to
the configuration requirements described below.
This appliance is approved for use with vent systems
from the following manufacturers:
• Simpson Dura-Vent GS
• American Metal Products (Amerivent)
• Security Chimneys International, Ltd. (Secure Vent)
• Selkirk Metalbestos (Direct Temp)
• Metal-Fab, Inc. (Direct Vent)
• Industrial Chimney Corp. (ExcelDirect)
Use parts of one manufacturer only - DO NOT MIX
VENT COMPONENTS FROM DIFFERENT MANUFACTURERS
IN THE SAME SYSTEM.
Installation of any components not manufactured or
approved by Jøtul or failure to meet all clearance require-
ments will void all warranties and could result in property
damage, bodily injury, or serious fire.
The approved vent configurations described in this
manual are derived from extensive testing under con-
trolled laboratory conditions. Gas appliance performance
can be negatively affected by variables present in the
installation environment, i.e: atmospheric pressure,
strong prevailing winds, adjacent structures and trees,
snow accumulation, etc. These conditions should be
taken into consideration by the installer and stove owner
when planning the vent system design.
IMPORTANT
••
••
•JOIJOI
JOIJOI
JOINN
NN
NT SET SE
T SET SE
T SEALIALI
ALIALI
ALING REQUNG REQU
NG REQUNG REQU
NG REQUII
II
IRR
RR
REMENEMEN
EMENEMEN
EMENTT
TT
T::
::
:

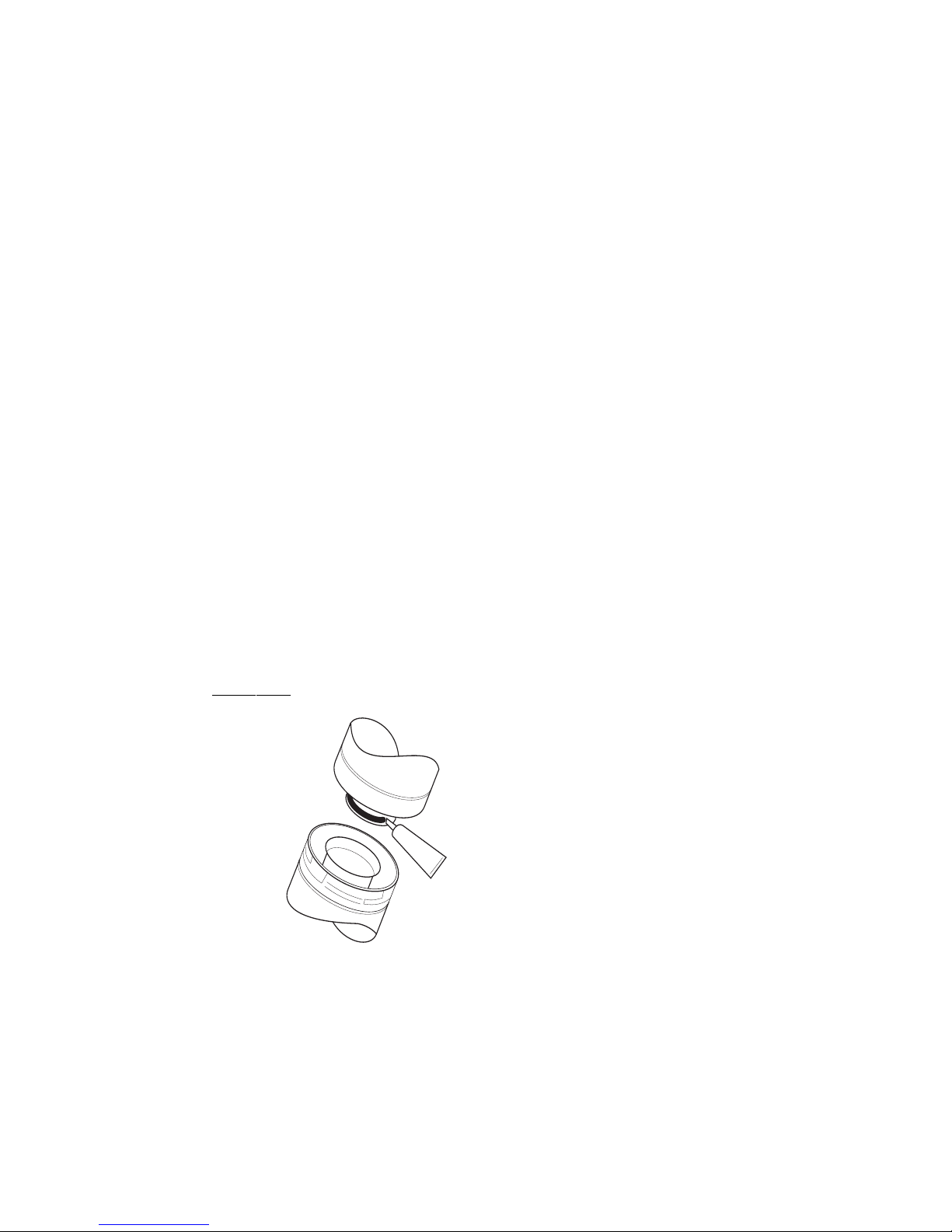

APPLY A 1/8” BEAD OF HIGH-
TEMPERATURE SEALANT OR
MIL-PAC® TO THE MALE
SECTION OF THE INNER VENT
PIPE. THE CEMENT SHOULD
FORM A SEAL BETWEEN THE
INNER AND OUTER PIPES.
• NEVER MODIFY ANY VENT-
ING COMPONENT, OR USE
ANY DAMAGED VENTING
PRODUCT.
• THE GAS APPLIANCE AND
VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE
OUTSIDE OF THE BUILDING AND NEVER ATTACHED TO
A CHIMNEY SERVING A SOLID FUEL OR GAS BURNING
APPLIANCE. EACH DIRECT VENT GAS APPLIANCE MUST
HAVE ITS OWN SEPARATE VENT SYSTEM. COMMON
VENT SYSTEMS ARE PROHIBITED.
• IF VENTING SYSTEM IS DISASSEMBLED FOR ANY
REASON, REINSTALL PER THE INSTRUCTIONS PROVIDED
FOR THE INITIAL INSTALLATION.
Figure 5.

9
Vertical Vent Termination
The Jøtul GF 300 DV can be vertically vented through a
ceiling or to a roof termination with the following
guidelines:
The termination should fall within the shaded areas
of the grids depicted in the Vent Window diagrams on
pages 10 - 11.
run should not exceed 35 ft. (10.66 m).
Minimum Vertical run must be at least 8 ft. (2.43 m).
Maximum Colinear Horizontal run is 2 ft. (61 cm).
Vent Terminus Clearance: In no case shall any dis-
charge opening on the cap be less than 18 in. (610
mm) horizontally from the roof surface.
Steep roofs, nearby trees, and predominantly windy
conditions can contribute to poor draft and/or pro-
mote down-draft occurances. Increasing the height of
the vent may alleviate these conditions.
Use Wall Straps to support an offset pipe run at
intervals of three feet to avoid excessive stress on the
offsets.
Elbows: Four 45°, or two 90° elbows may be used. Do
not include the 45° elbow attached to the stove.
Whenever possible use 45° elbows instead of 90°
elbows as they are less restrictive to exhaust gas and
intake air flow.
A firestop is required at every floor. The opening
should be framed to 10" X 10" inside dimension.
Any venting that is exposed above the first floor,
regardless of attic space or living space, must be
enclosed. Always maintain the required 1" clearance
from all sides of the vertical vent system.

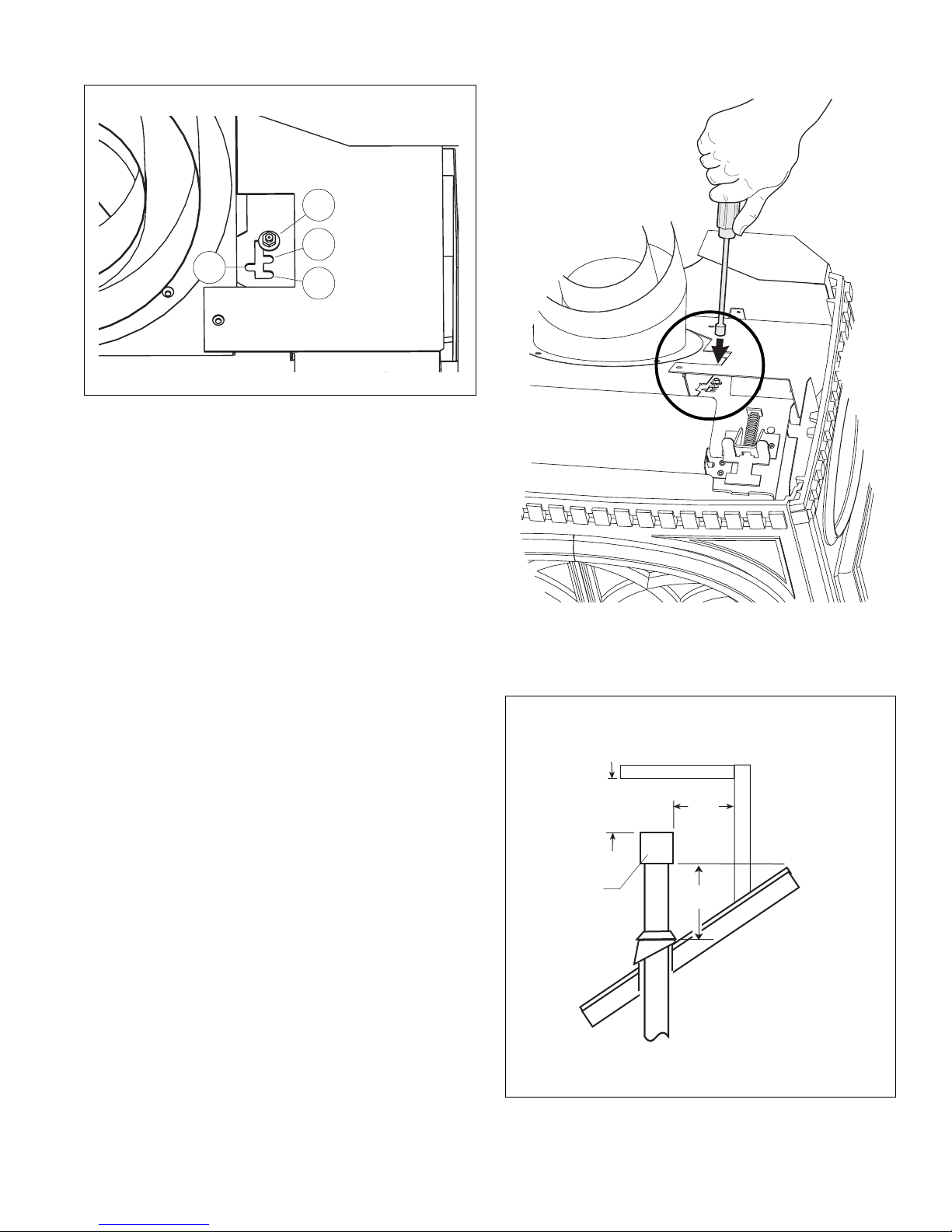

Figure 7. Use a nut driver to change the Exhaust
Restrictor setting.
Figure 6. Exhaust restrictor positions - viewed from front
with top plate removed.
Figure 8. Vertical vent termination height above roof.
A
C
D
B
See Fig. 6
Detail
Horizontal Overhang
Vertical Wall
Termination
Cap
18.
min.
Lowest Discharge
Opening
18 min.
18.
min.

10
HORIZONTAL RUN
35 Ft.
(10.67 m)
30 Ft.
(9.14 m)
25 Ft.
(7.62 m)
20 Ft.
(6.10 m)
15 Ft.
(4.57 m)
5 Ft.
(1.52 m)
10 Ft.
(3.05 m)
5 Ft.
(1.52 m)
VERTICAL RUN
15 Ft.
(4.57 m)
20 Ft.
(6.09 m)
7 Ft.
(8. m)
1 Ft.
(3.65 m)
8 Ft.
( .43 m)
A
D
Min. Rise
Ft.
(.60 m)
Up to four 45° or
two 90° elbows
permitted in
addition to the
starter elbow.
B
B
A
C
Min. Vertical
Termination
Figure 9. Coaxial Vent Termination Window / NG Figure 10 . Colinear Termination / NG
• ALL VENTING MUST TERMINATE (END) WITHIN ONE OF THE
SHADED AREAS.
• SET STOVE EXHAUST RESTRICTOR TO THE POSITION THAT
CORRESPONDS TO THE VENT TERMINATION AREA IN THE
DIAGRAM ABOVE. When termination is exactly on a division
line, use the less restrictive position. For example, if termina-
tion is at 20 ft./10ft., restriction will be set at Position B.
• ALWAYS MAINTAIN THE PROPER CLEARANCES TO
COMBUSTIBLES.
The circled letter designations in the vent diagram correspond
to the Exhaust Restrictor Setting on the stove. First, determine
which vent termination zone is appropriate for your installation
and fuel type, then adjust the restrictor to the corresponding
position as shown in figure 7, page 9.
Vent Windows for Natural Gas
COLINEAR VENT
COAXIAL VENT
• VENTING MUST TERMI-
NATE (END) WITHIN THE
SHADED AREA.
• Adjust the Exhaust
Restrictor to position B
for any NG colinear
termination.
• Max. Offset: 2 ft. (610
mm)
HORIZONTAL RUN
35 Ft.
(10.67 m)
25 Ft.
(7.62 m)
Ft.
(16 cm)
VERTICAL RUN
Minimum
Vertical
Termination
8 Ft.
( .43 m)
35 Ft.
(10.67 m)
25 Ft.
(7.62 m)
Ft.
(16 cm)
VERTICAL RUN
Minimum
Vertical
Termination
8 Ft.
( .43 m)
45°
Elb w
Up
B

11
HORIZONTAL RUN
35 Ft.
(10.67 m)
30 Ft.
(9.14 m)
25 Ft.
(7.62 m)
20 Ft.
(6.10 m)
15 Ft.
(4.57 m)
5 Ft.
(1.52 m)
Min. Rise
Ft.
(.60 m)
10 Ft.
(3.05 m)
5 Ft.
(1.52 m)
VERTICAL RUN
15 Ft.
(4.57 m)
20 Ft.
(6.09 m)
7 Ft.
(8. m)
1 Ft.
(3.65 m)
8 Ft.
( .43 m)
A
D
C
C
Min. Vertical
Termination
Up to four 45° or
two 90° elbows
permitted in
addition to the
starter elbow.
Figure 11. Coaxial Vent Termination Window / LP Figure 12 . Colinear Termination / LP
Vent Windows for Propane
COAXIAL VENT
COLINEAR VENT
• VENTING MUST
TERMINATE (END) WITHIN
THE SHADED AREA.
• Adjust the Exhaust
Restrictor to position C for
a vertical colinear
termination.
• Max. Offset: 2 ft. (610 mm)
• VENTING MUST TERMINATE (END) WITHIN ONE OF THE
DESIGNATED AREAS.
• SET STOVE EXHAUST RESTRICTOR TO THE POSITION THAT CORRE-
SPONDS TO THE VENT TERMINATION AREA IN THE DIAGRAM
ABOVE.When termination is exactly on a division line, use the less
restrictive position. For example, if termination is at 10 ft./5ft.,
restriction will be set at Position D.
• ALWAYS MAINTAIN THE PROPER CLEARANCES TO COMBUSTIBLES.
The circled letter designations in the vent diagram correspond
to the Exhaust Restrictor Setting on the stove. First, determine
which vent termination zone is appropriate for your installation
and fuel type, then adjust the stove restrictor plate to the
corresponding position as shown in Figure 7, page 9.
35 Ft.
(10.67 m)
25 Ft.
(7.62 m)
Ft.
(16 cm)
VERTICAL RUN
Minimum
Vertical
Termination
8 Ft.
( .43 m)
45°
Elb w
Up
HORIZONTAL RUN
C

12
Co-linear Vent Installation
The GF 300 DV may be vented through a masonry or
Class A prefabricated chimney using a Co-linear Flexible
Vent system approved for use with a solid-fuel burning
fireplace. When installed in the manner described below,
this system can improve the performance of the appli-
ance in cold climate situations, as well as simplify the
vent installation. See fig. 14.
These installation requirements must be followed:
1. Use the guidelines for Co-linear Vent Termination
appropriate for your gas type on pages 10 - 11.
2. Prior to the installation the chimney flue must be
thoroughly cleaned and inspected by a qualified
chimney service person.
3. In a masonry chimney, a fireclay liner must be present
the entire length of the chimney.
4. Prefabricated chimneys must be UL 103 or ULC S-629
listed and have a minimum INSIDE diameter of 6
inches, (150 mm).
5. No appliance can be installed into a chimney flue
serving any other appliance of any kind.
6. THE AIR INTAKE FLEX PIPE MUST EXTEND 6 FEET
BEYOND THE DAMPER AREA OF THE FIREPLACE.
7. If the intake flex duct does not extend the full length
of the chimney and connect to both the unit and the
termination cap, A METAL BLOCK OFF PLATE MUST BE
CONSTRUCTED AND INSTALLED ABOVE THE UNIT
PRIOR TO THE END OF THE INTAKE FLEX AND MUST
COMPLETELY SEAL THE CHIMNEY FLUE FROM THE
ROOM.
If there is enough vent length and room in the flue,
adding a return loop in the air intake run will help
prevent draft reversals that can cause cold start
problems.
Consult with the local code authority having jurisdic-
tion before proceeding with this type of installation.
Refer to the vent manufacturer’s instructions for
specific installation requirements.
WARNING: FAILURE TO POSITION THE PARTS AND
STOVE IN ACCORDANCE WITH THESE DIAGRAMS OR
FAILURE TO USE ONLY PARTS SPECIFICALLY APPROVED FOR
USE WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY. BE SURE TO MAINTAIN THE
PROPER CLEARANCES TO COMBUSTIBLES AS DEFINED IN
THIS MANUAL AND IN THE INSTRUCTIONS PROVIDED WITH
EACH VENT COMPONENT.
Figure 14. Co-linear Adaptor installed through a masonry
chimney. Simpson Dura-Vent components shown.
Figure 15. Simpson Dura-Vent #923GCL Co-linear Adaptor.
Subtract 2 1/4” for Short Legs.
Max. offset
24”
(609 mm)
The Air
Intake Flex
pipe must
extend
beyond the
damper.
The chimney
must be sealed
off from the
room by a steel
plate at the
damper area.
#991 High
Wind Cap
Exhaust Gas
Intake Air
Max. Co-linear
Height - 35 ft.
(10.66 m)
Min. Co-linear
Height - 8 ft.
(2.44 m)
Dual 3”Flex
Liners
28 3/4”
to top of
Co-linear
Adapter.
25”
to center
of flue
collar

13
Masonry or Prefabricated Chimney
Conversion
The GF 300 DV is approved for use with Simpson Dura-
vent Chimney Kit #934 in a masonry chimney or a
prefabricated solid fuel listed chimney.
These installation requirements must be followed:
1. Use the guidelines for Coaxial Vent Termination
appropriate for your gas type on pages 11 - 12.
2. In masonry chimney, a fireclay liner or listed steel liner,
must be present the entire length of the chimney.
3. Chimney height should not exceed 35 ft. (10.67 m).
4. The liner must have an inside dimension of 6” round
or greater. (USE KIT #934)
5. Prefabricated chimneys must be UL 103 or ULC S-629
listed and have a minimum INSIDE diameter of 6
inches, (150 mm). Prefabricated chimneys must be
listed for the specific Simpson Dura-Vent Chimney
Conversion Kit. (USE KIT #931, #932, or #933)
Figure 16. Vent System through a masonry chimney using
the Simpson Dura-Vent Chimney Conversion Kit #934.
May also be used in listed prefabricated chimneys.
Drawing is for illustrative purposes only - DO NOT VENT
TWO APPLIANCES INTO A SINGLE CHIMNEY.
#991 Vertical
Termination Cap
Cap Adaptor-
included in
#934 Kit
Support/Wall
Thimble Cover -
included
in#934 Kit
Exhaust
Gas
Intake Air
Use Standard
Simpson Dura-
Vent GS Pipe
from stove to
thimble
4” Flex Pipe
not included
in kit
IMPORTANT NOTICE
THE USE OF AN EXISTING CHIMNEY AS AN AIR
INTAKE IS NOT COVERED UNDER THE ANSI
Z21.88-1999-CSA 2.33-M99 TEST METHODS AND
RESULTING ITS/WHI PRODUCT CERTIFICATION.
THE CODE AUTHORITY HAVING JURISDICTION
MUST BE CONSULTED PRIOR TO PROCEEDING
WITH THIS INSTALLATION METHOD.

14
Horizontal Termination
Any horizontal termination must fall within the
shaded portion of the vent window graph illustrated
in figs. 9 or 11. For Snorkel Terminations, see below.
Any horizontal termination except a snorkel termination,
must include:
1) Minimum rise of 24 in.
2) Minimum horizontal run of 12 in. when vertical
run is less than 8 ft.
3) Vertical run no more than 35 ft.
4) Horizontal run no more than 27 ft.
5) No more than four 45° or two 90° Elbows
The horizontal termination cap must maintain a 3"
clearance to any overhead combustible projections
2 1/2" or less. It must also maintain 12" clearance from
projections exceeding 2 1/2". See fig. 21.
Wall Cut-out Opening: A minimum 10" X 10" (250 mm x
250 mm) square hole is required for proper pipe clear-
ances through a combustible wall.
DO NOT FILL AIR SPACE WITH ANY TYPE OF INSULATION.
Any horizontal run of vent must be level or have a
1/4 in. rise for every foot of run toward the termina-
tion cap. NEVER ALLOW THE VENTING TO RUN DOWN-
WARD FROM STOVE TO TERMINATION; DOWNWARD
VENT RUNS TRAP HEAT AND CAUSE HIGH TEMPERA-
TURES TO DEVELOP WITHIN THE VENT THAT COULD
START A FIRE.
Install a Vinyl Siding Standoff (Simpson Dura-Vent
#950) between the vent termination and an exterior
wall covered by vinyl siding material to prevent
potential heat damage to the siding.
Do not recess the termination cap into a wall or siding.
Figure 17.
• Minimum vent for horizontal termination.
• 14” Maximum horizontal run directly off rear of stove
with 14” Snorkel termination.
Figure 18. Maximum Horizontal with 36” Snorkel Termination.
Figure 19. Corner Installation with 14” Snorkel Termination.
Snorkel Terminations
With a 14”Snorkel:
The horizontal run made directly off the rear of the
stove into a 14” snorkel cap should include no more
than a single 12” straight section as shown in fig. 17.
One 45° Elbow may be used for a corner installation as
shown in fig. 19.
With a 36” Snorkel:
The maximum horizontal run may be no more than
6 ft. (182 cm.)
Exhaust Restriction: Under normal circumstances, no
exhaust restriction is recommended. Keep the factory
setting (Position D - fully open).
12 in.
Straight Pipe
Max. 14”
355 mm
Wall Thimble
and Trim Collar
45° Elbow
See Note F
Fig. 20
Max.
6 ft.
183 cm
36 in.
Snorkel
(915 mm)
C
L
25”
635 mm
56 1/2”
1435 mm
14”
335 mm
Max.
12”
vent
pipe or
less
12”
305
mm
24”
610 mm

15
Figure 20. Vent Terminal Clearances - ANSI Z21.88-2002, CSA 2.33-2002, and National Fuel Gas Code.
Horizontal Termination Clearance
Figure 21. Termination Clearance to overhangs.
3
76 mm
12 
305
mm
2 1/2
64 mm
AA
AA
A = Clearance above grade, veranda, porch , deck, or
balcony : 12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.
BB
BB
B = Clearance to window or door that may be opened:
**Min.**Min.
**Min.**Min.
**Min. 9 inches9 inches
9 inches9 inches
9 inches,,
,,
,UU
UU
U.S.S
.S.S
.S..
..
.//
//
/ *12 inches (30 cm) C*12 inches (30 cm) C
*12 inches (30 cm) C*12 inches (30 cm) C
*12 inches (30 cm) CAN.AN.
AN.AN.
AN.
We recommend 12in. minimum to prevent condensa-
tion on the window.
CC
CC
C = Clearance to permanently closed window:
**Min.**Min.
**Min.**Min.
**Min. 9 inches9 inches
9 inches9 inches
9 inches,,
,,
,UU
UU
U.S.S
.S.S
.S..
..
.//
//
/ *12 inches (30 cm) C*12 inches (30 cm) C
*12 inches (30 cm) C*12 inches (30 cm) C
*12 inches (30 cm) CANAN
ANAN
AN
We recommend 12 in. minimum to prevent condensa-
tion on the window.
DD
DD
D = Vertical clearance to ventilated soffit located above
the terminal within a horizontal distance of 2 feet (60 cm)
from the centerline of the terminal: 18 inches18 inches
18 inches18 inches
18 inches
(4(4
(4(4
(46 cm) minimum.6 cm) minimum.
6 cm) minimum.6 cm) minimum.
6 cm) minimum.
EE
EE
E = Clearance to unventilated soffit: 12 inches (412 inches (4
12 inches (412 inches (4
12 inches (46 cm)6 cm)
6 cm)6 cm)
6 cm)
minimum.minimum.
minimum.minimum.
minimum.
FF
FF
F = Clearance to outside corner: **Min.**Min.
**Min.**Min.
**Min. 9 inches9 inches
9 inches9 inches
9 inches,,
,,
,UU
UU
U.S.S
.S.S
.S..
..
.//
//
/ *12*12
*12*12
*12
inches (30 cm) Cinches (30 cm) C
inches (30 cm) Cinches (30 cm) C
inches (30 cm) CAN.AN.
AN.AN.
AN. We strongly recommend 12 inches,
particularly where windy conditions pevail.
G =G =
G =G =
G = Clearance to inside corner: ** Min.** Min.
** Min.** Min.
** Min. 6 inches6 inches
6 inches6 inches
6 inches,,
,,
,UU
UU
U.S.S
.S.S
.S..
..
.//
//
/ *12*12
*12*12
*12
inches (30 cm) Cinches (30 cm) C
inches (30 cm) Cinches (30 cm) C
inches (30 cm) CAN.AN.
AN.AN.
AN. We strongly recommend 12 inches,
particularly where windy conditions pevail.
H =H =
H =H =
H = *Not to be installed within 15 fwithin 15 f
within 15 fwithin 15 f
within 15 feeteet
eeteet
eet (4(4
(4(4
(4.5 m) abo.5 m) abo
.5 m) abo.5 m) abo
.5 m) abovv
vv
vee
ee
e a
meter/regulator assembly within 3 fwithin 3 f
within 3 fwithin 3 f
within 3 feeteet
eeteet
eet (90 cm)(90 cm)
(90 cm)(90 cm)
(90 cm)
horizontally from the center-line of the regulator.
II
II
I = Clearance to service regulator vent outlet:
3 f3 f
3 f3 f
3 feeteet
eeteet
eet (91 cm) minimum.(91 cm) minimum.
(91 cm) minimum.(91 cm) minimum.
(91 cm) minimum.
JJ
JJ
J = Clearance to nonmechanical air supply inlet to building
or the combustion air inlet to any other appliance:
12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.
KK
KK
K = Clearance to a mechanical air supply inlet:
**Min.**Min.
**Min.**Min.
**Min. 3 f3 f
3 f3 f
3 feeteet
eeteet
eet (91 cm) abo(91 cm) abo
(91 cm) abo(91 cm) abo
(91 cm) abovv
vv
ve if within 10 fe if within 10 f
e if within 10 fe if within 10 f
e if within 10 feeteet
eeteet
eet horizhoriz
horizhoriz
horizon-on-
on-on-
on-
tallytally
tallytally
tally,,
,,
,UU
UU
U.S.S
.S.S
.S..
..
./ *6 f/ *6 f
/ *6 f/ *6 f
/ *6 feeteet
eeteet
eet (1.83 m) minimum / C(1.83 m) minimum / C
(1.83 m) minimum / C(1.83 m) minimum / C
(1.83 m) minimum / CANAN
ANAN
AN
* In accordance with CSA B149 Installation Codes.
** In accordance with the current ANSI Z223.1/NFFPA 54,
National Fuel Gas Code. Note: Local Codes and Regulations may
require different clearances.
1A vent shall not terminate directly above a sidewalk or driveway
which is located between two single family dwellings and serves
both dwellings.
2Only permitted if veranda, porch, deck, or balcony, is fully
open on a minimum of two sides beneath the floor.*
L =L =
L =L =
L = 11
11
1Clearance above paved sidewalk or a paved driveway
located on public property: 7 f7 f
7 f7 f
7 feeteet
eeteet
eet (2.1 m) min.(2.1 m) min.
(2.1 m) min.(2.1 m) min.
(2.1 m) min.
MM
MM
M = Clearance under veranda, porch, deck, or balcony:
12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.12 inches (30 cm) minimum.
12 inches (30 cm) minimum.22
22
2

16
Cl se
Open

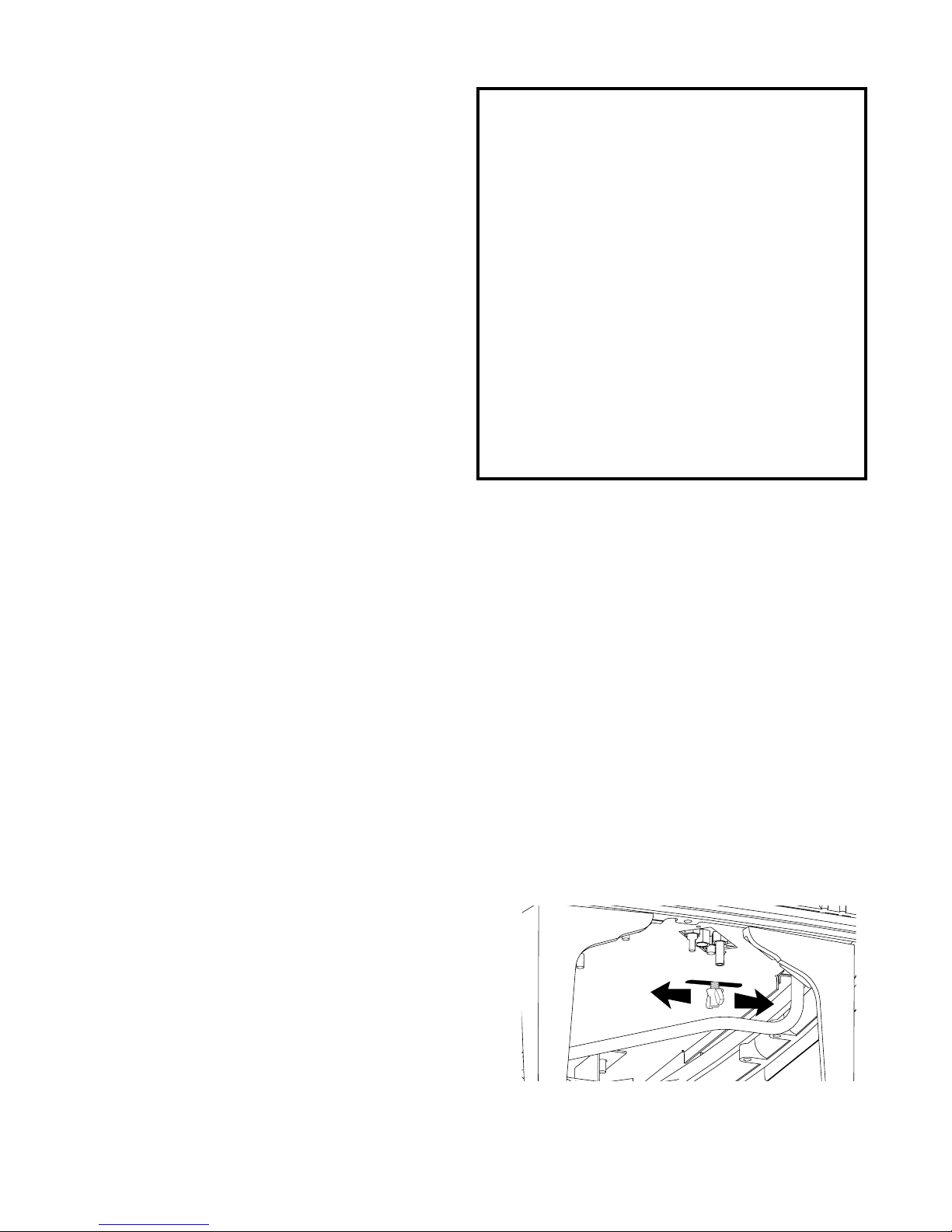

Figure 22. Locate and remove the Air Shutter wingnut
from under the right side of the stove.
Tools required:
• 1/2” open ended wrench or deep-well socket, Torx T20
or slotted screwdriver, 4 mm allen wrench.
Conversion Kit Contents:
• 1, regulator tower labeled for propane
• 3, regulator tower screws
• 1, burner orifice ((
((
(#39 for NG, #53 for LPG)
• 1, pilot orifice (#51 for NG, #30 for LPG)
• Label A - to be completed and applied to
the back of the stove
• Label B - apply to the stove’s Rating Plate
• Small valve label - apply to valve body
Conversion instructions are also shipped in the stove
with the conversion kit.
Mobile Home Installation
The GF 300 DV can be installed for use in a mobile home
in the U.S. and Canada provided:
1.1.
1.1.
1. The stove is secured to the floor of the mobile home.
Use Jøtul Floor Bracket Kit #750304.
2.2.
2.2.
2. Provision must be made to secure an electrical ground
between the stove and the mobile home chassis.
3.3.
3.3.
3. The stove is installed in accordance with Title 24 CFR,
Part 3280- Manufactured Home Construction and
Safety Standard, in the U.S. In Canada, comply with
CSA Z240.4, Gas Equipped Recreational Vehicles and
Mobile Housing.
44
44
4..
..
. Always contact your local officials about installation
restrictions and requirements in your area.
THIS APPLIANCE MAY BE INSTALLED AS AN OEM INSTALLA-
TION IN A MANUFACTURED (MOBILE) HOME AND MUST BE
INSTALLED IN ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTIONS AND THE MANUFACTURED HOME CON-
STRUCTION AND SAFETY STANDARD,TITLE 24 CFR, PART
3280. THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF
GAS THAT IS INDICATED ON THE STOVE’S RATING PLATE. A
GAS CONVERSION KIT IS PROVIDED WITH THE GF 300 DV
GAS STOVE.
THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET
PERMANENTLY LOCATED, MANUFACTURED (MOBILE) HOME,
WHERE NOT PROHIBITED BY LOCAL CODES.
CET APPAREIL PEUT ETRE INSTALLE DANS UN MAISON
PREFABRIQUEE (MOBILE) DEJA INSTALLEE A DEMEURE SI LES
REGLEMENTS LOCAUX LE PERMETTENT. CET APPAREIL DOIT
ETRE UTILISE UNIQUEMENT AVEC LESTYPES DE GAS
INDIQUES SUR LA PLAQUE SIGNALETIQUE. NE PAS
L’UTILISER AVEC D’AUTRES GAS SAUF SI UN KITDE CONVER-
SION CERTIFIE EST INSTALLE.
Fuel Conversion
The GF 300 DV gas stove is shipped from the factory
equipped to burn NATURAL GAS only. If PROPANE gas is
to be used as fuel, the appliance must first be converted
for use with propane. Use Propane Conversion Kit 155372,
supplied with the appliance.
Order and install NG Conversion Kit 155373 to change
back to use with natural gas.
WARNING:
THE CONVERSION KIT IS TO BE INSTALLED BY AN
AUTHORIZED JØTUL SERVICE TECHNICIAN IN
ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTION AND ALL CODES AND
REQUIREMENTS OF THE AUTHORITY HAVING
JURISDICTION. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
OR PROPERTY DAMAGE. THE QUALIFIED AGENCY
PERFORMING THIS WORK ASSUMES
RESPONSIBILITY FOR THIS CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION
AND IN ACCORDANCE WITH THE REQUIREMENTS
OF THE CAN1-B149.1 AND .2 INSTALLATION CODE.

17
Fuel Conversion Procedure
1. Turn off gas supply to stove.
2. Remove the stove Top Plate.
3. Disengage the two Glass Frame Latches at the top of
the firebox. See illustration on page 5. Carefully lift the
glass panel up and out of the stove.
4. If installed, remove the Embers and Log Set using care
not to damage the fragile log parts.
5. Lift out the Burner Skirt- (Part 40, fig. 52 p.28).
6. Reach under the stove and remove the Air Shutter
wingnut from its stud. As you face the right side, it is
the one closest to you. See fig. 22.
7. Lift out the Burner Plate: NOTE- There are no screws
securing the Burner to the floor of the firebox. Pull the
Air Shutter forward and lift the burner together with
shutter up and out of the stove as a unit. See fig. 23.
8. Change the Main Burner Orifice. See fig. 24. Using a ½”
open ended wrench or deep-well socket remove the
burner orifice from its brass elbow housing and replace
with the appropriate orifice supplied in the kit.
9. Replace the Air Shutter with its gasket and push it all
the way back to allow replacement of the Burner Plate.
Reattach the wingnut to the shutter stem under the
stove, but do not tighten. You will set its final position
later.
10.Replace the Burner Plate. Engage the burner tube with
the Air Shutter assembly as in fig. 25. Be sure the
burner is securely engaged with the two support
brackets at the front of the firebox and push the plate
back toward the rear of the firebox.When correctly
positioned, there will be 1/2” (13 mm) clearance be-
tween the burner plate and the front of the firebox. See
fig. 25.
11 . CHANGE THE PILOT ORIFICE: From within the firebox,
remove the Pilot Head by pulling it straight up from the
pilot base. See fig. 26. Using the 4 mm hex key in-
cluded with the kit, unscrew the pilot orifice (counter-
clockwise). Replace with the appropriate orifice:
12. Tighten orifice into the base of the pilot assembly. To
prevent bypass leaks, be sure the orifice is secured
tightly and flush with the base. Replace pilot head by
pushing it down onto the pilot base.
13. Replace the Variable Regulator. Using a Torx T-20
screwdriver, remove the three screws from the front of
the valve regulator. See fig. 27.
14. Remove the Regulator Tower, Gasket, white plastic
disk, and Spring. Remove the black rubber gasket from
the valve. See fig. 27.
Figure 25. Correct Burner Position.
Figure 24. Change the Burner Orifice.
Burner Orifice
1/2”
clearance
Figure 23. Remove the Air Shutter and Burner as a unit.
Burner PlaBurner Pla
Burner PlaBurner Pla
Burner Platete
tete
te
Air Shutter

18
Gas Supply Connection
NOTE: If appropriate, install the optional forced air
blower before connecting the gas line, to prevent
clearance interference between the two.
The gas supply line connection is made to the left
side of the valve. The gas supply line should be 3/8" npt
with a 1/2" diameter supply, or the appropriate size to
provide sufficient gas pressure to the valve regardless
of the input setting.
The use of Flexible Gas Appliance Connectors is
acceptable in many areas in the U.S. However, Cana-
dian methods vary depending on local code.
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE, MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
All codes require a gas shut-off valve (gas cock)
and union, to be installed in the supply line, and in the
same room as the appliance. This allows for the
disconnection of the stove for servicing and mainte-
nance. See fig. 28.
A T-HANDLE GAS COCK IS REQUIRED IN
MASSACHUSETTS TO COMPLY WITH CODE 248CMR.
Secure all joints tightly using appropriate tools and
sealing compounds. For propane units be sure to use
compounds that are propane resistant. Turn on gas supply
and test for gas leaks using a soapy water solution. Never
use an open flame to check for leaks.
Pilot Head
Orifice
Retainer
Clip
Pilot Base
Figure 26. Pilot orifice removal and replacement.
15. Install the new regulator: Be sure the new gasket is
properly positioned and tighten screws securely.
16. Install the identification labels to the stove so that
they can be seen by any person who may be servicing
the stove.
Label A: apply to back of stove.
Label B: apply to the rating plate attached to the back
of the stove.
Small Conversion Label: apply to valve.
17. Reassemble the stove, apply gas to the system and
check for leaks using a soapy water solution or gas
detector.
NEVER USE AN OPEN FLAME TO CHECK FOR GAS
LEAKS.
18.Correct gas pressure is essential for efficient and safe
operation of this appliance. Use a manometer to
check pressures as specified in the Gas Pressure
section of this manual (page 19).
19. Adjust the Air Shutter. You will need to position the
shutter to provide a gas/air mixture that will achieve
the best flame picture with your particular installa-
tion. Start with the shutter stem at the half-way
position in the slot in the bottom of the stove. See figs.
22 and 25. Pushing the stem back will restrict air, while
pushing it forward will open the shutter and increase
air. With some experimentation, you will find the
shutter position that works best for your installation.
ALWAYS REFER TO THE LIGHTING INSTRUCTIONS ON
THE INSIDE BACK COVER OF THIS MANUAL WHEN
LIGHTING YOUR STOVE.
Main Gas Valve
Apply small label.
Figure 27. Regulator assembly.
Remove black
rubber gasket
Variable regulator tower

19
Gas Pressure
Correct gas pressure is essential for efficient and safe
operation of the GF 300 DV gas stove. It is important
that the correct pressure is established at the time of
the installation. Proper gas pressure provides a
consistent flow of gas to the appliance and is instru-
mental in checking for gas leaks.
Pressure Test: Attach a manometer to the appro-
priate test point on the valve. See fig. 29. The gauge
connections are located on the front of the valve under
the On/Off/Pilot- knob. Gauge connections are
identified by:
E - for Inlet or Supply Pressure (the amount of
gas coming to the valve.)
A - for Manifold Pressure (the amount of gas that
is coming out of the valve to the burner.)
ALWAYS TEST PRESSURES WITH VALVE CONTROL
KNOB SET ON HIGH.
High Altitude Adjustment
Installations located at altitudes from 2000 - 4500 ft.
(610 m -1370 m) DO NOT require adjustment for altitude.
DO NOT DERATE THIS APPLIANCE FOR ALTITUDE.
II
II
INN
NN
NLET GLET G
LET GLET G
LET GAA
AA
AS PRS PR
S PRS PR
S PRESSUESSU
ESSUESSU
ESSURR
RR
RESES
ESES
ES
(inches w(inches w
(inches w(inches w
(inches waa
aa
ater cter c
ter cter c
ter column)olumn)
olumn)olumn)
olumn)
MIN MAX
NATURAL GAS 5.0 7.0
PROPANE 12.0 14.9
The appliance and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing on that system
at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas
supply line by closing its individual manual gas
shut-off valve (gas cock) during any pressure
testing of the gas supply piping system that is
equal to or exceeds pressures of 1/2 psig (3.5 kPa).
MANIFOLD PRESSURES
(inches water column)
MIMI
MIMI
MINN
NN
N MM
MM
MAXAX
AXAX
AX
NATURAL GAS 1.2 3.8
PROPANE 2.9 11.0
Figure 29. Pressure test points.
Leak test:
1. Mix a 50-50 solution of water and dish
soap.
2. Light appliance- see lighting instructions
on the inside back cover of this manual
or on the stove’s rating plate.
3. Brush or spray all joints and connections
with the soapy water solution.
4. If bubbles appear at any connection or
seam or a gas odor is detected, immedi-
ately turn gas control knob to the OFF
position.
5. Tighten or reconnect the leaking joint
and retest for any gas leaks.
Figure 28. Supply valve connection fittings.
EA
1/2 x 3/8 Flare
Shut- ff Valve
3/8 Flex Tubing
3/8 NPT x 3/8
Flare Fitting
3/8Nipple
Gas Stub
1/2 x 3/8
Reducer
3/8 Shut- ff
Valve
3/8 Cl se Nipple
3/8 Uni n

20
Cl se
Open
Optional Wall Thermostat or
Remote Control
Use only a 750 millivolt DC two-wire circuit thermostat
with this appliance. The thermostat should be placed in
the same room as the heater, typically 5 feet off the
floor. Avoid drafty areas or any area that may affect the
accuracy of the thermostat.
The thermostat should be connected to the GF 300
DV using a minimum of 16 gauge wire with a maximum
length of 25 feet of wire.
Connect the two thermostat wire leads to the two
lower terminals on the terminal block located directly
above the ignitor button. Do not overtighten the
connections. IT IS NOT NECESSARY TO DISCONNECT ANY
OTHER WIRES. See Fig. 31.
For thermostatic operation, the On/Off/T-Stat
switch on the back of the stove must be in the T-stat
position, and the pilot light must be running, as it is the
power source for the thermostat.
At the thermostat, the two wires should be con-
nected to the two connection screws on the thermostat
base plate per the manufacturer’s instructions.
Remote Control
When using a remote, the remote receiver should be
wired to the terminal block the same way the thermo-
stat would be. See the instructions above.
Follow the operating instructions included with the
Remote Control unit.
CAUTION:
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
THE CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER OR
DANGEROUS OPERATION. ALWAYS VERIFY PROPER OPERATION
AFTER SERVICING THE APPLIANCE.

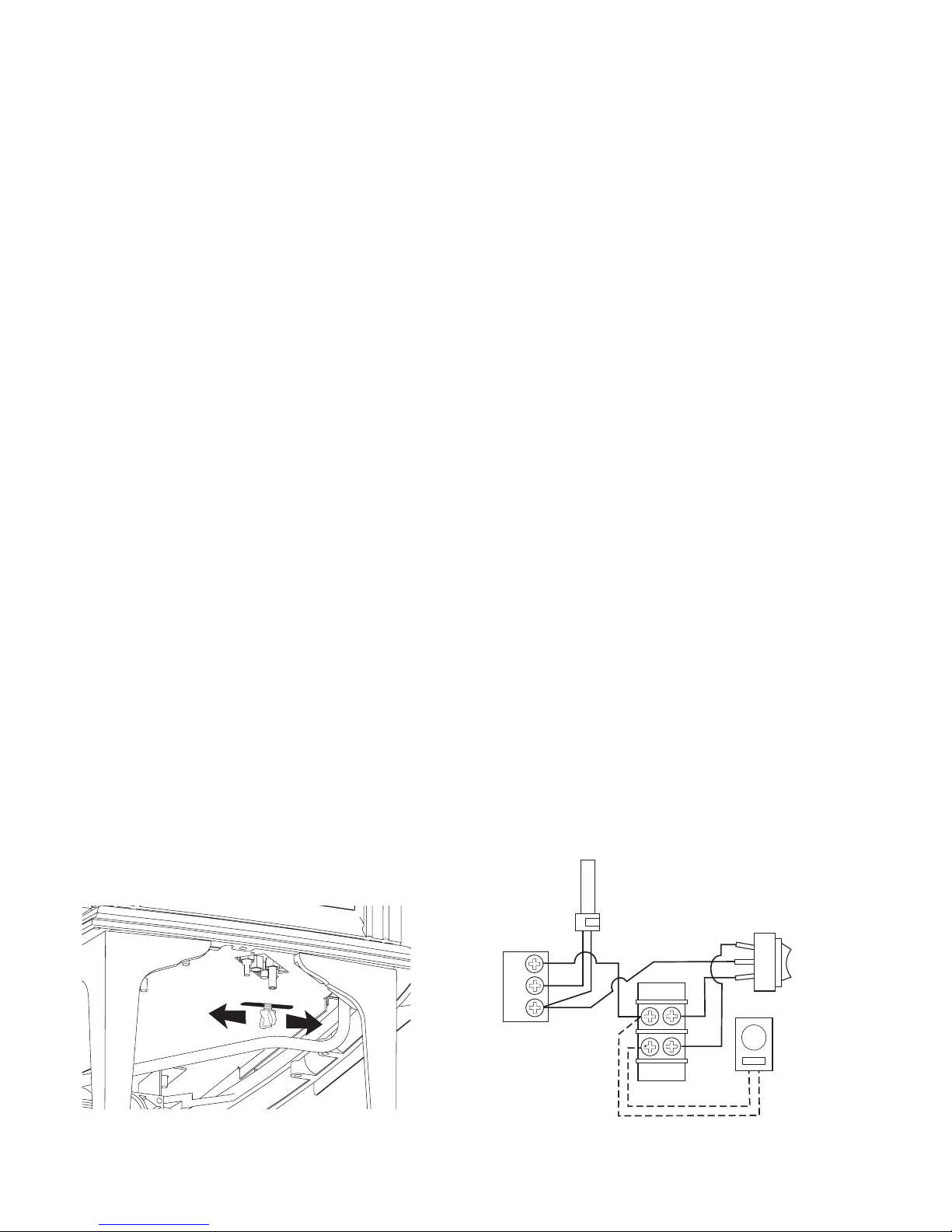

Figure 31. Accessory wiring diagram.
Flame Appearance / Air Shutter
Adjustment
The GF 300 DV gas stove is shipped from the factory
equipped to burn Natural gas. If the stove has been
converted for use with propane, the Air Shutter may
require adjustment to achieve the desired flame appear-
ance. Other installation related variables can also affect
the flame picture. The Air Shutter may be opened or
closed to provide the best flame picture for your specific
installation.
Too large an air opening - the appliance will generate
a flame that is blue and transparent, or an “anemic”
flame.
Too small an air setting - the appliance will generate
very long yellow flames resulting in soot. Sooting pro-
duces black deposits on the logs, on the inside walls of the
appliance, and potentially on the exterior termination cap.
Sooting is caused by incomplete combustion in the flames
and lack of combustion air entering the air shutter
opening.
To adjust the air shutter:
1. Reach under the right side of the stove and loosen the
wingnut located closest to you. See fig. 30. Slide the
wingnut stud forward to open the air shutter and back
to provide less air. Make adjustments in small incre-
ments.
2. Tighten the wingnut to secure the shutter at the
desired setting.
3. Allow the stove to burn for 30 minutes on the HIGH
setting, observing the flame continuously. If the flame
appears weak, slow, or sooty, repeat the process
described above until the flame is as desired.
WARNING: AIR SHUTTER ADJUSTMENTS SHOULD ONLY
BE PERFORMED BY A QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN..
..
.
Figure 30.
Loosen the wingnut to adjust the air shutter.
TERMINAL
BLOCK
VALVE
THERMOPILE
OPTIONAL
THERMOSTAT
or
REMOTE
CONTROL
TH
TP
TH
TP
ROCKER
SWITCH
ON
OFF
STAT
