The JA-154J MS Bi-directional four-button keyfob
The JA-154J MS Bi-directional four-button keyfob 1 / 2 MMJ51204
The JA-154J MS is a component of
the JABLOTRON 100 system. It uses
bi-directional communication. It is
designed to remotely control a security
system, various appliances (using PG
programmable outputs) or to trigger
panic alarms and more. The remote
control can also be enrolled to
multipurpose relays such as the AC-16x
series for direct relay control according
to the pre-set mode. The remote is
equipped with optical and acoustic
indication. It checks its battery status
and indicates when the battery is nearly discharged.

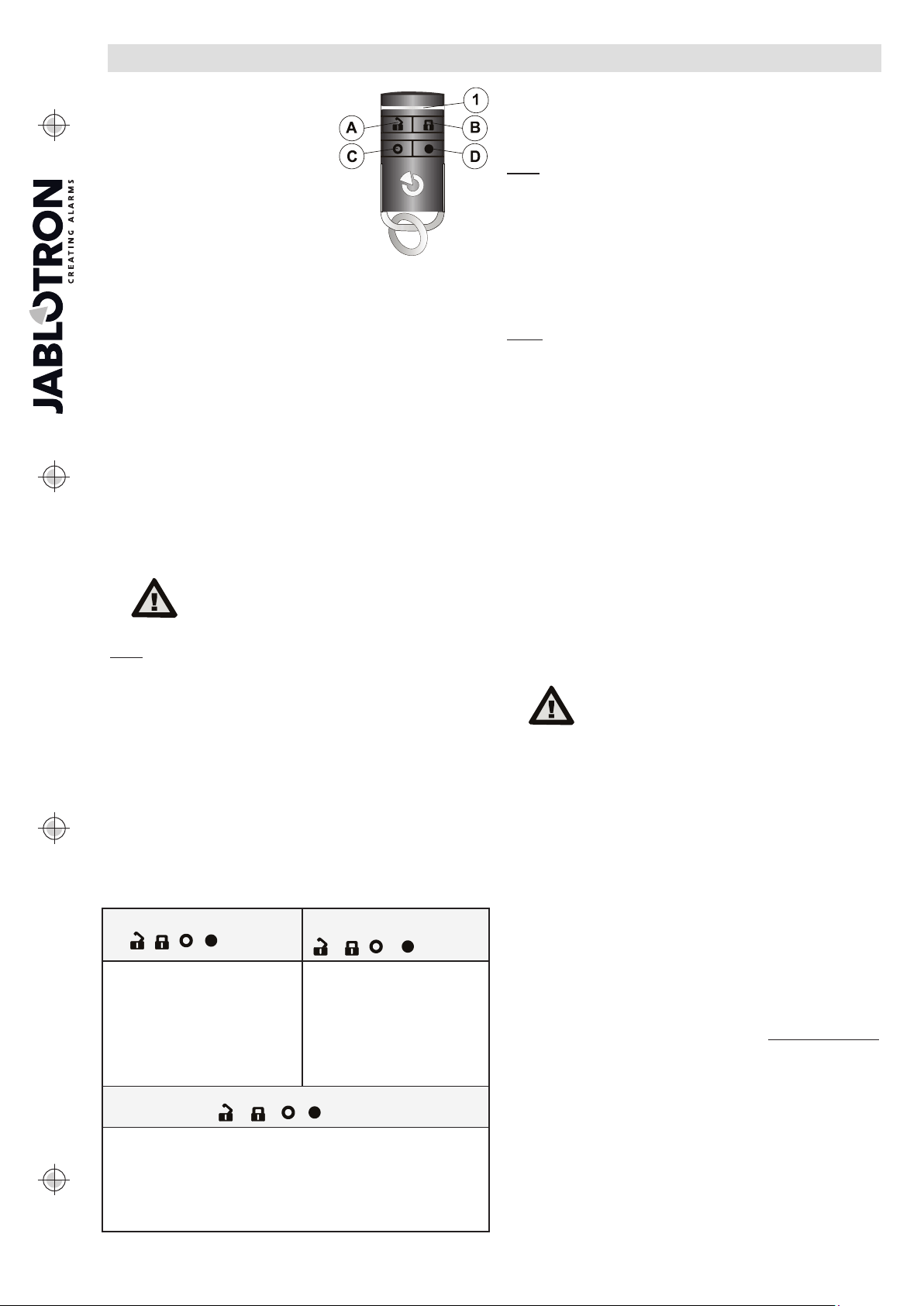

Figure: 1 – LED indication A, B, C, D – buttons, see their functions
according to table 1.
Enrolling the remote control to a control panel
There must be a JA-11xR radio module installed in the control panel for
the ability to work with a control panel. It occupies one position in the system.
The remote can be enrolled to an arbitrary number of
JABLOTRON 100 systems. One pair of buttons can control several
sections at the same time (common control) and it can show the current
status of the section or PG output.
1. The control panel has to be in service mode.
2. Basic procedure:
a. Go to the F-Link software, select the required position in the
Devices tab and launch enrollment mode.
b. For transmission of an enrollment signal press and hold buttons
(A+B) simultaneously for at least 3 s (within this time the yellow
LED flashes rapidly).
c. After 3 s the enrollment signal is sent and confirmed by one long
yellow LED flash. Release both buttons and close enrollment
mode.
To set the keyfob to comply with
security grade 2 use F-Link SW,
Parameters tab and the option “Perform
EN50131-1”. (See the JA-10xK control
panel installation manual)
Notes:
 Enrolling the remote control to the system is possible by entering
the production code via F-Link software. The production code is on
the sticker with a bar code glued onto the battery holder inside the
remote. All digits in the production code are required
(example: 1400-00-0000-0001)
 If you want to remove the remote control from the system (for
instance when someone has lost it), erase it from the particular
address of the control panel.
Setting the properties
Perform settings using F-Link software – Devices tab. Click on the
JA-154J´s Internal settings. Then a window appears automatically
where you can set the following parameters:
Functions of the buttons: set a particular function for the pair of
buttons A-B or C-D (typically setting / unsetting, OFF / ON switching of
some appliance, etc.) or a function for each single button A, B, C, D
(gate opening, garage door opening, etc.) and also for a double press of
the remote. See the following table 1.
Reaction for single button
/// (A/B/C/D)
Reaction for pressing
simultaneously
+/+ (A+B/C+D)
x None (button not used)
x Change PG status
x Copy PG
x Silent panic *)
x Audible panic*)
x Health troubles
x Report A, B, C, D
x None (button not used)
x Change PG status
x Copy PG *)
x Silent panic **)
x Audible panic**)
x Health troubles
x Report A, B, C, D
x Read status ***)
Reaction for pair of buttons (segment function)
- / -(A-B/C-D)
x Unset / Set
x Unset / Partially set
x Unset / Partially set / Set
x Unset / Set with confirmation
x Unset / Partially set with confirmation
x Unset / Partially set / Set with confirmation
x PG OFF / ON
Table 1. Button function options overview
For each function selected for a remote control button it is necessary
to select the appropriate PG or sections to be controlled, or from which
reports should be reported (panic, etc.). For the common control of
multiple sections it is not recommended to operate a common section,
but to select the desired section in the remote control internal settings.
Notes:
*) The „Copy PG“ reaction to a double press can be used for a 1 s
impulse only for the selected PG – double button pressing cannot
send 1s activation signal repeatedly unlike single buttons.
**) The reactions of the buttons which are not supported when the
system is configured comply with security grade 2.
***) If there is a pre-set function for the pair of buttons A+B (typically
Unset / Set section or PG OFF / ON), then that option also triggers
the option „Read status“. If this option is enabled the remote
reacts to a double press by showing the current status of the
section or PG.
For all functions related to setting the sections, the control panel
follows the option „Ways of setting“ selected in the Parameters tab.
a. For „with confirmation“ types of setting (see table 1), for „set
with warning“ options and for „set with confirmation“ pressing
the buttons in an 8 s period can be repeated and the command
is performed..
b. The option „Do not set with active zone“, doesn´t allow the
system to be set using a remote control (keyfob) when any
zone with an Instant reaction is active. To set the system all
zones / detectors have to be in standby.
 When the button on the remote control is pressed permanently
(valid for the „Copy PG“ function) activation is sent continuously
every 1 s. The function can be used for the extension of the impulse
of a PG output (the chosen PG output has to be set to the function
„Copy“). Maximum length of keeping the activation is 1 minute.
Take over a user´s access privileges: Taking over a user´s access
privileges for the sections and time limited access according to the
specific user, it respects individual access to the controlled section and
also limited access to a section if pre-set. Factory settings: disabled.
Take over a user´s identity: The selected user will be visible as a
source in the event log. Factory settings: disabled.
Delayed panic: Valid for reactions such as Silent panic and Audible
panic. The delay can be set from 5 to 240 s. Cancelling the panic alarm
during a running delay can be performed by repeated pressing of the
specific button.
Operation with a multipurpose relay (MPR)
The remote control can also be enrolled to a multipurpose relay of the
AC-16x series, to control a relay according to the chosen mode. Each
button should be enrolled to the MPR with a different mode. Even one
remote can be enrolled to multiple MPRs for example with a different
function. When you enroll a keyfob to the control panel and also to an
MPR within its RF range, don´t select the same buttons. To enroll a
keyfob to an MPR, follow the installation manual of the MPR.
Locking the keyfob
The remote control buttons can be locked (blocked) against
accidental pressing. Locking is disabled by default, pressing any button
triggers its function immediately.
If the buttons are locked, a control panel command is sent when a
button is pressed 2x quickly (2x per 1 s) it is also valid for the panic
function.
Caution: When a reaction for pressing buttons (A+B) or
(C+D) simultaneously is set (for example a panic alarm or
garage door control), it is necessary to mind that the action is
performed first.
The lock can be activated by simultaneously pressing and holding
the pair of buttons (A+B) or (C+D) until the yellow LED (1) starts
flashing, usually in 3 s. When the yellow LED (1) is flashing release
button B and press it again. Activation of the lock function is performed
and confirmed by double flashes of the yellow LED and a double beep.
After this confirmation release all buttons.
The lock is deactivated by repeating the procedure above.
Deactivation of locking is confirmed by one flash of the yellow LED and
one beep.
Acoustic indication
Acoustic indication can be completely disabled. Default is enabled.
When any button is pressed it is followed by short acoustic signal
according to the table 2.
Caution: When a reaction for pressing buttons (A+B) or
(C+D) simultaneously is set (for example a panic alarm or
The control panel is able to run a
maximum of 5 simultaneous timers
(delayed panic alarms).

The JA-154J MS Bi-directional four-button keyfob
The JA-154J MS Bi-directional four-button keyfob 2 / 2 MMJ51204
garage door control), it is necessary to mind that the action is
performed first.
The acoustic indication can be disabled by simultaneously pressing
and holding the pair of buttons (A+B) or (C+D) until the yellow LED (1)
starts flashing briefly for the second time, usually in 6 s. When the
yellow LED (1) flashes a second time release the button (B) and press it
again. The acoustic indication is then disabled and confirmed by flashes
of the yellow LED and a one beep. After this confirmation release all
buttons.
The acoustic indication can be enabled by repeating the procedure
above. Activation is confirmed by a double flash of the yellow LED and
a double beep.
LED indication table
Action Indication
Pressing the button is always indicated by a very short flash of the
yellow LED and followed by flashing of the coloured LED according to
the performed action.
The mentioned indication statuses are valid for the remote’s default
setting.
Unsetting
Control
function
with
confirmatio
n by LED
2 s flash of green LED
and 2x short acoustic signals
Setting 2 s flash of red LED
and 1x short acoustic signal
Partial setting 2 s flash of yellow LED
and 1x short acoustic signal
Unsetting after an
alarm
2 s flash of green LED
and 3x short acoustic signals
Delayed panic
Flashing of red LED
until action is done or its
cancelling
Setting confirmation
request
Flashing of red LED
until confirmation (max. 8 s)
Partial setting
confirmation request
Flashing of yellow LED
until confirmation (max. 8 s)
Pressing of button with no function
or lost communication
Short flash of yellow LED
1x short acoustic signal
Low battery Flashing of yellow LED
3x short acoustic signals
Holding the button – Copy PG
1x short acoustic signals,
red LED lights for whole
period of button being
pressed
Table 2. Remote control indication
Battery replacement
Low battery indication is signalled on the remote control after any
button is pressed. The action assigned to the button is done and the
yellow LED flashes with 3 quick beeps. Low battery information is also
sent to the control panel. The remote still works as usual but the RF
range goes slowly down. Low battery indication is cancelled when a
new battery is inserted.
To change the battery, unscrew the 2 screws from the back plastic;
remove the cover with the metal strut from the housing and remove the
discharged battery. Then press any button a few times to discharge the
rest of the energy from the capacitors and insert a new battery.
Battery replacement DOESN´T RESET the keyfob settings nor
the locks nor the acoustics.
Don´t throw the used battery into the trash but take it to a suitable
recycling station.
Technical specifications
Compatible with: FW of the JA-11xR radio module LR6x613+
FW of the control panel LJ(MD)60416+
F-Link 1.4.0+
Power – lithium battery type CR 2032 (3.0 V/0.2 Ah)
(Power supply C type according to EN 50131-6)
Low battery voltage detection  2.2 V
Typical battery lifetime approx. 2 years (10 activations/day)
Communication frequency 868.1 MHz
RF range approx 300 m (line of sight)
Dimensions 77 x 36 x 15 mm
Weight with no battery 35 g
Classification Security grade 2 / environmental class II
- according to EN 50131-1, EN 50131-3 (digital key), T 031
- environment indoor general
- operational temperature range -10 °C to +40 °C
- humidity 75 %, no condensation
- number of unique production codes > 1 Million
- certification body Trezor Test s.r.o. (no. 3025)
Also complies with ETSI EN 300 220, EN 50130-4,
EN 55022, EN 60950-1
Can be operated according to ERC REC 70-03
JABLOTRON ALARMS a.s. hereby declares that the JA-154J
MS is in a compliance with the relevant Union harmonisation
legislation: Directives No: 2014/53/EU, 2014/35/EU,
2014/30/EU, 2011/65/EU. The original of the conformity
assessment can be found at www.jablotron.com - Technical
Support section.
Note: Although this product does not contain any harmful
materials we suggest you return the product to the dealer or
directly to the producer after use.
If the remote control is out of the RF range
of the radio module or MPR, it doesn´t
indicate status change or signal loss.
