Jabra GN9330e - USB - Headset Safety guide

Jabra Link 14201-09
How to connect my Jabra GN9330e with Alcatel Touch 4029,
4039
Prerequisite:
Jabra GN9330e + Jabra LINK 14201-09
In combination with one of the following phones:
Touch 4029
Touch 4039
Connection:
Important: Please note that Remote Call Control for the Jabra GN9330e
(Jabra product no. 9337-508-402) is only supported from version "L" or the
Date code 9/09.
2-sided end:
Insert the RJ45 plug into the socket marked "AUX" and the RJ9 plug into
the socket marked "phone" on the Jabra GN9330e.

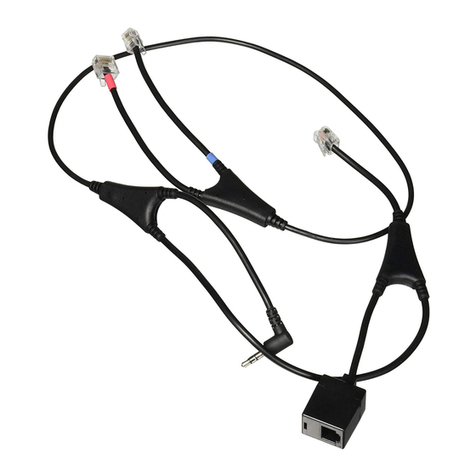

2-fold Y-coupling end:
Insert the 3.5 mm audio jack into the "headset" interface and the RJ12
plug into the bell socket of the phone. Now insert the phone's phone cable
directly into the additional connector socket of the Y cable.
28/03/2022 19:02
/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-
a05acacc15d7
Page 1 of 4

Software setup:
Put the headset into the base and activate the "MSH" mode.
Hold down the "phone" button on the base of the Jabra GN9330e for
approx. 6 seconds until the online display (blue LED) on the headset starts
to flash. The current software is displayed to you by activating the volume
controller in the form of the charge display (green LED).
LEDs from left to right:
LED 1 = RHL
LED 2 = DHSG
LED 3 = AEI
LED 4 = MSH
Now you can switch between the different software modes (LED 1-4) by
using the "volume" up/down controller on the headset. To confirm the
software has successfully installed, the base automatically switches back
to charge mode after approx. 15 seconds.
Base setup:
Set the phone set-up switch to "A".
28/03/2022 19:02
/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-
a05acacc15d7
Page 2 of 4

Microphone level setup:
Please call someone with the headset.
If the other party cannot hear you well or just faintly, adjust the grey
volume dial on the headset base until you can be understood clearly.
Headset answer/end:
As soon as the dial tone signal can be heard in the headset, you can answer
the call by pressing the "answer/end" button on the headset; by pressing
again the call is ended.
Phone setup with system software version 9.xx and higher:
No settings are required on the phone for the use of a headset. Following
the correct adaptation of the audio jack, a headset symbol should appear
in the "Phone display". If the headset symbol does not appear, please
check the following settings:
Menu> Settings> Phone> Audio Jack> Select/ Activate Headset.
28/03/2022 19:02
/supportpages/jabra-link-14201-09/14201-09/faq/327aff69-482c-4c14-9c69-
a05acacc15d7
Page 3 of 4

Phone setup with system software version below version 9.xx:
Important: The "Force Headset" function must not be activated on the
phone, as otherwise it will not be possible to accept external calls.
Menu> Settings> Phone> Audio Jack> Force Headset OFF
Menu> Settings> Phone> Socket > Activate Headset
Dial tone transfer / phone setup:
Important: The dial tone signal in the headset is only transmitted if one of
the following ringtones is used, e.g. Standard / Classic / Cold River /
Dooing-Dooing. > Menu> Settings> Dial Tone > Internal / External
Should the dial tone signal transfer not work although you have set up the
correct ringtone, please check the following settings:
Menu > Settings > Phone > Internal/External, More Options
No sound, Progressive, Beeps> all points must be set to "OFF".
Calls being made via the headset can be connected / forwarded as follows:
Dial the phone number > "Forward" will now appear in the phone display >
now press on to the appropriate function key next to the phone display >
now you should end the call with the button marked "Handset"
