USER MANUAL
Jabra®BT2047
jabra

1
ENGLISH
JABRA BT2047
CONTENTS
THANK YOU....................................................2
ABOUT YOUR JABRA BT2047 ...................................2
WHAT YOUR HEADSET CAN DO ................................2
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CHARGE YOUR HEADSET .......................................4
TURNING YOUR HEADSET ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . 4
PAIRING IT WITH YOUR PHONE .................................5
WEAR IT HOW YOU LIKE IT .....................................6
HOW TO .......................................................7
WHAT THE LIGHTS MEAN ......................................8
USING JABRA BT2047 WITH TWO MOBILE PHONES.............8
TROUBLESHOOTING & FAQ ....................................9
NEED MORE HELP? ...........................................10
TAKING CARE OF YOUR HEADSET .............................10
GLOSSARY ....................................................11

2
ENGLISH
JABRA BT2047
THANK YOU
Thank you for purchasing the Jabra BT2047 headset. We hope you
enjoy it! This instruction manual will get you started and ready to
make the most of your headset.
ABOUT YOUR JABRA BT2047
A Answer/end button, on/o button
B LED light
C Charging socket
D Earhook
WHAT YOUR HEADSET CAN DO
Your Jabra BT2047 lets you do all this:
- Answer calls
- End calls
- Reject calls*
- Voice dialing*
- Last number redialing*
- Call waiting*
- Place call on hold*
* Phone dependent
jabra
A
D
B
C

3
ENGLISH
JABRA BT2047
Specications
- Talk time up to 10 hours / standby time up to 10 days
- Weight 10 grams
- Operating range up to 10 meters (appr. 33 feet)
- Headset and hands-free proles (see glossary)
- Bluetooth® version 2.1 + eSCO & EDR
GETTING STARTED
You should follow three steps before using your headset:
1. Charge your headset
2. Activate Bluetooth® on your mobile phone (refer to the manual
for your Mobile phone)
3. Pair your headset to your mobile phone
The Jabra BT2047 is easy to operate. The answer/end button on
the headset performs dierent functions depending on how long
you press it.
Instruction Duration of press
Tap less than 1 sec
Press Approx: 2 sec
Long press Approx: 5 sec

4
ENGLISH
JABRA BT2047
CHARGE YOUR HEADSET
Make sure that your headset is fully charged for 2 hours before you start
using it. When the light indicator (LED) has a solid LED light, your headset
is charging. When the solid LED light turns o, it is fully charged.
Please note: The lifetime of the battery will be signicantly reduced if your
device is left uncharged for a long period. We therefore recommend that
you recharge your device at least once a month.
TURNING YOUR HEADSET ON AND OFF
- Press the answer/end button until you see a burst of ashes on
the indicator light (LED) to turn on your headset.
- Long press the answer/end button until you see a burst of
ashes on the indicator light (LED) to turn the headset o.
Please note that the LED indicator light turns o after 1 minute to
save battery. Headset is still active, and light will ash again after
jabra
2 Hrs
jabra jabra
2 Sec-On 5 Sec-Off

5
ENGLISH
JABRA BT2047
tap on the Answer/End button or any call activity. To check if the
headset is on, tap the answer/end button once – the LED indicator
light will ash, if the headset is on.
PAIRING IT WITH YOUR PHONE
Headsets are connected to phones using a procedure called
‘pairing’. By following a few simple steps, a phone can be paired
with a headset in a matter of minutes.
1. Put the headset in pairing mode
- When you turn on your Jabra BT2047 for the rst time, the
headset will automatically start up in pairing mode – i.e. it is
discoverable for your phone. When the headset is in pairing
mode the LED is constantly lit.
2. Set your phone to‘discover’ the Jabra BT2047
- Follow your phone’s instruction guide. First make sure that
Bluetooth® is activated on your mobile phone. Then set your
phone to discover the headset. This usually involves going
to a ‘setup’, ‘connect’ or ‘Bluetooth® ’ menu on your phone and
selecting the option to ‘discover’ or ‘add’ a device.*
3. Your phone will nd the Jabra BT2047
- Your phone will nd the headset under name “BT2047”. Your
phone then asks if you want to pair with the headset. Accept
by pressing‘Yes’ or ‘OK’ on the phone and conrm with the
passkey or PIN = 0000 (4 zeros) if asked. Your phone will
conrm when pairing is complete.
CONNECTIVITY
SELECT
MobilSurf
BLUETOOTH
Infrared port
Wap options
Synchronization
Networks
DEVICES FOUND
JABRA BT2047
JABRA BT2047
OK
Passkey:
****
HANDSFREE
SELECT
JABRA BT2047
added.
The handsfree is
now ready for use
SELECT
* Phone dependent

6
ENGLISH
JABRA BT2047
Put the headset in pairing mode manually
In case of unsuccessful pairing, put the Jabra BT2047 into pairing
mode manually. Make sure the headset is o. Press and hold the
answer/end button for approximately 5 seconds until the LED has
a constant light. The LED will ash before the light is constant –
keep holding down the button until light is constant. Then follow
the steps 2 and 3 above.

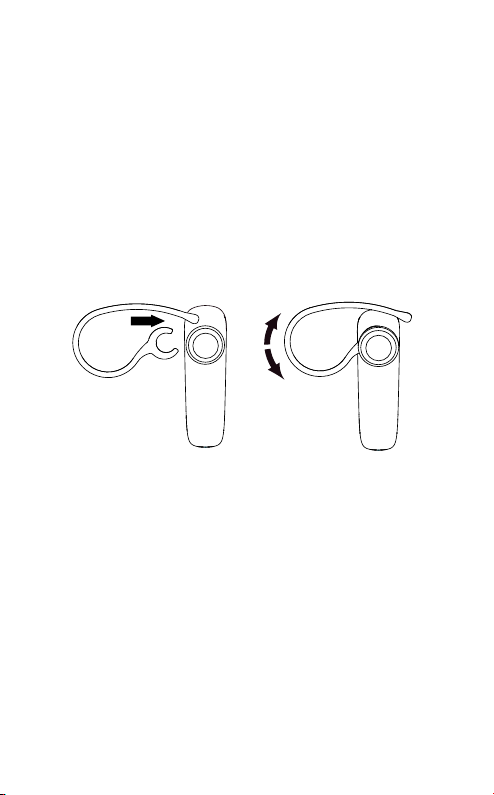

WEAR IT HOW YOU LIKE IT
The Jabra BT2047 is designed to wear with an earhook but it can
also be worn without the earhook by simply inserting it in your
right or left ear. If you prefer to use the earhook, click it on as
shown on the illustration.
For optimal performance, wear the Jabra BT2047 and your mobile
phone on the same side of your body or within line of sight.
In general, you will get better performance when there are no
obstructions between your headset and your mobile phone.

7
ENGLISH
JABRA BT2047
HOW TO
Answer a call
- Tap the answer/end button on your headset to answer a call.
End a call
- Tap the answer/end button to end an active call.
Make a call
- When you make a call from your mobile phone, the call will
(subject to phone settings) automatically transfer to your
headset. If your phone does not support this function, tap on
the answer/end button on the Jabra BT2047 to receive the call
in the headset.
Reject a call*
- Press the answer/end button when the phone rings to reject an
in-coming call. Depending on your phone settings, the person
who called you will either be forwarded to your voice mail or
hear a busy signal.
Activate voice dialing*
- Press the answer/end button to activate the voice-dialing
function in the mobile phone. Please consult your phone user
manual for more info about using this feature.
Redial last number*
- Double tap the answer/end button.
Call waiting and placing a call on hold*
- This lets you put a call on hold during a conversation and
answer a waiting call.
- Press the answer/end button once to put the active call on hold
and answer the waiting call.
- Press the answer/end button to switch between the two calls.
- Tap the answer/end button to end the active conversation.
Functions marked with * are dependent on your phone
supporting these features. Check your phone’s user manual for
further information.
* Phone dependent

8
ENGLISH
JABRA BT2047
WHAT THE LIGHTS MEAN
What you see What that means
Solid light In pairing mode - see Pairing
section.
Very slow single ash Connected to phone and in
standby mode.*
Slow triple ash Not connected to phone and in
standby mode.*
Regular double ash Active on call
Quick double ash Incoming/Outgoing call
Quadruple ash Battery low
* BT2047 is equipped with Jabra Discreet Light feature, meaning
that light indicator (LED) turns o after 1 min of non-activity.
Headset is still active, and light will ash again after a tap on the
answer/end button or any call activity.
USING JABRA BT2047 WITH TWO MOBILE PHONES
Jabra BT2047 is capable of having two mobile phones (or
Bluetooth® devices) connected to the headset at the same time.
This will give you the freedom of having only one headset to
operate both your mobile phones.
In order to use the headset with two mobile phone please make
sure you have ”paired” the Jabra BT2047 with both phones. See
the section “PAIRING IT WITH YOUR PHONE” for instructions.
Once you have “paired” your headset with two phones simply
make sure your headset is on, and that Bluetooth® is enabled on
the phones and the headset will then automatically connect to
both phones.
Please note that Last Number Redial will dial the number from
the last outgoing call, independent of the mobile phone, and the
Voice Dialing function will only work on the last paired mobile
phone.

9
ENGLISH
JABRA BT2047
If you are on a call and receive a second call you will be alerted by
a tone. You can then:
- Put the rst call on hold and accept the incoming call by press-
ing the Answer/end button
- Switch between the two active calls by pressing the Answer/
end button again
- Tap the Answer/end button once to end the first call and ac-
cept the new incoming call
TROUBLESHOOTING & FAQ
I hear crackling noises
- For the best audio quality, always wear your headset on the
same side of the body as your mobile phone.
I cannot hear anything in my headset
- Increase the volume on your phone.
- Ensure that the headset is paired with the phone.
- Make sure that the phone is connected to the headset – if it
does not connect either from the phone’s menu or by tapping
the answer/end button, follow the pairing procedure (refer to
pairing section in this user manual).
- You can determine whether your headset is connected to a
device by looking at the ashes on the headset after tapping
the answer/end button when the headset is on very slow
single ashes means that the headset is connected to a device,
slow triple ashes means that the headset is currently not
connected.
I have connection problems
- You may have deleted your headset pairing connection in your
mobile phone. Follow the pairing instructions (refer to the
section in this user manual).
- You can determine whether your headset is connected to a
device by looking at the ashes on the headset after tapping
the answer/end button when the headset is on very slow
single ashes means that the headset is connected to a device,
slow triple ashes means that the headset is currently not
connected.

10
ENGLISH
JABRA BT2047
Will the Jabra BT2047 work with other equipment?
- The Jabra BT2047 is designed to work with mobile phones.
It can also work with other devices that are compliant with
Bluetooth® and support a headset and/or hands-free prole.
I cannot use Reject call, Call on hold, Redial or Voice dialing
- These functions are dependent on your phone supporting
them. Please check your phone’s manual for further details.
NEED MORE HELP?
Web: www.jabra.com/bt2047
(for the latest support info and online User Manuals)
TAKING CARE OF YOUR HEADSET
- Always store the Jabra BT2047 with the power o and safely
protected
- Avoid storage at extreme temperatures (above 45°C/113°F
– including direct sunlight – or below -10°C/14°F). This
can shorten battery life and may aect operation. High
temperatures may also degrade performance.
- Do not expose the Jabra BT2047 to rain or other liquids.

11
ENGLISH
JABRA BT2047
GLOSSARY
1 Bluetooth® Bluetooth® is a radio technology that connects
devices, such as mobile phones and headsets, without wires or
cords over a short distance (approx. 10 meters/33 feet). is safe
to use. It is secure too, so once a connection has been made
no-one can listen in and there is no interference from other
devices either. Get more information at www.bluetooth.com.
2 Bluetooth® proles are the dierent ways that devices
communicate with other devices. Phones support the headset
prole, the hands-free prole or both. In order to support a
certain prole, a phone manufacturer must implement certain
mandatory features within the phone’s software.
3 Pairing creates a unique and encrypted link between two
Bluetooth® devices and lets them communicate with each
other. BluetoothTM devices will not work if the devices have
not been paired.
4 Passkey or PIN is a code that you enter on your Bluetooth® enabled
device (e.g. a mobile phone) to pair it with your Jabra BT2047.This
makes your Bluetooth® device and the Jabra BT2047 recognize each
other and automatically work together.
5 Standby mode is when the Jabra BT2047 is passively waiting
for a call. When you ‘end’ a call on your mobile phone, the
headset goes into standby mode.
Dispose of the product according
to local standards and regulations.
www.jabra.com/weee
