Jabra DRIVE User manual

JABRA®DRIVE
USER MANUAL

1
english
JABRA DRIVE
Contents
THANK YOU....................................................2
ABOUT YOUR JABRA DRIVE ....................................2
WHAT YOUR JABRA DRIVE CAN DO.............................3
HOW TO PRESS THE BUTTONS .................................4
WHAT THE LIGHT MEANS ......................................4
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CHARGING YOUR JABRA DRIVE ................................5
TURNING YOUR JABRA DRIVE ON AND OFF ....................6
PAIRING YOUR JABRA DRIVE WITH YOUR PHONE ...............6
CONNECTING WITH YOUR PHONE AUTOMATICALLY............7
PLACING JABRA DRIVE IN YOUR VEHICLE.......................8
ADDITIONAL FEATURES ........................................8
HOW TO HANDLE CALLS FROM A SINGLE PHONE ..............9
HOW TO HANDLE CALLS FROM TWO MOBILE PHONES........10
TROUBLESHOOTING & FAQ ...................................11
NEED MORE HELP? ...........................................12
TAKING CARE OF YOUR JABRA DRIVE..........................13
GLOSSARY ....................................................14

2
english
JABRA DRIVE
tHAnK YoU
Thank you for purchasing the Jabra DRIVE Bluetooth® in-car
speakerphone. We hope you enjoy it! This instruction manual
will get you started and ready to make the most of your in-car
speakerphone.
ABoUt YoUR JABRA DRIVe
A Status light
B Answer/end button
C Volume control
D Integrated Visor Clip
E Microphone
F On/o switch
G Micro USB charging connector
A
B
C
D
E
F
G

3
english
JABRA DRIVE
WHAt YoUR JABRA DRIVe CAn Do
Your Jabra DRIVE lets you do all this:
- Answer calls
- End calls
- Reject calls*
- Voice dialing*
- Last number redial*
- Mute
- Third party calling*
- Adjust volume
- Transmit mobile music, podcasts and directions from a GPS app
- Advanced Multiuse™ – Stay connected to two active Bluetooth
devices at the same time
Specications
- Talk time up to 20 hours/Standby time up to 30 days
- Charging time approximately 2 h. 30 min.
- Digital sound enhancement via DSP technology
- Noise cancellation through DSP
- Echo cancellation through DSP
- A2DP (Advanced Audio Distribution Profile) for transmitting
music, podcasts and directions from a GPS app on your phone
- Jabra Status Light (battery status, call status, connection status)
- Size: H104 mm W56 mm D18 mm
- Weight 100 grams
- Operating range up to 10 meters (approximately 33 feet)
- Supported Bluetooth profiles: HFP, HSP, A2DP
- Bluetooth specification version 3.0
- e-SCO for enhanced audio quality
- Rechargeable battery with charging option from car charger or
via USB cable
* Phone dependent

4
english
JABRA DRIVE
HoW to PRess tHe BUttons
Instruction Duration of press
Tap Press briey
Double Tap 2 quickly repeated taps
Press Approx. 1-2 seconds
Press and hold Approx. 5 seconds
WHAt tHe LIGHt MeAns
Status Light Speakerphone Status
The status light behind the
answer/end button ashes
rapidly blue
Pairing mode
The status light turns solid
blue and goes into standby
light mode
Connected
The status light ashes blue
every 2nd second
Standby/Idle
The status light ashes blue
every second
Incoming call
The status light turns solid
blue
Active call
The status light is ashing red There is less than 30 min. talk
time left
The status light turns red The unit is charging
The status light turns green Fully charged or the charging
level is between 70% and fully
charged

5
english
JABRA DRIVE
GettInG stARteD
You should follow three steps before using your speakerphone
1 Charge your Jabra DRIVE
2 Turn your Jabra DRIVE on
3 Pair your Jabra DRIVE with your mobile phone
The Jabra DRIVE is easy to operate. The answer/end button on the
speakerphone performs dierent functions depending on how
long you press it.
CHARGInG YoUR JABRA DRIVe
Make sure that your speakerphone is fully charged for two hours
before you start using it.
Use the USB cable to connect Jabra DRIVE to the car charger. Plug
the car charger into your car’s power outlet. The status light will
light up red while charging. When fully charged the status light
turns green. Jabra DRIVE can be charged outside your car by only
using the USB cable. Use only the charger provided in the box - do
not use chargers from any other devices as this may damage your
speakerphone.
Please note: The lifetime of the battery will be signicantly
reduced if your device is left uncharged for a long period. We
therefore recommend that you recharge your device at least once
a month.

6
english
JABRA DRIVE

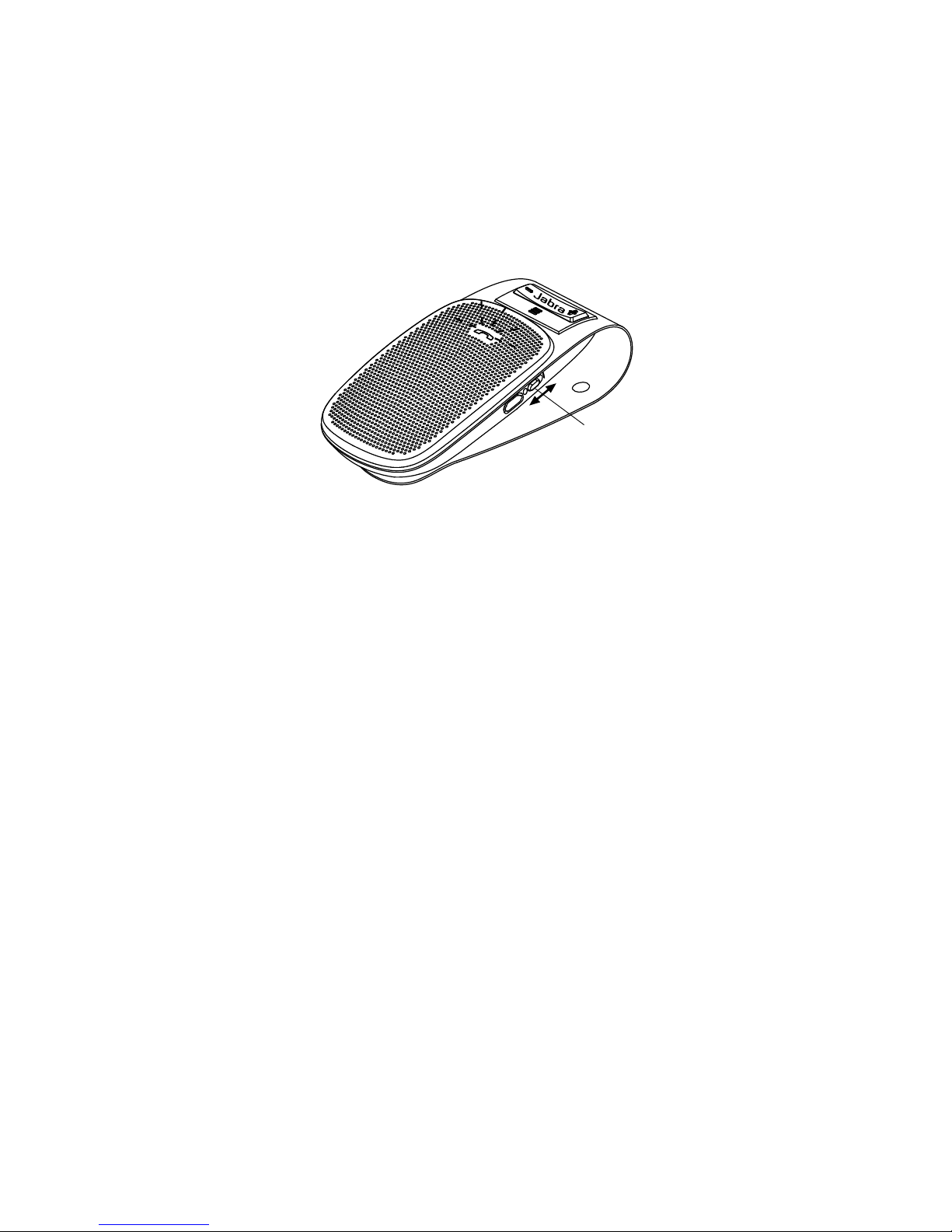

tURnInG YoUR JABRA DRIVe on AnD oFF
Slide the on/o switch to turn the speakerphone on or o.
Sleep mode and Auto OFF
When not connected to a phone, the speakerphone turns o
automatically after 10 minutes. Use the on/o switch to turn the
speakerphone on again.
On/O
PAIRInG YoUR JABRA DRIVe WItH YoUR PHone
Jabra DRIVE is connected to a mobile phone using a procedure
called‘pairing’. By following a few simple steps, a phone can be
paired with the speakerphone in a matter of minutes.
1 Activate Bluetooth® on your mobile phone
Please check the manual for your mobile phone.
2 Put the speakerphone in pairing mode
When you turn on your Jabra DRIVE for the rst time, the
speakerphone will automatically start up in pairing mode – i.e.
it can be detected by your phone. When the speakerphone is in
pairing mode the status light will ash rapidly blue.
3 Set your Bluetooth® phone to‘search’ for the JABRA DRIVE
Follow your phone’s instruction guide. First make sure that
Bluetooth® is activated on your mobile phone. Then set your
phone to search for devices. This usually involves going to a‘setup,’
‘connect’or ‘Bluetooth®’ menu on your phone and selecting the
option to‘search’ or‘add’a Bluetooth® device.*
* Phone dependent

7
english
JABRA DRIVE
4 Your phone will nd the Jabra DRIVE
Your phone will nd the speakerphone under the name “JABRA
DRIVE”. Your phone then asks if you want to pair with the JABRA
DRIVE. Accept by pressing‘Yes’or ‘OK’ on the phone and/or
conrm with the passkey or PIN = 0000 (4 zeros). Your phone will
conrm when pairing is complete.
CONNECTIVITY
SELECT
MobilSurf
BLUETOOTH
Infrared port
Wap options
Synchronization
Networks
DEVICES FOUND
Jabra DRIVE
Jabra DRIVE
OK
Passkey:
****
HANDSFREE
SELECT
Jabra DRIVE
added.
The handsfree is
now ready for use
SELECT
Manual pairing mode
If you wish to use the speakerphone with a dierent phone, or
if the pairing process was interrupted, you can manually set the
speakerphone to pairing mode.
Turn the speakerphone on. Press and hold the answer/end button
for approximately 5 seconds until the status light stars blinking
rapidly blue. Then repeat steps 2. and 3. in the above pairing
guide.
ConneCtInG WItH YoUR PHone AUtoMAtICALLY
Pairing is only needed the rst time a speakerphone and phone
are used together. When the speakerphone and phone have
been paired once they will automatically connect when the
speakerphone is on and Bluetooth® is activated on the phone. The
speakerphone can be used when it is “connected”to the phone. If
the devices are paired, but do not immediately connect, tap the
answer/end button.

8
english
JABRA DRIVE

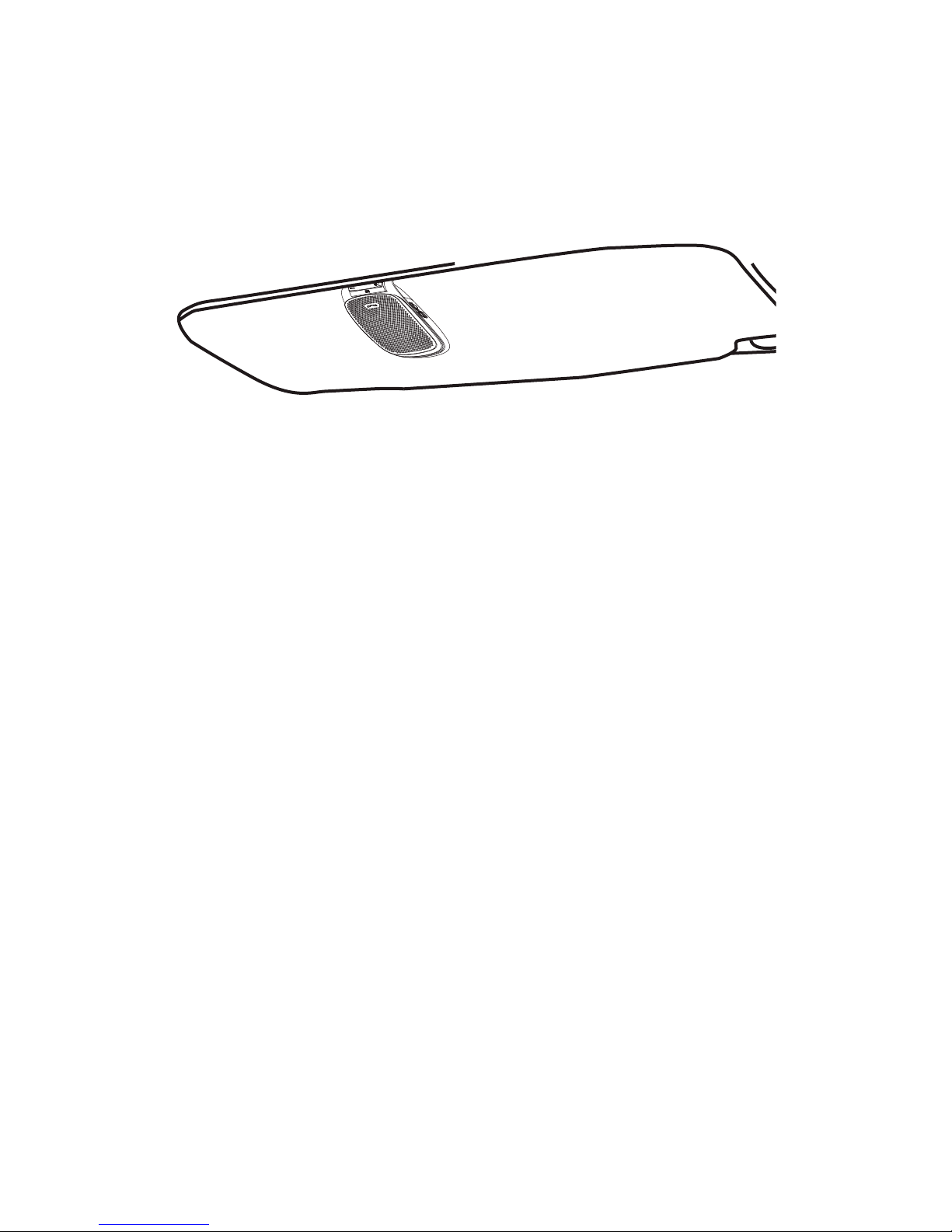

PLACInG JABRA DRIVe In YoUR VeHICLe
The Jabra DRIVE sits discreetly and conveniently on the sun visor
using the integrated metal clip. The product can be easily taken
on and o the sun visor. For optimal sound quality place the Jabra
DRIVE right in front of you and speak directly into the speakerphone.
ADDItIonAL FeAtURes
Play music and GPS directions*
Make sure that the speakerphone and mobile phone are
connected. When you play music or GPS application directions
from your mobile phone it will automatically transfer to your
speakerphone. If your phone does not allow this feature, press the
answer/end button to transfer the music to the speakerphone.
Music or GPS directions will automatically be paused when you
have an incoming call. When the call is ended it will start playing
again.
Easy Voice Guidance**
- Easy voice guidance informs you about your connection and
low battery status.
- Connected is announced when the in-car speakerphone
reconnects with your phone.
- Low battery is announced every 10th min when there is less than
30 min. talk time on your Jabra DRIVE.
Advanced Multiuse™
- Jabra DRIVE can be connected to two mobile devices at the
same time. To learn more about Advanced Multiuse™ please go
to the HOW TO HANDLE CALLS FROM TWO MOBILE PHONES
section
* Phone dependent
** Available ONLY in English

9
english
JABRA DRIVE
HoW to HAnDLe CALLs FRoM A sInGLe PHone
Function How to perform
Single call
Answer or end a call Tap the answer/end button
on your speakerphone to
answer or end a call
Make a call The call will automatically
transfer to your
speakerphone*. If not tap the
answer/end button
Reject a call* Double tap the answer/end
button to reject the incoming
call
Redial last number* Double tap the answer/
end button when the
speakerphone is on and not
used
Mute Long press the volume down
button. A sound will indicate
that the speakerphone is
on mute every 10 seconds
until the speakerphone is
un-muted
Un-mute Long press the volume
down button. A short sound
will indicate that your
speakerphone is un-muted
Adjust volume Tap volume + or volume- to
adjust the volume level. A
short sound will indicate
when the volume level is at its
highest or lowest limit
* Phone dependent

10
english
JABRA DRIVE
Hold active call Press the answer/end button
Transfer an active call from
your phone to Jabra DRIVE
Tap the answer/end button or
press it for a long time
Three way call (Another incoming call)
Release active-accept
incoming call
Tap the answer/end button
Hold active/accept incoming Press the answer/end button
Reject incoming call Double tap the answer/end
button
Three way call (The other call is on hold)
Release active/activate held Tap the answer/end button
Hold active and activate
held call
Press the answer/end button
Release held call Double tap the answer/end
button
HoW to HAnDLe CALLs FRoM tWo MoBILe PHones
Function How to perform
Calls on two phones (One active call – the other phone is
ringing)
Release active/accept
incoming call
Tap the answer/end button
Reject incoming call Double tap the answer/end
button
Hold active/accept
incoming***
Press the answer/end button
***Active calls on the two connected phones – other phone’s call is on hold

11
english
JABRA DRIVE
Function How to perform
Release active/activate held Tap the answer/end button
Hold active and activate
held call
Press the answer/end button
Release held call Double tap the answer/end
button
tRoUBLesHootInG & FAQ
I hear crackling noises
Bluetooth is a radio technology, which means it is sensitive to
objects between the speakerphone and the connected device. It
is designed for the speakerphone and the connected device to
be used within 33 feet (10 meters) of each other, with no major
objects in the way (walls, etc.).
I cannot hear anything in my speakerphone
- Increase the volume in the speakerphone.
- Ensure that the speakerphone is paired to a device that is
playing.
- Make sure your phone is connected to the speakerphone by
tapping the answer/end button.
I am having pairing problems
- You may have deleted your speakerphone pairing connection
in your mobile phone. Follow the pairing instructions.
I want to reset the pairing list in my speakerphone
The speakerphone registers a list of up to 7 mobile phones. To
remove the list:
1) Put your Jabra DRIVE in the pairing mode by long press on the
answer/end button;
2) The press Volume down button while holding your finger on
the answer/end button.
A beep and a purple ash of the status light indicate the list was
removed from the speakerphone memory. The next time you
power on, the speakerphone will go into pairing mode as the rst
time you powered your new Jabra DRIVE on.

12
english
JABRA DRIVE
Will the Jabra DRIVE work with other Bluetooth equipment?
- The Jabra DRIVE is designed to work with Bluetooth mobile
phones. It can also work with other Bluetooth devices that are
compliant with Bluetooth version 1.1 or higher and support a
headset, hands-free and/or advance audio distribution profile.
I cannot use Reject call, call on hold, Redial or voice dialing
- These features are dependent on the ability of your phone to
support a hands-free prole. Even if the hands free prole is
implemented reject call, call hold and voice dialing are optional
features which are not supported by all devices. Please consult
your device manual for details.
Please note that some features can only be operated from the
primary device e.g. voice dial using Jabra DRIVE with 2 mobile
phones.
neeD MoRe HeLP?
1. Web: www.jabra.com
(for the latest support info and online User Manuals)
2. E-mail:
Deutsch suppor[email protected]
English suppor[email protected]
Español suppor[email protected]
Français [email protected]
Italiano suppor[email protected]om
Nederlands suppor[email protected]
Polska suppor[email protected]
Scandinavian suppor[email protected]
 [email protected]
Information: [e-mail]

13
english
JABRA DRIVE
3. Phone:
Belgique/Belgie 00800 722 52272
Danmark 70 25 22 72
Deutschland 0800 1826756
Die Schweiz 00800 722 52272
España 900 984572
France 0800 900325
Italia 800 786532
Luxembourg 00800 722 52272
Nederland 0800 0223039
Norge 800 61272
Österreich 00800 722 52272
Polska 0801 800 550
Portugal 00800 722 52272
Suomi 00800 722 52272
Sverige 020792522
United Kingdom 0800 0327026
 [phone]
International 00800 722 52272
tAKInG CARe oF YoUR JABRA DRIVe
- Always store the Jabra DRIVE with the power off and safely
protected.
- Avoid storage at extreme temperatures (above 45°C/113°F
– including direct sunlight – or below -10°C/14°F). This
can shorten battery life and may affect operation. High
temperatures may also degrade performance.
- Do not expose the Jabra DRIVE to rain or other liquids.

14
english
JABRA DRIVE
GLossARY
1. Bluetooth is a radio technology that connects devices, such
as mobile phones and headsets, without wires or cords
over a short distance approx. 33 feet (10 meters). Get more
information at www.bluetooth.com.
2. Bluetooth profiles are the different ways that Bluetooth
devices communicate with other devices. Bluetooth phones
support the headset profile, the hands-free profile or both. In
order to support a certain profile, a phone manufacturer must
implement certain mandatory features within the phone’s
software.
3. Pairing creates a unique and encrypted link between two
Bluetooth devices and lets them communicate with each other.
Bluetooth devices will not work if the devices have not been
paired.
4. Passkey or PIN is a code that you enter on your mobile phone
to pair it with your Jabra DRIVE. This makes your phone and
the Jabra DRIVE recognize each other and automatically work
together. The passkey for all Jabra products is 0000.
5. Standby mode is when the Jabra DRIVE is passively waiting
for a call. When you‘end’ a call on your mobile phone, the
speakerphone goes into standby mode.
Dispose of the product according
to local standards and regulations.
www.jabra.com/weee

REV A
MADE IN CHINA
TYPE: HFS004
FCC ID: XXXXXXX
IC: XXXXXXXX
www.jabra.com
© 2011 GN Netcom A/S. All rights reserved. Jabra®is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth®word
mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
© 2011 GN Netcom US, Inc. All rights reserved. Jabra®is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth®word
mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
