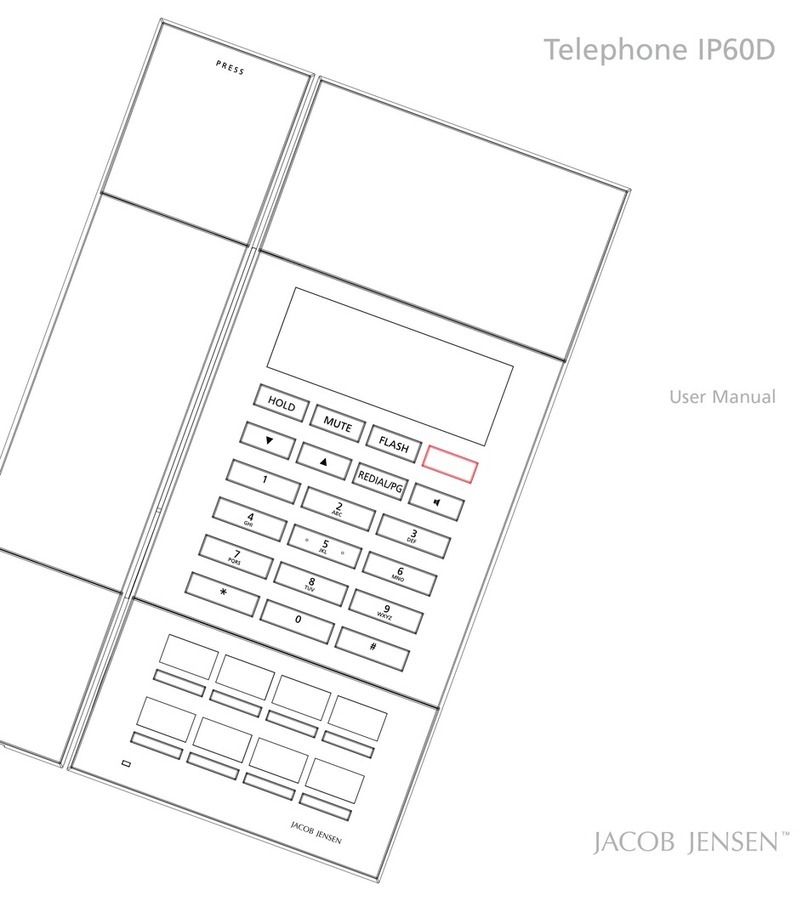

Jacob Jensen IP60D User manual

IP60D Manual

2
Product overview
DECT SIP phone is the telephone that transmits voice over network
based on IP protocol. IP60D is specially designed for top grade
hotels’ telecommunication. It features digital signal processing
technology and other patented technologies, which ensures clear
sound, stable quality, powerful function and elegant outlook design,
etc.
MAIN FEATURES:
1. The Base and Handset can make/answer any calls freely. One
Base can work with 1- 4 Handsets.
2. Support 1.8/1.9GHz, DECT6.0 standards. Also support WDCT
standard. It adopts HF numerical coding technique between Base
and Handsets.
3. Handsets can detect low battery and warning, also can charge
battery rapidly.
4. Mute, Flash, Speaker, Hold, Redial function available.
5. Supports message waiting lamp key with retrieval function.
6. Eight Service buttons with icon
7. The volume can be adjustable
8. Supports obtaining IP address via DHCP/Static IP.
9. Supports PCMU, G.723.1, G.729a/b, PCMA speech decoding
algorithms.
10. Supports RFC2833, SIP INFO, and other DTMF transmission
mode.
11. Support IEEE802.1 Q standard, IEEE802.3af protocal.
12. Support SIP protocol's standards
13. Supports upgrade through HTTP/TFTP protocol.
14. Adopts dynamic speech detection; Comfortable noise
generation; Speech buffering technologies.
15. Integrated PoE power supply function for easy installation.

3
Assembly, disassembly and installation
1. Install the handset cord
Insert one end of the attached handset cord to jack on the
handset, the other end to the jack of the base
2. Correctly install the battery
3. Connect the WAN port with the POE port of the PBX via internet
cable
4. The default mode is DHCP. More information refers to telephone
configuration setup description.
5. Installation the bracket
6.Disassembly
7. Faceplate Installation

4
Note: 1. Please install the phone in dry and clean environment and
avoid effected with damp.
2. The telephone should avoid fire, water spray, shock, clean
the surface dust by soft cloth; chemical solvent is prohibited to
use.
Diagrammatic drawing and function illustration.
1. Mute
2. Hold
3. VOL-
4.VOL +
5.Digital buttons
6. Handset
7. Service Button
8. Indicator
9.REDIA/PG
10. SPKR
11. MWL
12. FLASH
13. LAN Port
14. WAN Port
15.Handset Cord

5
1. Service Button
2. ON button
3. REDIAL
4. Digital buttons
5. Indicator of low voltage
6. VOL
7. OFF button
8. MUTE
9. HOLD
10. Bracket
11. Adapter
13. Power Jack
Configuration
1. Configuration with web browser
When telephone and PC connected to network, double click logo
on PC to open IE ;(press the “MUTE” to get the local IP)
.
After seeing the following information, enter telephone password, then
click ENTER to get the setup interface.
Note:
1.After modify each time, please click【OK】to save this setting
2.The factory default network settings mode is DHCP. After user connects the
device to such a networks environment which own DHCP service, it will link
to the networks automatically. If user doesn’t have DHCP environment then
he needs to choose telephone network mode based on actual network type.
3. PC preparation work before telephone setup
After confirming the telephone IP, first make sure PC’s network connection to
telephone is okay, then set up the PC to guarantee the PC can visit telephone
normally. For example, telephone IP is 192.168.1.171, then PC’s IP needs to

6
be set up as 192.168.1.***(*** can be any number between 0 to 255 except for
171).
2. Web functional descriptions
1) Network setting
Connection Type
Choosing the way of telephone access to the IP,
DHCP mode by default
IP Address
When using a static IP address, please enter the IP
address is assigned
Subnet Mask
Please enter your assigned subnet mask
Default Gateway
Please enter your assigned pre-set gateway
address
Primary DNS
Please enter your primary DNS server address
Secondary DNS:
Please enter your alternate DNS server address
Voice VLAN ID
Please enter the VLAN PBX’s voice ID
Data VLAN ID
Please enter the VLAN PBX’s data ID
2) SIP Setting
SIP Proxy:
Configure the SIP server address
SIP User ID:
Configure the SIP registration account
SIP Authentication ID:
Configure the SIP registration certification
SIP Authentication
PIN:
Configure the SIP account password
User Name:
Configure the SIP account user name
Subscribe for MWI
Configure phone voice mail reminding, phone MSG
indicator lights flashing if have voice mail as default
Message Service
Number:
Configure the voice mail number extraction
Use Hotline:
Configure whether hot line function enabled

7
Hotline Number
Configure the hot line number
Note: Please choose YES for SIP Registration.
3) Voice Configuration
Preferred Voice
Codec:
Configuration mode of voice CODEC
Use # to dial
immediately:
Configure whether # speed dial function enabled
The time wait to dial
out:
Set sending time after the dial
The pause
time(1-5s):
Configure PAUSE time
Note: Please click OK button when all the settings are finished, the phone will
automatically store the settings and reboot.
4) Speed dial configuration
Phone book
Set the speed dial phone number
4.2.5 Upgrade Mode
Upgrade
Firmware
Click ‘Browse’ to select the application that
needs to be updated, click ‘Start Upgrade’
button to begin the Upgrade procedure. After

8
successful upgrade, back to the initial login
state
Telephone Feature:
1.Placing Phone Call
1) Pick up the corded handset
2) Press button on the base
3) On- hook status, press (green) of the handset; press
(green) again to enter the speaker mode.
2. Dial Directly
Set "Use # to dial immediately" on web page "Voice-Dial Rules Settings" to
"Yes" mode.
On-hook mode, press the desired number and press【#】key to dial out .
3. Redial
1) Off-hook, press REDIAL/PG button
2) Off-hook, press the REDAIL button of the handset
Note: Through below Settings to set whether Redialed number disappear or
not when the phone is on on-hook state
---HOLD+*+HOLD+REDIAL activate Redialed number disappear
---HOLD+#+HOLD+REDIAL cancel Redialed number disappear
4. Speed dial
1) Program the service buttons
Manually program the service buttons by hand: On-hook, press
HOLD(HOLD light is on) + the storing number + guest service
button/message waiting light.
Programming the service buttons by web: Please open the "Phonebook"
on web page, input the storing number one by one, press 【OK】.
2) Program the cordless handset guest service buttons
On-hook, press HOLD+*+HOLD+2+M(M means the phone base guest
service button already stored with number)
3) When the base is in off-hook status, press the speed dial key number can
send the stored numbers

9
4) Press ON or SPKR of the cordless handset, then press the servicel button
can send the stored numbers.
5. Answering calls
1) Pick up the corded handset or press
2) Pick up the cordless handset when the handset is put into the charging
base
3) Press the (green) button of the cordless handset when it isn’t
put put into the charging base; press (green) again to enter
speaker mode.
Press to finish the call.
6. Hold
During a call, press HOLD key of the base to put the current party on hold and
send hold music to them. Hold LED will light up. Press HOLD key again, the
current call will release call hold.
7. Mute
During a call, press MUTE button to mute local voice. The mute LED will light
up, indicating that the other party cannot hear you and you can hear the other
party; Press MUTE button again to resume the conversation, the mute LED will
turn off.
8. Volume Adjustment
Off-hook, please press ▲ or ▼ to adjust the voice volume of the base;
On-hook, please press ▲ or ▼ to adjust the ringer volume of the base;
Off-hook, please press to adjust the voice volume of the cordless
handset;
On-hook, please press to adjust the ringer volume of the cordless
handset.
Note: Receiving volume whether to restore the default value after hanging up
(including cordless handset and phone base)
—— Press HOLD+#+HOLD+▲/▼ will back to default value.

10
——Press HOLD+*+HOLD+▲/▼, won’t back to default value.
9. Hot Line Function
Please choose the "Use Hotline" option on "SIP PROXY-Advanced SIP
Settings" through WEB, input the Hotline Number, then click "OK". SIP phone
would automatically dial the hot line number once SIP phone off-hook, can not
dial the other number, but can receive the incoming call normally.
10. Flash
With SIP phone off-hook, press 【FLASH】, means the phone first on-hook
then off-hook
11. MSG Retrival
MSG LED will flash to remind user to retrieve the unreached message. Pick up
the handset or press the speaker, then press MESSAGE button, SIP phone
would dial out the preset message service number. MESSAGE LED will turn
off once finish collecting the message.
12. Restore factory settings
With SIP phone activated by power and on-hook, press "5*5#”, the phone
will restore factory settings.
Note: Cordless handset needs to be registered after restoring factory
Settings.
13.POE Power
This device’s POE power is level 2 and 6.49W max.
14. Registration
1) Correctly connect the power and install the battry
2) On-hook status, press HOLD+*+HOLD+MUTE of the base and cordless
handset
3) Please wait for 15s, then press REDIAL/PG button.

11
If the cordless handset rings, it’s successful
Simple failure diagnose and troubleshooting
1. No dialing tone of handset
A Please check the telephone network,
B Please check the connection of handset cord and straight line cord
2. No ringing or no continually ring
Please check the telephone line or the quantity of parallel phone set
3. Noise during talk
Please check the telephone line or please check the handset cord
4. Cordless handset can not be switched on for more than 2
minutes
A If there is reminding sound after pressing cordless handset ‘LINE’ button, it
means: cordless handset did not registered to the phone base, need register
again.
B cordless handset and phone base’s distance beyond range, need to go
back to the phone base around before use.
C Batteries do not have enough power, need recharge
5. If there is any problem, please don’t open the phone body,
please contact us or our local representative. Thanks.
WARRANTY
This product is warranted for a period of 12 months from the date
of purchase against faulty materials or workmanship. If during
this period a defect arises, we may repair or replace the product,
at Bittel’s discretion, provided that:
1) The product has not been used for any purpose other than
normal use,
2) Unauthorized product repair or modifications have not been

12
attempted.
3) The product has never been used in a harsh or corrosive
environment.
4) No damage in transit
THIS LIMITED WARRANTY GIVES THE BUYER SPECIFIC
LEGAL RIGHTS. THE BUYER MAY ALSO HAVE OTHER RIGHTS
WHICH VARYFROM JURISDICTION TO JURISDICTION.
This warranty is only valid for merchandise purchased directly from
Bittel or dealers or distributors Bittel Co. authorized.
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
CONTACTING BITTEL
Company : Shandong Bittel Intelligent Technology Co. Ltd.
Address: No.1 Rizhao North Road, Rizhao, Shandong, 276800
China
Telephone:
(86) 633-2212125/2212160/2212177/2212119
Internet: www.bittelgroup.com
Email: info@bittelgroup.com
Copyright©2016 Bittel Inc. All rights reserved.
Other manuals for IP60D
1
Table of contents
Other Jacob Jensen IP Phone manuals
