Jacobsen Groom Master II Guide

WARNING:If incorrectly used, this machine can cause severe injury. Those who
use and maintain this machine should be trained in its proper use, warned of its
dangers and should read the entire manual before attempting to set up, operate,
adjust or service the machine.
GB
Safety & Operation Manual
When Performance Matters.
™
WARNING
Ifincorrectlyused,thismachinecancausesevereinjury.Thosewhouse
andmaintainthismachineshouldbetrainedinitsproperuse,warnedofits
dangersandshouldreadtheentiremanualbefore attempting to set up,
operate,adjust or service the machine
GB
United
Kingdom
Groom Master II™Sand Trap Rake / Groomer
with ROPS
88010,Briggs&Stratton®Vanguard, 3WD
88042,Kubota®D722-E3B,3WD
4201264-GB

1 CONTENTS
en-2
Proposition 65 Warning
Engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
andotherreproductive harm
© COPYRIGHT 2010, Jacobsen, ATextronCompany.
“All rights reserved, including the right to reproduce this book or portions thereof inany form”.
All information in this publication is based on information available at time of approval for printing. Jacobsen reserves the right to
make changes at any time withoutnotice and without incurring any obligation.
This manual contains Safety and Operating instructions for
your new Jacobsen machine. A Parts & Maintenance
Manual has also been included that contains adjustment,
maintenance, troubleshooting instructions, and parts list. Both
manuals should be stored in the literature pouch behind the
seat for reference during operation.
Before you operate your machine, you and each operator you
employ, should read both manuals carefully in their entirety. By
following the safety, operating, and maintenance instructions,
you will prolong the life of your mower and maintain its
maximumefficiency.
If additional information is needed, contact your Jacobsen
Dealer.

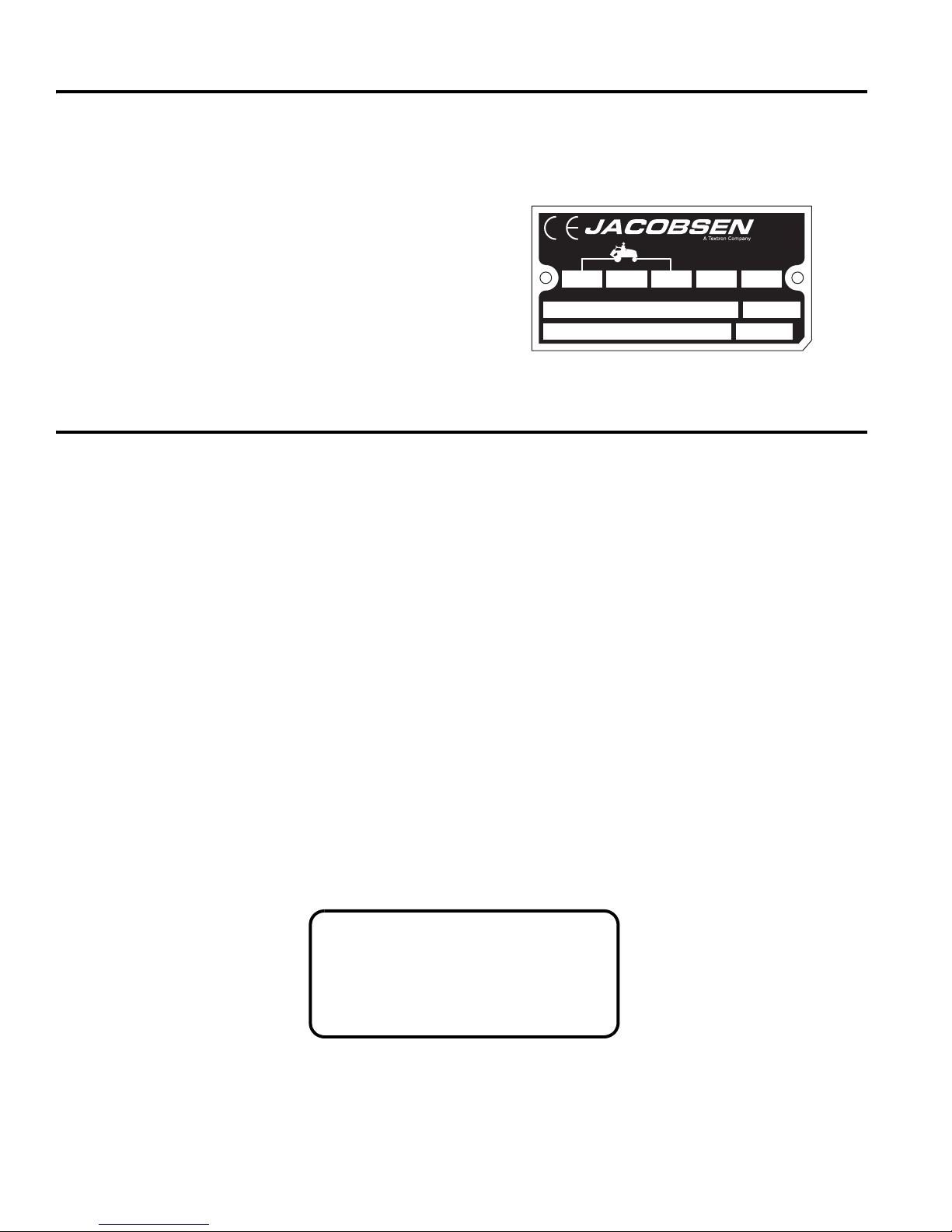

The mower serial plate is located on the seat pan, to the left of
the seat. Jacobsen recommends you record these numbers
below for easy reference.
®
P.O. BOX 7708,
CHARLOTTE,
NC 28241, USA
kg kg kg kW
Jacobsen.com
1-800-848-1636 (US)
FORWORD
1 CONTENTS
1CONTENTS
2SAFETY
2.1 Operating Safety ................................................... 3
2.2 Important Safety Notes .......................................... 4
3DECALS
3.1 Decals................................................................... 5
4 INITIAL INSPECTION
4.1 General ................................................................. 8
4.2 InitialInspection .................................................... 8
5 CONTROLS
5.1 Icons ..................................................................... 9
5.2 Control Descriptions ............................................ 11

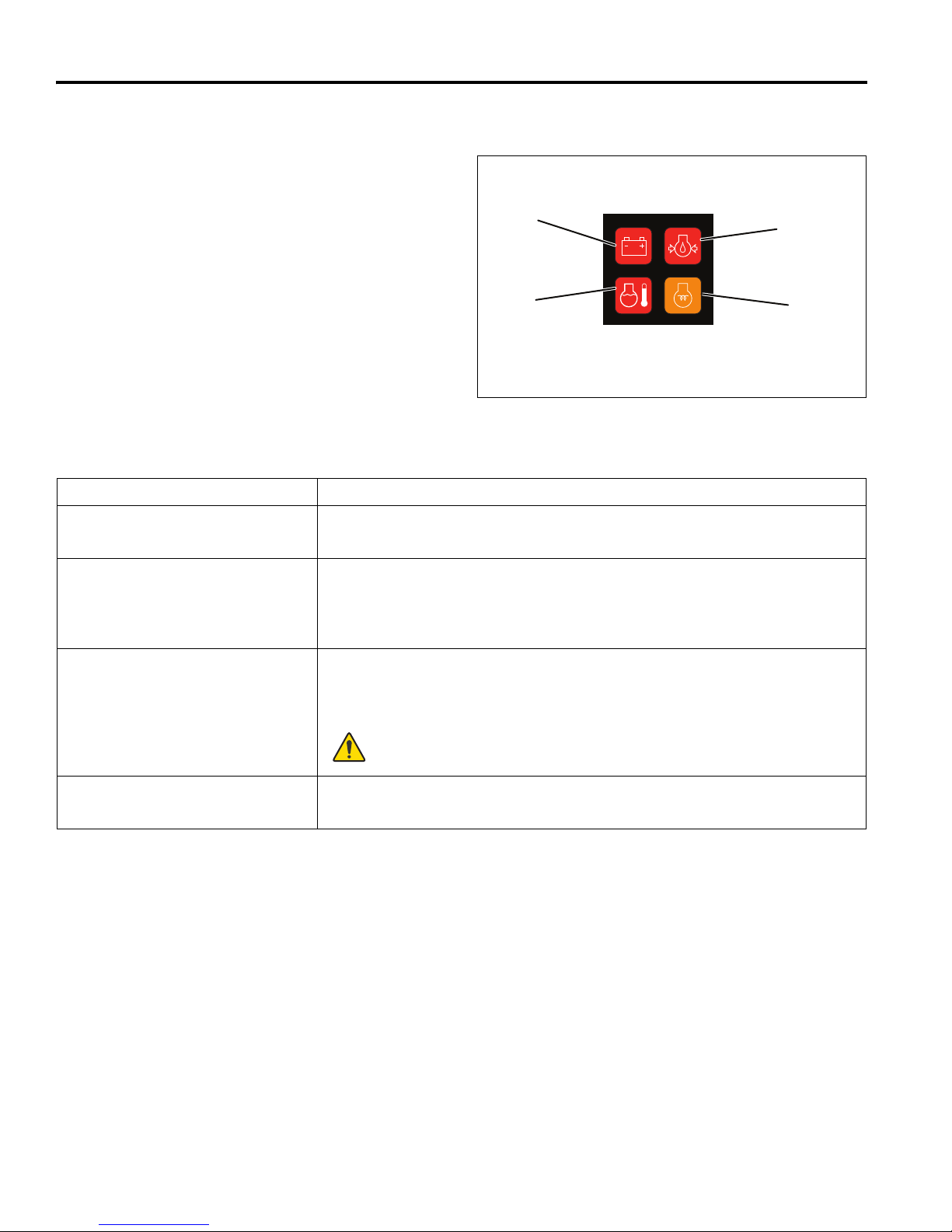

5.3 Operator Alerts .................................................... 12
6 OPERATION
6.1 DailyInspection................................................... 13
6.2 Interlock System ................................................. 13
6.3 Operating Procedures ......................................... 14
6.4 Starting ............................................................... 15
6.5 Stopping / Parking ............................................... 15
6.6 To Drive / Transport ............................................. 16

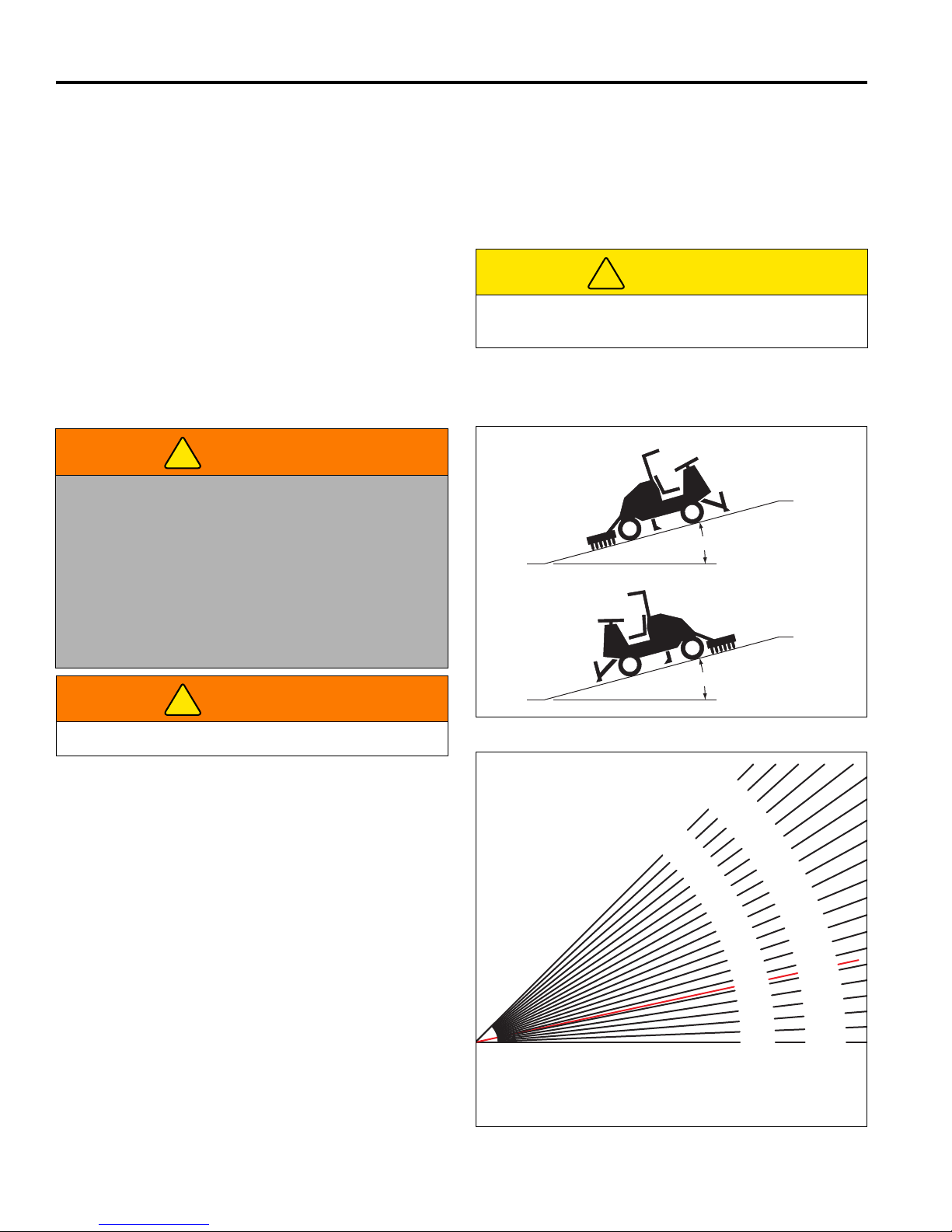

6.7 HillsideOperation ............................................... 16
6.8 Attachments ....................................................... 18
6.9 Towing / Trailering ............................................... 18
6.11 DailyMaintenance .............................................. 19
6.12 Long Term Storage ............................................. 20
7NOTES
LITHO IN U.S.A. 1-2010
2006/42/EC
ThesearetheOriginalinstructions verifiedbyJacobsenATextronCompany.

SAFETY 2
en-3
2 SAFETY
2.1 OPERATING SAFETY ______________________________________________________
1. Safety is dependent upon the awareness, concern, and
prudence of those who operate or service the
equipment. Never allow minors to operate any
equipment.
2. It is your responsibility to read this manual and all
publications associated with this equipment (Safety &
Operation Manual, Engine Manual, and attachments/
accessories instruction sheets). If the operator cannot
read English it is the owner’s responsibility to explain the
materialcontained inthismanualtothem.
3. Learn the proper use of the machine, the location and
purpose of all the controls and gauges before you
operate the equipment. Working with unfamiliar
equipmentcanleadto accidents.
4. Never allow anyone to operate orservice the machine or
its attachments without proper training and instructions,
or while underthe influence of alcohol ordrugs.
5. Wear all the necessary protective clothing and personal
safety devices to protect your head, eyes, ears, hands,
and feet. Operate the machine only in daylight or in good
artificiallight.
6. Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments
approvedbyJacobsen.
7. Stay alert for holes in the terrain and other hidden
hazards.
8. Inspect the area where the equipment will be used. Pick
up all the debris you can find before operating. Beware of
overhead obstructions (low tree limbs, electrical wires,
etc.) and also underground obstacles (sprinklers, pipes,
tree roots, etc.). Enter a new area cautiously. Stay alert
forhiddenhazards.
9. Never direct discharge of material toward bystanders,
nor allow anyone near the machine while in operation.
The owner/operator can prevent and is responsible for
injuries inflicted to themselves, to bystanders, and
damage to property.
10. Do not carry passengers. Keep bystanders and pets a
safedistanceaway.
11. Never operate equipment that is not in perfect working
order or is without decals, guards, shields, discharge
deflectors, or other protective devices securely fastened
inplace.
12. Neverdisconnectorbypass any switch.
13. Do not change the engine governor setting or overspeed
the engine.
14. Carbon monoxide in the exhaust fumes can be fatal
when inhaled. Never operate the engine without proper
ventilationorinanenclosed area.
15. Fuel is highlyflammable; handle with care.
16. Keep the engine clean. Allow the engine to cool before
storingandalwaysremovetheignitionkey.
17. Disengage all drives and engage parking brake before
starting the engine (motor). Start the engine only when
sitting in operator’s seat, never while standing beside
the unit.
18. Equipment must comply with the latest federal, state,
and local requirements when driven or transported on
public roads. Watch out for traffic when crossing or
operatingonor near roads.
19. Localregulationsmay restrict the ageof the operator.
20. Never use your hands to search for oil leaks. Hydraulic
fluid under pressure can penetrate the skin and cause
serious injury.
21. Operate the machine up and down the face of slopes
(vertically),notacross the face(horizontally).
22. To prevent tipping or loss of control, do not start or stop
suddenly on slopes. Reduce speed when making sharp
turns. Use caution whenchanging directions.
23. Always use the seat belt when operating groomer
equippedwithaRoll Over Protective Structure (ROPS).
Never use a seat belt when operating groomer
without a ROPS.
24. Always disconnect battery cables from battery before
performingany welding operationonthegroomer.
This machine is to be operated and maintained as specified in this manual. It is intended for professional use
and is equipped with attachments designed to move, smooth and loosen sandy materials on golf courses and
sports fields. It is not intended for use with hard compacted soil or gravel.
WARNING
EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS.
Familiarize yourself with the location and proper use of all controls. Inexperienced operators should receive instruction
from someone familiar with the equipment before being allowed to operate themachine.
!

2 SAFETY
en-4
2.2 IMPORTANT SAFETY NOTES________________________________________________
This safety alert symbol is used to alert you to potential hazards.
DANGER- Indicatesanimminentlyhazardous situation which, if not avoided, WILL result in death or serious injury.
WARNING-Indicatesapotentially hazardoussituation which, if not avoided,COULD resultin death or serious injury.
CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury and
property damage. It may also be used to alert against unsafe practices.
NOTICE - Indicates a potentially hazardous situation which, if not avoided, MAY result in property damage. It may also be
used to alert against unsafe practices.
For pictorial clarity, some illustrations in this manual may show shields, guards, or plates open or removed. Under no
circumstances should this equipment be operated without these devices securely fastened in place.
By following all instructions in this manual, you will prolong the life of your machine and maintain its maximum efficiency.
Adjustments and maintenance should always be performed by a qualified technician.
If additional information or service is needed, contact your Authorized Jacobsen Dealer who is kept informed of the latest
methods to servicethis equipment and can provide prompt and efficient service.
WARNING
The Interlock System on this groomer prevents the groomer from starting unless
theparkingbrakeisengaged and tractionpedalisinNeutral. The system willstop
the engine ifthe operator leaves the seat without engaging the parking brake.
NEVER operate groomer unless the InterlockSystem is working.
!
WARNING
1. Beforeleavingtheoperator’spositionforanyreason:
a. Returntractionpedalto Neutral.
b. Disengage all drives.
c. Lowerallimplements totheground.
d. Engageparkingbrake.
e. Stopengineandremove theignitionkey.
2. Keep hands, feet, and clothing away from moving parts. Wait for all
movementtostopbeforeyou clean, adjust orservice the machine.
3. Keep the areaof operation clear of all bystanders and pets.
4. Never carrypassengers, unless a seat is provided for them.
!

DECALS 3
en-5
3 DECALS
3.1 DECALS _________________________________________________________________
Familiarize yourself with the following decals. They are critical to the safe operation of the
machine. REPLACE DAMAGED DECALS IMMEDIATELY.
4181865
4181864
• Read operator's manual. Do not allow untrained
operators to use machine.
• Keep shields in place and hardware securely
fastened.
• Keep hands, feet, and clothing away from moving
parts.
• Before you clean, adjust, or repair this equipment,
disengage all drives, engage parking brake, and stop
engine.
•Nevercarrypassengers.
•Keepbystandersaway.
•Donotuseonslopes greaterthan15°.
Danger
To avoid injury when working with battery:
1. Always connect the black (-) ground last and remove it
first.
2. Keep sparks and flames away, and avoid contact with
acid.
To avoid injury when jumping battery:
1. Connect positive (+) terminal to positive (+) terminal.
2. Connect negative (-) terminal on good battery to frame of
vehiclethathasdeadbattery.

3 DECALS
en-6
Familiarize yourself with the following decals. They are critical to the safe operation of the
machine. REPLACE DAMAGED DECALS IMMEDIATELY.
700877
4199140
4164281
4181860
WARNING
To prevent burns, do not touch muffler or muffler
shield. Temperatures may exceed 150° F(66° C).
WARNING
PinchPoint
Keephandsaway.
WARNING
Failure to read and obey warnings and operating
instructions may result in serious or fatal injury to
youorothersand may alsoresultinequipment and/
or property damage. Read Safety & Operation
Manual before operating groomer. Avoid sharp
turns, quick stops, and sudden direction changes,
especially on hills. Go up and down slopes, not
accross. (Located on Oil Tank Cover)
To prevent serious injury, never disconnect or
tamper with the seat switch. Read Manual for more
information. (Locatedunder Control Panel)
Donotusethismachine onslopesgreaterthan15°.
Keep bystanders away. Read Safety & Operation
Manual for more information. (Located on Steering
Tower)

DECALS 3
en-7
4181863
838368
4135931
3008577
3002308
838363
3008576
838364
WARNING (Gas Units Only)
Stopenginebeforeengagingordisengagingbeltider. Engagingidler
while engine is running may cause vehicle to move in either forward
or reverse direction without warning and may result in personal
injury, death, equipment damage, and/or property damage. See
manualforoperatinginstructions.
Hydraulic Oil Tank
Raise
Rake
Lower
Raise
Blade
Lower
Raise
Scarifier
Lower
Gas Units Only
Move lever down to
disengagebeltidler.
Diesel Fuel Tank
Gasoline Tank
Choke
(Gas Units Only)
Throttle
Fast
Slow

4 INITIAL INSPECTION
en-8
4 INITIAL INSPECTION
4.1 GENERAL________________________________________________________________
The inspection and testing of the unit should always be
performed by a trained technician, familiar with the
operationofthisequipment.
Read each instruction completely and make sure you
understand it before proceeding. Stay alert for potential
hazards and obey allsafety precautions.
The RIGHT and LEFT, FRONT and REAR of the machine
are referenced fromthe operator’s seat, facing forward.
Accessories not included with this product must be ordered
separately. See instructions provided with accessory for
installationandparts.
4.2 INITIAL INSPECTION_______________________________________________________
1. Perform a visual inspection of the entire unit, look for
signs of wear, loose hardware, and components that
may have beendamaged during transport.
2. Inspect paint and decals for damage or scratches.
Decals provide important operating and safety
information. Notify dealer and replace all missing or
hard to read decals.
3. All fluids must be at the full level mark with engine cold.
Check:
a. Radiator coolant level (Diesel Units).
b. Engine oil level.
c. Hydraulic fluid level.
4. Make sure air filter connections are tight and cover is
securely in place.
5. Check tires for proper inflation. Tires have been over
inflated for transport. Correct tire pressure should be
set to 3 - 5 psi (0.21 - 0.34 BAR).
6. Checkbelttension.
[Parts & Maintenance Manual, Section 3.2]
7. Inspect battery connections and electrolyte level.
Check that battery is fullycharged.
8. Checkforfueloroilleaks.
9. Inspect lube points on decks and unit for proper
lubrication.
[Parts & Maintenance Manual, Section 6.1]
10. Complete Pre-Delivery Inspection (PDI) forms and
returntoJacobsenCustomerService.(DealerOnly)
CAUTION
Do not attempt to drive the unit unless you are familiar
with this type of equipment and know how to operate all
controls correctly.
!
CAUTION
The initial inspection should be performed only when the engine is off and all fluids are cold. Lower attachments to the
ground,engagethe parking brake,stopengine,and removeignitionkey.
!

CONTROLS 5
en-9
5 CONTROLS
5.1 ICONS ___________________________________________________________________
WARNING
Never attempt to drive the unit unless youhave readthe Safety andOperationManualandknow
how to operate allcontrols correctly.
Familiarize yourself with the icons shown above and what they represent. Learn the location
and purposeof all the controls andgauges before operating this unit.
Glow Plug
Light
D
Read Manual Engine Throttle
High Low
Parking Brake
Engaged Disengaged
Fuel
Gasoline Diesel
Warning Lights
Battery Oil Water
Pressure Temp
Engine
Off Run Start
Headlight
ON OFF
Attachments
Rake Scarifier Blade
!

5 CONTROLS
en-10
A
B
C
D
E
F
G
H
J
L
K
L
M
N
P
R
B1
B2
S
Tot a l H o u r s
1
10
0 0 0 0 0
ASteering Tilt Lever
BParking Brake
CTractionPedal
DRake Control Lever
EScarifier Control Lever (Optional)
FBlade Control Lever (Optional)
GThrottle
HSeatAdjuster
JFuelCap
KAccess Panel
LToolHolder
MIgnition Switch
NHourMeter
PLightSwitch
RWarning Light Panel
S12 Volt Accessory Power Outlet

CONTROLS 5
en-11
5.2 CONTROL DESCRIPTIONS __________________________________________________
A. Steering Tilt Control
Pull lever to release steering column. Tilt column up or
down to position desired. Release lever to lock steering
columninplace.
B. Parking Brake Lock / Release
To lock parking brake, hold brake pedal (B) down and
press lock (B1) until it engages. To disengage, press
brake pedal release (B2).
C. Traction Pedal
Press front of pedal down for forward travel. Press rear
of pedal down for reverse travel. Release pedal to slow
unit and stop. Allow unit to come to a complete stop
before reversing directions. Do not press traction pedal
when parking brake is set.
D. Rake Control Lever
Push forward to lower rake, pull back to raise rake.
NOTE: Never operate in reverse with rake down.
Rake may fold under unit and damage rake and unit.
E. Scarifier Lever (Optional)
Push forward to lower attachment, pull back to raise
attachment.
F. Blade Control Lever (Optional)
Push forward to lower attachment, pull back to raise
attachment.Tolockbladein float position, pushleverall
the way forward.
G. Throttle
Controls engine speed. Run machine at full throttle
duringnormal machineoperation.
H. Seat Adjustment
Pull left side lever out to adjust seat forward or
backward.
J. Fuel Cap/Gauge
Displays fuel level. Read fueling instructions and the
engine manufacturer’s Owner’s Manual before
refueling.
K. Access Panel
Openpaneltoaccesshydraulicreservoir.
L. Tool Holder
A holder has been placed on each side of the hood to
store hand rakes, shovels, etc.
M. Ignition Switch
The ignition switch has three positions. OFF - RUN -
START. See Section 6.4.
N. Hour Meter
Records engine operating hours. Use hour meter to
schedule periodic maintenance.
P. Light Switch
Controls operation of work lights.
R. Warning Light Panel
Alerts the operator to conditions requiring immediate
action.See Section 5.3.
S. 12 Volt Accessory Power Outlet
Allows operation of approved 12 volt accessories and
attachments. To prevent excessive battery drain, only
use 12 voltoutlet with engine running.
CAUTION
Never adjust steering while unit is moving. Stop unit and
set parking brakebefore adjusting.
!
CAUTION
The 12 Volt Accessory outlet circuit is protected by a 10
Amp fuse. Do not attempt to use attachment(s) with a
combined power rating greater than 120 Watts.
To prevent the risk or burns or fire do not replace 10 amp
fusewithahigheramperagerating fuse.
!

5 CONTROLS
en-12
5.3 OPERATOR ALERTS_______________________________________________________
The electronic controller monitors vital machine systems. It
uses an audible alarm and warning lights to alert the
operator of conditions requiring immediate action. When an
alert occurs follow the general guidelines listed in the chart
below, and any specific actions outlined by the grounds
superintendent orservicemanager.
To test alarm system:
Turn ignition switch to RUN. All lights will come on for one
second or more and the alarm will soundbriefly.
This system monitors:
T. Battery voltage
U. Engine oil pressure
V. Enginecoolanttemperature
W. Glow Plugs (Diesel Units)
Figure 5A
TU
VW
Alert Action
T. Battery Voltage - Warning light
comes on.
Return unit to a service area as soon as possible.Inspect battery and
battery charging system.
U. Engine Oil Pressure - alarm
sounds and oil pressure light comes
on. Oil pressure low.
Stop unit immediately, lower implements and shut off engine! Inspect oil
level in engine. If oil light remains on with oil at proper level, shut off engine, and
tow or trailer unit back to a service area. NEVER operate engine with oil light on,
severedamagetotheenginecanoccur.
V. Engine Coolant Temperature
Alarm sounds. Engine coolant
temperature high. (Diesel Units
Only)
Stop unit immediately, lower implements and shut off engine! Remove
debris such as leaves and grass clippings that may be restricting air flow through
rearscreenonhoodandareabetweenradiatorandoilcooler.Ifenginecontinues
to run hot, returngroomer to a service area.
CAUTION: Engine coolant is under pressure. Turn engine off and allow
fluid to coolbefore checking fluid level or addingcoolant to radiator.
W. Glow Plug - Glow plug light
comes on. (DieselUnits)
System is energizing glow plugs. Hold key in start position, starter will engage
whenglowpluglightturns off.

OPERATION 6
en-13
6 OPERATION
6.1 DAILY INSPECTION ________________________________________________________
1. Perform a visual inspection of the entire unit, look for
signs of wear, loose hardware, and missing or
damaged components. Check for fuel or oil leaks to
ensureconnectionsaretight andhosesand tubesarein
good condition.
2. Check the fuel supply, radiator coolant level (Diesel
units), crankcase oil, and air cleaner indicator. All fluids
mustbeatthefulllevelmark withenginecold.
3. Checktiresforproperinflation.
4. TesttheInterlockSystem.
Note: For more detailed maintenance information,
adjustments and maintenance/lube charts, see the
Parts & Maintenancemanual.
6.2 INTERLOCK SYSTEM ______________________________________________________
1. The Interlock System prevents the engine from starting
unless the parking brake is engaged and the traction
pedal is in Neutral. The system also stops the engine if
the operator leaves the seat with the traction pedal out
of Neutral, or parking brake disengaged.
2. Perform each of the following tests to insure the
Interlock System is functioning properly. Stop the test
and have the system inspected and repaired if any of
the tests fail as listed below:
l Theenginedoes not start in test 1;
l Theenginedoes startduring tests 2 or 3;
l Theenginecontinues torun during test 4.
3. Refer to the chart below for each test and follow the
check (4) marks across the chart. Shut engine off
betweeneachtest.
Test 1: Represents normal starting procedure. The
operator is seated, parking brake is engaged, and the
traction pedal is in Neutral.
Test 2: The engine must not start if the parking brake is
DISENGAGED.
Test 3: The engine must not start if traction pedal is not
inNeutral.
Test 4: Start the engine in the normal manner then
disengage parking brake and lift your weight off the
seat. Engine must shut down. H
HStartengine,thenliftyour weight off seat. The engine will shutdown.
CAUTION
The daily inspection should be performed only when the
engine is off and all fluids are cold. Lower attachments to
the ground, engage the parking brake, stop engine, and
removeignitionkey.
!
WARNING
Never operate equipment with the Interlock System
disconnected or malfunctioning. Do not disconnect
or bypass any switch.
!
Test Operator
Seated
Parking
Brake
Traction Pedal
in Neutral
Engine
Starts
Yes No Engaged Disengaged Yes No Yes No
144 44
24444
344 44
44H 4 4 H

6 OPERATION
en-14
6.3 OPERATING PROCEDURES_________________________________________________
1. Under no circumstances should the engine be started
withouttheoperatorseated on the unit.
2. Neverruntheengine in an enclosedarea.
3. Keep hands and feet away from moving parts. If
possible, do not make adjustments with the engine
running.
4. Do not operate unit or attachments with loose,
damaged, or missing components. Replace all worn or
damaged decals
5. Operate and rake in a flat test area to become
thoroughly familiar with the operation of the unit,
controls and rake.
6. Study the area to determine the best and safest
operating procedure. Consider the height and angle of
the bunker and whether it is wet or dry. Each condition
will require certain adjustments or precautions. Enter
and exit bunkers cautiously at the lowest and flattest
area.
7. Be aware of attachment discharge direction and never
direct discharge of material toward bystanders, nor
allow anyone near the machine while in operation. The
owner/operator is responsible for injuries inflicted to
bystandersand/ordamage to their property.
8. Slow down and raise the attachments when crossing
paths or roadways. Look out fortraffic.
9. Stop and inspect the equipment for damage
immediately after striking an obstruction or if the
machine begins to vibrate abnormally. Have the
equipmentrepairedbeforeresumingoperation.
10. Operate engine at full throttle. Control speed by using
the forward/reverse pedals rather than the engine
throttle.
11. Slowdownandusecaution
12. Slow down and use extra care on hillsides. Read
Section 6.7. Use caution when operating near drop
offs.
13. Look behind and down before backingup to be sure the
path is clear. Use care when approaching blind
corners, shrubs, trees, or other objects that may
obscurevision.
Note: Never operate in reverse with rake down. Rake
may fold under unit and damage rake and unit.
14. Never use your hands to clean attachments, use a
brush. Attachments may have extremely sharp edges
thatcancauseseriousinjuries
WARNING
A Roll Over Protection Structure (ROPS) is included with this groomer. Seat belts must be worn whenever operating a
groomer with aROPS. Always keep seat belt snuglyadjusted. DO NOT use seat belts on a groomerwithout a ROPS.
Ifthegroomerisoverturning,holdontothesteeringwheel. Do notattempt to jump out or leavethe seat.
!
CAUTION
Topreventinjury,alwayswearsafetyglasses,leatherworkshoesorboots,a hardhat,andearprotection.Longhair,loose
clothing, or jewelry may get tangled in moving parts
!
CAUTION
Before operating, pick up all debris such as rocks, toys,
and wire which can be thrown by the machine. Enter a
new area cautiously. Always operate at speeds that
allow you to have completecontroloftheunit.
!
WARNING
Before you clean, adjust, or repair this equipment,
always disengage all drives, lower implements to the
ground, engage parking brake, stop engine, and remove
key from ignition switch to prevent injuries.
!

OPERATION 6
en-15
6.4 STARTING________________________________________________________________
IMPORTANT: Do not use starting assist fluids. Use of
such fluids in the air intake system may be potentially
explosive or cause a “Runaway” engine condition and could
result in serious engine damage.
1. Make sure the tow valve (See Section 6.9) is closed.
2. Sit in operator’s seat, make sure the parking brake is
engaged andtraction pedal is in Neutral.
3. Move throttle lever between 1/8 to 1/2 throttle. Turn
ignition switch (M) to RUN. Battery (T), oil pressure (U)
and coolant temperature (V) lights should turn on.
Glow plug light (W) may also turnon (Diesel Units).
4. Gas Units.
a. Pull choke lever to fully close choke plate.
b. Turn Ignition switch to START position and release
as soon as engine starts. Do not hold the key in the
startpositionformorethan 15seconds.
c. Slowly push choke lever in to open choke plate.
5. Diesel Units - Turn key to START position. Glow plug
light (W) will illuminate for about 3 to 5 seconds. Starter
will engage when light goes out, Release as soon as
engine starts. The colder the temperature, the longer it
will take to energize plugs. Do not hold switch in the
STARTpositionformorethan15 seconds.
6. As soon as the engine starts, warning lights (T, U and
V) should turn off. If any of the warning lights do not shut
off, stop the engine immediately and have the unit
serviced
7. Allow the engine to become warm and properly
lubricatedbeforeoperatingathighRPM.
Figure 6A
6.5 STOPPING / PARKING______________________________________________________
To stop:
Remove your foot from traction pedal. The unit will
automatically brake when the traction pedal returns to
Neutral.
To park the unit under normal conditions:
1. Raise the attachments and move away from the area of
operation.
2. Select a flat and level area to park.
a. Release traction pedal to bring the unit to a
completestop.
b. Lower attachments to the ground, reduce throttle to
slow, and allow engine to operate at no load for a
minute.
3. Engage parking brake, stop the engine, and always
removetheignitionkey.
If an emergency arises and the unit must be parked in the
area of operation, follow the guidelines outlined by the
grounds superintendent. If the unit is parked on an incline,
chock or block the wheels.
WARNING
To prevent injuries, sit in the seat, engage parking brake,
and place traction pedal in Neutral before attempting to
starttheengine.
!
M
T
U
VW
Tot a l H o u r s
1
10
0 0 0 0 0

6 OPERATION
en-16
6.6 TO DRIVE / TRANSPORT____________________________________________________
Read and follow all safety notes contained in this manual
when driving or transporting unit. Refer to Section 6.3 for
general operating instructions. When operating in reverse
look behind youto ensure you have a clear path.
Important: If this unit is driven on public roads, it must
comply with federal, state, and local ordinances. Contact
local authorities for regulations and equipment
requirements.
1. Fully raise attachments when driving to and from the
areaofoperation.
2. Disengage parking brake and move throttle lever to
“Fast”. Depress traction pedal slowly.
6.7 HILLSIDE OPERATION _____________________________________________________
The unit has been designed for good traction and stability
under normal operating conditions; however, use caution
while operating on slopes, especially when the sand or
grass is wet. Wet terrain reduces traction and steering
control.
1. Always operate with the engine at full throttle. Control
groomerspeed usingtractionpedal.
2. If the unit tends to slide or the tires begin to “mark” the
terrain, angle unit into a less steep grade until traction is
regained or tire marking stops.
3. If unit continues to slide or mark the terrain, the grade is
too steep for safe operation. Do not make another
attempt to climb, raiserake, and back down slowly.
4. Correct tire pressure is essential for maximum traction.
Front and Rear........... 3-5 psi - (0.21-0.34 BAR)
Figure 6B
Figure 6C
CAUTION
To prevent tipping or loss of control, travel at reduced
speedwhenmaking turns.
!
WARNING
To minimize the possibility of overturning, the safest
method for operating on hills and terraces is to travel up
and down the face of the slope (vertically), not across the
face (horizontally). Avoid unnecessary turns, travel at
reduced speeds, stay alert for hidden hazards, and drop
offs.
To prevent tipping or loss of control, do not start or stop
suddenly on slopes. Reduce speed when making sharp
turns.Usecautionwhen changingdirections.
WARNING
Do not operate this uniton slopes greater than 15°
!
!
Maximum 15° Slope
Maximum 15° Slope
0°
Degrees are shown to nearest 1/4°
General Slope of Roadway Embankment - 45°
Steepest Grass Area - 31°
Slope of Average Roof - 19-1/4°
2nd Class Highway Maximum Grade - 4-1/2°
Toll Road or Freeway - 1-3/4°
0%
2-3/4°
5%
5-3/4°
10%
8-1/2°
15%
11-1/4°
20%
14°
25%
16-3/4°
30%
19-1/4°
35%
21-3/4°
40%
24-1/4°
45%
26-1/2°
50%
28-3/4°
55%
31°
60%
33°
65%
35°
70%
36-3/4°
75%
38-3/4°
80%
40-1/4°
85%
42°
90%
43-1/2°
95%
45°
100%
Degrees
Grade

OPERATION 6
en-17
How to calculate a slope:
ToolsRequired:
Level (A), either 1 yard, or1 meter long.
Tapemeasure(B).
With the level (A) positioned horizontally, measure the
distance (C) with tape measure (B). Use the chart to
calculate eirther the slope angle or the % grade of the slope
(D).
Figure 6D
C
A
B
D
Height (C) Result (D)
Inches with 1 Yard Level (A) Millimeters with 1 Meter Level (A) Slope in Degrees Slope Grade %
34.8 8.3
100 5.7 10.0
150 8.5 15
69.5 16.7
200 11.3 20.0
7.5 11.8 20.8
225 12.7 22.5
9 250 14 25.0
275 15.4 27.5
10 15.5 27.8
300 16.7 30.0
11 17.0 30.6
325 18.0 32.5
12 18.4 33.3
350 19.3 35.0
13 19.9 36.1
375 20.6 37.5
14 21.3 38.9
400 21.8 40.0
15 22.6 41.7
425 23.0 42.5
16 24 44.4
475 25.4 47.5
18 500 26.6 50.0
20 29.1 55.6
600 31.0 60.0
25 34.8 69.4
800 38.7 80.0
30 39.8 83.3
900 42.0 90
36 1000 45.0 100

6 OPERATION
en-18
6.8 ATTACHMENTS ___________________________________________________________
The Groom Master will accept several attachments
designed to perform a variety of operations. Before
installing and using attachments read and save the
instructionsheetincluded with it.
Contact your Jacobsen Distributor for a complete list of
attachments and accessories available for your machine.
6.9 TOWING / TRAILERING _____________________________________________________
If the unit experiences problems and removed from the
area, itshould be loaded onto a trailer for transport.Ifatrailer
is not available, the unit can be towed slowly short
distances.
Use care when loading and unloading unit. Fasten unit to
trailer to prevent it from rolling or shifting during transport.
Before towing, open tow valve. The tow valve permits
moving the unit without starting the engine and prevents
possible damage to hydraulic components.
The tow valve (A) is located on the hydraulic drive pump
under rear hood. To open valve, insert a pin into the small
hole in the valve stem. Turn the valve counterclockwise one
fullturn.
Before towing make sure attachments are raised. If they
cannotberaised,removethemfromtheunit.
Closevalvecompletelyaftertowing.
NOTE: Do not exceed 1 MPH (1.6 KPH) while towing.
Long distance towing is not recommended.
f
Figure 6J
A
TRG004

OPERATION 6
en-19
6.11 DAILY MAINTENANCE______________________________________________________
Important: For more detailed maintenance information,
adjustments, and maintenance/lubrication charts, see the
Parts & Maintenance manual.
1. Park the unit on a flat, level surface. Fully lower the
attachments to the ground, engage parking brake, stop
the engine, and remove key from ignitionswitch.
2. Grease and lubricate all points if required. To prevent
fires,washtheunitafter each use.
a. Useonlyfreshwaterforcleaning your equipment.
Note: Use of salt water or effluent water has been
known to encourage rust and corrosion of metal parts
resulting in premature deterioration or failure.
Damage of this nature is not covered by the factory
warranty.
b. Do not use high pressure spray.
c. Do not spray water directly at the instrument panel,
or any electrical components.
d. Do not spray water into the cooling air intake or the
engineairintake.
Note: Do not wash a hot or running engine. Use
compressed air to clean the engine and radiator fins.
e. Clean the tires thoroughly. Check tire pressure.
f. Clean radiator and oil cooler passages using
compressedair(30 psi(2BAR)maximum).
3. Fill unit’s fuel tank at the end of each operating day to
within1in.,(25mm)below the filler neck.
Diesel Engine - Use clean, fresh, #2 low or ultra low
sulfurdieselfuel.MinimumCetane Rating 45.
Gasoline Engine - Use clean, fresh, unleaded
gasoline, 85 octane minimum.
4. Handle fuel with care - it is highly flammable. Use an
approved container, the spout must fit inside the fuel
filler neck. Avoid using cans and funnels to transfer
fuel.
a. Never remove the fuel cap from the fuel tank, or add
fuel,whentheengineisrunning,or whiletheengine
is hot.
b. Do not smoke when handling fuel. Never fill or drain
the tank indoors.
c. Never overfill or allow the tank to become empty.
Donotspillfuel.Cleanany spilled fuel immediately.
d. Never handle or store fuel containers near an open
flame or any device that may create sparks and
ignitethefuelor fuel vapors.
5. Store fuel according to local, state, or federal
ordinances and recommendations from your fuel
supplier.
6. Inspect hydraulic hoses and tubes daily. Look for wet
hoses or oil spots and replace worn or damaged hoses
andtubesbeforeoperatingthemachine.
7. After engine has cooled, check coolant level. Radiator
should be full and recovery bottle should be up to the cold
mark.
8. Park machine in designated area. Engage parking
brake and remove key. Do not part equipment near an
open flame or spark which could ignite fuel or fuel vapors.
Place key in a secure location to prevent unauthorized
useofequipment.
9. Check the engine oil and hydraulic oil at the start and
end of each day. If the oil level is low, remove the oil filler
cap, and add oil as required.Donotoverfill.
WARNING
To prevent serious injury from hot, high pressure oil,
never use your hands to check for oil leaks, use paper or
cardboard.
Hydraulic fluid escaping under pressure can have
sufficient force to penetrate skin. If fluid is injected into
the skin, it must be surgically removed within a few hours
by a doctor familiar with this form of injury or gangrene
mayresult.
WARNING
To prevent serious bodily injury from hot coolant or
steam blow-out, never attempt to remove the radiator
cap while the engine is running. Stop the engine and wait
until it is cool. Even then, use extreme care when
removingthecap.
CAUTION
Do not pour cold water into a hot radiator. Do not operate
engine without a proper coolant mixture. Install cap and
tightensecurely.
!
!
!

6 OPERATION
en-20
6.12 LONG TERM STORAGE ____________________________________________________
General
1. Wash the unit thoroughly and lubricate. Repair and paint
damaged or exposed metal.
2. Inspect the unit, tighten all hardware, and replace worn or
damaged components.
3. Drainandrefillradiator.
4. Clean the tires thoroughly and store the unit so the load is
off the tires. If unit is not on jack stands, check tires at
regular intervals and reinflate asnecessary.
5. Keep the machine and all its accessories clean, dry and
protected from the elements during storage. Never store
equipment near an open flame or spark which could ignite
fuelorfuelvapors.
Battery
1. Remove, clean and store battery in upright position on a
non-conductive surface (wood) in a cool, dry place. Topre-
vent accelerated discharge, do not store battery on con-
crete or steel surface.
2. Check and recharge battery every 60 to 90 days while in
storage.
3. Store batteries in a cool, dry place. To reduce the self
discharge rate, room temperature should not be above
80°F (27°C) or fall below 20°F (-7°C) to prevent electrolyte
fromfreezing.
Engine
1. While the engine is warm, remove drain plug, drain the oil
from the crankcase, and change oil filter. Install drain plug
and refill with fresh oil. Torque drain plug to 22 ft. lb. (30
Nm).
2. Clean exterior of engine. Paint exposed metal or apply a
light coat of rust preventative oil.
3. Add a fuel conditioner or biocide to prevent gelling or
bacterial growth in fuel. See yourlocal fuel supplier.
Attachments
1. Wash the attachments thoroughly, then repair and paint
anydamagedorexposed metal.
2. Lubricate all fittings and friction points.
After Storage
1. Check and reinstall battery.
2. Check or service fuel filter andair cleaner.
3. Check the radiator coolant level.
4. Check oil level in the engine crankcase and hydraulic
system.
5. Fill the fuel tank with fresh fuel. Bleed the fuel system.
6. Make certain that the tires are properly inflated.
7. Start and operate the engine at 1/2 throttle. Allow enough
time for the engine to become properly warmed and
lubricated.
WARNING
Never operate the engine without proper ventilation;
exhaust fumes can be fatal when inhaled.
!
