nova™ 5 whirlpool bath and soaking bath
nova—a brightly burning star. the nova™ whirlpool bath—a rejuvenating point of light in your day, your night, your routine.
Clean lined and classic, the Nova™ whirlpool
is versatility defined.
whirlpool bath features:
• 4 fully adjustable TheraPro™ jets
• 1 directionally adjustable AccuPro™ jet
• RapidHeat™ in-line heater
• Electronic on/off control
• Patented Fixed Air Flow System
• Exclusive Tru-Level™ self-leveling base system
• Drain included on whirlpool baths
nova™ 5
whirlpool bath
model number: 9230 – RH, 4480 – LH
exterior dimensions:
60" long x 42" wide x 18½" high
interior dimensions:
41" long x 27" wide x 18" high
# of Jets/type of Jets:
4 TheraPro™ Jets,
1 AccuPro™ Lumbar Jet
operating gallons:
46 gallons
nova™ 5
soaking bath
model number: 4481
exterior dimensions:
60" long x 42" wide x 18½" high
interior dimensions:
41" long x 27" wide

Nova® 5 Whirlpool Bath
Model: 4480, 9230
Nova™ 5 Bath
Model: 4481
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
9230 Nova® 5 Whirlpool Bath
Right Hand
4480 Nova® 5 Whirlpool Bath
Left Hand
4481 Nova® 5 Bath
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit: #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 42” W x 18-1/2” H
(1524 mm) L x (1067 mm) W x (470 mm) H
Drain/Overflow
A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)
Cutout
58” x 40”
Total Weight
4480, 9230: 722 lb (327 kg) / 41 lb/ft2(201 kg/m2)
4481: 682 lb (309 kg) / 39 lb/ft2(190 kg/m2)
Operating Gallonage
4480, 9230: 46 U.S. Gal. (170 liters)
Max. 54 U.S. Gal. (204 Liters)
Product Weight
4480, 9230: 97 lb (44 kg)
4481: 57 lb (26 kg)
Skirt Mounting
Optional, U-Frame
Electrical Specifications (Models 4480, 9230 only)
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional Models 4480, 9230 only)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
60"
21''
42''
2''
2''
11" x 4"*
8-1/2''
Motor
12" H x 18" L
Service Access
Opt. Service
Access
7''
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com

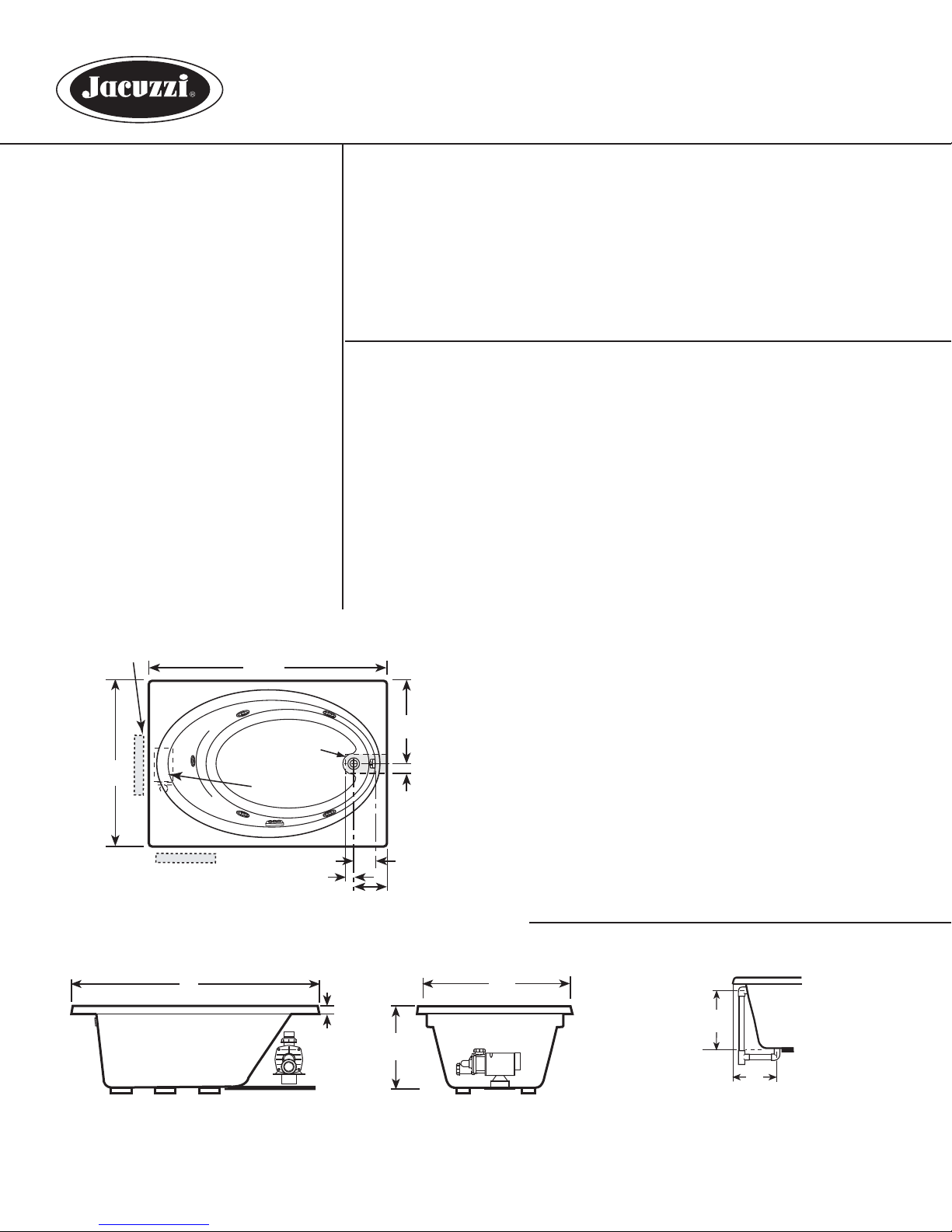

END VIEW
H
W
SIDE VIEW
L
2"
# FR86 06/07
DRAIN/OVERFLOW
A
B
Product Shown: Nova®5 Whirlpool Bath Right Hand Model: 9230
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
