JADO Victorian 883 User manual

Installation Instructions
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
©JADO USA 2003
Products Luxury Faucets and Accessories
109166 109166
5HELPFUL HINTS FOR CLEANING AND MAINTENANCE
The solid brass product you have just purchased has been designed to give you years of beauty and service. It is
important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.
First and foremost, it is important (as it is with any fine piece of jewelry or furniture) that the product be wiped clean and
dry with a soft damp cloth after every use.
Second, under no circumstances should an abrasive cleaner or combination cleaner/polish be used on JADO products.
The abrasive nature of such products will eventually destroy the finish and void the warranty.
In the event of stubborn blemishes shown on the finish, we recommend use of Windex window cleaner with a soft cloth,
but we do not recommend it be used on an everyday basis.
It is important to note that it is normal to expect signs of usage over time.
Thank you for selecting JADO for your home.
Widespread Kitchen Faucet
Widespread Kitchen Faucet
with Side Spray
with Side Spray
JADO USA
7845 East Paradise Lane
Scottsdale, AZ 8526O
Phone: 8OO) 227-2734
Fax: 8OO) 552-JADO 5236)
www.jadousa.com
Product Numbers
883/118/...
Victorian
TO THE PURCHASER OF JADO BRASS PRODUCTS
Attention installer:
Please leave This Pamphlet for The Owner
POLISHED BRASS AND CUSTOM FINISHWARRANTY: A 1YEAR LIMITED FINISH WARRANTY from date of purchase is provided to the
first residential owner against defects in materials and workmanship. Due to the ever-changing finish of Patina products, the finish warranty
is excluded. Warranty shall not include problems related to the installation of the product.
MECHANICS
MECHANICAL WARRANTY: A LIFETIME LIMITED WARRANTY is provided to the first residential owner on parts to be free from failure
related to defects in materials and workmanship but not installation.
CONDITIONSTOWARRANTIES
JADO Bathroom & Hardware Manufacturing Corp.places the following conditions on its finish and mechanical warranties to the first residential owner only.
JADO finish and mechanical warranties are limited to products correctly installed and used in a residential environment.
JADO warranties will not assume liability for damage due to abuse, mishandling, incorrect installation, improper maintenance, or deterioration
due to normal use.
JADO will not be liable for labor or other costs relating to the sale, installation, or replacement of their products.
In the event of a defect in any JADO product covered by this warranty, the product must be returned to the dealer where originally purchased
along with proof of purchase.
JADO's obligation under the warranty shall be limited to the repair or exchange of any product which has been determined by JADO to be
defective after appropriate examination.
The state of California has mandated under Proposition #65 that
manufactures of products, including faucets which come into
contact with potable water, must warn the consumer if the product
contains materials listed by the state as a carcinogen or
reproductive toxin. Lead, which is contained in all brass faucets in
limited amounts appears on the State's list.
Preliminary industry tests have indicated that users of faucets
made from brass face no significant danger, however,
California Proposition #65 requires that we provide you with the
following notice:
NOTICE: JADO products conform to industry
requirements of water conservation under the
ASTM / ANSI A112.18.1M-1994 plumbing code.
Lavatory, bidet, wet bar and kitchen faucet sets
have a maximum flow rate of 2.2GPM. Shower
heads, hand showers and body sprays have a
maximum flow rate of 2.5GPM.
Warning: This product contains an element
known to the State of California to cause cancer
of reproductive harm.
JADO BATHROOM AND HARDWARE MFG.CORP.
7845 East Paradise Lane
Scottsdale, AZ 85260
JADO warrants this product to be free from defects in materials or workmanship for as long as the original consumer purchaser
owns their home.
JADO will provide, free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a comparable
product) to replace those which have proven defective in materials or workmanship.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to JADO for all limited
warranty claims.This limited warranty is non transferable.It does not apply in the event of product damage due to the use of other than
genuine JADO replacement parts, installation error, abuse, misuse, or improper care and maintenance (whether performed by
a plumber, contractor, service provider or member of the purchaser’s household).The limited warranty excludes damage due to aggressive
air or water conditions, or harsh or abrasive cleaners and/or materials.This limited warranty excludes all industrial, commercial and business
usage, whose purchasers are hereby extended a two year limited warranty (with the exception of solenoid valves and other electronic
components which carry a one year limited warranty) applying to all other terms of this limited warranty except duration.This limited warranty
does not cover labor charges incurred and/or damages sustained in installation, repair or replacement, nor incidental or consequential
damages, all of which are expressly disclaimed.This limited warranty is applicable only to JADO faucets manufactured after June 1, 1996
and installed in the United States and/or Canada.
This limited warranty gives the original consumer purchaser of an JADO faucet specific legal rights which may vary from state to
state or from province to province.This limited warranty does not cover any liability for consequential or incidental damages, all of which
are hereby expressly disclaimed, or the extension beyond the duration of this limited warranty of any implied limited warranties, including
those of merchantability or fitness for an intended purpose.In some states or provinces the exclusion or limitation of incidental or consequential
damages is not allowed, so those exclusions may not apply to you.
JADO Bathroom & Hardware Manufacturing Corp. provides the following warranties only to the first residential owner of our products.
FINISHES
JADO FAUCET LIFETIME FUNCTION AND FINISH LIMITEDWARRANTY

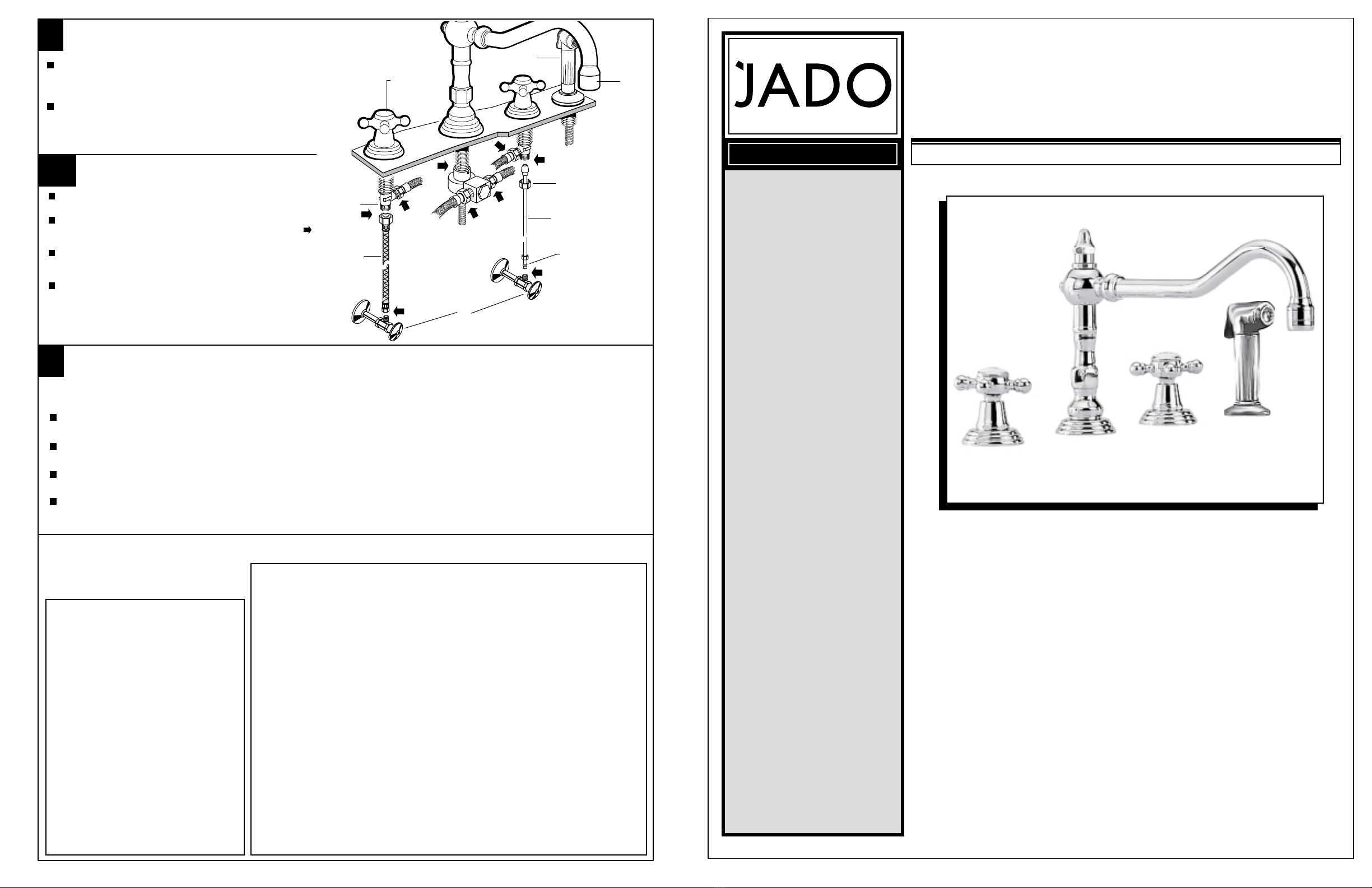

4WATER SUPPLY CONNECTIONS
Connect water supply to VALVE BODIES (1) with 1/2" IPS
FLEXIBLE SUPPLIES (2) or 3/8" O.D. BULL-NOSE RISERS (3).
Use wrench to tighten connections.
Do not over tighten. Be careful not to kink copper supply
when bending. Use tubing cutter to cut to proper length.
NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE
PURCHASED SEPARATELY.
JADO
JADO
2
5
1
6
3
FERRULE
COUPLING
NUT
4
7
TEST INSTALLED FAUCET AND
CONNECTIONS FOR LEAKS
Remove AERATOR (4) from faucet.
With HANDLES (6) in OFF position, turn on WATER
SUPPLIES (5) and check all connections for leaks.
Operate both HANDLES (6) to flush water lines thoroughly.
Replace AERATOR (4)
Remove SPRAY (7) from holder. Turn faucet on, direct
SPRAY (7) into sink and press lever to test.
4a

2
3
1
Front
7
8
12
13
109166 109166
Widespread Kitchen Faucet
with Side Spray
1DISASSEMBLY OF TEE
Loosen SET SCREW (1) in SPOUT TEE (2) with hex wrench supplied.
Pull downward to remove SPOUT TEE (2) away from SHANK (3).
Remove LOCKNUT (6) and WASHERS (4, 5) from SHANK (3).
Seat SEAL (7) into groove in SPOUT ESCUTCHEON BASE (8). Insert
SPOUT SHANK (3) through center hole of sink or mounting surface.
Assemble RUBBER WASHER (4), WASHER (5) and LOCKNUT (6) onto
threads of SPOUT SHANK (3) from underside of sink or mounting surface.
Align SPOUT (14) and tighten LOCKNUT (6) to secure spout assembly.
SPOUT TEE (2) must be removed before installation of spout into
mounting surface.
Turn off hot and cold water
supplies before beginning.
CAUTION
INSTALL SIDE SPRAY HOLDER
SPRAY
CONNECTION
O-RING
REMOVE
SPOUT TEE
ROUGHING-IN DIMENSIONS
Plumbers' Putty or Caulking
Adjustable Wrench
Phillips Screwdriver
Channel Locks
TOOLS REQUIRED
Tubing Cutter Regular Screwdriver
Basin Wrench
4
5
6
2TEE AND HOSE ASSEMBLY
2a CONNECT SIDE SPRAY AND HOSE
Install SPOUT TEE (1) onto SPOUT
SHANK (2). Rotate SPOUT TEE (1)
back and forth when installing to
prevent damage to the "O" Ring. Hex
on SPOUT TEE (1) should face front.
Secure By tightening SET SCREW (3).
Insert FIBER WASHERS (4) into
COUPLING NUTS (5) of SUPPLY
HOSES (6) and tighten COUPLING
NUTS (5).
6
5 4
4 5
6
1
8
7
3
2
3
3a
1a
INSTALL VALVE BODIES AND HANDLES
1-1/4'' MAX.
Thread LOCKNUT (1) to bottom of VALVE BODY (2). Make sure
FIBER WASHER (3) and RUBBER WASHER (4) are installed.
Insert VALVE BODY (2) through mounting hole from underside
of sink or mounting surface.
Note: VALVE BODY marked Hot is installed in the left mtg. hole,
VALVE BODY marked Cold in the right when facing front of fitting.
Maximum mounting surface thickness is 1-1/4".
From top install RUBBER WASHER (5) onto VALVE BODY (2). Thread
MOUNTING RING (6) on VALVE BODY (2). Thread BONNET NUT (11)
onto VALVE BODY (2) until seated against the internal stop. Thread the
MOUNTING RING (6) counter clockwise until tight against the BONNET
NUT (11). Set VALVE BODIES (2) so that their outlets are facing
toward SPOUT TEE (7), then tighten LOCKNUT (1) using 35mm
or adjustable wrench.
Remove MOUNTING RINGS (6) and RUBBER WASHERS (5) from
VALVE BODIES (2).
Insert FIBER WASHERS (8) into COUPLING NUTS (9) of SUPPLY
HOSES (10) and tighten making water tight connection.
Important: Loop SUPPLY HOSES (10) as illustrated so they do not kink.
6
1
8
HOT
9
10
3
7
4
5
2
15
JADO
MOUNTING SURFACE
THREAD MOUNTING RING
PARALLEL TO THIS POINT
11
HOT COLD
INSTALL HANDLES
Cross Handles: Turn VALVE BODIES (2) to off position. Align HANDLES as shown or as desired and install CROSS
HANDLE (12) onto VALVE STEM (15). Secure CROSS HANDLES (12) with HANDLE SCREW (13). Thread INDEX
BUTTON (14) marked hot into left handle and INDEX BUTTON (14) marked cold into right handle.
11
10
9
12
14
14
13
12
10
14
With HAND SPRAY seated in HOLDER, install WEIGHT
(12) onto HOSE (7) using two SCREWS (13). Locate the
WEIGHT (12) two feet (2') from the underside of the
sink deck. Tighten SCREWS (13) firmly to secure WEIGHT
(12) to SPRAY HOSE (7).
9
11
1-1/4" MAX.
1-1/16" D.
2-1/8" D.
6" TO 12" MAX.
1-7/8" MAX.
6-1/2"
NOTE :
BORE SIZE
1-1/8"
6-1/2" 10"
2-1/8" D. 6-1/2"
Apply a bead of putty to the underside lip of
SPRAY HOLDER (12).
Place the SPRAY HOLDER (12) into the appropriate
mounting hole. Assemble the RUBBER WASHER (11),
BRASS WASHER (10) and LOCK NUT (9) onto the shank
of SPRAY HOLDER (12). From below tighten LOCK
NUT (9) to secure SPRAY HOLDER (12).
PUTTY
Remove RUBBER WASHER (11) and FIBER WASHER (8)
FROM SPRAY HOSE (7). Feed the small end of the
SPRAY HOSE (7) through the SPRAY HOLDER (9).
Install the RUBBER WASHER (11) into the COUPLING (14) for
the HAND SPRAY (10) and hand tighten. Place the HAND
SPRAY (10) into the Spray holder (9).
Thread other end of SPRAY HOSE (7) with WASHER (8)
onto spray connection of SPOUT TEE (1) and tighten.
