JAMO E 855 User manual

Item no.
69530
11.04
E 8

2
E805
E825
2
2
2
1

3
E 8 SUB.2 / E 8 SUB.5

4
2
E 825
E 8SUR.2
E 8CEN.2
E 805

5
3
%%

6
4
E 825 / E 855 / E 875 E 8SUB.2
E 8SUB.5

7
E 8SUB.5

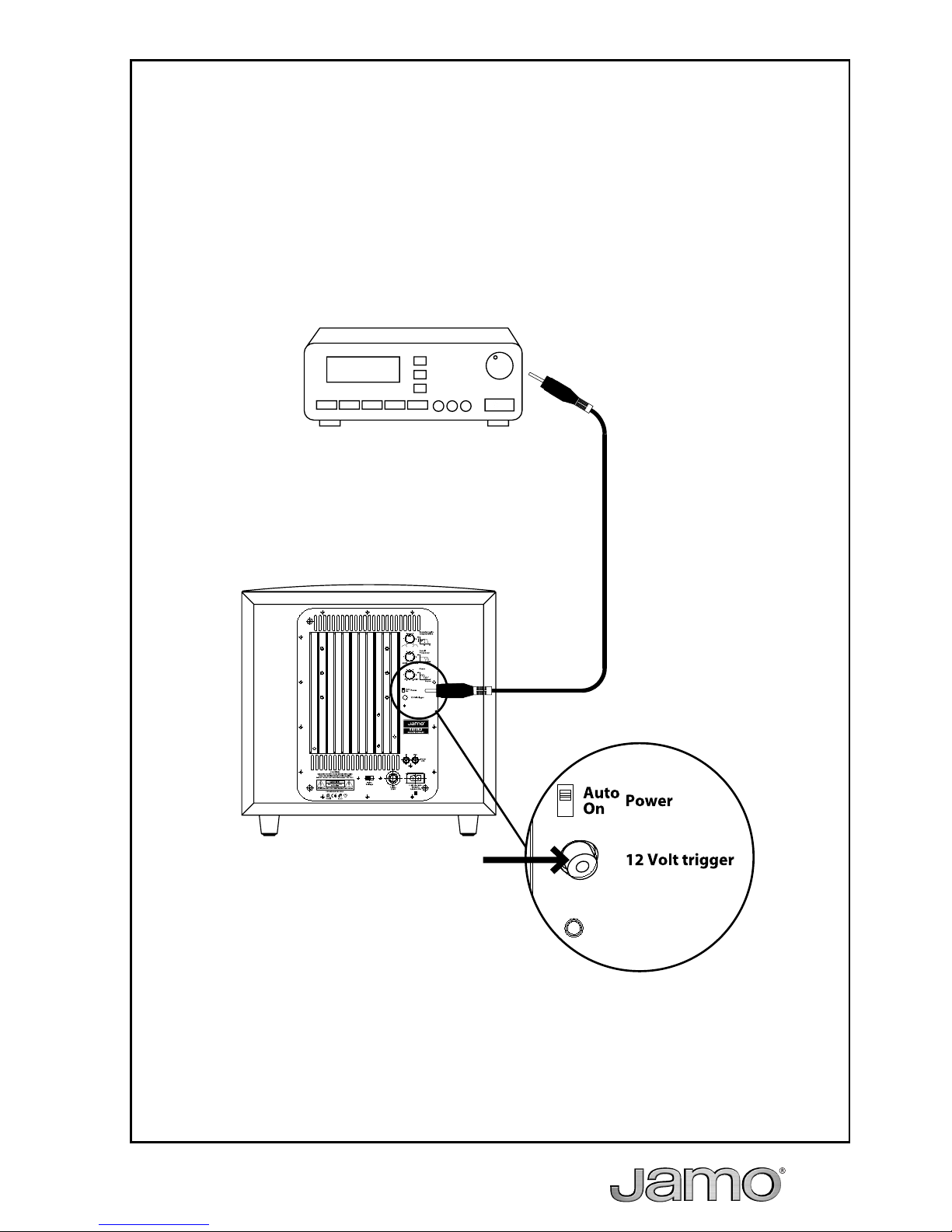

12 volt trigger

8
5

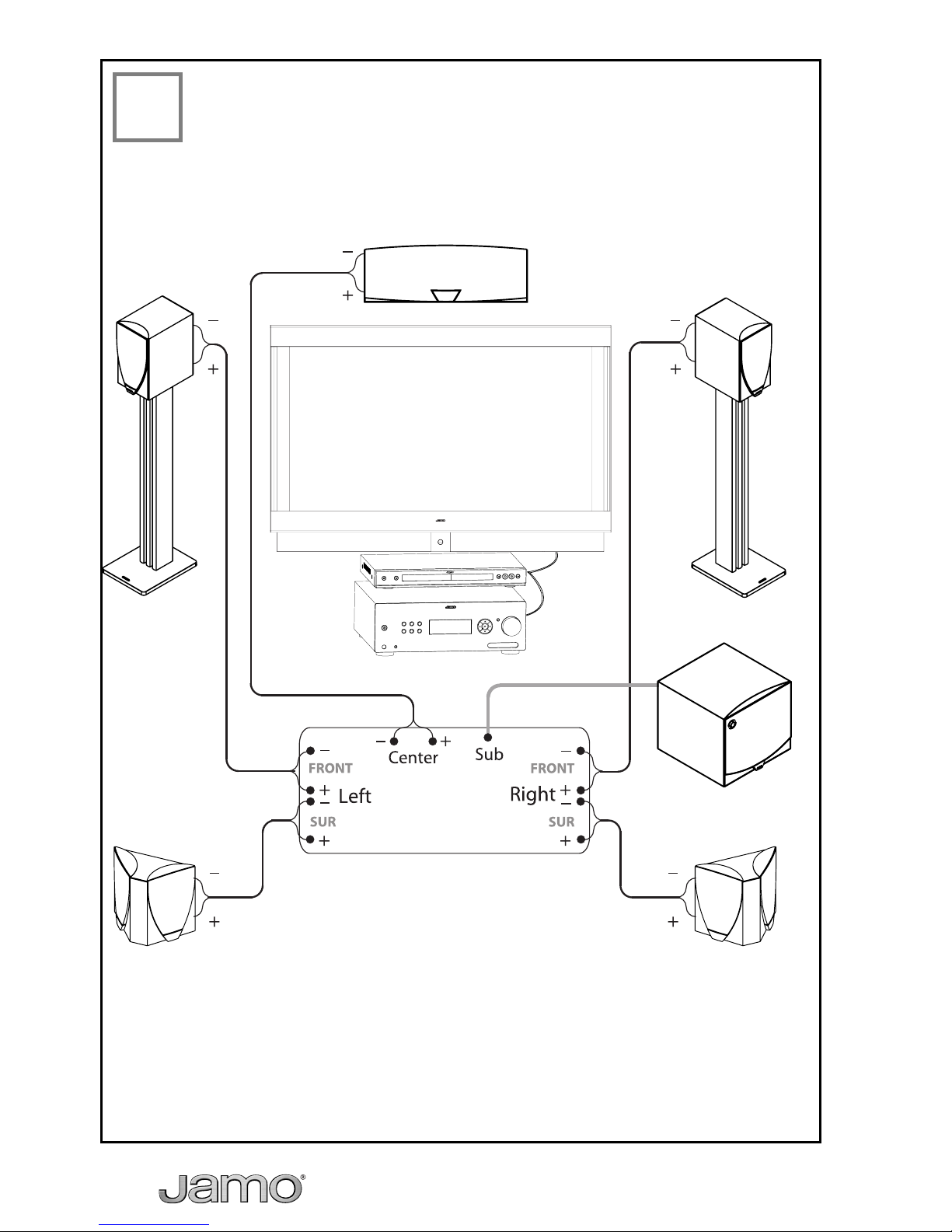

Surround
Front
Subwoofer
Center
Front
Surround

9
6
0HASE
%35"
0HASE
%35"
Level
Level

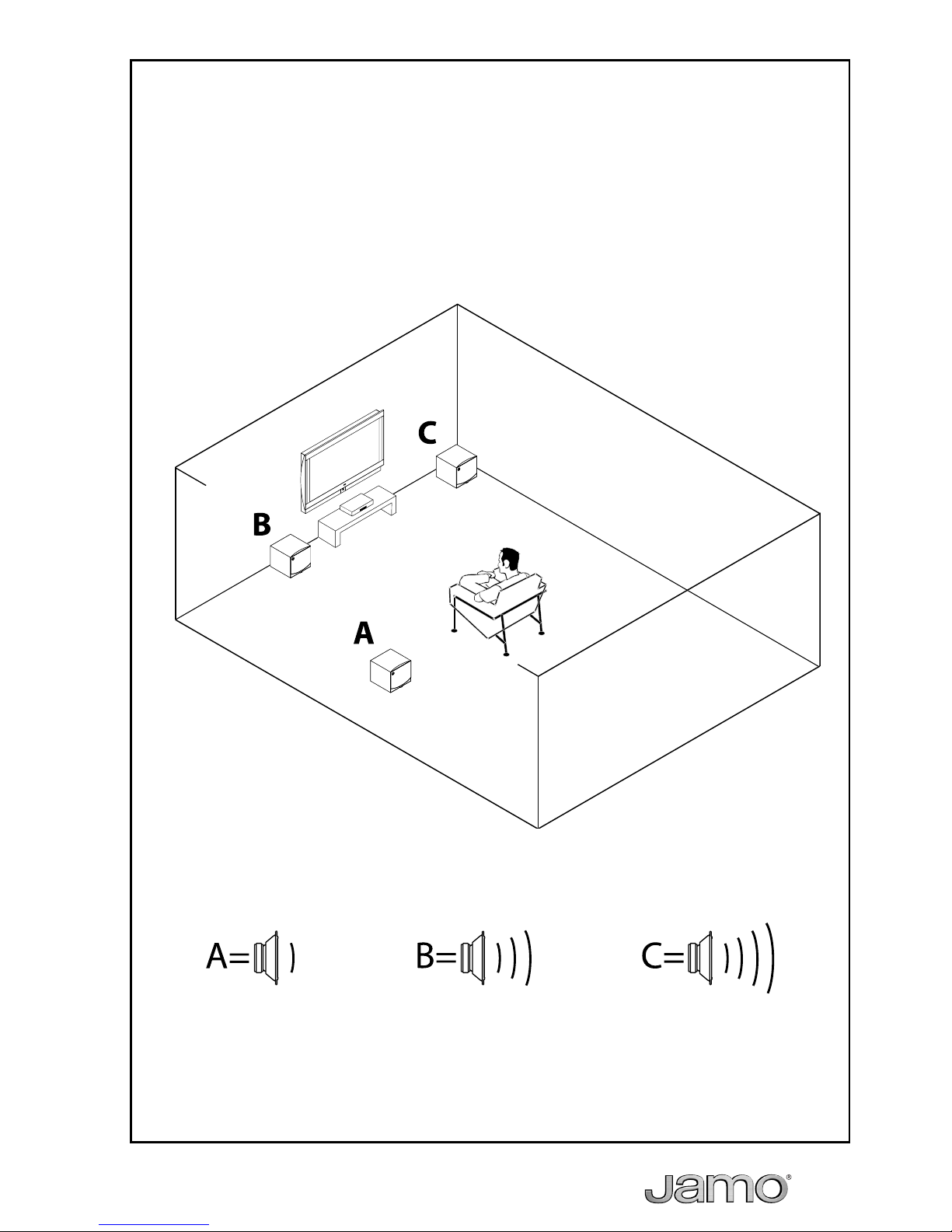

Bondary gain compensation
dB
Hz
www.jamo.com
40

10
7
Type..................................................................E 805
System.............................................. 2 Way Bassreflex
Woofer (inch/mm)..............................................4/122
Tweeter (inch/mm).................................1/25 Dome
Power, long/short term (Watt) .................100/140
Sensitivity (dB - 2,8V / 1m) .................................... 86
Frequency range (Hz)....................................65 - 20k
Cross-over frequency (Hz).................................. 2.5k
Impedance (Ohm).................................................4 - 8
Total volume (liters)................................................ 5.8
Dimensions HxWxD (mm/in) ..... 224 x 130 x 200
............................................................ 8.82 x 5.12 x 7.87
Weight (kg/lb).............................................3.30 / 7.28
Type..................................................................E 825
System.............................................. 2 Way Bassreflex
Woofer (inch/mm)........................................5½ / 140
Tweeter (inch/mm)............................................ 1 / 25
Power, long/short term (Watt) .................100/140
Sensitivity (dB - 2,8V / 1m) .................................... 88
Frequency range (Hz).............................. 45 - 20000
Cross-over frequency (Hz)................................ 2200
Impedance (Ohm).................................................4 - 8
Total volume (liters)..............................................17.4
Dimensions HxWxD (mm/in) ..... 347 x 175 x 286
....................................................... 13.66 x 6.89 x 11.26
Weight (kg/lb).......................................... 5.10 / 11.24
Type..................................................................E 855
System.......................................... 2½ Way Bassreflex
Woofer (inch/mm)........................................5½ / 140
Midrange (inch/mm) ..................................5½ / 140
Tweeter (inch/mm)............................................ 1 / 25
Power, long/short term (Watt) .................140/200
Sensitivity (dB - 2,8V / 1m) .................................... 89
Frequency range (Hz).............................. 37 - 20000
Cross-over frequency (Hz) .................... 400 / 2000
Impedance (Ohm).......................................................6
Total volume (liters)..............................................51.4
Dimensions HxWxD (mm/in) ..... 862 x 175 x 341
....................................................... 33.94 x 6.89 x 13.43
Weight (kg/lb)........................................15.30 / 33.73
Type..................................................................E 875
System.............................................. 3 Way Bassreflex
Woofer (inch/mm)................................. 2 x 5½ / 140
Midrange (inch/mm)................................... 5½ / 140
Tweeter (inch/mm)............................................ 1 / 25
Power, long/short term (Watt) .................150/220
Sensitivity (dB - 2,8V / 1m) .................................... 89
Frequency range (Hz)............................. 32 - 20.000
Cross-over frequency (Hz)..................... 200 / 2200
Impedance (Ohm).......................................................6
Total volume (liters)..............................................63.9
Dimensions HxWxD (mm/in) ...1011 x 175 x 361
....................................................... 39.80 x 6.89 x 14.21
Weight (kg/lb)........................................19.30 / 42.55
Type.........................................................E 8CEN.2
System.............................................. 2 Way Bassreflex
Woofer (inch/mm).......................................2 x 4/102
Tweeter (inch/mm).............................................. 1/25
Power, long/short term (Watt) .................140/200
Sensitivity (dB - 2,8V / 1m) .................................... 88
Frequency range (Hz)....................................55 - 20k
Impedance (Ohm).......................................................6
Total volume (liters)..............................................10.1
Dimensions HxWxD (mm/in) ..... 130 x 404 x 190
..........................................................5.12 x 15.91 x 7.48
Weight (kg/lb).......................................... 6.25 / 13.78
Type.........................................................E 8SUR.2
System........................................................ 3 Way MPD
Woofer (inch/mm)...................................51⁄2“ / 140
Midrange (inch/mm)...................................3⁄4“ / 95
Tweeter (inch/mm).......................................... 1“ / 25
Power, long/short term (Watt) ...........100W / 140
Frequency range (Hz)............................. 80 - 20.000
Impedance (Ohm).......................................................8
Dimensions (mm/in) ..................... 282 x 267 x 153
11.1 x 10.5 x 6
Weight (kg/lb)..................................................2.4 / 9.3
