JAMO D 500SUR User manual

06.09
D 500
THX and the THX logo are trademarks of THX Ltd.
which may be registered in some jurisdictions. All rights reserved.

2
1D 500 LCR / D 500 SUR Left / D 500 SUR Right
Right
Right
Left
Left
THX 5.1
THX 5.2

3
Right
Left
Right
Left
THX Surround EX 6.1
THX Surround EX 7.1
Surround back / 2 x D 500 LCR
Surround back / 1 x D 500 LCR

4

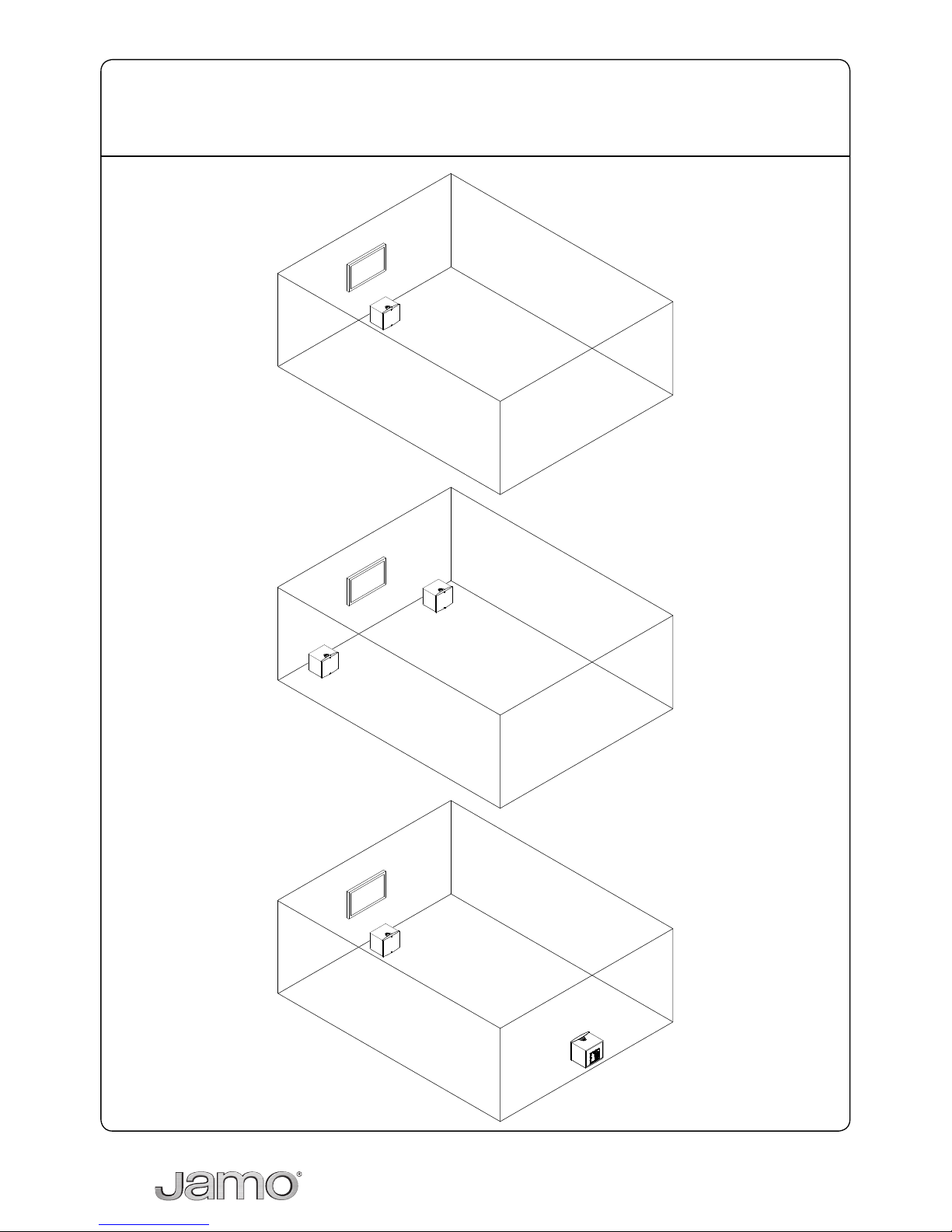

B
1 x SUB
2 x SUB
A
Subwoofer

5
This speaker
should not be
placed close
to a CRT display
2
D 500 LCR
This speaker
should not be
placed close
to a CRT display
D 500 SUR
Min.
18 Kg
Min.
14 Kg
4mm
0.2 in
4mm
0.2 in
300 mm
300 mm

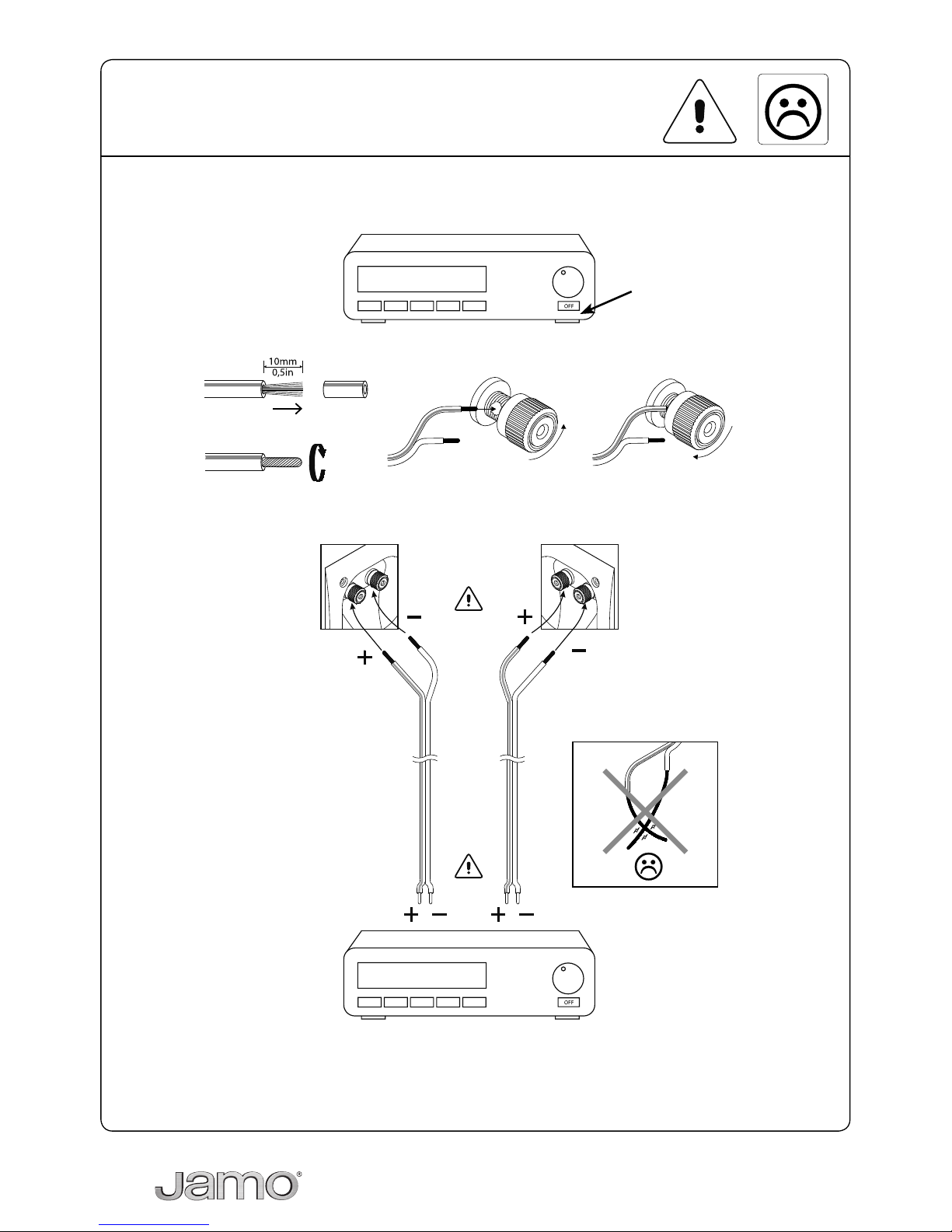

6
3
4
5
1
2
3
OFF

7
One D 600 SUB will meet Select2 output levels.
Two D 600 SUBs will meet Ultra2 output levels.
D 600 SUB
THX Certied
THX Certied
D 500 LCR
D 500 SUR

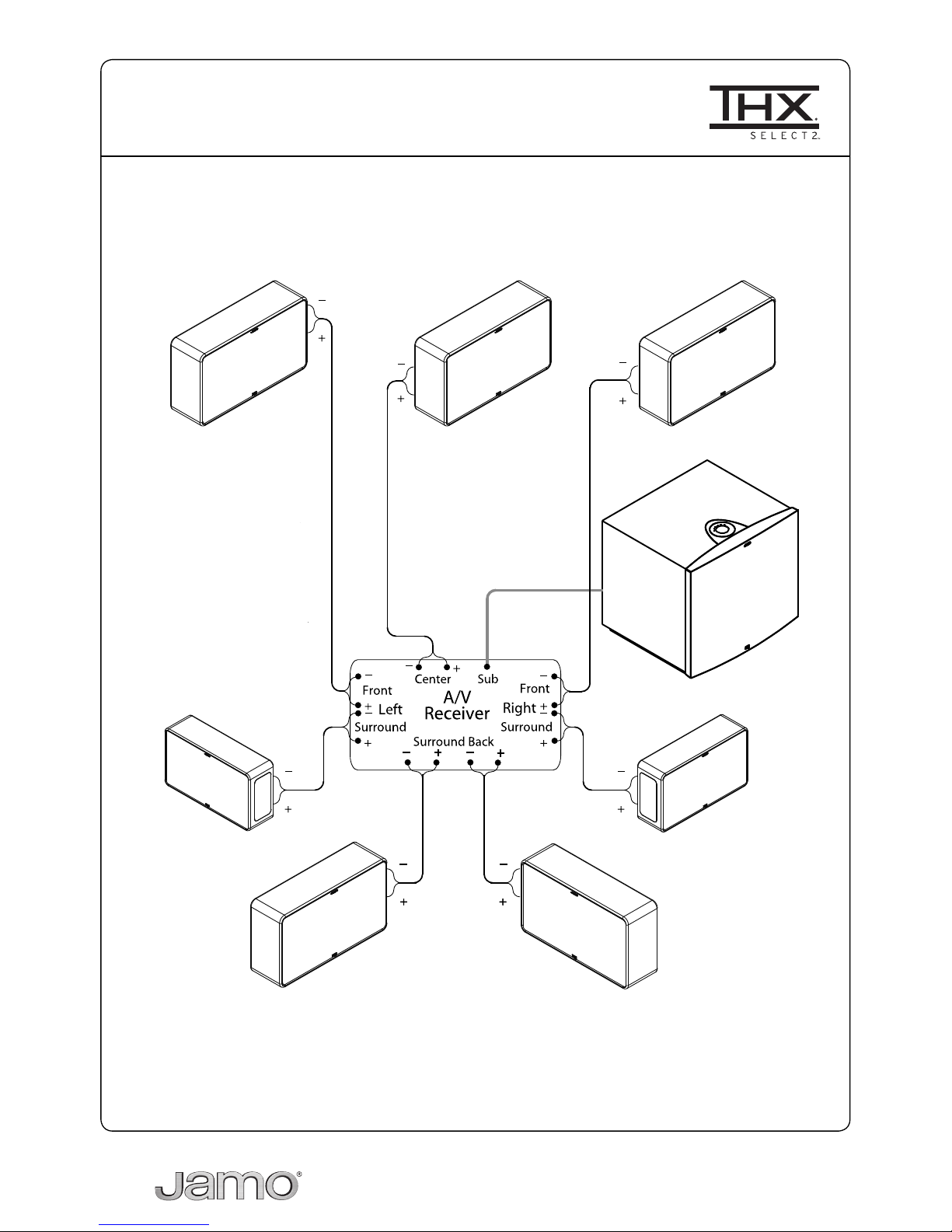

4System Connection

8
System Connection
D 500 LCR D 500 LCR
D 600 SUB
D 500 SUR LEFT D 500 SUR RIGHT
D 500 LCR D 500 LCR
D 500 LCR
Note: One D 600 SUB will meet Select2 output levels. Two D 600 SUBs will meet Ultra2 output levels.

9
Type D 500 LCR
System...............................................................................................................................................................................................3 Way closed
Woofer [in/mm]............................................................................................................................................................................... 2 x 5½ / 140
Midrange [in/mm]............................................................................................................................................................................... 2 x 3” / 76
Tweeter [in/mm].................................................................................................................................................................................. 1 x 1” / 25
Power long/shortterm [W]...............................................................................................................................................................150 / 200
Sensitivity [dB/2,8V/1m] ..................................................................................................................................................................................89
Frequency Range [Hz]......................................................................................................................................................................80 - 20.000
Cross-over frequency [Hz].............................................................................................................................................................. 400 / 2500
Impedance [Ohm]................................................................................................................................................................................................4
Weight [Kg]..........................................................................................................................................................................................................7,2
Dimension HxWxD [mm].......................................................................................................................................................260 x 450 x 130
Type D 500 SUR
System.................................................................................................................................................................................3 Way closed dipole
Woofer [in/mm]............................................................................................................................................................................... 1 x 5½ / 140
Midrange [in/mm]............................................................................................................................................................................... 2 x 3” / 76
Tweeter [in/mm].................................................................................................................................................................................. 2 x 1” / 25
Power long/shortterm [W]...............................................................................................................................................................120 / 170
Sensitivity [dB/2,8V/1m] ..................................................................................................................................................................................84
Frequency Range [Hz]......................................................................................................................................................................80 - 20.000
Cross-over frequency [Hz].............................................................................................................................................................. 250 / 2500
Impedance [Ohm]................................................................................................................................................................................................8
Weight [Kg]..........................................................................................................................................................................................................6,7
Dimension HxWxD [mm] ......................................................................................................................................................260 x 450 x 130
*) Long / Short term power, - according to IEC 268-5.
D 500 specifications
