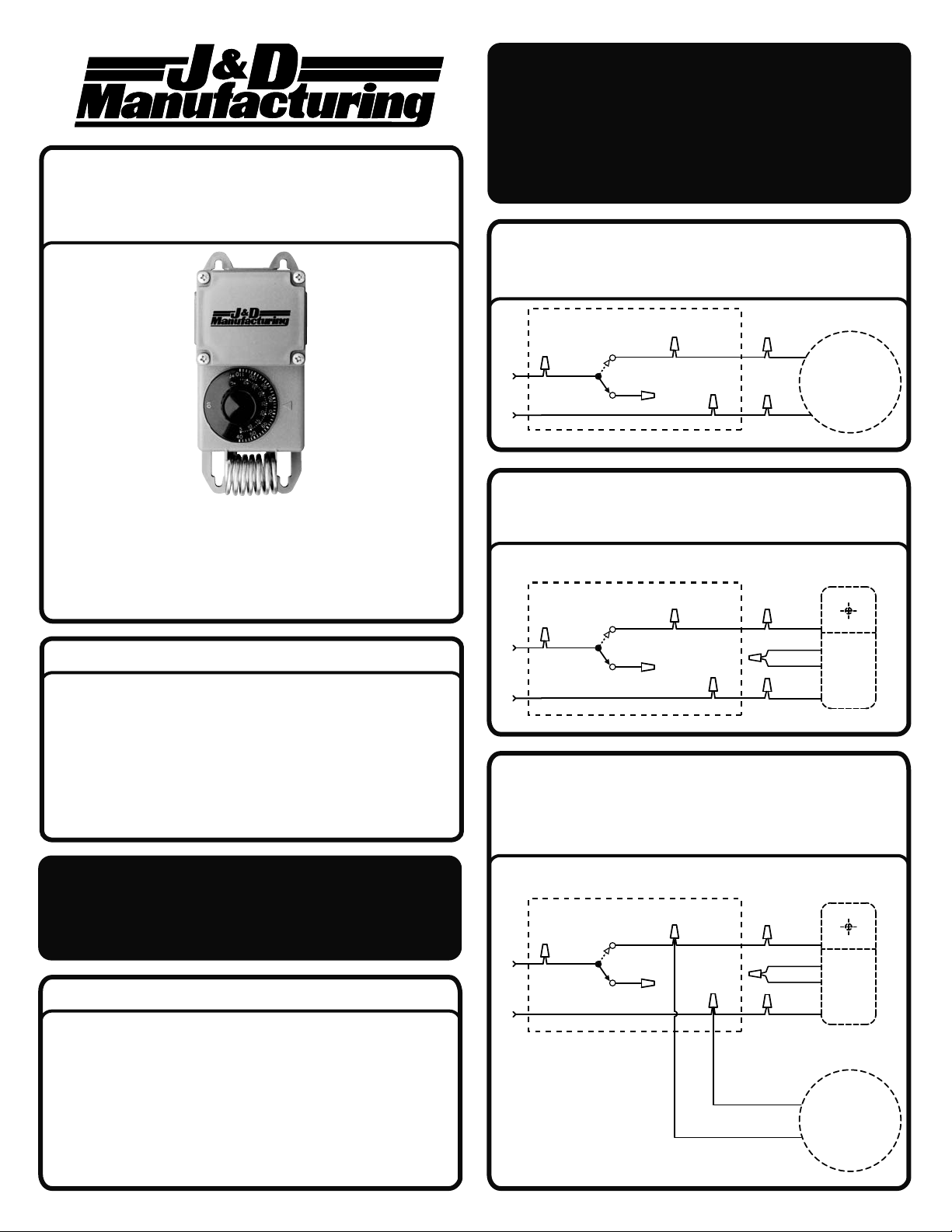

J&D MAnufacturing VC115 User manual

NOTE: Read ALL instructions over carefully before attempting
to install the VC115.
If you have any questions please call your local dealer or
J&D Manufacturing at: 1-800-998-2398.
Or visit our website at: www.jdmfg.com
VC115
Single Stage Moisture Proof Thermostat
WARRANTY
J&D Mfg. warrants all products are free from defects in materials and workmanship under
normal use for the period of one year from date of purchase and our warranty does not
cover normal or regular wear and tear. J&D Mfg can repair or replace at our option, any
product or part of the product that is found to be defective. Our warranty applies to
materials only and does not include return freight, delivery, loss or damage to personal
property, cost of removal or installation, any incidental or consequential damages or labor.
This warranty does not apply to products which are misused, abused, altered, improperly
installed or subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the defective
product. One year is our standard warranty unless specified on our literature or in the
installation instructions/user manuals.
IS200-09K
Connecting thermostat to
• shutter motor
Connecting power to the unit.
• Wiring diagram depicts control circuits only.
• All electrical components must be grounded.
• Use optional auxiliary contactor to switch loads
in excess of thermostat rating.
ALL ELECTRICAL WORK SHOULD BE
COMPLETED BY QUALIFIED PERSONNEL AND
MEET NATIONAL, REGIONAL AND LOCAL CODES
J&D 115 Volt
Shutter Motor
Red
Brown
Black
White
Neutral
Blue
Hot Red
Black
Connecting thermostat to
• fan motor (single speed)
115 Volt
Single Speed
Motor
Hot
Neutral
Neutral
Blue
Hot Red
Black
Connecting thermostat to
• shutter motor
• fan motor (single speed)
J&D 115 Volt
Shutter Motor
Red
Brown
Black
White
115 Volt
Single Speed
Motor
Hot
Neutral
Neutral
Blue
Hot Red
Black
115 Volt
Wiring Instructions
VC115 Single Stage Thermostat
VC115 Single Stage Thermostat
VC115 Single Stage Thermostat

WARRANTY
J&D Mfg. warrants all products are free from defects in materials and workmanship under
normal use for the period of one year from date of purchase and our warranty does not
cover normal or regular wear and tear. J&D Mfg can repair or replace at our option, any
product or part of the product that is found to be defective. Our warranty applies to
materials only and does not include return freight, delivery, loss or damage to personal
property, cost of removal or installation, any incidental or consequential damages or labor.
This warranty does not apply to products which are misused, abused, altered, improperly
installed or subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the defective
product. One year is our standard warranty unless specified on our literature or in the
installation instructions/user manuals.
Connecting power to the unit.
• Wiring diagram depicts control circuits only.
• All electrical components must be grounded.
• Use optional auxiliary contactor to switch loads
in excess of thermostat rating.
• CAUTION! Once it is wired, L2 continues to supply
voltage to unit regardless of thermostat setting.
ALL ELECTRICAL WORK SHOULD BE
COMPLETED BY QUALIFIED PERSONNEL AND
MEET NATIONAL, REGIONAL AND LOCAL CODES
230 Volt
Wiring Instructions
NOTE: Read ALL instructions over carefully before attempting
to install the VC115.
If you have any questions please call your local dealer or
J&D Manufacturing at: 1-800-998-2398.
Or visit our website at: www.jdmfg.com
VC115
Single Stage Moisture Proof Thermostat
IS200-09K
Connecting thermostat to
• shutter motor
• fan motor (single speed)
J&D 230 Volt
Shutter Motor
Red
White
230 Volt
Single Speed
Motor
L1
L2
L2
Blue
L1 Red
Black Black
Brown
Connecting thermostat to
• fan motor (single speed)
230 Volt
Single Speed
Motor
L2
L1
L2
Blue
L1 Red
Black
Connecting thermostat to
• shutter motor
J&D 230 Volt
Shutter Motor
Red
White
L2
Blue
L1 Red
Black Black
Brown
VC115 Single Stage Thermostat
VC115 Single Stage Thermostat
VC115 Single Stage Thermostat
