Gewiss Chorus GW 10 764 Owner's manual

MANUALE DI PR GRAMMAZI NE
PROGRAMMING MANUAL - MANUEL DE PROGRAMMATION
MANUAL DE PROGRAMACIÓN - PROGRAMMIERHANDBUCH
GW 10 764 GW 12 764 GW 14 764
Cronotermostato Easy - da incasso
Easy imed hermos a - flush-moun ing
Thermostat programmable Easy - à encastrer
Crono ermos a o Easy - de empo rar
Easy-Chronothermostat - für den Unterputz

CONTENTS
E
N
G
L
I
S
H
3
page
GENERAL DESCRIPTI N
Briefly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Position of the commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Description of the commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Control modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Timed thermostat operation statuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
USER INSTRUCTI NS
Normal operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

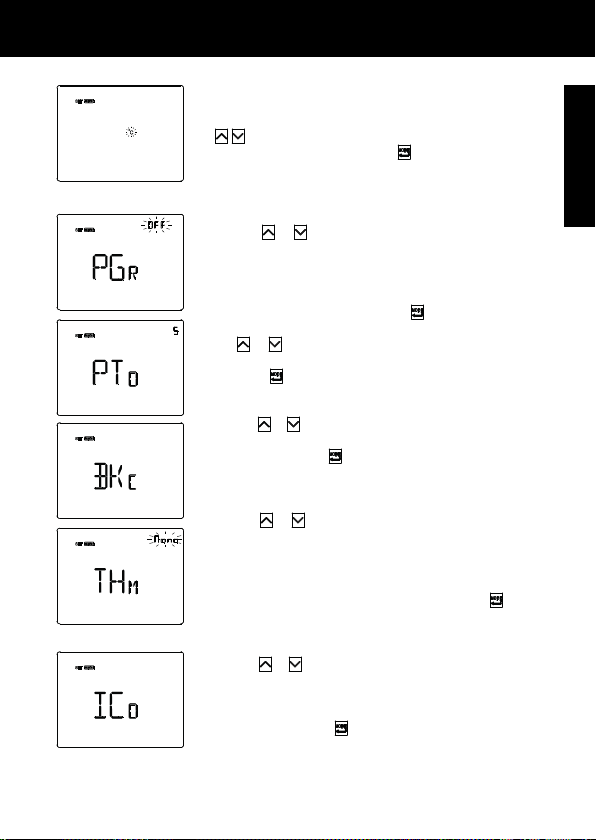

Parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Hourly profile programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Operation with battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Pre-set programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
F.A.Q. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

This manual explains the steps for setting the timed thermostat parameters.
All the information concerning the technical data of the product, the connection diagrams,
the descriptions of the commands, and the instructions for correct assembly are
contained in the installation manual supplied with the product and which can also be
downloaded from the website www.gewiss.com.
More information about procedure for programming the timed thermostat with the Easy
configurator can be found in the Programming Manual of the Easy devices with the Easy
Controller (can be downloaded from www.gewiss.com).
4
Briefly
GENERAL DESCRIPTION

GENERAL DESCRIPTION
E
N
G
L
I
S
H
5
Position of the commands
The timed thermostat is equipped with a backlit LCD display and four command push-
buttons that can always be accessed.
9
10
8
7
2
1
3
4
6
18
5
16
17
11
15
12
14
13
19
20
21
22 23 24 25
26
27
28
28
Description of the commands
C MMAND PUSH-BUTT NS Symbol
햲Select operating mode / Confirm
햳Adjust temperature (+) / Visualise pages
햴Adjust temperature (-) / Visualise pages
햵Set parameters / Program profiles

GENERAL DESCRIPTION
6

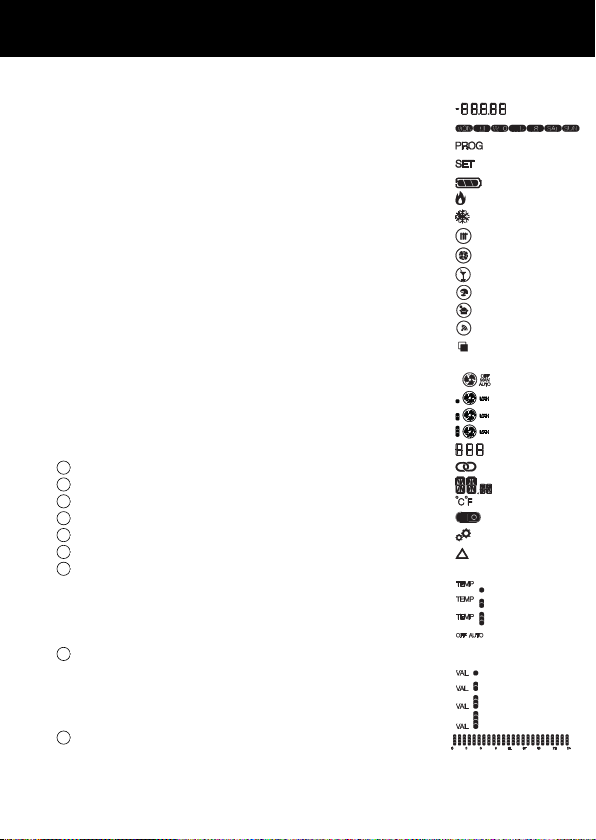

INF RMATI N N THE DISPLAY Symbol
햶 Time / Variable value of hourly profile / Hourly profile of input temperature
햷 Day of the week
햸 Programming mode
햹 Settings menu
햺 Battery charge level
햻 Heating activation
햽 Air-conditioning activation
햾Type of operation: heating
햿Type of operation: air-conditioning
헀Party function
헁Holiday function
헂Non-workday program
헃Enable remote commands
헄Select display page to be viewed
헅Fan coil operating mode
- speed OFF
- speed 1 (automatic / manual)
- speed 2 (automatic / manual)
- speed 3 (automatic / manual)
헆Hourly profile visualised
Timed thermostat in "Master" mode
Temperature measured / Time of the day
Temperature measurement unit
Indication of auxiliary input status (I = contact closed, O = contact open)
Thermal gradient self-learning function
Thermal residual current device
Timed thermostat mode
- Economy (in heating mode) - Comfort (in air-conditioning mode)
- Pre-comfort (in heating mode and air-conditioning mode)
- Comfort (in heating mode) - Economy (in air-conditioning mode)
- Anti-freeze / High temperature protection (OFF) or Automatic (AUTO)
Hourly programmer mode
- Variable value 1 of hourly profile
- Variable value 2 of hourly profile
- Variable value 3 of hourly profile
- Variable value 4 of hourly profile
Visualise hourly program
22
21
23
24
25
26
27
28
29

GENERAL DESCRIPTION
E
N
G
L
I
S
H
7
The timed thermostat can be set with 2 different control modes:
•Master: the timed thermostat sets the type, operating mode or set-point of the devices
configured as slaves (for example the flush-mounting Easy thermostats GW1x765). In the first
case (modes), the thermostats use the locally set set-points. The fixed temperature set-point
can be temporarily forced (max variation ± 3°C), but the operating mode cannot be altered.
The forced set-point will remain valid until the master device sends a new operating mode. In
the second case (set-points), the thermostats use the set-point received from the master device,
but which can always be altered locally (max ± 3°C).
•Autonomous: the timed thermostat type and operating mode can be set locally. Operation is
not dependent on any other device. In the autonomous control mode, you can alter the set-point
as you wish, and enable the timed thermostat to receive remote commands to modify the set-
point with regards the mode (OFF/Economy/Pre-comfort/Comfort) and type setting
(Heating/Conditioning). Such commands may be sent from other devices such as a push-button
or the Easy GSM remote control.
The timed thermostat has 5 different operating modes:
• AUTOMATIC
• ECONOMY
• PRE-COMFORT
• COMFORT
• OFF - ANTIFREEZE/HIGH TEMPERATURE PROTECTION
In any control mode (autonomous or master), to switch from one HVAC mode (economy, pre-
comfort, comfort, off) to another, use the button key: each time it is pressed, the
corresponding set-point is shown (flashing) for a moment.

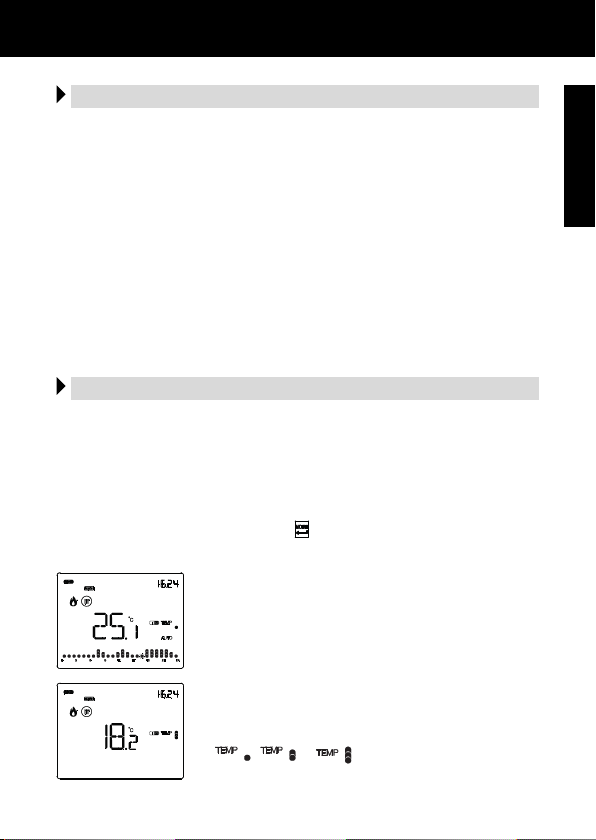

In automatic operation mode, the timed thermostat uses a
program that can be differentiated for each day of the week.
The display shows the word AUTO, the detected room
temperature, and the symbol of the set-point for the current
quarter hour period. In the hourly profile, the column relating
to the current hour flashes, showing the current set-point.
In the economy, pre-comfort and comfort operating modes,
the timed thermostat always uses the corresponding
temperature set-points.
The display shows the detected room temperature and the
, or symbol.
Control modes
perating modes

GENERAL DESCRIPTION
8
MEANING OF
The anti-freeze function is only active in heating mode,
when the temperature adjustment system is switched OFF.
In this case, the timed thermostat uses the setpoint
temperature set-point, only reactivating the heating system
if the room temperature falls below TANTI-FREEZE.
The display shows the word OFF, along with the detected
room temperature.
The high temperature protection function is only active
in conditioning mode, when the temperature adjustment
system is switched OFF.
In this case, the timed thermostat uses the setpoint
protection set-point, only reactivating the conditioning
system if the room temperature exceeds THIGH TEMPERATURE
PROTECTION.
The display shows the word OFF, along with the detected
room temperature.
In the Master control mode, the display shows the
temperature and the symbol. The slave devices use the
operating mode or the set-point value received from the
timed thermostat (master device) via the BUS.
Symbol
Heating Air-conditioning
Se -poin Opera ing
modes Se -poin Opera ing modes
TECONOMY Economy TCOMFORT Comfort
TPRE-COMFORT Pre-comfort TPRE-COMFORT Pre-comfort
TCOMFORT Comfort TECONOMY Economy

GENERAL DESCRIPTION
E
N
G
L
I
S
H
9
During operation, the activation of heating or conditioning mode is indicated in the
following way:
Heating
The symbol indicates that the activation command was sent
to the actuator that controls the boiler or area solenoid valve. If
the timed thermostat does not receive confirmation of effective
implementation from the actuator, the symbol will start to
flash. Subsequently, the timed thermostat sends the activation
command every 60 seconds until it receives confirmation.
Air-conditioning
The symbol indicates that the activation command was
sent to the actuator that controls the air conditioner or area
solenoid valve. If the timed thermostat does not receive
confirmation of effective implementation from the actuator,
the symbol will start to flash. Subsequently, the timed
thermostat sends the activation command every 60 seconds
until it receives confirmation.
peration with active fan coil control
If the fan coil control was activated, the symbol will
appear on the display. In addition, you will be offered the
page on which you can manually alter the fan coil speed or
set the AUTO mode (whereby the fan coil speed is
automatically adjusted on the basis of the difference
between the set-point fixed on the device and the detected
temperature).
Timed thermostat operation statuses
The timed thermostat has four distinct operation statuses:
- Normal operation
- Parameter setting
- Hourly profile programming
- Easy channel localisation mode
When it is switched on, the timed thermostat goes into "normal operation" status. Using
the button key, you can switch from one status to another (the switchover from
parameter setting status or hourly profile programming status of from Easy channel
localisation mode to normal operation status also takes place automatically, 30 seconds
after pressing last on the button keys).

USER INSTRUCTIONS
10
Normal operation
In normal operating conditions, the pages containing information about the timed thermostat are
visualised. If the hourly timer function was enabled during ETS programming, the relative pages
will also be shown.
Choosing the page you want to see
To access the screen listing the pages that can be viewed
(relating to the timed thermostat and the hourly timer), press the
button key and keep it pressed until the symbol appears.
Use the or button key to scroll through the sequence
(if there are no hourly profiles, called P01, P02, P03, etc.,
the main timed thermostat page will be shown). To confirm
a page, press the button key or wait for the 30-second
time-out period to elapse.
Pages relating to the timed thermostat
Choosing the HVAC mode (auto, pre-comfort, comfort,
economy or FF)
If the visible page relates to the timed thermostat, press
the button key to select the required HVAC mode (Auto,
, , or ).
Each time the button key is pressed, the set-point of the
selected HVAC mode is shown for a moment.
Forcing the set-point manually
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, press the or button key to
temporarily modify the set-point of the active HVAC mode, then
confirm with the button key or wait for the 5-second time-out
period to elapse. The use of the forcing option is indicated by the
flashing of the , , symbols. It remains active until the active
HVAC mode is modified or until the profile is altered (if the mode is
Auto).

USER INSTRUCTIONS
E
N
G
L
I
S
H
11
Choosing the fan coil speed
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, press or simultaneously
to access the selection page (the control algorithm of the
heating/conditioning function must be set on "fan coil" from the
ETS). Use the or button key to select the required fan coil
setting ( ,, or ), then confirm with the button
key or wait for the 30-second time-out period to elapse.

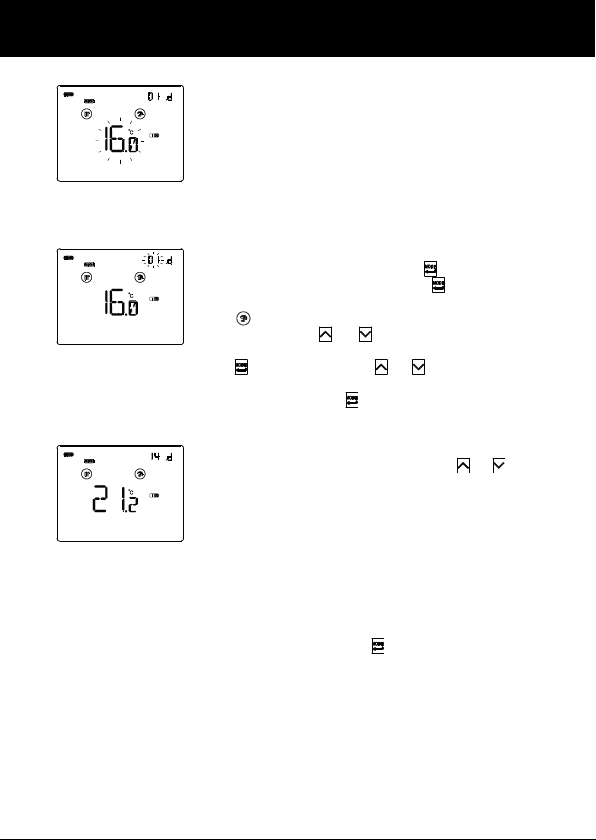

Party function
In the Auto, Economy, Pre-comfort and Comfort modes, the Party
function allows you to temporarily exclude the set operating mode
and activate the Comfort mode with an adjustable set-point, for a
period of time of 1 - 23 hours. This function can be used, for
instance, to obtain a more appropriate temperature during a dinner,
party, etc.
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, keep the button key pressed to
activate the Party function. The display will show the symbol,
and the Tcomfort value will flash for a few seconds. Press the
and button keys to set the required temperature then, while the
set-point values are flashing, press the button key and then the
and button keys to set the number of hours you want the
Party function to remain active (1 - 23). Confirm with the button
key or wait for the 5-second time-out period to elapse.
When this function is active, the values of the set-point and
activation period can be modified by means of the and button
keys. The hour count is decreased during this period. The Party
function remains active until the end of the set period, after which
it deactivates automatically and the timed thermostat returns to the
former operating mode.
To deactivate the Party function in advance, press the button
key and keep it pressed until the unit has returned to normal
operation.

Holiday function
In the Auto, Economy, Pre-comfort and Comfort modes, the
Holiday function allows you to temporarily exclude the set
operating mode and activate the Economy mode with an
adjustable set-point, for a period of time of 1 - 99 days. This
function can be used, for instance, to set the economic
operation of the temperature adjustment system during a
holiday or a long period of absence, being sure of having the
required temperature on the day you return home.
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, keep the button key pressed
to activate the Party function. Press the button key again
briefly to activate the Holiday function. The display will show
the symbol, and the Teconomy value will flash for a few
seconds. Press the and button keys to set the required
temperature then, while the set-point values are flashing, press
the button key and then the and button keys to set the
number of days you want the Holiday function to remain active
(1 - 99). Confirm with the button key or wait for the 5-second
time-out period to elapse.
When this function is active, the values of the set-point and
activation period can be modified by means of the and button
keys.
The day count is decreased during this period. The Holiday
function remains active until the end of the set period, which
ends at 24.00 hours. When calculating the days, always include
the current day. For example, if you want to set the Holiday
function on Friday evening, so it ends at midnight on Sunday,
you must set 3 days (Friday, Saturday and Sunday). The Holiday
function remains active until the end of the set period, after
which it deactivates automatically and the timed thermostat
returns to the former operating mode. To deactivate the Holiday
function in advance, press the button key to return to normal
operation.
USER INSTRUCTIONS
12

Copying the holiday program
In Auto mode, you can copy the profile of the holiday day
onto any day of the week. This function can be activated up to
6 days ahead of the chosen day. It is especially useful when a
holiday day falls during the week.
Press the and button keys to copy the profile of the holiday
day: on the display, the symbol and the bar of the holiday
day will flash. Use the or button key to select the day
of the week onto which you want to copy the profile, then
confirm with the button key.
During the set day, the symbol will be lit up with a fixed light.
This function is temporary: at midnight on the selected day, the
unit returns to its programmed weekly profile. If you want to
deactivate the function (or modify the day of the week), press
the and button keys then select the holiday day (or
the new day of the week). Press to confirm the new setting.
Pages relating to the hourly timer
Viewing the hourly profiles
NOTE: the hourly profiles of the hourly timer are activated and
visible on the display only if their respective channels are
included in a function with the relative actuator channel, while
programming with the Easy controller.
If the visible page relates to an hourly profile, press the
button key to activate (Auto) or deactivate (OFF) the profile. If
an hourly profile is set (using the Easy configurator) to manage
an Easy probe, holding down the button key temporarily
displays the input data regarding the type of operation, HVAC
mode, active set-point and measured temperature provided by
the device controlled by the profile.
To return to the screen listing the pages that can be viewed,
keep the button key pressed.
Use the or button key to scroll through the sequence. To
confirm a page, press the button key or wait for the 30-
second time-out period to elapse.
USER INSTRUCTIONS
E
N
G
L
I
S
H
13

USER INSTRUCTIONS
14
Parameter setting
To set the operating parameters of the device, bring up the main timed thermostat page
or the general hourly timer profile on the screen, then press the button key.
To quit the parameter setting procedure without saving the modifications made on the
current page, just press the button key again or wait 30 seconds from the last pressure
on the button keys. The parameters that can be modified will depend on the page you
are viewing in normal operation status: if the visible page relates to the timed thermostat,
the Set menu concerning the timed thermostat will be shown; if the visible page is that
of a general hourly timer profile, the Set menu concerning the selected profile will be
shown.
The parameters relating to the timed thermostat / hourly timer are collected into three
functional groups: general parameters, operating parameters, and control parameters.
General parameters
Setting the day
Access to the Set menu is indicated by the word SET on the
display, and by the flashing of the day of the week. Set the
day by means of the button keys (MON, TUE, WED,
THU, FRI, SAT, SUN).
To confirm your choice and move on to the next parameter,
press the button key within 30 seconds.
Setting the hour
When the hour figures are flashing, set the hour using the
button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.
Setting the minutes
When the minute figures are flashing, set the minutes using
the button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.

Setting the temperature measurement unit
When the °C or °F temperature symbol begins flashing,
select the temperature measurement unit by means of the
button keys. To confirm your choice and move on to
the next parameter, press the button key within 30
seconds.
Returning to the main page
Use the or button key to set the main page that the
device must automatically visualise at the end of a period
of inactivity by the user (OFF = function disabled; CRONO
= main page of the timed thermostat; PRO01, PRO02 ...
PRO07 = pages relating to hourly profiles, if enabled).
If this function is enabled, press the button key to access
the page for setting the duration of the inactivity period. Use
the or button keys to set the gap (5 - 120 seconds).
To confirm your choice and move on to the next parameter,
press the button key within 30 seconds.
Back-lighting colour
Use the or button key to modify the colour of the display
back-lighting. To confirm your choice and move on to the next
parameter, press the button key within 30 seconds.
Icons theme
Use the or button key to modify the colour themes for
representing the various icons shown on the display (MONO =
single-colour theme; TH1, TH2, TH3, TH4, TH5 = colour
themes) when the back-lighting is active. The screen is only
visible if the back-lighting colour is white. To confirm your
choice and move on to the next parameter, press the button
key within 30 seconds.
Single-colour theme for icon colour
Use the or button key to modify the colour of the icons
within a single-colour theme. This parameter is only visible
if the icon theme is single-colour and the back-lighting is
active. To confirm your choice and move on to the next
parameter, press the button key within 30 seconds.
USER INSTRUCTIONS
E
N
G
L
I
S
H
15

Back-lighting timing
Use the or button key to set the minimum duration of the
inactivity time of the user before the back-lighting is automatically
deactivated (the gap can be set from 10 to 180 seconds). This
parameter is only visible if the back-lighting is active. To confirm
your choice and move on to the next parameter, press the
button key within 30 seconds.
Back-lighting intensity
Use the or button key to choose how to manage the back-
lighting intensity (MAN = fixed value; SENS = light sensitive
sensor). This parameter is only visible if the back-lighting is active.
If the type of management is MAN, use the or button key to
choose the required percentage of light intensity (the gap can be
set from 30 to 100%).
If the type of management is SENS, use the or button key to
increase (+10%), decrease (-10%) or leave unaltered (0%) the
intensity value detected by the built-in light sensitive sensor. To
confirm your choice and move on to the next parameter, press the
button key within 30 seconds.
utside temperature sensor
Use the or button key to set the function of the NTC
temperature sensor connected to the timed thermostat (OFF =
disabled; TEMP = enabled as a temperature probe; FLO = enabled
as an underfloor probe). To confirm your choice and move on to
the next parameter, press the button key within 30 seconds.
Impact of the outside temperature sensor on the calculation
of the measured temperature
Use the or button key to set the weight (%) of the outside
temperature sensor for the calculation of the temperature
measured by the timed thermostat (value can be set from 10% to
100%, with steps of 10). The parameter is only displayed if the
NTC temperature sensor connected to the timed thermostat is
enabled as a temperature probe on the previous screen. To
confirm your choice and move on to the next parameter, press the
button key within 30 seconds.
16
USER INSTRUCTIONS

Alarm threshold temperature setting
Use the or button key to set the floor temperature limit above
which the timed thermostat blocks heating to prevent any damage
(value expressed in tenths of a °C, can be set between 150 and 1000,
with steps of 100).
The parameter is only displayed if the NTC
temperature sensor connected to the timed thermostat is enabled
as a temperature probe (TEMP).
To confirm your choice and move on to the next parameter, press
the button key within 30 seconds.
Local relay setting
Use the or button key to set the operating mode of the timed
thermostat relay (OFF = disabled, HEAT = heating valve
management, COOL = air conditioning valve management,
BOTH = heating/air conditioning valve management).
To confirm your choice and move on to the next parameter, press
the button key within 30 seconds.
perating parameters
Selecting Heating or Air conditioning
Use the or button key to select the operating type
( = heating; = air conditioning). To confirm your choice
and move on to the next parameter, press the button key within
30 seconds.
If the operating type is "heating":
Setting the set-point (heating) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 1 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TECONOMY) /
with the aid of the button keys. To confirm the set
value, press the button key within 30 seconds.
USER INSTRUCTIONS
E
N
G
L
I
S
H
17

USER INSTRUCTIONS
18
Setting the set-point (heating) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 2 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TPRE-COMFORT) /
with the aid of the button keys. To confirm the
set value, press the button key within 30 seconds.
Setting the set-point (heating) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 3 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TCOMFORT) / with
the aid of the button keys. To confirm the set value,
press the button key within 30 seconds.
Setting the anti-freeze temperature value /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 4 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of the anti-freeze
temperature / using the button keys.
To confirm the set value, press the button key within 30
seconds.

USER INSTRUCTIONS
E
N
G
L
I
S
H
19
If the operating type is "air-conditioning":
Setting the set-point (air-conditioning) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 1 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TCOMFORT) /
with the aid of the button keys. To confirm the set
value, press the button key within 30 seconds.
Setting the set-point (air-conditioning) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 2 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TPRE-COMFORT) /
with the aid of the button keys. To confirm the
set value, press the button key within 30 seconds.
Setting the set-point (air-conditioning) /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 3 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer). Adjust the value of (TECONOMY) /
with the aid of the button keys. To confirm the set
value, press the button key within 30 seconds.

Setting the high temperature protection value /
Used to modify the temperature value associated with the
set-point (if the page visualised relates to the timed
thermostat), or the Value 4 of the hourly profile associated
with the status (if the page visualised relates to the
hourly timer).
Adjust the value of the high temperature protection /
using the button keys.
To confirm the set value, press the button key within 30
seconds.
ATTENTI N!
The set-point values are subject to the following limitations:
- HEATING
TANTI-FREEZE ≤ ≤ ≤
- AIR-CONDITIONING
≤ ≤ ≤ THIGH TEMPERATURE PROTECTION
Setting the cyclical profile sending time
Used to set the frequency with which the current value of
the hourly profile is sent. This parameter has an effect only
with the timed thermostat/hourly timer in Automatic
operating mode. Use the button keys to modify the
sending time (OFF = send only at each variation of the
hourly profile; 1M, 2M, 5M, 10M, 15M, 30M, 45M, 60M =
values expressed in minutes). To confirm the set value,
press the button key within 30 seconds.
Control parameters
Control logic (2 or 4 way)
Use the or button key to change the type of control
logic of the temperature adjustment system (2 = common
logic; 4 = separate logic). The common control logic is
associated with 2 way systems, with a single valve for
heating/air conditioning.
The separate control logic is associated with 4 way
systems, with two valves, one for heating and the other for
air conditioning. To confirm your choice and move on to the
next parameter, press the button key within 30 seconds.
USER INSTRUCTIONS
20
