J&M 4WS15 User manual

J&M Manufacturing Co, Inc
284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: [phone] | Fax: [phone]
www.jm-inc.com
Rev. 1.4.2023
4WS15, 4WS17 and 4WS18 Fo r John de e r e hd he a d e r S
HEADER TRANSPORT
Operator’s Manual

3
Table Of Contents
4....................................................................................To the Dealer
5.............................................................................General Information
6..........................................................................................Decals
7.......................................................................Bolt Torque Specications
8........................................................................Operations/Maintenance
10 ................................................................. Hub and Bearing Maintenance
11 ....................................................................................Safety Rules
11 ..................................................................................Specications
Repair Parts List and Diagrams
12 ...............................................................................Spare Tire Mount
13 ........................................................................................Tongue
14 .........................................................................7k Idler Hub and Wheel
15 ........................................................................7k Brake Hub and Wheel
16 .......................................................................................... Axles
17 ...................................................Upper Bar, Frame, 4WS Rod, and Connections
18 ....................................................Upper Bar Mounts SN 2000000 - SN2099999
18 ..................................................... 6” x 10” Lifting Arms SN 2100000 - 2299999
19 .................................................................Lifting Arms Ends for 4”x 8”Bar
19 ....................................................................6” x 10” Upper Bar Extension
20 ................................................ 6” x 10”Top Bar Splice SN 2000000 - SN 2299999
20 ............................................................................4”x 8”Top Bar Splice
21 ....................................................................................Middle Arm
22 .........................................................................Header Center Mounts
22 ......................................................................................Tie-Down
23 ..........................................................End Mounts SN 2000000 - SN 2099999
23 ............................................................End Mounts SN 2100000 and Higher
26 ......................................................Lights and Wiring for Telescoping Lightbar

4
TO THE DEALER
Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists are completed
before releasing equipment to the owner.
The dealer must complete the Warranty Registration found on the Dealer Portal website located at dealer.jm-inc.com and return it to J&M
Mfg. Co., Inc. at the address indicated on the form. Warranty claims will be denied if the Warranty Registration has not been submitted.
EXPRESS WARRANTY:
J&M Mfg. Co. Inc. warrants against defects in construction or materials for a period of ONE year. We reserve the right to inspect and
decide whether material or construction was faulty or whether abuse or accident voids our guarantee.
Warranty service must be performed by a dealer or service center authorized by J&M Mfg. Co., Inc. to sell and/or service the type of
product involved, which will use only new or remanufactured parts or components furnished by J&M Mfg. Co., Inc. Warranty service will
be performed without charge to the purchaser for parts or labor based on the Warranty Labor Times schedule. Under no circumstance
will allowable labor times extend beyond the maximum hours indicated in the Warranty Labor Times schedule for each warranty
procedure. The purchaser will be responsible, however, for any service call and/or transportation of the product to and from the dealer
or service center’s place of business, for any premium charged for overtime labor requested by the purchaser, and for any service and/or
maintenance not directly related to any defect covered under the warranty. Costs associated with equipment rental, product down time,
or product disposal are not warrantable and will not be accepted under any circumstance.
Each warranty term begins on the date of product delivery to the purchaser. Under no circumstance will warranty be approved unless (i)
the product warranty registration card has been properly completed and submitted to the equipment manufacturer, and (ii) a warranty
authorization number has been issued by the equipment manufacturer. This Warranty is eective only if the warranty registration card is
returned within 30 days of purchase.
This warranty does not cover a component which fails, malfunctions or is damaged as a result of (i) improper modication or repair, (ii)
accident, abuse or improper use, (iii) improper or insucient maintenance, or (iv) normal wear or tear. This warranty does not cover
products that are previously owned and extends solely to the original purchaser of the product. Should the original purchaser sell or
otherwise transfer this product to a third party, this warranty does not transfer to the third party purchaser in any way. J&M Mfg. Co.,
Inc. makes no Warranty, express or implied, with respect to tires or other parts or accessories not manufactured by J&M Mfg. Co., Inc.
Warranties for these items, if any, are provided separately by their respective manufacturers.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
In no event shall J&M Mfg. Co., Inc. be liable for special, direct, incidental or consequential damages of any kind. The exclusive remedy
under this Warranty shall be repair or replacement of the defective component at J&M Mfg. Co., Inc’s. option. This is the entire agreement
between J&M Mfg. Co., Inc. and the Owner about warranty and no J&M Mfg. Co., Inc. employee or dealer is authorized to make any
additional warranty on behalf of J&M Mfg. Co., Inc.
The manufacturer reserves the right to make product design and material changes at any time without notice. They shall not incur any
obligation or liability to incorporate such changes and improvements in products previously sold to any customer, nor shall they be
obligated or liable for the replacement of previously sold products with products or parts incorporating such changes.
SERVICE:
The equipment you have purchased has been carefully manufactured to provide dependable and satisfactory use. Like all mechanical
products, it will require cleaning and maintenance. Lubricate the unit as specied. Observe all safety information in this manual and
safety signs on the equipment.
For service, your authorized J&M dealer has trained mechanics, genuine J&M service parts, and the necessary tools and equipment to
handle all your needs.
Use only genuine J&M service parts. Substitute parts may void warranty and may not meet standards required for safety and satisfactory
operation. Record the model number and serial number of your equipment in the spaces provided:
Model No: 4WS16-HD or 4WS17-HD Serial No: ________________________ Date of Purchase: ______________________
Purchased From: ________________________________________________________________________________
Provide this information to your dealer to obtain correct repair parts.
To the Dealer

5
General Information
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our eorts to provide safe equipment can
be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness,
concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
Make certain that the operator(s), prior to operating is instructed in safe and proper use and reviews and understands the manual(s)
pertaining to this machine. Also make certain that the operator(s) reviews and understands the operator’s manual of the tow vehicle
prior to hooking up or operating the SpeedTender.
Read this manual before you operate this machine. If you do not understand any part of this manual, or need more information, contact
the manufacturer or your authorized dealer.
Safety Rules Continued on Next Page
SAFETY RULES:
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your header transport in a safe manner. Read it carefully. It
furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe operating
conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The terms
CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol, (a triangle with an exclamation mark), to indicate
the degree of hazard for items of personal safety. When you see this symbol, carefully read the message that follows and be alert to the
possibility of personal injury or death.
DANGER
WARNING
CAUTION
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury,
and includes hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
IMPORTANT
NOTE

6

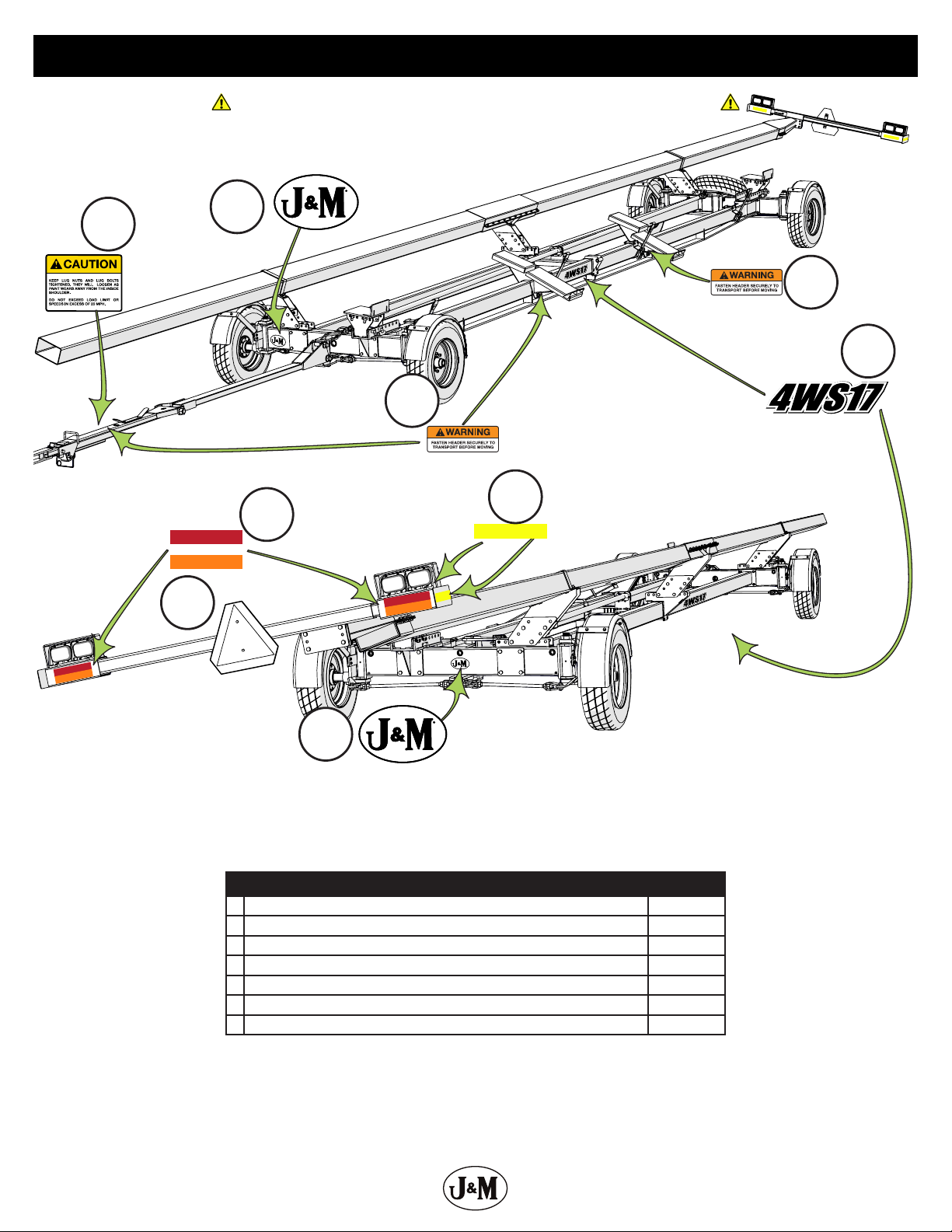

Decals
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged or Missing
Description Part No.
1 Caution - Keep Lug Nut Tight / Do Not Exceed Load Limit - Decal JM0019220
2 J&M Oval Decal (Small) 3-5/8” x 5-1/4” JM0015150
3 Warning - Fasten Header Securely To Transport Before Moving Decal JM0039381
4 4WS17 Decal JM0039380
5 Amber Reective Decal 2” x 9” JM0009946
6 Red Reective Decal 2” x 9” JM0009945
7 Orange Reective Decal 2” x 9” JM0009944
12
3
3
4
5
6
7
2

7
Bolt Torque Specications
TIGHTENING WHEEL NUTS: Torque 9/16”-18 lug nuts on wheels to 170 ft-lbs during initial operation of the header wagon. Check
for proper torque after every 10 hours of use. Failure to do so may damage wheel nut seats. Once seats are damaged it will become
impossible to keep nuts tight.
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all bolts and nuts with
the exception of wheel nuts.
Stud and Wheel Nut Torque Specications
Stud Tightening Torque
1/2”-20 80 ft-lbs
9/16”-18 170 ft-lbs
5/8”-18 350 ft-lbs
3/4”-16 400 ft-lbs
20mm 475 ft-lbs
22mm 640 ft-lbs
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all studs and wheel
nuts.
SAE Fasteners
Coarse Thread Series
Grade 5 Grade 8
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-20 8 ft-lbs 6 ft-lbs 12 ft-lbs 9 ft-lbs
5/16”-18 17 13 25 18
3/8”-16 31 23 44 33
7/16”-14 49 37 70 52
1/2”-13 75 57 106 80
9/16”-12 109 82 154 115
5/8”-11 150 113 212 159
3/4”-10 267 200 376 282
7/8”-9 429 322 606 455
1”-8 644 483 909 681
Fine Thread Series
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-28 10 ft-lbs 7 ft-lbs 14 ft-lbs 10 ft-lbs
5/16”-24 19 15 27 20
3/8”-24 35 26 49 37
7/16”-20 55 41 78 58
1/2”-20 85 64 120 90
9/16”-18 121 91 171 128
5/8”-18 170 127 240 180
3/4”-16 297 223 420 315
7/8”-14 474 355 669 502

8
Operations/Maintenance
DANGER: BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE 4 WHEEL STEER HEADER TRANSPORT.
Before the Header Transport is Put into Service:
• Has the Slow-Moving Vehicle sign been properly positioned at the rear of the header transport?
• Have all danger, warning, caution and important signs on the equipment been read and understood? If employees or others use or
are near this equipment, make sure that they also have read and understood all danger, warning, caution and
important signs on the equipment and have also read the operator’s manual.
• Are all braces, bolts, nuts, studs and lug nuts properly fastened?
• Has the header transport been properly fastened to the towing unit? Use a good quality hitch pin with clip and safety chains.
• Are the rear amber extremity lights properly positioned? Extend lights within 16”of the left and right extremities of the header.
• Check alignment of tires yearly. Adjust the push pull rod to realign the tires if needed.
Safety Chain User Instructions
• Secure the safety chain by looping it around the tongue support located on the underside of the hitch tongue and connect to the
towing machine’s attaching bar.
• Do not allow more slack than necessary for articulation.
• Do not use an intermediate support as the attaching point.
• Store the safety chain by securing it around the tongue.
• Replace the safety chain if one or more links or end ttings are broken, stretched or otherwise damaged or deformed.
Operating Instructions/Maintenance
• Adjust the brackets on the header transport to best t your make and model header.
Note: When mounting the header, NEVER position yourself under or near the header. Securely fasten the header to the
header transport.
• Do not exceed the load and size limits of the unit.
• Keep the tires properly inated. Both under ination and over ination can greatly reduce tire life. Inate 235-85 R16 tires to 80 psi.
• Inspect bracing and welds periodically and repair immediately, if needed. Failure to repair could cause extensive damage and
greatly reduce the life of the unit.
• Repack the bearings in the hub assembly once a year or as needed. Use a good quality LS EP2 severe duty, high shock load, lithium-
based grease.
• Check the wheel nuts often and keep them properly tightened.
WARNING: Check safety chains for broken, stretched or damaged link or end ttings. Replace chains if found to be
damaged. Do not weld safety chains.
Braking System Requirements
• Stopping distance increases with speed and weight of towed loads and on slopes. Towed loads with or without brakes that are too
heavy for the tractor or are towed too fast can cause loss of control. Consider the total weight of the equipment and its load.
Note: Observe these recommended maximum road speeds, or local speed limits which may be lower.
• If towed equipment does not have brakes, do not travel more than 20 mph (32 km/h) and do not tow loads more than 1.5 times the
tractor weight.
• If towed equipment does have brakes, do not travel more than 25 mph (40 km/h) and do not tow loads more than 4.5 times the trac-
tor weight.
• Ensure the load does not exceed the recommended weight ratio. Use additional caution when towing loads under adverse surface
conditions, when turning, and on inclines.
DANGER: Tow loads safely.

9
Operations/Maintenance

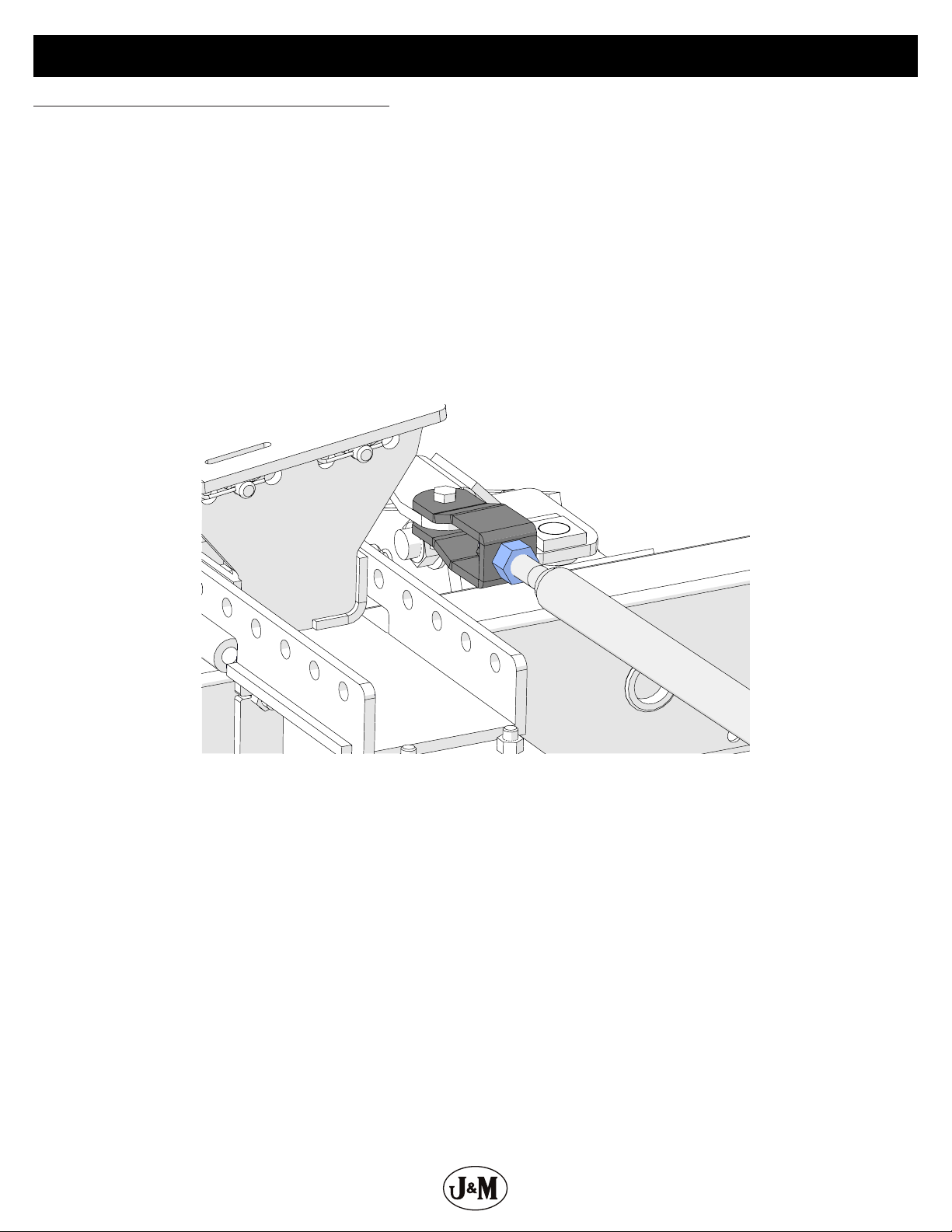

Adjusting Push-Pull Rod to Align Front and Rear Axles
Before initial operation of header transport, follow these steps to align front and rear wheels while under load:
1. With the transport empty, loosen both nuts on the push-pull rod. The push-pull rod is left hand threaded on one end and right hand
threaded on the other end to adjust alignment like a turnbuckle. One of the nuts is pictured in blue in the diagram below.
2. Place combine header on transport.
3. Drive the loaded transport in a straight line on level ground to check alignment.
4. Adjust push-pull rod by rotating the main rod body.
5. Repeat steps 3 and 4 until the transport rear wheels are aligned with front wheels.
6. Remove combine header from transport.
7. With the transport empty, tighten both nuts on the push-pull rod.
8. Return the combine header to the transport.
9. With the nuts on the push-pull rod tightened, drive loaded transport in a straight line on level ground to conrm alignment.

10
DANGER: BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE 4 WHEEL STEER HEADER TRANSPORT.
Hub Removal:
• Elevate and support the trailer unit carefully.
• Remove the wheel.
• Remove the grease cap by carefully prying pregressively around the ange ofthe cap.
• Remove the cotter pin from the spindle nut or, in the case of E-Z Lube versions, bend the locking tang to the free position. For E-Z
Lube axles produced after February 2002, a new type of retainer is used. Gently pry o retainer from the nut and set aside.
• Unscrew the spindle nut (counterclockwise) and remove the spindle washer.
• Remove the hub from the spindle, being careful not to allow the outer bearing cone to fall out. The inner bearing cone will be re-
tained by the seal.
• For 7,200 lb. and 8,000 lb. axles, a hub puller should be used to assist in drum removal.
Bearing Lubriation:
Along with bearing adjustment, proper lubricatino is essential to the proper function and reliability of your trailer axle. Bearings should
be lubricated every 12 months or 12,000 miles. The method to repack bearing cones is as follows:
• Place a quantity of grease into the palm of your hand.
• Press a section of the widest end of the bearing into the outer edge of the grease pile closest to the thumb forcing grease into the
interior of the bearing.
• Repeat this while rotating the bearing from roller to roller.
• Continue this process until you have the entire bearing completely lled with grease.
• Before reinstalling, apply a light coat of grease on the bearing cup.
Use a good quality LS EP2 severe duty, high shock load, lithium-based grease.
Bearing Adjustment and Hub Replacement:
If the hub has been removed or bearing adjustmennt is required, the following adjustmnet precedure must be followed:
• After placing the hub, bearings, washers, and spindle nut back on the axle spindle in reverse order as detailed in the previous
section on hub removal, rotate the hub assembly slowly while tightening the sprindle nut to approximately 50 ft-lbs (12”wrench or
pliers with full hand force).
• Then loosen the spindle nut to remove the torque. Do NOT retate the hub.
• Fingle tighten the spindle nut until just snug.
• Back the spindle nut out slightly until the rst castellatin lines up with the cotter key hole and insert the cotter pin (or looking toang
in the case of E-Z Lube).
• Bend over the cotter pin legs to secure the nut (or locking tang in the case of E-Z Lube).
• Nut should be free to move with only restaint being the cotter pin (or locking tang).
For axles using the new nut retainer:
• Finger tighten the nut until just snug, align the retainer to the machined at on the spindle and press the retainer onto the nut. The
retainer should snap into place. Once in place the retainer/nut assembly should be free to move slightly.
• If the nut is too tight, remove the retainer and back the nut o spproximately one twelfth of a turn and reinstall the retainer. The nut
should now be free to move slightly.
• Reinstall grease cap.
E-Z Lube Lubrication:
• Remove the rubber plug from the end of the grease cap.
• Place a standard grease gun onto the grease tting located in the end of the spindle. Make sure the grease gun nozzle is fully
engaged on the tting.
• Pump grease into the tting. The old displaced grease will begin to ow back out the cap around the grease gun nozzle.
• When the new clean grease is observed, remove the grease gun, wipre o any excess, and replace the rubber plug in the cap.
• Rotate hub or drum while adding grease.
Hub and Bearing Maintenance

11

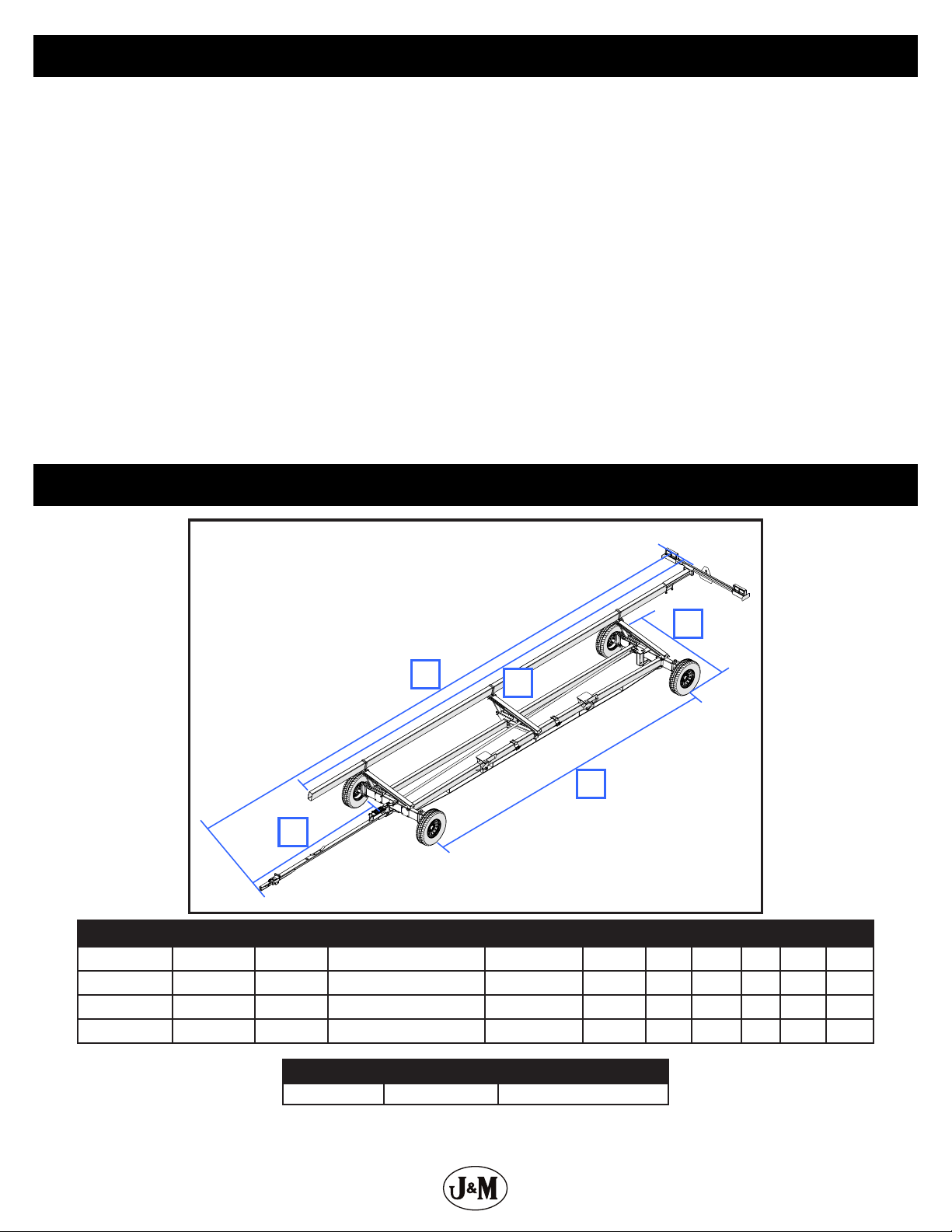

Safety Rules
Specications
Spindle Size Steel Upper Bar Box Channel Axle Frame
2” Diameter 6” x 10” 8”
1. Understand that your safety and the safety of other persons are measured by how you service and operate this machine. Know the
positions and functions of all controls before you try to operate them. Check all controls in a safe area before starting your work.
2. The safety information given in this manual does not replace safety codes, federal, state, or local laws. Ensure your machine has the
proper equipment as designated by local laws and regulations.
3. A frequent cause of personal injury or death is from persons falling o equipment and being run over. Do not permit persons to ride
on this machine.
4. Secure safety chain to towing vehicle before transporting. Do not transport without safety chains being attached to tow vehicle.
5. Use good judgment when transporting on a highway. Always maintain complete control. Regulate speed to road conditions.
WARNING: BE SURE ALL LIGHTS ARE WORKING PROPERLY BEFORE HIGHWAY TRAVEL.
6. Travel speeds should be such that complete control and machine stability is maintained at all times.
7. Where possible, avoid operating near ditches, embankments and holes. Reduce speed when turning, crossing slopes and rough, slick
or muddy surfaces.
8. Make sure that the header is fastened securely to the transport before moving.
9. Make sure that everyone is clear of equipment before applying power or moving the machine. NEVER position yourself under or near
header when mounting on header transport.
10. Never adjust, service, clean or lubricate the header transport until all power is shut o.
11. Ensure the implement is fastened securely to the towing unit.
12. Before unhooking the implement from the towing unit, properly block the wheels to prevent the implement from moving.
13. Never overload the header transport. Overloading the header transport is dangerous and can cause extensive damage.
14. COMPLY WITH ALL SAFETY WARNINGS AND CAUTIONS IN THIS MANUAL AND IN THE COMBINE OPERATOR’S MANUAL.
Model Upper Bar Capacity Wheel Size Tires Weight A B C D E
4WS18-HD-38 38’ 13,000 lb 16” x 6” - 8 Bolt 235/85R16F 4,390 lb 13’-4” 40’-2” 7’-2” 52’-6” 34’-0”
4WS15-HD-42 42’ 13,820 lb 16” x 6” - 8 Bolt 235/85R16F 3,600 lb 12’-9” 44’-2” 7’-2” 50’-3” 26’-9”
4WS17-HD-48 48’ 13,580 lb 16” x 6” - 8 Bolt 235/85R16F 3,845 lb 12’-9” 50’-2” 7’-2” 56’-4” 30’-0”
4WS18-HD-52 52’ 16,300 lb 17-1/2” x 6-3/4” - 8 Bolt 215/75R17.5H 4,810 lb 12’-9” 54’-2” 7’-2” 60’-3” 34’-0”
A
DB
E
C

12
Repair Parts List and Diagrams
When performing maintenance work, wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing and
head. Follow the Operator’s Manual instructions to ensure safe and proper maintenance and repair.
Your local, authorized dealer can supply genuine replacement parts. Substitute parts may not meet original equipment specications
and may be dangerous.
WARNING
MAKE SURE ALL POWER IS SHUT OFF BEFORE PERFORMING ANY MAINTENANCE OR REPAIR WORK.
Spare Tire Mount
Description Part No.
1 4WS Spare Tire Mount Weldment JM0050283
2 9/16”-18 Conical Lugnut (4WS) (ST) JM0008525
2 9/16-18 Flange Lugnut JM0080527
12

13

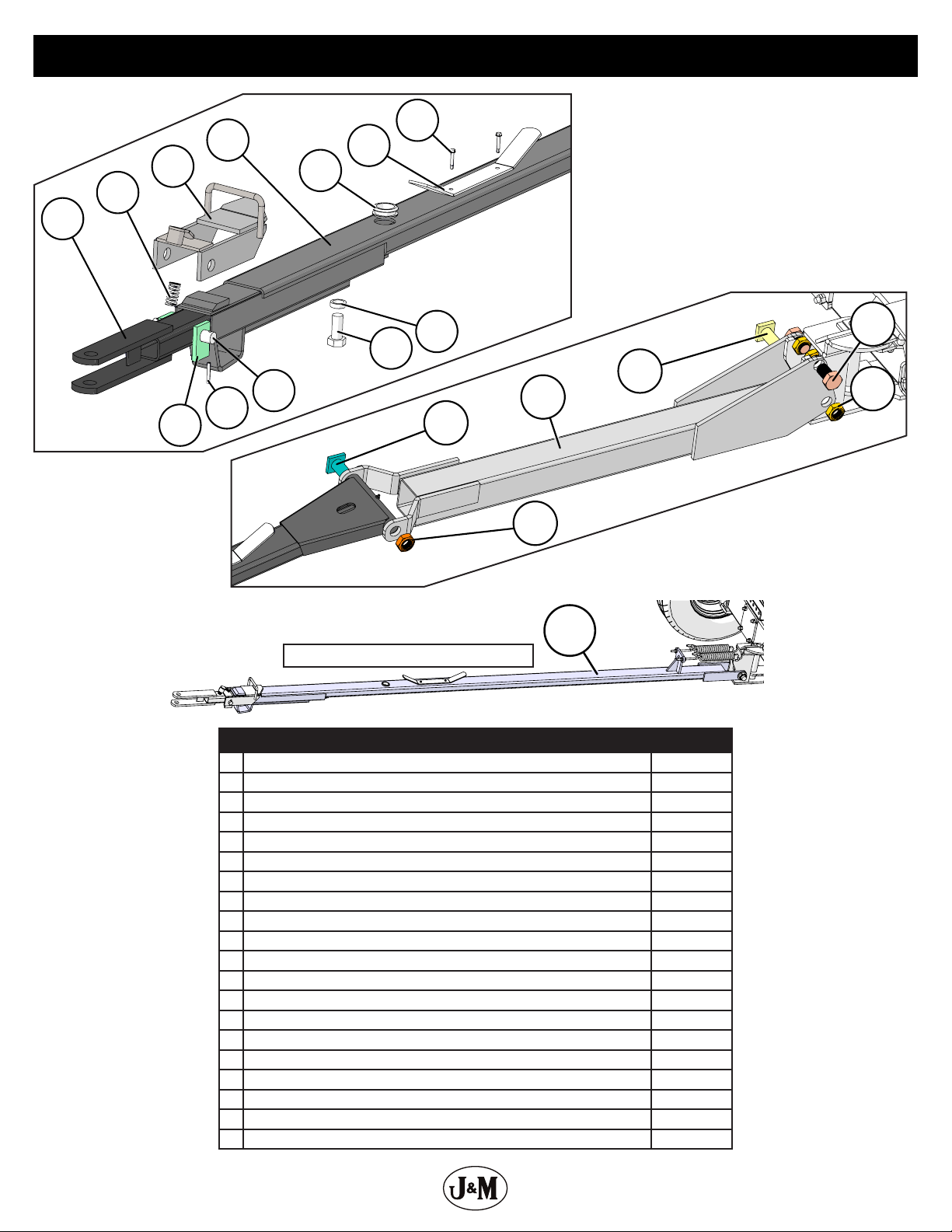

Tongue
6
7
5
11 12
4
3
9
8
10
2
1
15 17
16
14
13
18
Description Part No.
1 Short Inner Tongue (40”) (Header Transport) JM0001683
1 Long Inner Tongue 65” (Header Transport) JM0030165
2 Compression Spring (1”x 1-3/4”) for Door Assembly & Tongue Latch JM0001688
3 Tongue Latch (Flapper Weldment) 10 Ton JM0003033
4 59” Outer Tongue Weldment (974-16, 974-20, 4WS-HD) JM0046959
5 1-1/2” ID x 3/8”Wall GW x 1-3/4” GD Rubber Grommet (GR-134) JM0000830
6 Wire Harness Storage Bracket (WHB-1) JM0001438
7 1/4” x 1” Self Tapping Screw JM0001571
8 Spacer Blocks, 2-1/2”, 6-15 Ton (SB-212) JM0003032
9 17/64” x 1-3/4” Z Roll Pin JM0001652
10 1” x 5-3/4”Flapper Pivot Shaft - Case Hardened and Zinced (LS-610) JM0027732
11 7/8”-9 x 2” Gr5 Z Hex Bolt JM0002108
12 Tongue Stop Bolt Ring JM0001649
13 1-1/4” x 11-3/4”Tongue Bolt (10 Ton Horizonal Hitch Pin Weldment) JM0027667
14 4WS 4x4 Short Tongue Extension 56-7/8” JM0061118
15 6-1/2” x 1-1/4”King Pin Weldment (TB-1082) JM0003036
16 1-1/4”-12 x 2” Hex Bolt JM0061689
17 1-1/4”-12 PN Gr2 Hex Jam Nut JM0001606
18 1-1/4”-12 Gr5 Nylon Locking Hex Jam Nut JM0040323
19 12’ Outer Tongue Weldment (4WS15) JM0015676
19
This tongue is used on 4WS18-HD-38

14
7k Idler Hub and Wheel
12
8910 11
4
36
57
12
1513 14 16 17 18
This rim uses cononical nuts This rim uses ange nuts
JM0020625
May 2015 and
Earlier
9
These two have been
used interchangeably
JM0037503
9
JM0081830
9
Description Part No.
1 2-1/4” ID Grease Seal (010-036-00) JM0035951
2 Tapered Bearing Cone 25580, 12 Ton JM0018104
3 14125A Roller Bearing JM0039542
4 1” USS Flat Washer JM0003063
5 1”-14 Gr2 Z Castle Hex Nut JM0002139
6 Cotter Pin (for 1”x 3-2/5” Clevis Pin) JM0003064
7 Grease Cap (Solid) for 1530290.9 8-6.5”Hub (4WS 170052) JM0058750
8 Cup, Large Inner, 12 Ton, 25520 JM0018102
9 Stud 9/16”-18 x 2-13/16” JM0020625
9 9/16” x 2-1/2” Stud Silver (WB-41L) JM0037503
9 9/16” x 2-5/16” Stud Gold (WB-41L) JM0081830
10 9/16”-18 Conical Lugnut (4WS) (ST) JM0008525
10 9/16-18 Flange Lugnut JM0080527
11 Bearing Cup for Superior Gearbox (14-20”) (414276) JM0025077
12 7k Hub Drum with Studs, Canonical Nuts and Races JM0058743
12 7k Idler Hub with Studs, Flange Nuts & Races JM0080531
13 235-85-R16 Load Range E - 8 Bolt Tire JM0003232
14 Wheel Rim, 8 Hole, 16” x 6” (16x6-8) JM0003233
15 Wheel & Tire (235-85-R16 Load Range E - 8 Bolt Tire and 16x6-8 Hole Wheel Rim) JM0009977
15 Wheel & Tire (235-85-R16 F Series Tire and 16x6-8 Hole Wheel Rim) JM0016650
16 215-75-R17.5 Load Range H Tire JM0016939
17 Wheel Rim, 8 Hole, 17-1/2” x 6-3/4” (17.5x6.75-8) JM0016938
18 Wheel & Tire (215-75-R17.5 Load Range H Tire and 17.5x6.75-8 Hole Wheel Rim) JM0016937

15

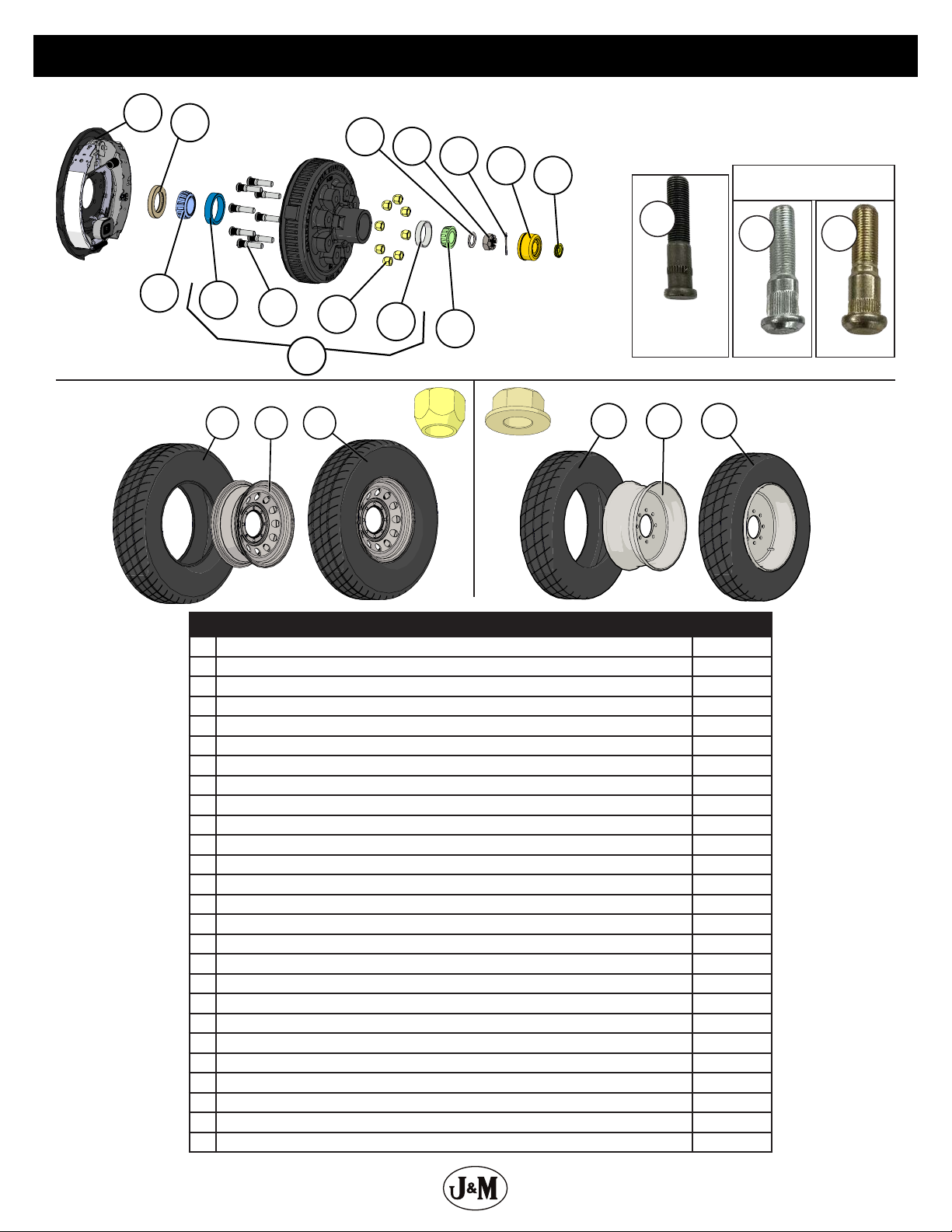

7k Brake Hub and Wheel
1715 16 18 19 20
This rim uses cononical nuts This rim uses ange nuts
JM0020625
May 2015 and
Earlier
9
These two have been
used interchangeably
JM0037503
9
JM0081830
9
12
8910 11 12 13
34567
14
Description Part No.
1 7K Brake Drum Assembly Left Hand JM0035973
1 7K Brake Drum Assembly Right Hand JM0035974
2 2-1/4”ID Grease Seal (010-036-00) JM0035951
3 Spindle Washer (1-1/8” ID, 1-5/8”OD, 1/8”) (7k Lb Axle) JM0039543
4 1”-14 Gr2 Z Castle Hex Nut JM0002139
5 Cotter Pin (for 1”x 3-2/5” Clevis Pin) JM0003064
6 Dust Cap for EZ Grease (7,000lb) JM0035957
7 Rubber Plug for Dust Cap JM0039538
8 Tapered Bearing Cone 25580, 12 Ton JM0018104
9 Cup, Large Inner, 12 Ton, 25520 JM0018102
10 Stud 9/16”-18 x 2-13/16” JM0020625
10 9/16” x 2-1/2”Stud Silver (WB-41L) JM0037503
10 9/16” x 2-5/16”Stud Gold (WB-41L) JM0081830
11 9/16”-18 Conical Lugnut (4WS) (ST) JM0008525
11 9/16-18 Flange Lugnut JM0080527
12 Bearing Cup for Superior Gearbox (14-20”) (414276) JM0025077
13 14125A Roller Bearing JM0039542
14 7k Hub Drum with Studs, Canonical Nuts and Races JM0041461
14 7k Idler Hub with Studs, Flange Nuts & Races JM0081886
15 235-85-R16 Load Range E - 8 Bolt Tire JM0003232
16 Wheel Rim, 8 Hole, 16”x 6” (16x6-8) JM0003233
17 Wheel & Tire (235-85-R16 Load Range E - 8 Bolt Tire and 16x6-8 Hole Wheel Rim) JM0009977
17 Wheel & Tire (235-85-R16 F Series Tire and 16x6-8 Hole Wheel Rim) JM0016650
18 215-75-R17.5 Load Range H Tire JM0016939
19 Wheel Rim, 8 Hole, 17-1/2”x 6-3/4” (17.5x6.75-8) JM0016938
20 Wheel & Tire (215-75-R17.5 Load Range H Tire and 17.5x6.75-8 Hole Wheel Rim) JM0016937

16
Axles
1
3
2
9
6
4
5
8
7
17
16
15
13 14
11
10
12
3
18
20
19
Description Part No.
1 Right Spindle Assembly (4WS) JM0003187
2 Front Hitch Weldment (4WS) JM0015576
3 1-1/4”-12 PN Gr2 Hex Jam Nut JM0001606
4 4WS Front Axle Assembly JM0015557
5 1-3/4” ID Bronze Bushing (2” OD x 1” Length) (EB-134) JM0002244
6 1-3/4” x 14-1/4” King Pin Weldment JM0003180
7 Left Spindle Assembly (4WS) JM0003170
8 1-3/4”-12 Z Gr2 Hex Jam Nut JM0009752
9 11-1/2” x 1-1/4”King Pin Weldment (TB-610) JM0003038
10 Nut for 5/8”Shoulder Bolt JM0003185
11 5/8”ID x 3/4” OD x 1/2” Bronze Bushing (BB-58) JM0003189
12 5/8”Shoulder Dia x 1” Shoulder Length x 1/2”-13 Shoulder Bolt and Nut (SB-58) JM0002408
13 6-10 Ton Clevis Weldment (Left) (TRE-78L) JM0003168
14 7/8”-14 Gr5 Z LH Hex Nut JM0027686
15 Tie Rod (7/8”x 26”) (4WS) (10 Ton) JM0003188
16 7/8”-14 Gr5 Z Hex Nut JM0025714
17 6-10 Ton Clevis Weldment (Right) (TRE-78R) JM0030149
18 Rear Axle Assembly (4WS) JM0003166
19 1-1/4”x 15-1/8” King Pin Weldment (4WS) JM0003165
20 Rear Hitch Weldment (4WS15, 17) JM0003164
20 Rear Hitch Weldment - Long Arm (4WS18) JM0079468
21 4WS Right Spindle Weldment with Brake Kit JM0057846
22 4WS Left Spindle Weldment with Brake Kit JM0057844
21 22

17
Upper Bar, Frame, 4WS Rod, and Connections
42 31
6
587
Description Part No.
1 4” x 8” x 38’Upper Bar JM0008542
1 4” x 8” x 42’Upper Bar JM0008539
1 4” x 8” x 48’Upper Bar JM0058688
1 4” x 8” x 52’Upper Bar Assembly JM0061231
2 4WS15 Small Lower Bar (4”x 6” x 316”) JM0008540
2 4WS17 Small Lower Bar (4”x 6” x 354”) JM0008528
2 4WS18 Small Lower Bar (4”x 6” x 402”) JM0076641
3 4WS15 Heavy Push Pull Rod Assembly with Clevis JM0074571
3 4WS17 Heavy Push Pull Rod Assembly with Clevis JM0073408
3 4WS18 Heavy Push Pull Rod Assembly with Clevis JM0076674
4 4WS15 Truss Bar (315”) JM0008543
4 4WS17-48 Truss Bar (354”) JM0000444
4 4WS18 Truss Bar (402”) JM0076642
5 12-15 Ton Clevis Weldment (Right) (TRE-1R) JM0001822
6 1”-14 Gr5 RH Hex Nut JM0014282
7 1”-14 Gr5 LH Hex Nut JM0014281
8 12-15 Ton Clevis Weldment (Left) (TRE-1L) JM0019189
9 3/4” Shoulder Dia x 1” Shoulder Length x 5/8”-11 Hex Head Shoulder Bolt and Nut (SB-34) JM0003181
10 3/4” ID x 7/8”OD x 5/8” LG Bronze Bushing (BB-34) JM0009455
11 7/8” SAE Flat Washer Gr8 JM0080541
12 3/4” Shoulder Bolt Nut JM0003184
13 5/8”-11 x 6” Gr5 Z Hex Bolt JM0001623
14 Bolt-on Washer Plate (4WS) JM0015526
15 5/8”-11 Gr2 Z Centerlock Hex Nut JM0002146
15
12
11
9
10
14
13

18
Upper Bar Mounts SN 2000000 - SN2099999
Description Part No.
1 Top Bar Clamp Strap (6”x 10”Tube) JM0051282
2 1/2”-13 Gr5 Z SF Hex Nut JM0002153
3 6” x 10”Upper Bar Upper Mount JM0054218
4 6” x 10”Upper Bar Lower Mount Side Plate JM0054247
5 5/8”-11 x 1-1/2” Gr5 Z Hex Bolt JM0002103
6 5/8”-11 Gr2 Z Nylon Locking Hex Nut JM0008428
7 3/4” x 8”Z L Pin (Header Wagon, c450) JM0029738
8 3/16” x 2-1/2”Hair Clip Pin (316HP) JM0001657
5
3
8
4
6
1
2
7
6” x 10” Lifting Arms SN 2100000 - 2299999
76
3
4
2
1
5
Description Part No.
1 Top Bar Clamp Strap (6”x 10”Tube) JM0051282
2 1/2”-13 Gr5 Z SF Hex Nut JM0002153
3 Top Tube Support Channel Weldment (10”Tube) JM0054698
4 Lifting Arm - 60” Hole Spread (4WS) JM0003078
5 3/4” x 8” Z L Pin (Header Wagon, c450) JM0029738
6 Upper Bar Support Arm (UBSA-3) JM0003077
7 3/16” x 2-1/2” Hair Clip Pin (316HP) JM0001657

19
Lifting Arms Ends for 4”x 8” Bar
6
1
3
2
5
4
7
Description Part No.
1 Upper Bar Slide Mount (UBSM-3) JM0015133
2 3/4” x 8” Z L Pin (Header Wagon, c450) JM0029738
3 Upper Bar Support Arm (UBSA-3) JM0003077
4 Upper Bar Clamp (4x8) (UBC-3) JM0003081
5 1/2”-13 Gr5 Z SF Hex Nut JM0002153
6 3/16” x 2-1/2” Hair Clip Pin (316HP) JM0001657
7 Lifting Arm - 60” Hole Spread (4WS) JM0003078
6” x 10” Upper Bar Extension
Description Part No.
1 Lower Clamp Mount for Light Bar (6” x 10”Tube) JM0051476
2 3/8”-16 Gr5 Z SF Hex Nut JM0002152
3 3/8”-16 x 1” Gr5 Z SF Hex Bolt JM0002092
4 1/2”-13 x 1” Gr5 Z Hex Bolt JM0010225
5 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
6 Upper Bar Light Bracket Adapter JM0051284
7 Neoprene Vibration Damping Mount with 5/8”Diameter Hole JM0001869
8 1/2”-13 x 2” Gr8 Z Hex Bolt JM0001620
8
7
6
3
124
5

20
6” x 10”Top Bar Splice SN 2000000 - SN 2299999
4” x 8”Top Bar Splice
5
3
4
2
1
Description Part No.
1 1/2”-13 Gr5 Z SF Hex Nut JM0002153
2 Middle Prop Leg Upper Bar Splice Mount (6”x 10” Bar) JM0054636
3 4 ‘ Long Top Tube Splice Clamp (10”x 6”Tube) JM0054631
4 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
5 1/2”-13 x 1-1/4” Gr5 Z Hex Bolt JM0001513
54
3
1
2
Description Part No.
1 Splice Clamp for 48’Top Tube JM0012934
2 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
3 1/2”-13 x 3-1/2” Gr5 Z Hex Bolt JM0009914
4 Middle Prop Leg Upper Bar Splice Mount - 4x8 Bar JM0054680
5 1/2”-13 Gr5 Z SF Hex Nut JM0002153
