Jandy Jandy Pro Series User manual

H0411800 REV A
ENGLISH
OWNER’S MANUAL
FOR YOUR SAFETY - This product must be installed and serviced by a contractor
who is licensed and qualified in pool equipment by the jurisdiction in which the
product will be installed where such state or local requirements exist. The maintainer
must be a professional with sufficient experience in pool equipment installation and
maintenance so that all of the instructions in this manual can be followed exactly.
Before installing this product, read and follow all warning notices and instructions
that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or
operation will void the warranty.
Improper installation and/or operation can create unwanted electrical
hazard which can cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important
information about the installation, operation and safe use of this
product. This information should be given to the owner/operator
of this equipment.
WARNING
Jandy Pro Series
Nicheless LED Underwater Light

Page 2 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual
AquaLink® Z4 | Owner’s Manual
Table of Contents
Contents
Section 1. Important Safety Instructions ....... 3
Section 2. Installing the Jandy Pro Series
Nicheless LED Light ...................... 4
2.1 PreparingtheLightFixtureforInstallation.....................4
2.2 InstallingtheLightFixture............................................6
Section 3. Wiring Options for Controlling
Jandy Pro Series Nicheless
LED Lights ...................................... 7
3.1 WiringtoanAquaLink®RSControlSystem..................7
3.2 WiringtoaTimeClock..................................................8
3.3 WiringtoaSwitch..........................................................8
Section 4. Jandy Pro Series Nicheless
Underwater LED Light Operating
Instructions .................................... 9
4.1 OperatingtheLightandChangingColors.....................7
4.2 ToResettotheBeginningofthe
ColorSequence.............................................................7
Section 5. Twelve (12) Volt Installation .......... 7

Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual AquaLink® Z4 | Owner’s Manual ENGLISH Page 3
Section 1. Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO A RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed, including the following:
WARNING
Beforeinstallingthisunderwaterlight,readandfollowallwarning
noticesandinstructionsaccompanyingthislight.Failuretofollowsafety
warningsandinstructionscanresultinsevereinjury,death,orproperty
damage.
Visitwww.zodiacpoolsystems.comforadditionalfreecopiesofthese
instructionsorcallZodiacTechnicalSupportat800.822.7933(U.S.)or
888.647.4004(Canada)
DANGER
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. This
underwaterlightmustbeinstalledbyalicensedorcertifiedelectrician
inaccordancewiththeNationalElectricalCode®andapplicablelocal
codesandordinances.InCanada,theCanadianElectricalCodeand
allapplicablelocalcodesandordinancesmustbeadheredto.Improper
installationwillcreateanelectricalhazard,whichcouldresultindeathor
seriousinjurytopoolorspausers,installers,orothersduetoelectrical
shock,andmayalsocausedamagetoproperty.Readandfollowthe
specificinstructionsbelow.
CAUTION
ExceptwhentheJandyProSeriesNichelessUnderwaterLEDLightsare
installedinanareaoftheswimmingpoolthatisnotusedforswimming
andthelensisadequatelyguardedtokeepanypersonfromcontacting
it,thelightshallbeinstalledinoronawallofthepool,withthetopofthe
lensopeningnotlessthan4inches(102mm)belowthenormalwater
levelofthepool
SAVE THESE INSTRUCTIONS
ATTENTION INSTALLER
Thismanualcontainsimportantinformationaboutthe
installation,operationandsafeuseofthisproduct.
Thisinformationshouldbegiventotheowner/operator
ofthisequipment.

Page 4 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
NOTICE
TheJandyProSeriesNichelessUnderwaterLEDLightsareintended
forinstallationinfreshwaterandsaltwaterswimmingpools.Itis
importanttoensurethatthewetnichesinwhichthelightsareinstalled
areintendedfortheirappropriateapplication,eitherfreshwaterorsalt
waterpools.
Section 2. Installing the Jandy Pro Series
Nicheless LED Light
WARNING
Risk of Electrical Shock or Electrocution. Thisunderwaterlight
mustbeinstalledbyalicensedorcertifiedelectricianoraqualifiedpool
servicemaninaccordancewiththeNationalElectricalCode®(Canadian
ElectricalCode,inCanada)andallapplicablelocalcodesand
ordinances.Improperinstallationwillcreateanelectricalhazard,which
couldresultindeathorseriousinjurytopoolorspausers,installersor
othersduetoelectricalshock,andmayalsocausedamagetoproperty.

Alwaysdisconnectthepowertothelightatthecircuitbreakerbefore
installingorservicingthelight.Failuretodosocouldresultindeathor
seriousinjurytoserviceman,poolorspausersorothersduetoelectrical
shock.
2.1 The User Interface (UI)
Allsystemprogrammingandsetupisperformedthroughthe
AquaLinkZ4UIlocatedonthefrontofthecontroller.
NOTE: TheinstallermayrelocatetheUI.ItiscriticalthattheUIbe
mountedoutdoors,whereaserviceprofessionalmayaccessit
atanytime.
WARNING
Risk of Electrical Shock or Electrocution.
Tominimizeriskoffireorelectricalshock,whichcouldresultinserious
injury,propertydamage,ordeath,useonlyatransformerthathasbeen
listed/certifiedforswimmingpoolandspause.

Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual ENGLISH Page 5
Verify that the pool meets the requirements of the current National Electri-
cal Code (CanadianElectricalCode,inCanada)and all local codes and
ordinances. A licensed or certied electrician must install the electrical
system to meet or exceed those requirements before the underwater light
is installed. Some of the requirements of the National Electrical Code,
which the pool electrical systems must meet, are as follows:
1. The junction box or the low-voltage transformer must be located
at least eight (8) inches (measured from the inside of the bottom of
the junction box or transformer) above the MAXIMUM water level,
OR at least four (4) inches above the ground level or pool deck,
whichever is greater. The junction box or transformer must also be
installed at least forty-eight (48) inches (4 ft.) from the edge of the
pool. See Figure 1.
2. A standard 1.5” plastic wall / return tting (not included) must be
installed so that the top edge of the underwater light’s lens is at least
4 inches (10.2 cm) below the surface of the water in the pool. See
Figure 1.
NOTE Tobecertainthatthepool’selectricalsystemmeetsallapplicable
requirements,theelectricianshouldalsoconsultthelocalbuilding
department.
48"
min.
8" min. Junction Box or Low
Voltage Transformer, to the
max water level of the pool.
4" min. to top of Lens.
5"
Rigid
Conduit
12 VAC Transformer
Figure 1. Jandy Pro Series LED Light Installation with standard
1.5” plastic fitting

Page 6 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
2.2 Installing the Light Fixture
NOTE Performthesestepsonlyaftertheelectricalsystemrequirements
aremet.
1. Feed cord through electrical conduit to junction box, leaving at least
fourteen (14) inches of slack cord in the conduit near the pool wall to
allow for winterization. See Figure 1.
2. Remove the docking ring from the light and attach the docking ring to
the 1.5” pool tting. See Figure 2.
1.5” Plastic Fitting (Not Included) Docking Ring
Figure 2. Install the docking ring securely to the 1.5” pool wall fitting
3. Cut the cord at the junction box, leaving at least six (6) inches of cord
to make connections.
4. Strip six (6) inches of the outer cord jacket to expose the two insulated
wires being careful not to damage any remaining insulation
.
5. The light mounts to the docking ring by turning it clockwise onto the
docking ring and securing it with the provided screw. See Figure 3.
6. Fill the pool until the underwater light is completely submerged
in water before operating the light. Turn on main switch or circuit
breaker, and the switch, which operates the underwater light, to check
for proper operation. Refer to Section 4, Operating Instructions.
7. Properly prepare the end of the light cable to securely connect it to the
12VAC output of a Class 2 transformer that is listed or certied by a
Nationally Recognized Testing Laboratory (NRTL) for the intended
use.

Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual ENGLISH Page 7
1
2
3

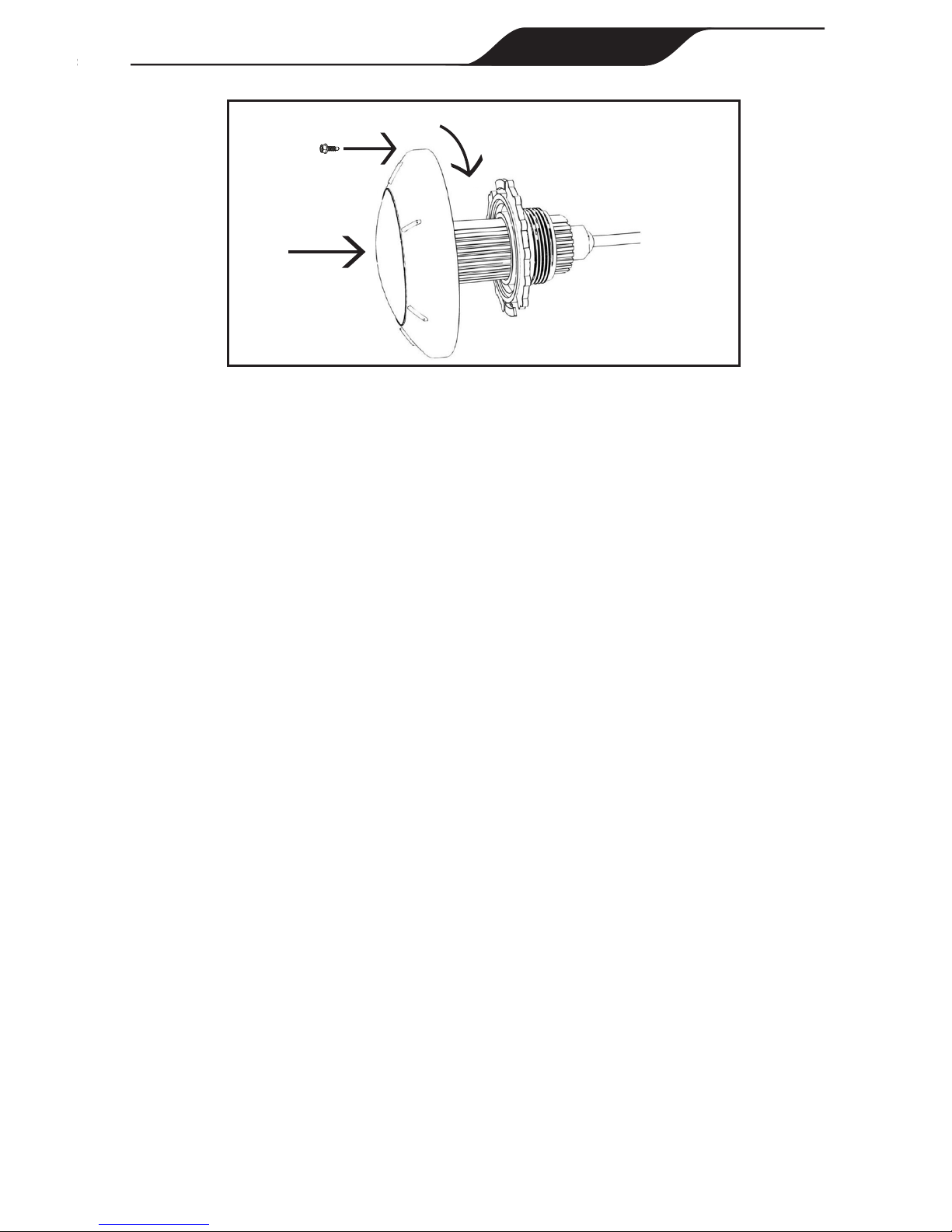

Figure 3. Attach the assembled light and cable to the docking ring
Section 3. Wiring Options for Controlling Jandy
Pro Series Nicheless LED Lights
NOTE TheJandy Pro Series Nicheless LED Lightsarenotcompatible
withlightdimmers.Do not wire the Jandy Pro Series Nicheless
Lights to any dimming circuitry.
To the extent allowed by local installation codes in effect in the installation
jurisdiction and capacity of the electrical equipment, multiple Jandy Pro
Series lights may be controlled with a single switch and transformer so
their colors may be synchronized.
Separate switches may be used to control the on/off and color functions
of each set of Jandy Pro Series Nicheless Lights (a ‘set’ being all the
lights wired to a common 12 VAC transformer). It is recommended that
these switches be located next to each other to facilitate simple color
synchronization when desired. If color synchronization is critical, switches
must be operated simultaneously.
3.1 Wiring to an AquaLink® Controller
The Jandy Pro Series Nicheless LED Lights can be controlled by an
AquaLink controller. Connect the transformer powering the lights to one
of the auxiliary relays in the AquaLink.

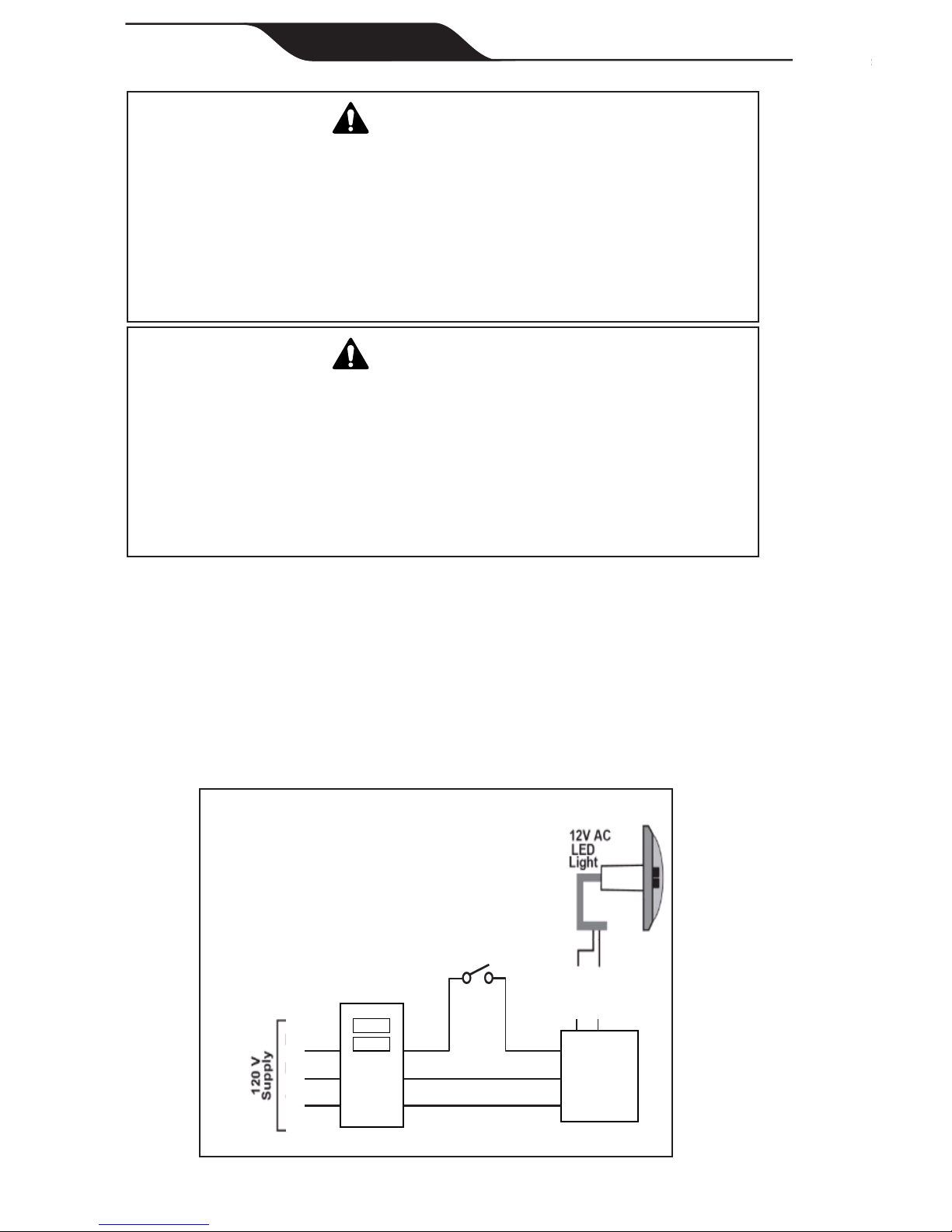

Refer to Figure 4 to connect the Jandy Pro Series Nicheless LED Lights to
the Power Center.

Page 8 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
WARNING
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION,
whichcouldresultinseriousinjuryordeath.AGroundFault
CircuitInterrupter(GFCI)mustbeprovidedfor120Volttransformers.
TheconductorsontheloadsideoftheGFCIcircuitshallnotoccupy
conduit,boxes,orenclosurescontainingotherconductorsunlessthe
additionalconductorsarealsoprotectedbyaGFCI.Refertolocal
codesforcompletedetails.
WARNING
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION,
whichcouldresultinseriousinjuryordeath. TheJandy
ProSeriesNichelessLEDLightsareonlyavailablefor12-volt
ACpower.UseONLYa120VACto12VACstep-down,class2
transformerwhichisNRTL-listed/certifiedfortheapplication.For
moreinformationabout12-voltinstallations,refertoSection 5ofthis
manual.
3.2 Wiring to a Time Clock
The Jandy Pro Series Nicheless LED Lights can be wired to a time
clock to operate the lights automatically.
3.3 Wiring to a Switch
The Jandy Pro Series Nicheless LED Lights can be wired into a switch
to manually operate the lights. Refer to Figure 4 to connect the lights
into the switch.
AquaLink Aux
Black
GFCI
120 volts to
12VAC
Transformer
White
Ground
Line
Neutral
Ground
Black
Black
White
White
Green
Relay or Switch
Wiring Jandy Pro Series Nicheless Underwater Lights
4
Figure 4. Wiring Jandy Pro Series Nicheless Underwater Lights

Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual ENGLISH Page 9
Section 4. Jandy Pro Series Nicheless LED Light
Operating Instructions
4.1 Operating the Light and Changing Colors
NOTE Thissectiononlyappliestothecolor(RGB)lights.
Turn the light ON. If the light has been off for 7 seconds or longer, the light
will turn on at the last color selected. To change the color, turn the light
OFF and then ON within three (3) seconds. Continue turning OFF and ON
until the desired light color mode is reached. See Table 1 for the color mode
sequence.
Table 1. Jandy Pro Series Nicheless Underwater LED Lights
Sequence
Sequence Order Color Modes
1 AlpineWhite
2 SkyBlue
3 CobaltBlue
4 CaribbeanBlue
5 SpringGreen
6 EmeraldGreen
7 EmeraldRose
8 Magenta
9 Violet
10 SlowColorSplash
11 FastColorSplash
12 AmericatheBeautiful
13 FatTuesday
14 DiscoTech
NOTE WhenthelightisturnedOFFformorethanseven(7)seconds,itwill
remaininthecolorsetthatiscurrentlyactive.Whenthelightisturnedback
ON,thelightwillbeonthesamecolorset.

Page 10 ENGLISH Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
4.2 To Reset to the Beginning of the Color Sequence
Begin this procedure with the light turned ON.
Turn the light OFF, wait five (5) seconds, then turn ON, the light will return
to the beginning of the color cycle (Alpine White).
NOTE TosynchronizecolorsonmultipleJandyProSeriesNicheless
UnderwaterLEDLightsystemswiredtoseparateswitches,perform
theaboveactionsonalloftheirswitchessimultaneously.AllJandy
ProSeriesNichelessUnderwaterLEDLightswillsynchronize
automaticallyifactivatedbythesameswitch.Nootheraccessories
arerequired.
Section 5. Twelve (12) Volt Installation
A 12-14 Volt AC Transformer must be used to power all 12-Volt lights.
NOTE  ForoptimumperformanceJandyProSeriesrecommendsnot
exceedingtheloadfactorspeciedbytheinstructionsincludedwith
thetransformer.
To ensure maximum safety, use only a Class 2 transformer that can supply
12-14 Volts AC to power all 12-Volt lights. The transformer must be listed
or certified by a Nationally Recognized Testing Laboratory (NRTL) for the
intended use.
CAUTION
Topreventriskoffirewhichcouldresultinpropertydamage,
andtoensureoptimumperformance,donotexceedtheload
factorspecifiedintheinstructionsprovidedbythetransformer
manufacturer.

Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual Nicheless Underwater LED Lights | Owner’s Manual ENGLISH Page 11

ZODIAC® is a registered trademark of Zodiac International,
S.A.S.U., used under license.All trademarks referenced
herein are the property of their respective owners.
©2013 Zodiac Pool Systems, Inc. H0411800 REV A
Zodiac Pool Systems, Inc.
2620 Commerce Way, Vista, CA 92081
1.800.822.7933 | www.ZodiacPoolSystems.com
Zodiac Pool Systems Canada, Inc.
2115 South Service Road West, Unit 3 Oakville,
ON L6L 5W2
1.888.647.4004 | www.ZodiacPoolSystems.ca
ETL LISTED
CONFORMS TO
UL STD 676
CERTIFIED TO
CAN/CSA C22.2 NO.89
