Page 2
Contents
Meaning of the symbols 4
Hints for usage 4
Receipt control 4
Contents of delivery 5
Accessories possible 5
Hints for maintenance 6
Repairing and calibration 6
Face plate 6
Battery 6
Waste management 6
Service 6
Product description 7
Intended use 7
Functional description 8
Voltage versions 9
Device versions 10
Installation 18
Mounting 18
Measurement and operation voltage 18
Current measurement 19
Sum current measurement 19
Serial interfaces 20
Inputs and outputs 20
Connection 22
Putting into service 24
Insert device 24
Connect measur. and operating voltage 24
Connect measurement current 25
Check phase assignment 25
Check current direction 25
Check measurement 25
Check single phase power 25
Check sum power 25
Removal of errors 26
Error messages 28
Warnings 29
Heavy errors 29
Exceeding of measuring range 29
Usage and display 30
Indication mode 30
Programming mode 30
Key functions 31
Parameters and meas. values 32
Parameter indication at UMG96S 32
Measured value indication at UMG96S 32
Program parameters 33
Mean values 34
Averaging time current (Adr.057) 34
Averaging time power (Adr.058) 34
Averaging time voltage (Adr.073) 34
Minimum and maximum values 34
Net frequency (Adr.063) 35
Real energy 35
Current transformer (Addr. 600) 36
Voltage transformer (Addr. 602) 37
Harmonics (Addr.221) 38
Measured value rotation 39
Measured value indications 42
Indication profile (Addr. 060) 42
Indication profile (Addr. 604) 43
User password (Addr.011) 44
Delete energy (Addr.009) 44
Field rotation (Addr. 277) 45
LCD Contrast (Addr. 012) 45
Time detection 46
Serial number (Addr. 911) 46
Software Release (Addr. 913) 47
Hardware expansion (Addr. 914) 47
Serial interfaces 48
Interface selection (Addr. 062) 48
Modem operation (Addr. 070) 48
MODBUS RTU 49
Realized functions 49
RS232 interface 50
Fieldbus (RS485) 52
Profibus DP 54
Profibus profiles 56
Inputs and outputs 60
Pulse output 62
Pulse valence 63
Digital output 66
Limit supervision 68
Analog output 70
Digital input 72
Memory 74
Data memory (Option) 74
Data memory (056) 74

Page 3
Tables 76
Parameter list 77
Measured value list 80
Measured value displays, overview 86
Indication range and accuracy 90
Safety regulations 91
Requirements of electromagnetical
compatibility 91
Technical data 92
Ambient conditions 92
Connectable wires 92
Inputs and outputs 92
Measurement 93
Serial interfaces 93
Dimension sketch 94
Connection diagrams 95
Brief instructions 96
Change current transformer 96
Call up measured values 96
All rights reserved. No part of this manual may
be reproduced or duplicated without the written
permission of the author. Any contraventions are
punishable and will be prosecuted with all legal
means.
No liability can be taken for the faultless condi-
tion of the manual or damage caused by the use
of it. As failures cannot be avoided completely,
we shall be very grateful for any advice. We will
try to remove any failures as soon as possible.
The mentioned software and hardware
descriptions are registered trademarks in the
most cases and are subjected to the regulations
by law. All registered trademarks are property of
the corresponding companies and are fully
recognized by us.

Page 4
Receipt control
In order to ensure a perfect and safe use of the
device, a proper transport, expert storage, erec-
tion and mounting and careful usage and main-
tenance are required. When it may be sup-
posed, that a safe operation is no longer possi-
ble, the device has to be put out of service and
be protected against unintentional putting into
service.
A safe operation can no longer be assumed,
when the device
• shows visible damage,
 does not work in spite of intact net supply,
 has been exposed to disadvantageous condi-
tions for a longer time (e.g. storage out of the
allowed climate without adaption to the room
climate, dew etc.) or transport use (e.g. falling
from great height, even without visible damage).
Please test the contents of delivery for comple-
tion, before starting the installation of the device.
All delivered options are listed on the delivery
papers.
Hints for usage
This device may be put into service and used
by qualified personnel according to the safety
regulations and instructions only. Please mind
the additional legal and safety regulations for the
respective application.
Qualified personnel are persons, familiar with
erection, mounting, putting into service and us-
age of the product and having the qualifications
such as:
 education or instruction / entitlement to switch,
release, ground or characterize current circuits
and devices according to the standards of safety
techniques.
 education or instruction in care and usage of
suitable safety equipment according to the
standards of safety techniques.
mAttention!
If the instrument is not used according to
the operating instructions, a safe use can-
not be granted, and certain danger can be
effected by the instrument.
m
cBeware dangerous electrical voltage.
This symbol shall warn you about possi-
ble danger, that can occur while mount-
ing, putting into service or the use of this
instrument.
Meaning of the symbols
The symbols, that were used in this manual
have the following meaning:

Page 5
This manual also describes options,
which have not been delivered and,
hence, do not belong to the contents of
delivery.
m
Number Part.No. Description
1 52 13 xxx1)UMG96S
1 33 03 046 Manual, English.
1 52 07 103 2 Fixing brackets.
1 51 00 104 CD containing:
- Programming software „GridVis“.
- Assisting descriptions.
Part.No. Description
29 01 907 Seal, 96x96
08 01 501 PC-cable for RS232 interface, 2m
1) Part no. see delivery note.
Contents of delivery
Accessories possible
All delivered options and versions are de-
scribed on the delivery papers.
m

Page 6
Service
If you have problems, which are not described
in this manual, please ask our technical support.
For further handling of your questions, please
have the following on hand:
- Device description (see type plate),
- Serial number (see type plate),
- Software Release,
- Measurement and auxiliary voltage and
- Exact description of the problem.
You can contact us:
Monday to Thursday
between 07:00h and 15:00h
and Friday
between 07:00h and 12:00h
Janitza electronic GmbH
Vor dem Polstück 1
D-35633 Lahnau
Support: Tel. [phone]
Fax [phone]
e-mail: [e-mail]
Hints for maintenance
Before delivery the device is tested in various
safety checks and marked with a seal. If the
device is opened, these checks must be re-
peated.
There is no guarantee for devices, which are
opened out of the manufacturing works.
Repairing and calibration
Maintenance and calibration can only be carried
out at manufacturer's end.
Face plate
The cleaning of the front foil must be done with
a soft cloth using a common cleansing agent.
Acid or acidic agents may not be used for clean-
ing.
Battery
On the additional PCB 1 (option), there is a
Lithium battery. The life expectance of the bat-
tery at storage temperature +45°C is a minimum
of 5 years. The typical life expectance is
between 8 and 10 years.
If the battery voltage is too low after net return,
the display shows the warning "Err 320".
For safety reasons, the battery should be ex-
changed in the manufacturing works only!
Waste management
The UMG96S can be disposed and recycled as
electronical waste according to the legal regula-
tions. Please note, that the input Lithium battery
must be disposed separately.

Page 7
Product description
Intended use
The UMG96S has been designed for a fixed in-
stallation in panels, measuring voltage, current,
power etc. in low voltage switchgear. The meas-
urement is laid out for three phase systems with
neutral conductor (TN and TT networks).
The UMG96S gets its operating voltage from the
measuring voltage and can be delivered for
operating voltage of 150V and 300V. The 300V
standard version, measurement and operation
voltage (50Hz/60Hz) up to 300VAC against
ground and 520VAC phase to phase can be
connected directly. The 150V special version,
measurement and operating voltage (50Hz/
60Hz) up to 150VAC against ground and
240VAC phase to phase can be connected di-
rectly.
The measurement and operational voltage must
be connected to the UMG96S via a separation
(circuit breaker or power switch) and a fuse (2-
10A) within the installation. The separation
(circuit breaker or power switch) must be near
to the instrument and easy to reach.
The connection of the measurement and oper-
ating voltage is carried out on the backside of
the UMG96S via touch proof spring terminal. To
the current inputs, either .../5A or .../1A trans-
formers can be connected.
Attention!
Measurement in systems with pulse load
is not possible, because no continuous
scanning of the measuring signals is car-
ried out.
m
Attention!
The inputs, outputs and serial interfaces
must be shielded.
m
Attention!
The connection of the neutral conductor
N is absolutely neccessary.
m

Page 8
Functional description
The three phase electronic measuring system
detects and digitizes the true rms values of al-
ternating voltage and current in 50/60Hz net-
works.
The operating voltage of the UMG96S is taken
from the measuring voltage L1-N, L2-N and L3-
N. Devices for the measurement in 230V/400V
networks, at least one phase must be within the
rated range. Instruments for measurement in
58V/100V or 63V/110V networks, at least two
phases must be within the rated voltage range.
Either .../5A or .../1A transformers can be con-
nected to the current inputs. In networks with
150VAC against ground, currents up to 5A can
be connected directly to the UMG96S.
Each second, one sample measurement is car-
ried out at all current and voltage inputs. Volt-
age interruptions longer than one second are
safely recognized. For each sample, 6 periods
are scanned. From these values, the inserted
microprocessor calculates the electrical quanti-
ties. The measured values can be indicated in
the measured value displays. The energy and
minimum and maximum values as well as the
programming data are stored every 5 minutes
in a none volatile memory (EEPROM).
The scanning frequency for all measuring inputs
is calculated from the net frequency of phase
L1. For a net frequency of 50Hz, the scanning
frequency is 2.5kHz and for a net frequency of
60Hz, the scanning frequency is 3.0kHz. If
voltage in L1 is smaller than 50V, the UMG96S
uses the last measured net frequency for the
calculation of the scanning frequency.
Diagr. Generation of the operating voltage, 300V
standard version.
UMG96S
Generation of
operating voltage
L2
L3
N
L1
PE
Voltage measurement
4M
4M
4M 4M
Diagr. Generation of the operating voltage, 150V
special version.
UMG96S
Generation of
operating voltage
L2
L3
N
L1
PE
Voltage measurement
4M
4M
4M 4M

Page 9
Voltage versions
The UMG96S takes the measurement voltage
as operating voltage and can be delivered in the
versions 150V and 300V. The delivered version
is indicated on the type plate of UMG96S.
Please ensure, that the local net conditions
match the numbers on type plate before con-
nection.
300V standard version
In 300V standard version, the UMG96S can
measure voltage up to 300VAC against ground.
At leats one phase (L) of the UMG96S and the
neutral N must be connected and the connected
voltage must be within the measurement and
operation voltage range.
The measurement and operation voltage
range of devices without additional PCB and for
devices with additional PCB 1 (analogue output)
are:
Measuring range L-N : 50 .. 300V AC
Measuring range L-L : 87 .. 520V AC
Operating voltage range L-N : 85 .. 300V AC
The measurement and operating voltage range
for devices with additional PCB 2 (Profibus) are:
Measuring range L-N : 50 .. 300V AC
Measuring range L-L : 87 .. 520V AC
Operating voltage range L-N :140.. 300V AC
150V special version
In 150V special version, the UMG96S can
measure voltage up to 300VAC against ground.
At least 2 phases (L) of the UMG96S must be
connected, and the connected voltage must be
within the measurement and operation voltage
range.
Measuring range L-N : 25 .. 140V AC
Measuring range L-L : 40 .. 260V AC
Operating voltage range L-L : 85 .. 260V AC
Attention!
Voltage, which is above the allowed
range can damage the device.
m
The operating voltage for the unit is taken
from the outer conductors.
m

Page 10
Device versions
The UMG96S can be delivered in different ver-
sions. The customer can assign a function to the
clamps 11, 12 and 13 of UMG96S.
Version 1
Version 1 contains the following functional
groups:
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
UMG96S
12
13
11
14
15
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Comparator group 1
Comparator group 2
RS485 (MODBUS RTU)
Interface
Serial Interface
Basic PCB
RS485
Current measurement
15
14
13 12
11
10
8
7 9
1
3 2
4
6
5
I / O Measurement
and operating
voltage
Art.Nr.
52.13.001
52.13.002
52.13.003
52.13.004

Page 11
Version 2
Version 2 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
UMG96S
12
13
11
RJ11
Sleeve
14
15
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Comparator group 1
Comparator group 2
Basic PCB
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
RS232
RS485
Current measurement
15
14
13 12
11
10
8
7 9
1
3 2
4
6
5
I / O Measurement
and operating
voltage
Art.Nr.
52.13.005
52.13.006
52.13.007
52.13.008

Page 12
Version 3
Version 3 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
Clock with battery
Data memory
UMG96S
12
13
11
RJ11
Sleeve
14
15
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Data memory
Additional PCB 1
Comparator group 1
Comparator group 2
Basic PCB
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
Clock with battery
Additional PCB 1
Memory
13 12
11
RS232
Measurement
and operating
voltage
Current measurement
15
14
10
8
7 9
1
3 2
4
6
5
Art.Nr.
52.13.009
52.13.010
52.13.011
52.13.012

Page 13
Version 4
Version 4 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
Analog output 1
Analog output 2
UMG96S
12
13
11
RJ11
Sleeve
14
15
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Analog output 2
Additional PCB 1
Comparator group 1
Comparator group 2
Basic PCB
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
Analog output 1
Additional PCB 1
Analog outputs
13 12
11
RS232
Measurement
and operating
voltage
Current measurement
15
14
10
8
7 9
1
3 2
4
6
5
Art.Nr.
52.13.013
52.13.014
52.13.015
52.13.016

Page 14
Version 5
Version 5 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
Analog output 1
Analog output 2
Clock with battery
Data memory
UMG96S
12
13
11
RJ11
Sleeve
14
15
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Analog output 2
Additional PCB 1
Comparator group 1
Comparator group 2
Basic PCB
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
Analog output 1
Data memory
Clock with battery
Additional PCB 1
Analog outputs
Clock with battery
Data memory
13 12
11
RS232
Measurement
and operating
voltage
Current measurement
15
14
10
8
7 9
1
3 2
4
6
5
Art.Nr.
52.13.017
52.13.018
52.13.019
52.13.020

Page 15
Version 6
Version 6 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
Digital input 1
Digital input 2
Comparator group 1
Comparator group 2
UMG96S
12
Additional PCB 2
13
11
RJ11
Sleeve
14
15
Digital input 1
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
Basic PCB
Digital input 2
Additional PCB 2
Digital inputs
13 12
11
RS232
Measurement
and operating
voltage
Current measurement
15
14
10
8
7 9
1
3 2
4
6
5
Art.Nr.
52.13.021
52.13.022
52.13.023
52.13.024

Page 16
Version 7
Version 7 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Profibus DP
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
Digital input 1
Digital input 2
Comparator group 1
Comparator group 2
Digital input 2
UMG96S
12
Additional PCB 2
13
11
RJ11
Buchse
14
15
Digital input 1
DSUB 9
Profibus DP
(Option)
AB-+ TXD
GND
RXD
TXD
RXD
8356
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
Basic PCB
Additional PCB 2
Profibus DP
Digita input
Profibus
DP
13 12
11
RS232
Measurement
and operating
voltage
Current measurement
15
14
10
8
7 9
1
3 2
4
6
5
Art.Nr.
52.13.025
52.13.026
52.13.027
52.13.028

Page 17

Page 18
Installation
Mounting
The UMG96S is designed for a fix installation in
low and medium voltage systems. The mount-
ing position is random.
Measurement and operation
voltage
The UMG96S gets its operating voltage from the
measuring voltage. The measurement is
designed for three phase systems with neutral
conductor (TN and TT networks). The measure-
ment and operational voltage must be con-
nected to the UMG96S via a separation (circuit
breaker or power switch) and a fuse (2-10A)
within the installation. The connection of the
measurement and operating voltage is carried
out on the backside of the UMG96S via touch
proof spring terminal.
300V standard version
At least one phase (L) of the UMG96S and the
neutral N must be connected and the connected
voltage must be within the measurement and
operation voltage range.
The measurement and operation voltage
range of devices without additional PCB and for
devices with additional PCB 1 (analogue output)
are:
L-N 85 .. 300V
L-L 148 .. 520V
The measurement and operating voltage
range for devices with additional PCB 2
(Profibus) are:
L-N 140 .. 300V
L-L 242 .. 520V
150V special version
At least 2 phases (L) of the UMG96S must be
connected, and the connected voltage must be
within the measurement and operation voltage
range.
The measurement and operating voltage
range is:
L-N 50 .. 150V
L-L 85 .. 260V Attention!
Before connecting voltage, the device
should be deposited in the preposed in-
stallation room for at least 2 hours, in
order to create a temperature equaliza-
tion and avoid humidity or dew within the
instrument.
m
Attention!
The limits, mentioned under "technical
data" may not be exceeded, even not
during checking or putting into service of
UMG96S.
m
- The used cables must be suitable for a rated
voltage of 300VAC against ground.
- The measurement and operating voltage must
be protected by a fuse. The fuse must be in the
range of 2A to 10A.
- Please provide a circuit breaker or power
switch for the operating voltage.
- The switch must be near the UMG96S and
easy to reach.
- The switch must be marked as a separation for
this instrument.

Page 19
Sum current measurement
If the current measurement is carried out via two
current transformers and a sum current trans-
former, the total transformer ratio must be
programmed at UMG96S.
Example: Sum current transformer
A current measurement is carried out via one ct
with a ratio of 1000/5A and one ct with a ratio of
1000/5A. The current measurement is carried
out via a sum current transformer 5+5/5A.
The UMG96S must be programmed as follows:
Primary current: 1000A + 1000A = 2000A
Secondary current: 5A
Verbraucher 1
Consumer 1
Verbraucher 1
Consumer 1
Einspeisung 1
Supply 1
Einspeisung 1
Supply 1
UMG96S
L l
K k
L l
K k
AK AL
K l
k l
BK Bl
Current measurement
The current measurement is carried out via cur-
rent transformers of either ../5A or ../1A. If the
current must be measured by an Amperemeter
additionally, it must be connected in series to the
UMG96S.
In networks with voltage up to 150VAC against
ground, currents up to 5A can be connected di-
rectly to the UMG96S.
L l
K k
A
l
k
UMG96S
Verbraucher
Consumer
Einspeisung
Supply
Attention!
The secondary connections of the current
transformer must be short-circuited, be-
fore the wires that lead to the device are
interrupted!
If a testing switch is available, which short-
circuits the secondaries of the cts auto-
matically, it is sufficient to set it into posi-
tion "check", provided that the short-
circuiters have been checked before.
m

Page 20
Serial interfaces
Depending on the version the UMG96S may
have up to three serial interfaces. The serial in-
terfaces are not separated galvanically.
The RS232 and RS485 cannot be operated at
the same time!
If both interfaces are connected, the device rec-
ognizes by the signal level, if an instrument is
connected to the RS232. The data transmission
is carried out via RS232 only.
If no device is recognized at RS232, data trans-
mission is active on RS485 interface.
m

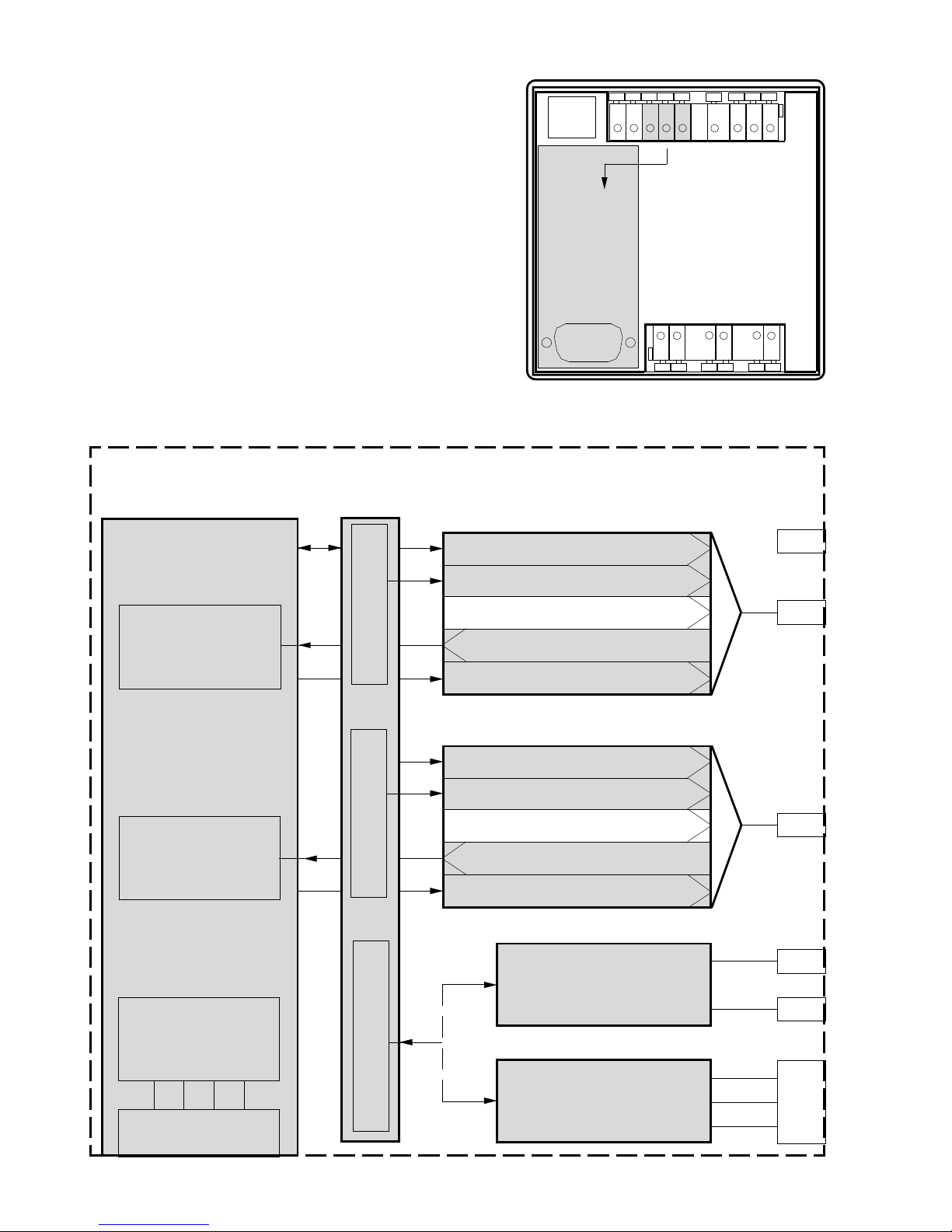

Inputs and outputs
The UMG96S offers the possibility of assigning
different functions to the outputs of the different
versions (options).
Terminal 12, for example, can have the function
"pulse output" and terminal 13 can have the
function "digital input". Please note, that both
circuits have a common supply +24VDC, termi-
nal 11.
Only one function can be assigned to each ter-
minal 12 and 13.
12
13
11
Input/Output 2
Pulse output Wq (003 =0)
Digital output (003 = 1)
Analog output(003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1
Pulse output Wp (002 =0)
Digital output (002 = 1)
Analog output (002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Attention!
Real energy Wp is firmly assigned to
puls output 1.
Reactive energy Wq is firmly assigned to
puls output 2.
m

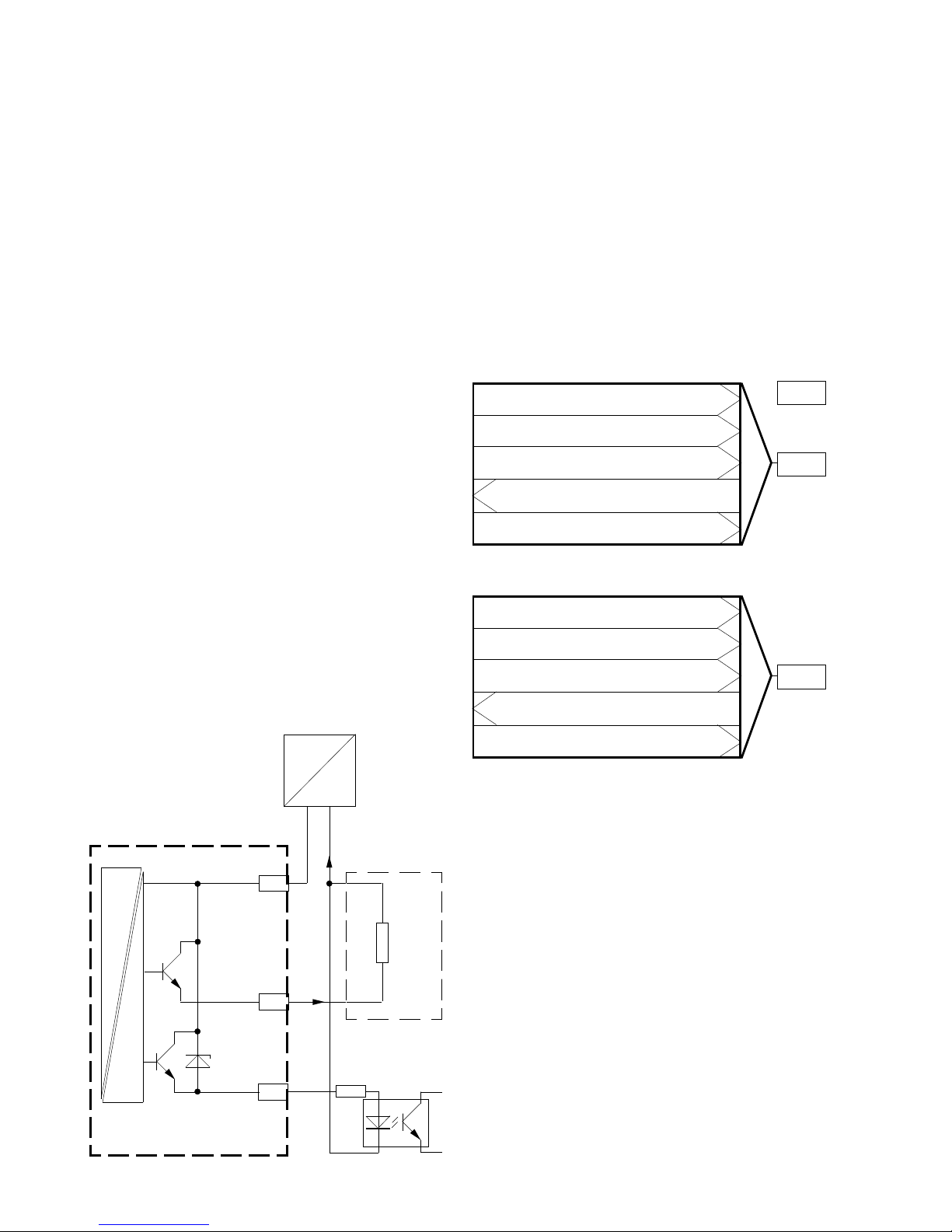

Diagr.: UMG 96S with one analogue and one
digital output as pulse output for real energy.
The cable for serial data transmission
must be performed in a shielded way, if
the cable length is more but 30m or the
cable leaves a building.
UMG96S
12
+-
External
auxiliary
voltage
Digital
output 1 1,5k
max. 360 Ohm
Analogue
output 2
13 +
+24V= 11 +
230V AC
24V DC
