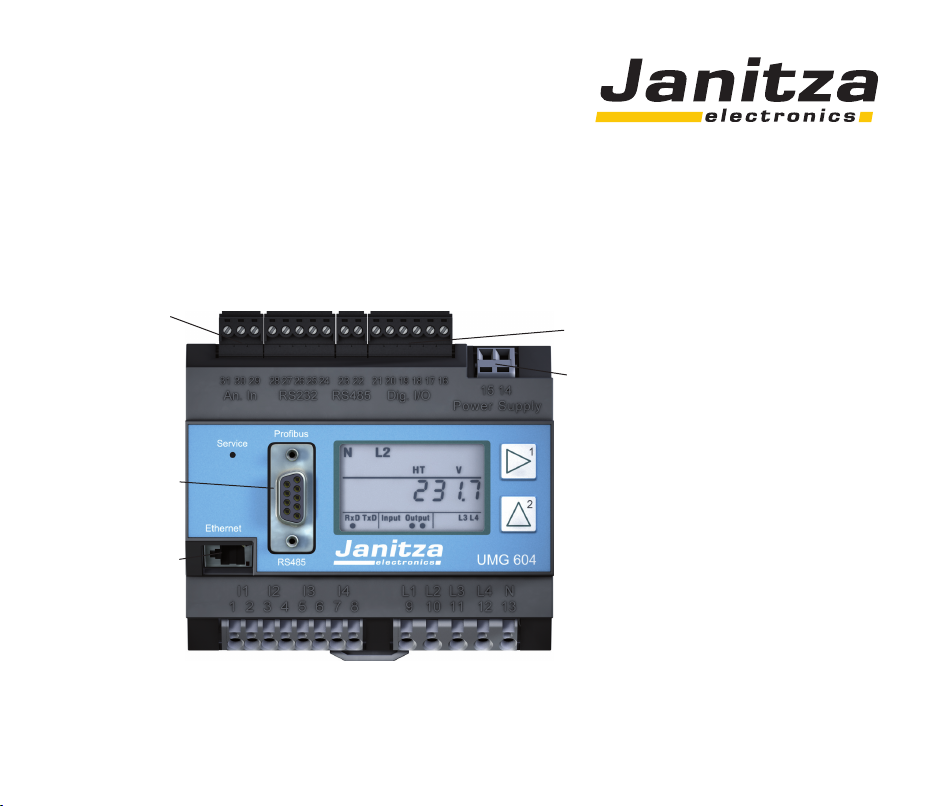

janitza UMG 604 Service manual

RS232 RS485
Doc No. 1.033.032.9
Network analyser
UMG 604
Installation and Putting into Service
Product No. 33.03.070
Janitza electronics GmbH
Vor dem Polstück 1
D-35633 Lahnau
Support Tel. [phone]
Fax [phone]
e-mail: [email protected]
Internet: http://www.janitza.de
Profibus
(optional)
Ethernet
(optional)
Power supply voltage
Temperature
measurement
input
4 x current
measurement
4 x voltage
measurement
2 digital inputs
2 digital outputs
B
A

2
Contents
General Information 4
Copyright 4
Protected trademarks 4
Liability disclaimer 4
Comments on the manual 4
Meaning of the symbols used 5
Inspection on receipt 6
Scope of supply 7
Available accessories 7
Notes on Use 8
Product Description 10
Intended use 10
UMG604 features 11
Methods of measurement 12
Operating concept 12
GridVis programming software 13
Three-phase 4-conductor systems 14
Three-phase 3-conductor systems 16
Use 18
Key functions 18
Concealed key (service) 18
Display mode 19
Programming mode 20
Display password 21
Homepage password 21
Installation 22
Installed position 22
Power supply voltage 23
Current measurement 24
Ammeter 26
Direct measurement 28
Voltage measurement 30
Interfaces 32
RS485 34
RS485 profibus DP V0 slave 36
Digital inputs and outputs 38
Temperature measurement input 42
Putting into Service 43
Applying the power supply voltage 43
Frequency measurement 43
Applying the measuring-circuit voltage 44
Phase sequence 45
Applying the measuring-circuit current 45
Checking the power measurement 46
Configuration 48
Current transformer ratio 48
Current measurement connection options49
Voltage transformer ratio 50
Voltage measurement connection options51
Interfaces 52
RS485 52
RS232 52
Ethernet (optional) 53
Profibus (optional) 54
Recordings 55

3
Contents
Issue notes
14.03.2008 First issue.
System information 56
Overrange 56
Serial number 57
Date 57
Firmware release 57
Time 57
Service and maintenance 58
Repair and calibration 58
Front film 58
Battery 58
Firmware update 58
Service 58
What to do in case of errors 59
Technical specifications 62
General information 62
Ambient conditions during operation 62
Transport and storage 62
Power supply voltage 63
Protection class 63
Measurement uncertainty 64
Measuring ranges 65
Voltage measurement 65
Inputs and outputs 66
Temperature measurement input 67
Interfaces 68
Appendix 69
Measured value displays 69
Parameter list 70
Declaration of conformity 75
Dimensioned drawings 76
UMG604 connection example 77
Current measurement 77
Network analyser 77
Voltage measurement 77
Power supply voltage 77
Quick Reference Instructions 78

4
General Information
Copyright
This manual is subject to the statutory copy-
right protection provisions and may not be
photocopied, reprinted, reproduced as a
whole or in parts, by mechanical or electronic
means, nor copied or further published in any
other way whatsoever without the legally bind-
ing, written consent of
Janitza electronics GmbH,
Vor dem Polstück 1,
D 35633 Lahnau,
Germany.
Protected trademarks
All trademarks and their resulting rights belong
to the respective holders of these rights.
Liability disclaimer
Janitza electronics GmbH does not accept
any responsibility whatsoever for errors or
deficiencies within this manual and does not
undertake any obligation to keep the content
of this manual up to date.
Comments on the manual
We welcome your comments. If anything in
this manual seems unclear to you, please let
us know by sending an eMail to:
[email protected]
General Information

5
m
c
Meaning of the symbols used
The following pictograms are used in this
manual:
Dangerous voltage!
Danger or risk of severe injury.
Disconnect the system and device
from the power supply before starting
the work.
PE (protective earth) terminal.
Important!
Please note and follow the
documentation. This symbol is
intended to warn you of possi-
ble hazards that can occur during
installation, starting up and use.
General Information

6
m
m
m
Inspection on receipt
Fault free and safe use of this device requires
appropriate transport, proper storage, erection
and assembly as well as careful operation and
maintenance. If it can be assumed that safe
operation is no longer possible, the device
must be immediately taken out of service and
secured against being accidentally started
up.
The device must be unpacked and packed
with the usual care, without the use of force
and only using suitable tools. The devices
must be visually inspected for perfect
mechanical condition. Please also note and
follow the installation instructions enclosed
with the device.
It can be assumed that safe operation is no
longer possible if the device, e.g.
• has visible damage,
• no longer works, despite intact mains power
supply,
• has been exposed to unfavourable conditions
(e.g. storage outside the permissible climatic
limits without adjustment to the ambient
climate, condensation, or similar) for a lengthy
period or was exposed to unfavourable effects
or loads during transport (e.g. fall from a large
height even if there is no visible external
damage, or similar).
Inspection on receipt
Please check the scope of supply for
completeness before you start installing the
device.
All supplied options and design
versions are described on the delivery
note.
The installation and start-up instruc-
tions also describe options which do
not belong to the scope of supply.
All screw-type terminals belonging to
the scope of supply are plugged into
the device.

7
Product No. Name
21 01 102 Battery, lithium CR2450N, 3 V/540 mAh
18 08 094 RS485, external terminating resistor, 120 ohm
1) Refer to delivery note for product number.
2) Design version.
Inspection on receipt
Scope of supply
Number Product No. Name
1 52 16 xxx1) UMG604 XX2)
1 33 03 0xx1) Installation and start-up instructions.
1 51 00 116 CD with the following content:
- “GridVis” programming software,
- Functional descriptions, GridVis, UMG604 ..
- GSD file “0B41.GSD” for profibus DP V0
1 10 01 807 Screw-type terminal, plug-in, 2 pin.
1 10 01 808 Screw-type terminal, plug-in, 3 pin.
1 10 01 809 Screw-type terminal, plug-in, 5 pin.
1 10 01 810 Screw-type terminal, plug-in, 6 pin.
1 89 10 051 Slot-head screwdriver (0.40x2 mm), ESD
1 08 01 504 Patch cable, 3m, blue. (UMG604 - switch/hub connection)
1 08 01 505 Patch cable, 2m, twisted, grey. (UMG604 - PC connection)
Available accessories

8
Product Description
Notes on Use
Please read these operating instructions and
all other publications which have to be used
to work with this product (in particular for
installation, operation or maintenance).
Note and follow all safety instructions as
well as any warnings. If you do not follow the
instructions, personal injuries and/or damage
to the product could be the result.
Any unauthorised change or use of this device
which extends beyond the given mechanical,
electrical or other operating limits can cause
personal injuries and/or damage to the
product.
Any such unauthorised change is “misuse”
and/or “negligence” under the product's
warranty and therefore excludes the warranty
for cover of possible resulting injuries or
damage.
This device may be solely operated and
maintained by skilled persons.
Skilled persons are people who, on the basis
of their relevant training and experience, are
capable of identifying risks and avoiding
possible hazards which operation or
maintenance of the device can cause.
When using the device, any additional legal and
safety regulations required for the respective
use must be observed.

9
m
c
m
Product Description
Important!
If the device is not operated according
to the instruction manual, protection
is no longer ensured and the device
can cause hazards.
Conductors made of individual wires
must be fitted with wire end ferrules.
Only pluggable screw terminals with
the same number of poles (pins) and
of the same type may be plugged
together.

10
Product Description
Product Description
Intended use
The UMG604 is intended to be used for the
measurement and calculation of electrical
variables such as voltage, current, power,
work, harmonic components, etc. in building
installations, at distribution boards, circuit-
breakers and busbar trunking systems.
Measuring-circuit voltages and currents must
originate from the same system.
The UMG604 is permanently installed in
control cabinets or small distribution boards.
It can be installed in any position.
The measurement results can be displayed,
stored and read out via serial interfaces and
further processed.
The voltage measurement inputs are designed
for measurements in low-voltage systems in
which rated voltages up to 300 V conductor
to earth and surge voltages of overvoltage
category III can occur.
The current measurement inputs of the
UMG604 are connected via external ../1A or
../5A current transformers.
Mains failure detection
The mains failure detection takes place via the
voltage measurement inputs. The selection of
voltage measurement inputs can be configured
using the GridVis software.
Mains failure stored energy time
The UMG604 bridges the following mains
failures at the auxiliary voltage input:
Mains voltage Stored energy time
230V AC max 80ms
Measurement in medium and high-voltage
systems takes place with current and voltage
transformers. Special safety requirements
must be complied with for these, which are
not dealt with in any greater detail here.
The UMG604 fulfils the test requirements for
use in industrial areas.

11
Product Description
UMG604 features
- Measurement in IT and TN systems,
- 4 voltage measurement inputs
- 4 current measurement inputs,
- Continuous scanning of the voltage and current measurement inputs,
- Energy measurement, measurement uncertainty class 0.5 for ../5A current transformers,
- Energy measurement, measurement uncertainty class 1 for ../1A current transformers,
- Registers more than 800 measured values (readings),
- Fourier analysis 1st to 40th harmonic component for U, I, P (consumption/supply) and Q
(inductive/capacitive),
- Registering and storage of transients (>50 µs),
- 2 digital inputs,
- 2 digital outputs,
- Temperature measurement input,
- LED display,
- 2 keys,
- Profibus DPV0 (optional),
- RS485 (modbus RTU, modbus master),
- RS232,
- Ethernet (web server, EMAIL) (optional),
- Programming own applications in Jasic,
- Operating temperature range -10°C .. +55°C,
- Mounting on top hat rails 35 mm,
- Suitable for installation in distribution boards.

12
m
Product Description
Operating concept
You can program the UMG604 and call up
measured values in several ways.
Directly• at the device using 2 keys and the
display. You can change the values in the
parameter list (see Appendix) and call up
the measured values from the measured
value displays.
Via the• GridVis programming software.
In devices with an ethernet interface, via•
the homepage of the UMG604.
Via the RS485 with the• modbus protocol.
You can change and call up data with the
help of the modbus address list (is filed on
the enclosed data carrier).
Operation of the UMG604 via the integrated
display and the two keys only is described in
these operating instructions.
The Gridvis programming software and the
homepage have their own “online help”.
Methods of measurement
The UMG604 measures continuously and
calculates all effective values over a 200 ms
interval.
Use the parameter list in the
appendix to these instructions for
programming at the UM G604 and
the modbus address list on the
data carrier included in the scope of
supply for programming via a serial
interface.

13
PC UMG
604
Ethernet
PC UMG
604
RS232
RS485
PC UMG
604
RS232
GridVis programming software
The UMG604 can be programmed and read
out using the GridVis®programming software
included in the scope of supply. This requires
a PC to be connected to the UMG604 via a
serial interface/ethernet.
GridVis features
Programming the UMG604•
Configuring recordings•
Reading out recordings.•
Storing data in a database•
Graphic display of measured values•
Programming customer-specific applica-•
tions.
Product description
Fig. 13.2 Connection of a UMG604 to a PC via
an interface converter.
Interface
converter
Fig.13.3 Connection of a UMG604 (with the
ethernet option) to a PC via the ethernet.
Fig. 13.1 Connection of a UMG604 to a PC via
an RS232 cable.

14
Three-phase 4-conductor systems
The UMG604 can be used in three-phase
4 conductor systems (TN, TT system) (50 Hz,
60 Hz) with earthed PEN conductor. The
bodies of the electrical system are earthed.
The conductor to neutral conductor voltage
may not exceed 300 V AC.
The UMG604 is only suitable for environments
in which the impulse voltage withstand
level of 4 kV (overvoltage category III) is not
exceeded.
Fig. 14.1 Table of the suitable rated voltages.
UL-N / UL-L
66 V / 115 V
120 V / 208 V
127 V / 220 V
220 V / 380 V
230 V / 400 V
240 V / 415 V
260 V / 440 V
277 V / 480 V
Typical rated voltage
Product Description

15
UMG604
DC
AC/DC
PE
230/400V 50/60Hz
L2
L3
N
L1
4M
4M
4M 4M
L1 L3L2 N
4M
L4
230/400V 50/60Hz
UMG604
DC
AC/DC
L2
L3
N
L1
4M
4M
4M 4M
L1 L3L2 N
4M
L4

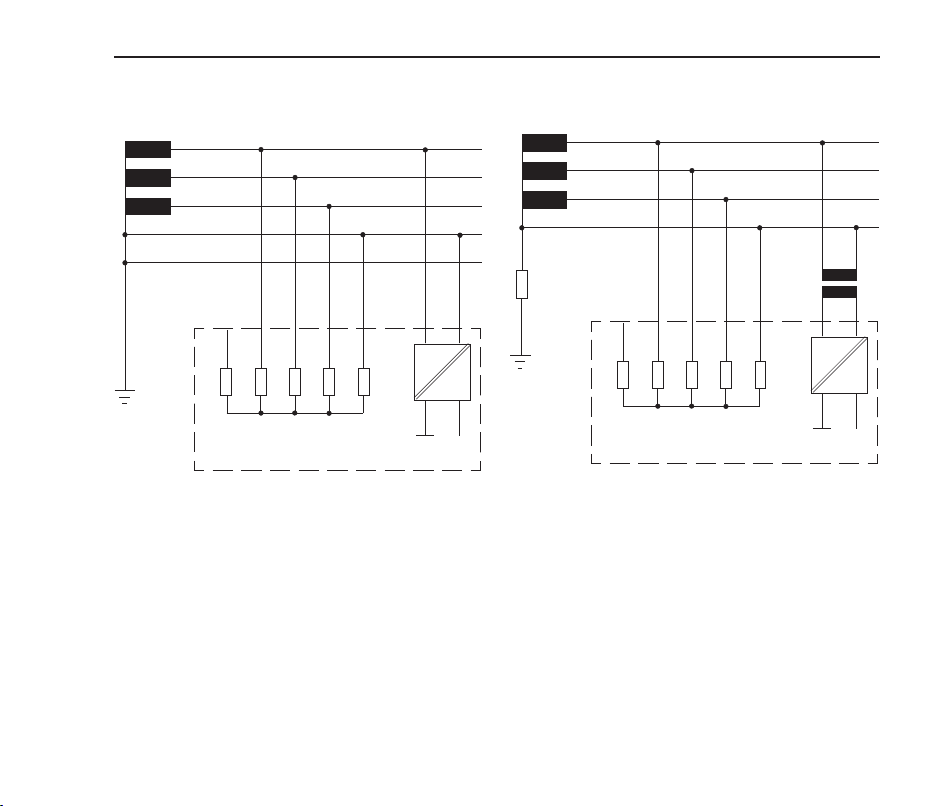

Fig.15.1 Block diagram, UMG604 in TN
system.
Fig.15.2 Block diagram, UMG604 in IT system
with N.
Product Description
Earthing the
system
Auxiliary power
Voltage measurement
Impedance
Earthing the
system
Auxiliary power
Voltage measurement

16
Product Description
Three-phase 3-conductor systems
The UMG604 can be used in unearthed three-
phase 3 conductor systems (IT system). The
conductor to conductor voltage may not
exceed 480V AC (50 Hz, 60 Hz).
The UMG604 is only suitable for environments
in which the impulse voltage withstand
level of 4 kV (overvoltage category III) is not
exceeded.
In the IT system the neutral point (star point)
of the voltage generator is not earthed. The
bodies of the electrical system are earthed.
Earthing via high-resistance impedance is
allowed.
IT systems are only allowed in certain systems
with their own transformer or generator.
UL-L
66 V
115 V
120 V
127 V
200 V
230 V
240 V
260 V
277 V
347 V
280 V
400 V
415 V
440 V
480 V
Fig. 16.1 Table of the suitable rated voltages.
Typical rated voltage

17
230/400V 50/60Hz
UMG604
DC
AC/DC
L2
L3
N
L1
4M
4M
4M 4M
L1 L3L2 N
4M
L4
400V 50/60Hz
DC
AC/DC
L2
L3
4M
4M
4M 4M
L1 L3L2
4M
L4
L1
UMG604
N
Product Description
Fig.17.1 Block diagram, UMG604 in IT system
without N.
Fig.17.2 Block diagram, UMG604 in IT system
with N.
Earthing the
system
Auxiliary power
Impedance
Voltage measurement
Auxiliary power
Voltage measurement
Earthing the
system
Impedance

18
12
Use
Use
The UMG604 has a display, keys 1 and 2 and
the Service key to make it easier to install and
start up the UMG604 without a PC.
Important parameters such as current
transformers and device address are included
in the parameter list (see Appendix) and can
be directly programmed at the device.
A differentiation is made between operation
with the
display mode and•
Programming mode.•
Key functions
Press the key “briefly”:
page forwards•
Digit/value +1•
Press the key for “long time”:
page backwards•
Digit/value -1•
Simultaneously press both keys for around
1 second and keep them pressed:
Switch between display mode and•
programming mode.
Display
Key 1
Key 2
Concealed key
The UMG604 is operated
using keys 1 and 2.
Keys 1 and 2
Concealed key (service)
The Service key is intended for use by
instructed service employees only.

19
1
2
N L1
RxD TxD
V
L1 L2 L3 L4
Input Output
RxD TxD L1 L2 L3 L4 Input Output
Hz
mImportant!
The user can use the GridVis/Jasic to
reconfigure the function of the keys
and selection of the values to be
displayed.
Display mode
After the power supply is resumed the device
is in Display mode.
In Display mode you can use Keys 1 and 2 to
page between the measured value displays.
Use
Press Key 2 to page between the
measured values for current, voltage,
power output, etc.
Use Key 1 to select the phase for the
measured values.
The factory default setting for the measured
value displays is shown in the “measured
value displays” in the Appendix.

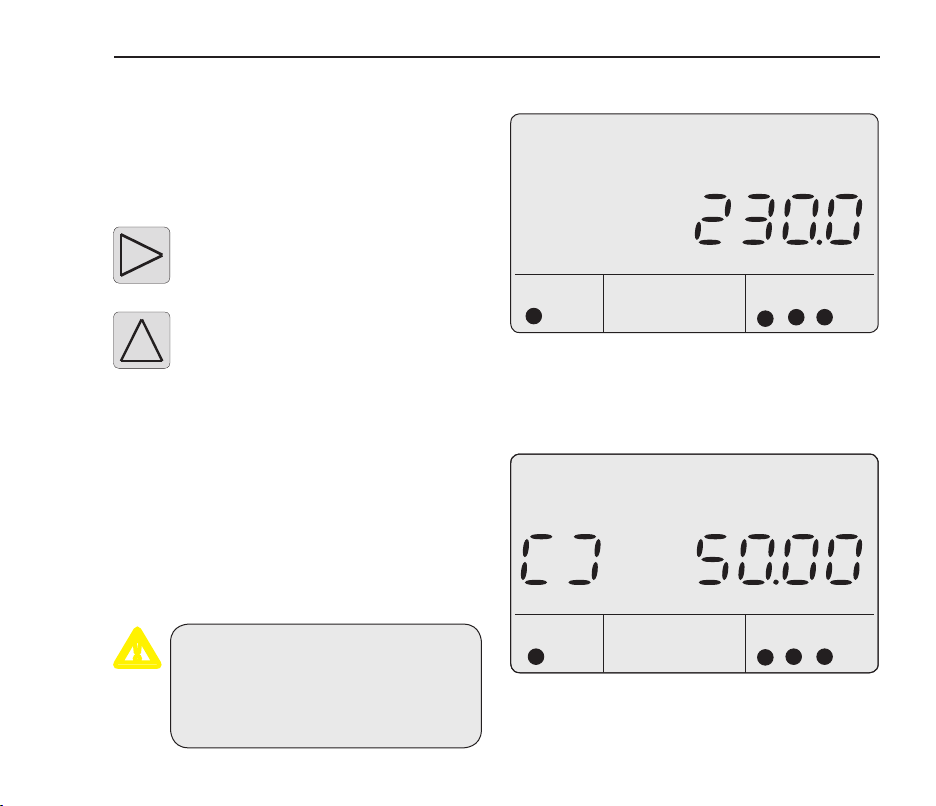

Fig.19.1 “Display Mode” display example.
Displayed measured value: UL1-N = 230.0 V.
Fig.19.2 Display example for rotating field and
frequency.

20
Address Content
PRG
Use
Programming mode
The most important settings required for
operation of the UMG604 can be displayed
and changed in Programming mode.
The parameter list in the Appendix contains
the addresses for the most important settings.
You can make further settings using the GridVis
software included in the scope of supply.
If you simultaneously press Keys 1 and 2 for
around 1 second, programming mode opens
via a password query. If a display password has
not been programmed, the first programming
menu opens directly.
Programming mode is denoted in the display
by the text “PRG”. The digits of the address
flash.
If you are in programming mode and have not
pressed a key for approximately 60 seconds
or simultaneously press Keys 1 and 2 for
around 1 second, the device returns to Display
mode.
Fig. 20.1 “Programming Mode” display example,
address 000 with content 5,000.
