Jasic Arc 140 User manual

MODEL:ARC200(Z104)/ARC200(Z276)ARC140(Z269)/
ARC200D(Z225)/ARC250D(Z226)/ARC250(Z227)
INVERTER WELDER
OPERATOR’S MANUAL

FORWARD
SHENZHEN JASIC TECHNOLOGY CO., LTD.
Address: No. 3, Qinglan 1st Road, Pingshan District, Shenzhen, Guangdong, China
Postcode: 518118
Tel: [phone]
Fax: [phone]
Website: http://www.jasictech.com E-mail: sales jasictech.com
Version A0:

SAFETY
Precautions for installation
Beware of electric shock!
Install grounding device according to application standard.
Do not touch live parts with naked skin, wet gloves or wet clothes.
Be sure you are insulated from ground and workpiece.
Cover the cover plate of the machine before power on to avoid an
electric shock.
Confirm the safety of your working position.
Beware of fire hazard!
Please install the machine on non-combustible materials to avoid
a fire.
Make ensure there are no inflammables near the welding position
to avoid a fire.
Beware of explosion !
Do not install the machine in an environment with explosive gas
to avoid an explosion.
Replacing the components can be dangerous.
Only professionals can replace the components of the machine.
Make sure the connecting wires inside the machine are correctly connected after replacing
the PCBs, and then the machine can be run. Otherwise, there is a risk of damage to
property.
Make sure there are no foreign bodies such as wire leads, screws, gaskets and metal bars
falling into the machine inside when replacing the components.

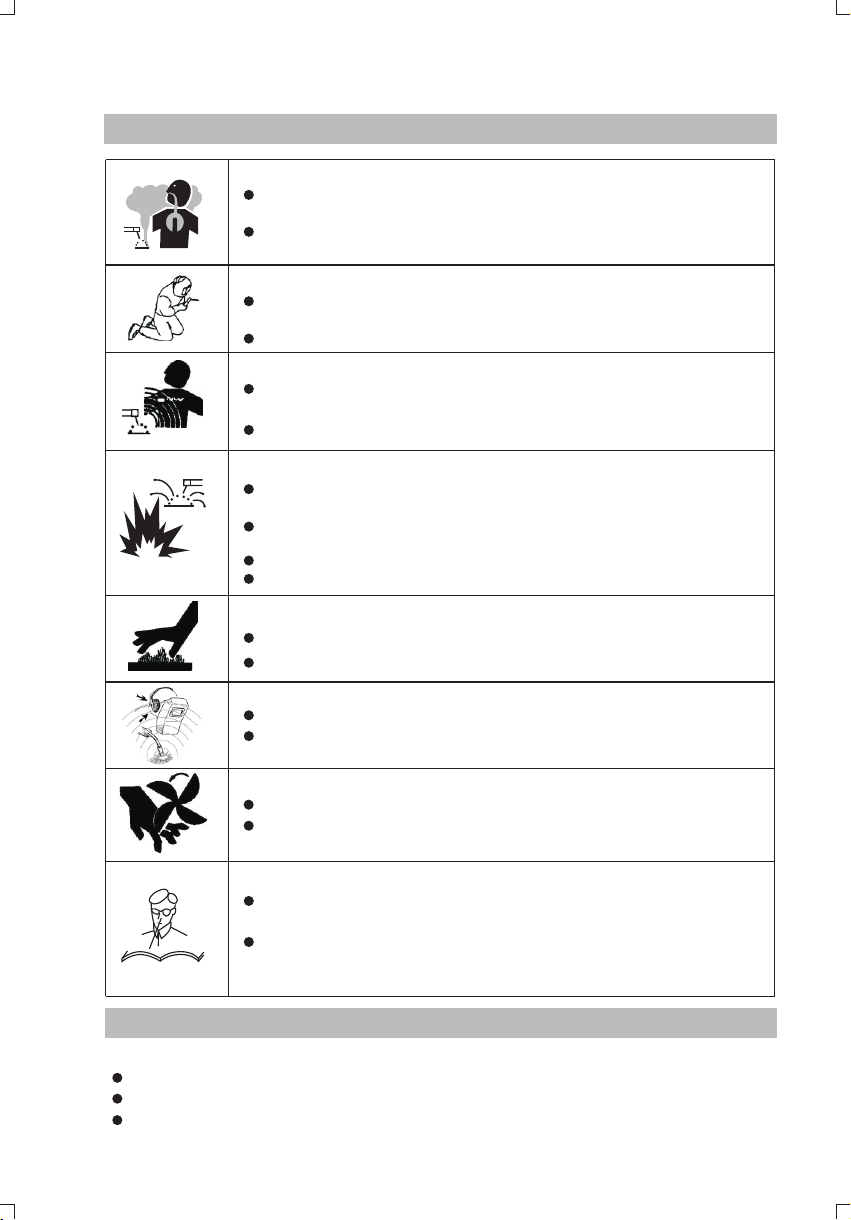

Precautions for operation
Smoke-may be harmful to your health!
Keep your head away from the smoke to avoid inhalation of waste gas
in welding.
Keep the working environment well ventilated with exhaust or ventilation
equipment when welding.
Arc radiation-may hurt your eyes and burn your skin!
Use proper welding mask and wear protective clothing to protect your
eyes and body.
Use proper mask or curtain to protect onlooker from being injured.
Magnetic field can make cardiac pacemaker a bit wonky!
Stay away from the welding source to reduce the affect of magnetic filed.
Improper use and operation may result in a fire or an explosion!
Welding spark may result in a fire, so please make ensure there are no
inflammables near the welding position, and pay attention to fire safety.
Ensure there is fire extinguisher nearby, and make sure someone has
been trained to operate the fire extinguisher.
Do not weld closed container.
Do not use this machine for pipe thawing.
Hot workpiece can cause severe scald!
Do not touch hot workpiece with bare hands.
Cool the welding torch for a while after continuously working.
Excessive noise does great harm to people’s hearing!
Wear ear covers or other hearing protectors when welding.
Give warning to onlooker that noise may be potentially hazardous to
hearing.
Moving parts may injure your body!
Please keep away from moving parts (like fan).
Each door, panel, cover, baffle plate, and protective device the like
should be closed and located correctly.
Seek professional support when trouble strikes!
When trouble strikes in installation and operation, please inspect
according to related contents in this manual.
If you still cannot understand fully, or you still cannot solve the problem,
Precautions for discard
Pay attention to the following when discarding the welding machine:
Burning the plastic parts such as the front panel may produce poisonous gas.
Dispose it as industrial waste.
Burning the electrolytic capacitors in the main circuit or on the PCBs may cause an explosion.
People with cardiac pacemaker should consult the doctor before carrying
out welding.
please contact the dealer or the service center of JASIC to obtain
professional support.

TABLE OF CONTENTS

1
ARC200
(Z104)
ARC200
(Z276) AR C 2 0 0 D ( Z 2 25) AR C 2 5 0 D ( Z 2 26)
AR C 2 5 0
(Z 2 2 7 )
65.1 8 6 8 79.6 8
Rated input current(A)
24.3 26 40.8 32.2 24.8 37.4 29.7 14
6 7.1 9.4 7.1 9.4 11.3 9.58.2
Rated output (A/V)
Rated duty cycle(%)
No-load voltage(V)
Efficiency (%)
40%
40%
6062
F
0.7 0.7 0.7 0.7 0.7 0.7
IP21S
85 85 85858585
40%
40%30%
40%
67 70 70 62 6060
20 200~ 20 180~ 20 230~ 20 250~20 0~16
0 60~0 60~0 60~
20 200~
0 100~
20 170~20 140~
1. GENERAL DESCRIPTION
1.1 Model coding
ARC XXX (XXXX)
X
Product code
Vacancy: single voltage
D: double voltage
Code for rated output current
Inverter DC MMA welder
Figure 1 1: Model coding-
1.2 Technical parameters
Table 1 1: General technical parameters-
Items
Models
Air cooling
Single phase AC230V 50Hz-
AR C 1 4 0
(Z 2 6 9 )
Rated input
power (KW)
Cooling mode
Insulation grade
Power factor
Rated input
capacity KVA( )
Rated input
power supply
Welding
current range (A)
Arc force
current range(A)
AC230V 50Hz
140/25.6 170/26.8 200/28.0 160/26.4 180/27.2200/28.0 230/29.2 250/30.0
Enclosure ingress protection
Single-phase
AC380V 50Hz
3-phase
Single-phase
AC230V 50Hz
Single-phase
AC380V 50Hz
Single-phase
AC380V 50Hz
1. GENERAL DESCRIPTION

2
L
ARC200
(Z104)
ARC200
(Z276)
ARC200D
(Z225)
ARC250D
(Z226)
Weight Kg( )
ARC140
(Z269)
ARC250
(Z227)
430 168 312* *312 143 256* * 430 168 312* * 430 168 312* * 430 168 312* * 430 168 312* *
5.04.8 8.0 9.6 9.6 9.6
1.3 Size and weight
Table 1-2: Overall size and weight of the machine
Model
Overall size
(L*W*H)
Figure 1-2: Appearance and size of the machine Unit: mm( )
1. GENERAL DESCRIPTION
W
L
H
Z104
OC
H
W
H
W

ARC140 (Z269) 1
DKJ16-25(black)2
1
ARC200 (Z104)
DKJ35-50(black)
ARC200(Z276)
DKJ35-50(black)
10046173
10004613
10046171
10004614
10046174
10004614
10047281
10047281
10047281
第一章 产品概述
33
1.4 Composition and configuration of the welding machine system
1)Composition
Figure 1-3: Composition of the welding machine system
2 Configuration)
Table 1-3: Configuration of ARC200 Z269( )
Name
Welding machine
Quick plug
Operator’s manual
Table 1-4: Configuration of ARC200 104) (Z
Table 1-5: Configuration of ARC200 276) (Z
Material code
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
1
2
1
Name
Welding machine
Quick plug
Operator’s manual
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
1
2
1
Name
Welding machine
Quick plug
Operator’s manual
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
1. GENERAL DESCRIPTION
Material code
Material code

Material code
ARC200D(Z225)
ARC250D(Z226)
ARC250(Z227)
10004614
10046196
10004614
10046195
10004614
10046188
10047281
10047281
10047281
4
Table 1-6: Configuration of ARC200D 225 (Z )
Table 1-7: Configuration of ARC250D 226 (Z)
Table 1-8: Configuration of ARC250 227 (Z)
1.5 Functions and characteristics of the welding machine
ARC series are inverter welding machines made by our company with advanced inverter
technology. These machines are mature models and with stable performance. This series
includes several single-voltage and double-voltage models.
1
2
1
Name
Welding machine
Quick plug
Operator’s manual
Material code
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
1
2
1
Name
Welding machine
Quick plug
Operator’s manual
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
1
2
1
Name
Welding machine
Quick plug
Operator’s manual
Specification Quantity pcs ( ) Remark
Standard configuration
ARC series
Standard configuration
Standard configuration
DKJ35-50(black)
DKJ35-50(black)
DKJ35-50(black)
Great reduction in magnetic and resistance loss obviously enhances the welding efficiency
and energy saving effect.
Advanced VMOS or IGBT inverter technology
High inverter frequency greatly reduces the volume and weight of the welding machine.
Working frequency is beyond audiorange, which almost eliminates noise pollution.
Leading control mode
Advanced control technology meets various welding applications and greatly improves the
welding performance
It can be widely used in acid and basic electrode welding.
Easy arc ignition, little spatter, stable current and good shaping.
Common characteristics of MMA welding machines
Portable, energy saving, with excellent dynamic characteristics and high efficiency, stable
arc, molten pool easy to control, higher no-load voltage, better compensation of power and
arc force, able to meet various welding requirements, applicable to aerial work, field work,
indoor and outdoor decoration, etc.
Characteristics of double-voltage models
It adopts automatic switching mode for voltage.
Unique circuit design prolongs the service life of the capacitor and IGBT.
New air duct design balances the temperature inside the machine and prolongs the service
life of the components and machine.
1. GENERAL DESCRIPTION
Material code

5
U2(V)
U0
I2(A)
q(% )
40
0
20
60
80
100
50 100 150 200 250 I2(A)
1.6 System characteristics
Figure 1-5: Duty cycle
Figure 1-6: Output characteristic curves
1) Duty cycle
ARC140(Z269)
ARC200(Z104)
ARC200D(Z225)
ARC250D(Z226)
ARC200(Z276)
ARC250(Z277)
2) Output characteristics
External characteristic of maximum output
External characteristic of minimum output
Relationship with ratedload
1. GENERAL DESCRIPTION

6
1Output cable 2Rubber sleeve
3Copper sleeve 4Bolt
1 2 3 5 45Copper connector
2. INSTALLATION AND CONNECTION
2.1 Installation requirements
In order to ensure personal safety and avoid electric shock, please ground the machine reliably
by connecting the ground wire (yellow-green wire) of the machine to the grounding device in
the switching box.
Insert the plugs with the cable of the electrode holder and the cable of the earth clamp respectively
into the quick sockets on the front panel of the machine, and tighten them to clockwise.
Operator can choose DCEN connection according to workpiece and electrode application
requirement. Generally, DCEP connection is recommended for basic electrode, while there is
no special requirement for acid electrode.
DCEN: Connect the electrode holder to “-” output
terminal, and the workpiece to “+” output terminal.
DCEP: Connect the electrode holder to “+” output
terminal, and the work clamp to “-” output terminal.
Figure 2-1: Connection of output cable
Figure 2-2: Connection of quick plug
1) Connection of input cable
A primary power supply cable is available for this welding machine. Connect the power supply
cable to the rated input power. The primary cable should be tightly connected to the correct
socket to avoid oxidization. Check whether the voltage value varies in acceptable range with a
multi-meter.
The cross section of the leads used in the switching box should meet the requirements of the
maximum input capacity of the machine.
2) Connection of output cable
3) Connection of welding instruments
4
1
2
35
1
2
4
3 5 1Output cable 2Rubber sleeve
3Copper sleeve 4Bolt
5Electrode holder
Figure 2-3: Connection of electrode holder
1Output cable 2Copper clip
3Bolt 4Nut
5Iron clip
Figure 2-4: Connection of earth clamp
2. INSTALLATION AND CONNECTION

7
1.020 ~ 60
1.644 ~ 84
2.060 ~ 100
2.580 ~ 120
3.2108 ~ 148
4.0140 ~ 180
5.0
7.0
180 220 ~
220 ~ 260
20.8 ~ 22.4
21.76 23.36 ~
22.4 ~ 24.0
23.2 ~ 24.8
23.32 ~ 24.92
24.6 ~ 27.2
28.8 ~ 30.4
27.2 ~ 28.8
4)Preset the welding current according to the type and size of the electrode, clip the electrode
and then welding can be carried out by short circuit arc starting. For welding parameters, please
refer to the table below.
Table 2-1: Welding parameters table (for reference only)
Electrode dia. (mm)
Recommended welding current (A) Recommended welding voltage (V)
Note: This table is suitable for mild steel welding. For other materials, consult related materials
and welding process for reference.
2.2 Precautions
2. INSTALLATION AND CONNECTION

8
12
1
2
3
4
5
3. OPERATION
3.1 Operation method
3.2 Panel functions of ARC140 (Z269)
Figure 3-1: Front panel of Z269
Figure 3-2: Back panel of Z269
1
2
3
4
5
No. Part name Function
Power
indicator
To indicate the machine is powered on
when it illuminates.
“+”
terminal
output To connect the welding output cable.
Overheating
indicator
Current
control knob To adjust the output current value.
“-”
terminal
output To connect the welding output cable.
3
1
2
3
No. Part name Function
Power
switch
To control the ON/OFF of the input
power of the machine.
Cable For power supply input.
Cooling fan
For heat dissipation through forced
air cooling.
To indicate the temperature inside the machine
is too high and the machine is under overheating
protection status when it illuminates.
3. OPERATION
1 0 4

Z104
Fault
1
2
3
No. Part name Function
Power
switch
To control the ON/OFF of the input
power of the machine.
Cable For power supply input.
Cooling fan
For heat dissipation through forced
air cooling.
9
1
2
3
4
5
6
1
2
3
1
2
3
4
5
No. Part name Function
Power
indicator
To indicate the machine is powered on
when it illuminates.
“+”
terminal
output To connect the welding output cable.
Current
control knob To adjust the output current value.
“-”
terminal
output To connect the welding output cable.
6
Digital meter To display the welding current.
Abnormity
indicator
To indicate the machine is under
overcurrent or overheating protection
status when it illuminates.
Figure 3-3: Front panel of Z104
Figure 3-4: Back panel of Z104
3.3 Panel functions of ARC200 Z104 ( )
3. OPERATION

OC
10
1
2
3
4
5
6
7
1
3
2
1
2
3
4
5
No. Part name Function
“+”
terminal
output
To connect the welding output cable.
Current
control knob To adjust the output current value.
“-”
terminal
output
To connect the welding output cable.
6
Digital meter To display the welding current.
1
2
3
No. Part name Function
Power
switch
To control the ON/OFF of the input
power of the machine.
Cable For power supply input.
Cooling fan
For heat dissipation through forced
air cooling.
3.4 Panel functions of ARC200 Z276 ( )
7
Figure 3-6: Back panel of Z276
Figure 3-5: Front panel of Z276
Arc force
control knob To adjust the arc force current value.
Overheating
indicator
To indicate the temperature inside the machine
is too high and the machine is under overheating
protection status when it illuminates.
Overcurrent
indicator To indicate the machine is under overcurrent
protection status when it illuminates.
3. OPERATION

220V
380V
Z225
1
2
3
No. Part name Function
Power
switch
To control the ON/OFF of the input
power of the machine.
Cable For power supply input.
Cooling fan
For heat dissipation through forced
air cooling.
11
3.5 Panel functions of ARC200D Z225 RC250D 226) ( )/A (Z
Figure 3-7: Front panel of Z225 226/Z
Figure 3-8 Back panel of Z225 226: /Z
1
2
3
4
5
No. Part name Function
“+”
terminal
output
To connect the welding output cable.
Current
control knob To adjust the output current value.
“-”
terminal
output
To connect the welding output cable.
6
Digital meter To display the welding current.
7
Arc force
control knob To adjust the arc force current value.
Overheating
indicator
To indicate the temperature inside the machine
is too high and the machine is under overheating
protection status when it illuminates.
1
2
3
4
5
6
7
8
2
3
1
Voltage
indicator To indicate 220V is used when it illuminates.
8
Voltage
indicator To indicate 380V is used when it illuminates.
3. OPERATION
2 00

Z227
12
1
2
3
1
2
3
4
5
6
7
Figure 3-9: Front panel of Z227
Figure 3-10: Back panel of Z227
1
2
3
4
5
No. Part name Function
“+”
terminal
output
To connect the welding output cable.
Current
control knob To adjust the output current value.
“-”
terminal
output
To connect the welding output cable.
6
Digital meter To display the welding current.
7
Arc force
control knob To adjust the arc force current value.
Overcurrent
indicator
To indicate the machine is under overcurrent
protection status when it illuminates.
1
2
3
No. Part name Function
Power
switch
To control the ON/OFF of the input
power of the machine.
Cable For power supply input.
Cooling fan
For heat dissipation through forced
air cooling.
3.6 Panel functions of ARC250 Z227 ( )
Power
indicator
To indicate the machine is powered on
when it illuminates.
3. OPERATION

13
4. MAINTENANCE
4.1 Daily maintenance
WARNING
The power of the switching box and the welding machine should be shut down before
daily checking (except appearance checking without contacting the conductive body)
to avoid personal injury accidents such as electric shock and burns.
Table 4-1: Daily checking of the welding machine
Items Checking requirements Remarks
Front panel
Back panel
Cover
Chassis
Routine
Whether any of the components are damaged
or loosely connected;
Whether the output quick sockets are tightened;
Whether the abnormity indicator illuminates.
Whether the input power cable and buckle are
in good condition;
Whether the air intake is unobstructed.
Whether the bolts are loosely connected.
Whether the screws are loosely connected.
Whether the machine enclosure has color fading
or overheating problems;
Whether the fan sounds normal when the machine
is running;
Whether there is abnormal smell, abnormal
vibration or noise when the machine is running.
Earth cable
Welding cable
Whether the grounding wires (including workpiece
GND wire and welding machine GND wire) break off.
Whether the insulating layer of the cable is worn,
or the conductive part of the cable is exposed;
Whether the cable is drawn by an external force;
Whether the cable connected to the workpiece
is well connected.
Items Checking requirements Remarks
Table 4-2: Daily checking of the cables
If unqualified, check the interior
of the machine, and tighten or
replace the components.
If unqualified, tighten or replace
the components.
If abnormal, check the interior
of the machine.
If unqualified, tighten or replace
the components.
4. MAINTENANCE
Use appropriate methods
according to the work site
situation to ensure safety
and normal welding.

14
4. MAINTENANCE
4.2 Periodic check
WARNING
Periodic check should be carried out by qualified professionals to ensure safety.
Thepower of the switching box and the welding machine should be shut down
before periodic check to avoid personal injury accidents such as electric shock
and burns. Due to the discharge of capacitors, checking should be carried out
5 minutes after the machine is powered off.
Tips:
