Jasper A-1DB-N User manual

Page 1of 9
Models:
JA-1DB-N
JA-2DB-N
JA-3DB-N
JA-1CB-N
JA-2CB-N
JA-3CB-N
JA-1DB-L
JA-2DB-L
JA-3DB-L
JA-1CB-L
JA-2CB-L
JA-3CB-L
INSTALLATION INSTRUCTIONS
UNIT TO BE INSTALLED BY LICENSED TECHNICIAN ONLY
REFER TO DATA PLATE FOR GAS TYPE, GAS CONSUMPTION AND PRESSURE DETAILS
OVERALL DIMENSIONS
Height over splashback
1180 mm (depending on leg adjustable)
Width
600, 1200 or 1800 mm
Depth 900 mm overall
Height to bench
720 mm (depending on leg adjustable)
Leg height 370mm (adjustable from 340 to 390mm)
Wok hole Size
14”Nominal
Wok Capacity Suits 14”-20”wok
All depth and breadth calculations are minimum measurements. The height
measurement will differ based on the leg installed and the adjusted leg height.
The gas inlet is ¾ B.S.P (20mm) female connection. 510mm above the surface x150mm
from the right side x 600mm lies between different gas inlets per product. We have given
a regulator for each offering. All measurements are + or – 20 mm.
The installer's purpose is to dispatch and install an isolating gas cock to each product
inlet for easily maintaining the control mechanism. N.B. WARNING each device must
include an individual channel connection.
Simco Group Holdings Pty Ltd
Simco Group Holdings NZ Ltd

Page 2of 9
The installer must set up the device according to AS/NZS 5601, local authority, gas and
any other relevant statutory regulations.Try to confirm whether the product is fitted in
a non-flammable location near the unit where you can. Approval from flammables walls
sides right and left 350mm, approval from the back of 150mm,
The splashback return can go forcefully against the back wall for the F
series. The installer must look at local structural guidelines on non- flammable constru
ction substance instructions for detail.
You must set up this product with an exhaust mechanism, including a canopy and vent
system. The hood should be designed with a substance that is immune to grease,
moisture and fat. Its internal appearance should be slick and without any roadblocks.
Besides, all the joints shall be adequately tight. One shall locate the canopy so as to
aerate the device efficiently. It shall spread a minimum of 150 mm outside the
boundaries of the device.
Unless properly secured, a vent and a hood shall be installed at least 450 mm from any
flammable substance. It should be done in such a manner that the grease filter's lower
edge is at least 1.5 meters over the product's surface.
Do not install before taking out any transportation packaging for this product.
NOTE: each wok ring has a different regulator. It also has a gas cock on the channel. You
must set up the product as mentioned in the installation guidelines. i.e., Propane or
natural gas checking point pressures.
WATER CONNECTION
500 mm above the floor and approximately 150mm in from right hand side. A 2”
compression fitting is provided for connection. All dimensions + or – 20 mm
The installer to provide a isolating stop tap to the appliance.
WATER DRAINAGE
Placed 70mm in from the right or left side x 200mm down from the tabletop, a 40 mm
(11/2” BSP) galvanised pipe elbow is given for the discharge mechanism.
Before finishing the setup, take a look at all the water & gas installations for leaks.
Besides, direct the operative to handle the device and use it judiciously properly.
approval from the top
of 1500 mm.

Page 3of 9
NOTE: One must also mount this device on foldable legs as provided.
You must adjust the gas pressure as per the information on the data plate when the
product is in a working state.
If you are unable to adjust this product to work properly, contact the local official
supplier or reach out to the manufacturer.
Phone: AU1300883888 https://simcogroup.com.au
NZ0800883888 https://simcocateringequipment.co.nz

Page 4of 9
OPERATION INSTRUCTIONS
Lighting up of Appliance with separate pilot and flame failure valves:
1. Check that you've switched on the isolating gas cock. The isolating valves 1 to
each product are on the wirings underneath the item.
2. Check whether the main stove gas valve handle is in the OFF situation.
3. Turn the status of the black knob labelled pilot to ON.
4. Press the flame failure switch strongly. Once done, hold it for almost 20 seconds
while using a taper or gas match to the pilot light beside the main stove. When
you've established the pilot, release the button pressure. (Kindly Note) On new
setups, you need 2 or 3 attempts until the air in the pipes is disseminated.
5. Move the gas valve switch status to "ON", as mentioned on the panel, to switch
the main burner on.
6. To turn off the device, rotate the pilot knob to the "OFF" status. Besides, confirm
that the "ON, OFF" main gas valve lever is in the "OFF" status.
Simco Group Holdings Pty Ltd
Simco Group Holdings NZ Ltd

OPERATION
Page 5of 9
WATER TAP OPERATION
To use the water feature on the wok table, we have given a valve operated by knee on
the control panel on the front area of the product. The water will come out of the swivel
outlet placed on the control panel by moving the lever to any side. Optionally, you can
install a manual on/off valve.
NOTE: This feature is for container filling only or water for clearing the wok table.
Remember that the wok table does not require constant water flow over it.
WARNING
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT KEEP COMBUSTIBLE SUBSTANCES NEAR THE PRODUCT.
DO NOT TRY TO REPAIR OR FIX THE EQUIPMENT YOURSELF IF SERVICES IS NEEDED.CONTACT THE
LOCAL SUPPLIER OR MANUFACTURER.
WARNING:
This will result in damage to the gas mechanism and nullify your appliance warranty.
WARNING: If this equipment switches on with a long yellow spark or shows an
accumulation of soot, contact the official agent or manufacturer for service.
You must service this appliance at least once every 12 months.

Page 6of 9
SERVICE INSTRUCTIONS
ONLY AUTHORISED PERSONNEL TO SERVICE APPLIANCE
1. Try to regularly clean the burners. Regularly check whether there is any spillage.
Maintain healthy flame by keeping burner injectors tidy.
2. Contact your manufacturer if your burner injectors need to be changed.
3. You must service your gas cocks once every 12 months. You should change the
ball valves if they've become loose or tough to operate. If the pilot light is not
continuously turning on, it may be a defective thermocouple.
4. Take out the ball valve and pilot valve handles to remove the burner and pilot
assembly. If the device comes fitted with a combination valve, take out the valve
knob. Once done, remove the screws retaining the front panel and take out the
front panel. Slide the spillage tray to take it out. Untie the block in the gas line
between the flame failure valve and the burner or on either side of the
combination valve. Untie the wirings for the thermocouple lead and pilot gas
from the flame failure valve. Undo the two bolts holding the burner to the
burner support. You can now remove the burner and pilot assembly from the
device. Once you've taken out the burner, it is easier to screw out the injectors
for cleaning. One can release the pilot assembly from its bracket and take it out
for replacement.
5. To replace the thermocouple, take out the nut holding the thermocouple at the
rear side of the flame failure valve situated behind the front control panel. Once
done, release the thermocouple from the pilot assembly. Then, use a new
element in its place.
Simco Group Holdings Pty Ltd
Simco Group Holdings NZ Ltd

Page 7of 9
6. Turn the pilot adjustment screw on either the flame failure valve or the
combination valve anti-clockwise to adjust the pilot. The anti-clockwise motion
will enhance the flame length, and the clockwise decrease the flame length.
7. Measure the gas pressure with the equipment running. Besides, confirm the
information matches the points on the data plate. The gas pressure adjustment
is on the product regulator.
8. Once the work is finished, always monitor the system for leaks.
9. If the product does not work after the new setup, reach out to the local supplier
or manufacturer.
10. The pilot assembly, laundry-type arm and tap are not serviceable.

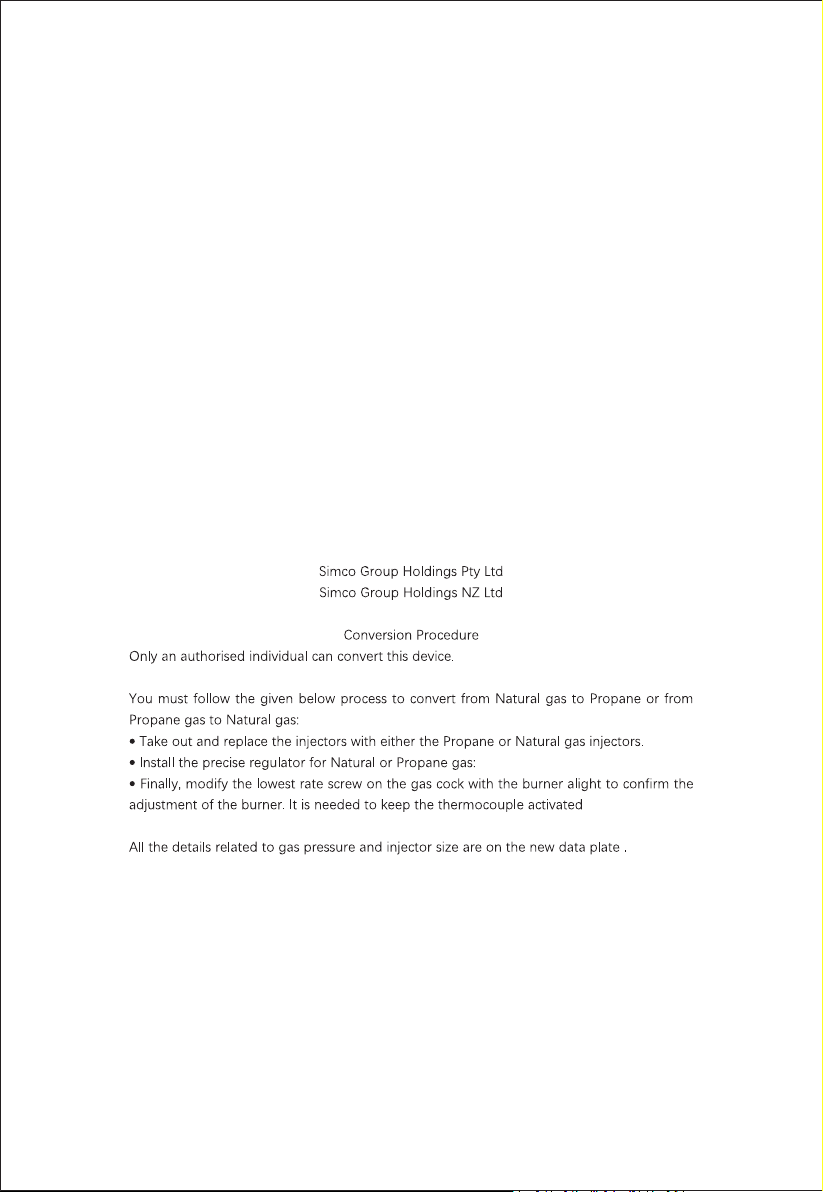

Page 8of 9
Simco Group Holdings Pty Ltd
Simco Group Holdings NZ Ltd
Cleaning
1. Clean the work surfaces of the device,regualarly at the end of each day.Do not use wire brushed on the
work surfaces.Clean using a mild detergent and a hot water solution using a soff bristled brush.Dry the
device thoroughly using a dry clean cloth.
2. Any waste water from cleaning the table,the drain into the device drain outlet below the device,ensure
theat the drain is kept clear of any waste food product.
3. Clean the control panel using a damp cloth lightly moistened with a solution of mild detergent and hot
water.
4. Dry the control panel using a dry clean cloth.
5. Clean the exterior of device using a mild tetergent and hot water solution suing a soff bristled brush.
6. Check the main burners daily for any food spillage and burnt- on material.Clean the burners on a
regular basis using a soff bristle brush.Do not allow water to enter the burner.
7. Remove.empty and wash out the spill trays using a solution of mild detergent and hot water.
8. Dry the spill tray using a dry clean cloth and refit to the device.
WARNING:DO NOT USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSED PROXIMITY TO THE
DEVICE WHILE IS STILL HOT.
WARNING:
DO NOT POUR WATER DIRECTLY OVER THE DEVICE.d
DO NOT USE ANY CHLORIC OR BLEANCHING DETERGENTS TO CLENA DEVICE.
DO NOT USE SALINE OR SULFURIC ACID PREPARATIONS FOR DESCALING THE DEVICE.
CAUTION:
Always turn ”OFF” the gas supply at the mains supply before cleaning.

FAULT FINDING SERVICE CHART
FAULT
CAUSE
REMEDY
No gas to burner
Supply turned off or depleted.
Orifice blocked.
Check supply, service pipe under size.
Clean orifice with drill or wire smaller
than orifice diameter.
Sluggish flame
Yellow tips
Burner over gassed.
Insufficient primary air.
Check gas pressure.
Clean burner ports.
Check orifice firing centre of burner.
Noisy flame
Too much primary air.
Check pressure.
No gas to burners
Pilot light out.
Regulator faulty on gas supply.
Check supply.
Check orifice with drill.
Check flame failure control.
Check thermo-element.
Check pilot orifice.
Replace regulator.
Burner goes out
Check pilot and flame failure control.
Burner and pilot
Loose thermo-element
connection.
Pilot flame too low or not
impinging on thermo-element
tip.
Pilot Blocked.
Defective thermo-element.
Defective control.
Tighten connection nut to flame failure
control.
Adjust pilot flame length.
Clean pilot orifice.
Replace.
Replace.
IMPORTANT: Confirm whether the gas pipeline to the device is enough to keep the total
MJ/h requirement. When extra pieces of equipment are functioning or have been
included, you may incur service charges on the finding of inadequate pipe size. Service
Page 9of 9
charges may also be incurred if you've not maintained adequate pressure on the gas
regulator.
