Jasper HZX-100 User manual

HZX-100 fully automatic cutting machine
Page 1 of 9
Table of Contents
Overview
2
Features
2
Technical Parameters
2
Procedures for Operation
5
Important
5
Warranty
7
Instructions for Warranty
8
Tips for Warranty
8

Page 2 of 9
HZX-100 fully automatic cutting machine
I. Overview:
HZX-100 fully automatic cutting machine is a type of electrode
lug cutting machine designed for the battery industry. Particularly, it is
used to cut nickel bands, plated chromium bands, stainless steel bands
and composite nickel bands for nickel-hydrogen and nickel-cadmium
batteries. This machinery features high speed, high precision and a wide
range of applications; uses imported unidirectional straight-line
orientation where material is pressed in the middle cylinder, fed in the
rear cylinder and cut in the front cylinder, thus resulting stable speed.
Also, manual feed and manual cutting can be set, which makes it much
more convenient for users.
II. Features:
This machine features attractive appearance, convenience,
lightweight, high speed in cutting, adjustable speed and automatic
cutting without human interference, and is a preferred choice for battery
manufacturers.
III. Technical Parameters:
Cutting width: 6, 4, 3, 2 (mm)
Cutting speed: 80/min
Input air pressure: 0.1-0.4Mpa

Page 3 of 9
HZX-100 fully automatic cutting machine
Cutting thickness: 0.05-0.5mm
Cutting length: 1-100mm
Counting range: 000000-999999
Overall weight: Approximately 50kg
Dimensions: Approximately 1000mm×385mm×400mm

Page 4 of 9

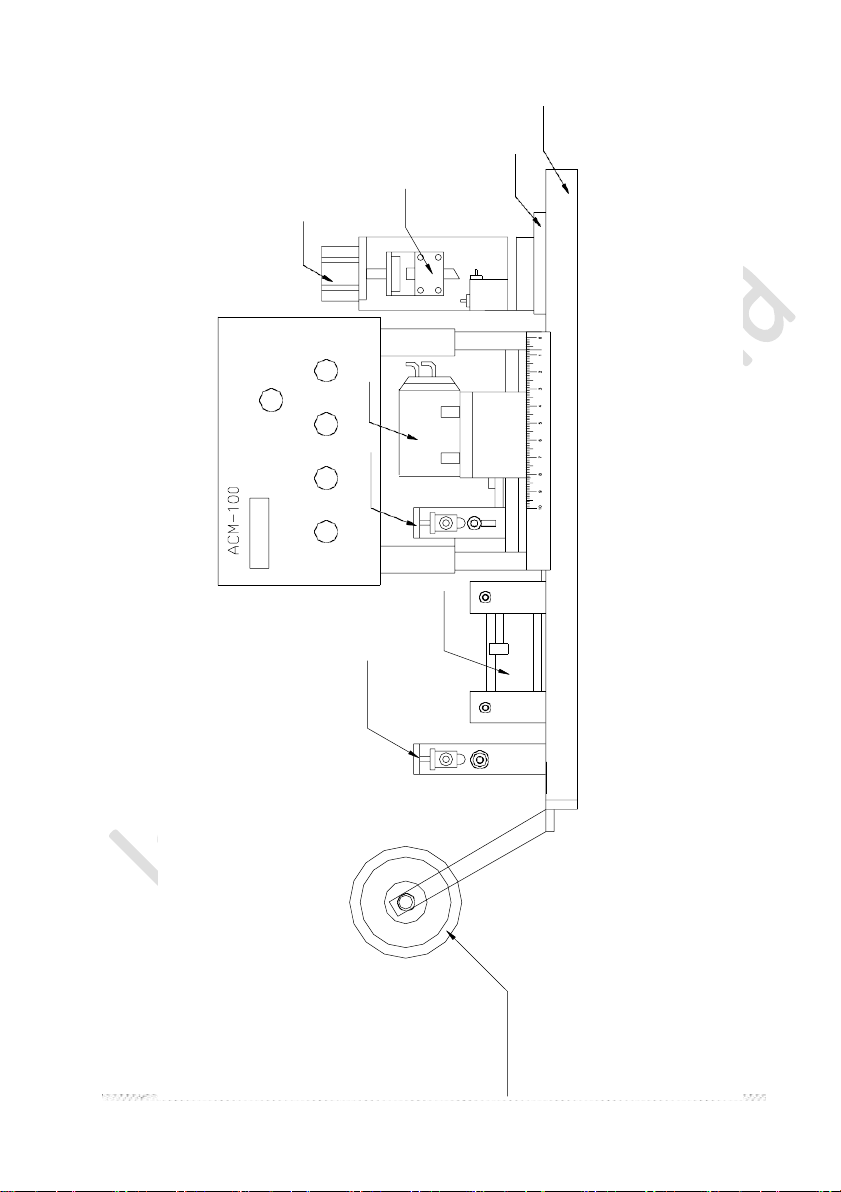

全自动切片机
气缸
导向装置
导向装置
气缸
切片装置
气缸
镍、锂带固定盘
卸料盒
底座
单位:m
m

HZX-100 fully automatic cutting machine
Page 5 of 9
IV.Procedures for Operation:
1.
Switch on power and insert air pipe.
2.
Load proper nickel bands and lock nickel sheet pan firmly on nickel
sheet rack.
3.
Lead nickel band: Use tweezers to pick out nickel sheets from nickel
sheet pan; use hand to lift unidirectional bearing support; insert
nickel band through two rollers; release unidirectional bearing
support; press nickel band properly; use another method to press
nickel band (after passing positioning channel) between a second
directional bearing support.
4.
After nickel band is properly inserted, insert it between Feed
Cylinder guiding block and Press Cylinder and then insert nickel
band out of the final positioning channel.
5.
Press Manual Feed button and observe whether the length is suitable.
Adjust Limit Screw to desired position and press Manual Cutting
button.
6.
Press STARTbutton and the machine will cut automatically.
V.Important:
1.
Before starting manual cutting, check if cutting tool corresponds to
cutting point on base and adjust cutting tool up and down to proper

Page 6 of 9
HZX-100 fully automatic cutting machine
position.
2.
When testing the machine, never put hand or any other object on the
cutting point.
3.
There is a water-filtering bottle on the air-inlet device. When the
machine is running for a long time, ensure that there is no water
buildup in the water-filtering bottle. When there is any water
buildup, discharge it immediately (to discharge, use hand to push in
the water outlet at the bottom of the water-filtering bottle) to ensure
proper operation of the machine.

Page 7 of 9
HZX-100 fully automatic cutting machine
Warranty Card
Customer Name: Tel:
Product Name: Model & Specifications:
Date of Delivery: Product No:
Please stamp your purchase invoice on this page and send a copy to our
After-sale Dept to establish information file. Keep the original for yourself. We
promise a one-year warranty period for our product commencing on the date of
delivery. In case any mechanical failure occurs during this period, please
complete the copy with such detailed information as your company name,
address and failure symptoms and fax a copy to our company or call us to
describe detailed situations, and we will provide onsite services immediately.
In case of mechanical failure, it is recommended to first refer to the User
Manual as well as the Instructions and Tips on the following pages.
Failure descriptions:
Stamp Invoice Here

Page 8 of 9
HZX-100 fully automatic cutting machine
Instructions for Warranty:
1.
Please refer to this User Manual before using this product and/or
when encountering any failure.
2.
In case of enquiry or normal maintenance, please present the
Warranty Card and invoice, and contact our corresponding
technicians for inquiry and maintenance.
3.
For warranted maintenance, please fax your Warranty Card to our
company and call us describing your company name, address,
phone number, product model, number and date of delivery as well
as failure symptom.
Tips for Warranty:
1.
We provide free maintenance for our equipment for one year
commencing on the date of delivery. Our warranty covers
failure arising from normal use within such period.
2.
We shall not be held responsible for failure arising from
improper operation or intentional damage. However, we may
provide paid services in this case.
3.
In case of maintenance for equipment after our one-year
warranty period (or for equipment provided by other
companies), we will charge normally for such maintenance. In
this case, we will provide three-month warranty for such
replaced parts.
4.
Test racks and test pencils are quick-wear parts. The service life
of test pencils is associated with the way they are operated. Care

Page 9 of 9
HZX-100 fully automatic cutting machine
should be taken to protect test racks and avoid them dropping
onto ground. Damage to test racks or test pencils is not deemed
as mechanical failure and customers should pay for their
replacements.
5.
Our warranty does not cover any of the following
circumstances:
a)
No Warranty Card and/or invoice are available.
b)
The Warranty Card and/or invoice are obliterated and are not in
line with the product code.
c)
Damage arising from improper use, erroneous operation or
unauthorized retrofitting.
d)
Damage caused due to use of components made by other
manufacturers.
e)
Damage caused by unexpected factors.
f)
Expiration of the Warranty Period.
g)
Failure to make full payment as scheduled by the contract.
