Jaton Video-PX7300GS-256 User manual

Video-PX7300 series
nVIDIA GeForce™7300 series
User’s Manual
Version 1.00
Copyright © 2006 Jaton Corporation, USA

Contents
INTRODUCTION......................................................................... 3
FEATURES AND SPECIFICATIONS......................................... 4
SYSTEM REQUIREMENT .......................................................... 6
CHECK LIST............................................................................... 6
HARDWARE DESCRIPTION...................................................... 7
DISPLAY DEVICES OUTPUT .................................................... 8
HARDWARE INSTALLATION.................................................... 9
INSTALLATION PROCEDURES .......................................................... 9
STEPS:........................................................................................ 10

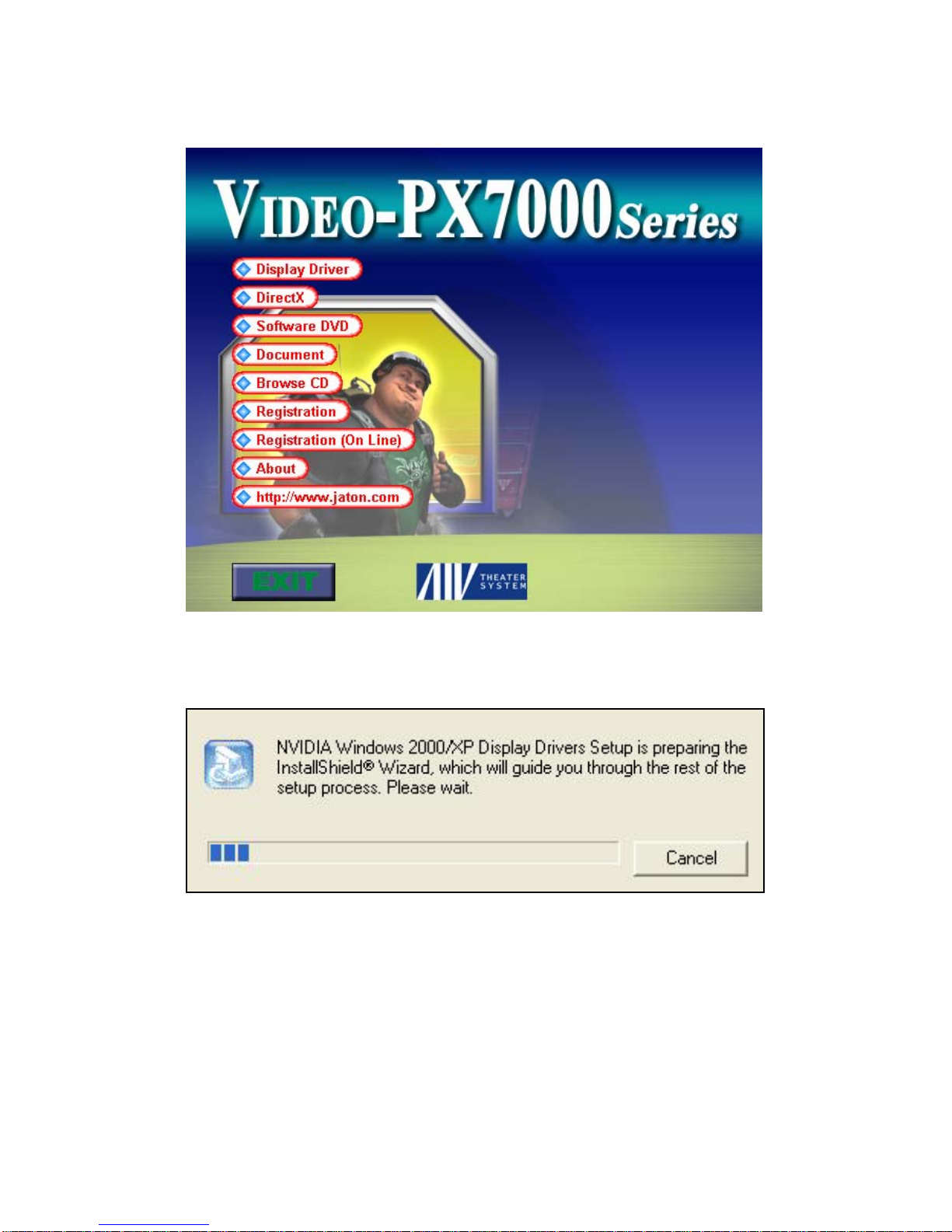

SOFTWARE INSTALLATION................................................... 11
á WINDOWS®XP/2000 DRIVER INSTALLATION......................... 11
TECHNICAL ASSISTANCE...................................................... 14
FREQUENTLY ASKED QUESTIONS (FAQ)....................................... 16
PINOUT AND SYNC FREQUENCIES...................................... 17
ANALOG COLOR DISPLAY PINOUTS (DB 15).................................. 17
CONVERSION TABLE:PIN ADAPTERS............................................. 17
9-TO-15 PIN CONVERSION TABLE................................................. 18

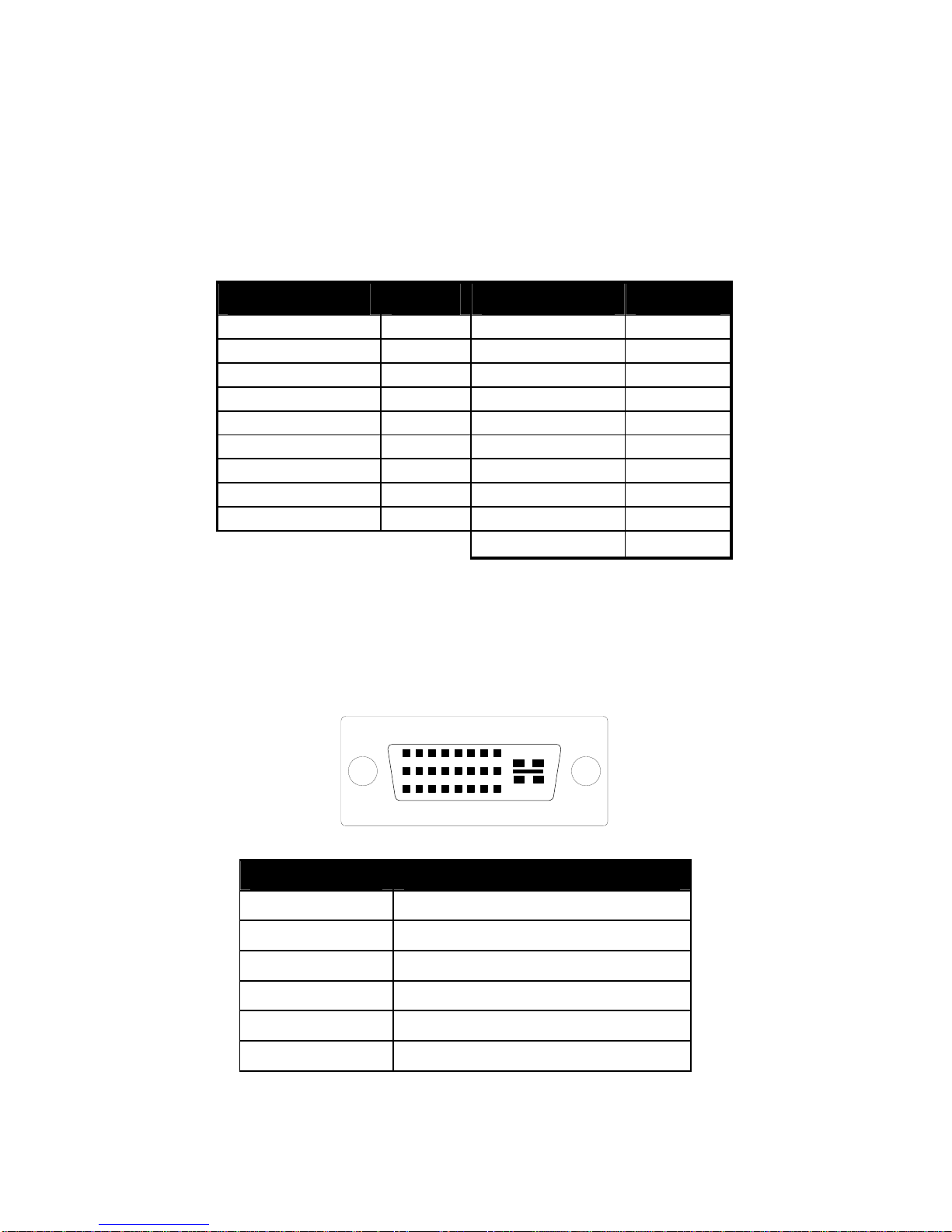

DIGITAL VISUAL INTERFACE (DVI-I) CONNECTOR........................... 18
TECHNICAL SUPPORT................................................................... 19
HOW TO OBTAIN WARRANTY SERVICE .......................................... 20

LIMITED WARRANTY.............................................................. 22
OTHER LIMITS.............................................................................. 22
EXCLUSIVE OBLIGATION ............................................................... 23
OTHER STATEMENTS.................................................................... 23
TERMS AND CONDITIONS.............................................................. 23
SERVICES AGREEMENT:................................................................ 24
ENTIRE OBLIGATION..................................................................... 24
REDUCING WARRANTY CLAIM REJECTIONS..................... 25
Introduction
Video-PX7300 series video accelerators are based on nVIDIA
GeForce™7300 core technology. The Video- PX7300 series feature the
TurboCache technology.
The revolutionary TurboCache technology utilizes the additional
bandwidth of the PCI Express graphics bus to reach higher levels of
graphics performance than traditional video memory solutions,
delivering the performance and features you expect from NVIDIA
graphics hardware. By allowing the graphics processing unit (GPU) to
share the capacity and bandwidth of dedicated video memory and
dynamically available system memory, TurboCache turbocharges
performance and provides larger total graphics memory for entry-level
PCs.
Video-PX7300 series also feature NVIDIA UltraShadow II technology
designed to enhance the performance of shadow-intensive games.
Powered by the proven NVIDIA CineFX 4.0 engine, the fourth-
generation Intellisample technology introduces two new antialiasing
modes—transparency adaptive supersampling and transparency
adaptive multisampling—which increase the quality and performance of
antialiasing. Through this technique, developers can create ultra realistic
models that fully interact with the unique lighting of a particular
environment. In addition, The NVIDIA CineFX 4.0 engine injects
breakthrough graphics technology into the core levels of the vertex
shader, pixel shader, and texture engines. By accelerating triangle
3

setup, crucial math elements of the pixel shader, and texture
manipulations, the newest engine lets 3D graphics developers achieve
new levels of performance and visual quality.
A combination of a hardware video processor and video decode
software, NVIDIA PureVideo technology delivers stunning video to any
display. NVIDIA PureVideo supercharges your PC video viewing with
high-definition video in most formats, superb picture clarity, and the
ability to enhance all videos to full resolution without video noise or
artifacts.
Built on the foundation of the industry-renowned NVIDIA Unified Driver
Architecture (UDA), Video-PX7300 series deliver unmatched
compatibility with the widest range of games and applications for the
ultimate “install and play” experience. Equip yourself with a Video-
PX7300 series GPU so you can play your games the way it’s meant to
be played.
Features and Specifications
Video-PX7300 series
Full Microsoft® DirectX® 9.0 Shader Model 3.0 Support
The standard for today’s PCs and next-generation consoles enables
stunning and complex effects for cinematic realism. NVIDIA GPUs offer
the most complete implementation of the Shader Model 3.0 feature
set—including vertex texture fetch (VTF)—to ensure top-notch
compatibility and performance for all DirectX 9 applications.
True High Dynamic-Range (HDR) Rendering Support
The ultimate lighting effects bring environments to life for a truly
immersive, ultra-reailstic experience. Based on the OpenEXR
technology from Industrial Light & Magic (http://www.openexr.com/),
NVIDIA’s 64-bit texture implementation delivers state-of-the-art high
dynamic-range (HDR) visual effects through floating point capabilities in
shading, filtering, texturing, and blending.
NVIDIA® TurboCache™ Technology
Shares the capacity and bandwidth of dedicated video memory and
dynamically available system memory for turbocharged performance
and larger total graphics memory.
4

NVIDIA® CineFX® 4.0 Engine
Delivers advanced visual effects at unimaginable speeds. Full support
for Microsoft® DirectX® 9.0 Shader Model 3.0 enabling stunning and
complex special effects. Next-generation shader architecture with new
texture unit design streamlines texture processing for faster and
smoother gameplay.
PCI Express Certified
Designed to run perfectly with the next-generation PCI Express bus
architecture. This new bus doubles the bandwidth of AGP 8x delivering
over 4GB/s in both upstream and downstream data transfers.
High-Quality Scaling
Allows for upscaling of a low-resolution video to HDTV resolutions (up to
1080), while maintaining a clear, clean image. Also allows for
downscaling videos, including high-definition, without experiencing any
annoying flicker, while preserving image detail.
Integrated TV Output
Provides world-class TV-out functionality.
NVIDIA® ForceWare® Unified Driver Architecture (UDA)
Delivers a proven record of compatibility, reliability, and stability with the
widest range of games and applications. ForceWare ensures the best
out-of-box experience for every user and delivers continuous
performance and feature updates over the life of your NVIDIA product.
nView Multi-Display Technology
The NVIDIA® nView® hardware and software technology combination
delivers maximum flexibility for multi-display options, and provides
unprecedented end-user control of the desktop experience. NVIDIA
GPUs are enabled to support multi-displays
NVIDIA® Digital Vibrance Control® 3.0 Technology
Allows the user to adjust color controls digitally to compensate for the
lighting conditions of their workspace, in order to achieve accurate,
bright colors in all conditions.
OpenGL® 2.0 Optimizations and Support
Ensures the best performance and application compatibility for all
OpenGL applications.
5

Dual 400MHz RAMDACs
Blazing-fast RAMDACs support dual QXGA displays with ultra-high,
ergonomic refresh rates up to and including 2048x1536@85Hz.
Single-Link DVI Support
Able to drive the industry’s largest and highest resolution flat-panel
displays.
Compatibility
•NVIDIA Unified Driver Architecture (UDA)
•Fully compliant with OpenGL including OpenGL 2.0
•Microsoft DirectX 9.0
•WHQL-certified for Windows XP, Windows 2000
PERFORMANCE
System Requirement
•Intel Pentium® P4 or compatible system with PCI
Express Bus (x16) Extension Slot
•CD-ROM drive, Quad speed or faster
•Hard Drive with at least 100MB Free space
•MS Windows® 2000/XP operating system
Check List
•Video-7300GS, Video-PX7300GS-256, Video-
PX7300LE and Video-PX7300LE-256 Multimedia
Accelerator
•3” cable (TV-Out) converts MD 4pin to Composite RCA
•DVI to RGB converter
•Software & Documents CD
•Quick Start Guide (Printed)
6

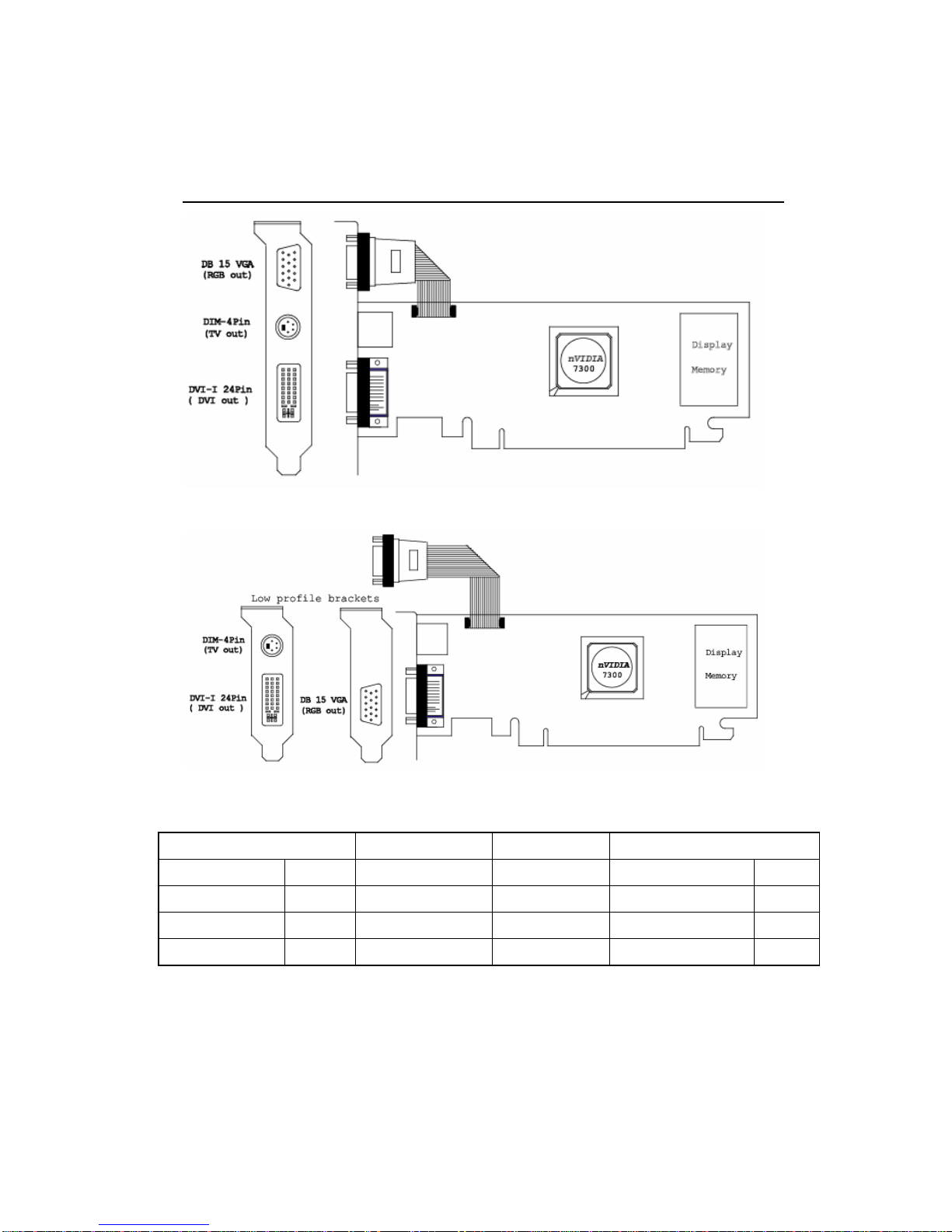

Hardware Description
Note: Low profile configuration requires 2 slots.
Product name / PCB version Core Chipset PCB Size Memory Size
Video-PX7300GS 82358A nVIDIA GeForce 7300GS W=6.25” X H=2.5” 32M*16 x 2 DDR2 BGA 128MB
Video-PX7300GS-256 82358A nVIDIA GeForce 7300GS W=6.25” X H=2.5” 32M*16 x 4 DDR2 BGA 256MB
Video-PX7300LE 82358A nVIDIA GeForce 7300LE W=6.25” X H=2.5” 32M*16 x 2 DDR2 BGA 128MB
Video-PX7300LE-256 82358A nVIDIA GeForce 7300LE W=6.25” X H=2.5” 32M*16 x 4 DDR2 BGA 256MB
7

Accessories for VGA cards are sold separately. Please go to
http://Store.anvshopper.net for details.

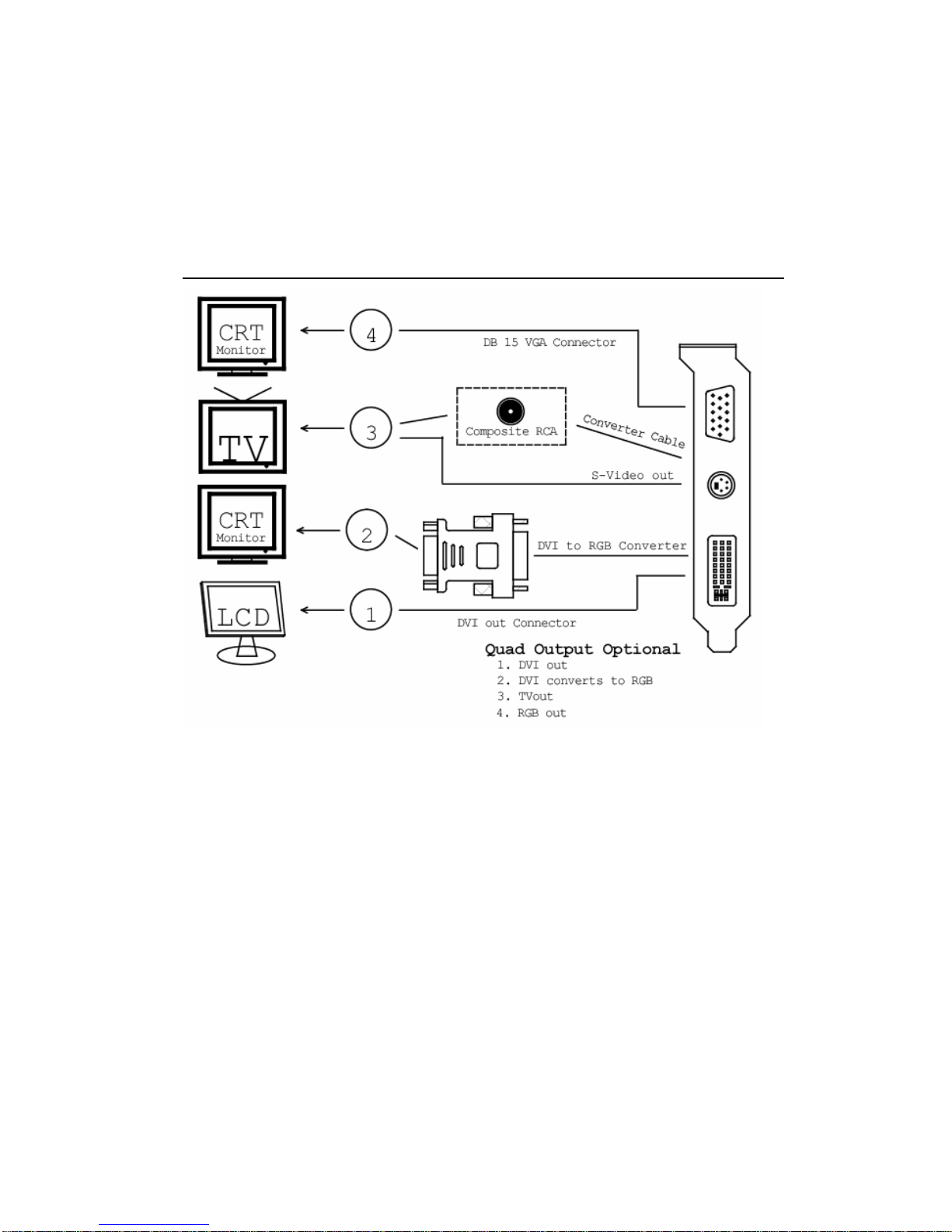

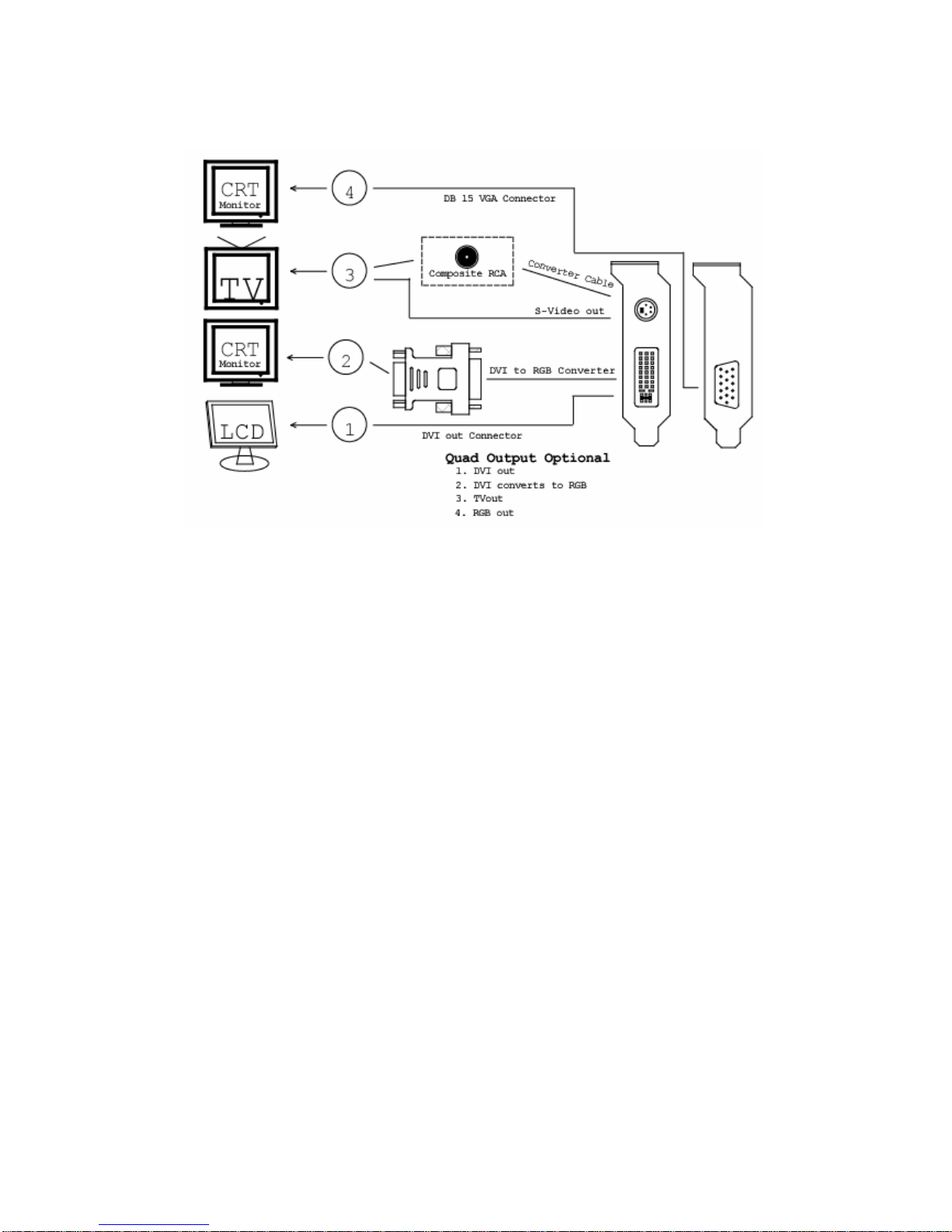

Display Devices Output
8

1. DVI out - DVI connects to LCD display panel.
2. DVI converts to RGB with DVI-RGB converter for Dual RGB out.
3. TV-Out - MD4 connector converts S-Video to RCA Composite Output or
direct connects S-Video to TV set.
4. RGB out - DB15 VGA connector to analog monitor.
Hardware Installation

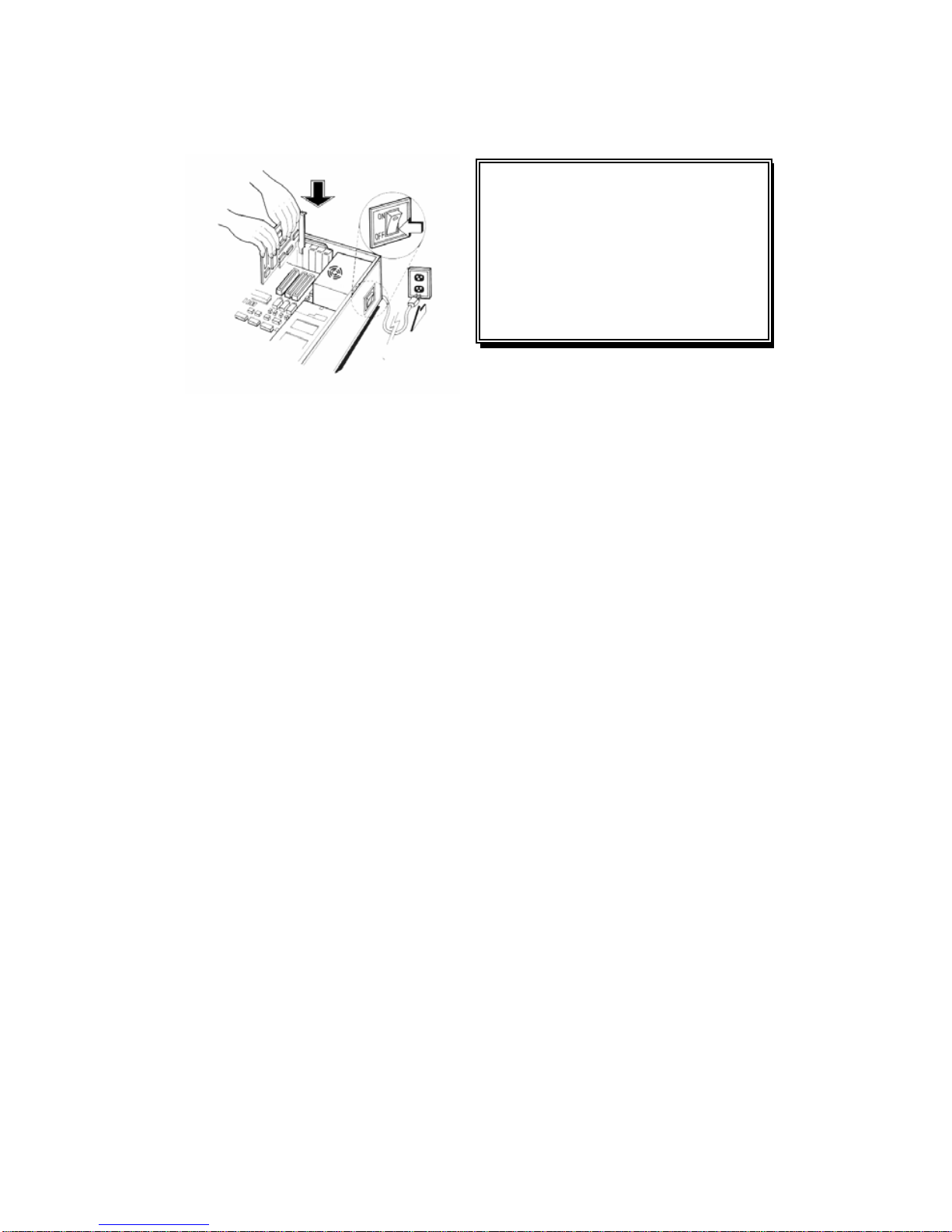

Installation Procedures
9

!! WARNING!!
Discharge static electricity by
touching the GROUND such
as metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
The manufacturer assumes no liability for any damage, caused directly
or indirectly, by improper installation of any components by unauthorized
service personnel. If you do not feel comfortable performing the
installation, consult with a qualified computer technician.
Steps:
1. Turn OFF all powers to your system, including any peripherals (printer,
external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the back of the
computer.
3. Unfasten the cover mounting screws on your system and remove the
system cover. Refer to your system user manual for instructions to
determine the location of the mounting screws.
4. Remove the retaining screw that holds the slot cover in place. Slide
the slot cover out and put the screw aside (you will need it to secure
the adapter).
5. To install the adapter in AGP expansion slot, carefully line up the gold-
fingered edge connector on the adapter directly above the expansion
slot connector on the motherboard. Then press the adapter into place,
completely. Use the (remaining) screw you removed to secure the
adapter-retaining bracket in place.
6. Replace the computer cover. Secure the cover with the mounting
screws you removed in Step 3.
You have now completed the installation of your new graphics adapter on your
system.
Upgrade Steps:
Add or change your video adapter to an existing system, you
may precede a few steps before you install the new hardware
and software (video display driver). The followings are some of
the considerations:
10

1. To add a new adapter, ensure the mainboard has available
IRQ for new devices, and there is no conflict between each
other.
2. If you try adding this video adapter to an ALL-IN-ONE
mainboard (which video port built-in already), then you have
to disable that port first. Otherwise, that will be a problem for
the new video adapter setup.
3. The driver installation for system upgrade is the same as
below, if error occurs when you proceed to step 1, 2 or 3,
please consult with your system dealer or the existing
hardware manufacturer support.
Software Installation
á Windows ® XP/2000 Driver Installation
InstallShield®Program:
Microsoft Windows® XP/2000 detects this new hardware and places
appropriate display driver from its system folder automatically - it doesn’t
matter if you have added a new driver or changed the existing one. To
maximize the video board acceleration and increase its performance,
you may install the manufacturer’s display driver as follows:
11

1. Autorun feature brings-up the “Welcome Screen”, and you may
point to “Display Driver” and then press on it.
2. Microsoft InstallShield®Wizard has start loading its setup process;
please wait until it has completed.
12

3. Click on “Next” to continue the process.
4. The Windows system will copy all driver files from source media to
your local hard disk; please wait until the process has completed.
13

5. Click on “Finish” to restart your computer, the new display driver will
be in place after Windows boots-up.
Notice:
We believe that the all the installation steps mentioned above
are clear from manufacturer software’s CD to your operating
system. Any procedures other than these processes have not
been specified.
Technical Assistance
Q: Why is the display shifted or changed sizes when I switch display modes?
Explain and Suggestion:
Some monitors lack auto-sizing features or just do not synchronize properly to
the video board output. In some cases, horizontal and vertical display
adjustments may be necessary. Use the monitor control panel functions to adjust
screen.
In other cases, mode type and refresh rate adjustments may be necessary. Use
the utility program, which provided by video card manufacturer or production
14

developer. To center the display with normal type (mode 3), and to reduce
(decrease) the refresh rate with the monitor's specification.
Q: What kind monitors can display 800x600 modes or higher resolution mode?
Explain and Suggestion:
To display 800x600 resolution at 60Hz refresh rate, the monitor must be capable
of synchronizing a 31.5KHz horizontal scan rate (e.g., NEC 2A, 3D). At 72Hz
refresh rate, the monitor must be capable of synchronizing a 48.0KHz scan rate
(e.g., Sony HG 1304, NEC 4D, 5D, Seiko 1450).
To display 1024x768 interlaced mode; the monitor must be capable of
synchronizing a 35.5KHz horizontal scan rate (e.g., NEC 3D, Seiko 1430 or
1440). To display 1024x768 non-interlaced mode at 60Hz, the monitor must be
capable of synchronizing a 48.7KHz scan rate (e.g., Sony HG 1304, NEC 4D,
5D, Seiko 1450).
To display 1024x768 non-interlaced mode at 70Hz, the monitor must be capable
of synchronizing a 56.4KHz scan rate (e.g., NEC 4D).
Q: System hangs-up after installing video driver.
Explain and Suggestion:
Today, most video drivers are developed for 32-bit processing and may require a
channel to Code/Decode. Conflict between device drivers and TSR (terminate-
and-stay-resident) programs will inverted the display, and are particularly
effectual at crashing computer. The most effective way to check for conflicts is to
replace with the original video driver, or delete and re-install the current video
driver to the system.
Accomplishing IRQs (Interrupt Request Query) settings or troubleshooting the
conflicts on hardware source may necessary. Most AGP video cards designed for
Plug-n-Play, that means video card IRQ's setup which controls by main board’s
(motherboard) circuitry and BIOS. Physically pulling out other devices from
system, and re-starts the computer. Confirm and modify your IRQ addresses with
qualified computer technician.
Q: Multiple images or unreadable screen after loading video driver.
Explain and Suggestion:
There are a variety of reasons why the display might be distorted. One common
reason is a monitor mis-match. Some older multi-frequency monitors are unable
to switch video modes without being turned off, then turned on again.
If the problem occurring in windows, make sure that you have loaded that proper
video driver, and that the driver is compatible with the monitor being used. Try re-
configuring your application software to use a compatible video mode. If problem
persist in windows, load the standard generic VGA driver. The generic VGA
15

driver should function properly with virtually every video board and VGA (or
SVGA) monitor available.
If that is an unsatisfactory solution, you may have to upgrade to a monitor that
supports the desired video mode.
Some new monitors are also synchronizing this problem because built-in DDC
(Data-Digital-Channel) feature. Sometime that DDC automatically setup the
display frequency without loading video driver. Try to turn it off, or change
settings of monitor type in your system.
Q: Selection of color, resolution and refresh rate combination that always backs
to default after restart the system.
Explain and Suggestion:
Accordingly, there must be a bug (defected source-code) in video driver, or in the
system. Debug the source-code or fix the error in video driver that should be
done by the driver developer. Likewise, upgrade the video driver from the
manufacturer or from the original software developer is necessary.
Frequently Asked Questions (FAQ)
Q1: What is NVIDIA® TurboCache™ technology?
Answer
The NVIDIA® TurboCache™ technology is a new graphics processing unit
(GPU) featuring NVIDIA TurboCache technology which allows the GPU to render
directly to system memory at rapid speeds.
Q2: How many pixel pipes does the GeForce 7300 GS have?
Answer
The GeForce 7300 GS has 4 pixel pipes.
Q3: How many vertex shaders does the GeForce 7300 GS have?
Answer
The GeForce 7300 GS has 3 vertex shaders.
Q4: Does the sharing of memory slow down any other main memory operations?
Answer
We have performed a variety of system benchmarks and our data shows that
TurboCache doesn’t negatively impact system performance, including system
memory performance. As a matter of fact, we consistently outperform integrated
solutions as well as non-TurboCache GPUs in all the system benchmarks we’ve
tested.
Q5: Is TurboCache hardware, software or both?
Answer
16

Both, it is patented hardware and software technology.
Q6: What kind of memory is on the GeForce a 7300 GS card?
Answer
DDR2 memory.
Pinout and Sync Frequencies
Analog Color Display Pinouts (DB 15)
PIN FUNCTION
1 Red Video1
2 Green Video1
3 Blue Video1
4 Not Used
5 Ground
6 Red Return (ground)
7 Green Return (ground)
8 Blue Return (ground)
9 Vcc (+5v DDC Power)
10 Sync Return (ground)
11 Monitor ID (not used)
12 SDA (DDC support)
13 Horizontal Sync
14 Vertical Sync
15 SCL (DDC support)
Note: Analog monochrome type monitors use green video for all video input
and ignore red and blue video.
Conversion Table: Pin Adapters
If you will be using a 9-to-15-pin adapter cable to link your 9-pin monitor
connector to the 15-pin accelerator card connector, check Table carefully before
you install the cable. The 9-to-15 pin adapter cables are available from a variety
of sources, but they need to match the specifications in Table to work properly
with your new card.
17

The adapter cable requires a D-shaped 9 pin female connector and a D-shaped
15 pin male connector.
9-to-15 Pin Conversion Table
9 PIN SIGNALS PIN NO. 15 PIN SIGNALS PIN NO.
Red 1 Red 1
Green 2 Green 2
Blue 3 Blue 3
Horz Sync 4 Horz Sync 13
Vert Sync 5 Vert Sync 14
Red Ground 6 Return Red 6
Green Ground 7 Return Green 7
Blue Ground 8 Return Blue 8
Sync Ground 9 Digital Ground 10
Ground 5
Analog Video Signals
Black Level = 0 V
Full Intensity (White) Level = +0.7 V
Digital Visual Interface (DVI-I) Connector
1 8 C1 C2
17 24 C3 C4
24 pin DVI FEMALE connector built-in onboard.
Pin Number Signals
1 TMDS Data 2 -
2 TMDS Data 2 +
3 TMDS Data 2 Shield
4 No Connection
5 No Connection
6 DDC Clock
18

7 DDC Data
8 No Connection
9 TMDS Data 1 -
10 TMDS Data 1 +
11 TMDS Data 1 Shield
12 No Connection
13 No Connection
14 +5 V Power
15 Ground (for +5 V)
16 Hot Plug Detect
17 TMDS Data 0 -
18 TMDS Data 0 +
19 TMDS Data 0 Shield
20 No Connection
21 No Connection
22 TMDS Clock Shield
23 TMDS Clock +
24 TMDS Clock <
Technical Support
In the event you have a technical problem with this product, please
read the README files in the software CD_ROM. Updated drivers are
available through Jaton Web site. Have following information handy
when you contact technical support:
;Name of the product.
;Software Driver and Version.
;System Information, such as CPU speed, BIOS version, Monitor
Specification, etc.
;Description of the problems including any error messages.
Telephone: [phone] (Mon. - Fri. 9am-5pm PST)
FAX: [phone]
19

email: [email protected]
Website: www.jaton.com
How to Obtain Warranty Service
In the worldwide contact:
www.jaton.com
In United States contact:
Jaton Corporation.
Service Center
556 S. Milpitas Blvd.,
Milpitas, CA 95035
(408)-934-9369
In Thailand contact:
Jaton (Thailand) Co., Ltd.
93, 93/1-2 Moo 4 Thana City PC Tower 1st Fl. Bangna-Trad
KM.14
Bangchalong Bangplee Samutprakarn 10540
Thailand
Tel: [phone]
Fax: [phone]
Tech Support: 662-336-0818
In Taiwan contact:
20
