Jaton Video-248PCI-DVI User manual

Video-248PCI-DVI
nVIDIA GeForceFX5700LE
User’s Manual
Version 1.00
Copyright © 2004 Jaton Corporation, USA

Contents
INTRODUCTION ......................................................................... 5
FEATURES ................................................................................. 6
ULTRASHADOW TECHNOLOGY ........................................................ 6
CINEFX2.0 ENGINE ....................................................................... 6
HIGH-PRECISION GRAPHICS ........................................................... 6
INTELLISAMPLE TECHNOLOGY ......................................................... 6
UNIFIED DRIVER ARCHITECTURE (UDA).......................................... 6
NVIEW MULTI-DISPLAY TECHNOLOGY .............................................. 7
DIGITAL VIBRANCE CONTROL (DVC)............................................... 7
ADVANCED PIXEL SHADERS............................................................ 7
MICROSOFT®DIRECTX® 9.0 OPTIMIZATIONS AND SUPPORT ........... 7
OPENGL® 1.5 OPTIMIZATIONS AND SUPPORT................................. 7
PCI BUS INTERFACE ...................................................................... 7
400MHZ RAMDACS..................................................................... 7
DVI SUPPORT................................................................................ 8
INTEGRATED TV ENCODER ............................................................. 8
INTEGRATED FULL HARDWARE MPEG-2 DECODER ......................... 8
NEW 64-PHASE VIDEO SCALAR....................................................... 8
0.13 MICRON PROCESS TECHNOLOGY ............................................ 8
ARCHITECTED FOR CG................................................................... 8
COMPATIBILITY .............................................................................. 8
OPERATING SYSTEMS .................................................................... 9
SYSTEM REQUIREMENT .......................................................... 9
CHECK LIST ............................................................................... 9

3
HARDWARE DESCRIPTION.................................................... 10
DISPLAY DEVICES OUTPUT .................................................. 11
HARDWARE INSTALLATION.................................................. 13
INSTALLATION PROCEDURES......................................................... 13
STEPS: ........................................................................................ 13
SOFTWARE INSTALLATION................................................... 14
á WINDOWSXP DRIVER INSTALLATION.................................. 14
á WINDOWS2000 DRIVER INSTALLATION .............................. 17
TECHNICAL ASSISTANCE...................................................... 20
FREQUENTLY ASKED QUESTIONS (FAQ)....................................... 22
PINOUT AND SYNC FREQUENCIES ...................................... 24
ANALOG COLOR DISPLAY PINOUTS (DB 15) .................................. 24
CONVERSION TABLE:PIN ADAPTERS............................................. 25
9-TO-15 PIN CONVERSION TABLE ................................................. 25
DIGITAL VISUAL INTERFACE (DVI) CONNECTOR ............................. 25
TECHNICAL SUPPORT ................................................................... 26
HOW TO OBTAIN WARRANTY SERVICE .......................................... 27
LIMITED WARRANTY .............................................................. 29
OTHER LIMITS.............................................................................. 30
EXCLUSIVE OBLIGATION ............................................................... 30
OTHER STATEMENTS.................................................................... 30
TERMS AND CONDITIONS .............................................................. 31
SERVICES AGREEMENT:................................................................ 31
ENTIRE OBLIGATION..................................................................... 32

4
REDUCING WARRANTY CLAIM REJECTIONS..................... 32

5
Introduction
Video-248PCI-DVI video accelerator is based on nVIDIA GeForceFX
5700LE core technology. The Video-248PCI-DVI video accelerator is an
excellent 2D/3D multimedia video adapters for PCI local bus desktop
PCs’. This video card will provide multiple display outputs onboard for
DVI-I, TV-Out (Analog and Digital), Dual RGB out (Twin) as options.
The nVIDIAGeForceFX5700LE Graphics Processing Unit (GPU) is
0.13µMicron Process Technology, which delivers high performance
through faster clock rates. CineFX engine produces gaming effects on
par with the hottest motion pictures. Combined with 128-bit studio quality
color processing technology, 3D worlds and characters are more real
than anything is that’s come before. Powered by the CineFX2.0 engine,
the Video-248PCI-DVI shifts the focus from simple pixel fill rate to
sophisticated pixel shading. To maximized programming choice, the
nVIDIA CineFX2.0 engine includes the most complete hardware feature
implementation for both OpenGLand MicrosoftDirectX
environments, including total support for the DirectX 9.0-vertex and pixel
shader specification.
Well-developed CineFX2.0 engine features include the support of 1024
instructions in a single rendering pass, allowing for complex effects that
aren’t practical in any other architecture. Complex lighting can
dramatically improve the realism of images, but traditionally adds the
rendering time. With Video-248PCI-DVI all of those gorgeous
enhancements are possible without sacrificing performance.
The Intellisample process uses gamma-adjusted sampling, taking into
account the dramatic physical differences between how your eyes and
monitor perceive light and color, making for much smoother and more
natural edge transitions.
As always, nVIDIA solution incorporate new technology and advances
without compromising the overall stability and quality of the system, and
nVIDIA Unified Driver Architecture (UDA) makes it painless to take
advantage of new capabilities as they are introduced.
A matchless of hardware and software technology combination, the
primary principles of Video-248PCI-DVI video accelerator that will
contribute many of new features and more benefits to your desktop
computing as well as the best-performance integrated, unusual quality
and exceedingly resolution.

6
Features
UltraShadow Technology
Advanced technology designed to enhance the performance of
bleeding-edge games that use complex shadows
CineFX2.0 Engine
The second-generation CineFX 2.0 engine powers advanced
pixel and vertex shader processing and true 128-bit color
precision. Delivering double the floating-point pixel shader power
of the previous CineFX engine, CineFX 2.0 produces a visible
performance boost through its more efficient execution of pixel
shader programs.
High-Precision Graphics
By combining the incredible dynamic range of today's state-of-
the-art 3D motion pictures with 128-bit studio-precision color, the
GeForce FX GPUs bring you the industry’s best image quality for
the most demanding applications.
Intellisample Technology
The industry’s fastest and highest quality antialiasing delivers
ultra-realistic visuals, with no jagged edges, at lightning-fast
speeds. The 2nd-generation Intellisample HCT, supported in
GeForce 5700LE GPUs, extends performance and quality gains
to higher resolutions and antialiasing levels.
Unified Driver Architecture (UDA)
Part of the NVIDIA Forceware unified software environment
(USE). The NVIDIA UDA guarantees forward and backward
compatibility with software drivers. Simplifies upgrading to a new
NVIDIA product because all NVIDIA products work with the
same driver software.

7
nView Multi-display Technology
The nView hardware and software technology combination
delivers maximum flexibility for multi-display options, and
provides unprecedented end-user control of the desktop
experience. NVIDIA GPUs are enabled to support multi-displays,
but graphics cards vary. Please verify multi-display support in
the graphics card before purchasing.
Digital Vibrance Control (DVC)
Allows the user to adjust color controls digitally to compensate
for the lighting conditions of their workspace, in order to achieve
accurate, bright colors in all conditions.
Advanced Pixel Shaders
New technology allows floating-point shader operation to run 2x
faster than previous-generation GPUs.
Microsoft® DirectX® 9.0 Optimizations and
Support
Ensures the best performance and application compatibility for
all DirectX 9 applications.
OpenGL® 1.5 Optimizations and Support
Ensures the best performance and application compatibility for
all OpenGL applications.
PCI Bus Interface
•PCI Bus mastering compatible
•PCI 2.2 compliance
400MHz RAMDACs
Industry’s fastest RAMDACs support QXGA displays with ultra-
high, ergonomic refresh rates.

8
DVI Support
Drives the new generation of desktop digital flat panel displays
and projectors.
Integrated TV Encoder
Provides best-of-class TV-out functionality for resolutions up to
1024x768.
Integrated Full Hardware MPEG-2 Decoder
Delivers full-frame, full-screen MPEG-2 video on your desktop.
New 64-phase Video Scalar
Highest quality for scaling DVD and other video to full-screen
HDTV resolutions.
0.13 Micron Process Technology
Delivers high performance through faster clock rates.
Architected for Cg
Ensures that the newest, cutting-edge special effects in
applications will run flawlessly. Speeds up content creation so
game developers can get their new games out to PC users
faster than ever before.
Compatibility
•nVIDIA Unified Driver Architecture (UDA)
•Fully compliant professional OpenGL 1.5
•Microsoft DirectX 9.0
•WHQL-certified for Windows XP and Windows 2000

9
Operating Systems
•Windows® XP and Windows® 2000
System Requirement
•Intel Pentium® P4, or compatible system with PCI Bus
Extension Slot
•Two available PCI slots (Low profile VGA card only)
•CD-ROM drive, Quad speed or faster
•Hard Drive with at least 100MB Free space
•MS Windows® XP/2000 operating system
Check List
•Video-248PCI-DVI Multimedia Accelerator
•3” cable converts TV-Out from MD 4pin to Composite RCA
•DVI to RGB converter for Dual RGB out
•Two low profile brackets---P515 and P213 (Low profile VGA
only)
•Software & Documents CD
•Quick Start Guide (Printed)

10
Hardware Description
(TV out)
DB 15 VGA
(RGB out)
FX5700LE
DVI-I 24Pin
nVIDIA
( DVI out )
Display
Memory
DIM-4Pin
Product Name / PCB Ver. Core Chipset PCB Size Memory Size
Video-248PCI-DVI 82248P nVIDIA GeForce FX5700LE W = 6.25" x H = 2.54" 16M*16 DDR x 4 128MB
For low profile system
Note: Low profile VGA card requires 2 PCI slots
DIM-4Pin
DVI-I 24Pin
nVIDIA
( DVI out )
Display
Memory
DB 15 VGA
FX5700LE
(RGB out)
(TV out)
Special Bracket(s) Alternative
P213 DB 15 VGA (RGB out) L = 3.118” , W = 0.725” For low profile PC use only
P515 DVI-I (out) + DIM 4-pin (TV-out) L = 3.118” , W = 0.725” For low profile PC use only

11
Display Devices Output
LCD
Quad Output Optional
S-Video out
4
DB 15 VGA Connector
CRT
Monitor
Converter Cable
TV
DIM-4Pin
2
2. TVout
DVI out Connector
Composite RCA
CRT
Monitor
DVI to RGB
Converter
Composite out
4. DVI out
3. DVI convert to RGB
3
1. RGB out
2
1
1. RGB out - DB15 VGA connector to analog monitor.
2. TV-Out - MD4 connector converts S_Video to RCA Composite Output, or
direct connects S_Video to TV set.
3. DVI converts to RGB with DVI-RGB converter for Dual RGB out.
4. DVI out - DVI connects to LCD display panel.

12
For low profile system
Note: Low profile VGA card requires 2 PCI slots
2
4
DVI out Connector
2. TVout
1. RGB out
CRT
Monitor
Composite RCA
Converter Cable
TV
DIM-4Pin
Composite out
4. DVI out
DVI to RGB
Converter
2
S-Video out
Quad Output Optional
LCD
CRT
Monitor
3. DVI convert to RGB
1
3
DB 15 VGA Connector
1. RGB out - DB15 VGA connector to analog monitor.
2. TV-Out - MD4 connector converts S_Video to RCA Composite Output, or
direct connects S_Video to TV set.
3. DVI converts to RGB with DVI-RGB converter for Dual RGB out.
4. DVI out - DVI connects to LCD display panel.

13
Hardware Installation
Installation Procedures
!! WARNING !!
Discharge static electricity by
touching the GROUND such
as metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
The manufacturer assumes no liability for any damage, caused directly
or indirectly, by improper installation of any components by unauthorized
service personnel. If you do not feel comfortable performing the
installation, consult with a qualified computer technician.
Steps:
1. Turn OFF all powers to your system, including any peripherals (printer,
external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the back of the
computer.
3. Unfasten the cover mounting screws on your system and remove the
system cover. Refer to your system user manual for instructions to
determine the location of the mounting screws.
4. Remove the retaining screw that holds the slot cover in place. Slide
the slot cover out and put the screw aside (you will need it to secure
the adapter).
5. To install the adapter in AGP expansion slot, carefully line up the gold-
fingered edge connector on the adapter directly above the expansion
slot connector on the motherboard. Then press the adapter into place,
completely. Use the (remaining) screw you removed to secure the
adapter-retaining bracket in place.
6. Replace the computer cover. Secure the cover with the mounting
screws you removed in Step 3.
You have now completed the installation of your new graphics adapter on your
system.

14
Upgrade Steps:
Add or change your video adapter to an existing system, you
may precede a few steps before you install the new hardware
and software (video display driver). The followings are some of
the considerations:
1. To add a new adapter, ensure the mainboard has available
IRQ for new devices, and there is no conflict between the
each other.
2. If you try adding this video adapter to an ALL-IN-ONE
mainboard (which video port built-in already), then you have
to disable that port first. Otherwise, there will be a problem
for the new video adapter setup.
3. The driver installation for system upgrade is the same as
below, if error occurs when you proceed to step 1, 2 or 3,
please consult with your system dealer or the existing
hardware manufacturer support.
Software Installation
áWindows  XP Driver Installation
Upgrade video adapter to an existing system. (Windows has
been pre-loaded)
1. Select [Next] at Found New Hardware Wizard.
2. Check [Search for a suitable driver for my device (recommended)]
then select [Next].
3. Insert the Software’s CD.
4. Check [Specify a location:]
5. Under [Copy manufacturer’s files from:] enter D:\
NVIDIA_FX\WIN2K&XP, where D is your CD_ROM drive. Then
click on [OK].

15
6. Select [Next] to install “nVIDIA GeForceFX 5700LE” driver.
7. Select [Finish] to restart the computer.
InstallShieldProgram:
Microsoft Windows® XP detects this new hardware and places
appropriate display driver from its system folder automatically - it doesn’t
matter if you have added a new driver or changed the existing one. To
maximize the video board acceleration and increase its performance,
you may install the manufacturer display driver as follows:
1. Autorun feature brings-up the “Welcome Screen”, and you may
point to “display driver”, then press on it.

16

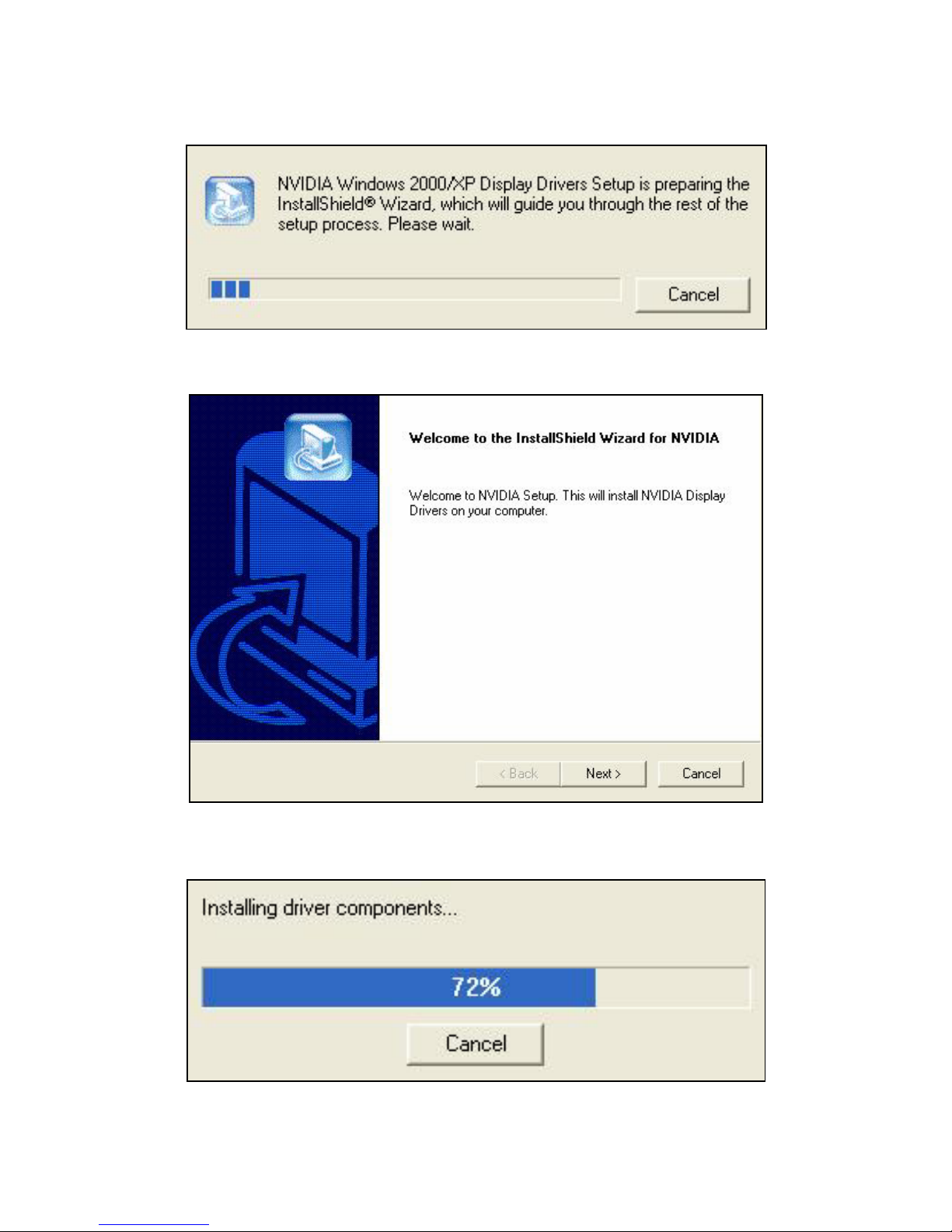

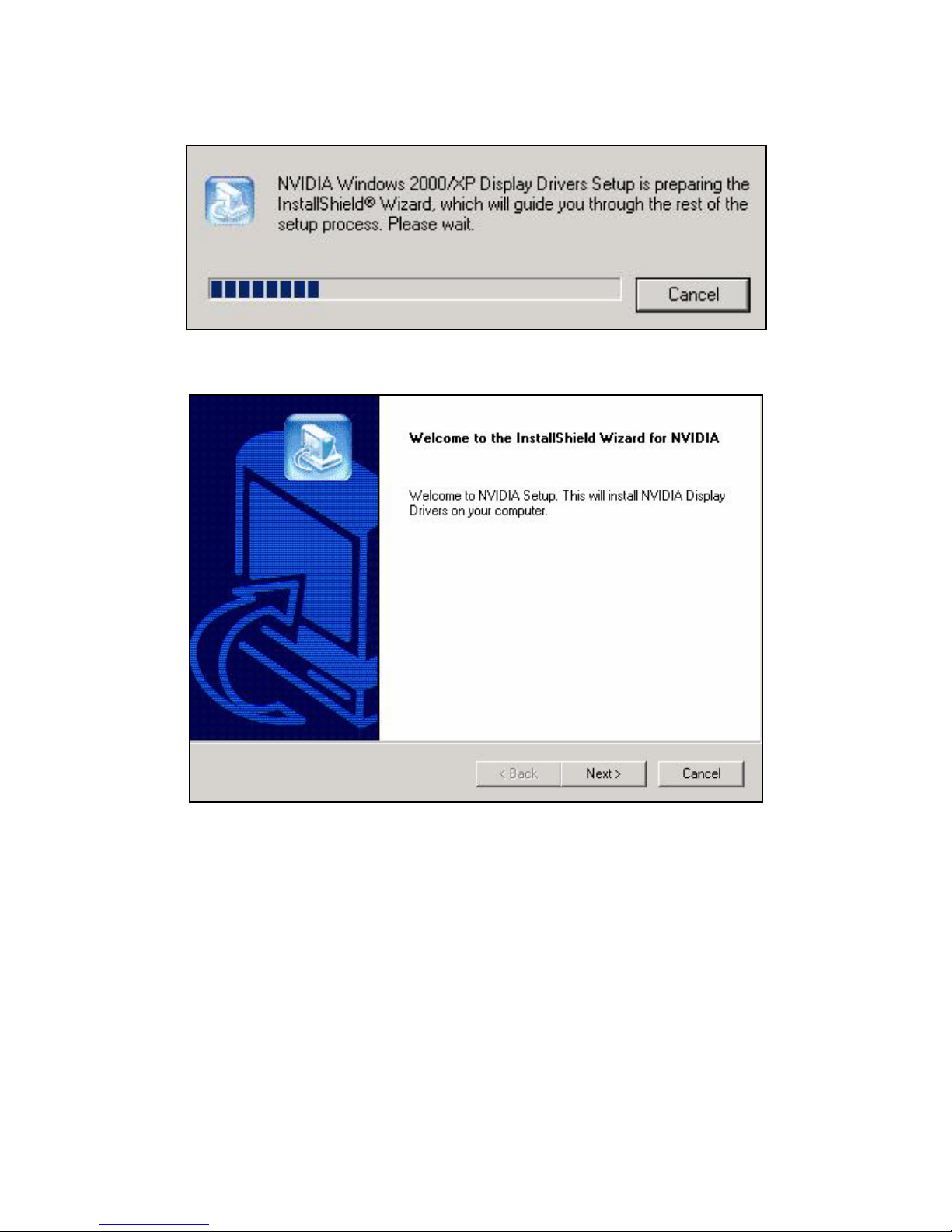

2. Microsoft InstallShieldWizard has start loading its setup process;
please wait until it has completed.
3. Click on “Next” to continue the process.

17
4. The Windows system will copy all driver files from source media to
your local hard disk; please wait until the process has completed.
5. Click on “Finish” to restart your computer, the new display driver will
be in place after Windows boots-up.
áWindows  2000 Driver Installation
Upgrade video adapter to an existing system. (Windows has
been pre-loaded)
1. Select [Next] at Found New Hardware Wizard.
2. Check [Search for a suitable driver for my device (recommended)]
then select [Next].
3. Insert the Software’s CD.
4. Check [Specify a location:]
5. Under [Copy manufacturer’s files from:] enter D:\
NVIDIA_FX\WIN2K&XP, where D is your CD_ROM drive. Then
click on [OK].

18
6. Select [Next] to install “nVIDIA GeForceFX 5700LE” driver.
7. Select [Finish] to restart the computer.
InstallShieldProgram:
Microsoft Windows®2000 detects this new hardware and places
appropriate display driver from its system folder automatically - it doesn’t
matter if you have added a new driver or changed the existing one. To
maximize the video board acceleration and increase its performance,
you may install the manufacturer display driver as follows:
1. Autorun feature brings-up the “Welcome Screen”, and you may
point to “display driver”, then press on it.

19
2. Microsoft InstallShieldWizard has start loading its setup process;
please wait until it has completed.
3. Click on “Next” to continue the process.

20

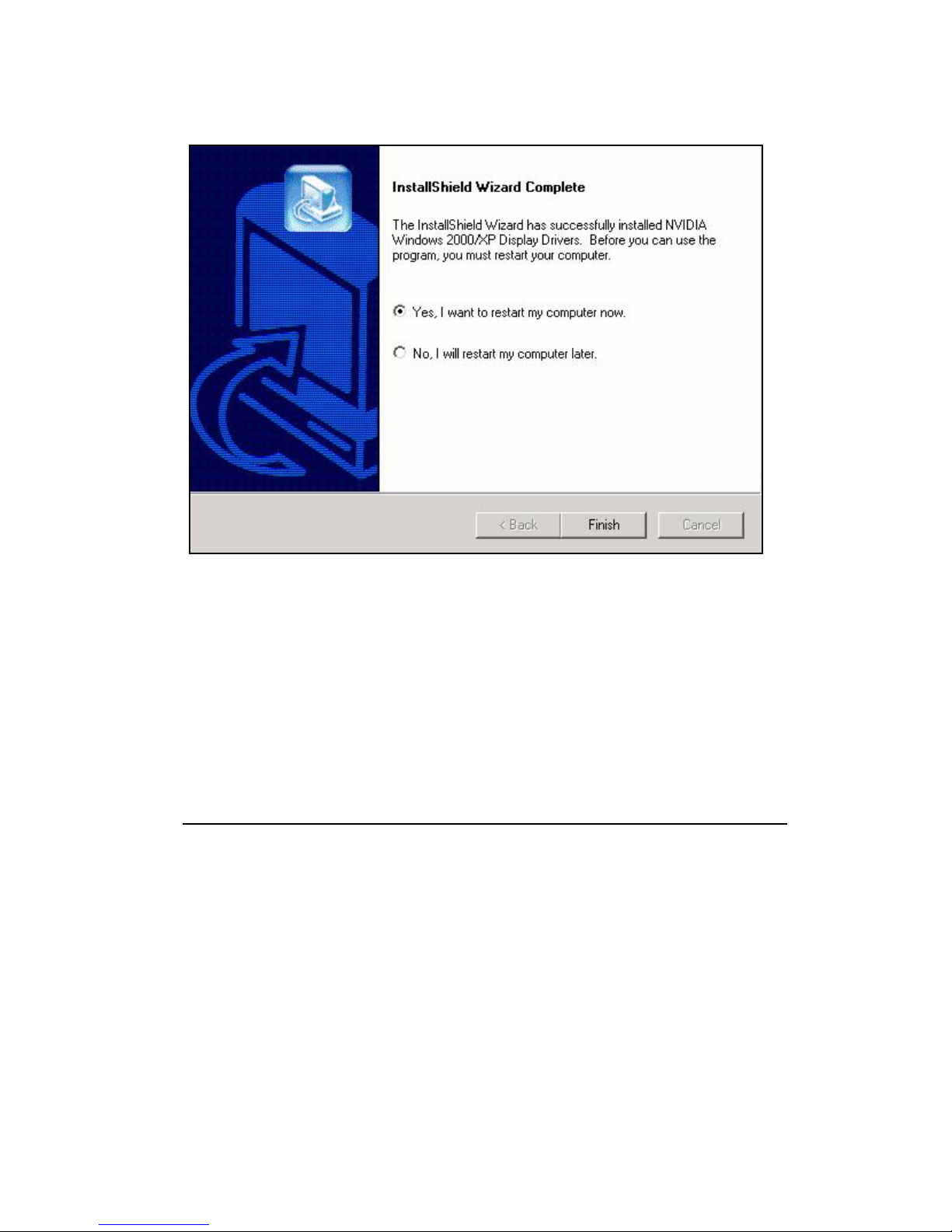

Click on “Finish” to restart your computer, the new display driver will be
in place after Windows boots-up.
Notice:
We believed that the all steps where mentioned above are the
clear and the correct procedures for installing display driver from
manufacturer software’s CD to your operating system. Any
procedures other than these processes have not been specified.
Technical Assistance
Q: Why is the display shifted or changed sizes when I switch display modes?
Explanation and Suggestion:
Some monitors lack auto-sizing features or just do not synchronize properly to
the video board output. In some cases, horizontal and vertical display
adjustments may be necessary. Use the monitor control panel functions to adjust
screen.
In other cases, mode type and refresh rate adjustments may be necessary. Use
the utility program, which provided by video card manufacturer or production
developer. To center the display with normal type (mode 3), and to reduce
(decrease) the refresh rate with the monitor's specification.
