Jazz Speakers J-9940 User manual

OPERATING INSTRUCTIONS
J38-10225-000
J-9940 Dolby Digital & DTS Ready Home Theater
Amplifier Speaker system
JAZZ Hipster Corporation
2F, No.512, Yuan-San Road, Chung-Ho City
Taipei Hsien,Taiwan, R.O.C
TEL :[phone] FAX : [phone]
e-mail : [email protected]
JAZZ INC.
1355 Darius Court
Industry, California 91745 U.S.A
TEL : [phone] FAX : [phone]
web : www. jazzspeakers.com

Center Speaker
(Front)
(English)
Speaker Function Description
1 2
Subwoofer Speaker
(Back)
B.5 FR
B.5 FL
B.5 SL
B.5 SR
B.5 CEN
B.1 Power SW
B.4 Input(DIN)
B.2 FUSE
B.3 AC IN
Center Speaker
(Back)
1.1 Power
1.3 Volume
1.2 Mute
1.4 SUBWOOFER
1.5 CENTER
1.6 SURROUND
3.1 FL/FR
3.2 CEN/SUB 3.3 SL/SR
2. OUTPUT
A .Front Panel Control Functions
1. Center Speaker :
1.1 POWER : Turns system stand-by power on/off.
1.2 MUTE : Mutes/Restores systems volume.
1.3 VOLUME : Controls speaker's volume level ( Satellite and subwoofer ).
1.4 SUBWOOFER : Control for adjusting subwoofer.
1.5 CENTER : Control for adjusting Center speakers.
1.6.SURROUND : Control for adjusting surround speakers.
2. OUTPUT : 9 pin DIN jacks for 6 channels analog audio signal output .
3. INPUT : Analog Audio Source
3.1 FL/FR : RCA jack for Front Left and Front Right analog audio signal
output.
3.2 CEN/SUB : RCA jack for Center and Sub-Woofer analog audio signal
output.
3.3 SL/SR : RCA jack for Left Surround and Right Surround analog audio
signal output.
3.4 CEN SPK. IN : RCA jack for connect to Subwoofer's center audio
signal output. (B.5 CEN.)
B. Subwoofer (back) Control Functions :
B.1 Power SW : Turns system power on/off.
B.2 Fuse: Power protection fuse.
B.3 AC IN : Accepts input plug for AC power source.
B.4 Input ( 9 pins DIN jacks) : Accepts the DIN cable connected to Center
speaker's DIN jack output which is defined by JS especially.
B.5 SPEAKER OUTPUT :
FL/FR : RCA audio output to Front left and Front right speakers.
SL/SR : RCA audio output to Rear left and Rear right speakers .
CEN. : RCA audio output to Center speaker.(3.4 CEN. SPK IN)
1.POWER
6. SURROUND (+/-) 3. VOLUME (+/-)
5. CENTER (+/-)
4. SUBWOOFER (+/-)
2.MUTE
Remote Control Functions
1. POWER : Turns system stand-by power on/off.
2. MUTE : Mutes/Restores systems volume.
3. VOLUME (+/-) : Raises or lowers the systems volume level.
4. SUBWOOFER (+/-) : Raises or lowers the subwoofer speaker level.
5. CENTER (+/-) : Raises or lowers the center speaker level.
6. SURROUND (+/-) : Raises or lowers the surround speaker level.
3.4 CEN SPK. IN

3
Product Specifications
1. Subwoofer (Wooden)
Output Power (R.M.S.) : 100 W
Driver : 8" Woofer
Load Impedance : 6 Ohms
Magnetically Shield : Not necessary
Fuse : AC 250V/3.15A (Local Voltage:220~240V)
AC 125V/5A (Local Voltage:100~120V)
AC IN : AC transfermer built-in.
2. Satellite
Output Power (R.M.S.) : 20W x 5
Driver : Front SPK. (Wooden) 3" full range x 2 + 1" dome tweeter
Rear SPK. (Plastic) 3" full range + 1" dome tweeter
Center SPK. (Plastic) 3" full range + 1.5" dome tweeter
Load Impedance : 8 Ohms
Magnetically Shield : YES
3. Total Power (R.M.S.) : 200 W
4. Frequency Response : 30 Hz ~ 20 kHz
5. Dimension (W x H x D) : Subwoofer - 330 x 410 x 330 mm
Front - 130 x 1100 x 87 mm
Rear - 130 x 230 x 110 mm
Center - 330 x 95 x 200 mm
6. Center Speaker :
POWER : Power source from Subwoofer 9 pin DIN cable
Operation Environment : 0 ~ 40
7. Remote control :
Battery : (DC 1.5V AAA x 2)
Dimension (W x H x D) : 60 x 15 x 160 mm
Package Contents
* Center Speaker with control Box , Subwoofer, Satellite Speakers x 4
* RCA to RCA Stereo Signal Cable x 3
* RCA Signal Cable (3M) x 3
* RCA to Bare wire Signal Cable (3M) x 2
* RCA Extension cable (6M) x 2
* 9 Pin Din Cable x 1

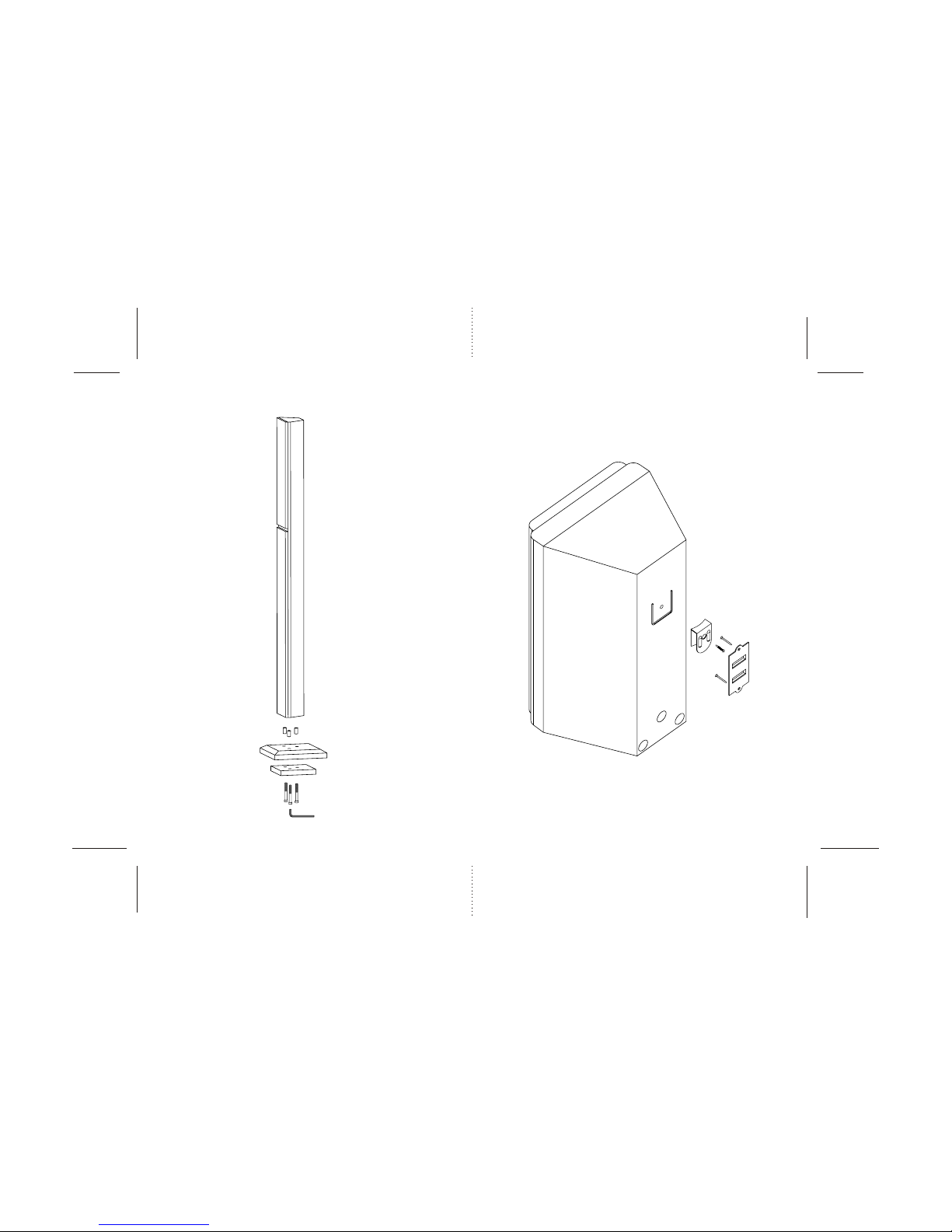

* Wall Mounting kit
* Remote Control
* Battery (DC 1.5V AAA x 2)
* User Manual
Optional Accessories
* F-500(A) Speaker stand
Telescopic floor stand for rear speaker (Cast metal base)
Notice
1.Avoid exposing speakers to environments that are excessively warm and humid
(particularly in unventilated spaces or nearby heaters) or dusty.
2.Do not set speakers near windows exposed to direct sunlight or in areas prone to
water seepage.
3.Avoid excessive vibration of speakers.
4.Clean speaker housing by wiping with mild cleaning solution. Do not use solvents!
5.The speakers incorporate an efficient anti-magnetic architecture, permitting use in
close proximity to most television screens.If the use of your speakers cause
distortions in your television screen colors, try the following:
Turn off and unplug your television, turn on the speaker(s).After waiting 15 to 30
minutes, turn the television on and increase the distance between screen and
speakers until distortion disappears. Also, note whether other magnetic emission
sources are in the immediate vicinity. If so, relocate so as to prevent screen
distortion.
6. "!" WARNING : Before connecting or disconnecting any cables, make sure that
the speaker's power button is in the " OFF " position and the power adapter is
unplugged from the power source and not receiving power.
7.
Manufactured under license from Dolby Laboratories. " Dolby " , "Pro Logic " and
the double-D symbol are trademarks of Dolby Laboratories.
All other brand and product names are trademarks or registered trademarks of
their respective holders.
8.All specifications subject to change without prior notice.
9.
To return all adjustment settings to the factory defaults, turn off the main system
power and unplug the DC power adapter. After 10 seconds, plug in the DC adapter.
Default Settings
REAR
LEFT SPEAKER
REAR
RIGHT SPEAKER
FRONT
LEFT SPEAKER
FRONT
RIGHT SPEAKER
CENTER
SPEAKER
COMPUTER & AUDIO
DVD PLAYER
Fig(1)
SUBWOOFER
CONTROL BOX
REAR
LEFT SPEAKER
REAR
RIGHT SPEAKER
FRONT
LEFT SPEAKER
FRONT
RIGHT SPEAKER
CENTER
SPEAKER
COMPUTER & AUDIO
DVD PLAYER
Fig(1)
SUBWOOFER
CONTROL BOX
4

5
Speaker System Connection Diagram
Rear
Left Speaker
Rear
Right Speaker
Front
Left Speaker
Front
Right Speaker
Center Speaker
(Back)
Subwoofer
(Back)
1. Connect the output source form Device to Center speaker with
Control Box (Your output device can be a DVD player
with decoding, decoding box, computer's sound card with 5.1ch
output).
2. Connect the 9 pin DIN plug from Control Box output to Subwoofer
input (9 pin DIN jack).
3. Connect four Satellites and Center channel by inserting the RCA
cable into the speaker cabinet terminals and the Subwoofer panel.
4. Connect the AC power plug on Subwoofer panel.
5. Once all connections are made, then turn on the power
DVD player or Sound card audio output
PC COMPUTER
(Back)
Center Speaker With PC Computer Setup
DVD PLAYER
(Back)
Center Speaker With DVD Player Setup
Front
Cen/Sub
Rear
Front Cen/SubRear
5.1ch(AC-3 output)
Center Speaker
(Back)
Center Speaker
(Back)
6
