JB Systems DYNAMO 250 User manual

ENGLISH OPERATION MANUAL
JB SYSTEMS®1/41 DYNAMO 250
OPERATION MANUAL
Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own
safety, please read these operating instructions very carefully before you start using this unit.
FEATURES
This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.
This device has been designed to produce decorative effect lighting and is used in light show systems.
Very attractive compact DMX scanner for mobile DJs
Just connect the small, optional CA-8 controller for easy operation
Master/slave mode with built-in programs + micro
Easily controlled with any standard DMX controller
10 multi colored Gobo
Gobo Shaking effect
Blackout and variable strobe
DMX control 4 channels: (pan, tilt, shutter/gobo shaking, gobo/color)
Fan cooling and electronic overheat protection.
Adjustable focus
Equipped with a bright ELC250W/24V lamp
BEFORE USE

not use the device and consult your dealer first.
Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary
for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.
Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.
Check the contents:
Check that the carton contains the following items:
DYNAMO 250 fixture
Mains cable
ELC 250W/24V lamp
Operating instructions

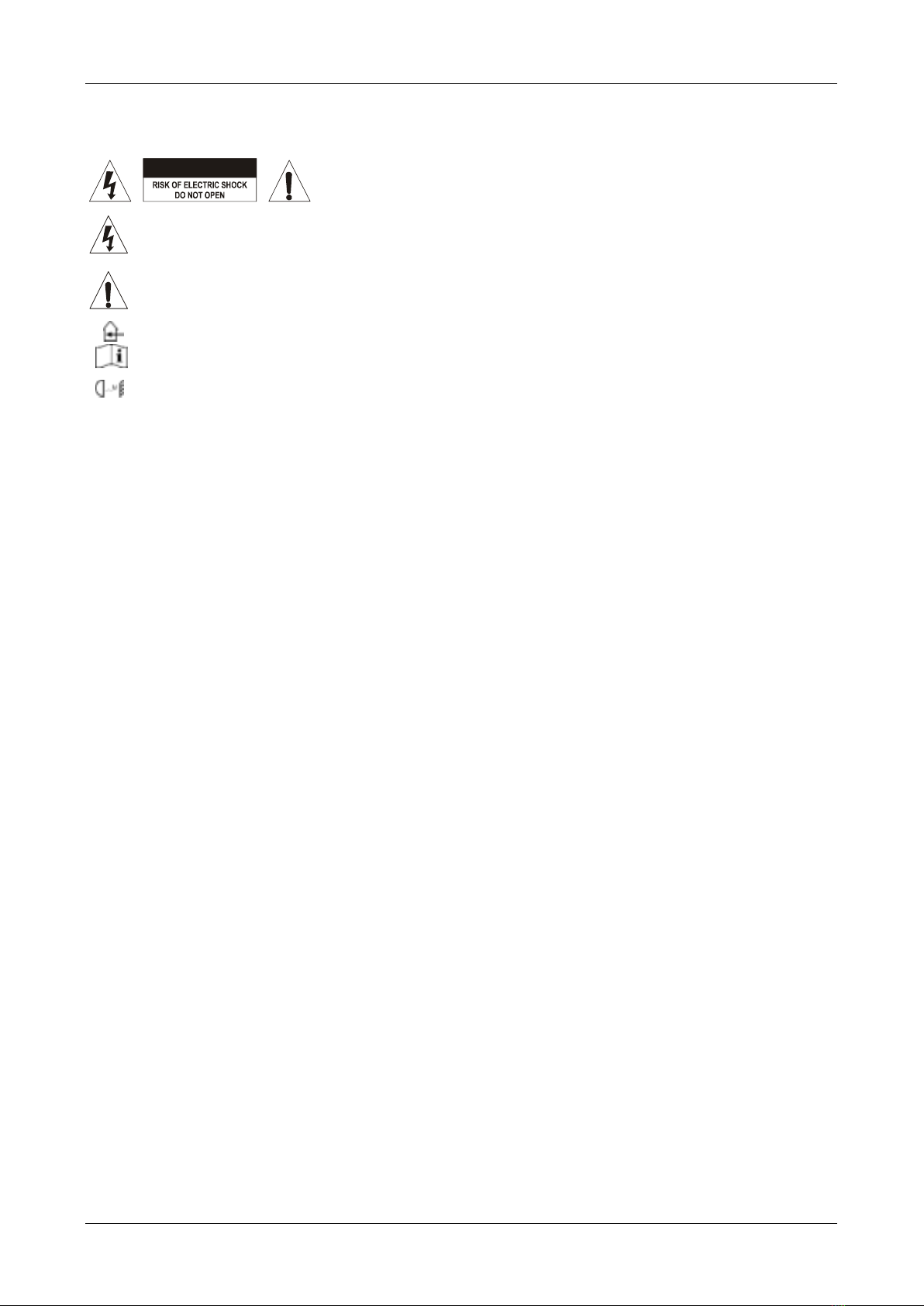

SAFETY INSTRUCTIONS:
CAUTION: To reduce the risk of electric shock, do not remove the top cover.
No user-serviceable parts inside. Refer servicing to qualified service
personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use
or the presence of un-         be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in the literature accompanying this
appliance.
This symbol means: indoor use only.
This symbol means: Read instructions.
This symbol determines: the minimum distance from lighted objects. The minimum distance between
light-output and the illuminated surface must be more than 1 meters.
CAUTION

ENGLISH OPERATION MANUAL
JB SYSTEMS®2/41 DYNAMO 250
To protect the environment, please try to recycle the packing material as much as possible.
A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears
after some minutes.
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when
bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance or may even cause damages.
This unit is for indoor use only.

object enters the unit, immediately disconnect the mains power.
Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture
must be fixed at least 50cm from surrounding walls.

Prevent use in dusty environments and clean the unit regularly.
Keep the unit away from children.
Inexperienced persons should not operate this device.


operation.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
Allow the device about 10 minutes to cool down before replacing the bulb or start servicing.
Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
The electrical installation should be carried out by qualified personal only, according to the regulations for
electrical and mechanical safety in your country.
Check that the available voltage is not higher than the one stated on the rear panel of the unit.
The power cord should always be in perfect condition. Switch the unit immediately off when the power cord
is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Never let the power-cord come into contact with other cables!
This fixture must be earthed to in order comply with safety regulations.

Always use an appropriate and certified safety cable when installing the unit.
In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no
user serviceable parts inside.
Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same
type and electrical specifications!
In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
The housing and the lenses must be replaced if they are visibly damaged.
Please use the original packing when the device is to be transported.
Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: 
from epilepsy.

ENGLISH OPERATION MANUAL
JB SYSTEMS®3/41 DYNAMO 250
DESCRIPTION:
1. Optical lens with manual focus
adjustment
2. Hanging bracket with 2 knobs on both
sides to fasten the unit and a
mounting hole to fix a mounting hook.
3. Mains input with IEC socket and
integrated fuse holder, connect the
supplied mains cable here.
4. Lamp compartment, to be opened with
this screw.
5. Internal microphone
6. 
CA-8 controller.
7. DIP switches, used to set the DMX-
starting address of the unit.
8. DMX input: 3pin male XLR-connector
used to connect universal DMX-
cables. This input receives instructions
from a DMX-controller or from another
Dynamo light effect when used in
master/slave mode.
9. DMX output: 3pin female XLR-connector used to connect the Dynamo with the next unit in the DMX
chain or with another Dynamo when used in master/slave mode.
10. Scanning mirror.
LAMP (RE)PLACEMENT
In case of replacement of the lamp or maintenance, do not open the fixture within 10
minutes until the unit cools down after switching off. Always unplug the unit before
servicing! Always use the same type of spare parts (bulbs, fuses, etc.) When replacing
parts, please only genuine spare parts.
Switch off the unit and unplug the mains cable.
Wait for about 10 minutes until the unit has been cooled down.
Use a screwdriver to unscrew the screw that closes lamp compartment of the fixture. (see number 4 in the

On the inside you will see the lamp socket. Tear the lamp socket gently out of the lamp compartment.
Unplug the old lamp. Hold the lamp socket while unplugging the lamp instead of pulling the cable!
Hold the lamp socket while pressing the new lamp gently in the socket.
Attention! Check the label on the backside of the device or see the technical specifications in this manual
to know which lamp should be used. Never install lamps with a higher wattage! Lamps with higher wattage
generate temperatures the device was not designed for. If the device uses a lamp transformer, it will burn
due to current overload.

of the lamp. If you touched the lamp, clean it with a cloth and a little denatured alcohol. Wipe the lamp off
before installing.
Put the new 
Close the lamp compartment with the screw.
Done!
OVERHEAD RIGGING
Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.

ENGLISH OPERATION MANUAL
JB SYSTEMS®4/41 DYNAMO 250
Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The
fixture must be fixed at least 50cm from surrounding walls.
The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.

weight.
Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
gs as this may result in overheating.
The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.
CONTROLLING THE DYNAMO
1. Standalone 1unit:
Just connect the unit to the mains and put on some music. The unit will start working automatically to the
rhythm of the music.
2. Two or more units in master/slave setup:
Connect 2 or more units together using good quality balanced XLR microphone cables . The unit that
has no cable connected to its input will react as master; the others are the slave units.
Don’t forget to set the DMX addresses as follows:
Master unit: DMX start address MUST be set to 001. (first DIP switch = ON, all other are OFF)
Slave units: DMX start address may have any value but NOT 001 (example: set the first 3 DIP
switches to ON)
It is possible to inverse the behavior of a slave unit by changing the position of DIP-switch n°10. Just try
it and see if the effect becomes better. Changing DIP-switch n°10 on the master has no effect.
3. Connect the optional CA-8 controller for more control:
The CA-8 controller can only be used in standalone or master/slave mode. Connect
the controller to the jack input of the first unit (master). Now you can control all the
connected units:
STANDBY BUTTON:
Press this button to start/stop blackout mode on all connected units. The led is ON
when the blackout function is active. After about 30sec. blackout, the lamp will be
switched off automatically to extend its lifetime.
MODE/FUNCTION BUTTONS:
With the MODE button you can select 3 different modes:
The LED is off: with the FUNCTION button you can select 3 different strobe
functions.
The LED is blinking: with the FUNCTION button you can select 12 different
X/Y moving patterns.
The LED is on: The beam movements are sound activated. With the FUNCTION button you can
select the desired gobo/color.
4. Controlled by universal DMX-controller:
The DMX-protocol is a widely used high speed
signal to control intelligent light equipment.

and all the connected light effects with a good
quality XLR M/F balanced cable. To prevent
strange behavior of the light effects, due to
        
terminator at the end of the chain. Never use
Y-
Each light effect in the chain needs to have its
proper starting address so it knows which
commands from the controller it has to

ENGLISH OPERATION MANUAL
JB SYSTEMS®5/41 DYNAMO 250
decode.
How to set the DIP-switches to obtain the right starting address:
On the back of the Dynamo you will see that each of the first 9 DIP-switches corresponds to certain
value:
Dip
#1
#2
#3
#4
#5
#6
#7
#8
#9
Value
1
2
4
8
16
32
64
128
256
You can combine the values of these switches to become any starting address between 1 and 512:
Begin address = 01 switch 1=ON values: 1
Begin address = 05 switch 1+3=ON values: 1+4 = 5
Begin address = 09 switch 1+4=ON values: 1+8 = 9
Begin address = 13 switch 1+3+4=ON values: 1+4+8 = 13
Begin address = 62 switch 2+3+4+5+6=ON values: 2+4+8+16+32 = 62
DMX-CONFIGURATION:
MAINTENANCE
Make sure the area below the installation place is free from unwanted persons during servicing.
Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.

ENGLISH OPERATION MANUAL
JB SYSTEMS®6/41 DYNAMO 250
The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,

Clean with a soft cloth using normal glass cleaning products.
Always dry the parts carefully.
Clean the external optics at least once every 30 days.
Clean the internal optics at least every 90 days.
Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!
SPECIFICATIONS
Mains Input: AC 230V, 50Hz
Fuse: 250V 3.15A fast blow (20mm glass)
Sound Control: Internal microphone
DMX connections: 3pin XLR male / female
Lamp: ELC 250W/24V
Size: 38.5 x 17 x 12cm
Weight: 4.4 kg
Every information is subject to change without prior notice
You can download the latest version of this user manual on our website: www.jb-systems.eu

FRANÇAIS MODE D’EMPLOI
JB SYSTEMS®7/41 DYNAMO 250
MODE D’EMPLOI
choisi ce produit JB Systems®. Pour votre sécurité et pour une utilisation optimale de toutes les

EN VOUS INSCRIVANT POUR LA LETTRE D’INFORMATION VOUS SEREZ TOUJOURS
TENU AU COURANT DES DERNIÈRES NOUVELLES CONCERNANT NOS PRODUITS:
NOUVEAUTÉS, ACTIONS SPÉCIALES, JOURNÉES PORTES OUVERTES, ETC.
øSURFEZ SUR: WWW.BEGLEC.COM ÷
CARACTERISTIQUES
           es et européennes. La
conformité a été établie et les déclarations et documents correspondants ont été déposés par le fabricant.
 
lumineux.
Scanner attractive et compact pour les DJ mobiles.
Programmes incorporés et micro pour mode stand-
Il suffit de connecter le petit contrôleur CA-8 (en option) pour faciliter les opérations
Facile à contrôler par n'importe quel contrôleur DMX standard
10 Gobos multicolores
Effet Gobo Shaking
Blackout et strobo à vitesse variable
4 canaux DMX (pan, tilt, shutter/gobo shaking, gobo/color)
Ventilation forcée par ventilateur et protection de surchauffe.
Focus réglable
 ampoule ELC250W/24V
AVANT UTILISATION
 liser cet appareil, assurez-         

Important: Cet appareil a quitté notre usine en parfaite condition et bien emballé. Il est primordial que
              
                
responsabilité des défauts ou de tout problème résultant 
garde de ce manuel.
              
assurez-
Vérifiez le contenu:
lage contient les articles suivants:
DYNAMO
Câble d'alimentation
ELC 250W/24V
Mode d'emploi

FRANÇAIS MODE D’EMPLOI
JB SYSTEMS®8/41 DYNAMO 250
CAUTION
INSTRUCTIONS DE SECURITE:
ATTENTION: afin de réduire le ris    

puissiez remplacer vous-     
techniciens qualifiés.
La flèche dans un triangle met l'utilisateur en garde contre la présence de haute tension sans isolation dans
l'appareil, ce qui peut causer un risque d'électrocution.
Un point d'exclamation dans un triangle prévient de la présence d'instructions relatives au fonctionnement et à
la maintenance se trouvant dans le manuel fourni avec l'appareil.
Ce symbole signifie: uniquement pour usage à l'intérieur.

Ce symbole représente la distance de recul minimum à respecter, c'est-à-dire, la distance minimum entre le
projecteur et la surface à éclairer. Cette distance doit être de plus de 1 mètre.

Un effet lumière neuf peut provoquer de la fumée et/ou une odeur non souhaitée, qui devrait disparaître après
quelques minutes.


               
empêche l'appareil de fonctionner manière optimale, et elle peut même causer des dommages.
Cet 
 
des vases, ne peut être placé sur cet appareil. Cela risquerait de provoquer une décharge électrique ou un
             

Aucune source de flamme nue, telle que des bougies allumées, ne peut être placée sur l'appareil.

à 50cm minimum des murs.
Ne pas couvrir les orifices de ventilation, un risque de surchauffe en résulterait.
Ne pas utiliser l'appareil dans un environnement poussiéreux et le nettoyer régulièrement.
Ne pas laisser l'appareil à portée des enfants.
Les personnes non expérimentées ne doivent pas utiliser cet appareil.
       t de 40    -delà de cette
température.
La température des parois de l'appareil peut atteindre 85°C. Ne pas toucher ces parois à mains nues en cours de
fonctionnement.
Assurez-vous que la zone au-rte pas de personnes non concernées pendant le
montage, le démontage et les opérations de maintenance.

                

Les installations électriques ne peuvent être faites que par du personnel qualifié et conformément aux règlements de
sécurité électrique et mécanique en vigueur dans votre pays.
Assurez-

                
devait être écrasé ou endommagé. Pour éviter tout risque de choc électrique, le cordon doit être remplacé par le
constructeur, son agent ou un technicien qualifié.
 !


Utilisez toujours des câbles appropriés et certifiés lorsque vous installez l'appareil.


Ne jamais réparer ou court-circuiter un fusible. Remplacez systématiquement un fusible endommagé par un fusible
de même type et ayant les mêmes spécifications électriques !
