ENGLISH
NOTE ON USE
Operation manual
•Allow for sufficient heat dispersion when installed on a rack.
•Handle the power cord carefully. Hold the plug when
unplugging the cord.
•Keep the set free from moisture, water and dust.
•Unplug the power cord when not using the set for a long
period of time.
•Do not obstruct the ventilation holes (for sets with ventilation
holes).
•Do not let foreign objects into the set.
•Do not let insecticides, benzene and thinner come in contact
with the set.
•Never disassemble or modify the set in any way.
•Use proper plug for the local outlet.

CD 4103
MAIN UNIT
1. Power (Power ON/OFF switch)
2. Disc Holder
3. Open/Close
Press it to open and close the disc holder. The control unit
also includes OPEN/CLOSE button. The disc holder cannot be
opened during playback, so stop playback before pressing the
button.
4. Remote Control Connector
Connect this connector to the control unit using the included
control cord.
5. Audio Out 1 & 2
The audio signals from each player are output from these
jacks.
6. Digital Out Socket
The music signal of this socket is digital. Connect the output
to the respective input of for example a digital amplifier.

CD 410 4
CONTROL UNIT

CD 4105

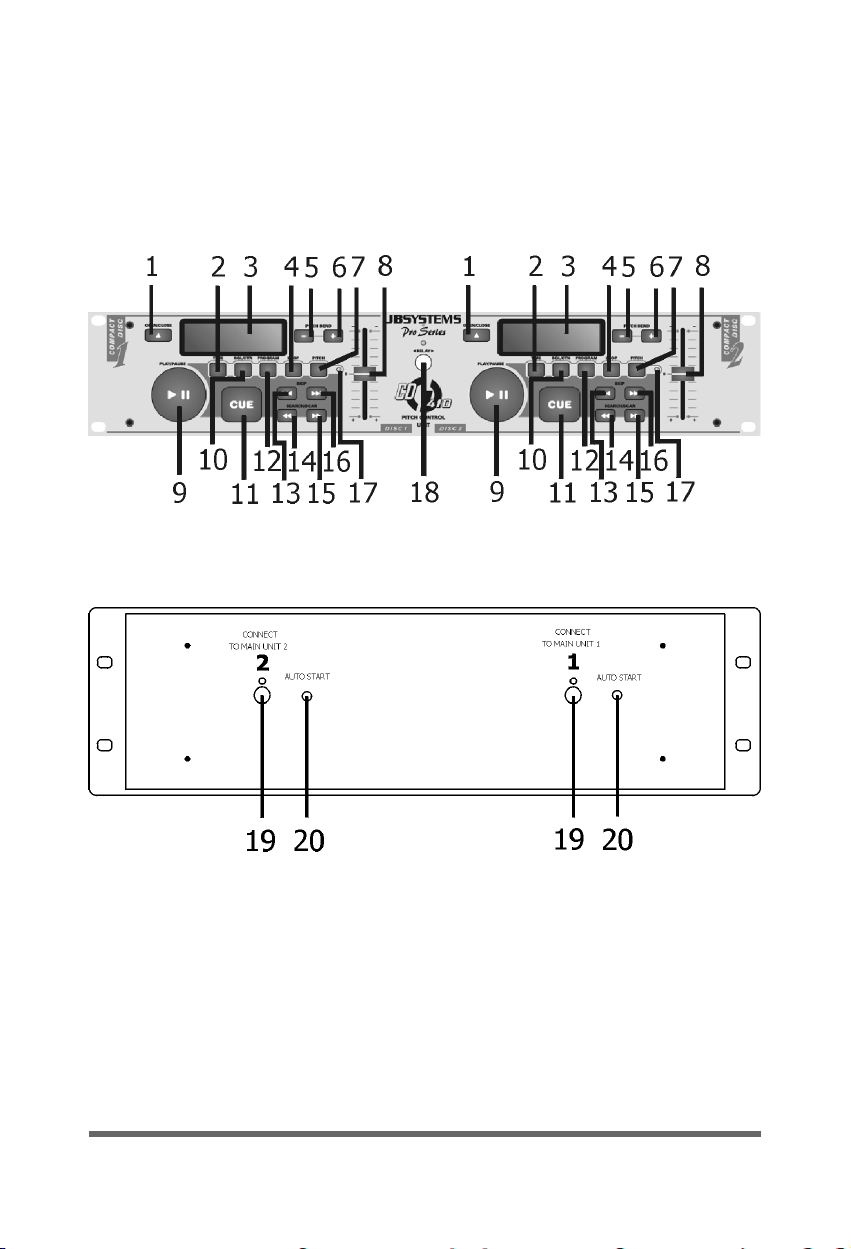

1. Open/Close
Press it to open and close the disc holder. The main unit also
includes OPEN/CLOSE buttons. The disc holder cannot be
opened during playback, so stop playback before pressing the
button.
2. Time Button
Press this button to switch the time display between the elap-
sed time and remaining time and total remaining time. The
selected mode is indicated by the indicators ‘Elapsed’, ‘Remain’
and ‘Total Remain’ on the LCD.
3. LCD
4. LOOP (Loop Button)
Press the LOOP button to set the loop start point, press the
LOOP button again to set the loop end point.
5. PITCH - Button
The CD slows down while this button is pressed. Release the
button to return to the original BPM.
6. PITCH + Button
The CD speeds up while this button is pressed. Release the
button to return to the original BPM.
7. PITCH (Pitch Button)
Use this button to enable or disable BPM adjustment with the
pitch sliders. BPM adjustment with the pitch sliders is enabled
when the pitch LED lights.
8. Pitch Slider
Use the slider to adjust the CD pitch. Slide up to decrease the
pitch, down to increase the pitch.
9. Play/Pause Button
Use the button to start playback. Press once to start playback,
once again to set the pause mode, and once more to resume
playback.

CD 410 6
10. SGL/CTN (Single/Continuous Button)
Press it to switch between the single and continuous play
modes. The SINGLE mode is indicated by the Single indicator
on the LCD.
11. CUE (Cue Button)
Press the Cue button during playback to return to the position
at which playback started.
12. Program (Program Button)
Press the Program button, the player will enter the program
mode and stop the CD playback.
13. SKIP 
Use this button to go back to the beginning of the current
track or to select a previous track for playing.
14 & 15. Search/Scan & 
Press these buttons to perform frame search function during
pause mode or to perform scan function during play mode.
16. SKIP 
Use this button to skip to the next CD track.
17. PITCH (Pitch Indicator)
Moving the pitch slider will change the pitch but only when
the pitch LED is illuminated.
18. Relay
Press the Relay button to enable or disable the Relay
function. While the Relay is enabled, the LED will light. In the
single mode, the CD player will be paused at the next track
when finished playing the current track. Only the other side
of the CD player that is standby in pause mode will start
playing automatically. There is no Fader start function when
in the Relay mode. Press the Relay button do disable relay
function. The LED will go out when Relay is disabled.

CD 4107
19. Control Connector
Connect this connector to the Remote connector on the main
unit using the included control cord.
20. Auto Start
Via the Control socket, the respective CD player can be
remotely controlled. If you are using a mixer with fader start
function, connect the player with the control out socket. Please
note that these sockets must never be connected with any
voltage.
LED

CD 410 8
21. PLAY Indicator 
The play indicator lights during play mode.
22. PAUSE Indicator 


The pause indicator lights during pause mode.
23. CUE Indicator
The cue indicator lights during cue mode or pause mode,
flashes when cue point is changed.
24. Elapsed Indicator
It indicates that the time shown on the display is the elapsed
time.
25. Total Indicator
It indicates that the time shown on the display is the Total
Remaining time of playback.
26. BAR Indicator
These ten indicators provide a visual display of the approxi-
mate position of the pickup within the current track.
27. Remain Indicator
Indicates that the time shown on the display is the remaining
time of the playing track.
28. Single Indicator
When the indicator lights, playback will stop at the beginning
of the next track.
29. Program Indicator
The program indicator lights when the program mode is set.
30. Pitch Indicator
When the indicator lights, the pitch mode is enabled.
31. Loop Indicator
When the indicator lights, the loop mode is enabled.
32. - 35. Track, Minute, Second & Frame Displays
These displays indicate information on the CD’s current
position and time.

CD 4109
36. Pitch Display
It shows the BPM change range, the BPM changes within a
range of ± 10%.
Specifications
Power Source: ....................AC 230V, 50Hz, 25W
Dimensions:
Main unit:...........................482 (W) x 88,8 (H) x 251 (D) mm
Control unit: .......................482 (W) x 88,8 (H) x 60 (D) mm
Weight:
Main unit:...........................5 Kgs
Control unit: .......................2 Kgs
