jbc RWB User manual

RWB
Rework Adjustable Arm for PHB
INSTRUCTION MANUAL

Tool Arm ........................ 1 unit
Adapter for TET ........... 1 unit
Ref. 0 017059
Base ................................ 1 unit
Headless Screw .......... 1 unit
Ref. 0 017057*
Allen Key 3 mm ............ 1 unit
Ref. 0013609
Manual ............................ 1 unit
Ref. 0028704

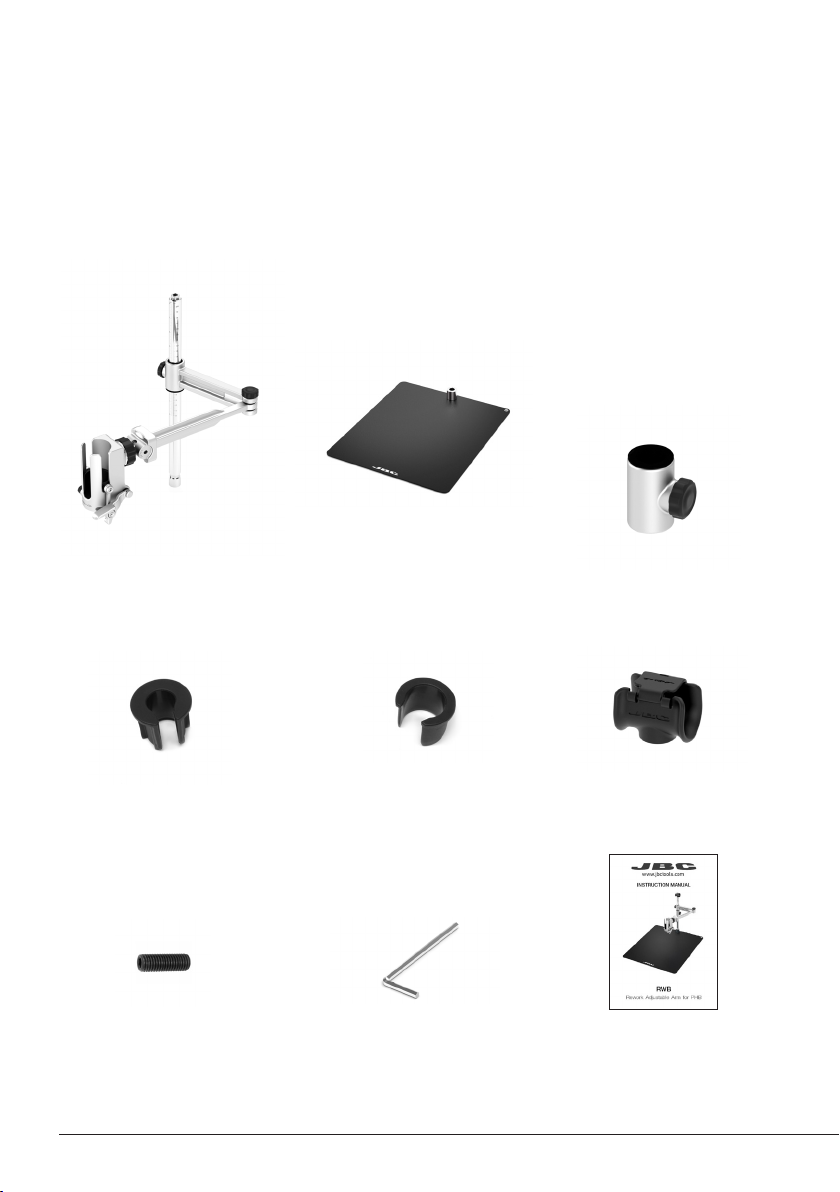

Packing List
The following items are included:
This manual corresponds to the following reference:
RWB-B
Height Adjustment
Flange ............................. 1 unit
Ref. 0023991*
Hose Clamp ................. 1 unit
Ref. 0 017056*
Adapter for JTT ........... 1 unit
Ref. 0017058
*already assembled
2

Hose Clamp
Hight Adjustment Flange
Headless Screw
(at the rear)

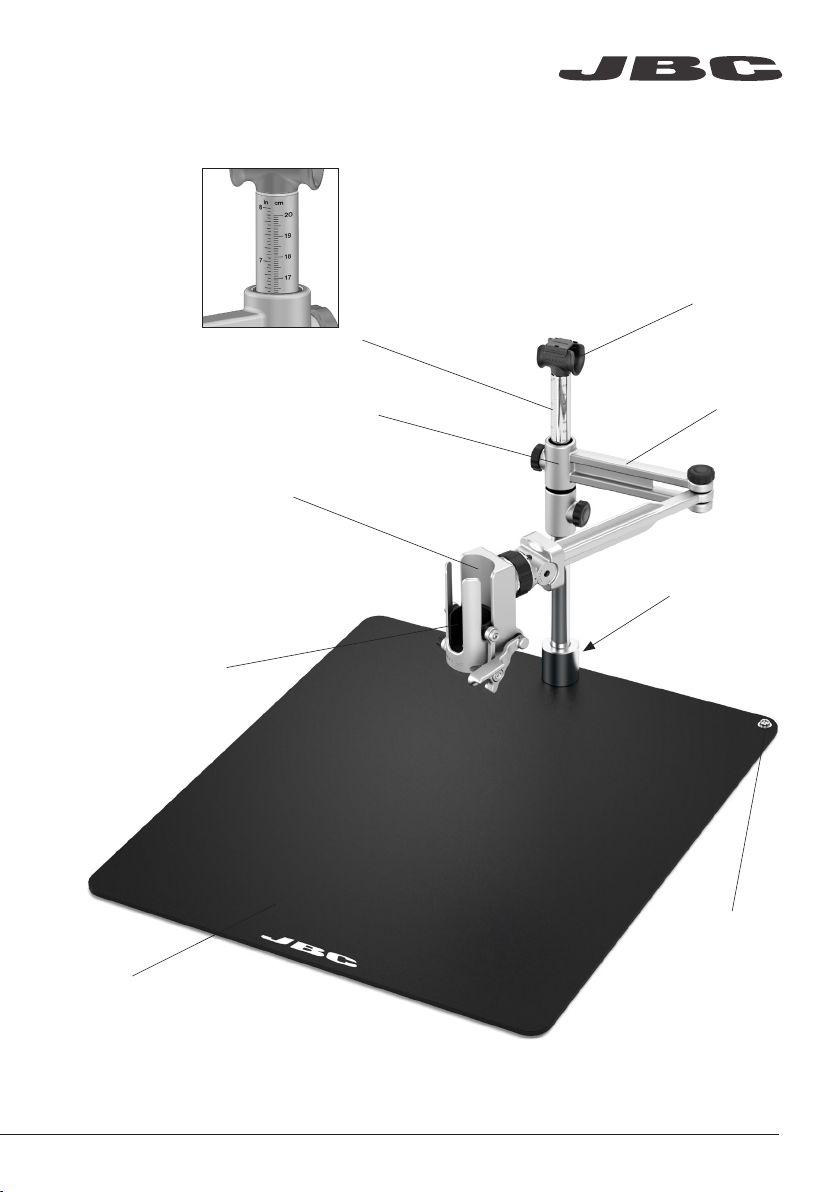

Features
Tool Holder
Scaled Vertical Axis (mm / in)
Base
Tool Arm
Adapter for JTT / TET
ESD Connector
(connect to
ESD Common
Grounding Point)
www.jbctools.com
3

Tool Arm Assembly
Setting up the Tool Arm
Fit the vertical axis into the tool arm (1) and then
the tool arm onto the base bushing (2).Tighten
the headles screw by using the allen key (3).
Allen
Key
1
2
3
Headless
Screw
Vertical
Axis
Tool Arm
Base
Bushing
Heater Hose Assembly
Fit Heater into Tool Holder
Insert the tool as far as possible into the tool
holder with its adapter previously assembled.
Inserting the Adapter (JT/TE)
Slide the adapter along the hose to the end of
the handle. Adapter
Adapter
Lower the Tool
Turn the lever to lower the tool. After having
finished the working process raise the tool to
free up the workspace.
Lever
4

Make sure the tool arm knob is loosened (1)
before adjusting the tool holder height.
Slide the tool arm to the appropriate height (2)
and secure its position by tightening the height
adjustment flange knob (3).
The scale on the vertical aixis (4) allows to adjust
the desired height easily.
Tool Arm Knob
2
3
Top vi ew
According to the work needs the tool arm
allows adjustments for different positions. The
articulated arm covers the entire working area.
Position the arm as needed and open or tighten
the knobs (1) and (2) to allow or block the
movement (A) and (B).
2
1
1
4
B
A
Fit Heater Hose to Hose Clamp
Fit the heater hose into the hose clamp (1) and
move the closure down (2).
Closure
1
2
Tool Arm Height Adjustment
Work Position Adjustment
Flange Knob
www.jbctools.com
5

Tool Holder Adjustment
The tool holder head position enables an
individual tool position adjustment.
By pressing the button and/or loosen the
wheel the tool holder head position can be
adjusted.
Both axes have a scale to carry out the task
with higher precision .
Tilting movement
By pressing the button you can rotate the Tool
Holder up or down.
The movement allows a rotation between -40º
and +40º.
You can lock or unlock the lateral rotation
mechanism by turning the fixing wheel a quarter.
The movement allows a rotation between -90º
and +90º.
Rotating movement
Button
Tool Holder
Head
Wheel
Wheel Scale
Button Scale
6

Console
Large PCB Support
Large Preheater
PHBK Large Preheater Set
JBC offers PHBK for rework on medium and large PCBs. It features four thermocouple connections
and a heating area which is divided in two zones:
- 1 zone: 180 x 277 mm / 7.1 x 10.9 in
- 2 zones: 360 x 277 mm / 4.2 x 10.9 in
PHBK includes the preheater with its console and the PCB support.
Accessories
Accessories
PSB Large PCB Support
Also available JBCs Large PCB Support PSB - it comes without preheater.
PSB adapts to different PCBs geometries by means of its adjustable components and its 3 adjustable
heigth positions 28, 38 or 48 mm / 1.1, 1.5 or 1.9 in.
www.jbctools.com
7

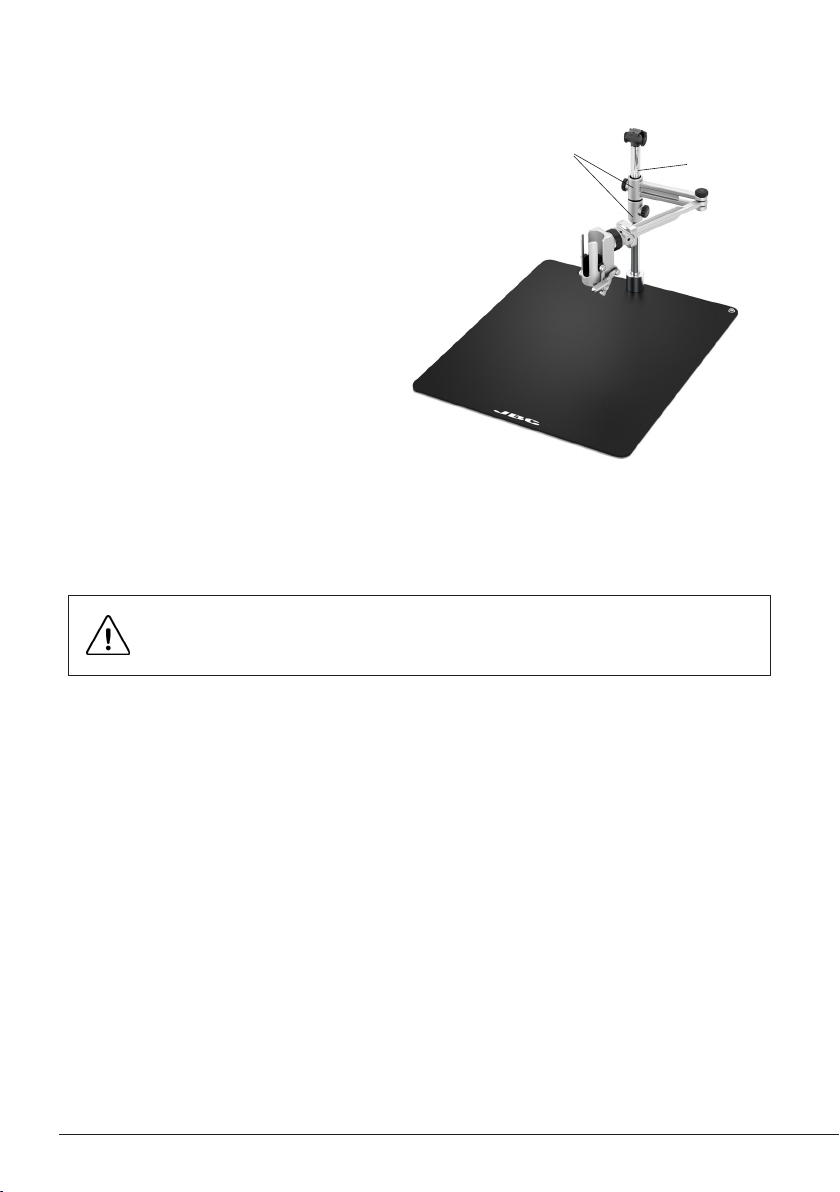

Sliding Parts
Axis
It is imperative to follow safety guidelines to prevent electric shock, injury,
fire or explosions.
Safety
- Do not use the equipment for any purpose other than PCB rework. Incorrect use may cause fire.
- The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Maintenance
- Check periodically that RWB is clean,
especially the sliding parts and the axis.
- Use a damp cloth when cleaning. Alcohol
can only be used to clean the metal parts.
- Replace any defective or damaged parts.
Use original JBC spare parts only.
- Repairs should only be performed by a
JBC authorized technical service.
8

Notes
www.jbctools.com
9

Notes
10

Notes
Specifications
RWB
Rework Adjustable Arm for PHB
Ref. RWB-B
- ESD safe connector
- Base Dimensions (L x W): 480 x 550 mm / 18.90 x 21.65 in
- Total Height: 386.5 mm / 15.22 in
- Arm Height: 381.5 mm /15.02 in
- Arm Lenght: 444.5 mm / 17.50 in
- Total Net Weight: 16.99 kg / 11.24 lb
- Package Dimension / Weight: 595 x 520 x 180 mm / 19.74 kg
(L x W x H) 18.66 x 14.49 x 7.68 in / 12.57 lb
Complies with CE standards
ESD Safe
www.jbctools.com
11

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
