JBL Simply Cinema DSC 1000 User manual

DSC 1000
DIGITAL
SIMPLY CINEMA
OWNER’S GUIDE
®
The DSC 1000 Controller is shown here.

TABLE OF CONTENTS
Introduction Page
Welcome 1
Important Safeguards and Precautions 2
Front Panel Controls
Front Panel Display 4
Rear Panel Connections 5

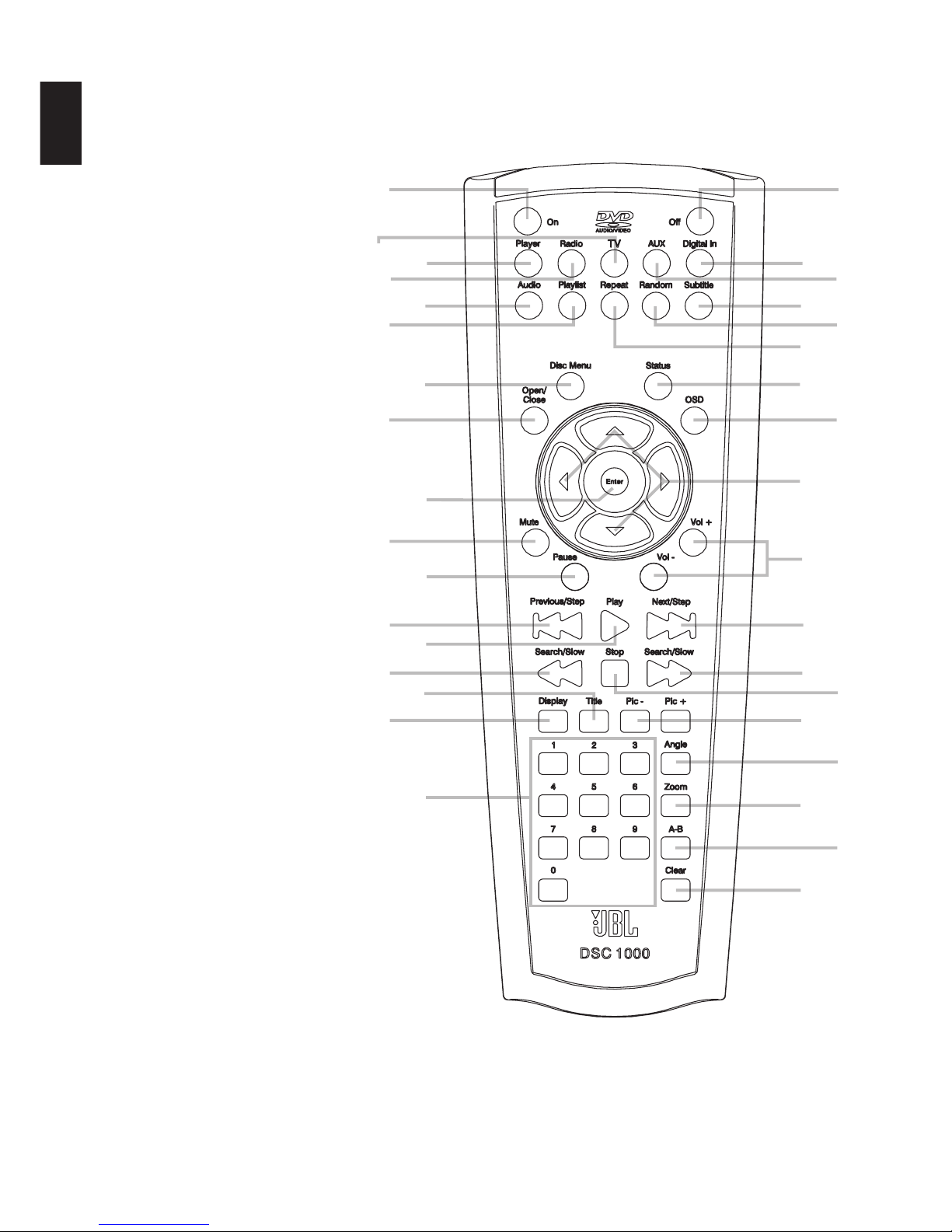

Remote Control 6
Basic Information 8
About This Manual 8
Compatible with CD as well as DVD 8
Regional Coding 8
Inserting Batteries into the Remote Control 8
DSC System Connection Page

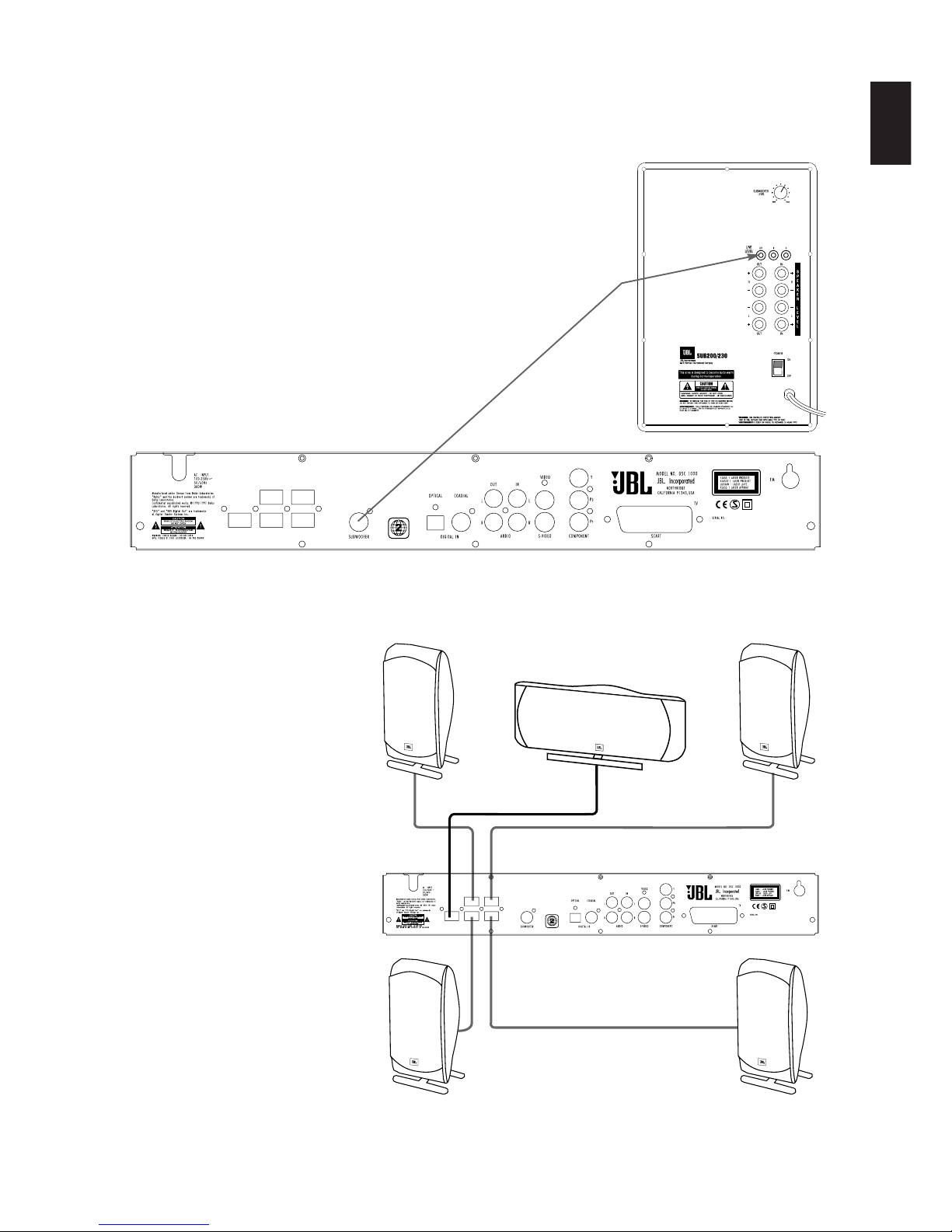

Connecting the Controller to the Subwoofer 9
Connecting the Controller to the Satellites 9
Antenna Connections 10
TV, Audio and Power Connections 11
Connecting the TV and optional components 11
Connecting AC Power 11
Playback Basics Page
Basic Playback 12
Disc Playback Features 12
Skipping tracks or titles/chapters 12
Fast Motion Playback/Fast Search 12
Freeze Frame and Frame Advance (with DVD only) 12
Slow Motion Playback (with DVD only) 12
Surround Mode 1
System Setup Page
System Defaults 14
Setup Menu 14
System Settings 14
Display Language 14
Preferred Subtitle Language 14
Panel Time-Out 14
Status Bar Time-Out 14
Parental Control 14
PBC Support 15
Screen Saver 15
Show Angle Icon 15

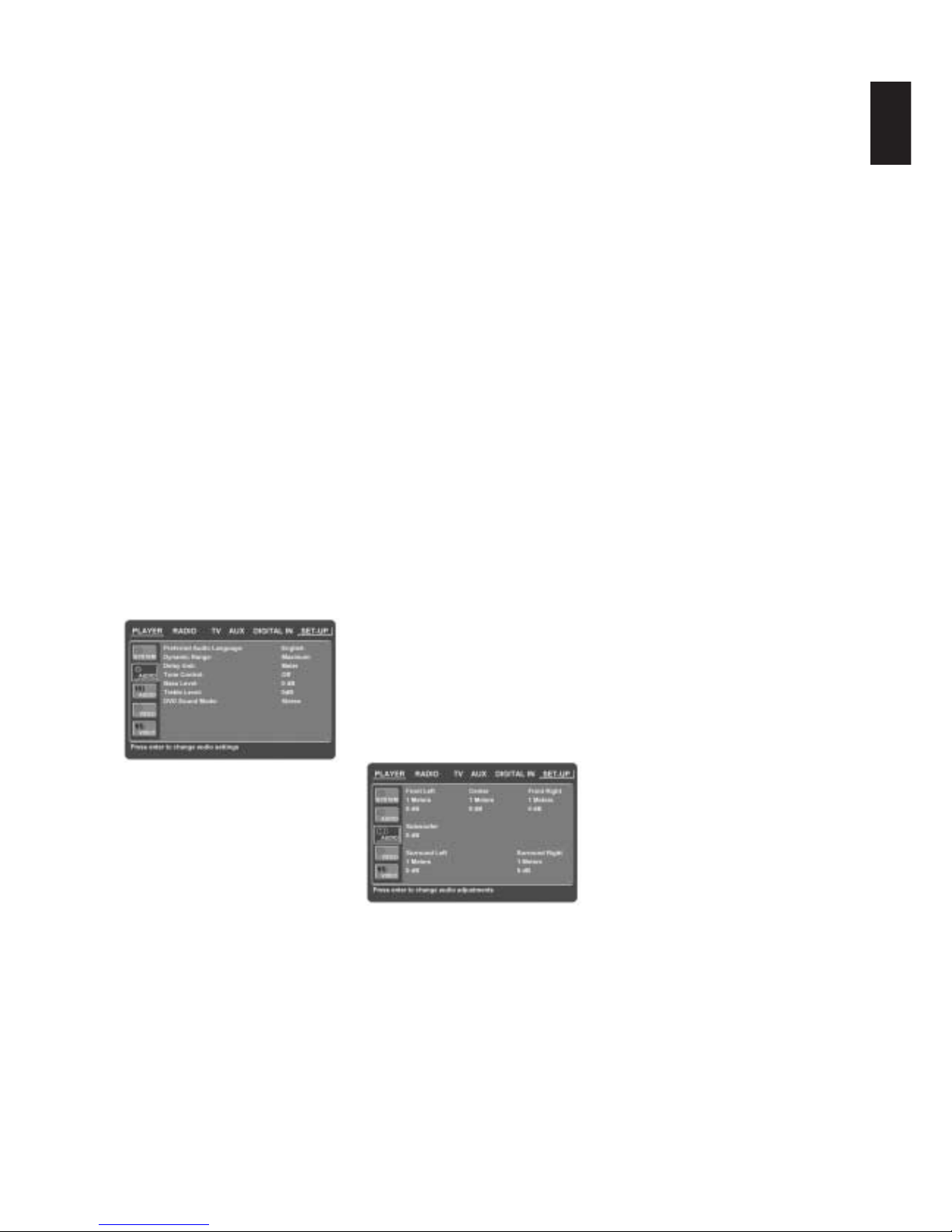

Audio Settings 15
Preferred Audio Language 15
Dynamic Range 15
Audio Adjustment 15
Delay Unit 15
Tone Control 15
Bass Level 15
Treble Level 15
DVD Sound Mode 15
Audio Adjustment 15
Delay 15
Output Level Adjustment 15
Video Settings 16
Video Adjustment 16
Test Screen Page

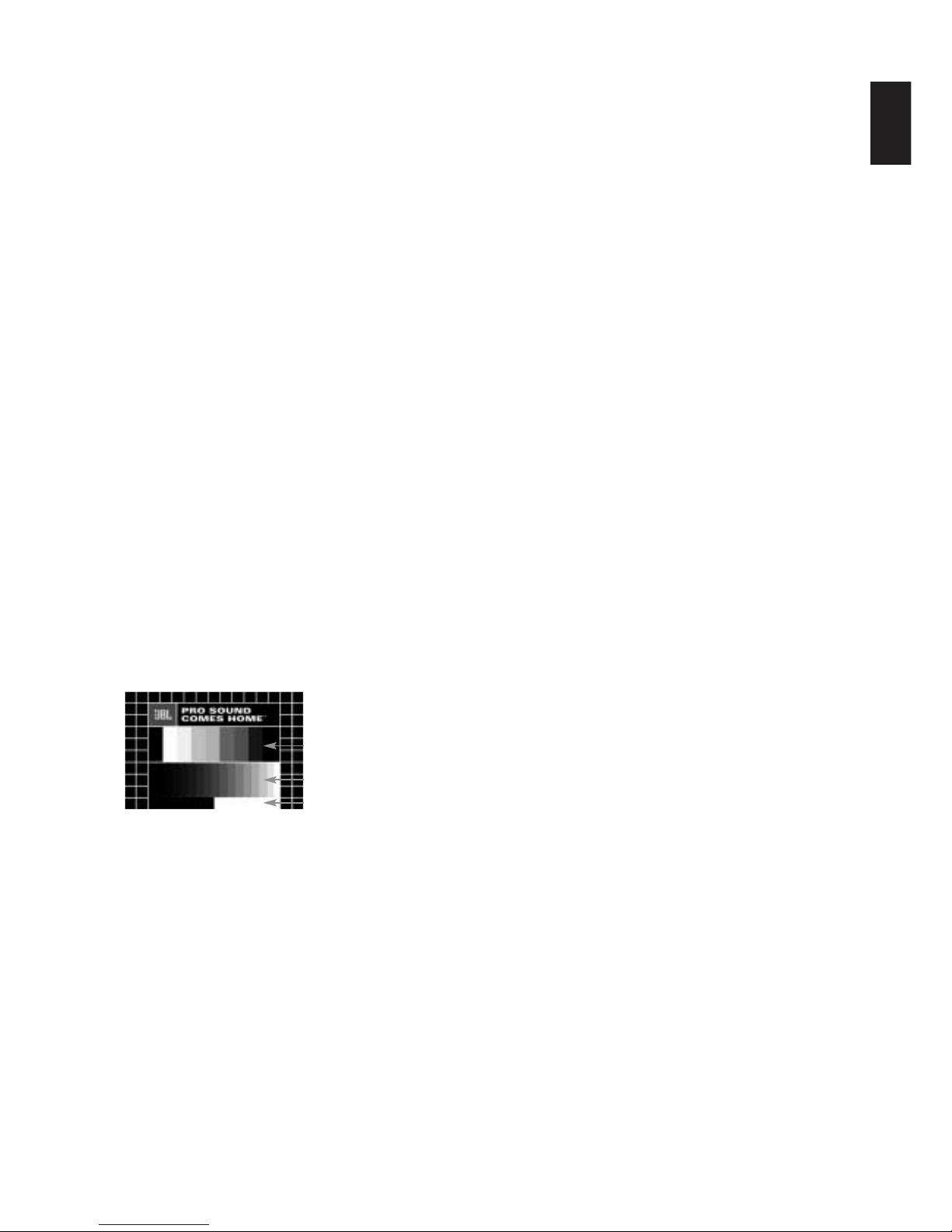

Test Screen 17
TV Picture Adjustment with Test Screen 17
Player Menu Page

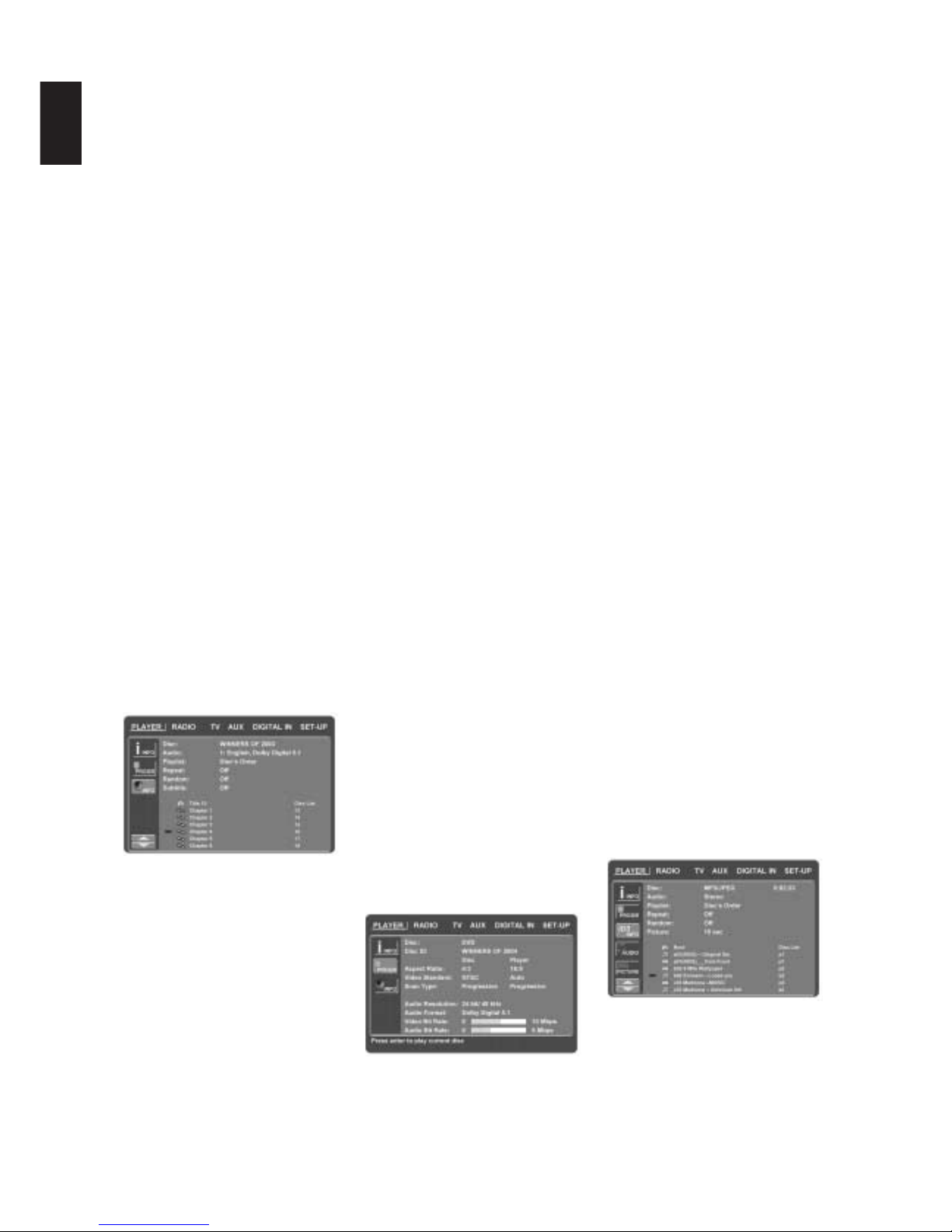

Using the Status Bar Menu 18
Player Menu 18
Information Displays 18
Programmed Play 18
Radio Menu Page
Rearranging the station list 19
Selecting presets 19
Removing presets 19
RDS Station ID 20
Surround Mode for Tuner 20
TV Menu, A X Menu, Digital In Menu Page
TV Menu 21
AUX Menu 21
Digital Menu 21
Surround Mode Chart 22
DVD Languages Codes Page
Languages Codes 2
Troubleshooting Page
Troubleshooting 24
Glossary Page
Glossary 26
Specifications Page
Specifications 27
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
72500 Château-du-Loir
France
Gary Mardell
JBL,
Harman Consumer Group International
France, 07/04
declare in own responsibility, that the product
described in this owner’s manual is in
compliance with technical standards:
EN 50081-1:1992
EN 50082-1:1992
EN 60065-1:1998
EN 50013/A14:1999
EN 50020/A14:1999
EN 55022:1998
EN 61000-3-2/A14:2000
EN 61000-3-3/1:1995

1
WELCOME
And thank you for purchasing this JBL
Digital Simply Cinema system. This
state of the art system includes every-
thing you need to experience movie
theater quality digital video and audio
in the comfort of your own living room.
The only thing you need to add is your
own TV. We have designed this
system to be easy to set up, and even
easier to use. But please review this
manual before you operate your
system. Have it handy while you are
setting the system up and keep it
available for future reference or in the
unlikely event that you encounter any
unexpected problems. We have tried
to keep this manual as simple as
possible. It begins with a description
of the important controls on the main
unit and the remote. It then explains
how to connect the speakers, your TV,
and optional external sources to the
main unit and then how to operate the
DVD-Audio/DVD/CD player and the FM
Stereo Receiver.
IMPORTANT NOTES:
This manual should be read in
conjunction with the owners manual
of the accompanying loudspeaker
system. The instructions found therein
should be followed with respect to
loudspeaker operation and safety.
Only use the DSC1000 controller with
the loudspeaker system supplied.
Failure to do so may cause damage to
either the controller or the
loudspeakers and will invalidate any
warranty.
All of the optional system settings
have been preset at our factory for
correct operation of the system. All
you have to do is insert a disc, sit
back, and enjoy a great home theater
experience.
You may want to change some of the
optional settings. A description of all
the optional settings and instructions
for changing them are found in the
second half of the manual.
This system was designed to provide
you with many years of reliable
operation with a minimum of care and
maintenance. Every component in
your system was in perfect working
condition when it left our factory. If
you experience any problems with the
set-up or operation of this system,
please review the Troubleshooting
Guide at the end of this manual before
you contact your authorized JBL
dealer.
The serial number of your system can
be found on a label on the back panel
of the main unit, and also on the
display carton. Please record the
serial number in the space below. You
may need to refer to this number if
your system ever needs to be serviced
or for insurance purposes.
Model no.: DSC 1000
Serial No.: ___________________
Warning
To prevent fire or shock hazard,
do not expose the unit to rain or
moisture.
To avoid electrical shock, do not open
the cabinet.
Refer servicing to qualified service
personnel only.
The AC cord must only be changed at
qualified service facility.
• This appliance is classified as a
CLASS 1 LASER product.
• The CLASS 1 LASER PRODUCT
MARKING is located on the rear
panel.
• This product contains a low power
laser device. To ensure continued
safety, do not remove any cover or
attempt to gain access to the inside
of the product.
Caution
Refer servicing to qualified service
personnel only.
The following marking is printed on
the rear panel.
ENGLISH

2
Noise Interference on the TV
While a Broadcast is Being
Received
Depending on the reception condition
of the TV, interference may appear on
the TV monitor while you watch a TV
broadcast and the controller is left on.
This is not a malfunction of the
controller or the TV. To watch a TV
broadcast, turn off the controller.
Service
• Do not attempt to service the
controller or subwoofer yourself.
• Please contact your authorized JBL
dealer.
Copyright
Audio-visual material may consist of
copyright works which must not be
recorded without the permission of
the owner of the copyright.
Please refer to relevant laws covering
copyright protection.
Copy protection
This DVD player supports Macrovision
copy protection. On DVD discs that
include a copy protection code, if the
contents of the DVD disc are copied
using a VCR, the copy protection code
prevents the videotape copy from
playing normally.
For Optimum Performance
The controller is a precision device
that is constructed using extremely
accurate technology. Soiling or
friction affecting the pickup lens or
disc drive can impair the image
quality. In the worst case, neither
video nor audio will be played back. To
obtain optimum picture quality, the
player should be checked (cleaning
and replacement of some parts) every
1,000 hours. Note that this period
varies depending on the environment
(temperature, humidity, dust) in which
the player is used.
Do not attempt to clean the pickup
lens yourself.
npacking
Check that you have the following
items:
• DSC 1000 Controller (1)
• SCS 200.5/2 0 Loudspeaker System
• Remote control (1)
• AAA batteries (2)
• SCART A/V cable
• Left/Center/Right/Front speaker
cables ( x5 meter)
• Surround speaker cables
(2x12 meter)
• FM antenna (1)
• Owner’s Manual (1)
IMPORTANT NOTE:
Do NOT use the speaker cable pack
supplied with the loudspeaker system
to connect the DSC 1000 Controller.
Only use that supplied with the
controller.
IMPORTANT SAFEGUARDS AND
PRECAUTIONS
ENGLISH

3
ENGLISH
FRONT PANEL CONTROLS


    
  
 POWER ON/OFF (Standby): Press
the button once to place the system in
standby, press again to turn the
system off. Press the ON button on the
remote control to switch the unit from
standby to on.
 Disc Tray. Place a disc on the tray.


PREV. While playing a disc,
press this button to select the
previous title, chapter or track.


NEXT. While playing a disc,
press this button to select the next
title, chapter or track.

A
STOP. Stop playing a disc.

G
PLAY. Play a disc.
 REMOTE SENSOR. Receives the
remote control signals.

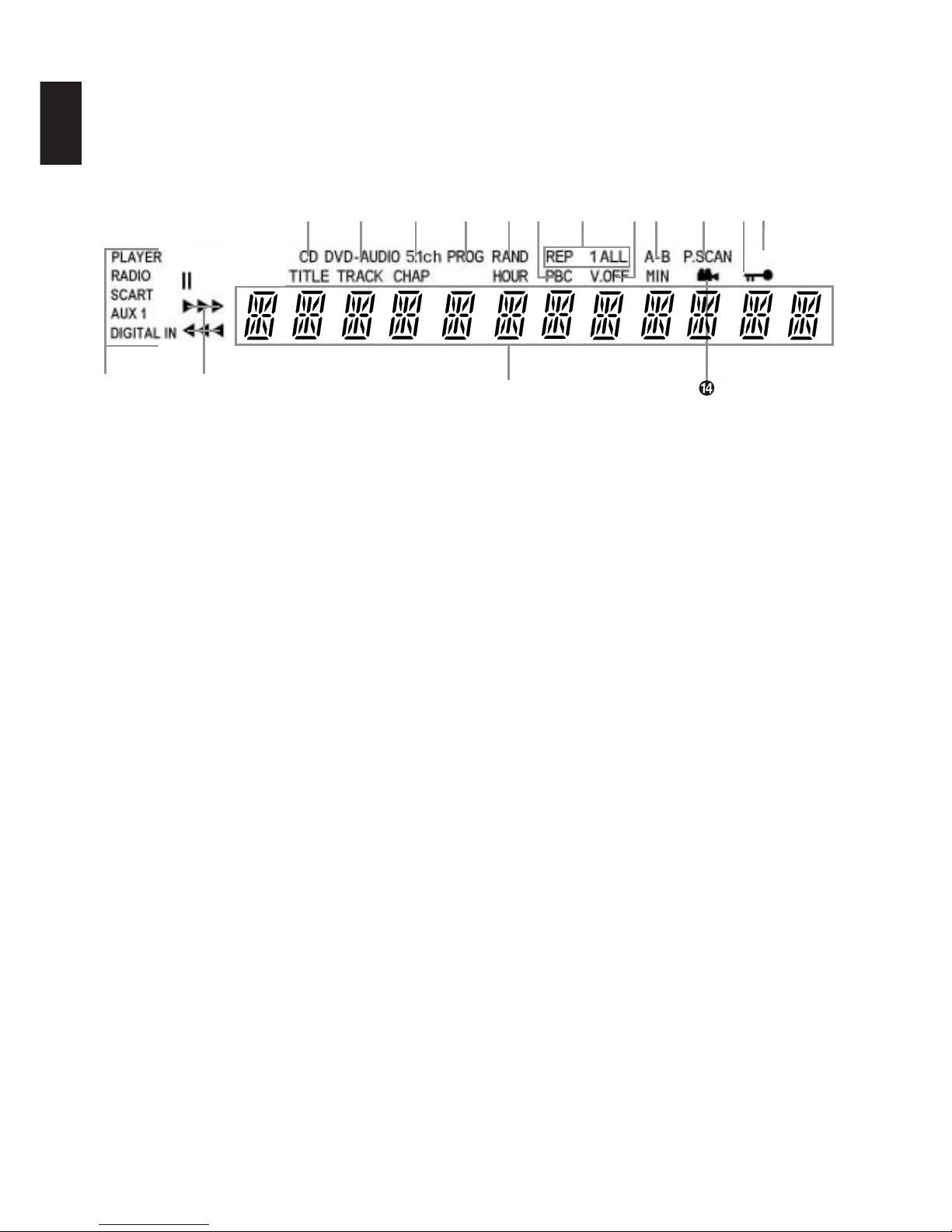

 Front Panel Display. Indicate the
playing time, etc.
 OPEN/CLOSE. Open or close the
disc tray.
 POWER LED.
Power On: ring lights blue
Standby: ring lights orange
 VOL ME. Increase or decrease
the master volume level.
 SO RCE. Select the component
you want to use.
