JBL SB300 User manual

SB300
1X
1X
1X
1X
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
2X
2X

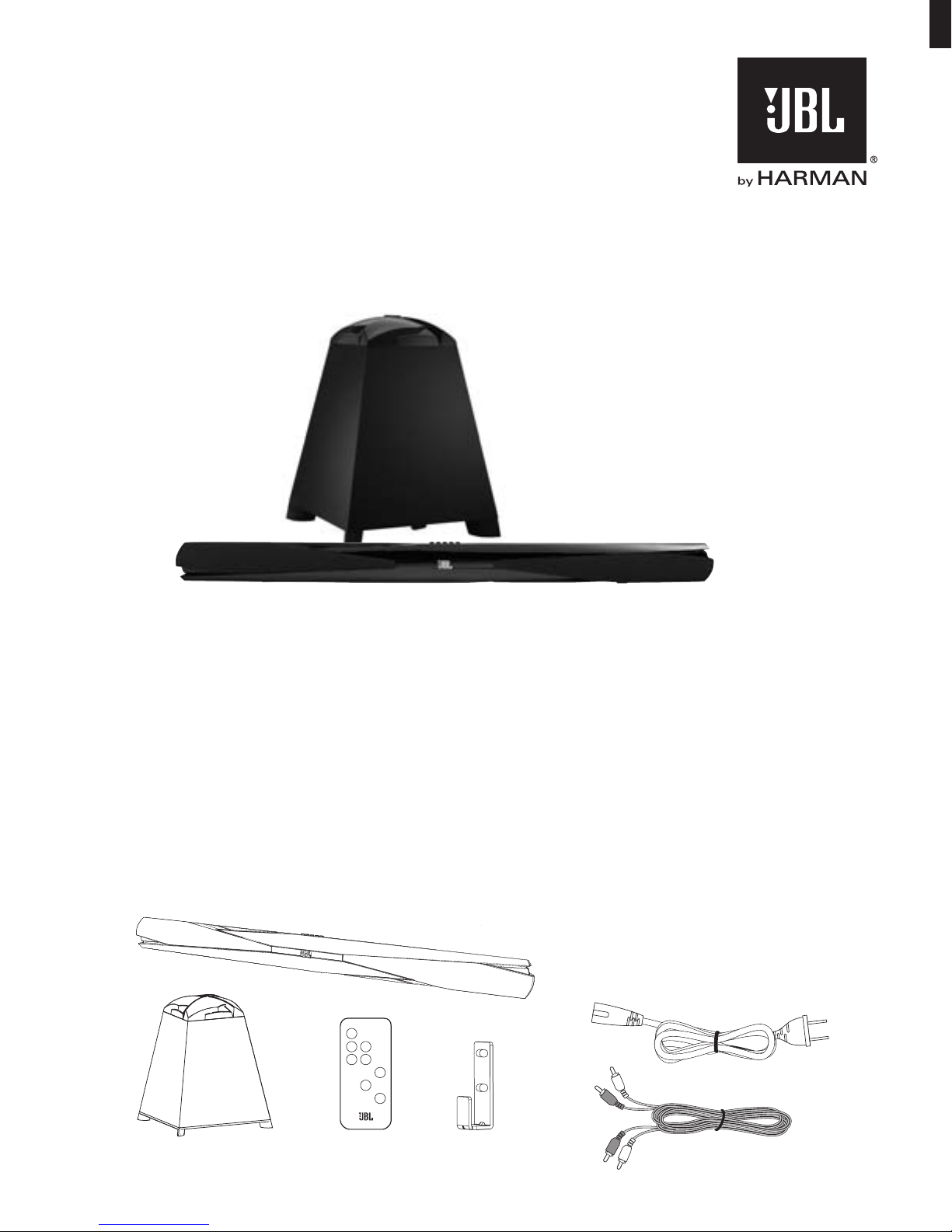

Included ItemS
The SB300 is a two-piece home theater speaker system that
includes a powered stereo soundlbar speaker, a wireless 8-inch
(200mm), 100-watt powered subwoofer and all of the cables you
need to connect the soundbar to your TV and your cable/satellite
tuner or DVD player. Both components feature the dynamic new
JBL Weave design for a distinctive, one-of-a-kind look.
We’re confident that this JBL system will provide every note
of enjoyment that you expect – and that when you think about
purchasing additional audio equipment for your home, car or office,
you will once again choose JBL products.
This quick-start guide contains all the information you need to set
up, connect and adjust your new speaker system. For more in-
depth information, go to our Web site: www.jbl.com.
Powered soundbar with powered subwoofer
QUICK-START GUIDE
thank You For chooSIng thIS JBl®Product
English
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 1 01/04/11 10:35:53

www.jbl.com2
www.jbl.com
Wireless Pairing
Switch
Analog (AUX) Input
Connections
Power
Switch
EQ Switch Optical Digital Input Connector Power Cord Connector

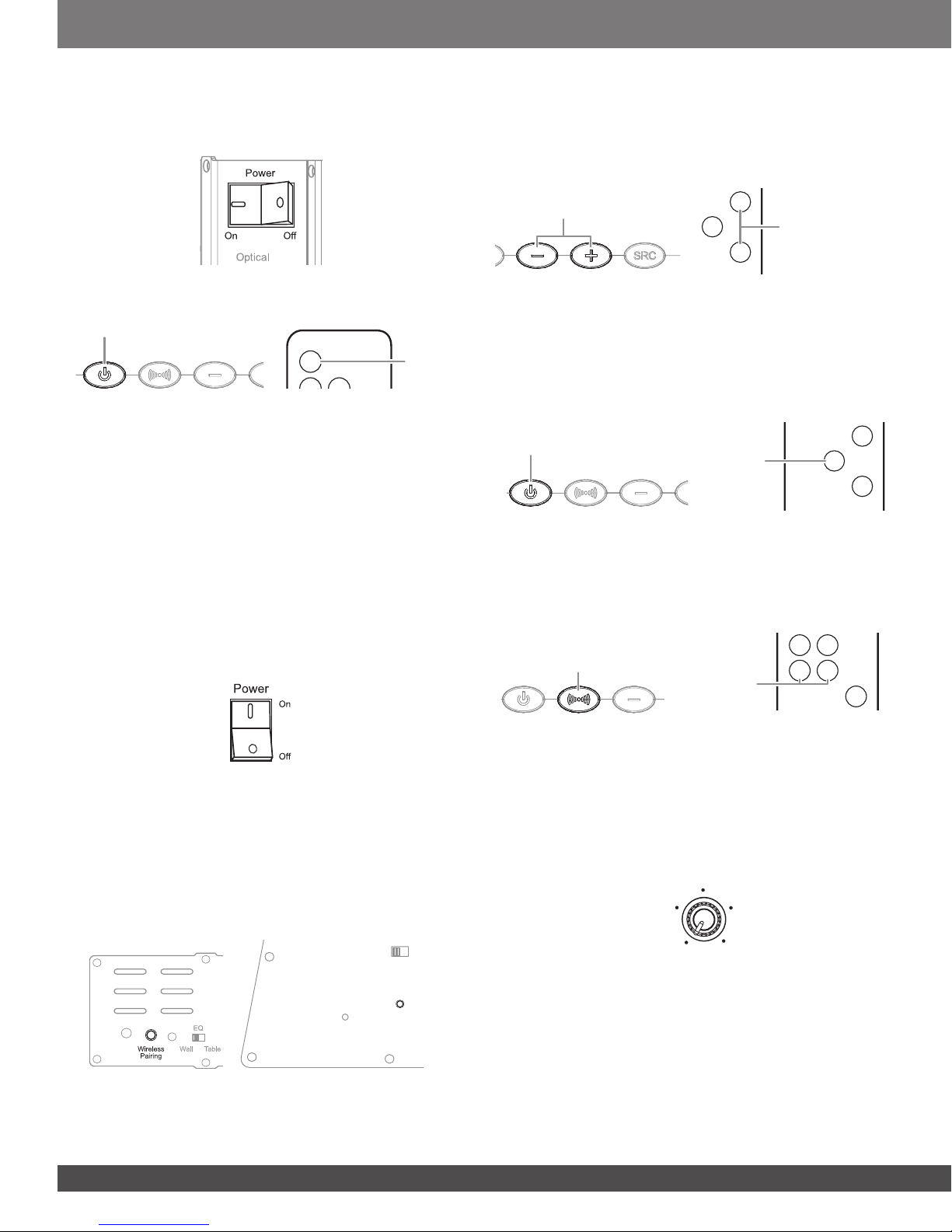

Power Button: To turn the system on when the soundbar is in the
Standby mode, press the Power button on either the soundbar or
the remote. (The Power indicator will turn blue.) To put the system
in the Standby mode, press either Power button while the system is
on. (The Power indicator will turn amber.) The subwoofer will remain
on for approximately one minute after the soundbar goes into the
Standby mode. If you do not press the Power button, the soundbar
and the subwoofer will both automatically go into the Standby mode
approximately 15 minutes after the audio signal ceases.
NOTE: If you put the soundbar into the Standby mode by pressing
the Power button, you must manually turn it on by pressing the Power
button again. If the system automatically goes into the Standby mode
15 minutes after the audio signal ceases, it will automatically turn on
whenever the soundbar detects an audio signal at the input connection
that was last used.
Mute Button (remote control only): Press the Mute button to mute
the SB300 system. (The Power indicator flashes blue.) While the system
is muted, press the Mute button again or the Volume Up/Down button
to restore the sound.
NOTE: Momentarily pressing the soundbar’s Power button while the
system is on will mute the system. Momentarily pressing the button
while the system is muted will restore the volume.
Power
Button
Surround-
Mode Button
Volume Up/
Down Buttons
Source Selector
Button
Power
Indicator
Surround-Mode
Indicator
Source Indicator
Surround Mode Button: This button turns the SB300 system’s 3-D
Surround processing on and off. The Surround Mode indicator turns
blue when 3-D Surround is active, and turns white when 3-D Surround
is not active (normal stereo sound). See Surround Mode Buttons , on
page 6, for more information. NOTE: The remote control has individual
buttons for the Stereo and 3-D Surround modes.
Volume Up/Down Buttons: Press the “+” button to increase the
volume; press the “–” button to decrease the volume.
Source Selector Button: This button switches between the sources
connected to the Source 1 (analog) and Source 2 (digital) inputs. When
Source 1 is active, the Source indicator turns white; when Source 2 is
active, the Source indicator turns blue.
NOTE: The remote control has an individual button for each input
source.
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
Power Button
Volume Up/
Down Buttons
Source Selector Buttons
Mute Button
Surround-Mode
Buttons
Wireless Pairing Switch: Press this switch to initiate wireless pairing
between the soundbar and the wireless subwoofer. See Pairing the
Units for Wireless Operation , on page 6, for more information
EQ Switch: Use this switch to adjust the soundbar’s bass for either wall
or table mounting. If you’re mounting the soundbar on a wall with the
included wall-mount brackets, set the EQ switch to the “Wall” position
for the most natural-sounding bass performance. If you are placing the
soundbar on a table, set the EQ switch to the “Table” position for the
most natural-sounding bass performance.

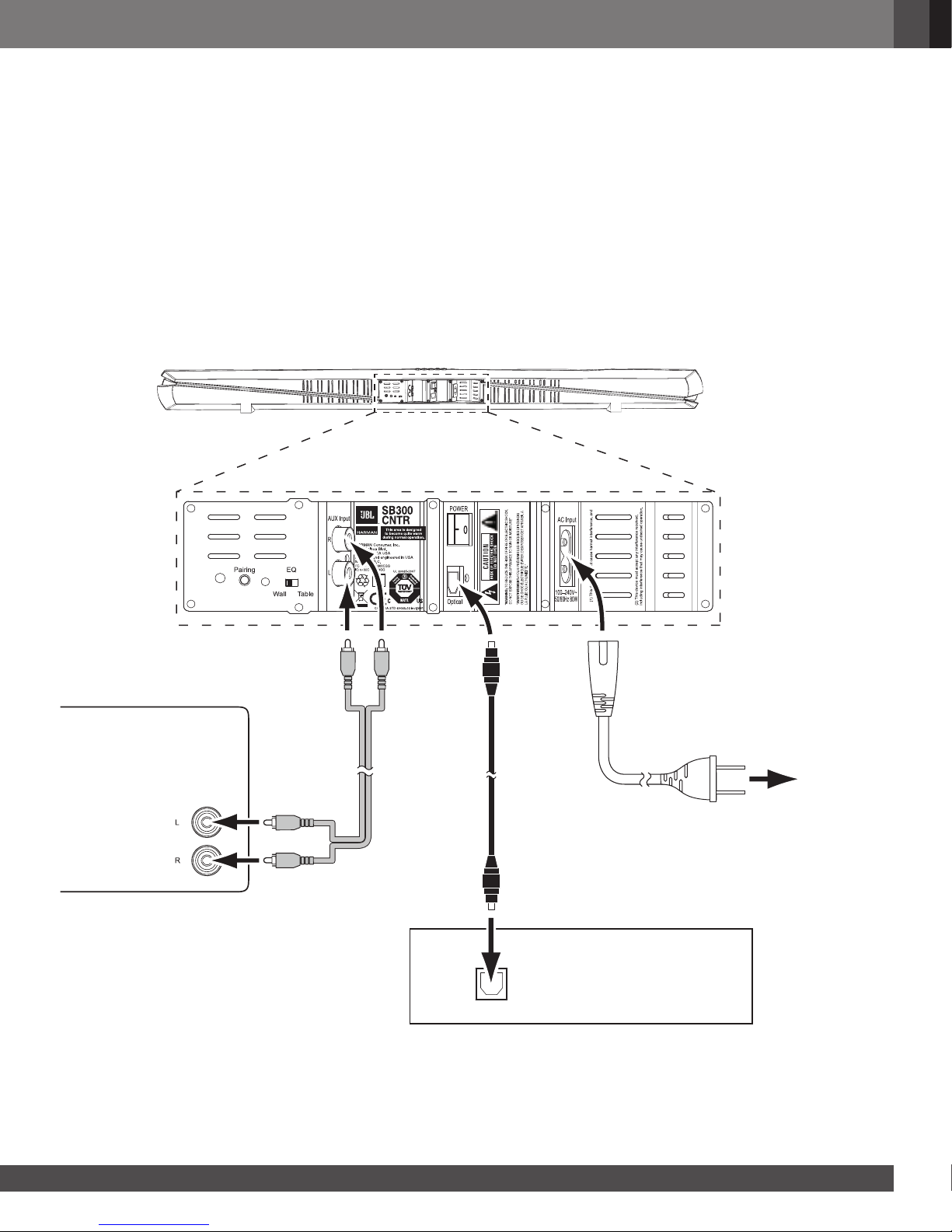

Aux Input Connection (analog): Use the included stereo audio cable
to connect the stereo analog outputs of your TV, DVD player or cable/
satellite tuner here.
Optical Connection (digital): If your TV, DVD player or cable/satellite
tuner has an optical digital output, connect it here.
NOTE: You can connect different source components to the analog and
digital connections.
Power Cord Connector: Connect the included power cord here. See
Power Connections , on page 5, for more information.
IMPORTANT: Do not connect the power cord to an AC outlet until you
have made and verified all other connections.
Power Switch: Set this switch to the “On” position to activate the
soundbar. In normal operation, this switch will be left in the “On”
position. See
Turning the Soundbar On and Off , on page 6, for more
information.
If you will not be using the soundbar for an extended period – for
instance, if you’re going on vacation – set the Power switch to the “Off”
position.
SoundBar rear-Panel controlS and connectIonS
SoundBar toP-Panel controlS and remote control
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 2 01/04/11 10:35:55

www.jbl.com
www.jbl.com 3
English
Power Switch
Power Cord Connector
Wireless Pairing
Switch
Level Control
Status
LED
Cutoff Control
Phase Switch

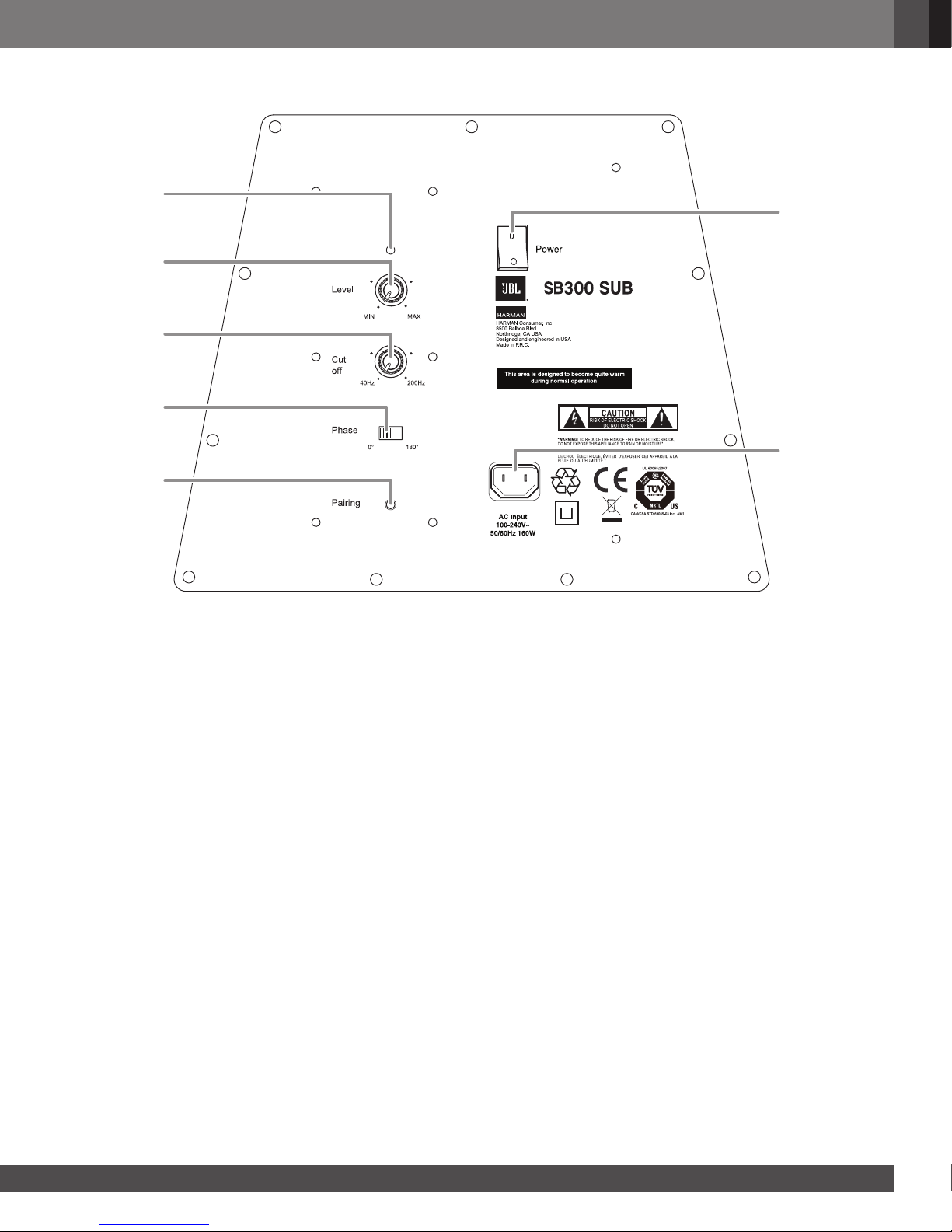

SuBWooFer rear-Panel controlS
Status LED: Indicates the subwoofer's operational status:
Lights blue continuously when the subwoofer is on and linked to the•
soundbar.
Slowly flashes blue when the subwoofer is on and the wireless link•
is not established between the subwoofer and the soundbar.
Rapidly flashes blue during the wireless pairing process.•
Lights amber continuously when the subwoofer is in the Standby•
mode.
Turns off when the subwoofer’s Power switch is in the “Off” position.•
Level Control: Use this control to balance the subwoofer’s volume
with that of the soundbar. Turn the knob clockwise to increase
the subwoofer’s volume; turn it counterclockwise to decrease the
subwoofer’s volume.
Cutoff Control: This knob adjusts the subwoofer’s cutoff between
40Hz and 200Hz.The higher you set the Cutoff control, the higher
in frequency the subwoofer will operate and the more its bass will
“overlap” that of the soundbar. This adjustment helps achieve a smooth
transition of bass frequencies between the subwoofer and the soundbar
for a variety of different rooms and subwoofer locations. See
Subwoofer
Cutoff Control , on page 7, for more information.
Phase Switch: This switch determines whether the subwoofer driver’s
piston-like action moves in and out in phase with the speakers in the
soundbar. If the subwoofer were to play out of phase with the soundbar
speakers, some of the sound waves produced by the subwoofer or
soundbar could be canceled, reducing bass performance and sonic
impact. This phenomenon depends in part on the relative placement of
the speakers in the room. See
Subwoofer Phase Switch , on page 7, for
more information.
Wireless Pairing Switch: Press this switch to initiate wireless pairing
between the subwoofer and the soundbar. See Pairing the Units for
Wireless Operation , on page 6, for more information.
Power Switch: Set this switch to the “On” position to activate the
subwoofer. In normal operation, this switch will be left in the “On”
position. See
Turning the Subwoofer On and Off , on page 6, for more
information.
If you will not be using the subwoofer for an extended period – for
instance, if you’re going on vacation – set the Power switch to the “Off”
position.
Power Cord Connector: Connect the included power cord here and
into an active, unswitched AC outlet. See
Power Connections , on page
5, for more information.
IMPORTANT: Do not connect the power cord to an AC outlet until you
have made and verified all other connections.
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 3 01/04/11 10:35:55

www.jbl.com4
www.jbl.com
SPeaker Placement
PLACING THE SOUNDBAR ON A TABLE
If your TV is placed on a table, you can place the soundbar on the table
directly in front of the TV stand, centered with the TV screen. As long
as the surface of the table is flat, the soundbar will rest on its rubber
bumpers.
WALL-MOUNTING THE SOUNDBAR
If your TV is attached to a wall, you can use the included wall-mount
brackets to mount the soundbar on the wall directly below the TV
screen.
Determine the location for the soundbar on the wall. Make sure that1.
the top of the soundbar will not block your view of the TV screen
when it is mounted on the wall.
Mark the locations of the soundbar wall-mount bracket holes on the2.
wall. The holes for the left and right brackets are spaced
30-5/16” (770mm) apart, and are designed to accept 4mm diameter
screws. The top and bottom holes for each bracket are spaced 1”
(25mm) apart. See the illustration below.
30-5/16" (770mm)
1" (25mm)
(not to scale)
30-5/16" (770mm)
1" (25mm)
(not to scale)
NOTE: To ensure that the soundbar will be level, use a carpenter’s level,
laser sight or other device to ensure that the two sets of holes are at
exactly the same height.
Attach the two wall-mount brackets to the wall at the locations3.
you marked, using hardware that is appropriate for the wall’s
construction and materials. Note that the soundbar weighs 2.5kg
(5.5 lb). Be sure to use hardware that can support this weight.
After making all of the connections described in the4. Connections
section , on page 5, attach the soundbar to the brackets by sliding
the brackets’ vertical tabs into the slots in the soundbar’s rubber
bumpers.
Slide Bracket Tabs
into Slots in
Rubber Bumpers
Slide Bracket
Tabs into Slots in
Rubber Bumpers
PLACING THE SUBWOOFER
The performance of a subwoofer is directly related to its placement in
the listening room and its physical position relative to the other speakers
in the system.
While it is true that in general, our ears do not hear directional sounds
at the low frequencies where subwoofers operate, when installing
a subwoofer within the limited confines of a room, the reflections,
standing waves and absorptions generated within the room will strongly
influence the performance of any subwoofer system. As a result, the
specific location of the subwoofer in the room does become important
to the amount and quality of bass that is produced.
For example, placing the subwoofer next to a wall generally will increase
the amount of bass in the room; placing it in a corner (1) generally will
maximize amount of bass in the room. However, corner placement
can also increase the destructive effect of standing waves on bass
performance. This effect can vary depending on the listening position –
some listening positions may yield very good results, while others may
have far too much (or too little) bass at certain frequencies.
In many rooms, placing the subwoofer along the same plane as the
soundbar (2) can produce the best integration between the sound of the
subwoofer and that of the left and right speakers. In some rooms, the
best performance could even result from placing the subwoofer behind
the listening position (3).
1. 2.
3.
Soundbar TV
We strongly recommend that you experiment with placement before
choosing a final location for your subwoofer. One way you can
determine the best location for the subwoofer is by temporarily placing
it in the listening position and playing music with strong bass content.
Move around to various locations in the room while the system is
playing (putting your ears where the subwoofer would be placed), and
listen until you find the location where the bass performance is best.
Place the subwoofer in that location.
IMPORTANT: The maximum wireless operating distance between the
soundbar and subwoofer is approximately 50 feet (15.3m).
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 4 01/04/11 10:36:01

www.jbl.com
www.jbl.com 5
AUDIO
OUT
English
connectIonS
SOURCE CONNECTIONS
Analog: Use the supplied stereo audio cable to connect the soundbar’s
Source 1 (analog) input to your TV’s stereo audio output. If your TV has
two sets of audio output jacks, use the set that has a fixed (not variable)
output level. This will let you turn your TV’s speakers all the way off
while the TV still supplies a constant audio signal to the soundbar.
Digital: If your DVD player, cable tuner or satellite tuner has an optical
digital output, you can use an optical digital audio cable to connect it to
the soundbar’s Source 2 (optical digital) input.
NOTE: If your DVD player, cable tuner or satellite tuner does not have an
optical digital output, you can connect its analog audio output to your
TV. The TV will send its audio signal to the soundbar through the analog
connection described above.
POWER CONNECTIONS
After verifying that all of the source connections have been made
properly, plug the supplied power cords into the soundbar’s and
subwoofer’s Power Cord connectors, and plug the other ends into
active, unswitched AC outlets. Do NOT plug these cords into the
accessory outlets found on some audio components.
Optical Digital Audio
Cable (not supplied)
Stereo Audio
Cable (supplied)
DVD Player or
Cable/Satellite Tuner
SB300 Soundbar
TV
Power Cord
OPTICAL
DIGITAL
OUT
To Unswitched
AC Qutlet
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 5 01/04/11 10:36:06

www.jbl.com6
www.jbl.com
uSIng Your SoundBar SYStem
TURNING THE SOUNDBAR ON AND OFF
Set the soundbar’s Power switcn to the “On” position.
Press the Power button on either the soundbar or the remote to turn the
soundbar on. To put the soundbar in the Standby mode, press either
Power button while the soundbar is on.
Power
Button
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
Power Button
Power
Button
If you do not press the Power button, the soundbar will automatically go
into the Standby mode approximately 15 minutes after the audio signal
ceases. NOTE: If you have put the soundbar into the Standby mode by
pressing the Power button, you must manually turn it on by pressing
the Power button again. If the soundbar has automatically gone into
the Standby mode 15 minutes after the audio signal has ceased, it will
automatically turn itself on when it receives an audio signal at either the
analog (Aux) input or the optical digital input.
TURNING THE SUBWOOFER ON AND OFF
Set the subwoofer’s Power switch to the “On” position. The subwoofer
will automatically attempt to establish pairing with the soundbar (the
subwoofer’s LED will flash blue). If pairing is not established within one
minute, the subwoofer will enter the Standby mode (its LED will turn
amber). If pairing is established, the subwoofer will turn on (its LED will
light blue continuously).
The subwoofer will remain on for approximately one minute after the
soundbar enters the Standby mode, or for approximately 15 minutes
after the audio signal ceases.
Northridge, CA USA
Designed and engineered in USA
Made in P.R.C
If you will be away from home for an extended period of time, or if you
will not be using the system for an extended period, set the subwoofer’s
Power switch to the “Off” position.
PAIRING THE UNITS FOR WIRELESS OPERATION
After turning the soundbar and subwoofer on for the first time, you will
need to “pair” the subwoofer and soundbar so they both operate at the
same wireless frequency. To pair the units, press the Wireless Pairing
switches on both units within 30 seconds. The units will communicate
with each other and operate at the same frequency.
Soundbar Subwoofer
Phase
Pairing
0° 180°
NOTE: The maximum wireless operating distance between the soundbar
and subwoofer is approximately 50 feet (15.3m).
ADJUSTING THE SYSTEM’S VOLUME
Press the soundbar’s or remote’s Volume Up and Down buttons to
raise and lower the system’s volume one step at a time. Hold down the
buttons to continuously raise or lower the volume.
Volume
Buttons
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
Volume Up/Down
Buttons
Volume Buttons
Volume Up/
Down Buttons
For the best sound, we recommend turning your TV’s built-in speakers
off. Consult your TV’s owner’s manual to find out how to do this.
MUTING THE SYSTEM
Momentarily press the soundbar’s Power button or press the remote’s
Mute button to mute the system. (The Power Indicator flashes blue.)
Momentarily press the soundbar’s Power button or press the remote’s
Mute button again to un-mute the system. (The Power Indicator turns to
a steady blue.)
Power
Button
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
Mute
Button
Power Button Mute Button
SURROUND MODE BUTTONS
These buttons switch the sound between normal stereo (the Surround
Mode Indicator lights white) and 3-D Surround (the Surround Mode
Indicator lights blue). The 3-D Surround setting will produce a complete
surround-sound experience for anyone sitting in front of and several
feet away from the soundbar. Although it is particularly effective when
watching movies, you can also try the 3-D Surround setting for music.
Surround Mode
Button
On/Off
Stereo
Aux
Input
Vol.+
Vol.–
Mute
Surround
Digital
Input
Surround
Mode
Buttons
Surround-Mode Button
Surround-Mode
Buttons
SUBWOOFER LEVEL KNOB
Use the subwoofer’s Level knob to balance the bass with the rest of
the sound. Play music or movies that you are familiar with, and adjust
the subwoofer’s Level knob so the bass sounds balanced on both
music and films. Listen to several different music recordings and film
soundtracks that contain strong bass passages, and find a setting for
the Level knob that doesn’t over-emphasize the bass or make it sound
weak.
Level
MIN
40Hz 200Hz
MAX
Cutoff
Phase
Pairing
0° 180°
Once you find a setting for the subwoofer’s Volume knob that balances
the bass with the rest of the sound, you shouldn’t have to change it.
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 6 01/04/11 10:36:10

www.jbl.com
www.jbl.com 7
English
SPecIFIcatIonS
SUBWOOFER CUTOFF CONTROL
The subwoofer’s Cutoff control adjusts the subwoofer’s cutoff between
40Hz and 200Hz. The higher you set the Cutoff control, the higher
in frequency the subwoofer will operate and the more its bass will
“overlap” that of the soundbar. This adjustment helps achieve a smooth
transition of bass frequencies between the subwoofer and the soundbar
for a variety of different rooms and subwoofer locations.
Level
MIN
40Hz 200Hz
MAX
Cutoff
Phase
Pairing
0° 180°
To set the Cutoff control, listen for the smoothness of the bass. If the
bass seems too strong at certain frequencies, try a lower Cutoff control
setting. If the bass seems too weak at certain frequencies, try a higher
Cutoff control setting.
SUBWOOFER PHASE SWITCH
This switch determines whether the subwoofer’s piston-like action
moves in and out in phase with the speakers in the soundbar. If the
subwoofer were to play out of phase with the soundbar speakers, some
of the sound waves produced by the soundbar and subwoofer could
be canceled out at some frequencies, reducing bass performance
and sonic impact. This phenomenon depends in part on the relative
placement of the soundbar and subwoofer in the room.
Level
MIN
40Hz 200Hz
MAX
Cutoff
Phase
Pairing
0° 180°
Although there is no absolutely correct setting for the Phase switch, in
most cases it should be left in the “0°” position. When the subwoofer is
properly in phase with the soundbar speakers, the sound will be clearer
and have more impact. It will make percussive sounds like drums, piano
and plucked strings sound more lifelike. The best way to set the Phase
switch is to listen to music that you are familiar with and adjust the switch
so that drums and other percussive sounds have maximum impact.
SB300 SYSTEM
Frequency response: 42Hz – 20kHz (–3dB)
SB300 CNTR POWERED SOUNDBAR SPEAKER
Low-frequency transducer: Two 2" (51mm) cones per channel, video-
shielded
High-frequency transducer: One 1" (25mm) dome per channel, video-
shielded
Amplifier power: 30 watts per channel
Audio controls: Volume, surround mode
Connections: Optical digital (TOSLINK™) input, stereo analog
(RCA-type) inputs
Power requirement: 100V – 240V, 50Hz/60Hz, 80W
Power consumption: 1W standby; 80W maximum
Dimensions (H x W x D): 3-5/8" x 45-3/4" x 3"
(92mm x 1162mm x 76mm)
Weight: 5.5 lb (2.5kg)
SB300SUB POWERED SUBWOOFER
Low-frequency transducer: 8" (200mm) cone, down-firing
Enclosure type: Ported (down-firing)
Amplifier power: 100 watts
Frequency response: 42Hz – 200Hz (–3dB)
Audio controls: Level, phase, cutoff frequency
Connections: LFE input, left and right RCA line-level inputs
Power requirement: 100V – 240V, 50Hz/60Hz, 160W
Power consumption: 1W standby; 160W maximum
Dimensions (H x W x D): 19" x 14-1/4" x 14-1/4"
(483mm x 362mm x 362mm)
Weight: 24.5 lb (11.1kg)
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 7 01/04/11 10:36:11

www.jbl.com
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DTS and the Symbol
are registered trademarks and the DTS logos are trademarks of DTS, Inc. TOSLINK is a trademark of Toshiba Corporation.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes
software. © DTS, Inc. All Rights Reserved.
Features, specications and appearance are subject to change without notice.
Part No. 819016501400S
0255CSK - JBL SB300_120-230V_QSG, ALL WORK09(correction).indd 8 01/04/11 10:36:12
