JC JC-MR-3648-LED User manual

LED ILLUMINATED MIRROR
USER MANUAL
JC-MR-3648-LED

Table of Contents
JC-MR-3648-LED USER MANUAL 2
ELECTRICAL SAFETY INSTRUCTIONS
All connections must be installed by a licensed electrician, in accor-
dance with current building codes. Consult a qualied electrician.
IMPORTANT
Always switch off the electrical supply at the main during installa-
tion and maintenance. It is recommended that the circuit breaker is
switched off for the necessary circuit before installation commences.
Fitting in bathrooms is subject to the appropriate building code regula-
tions.
◊ This product is NOT suitable to outside zones.
◊ It is also NOT suitable for installation in saunas, steam rooms or
shower cubicles.
◊ This product is only suitable for permanent installation.
◊ DO NOT connect to a trailing plug and socket outlet .
◊ This product is only suitable for indoor use.
◊ Do not attach the product to surfaces that are damp or otherwise-
electrically conductive.
INSTALLATION CARE AND SAFETY
◊ Wear suitable eye protection when drilling.
◊ Take care when using power tools.
◊ Beware of hidden cables or pipes.
◊ Take care if drilling on tiled surfaces in case the drill slips.
◊ A piece of masking tape applied to the wall before marking out the
xing holes will stop the drill from wandering.
IMPORTANT
Do not strike glass components with hard or pointed items.
DO NOT place very hot or very cold items against or in close proximity
to glass surfaces unless an adequately thick insulation material is
used to prevent such items comin in contact with the glass. The nom-
inal thickness of the mirror glass used in this product is 1/4” and is
m backed for safety. If the glass becomes chipped or broken replace
immediately.
Electrical Safety Instructions ...............................................................................................................................................................
Cleaning .................................................................................................................................................................................................
Installation ...........................................................................................................................................................................................
Specications .......................................................................................................................................................................................
2
2
3
4
Electrical Safety Instructions
CLEANING
It is recommended that the unit is cleaned with a soft, dry, non abrasive cloth when turned off. never use cleaning
agents or abrasive materials on any type of surface nish. Do not allow moisture to come into contact with the electrical
components.
Cleaning

Installation
JC-MR-3648-LED USER MANUAL 3
1. Remove the package carefully, do not lose the screws.
2. Using a level, mark off a horizontal line, and ensure that the ends of the
brackets are spaced to the width between the inner edges of the vertical
aluminium extrusions (see illustration 1). mark off the holes using a pencil.
3. Note: Screws supplied are only suitable for stud walls. For drywall walls use
special wall fasteners available from DIY or hardware stores. Seek advice
from a specialist about the suitability of screws to be used. Drill the required
holes and insert wall screws.
4. Measure the distance between hanging holes by using provided screws.
5. Before making any electrical connections it is necessary to turn off the main
electricity supply. This unit is provided with a supply cable arleady tted.
This cable should be tted to the household by lighting circuit ot to a fused
3 AMP supply. Connections should be made in accordance with the latest
regulations. This cabinet is manufactured to CLASS 1 and requires an earth
connection.
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS:
The next step is to make the electrical connection from the mirror to the main sup-
ply. Use the connection wire found at the rear of the mirror to make the necessary
connections. A second person will need to hold the mirror in place while electrical
connections are made.
Strip wires to a suitable
length. DO NOT connect
to a plug & socket outlet.
THIS PRODUCT IS MANUFACTURED TO CLASS I
CATEGORY AND MUST HAVE AN EARTH CONNECTION.
! IF IN DOUBT CONSULTYOUR ELECTRICIAN !
COLOUR CODING:
L - Live = Black
N - Neutral = White
- Earth = Green
ILLUSTRATION 1
PORTRAIT OR LANDSCAPE
PREPARATION
Mains Supply
110V AC
LN
Short touch for changing color
Keep touching three seconds for dimming

Specications
JC-MR-3648-LED USER MANUAL 4
FEATURES
• Full range stepless dimmable
• Color temperature changing
• Support wall switch control
• Energy efcient LED lighting

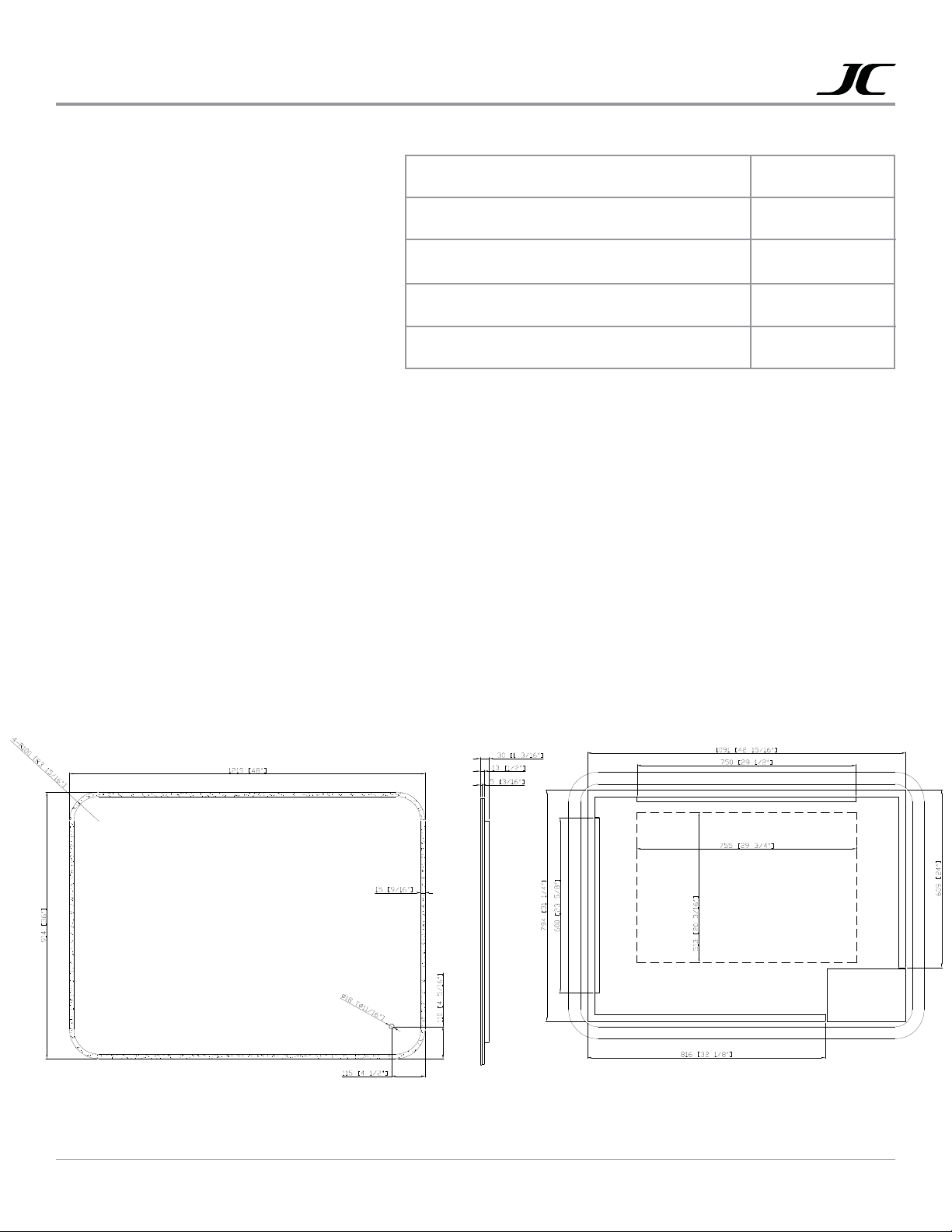

FRONT VIEW SIDE VIEW BACK VIEW FOR ELECTRICAL OUTLET LOCATION
Kevin
CRI
Maximum Lumens
Maximum Watt Output - LED
3000/6000
90+
39
CONSTRUCTION
• Anodized aluminum back frame
• Quality polished edge mirror
• Power cords installed for easy plugin installation
• Constructed for surface mounting
• Includes installation hardware
CODES/STANDARDS APPLICABLE
The lighted mirror meet the requirements:
• CSA-C22.2, NO.12-82
DIMENSIONS:
Width: 48” (1219mm)
Height: 36” (914mm)
Depth: 1-3/16” (30mm)
ELECTRICAL SYSTEM:
120 Vac 60HZ (TBD) recessed wall outlet
34.9
Defogger
3978
