jcb RTFL 926 User manual

THIS MANUAL SHOULD ALWAYS STAY WITH THE MACHINE
RTFL - 926, 930, 940, 950
Copyright © 2004 JCB SERVICE.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or
by any other means, electronic, mechanical, photocopying or otherwise, without prior permission from JCB SERVICE.
A4-7-SkidSteer - Printed In England
Dear JCB Customer
Even if you have operated this type of equipment before,
it is very important that your new machines operations and
functions are explained to you by a JCB Dealer
Representative following delivery of your new machine.
Following the installation you will know how to gain
maximum productivity and performance from your new
product.
Please contact your local JCB dealer if the Installation
Form has not yet been completed with you.
Your Local JCB Dealer is:
ENGLISH - 9811/5700 - ISSUE 7 - OCTOBER 2013
OPERATOR MANUAL

0 0
9811/5700
Notes:

Page No.Contents
i i
Safety Notices
Important Information ...................................................................................vii
The Operator Manual ..............................................................................vii
Safety Warnings ......................................................................................vii
Introduction
About This Manual .........................................................................................1
Machine Model and Serial Number ..........................................................1
Using this Manual .....................................................................................1
Left Side, Right Side .................................................................................1
Cab/Canopy .............................................................................................1
Cross References .....................................................................................1
Machine Description ......................................................................................2
The JCB Rough Terrain Fork Lift ..............................................................2
Intended Use ............................................................................................2

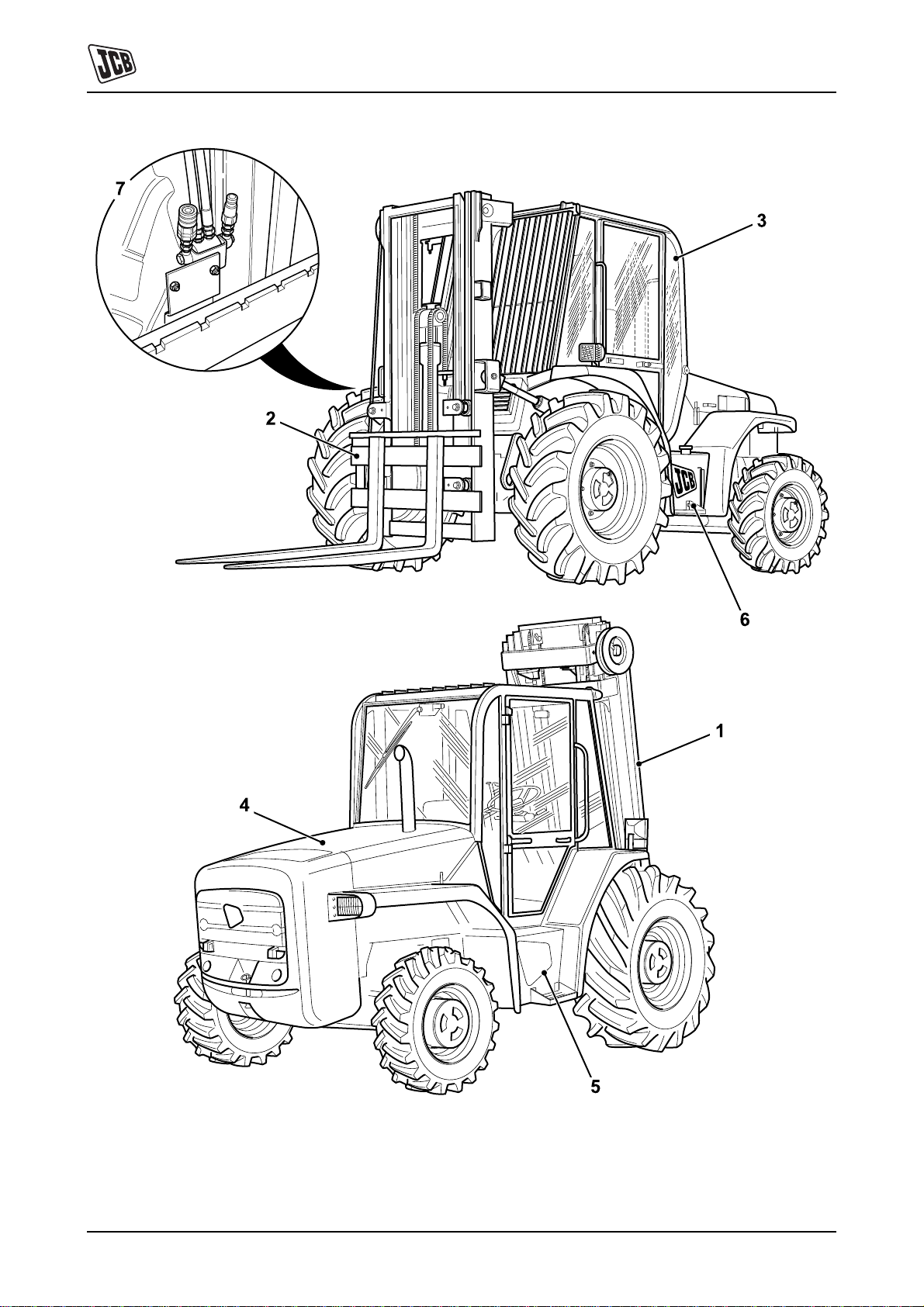

Component Locations ..............................................................................2
Safety Check List ...........................................................................................5
Safety - Yours and Others ........................................................................5
General Safety .........................................................................................5
Operating Safety ......................................................................................7
MaIntenance Safety ............................................................................... 11
Safety Labels ...............................................................................................16
Introduction .............................................................................................16
Safety Label Identification ......................................................................17
Identifying Your Machine .............................................................................19
Machine Identification Plate ...................................................................19
Component Identification Plates .............................................................21
ROPS/FOPS Certification Plate .............................................................23
Machine Security .........................................................................................24
Introduction .............................................................................................24
JCB Plantguard ......................................................................................24
Construction Equipment Security And Registration Scheme (CESAR) .24
Operation
Introduction ..................................................................................................25
Before Entering the Cab ..............................................................................26
Entering and Leaving the Cab .....................................................................27
Doors and Windows ....................................................................................28
Opening and Closing the Doors .............................................................28
Seat Controls ...............................................................................................29
Introduction .............................................................................................29
Basic Seat ..............................................................................................29
Basic Seat (Type 2) ................................................................................30
Suspension Seat (Option) ......................................................................30
Seat Belt ......................................................................................................31
Inertia Reel Seat Belt .............................................................................31
Cab Layout ..................................................................................................32
Component Key ......................................................................................33
Drive Controls, Switches and Instruments ...................................................34
Drive Controls .........................................................................................34
Switches .................................................................................................36
Instrument Panel ....................................................................................41
Air Conditioning and Heater Controls .....................................................43

Contents
ii ii
Page No.Contents
Operating Levers .........................................................................................44
Introduction .............................................................................................44
Mast Controls .........................................................................................45
Auxiliary Controls ...................................................................................46
Sideshift Carriage (if fitted) .....................................................................47
Safety Equipment ........................................................................................48
Control Locks .........................................................................................48
Beacon ...................................................................................................49
Fire Extinguisher (If fitted) ......................................................................50
Before Starting the Engine ...........................................................................51
Starting the Engine ......................................................................................53
Preparing the Machine for Travel ................................................................54
Introduction .............................................................................................54
Preparing for Road Travel ......................................................................54
Site Travel Position .................................................................................55
Getting the Machine Moving ........................................................................56
Operating Practices ................................................................................56
Operating Procedure ..............................................................................57
Stopping and Parking the Machine ..............................................................58
Working with the Machine ...........................................................................60
Operating Practices and Site Safety ......................................................60
Clothing and Safety Equipment ..............................................................60
Danger Zone ..........................................................................................60
Log Moving/Handling ..............................................................................60
Safety Practices .....................................................................................60
Working with the Mast ............................................................................62
Use of Machines on Gradients or Slopes ...............................................73
Operating Environment ................................................................................75
Operating in Low Temperatures .............................................................75
Operating in High Temperatures ............................................................75
Refuelling a Machine ...................................................................................76
Low Fuel Levels .....................................................................................76
Filling the Tank .......................................................................................76
Moving a Disabled Machine ........................................................................78
Towing and Retrieval ..............................................................................78
Recovery Hitch .......................................................................................78
Transporting the Machine ............................................................................79
Loading a Machine on to a transporter ...................................................79
Unloading a Machine from the Transporting Vehicle ..............................82
Lifting a Machine .........................................................................................84
Storage of the Machine ...............................................................................85
Introduction .............................................................................................85
Storage Area ..........................................................................................85
Prepare the Machine for Storage ...........................................................85
Put the Machine into Storage .................................................................85
During Storage .......................................................................................85
Take the Machine Out of Storage ...........................................................86

Contents
iii iii
Page No.Contents
Routine Maintenance
Service Requirements .................................................................................87
Introduction .............................................................................................87
Owner/Operator Support ........................................................................87
Service/Maintenance Agreements .........................................................87
Initial Service and Inspection ..................................................................87
Fit for Purpose Tests for Lifting Equipment .............................................88
Obtaining Replacement Parts .................................................................88
Health and Safety ........................................................................................89
Lubricants ...............................................................................................89
Battery ....................................................................................................91
Service Schedules .......................................................................................93
Introduction .............................................................................................93
How to Use the Service Schedules ........................................................93
Calendar Equivalents .............................................................................93
Pre-start Cold Checks, Service Points and Fluid Levels ........................94
Functional Test and Final Inspection ......................................................97
Fluids, Lubricants and Capacities ................................................................99
Coolant Mixtures ..................................................................................100
Fuels .....................................................................................................101
Prepare the Machine for Maintenance ......................................................104
Introduction ...........................................................................................104
How to Make the Machine Safe (Mast Lowered) .................................105
How to Make the Machine Safe (Mast Lifted) ......................................105
Cleaning the Machine ................................................................................108
Introduction ...........................................................................................108
Preparing the Machine for Cleaning .....................................................108
Cleaning the Machine ...........................................................................109
Checking for Damage ................................................................................ 111
Check the Machine Body and Structure ............................................... 111
Check the Tyres ................................................................................... 111
Check the Seat and Seat Belt .............................................................. 111
Check the Hydraulic Hoses and Fittings .............................................. 111
Check the Electrical Circuits .................................................................112
Checking the ROPS/FOPS Structure ................................................... 112
Check the Screen Guard and Load backrest extension (if fitted) ......... 112
Greasing ....................................................................................................113
Introduction ...........................................................................................113
Preparing the Machine for Greasing ....................................................113
Daily .....................................................................................................114
250 Hours .............................................................................................118
Oiling .........................................................................................................119
Park Brake Cable .................................................................................119
Control Levers ......................................................................................119
Cylinder Bores and Rods .....................................................................120
Access Panels ...........................................................................................121
Introduction ...........................................................................................121
Engine Cover ........................................................................................121
Engine Side Panels ..............................................................................122
Brakes .......................................................................................................123
Park Brake ............................................................................................123
Foot Brake ............................................................................................125

Contents
iv iv
Page No.Contents
Electrical System .......................................................................................126
Battery ..................................................................................................126
Jump Starting the Engine .....................................................................128
Fuses ....................................................................................................130
Link Box Fuses .....................................................................................131
Relays ..................................................................................................132
Engine .......................................................................................................134
Oil and Filter .........................................................................................134
Cooling System ....................................................................................136
Front End Accessory Drive Belt ...........................................................138
Air Filter ................................................................................................140
Fuel System ...............................................................................................142
Introduction ...........................................................................................142
Water Separator and Engine Fuel Filter ...............................................142
Bleeding the Fuel System ....................................................................146
Hydraulic System .......................................................................................147
Introduction ...........................................................................................147
Releasing the Hydraulic Pressure ........................................................148
Oil and Filter .........................................................................................149
Transmission .............................................................................................151
Gearbox ................................................................................................151
Axles .....................................................................................................153
Tyres and Wheels ......................................................................................156
Tyre Inflation .........................................................................................156
Changing a Wheel ................................................................................157
Forks .........................................................................................................159
Inspecting the Forks .............................................................................159
Changing the Forks ..............................................................................159
Windscreen Washer ..................................................................................161
Checking the Level ...............................................................................161
Fire Extinguisher (if fitted) ..........................................................................162
Checking the Fire Extinguisher ............................................................162
Optional Attachments
Introduction ................................................................................................163
Attachments For Your Machine .................................................................164
Connecting/Disconnecting Hydraulic Hoses ..............................................165
Introduction ...........................................................................................165
Connecting the Hydraulic Hoses ..........................................................165
Disconnecting the Hydraulic Hoses ......................................................166
Quick Release Couplings .....................................................................167
Work Platforms ..........................................................................................169
Specifications
Static Dimensions ......................................................................................171
All Models .............................................................................................171
Performance Dimensions ..........................................................................173
Lift Performance ...................................................................................173
Maximum Wading Depth ......................................................................176
Noise Data .................................................................................................177
Introduction ...........................................................................................177
All Machines .........................................................................................177
Vibration Data ............................................................................................178
Introduction ...........................................................................................178
All Models .............................................................................................179

Contents
v v
Page No.Contents
Tyre Sizes and Pressures ..........................................................................180
Introduction ...........................................................................................180
Specifications .......................................................................................181
Warranty Information
Machine Service Record Sheet .................................................................183
Registration Information ............................................................................185
European Community Standards
EC Declaration of Conformity ....................................................................187
Introduction ...........................................................................................187
Explanation of the EC Declaration of Conformity .................................189

Contents
vi vi
Page No.Contents

vii vii
9811/5700-7
Safety Notices
Important Information
T1-042
The Operator Manual
!MWARNING
You and others can be killed or seriously injured if you
operate or maintain the machine without first studying
the Operator Manual. You must understand and follow
the instructions in the Operator Manual. If you do not
understand anything, ask your employer or JCB
dealer to explain it.
INT-1-4-2
Do not operate the machine without an Operator Manual,
or if there is anything on the machine you do not
understand.
Treat the Operator Manual as part of the machine. Keep it
clean and in good condition. Replace the Operator Manual
immediately if it is lost, damaged or becomes unreadable.
Safety Warnings
In this publication and on the machine, there are safety
notices. Each notice starts with a signal word. The signal
word meanings are given below.
!MDANGER
Denotes an extreme hazard exists. If proper
precautions are not taken, it is highly probable that the
operator (or others) could be killed or seriously
injured.
INT-1-2-1
!MWARNING
Denotes a hazard exists. If proper precautions are not
taken, the operator (or others) could be killed or
seriously injured.
INT-1-2-2
!MCAUTION
Denotes a reminder of safety practices. Failure to
follow these safety practices could result in injury to
the operator (or others) and possible damage to the
machine.
INT-1-2-3
This safety alert system identifies
important safety messages in this
manual. When you see this symbol, be
alert, your safety is involved, carefully
read the message that follows, and inform
other operators.

Safety Notices
Important Information
viii viii
9811/5700-7
Page left intentionally blank

1 1
9811/5700-7
Introduction
About This Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
– 926 from Machine Serial No. 1281371
– 930 from Machine Serial No. 1281371
– 940 from Machine Serial No. 1281371
– 950 from Machine Serial No. 1483230
Using this Manual
T1-044
This manual is arranged to give you a good understanding
of the machine and its safe operation. It also contains
maintenance information and specification data. Read this
manual from front to back before using the machine for the
first time. Particular attention must be given to all the safety
aspects of operating and maintaining the machine.
If there is anything you are not sure about, ask your JCB
distributor or employer. Do not guess, you or others could
be killed or seriously injured.
General warnings in this chapter are repeated throughout
the book, as well as specific warnings. Read all the safety
statements regularly, so you do not forget them.
Remember that the best operators are the safest
operators.
The illustrations in this manual are for guidance only.
Where the machines differ, the text and or the illustration
will specify.
This manual contains original instructions, verified by the
manufacturer (or their authorised representative).
The manufacturer's policy is one of continuous
improvement. The right to change the specification of the
machine without notice is reserved. No responsibility will
be accepted for discrepancies which may occur between
specifications of the machine and the descriptions
contained in this publication.
All optional equipment included in this manual may not be
available in all territories.
Left Side, Right Side
In this manual, 'left' Aand 'right' Bmean your left and right
when you are seated correctly in the machine.
Fig 1.
Cab/Canopy
T1-003_2
This manual frequently makes references to the cab. For
instance, 'do not operate the machine without a manual in
the cab'. It should be noted that these statements also
apply to canopy build machines.
Cross References
T1-004_2
In this publication, page cross references are made by
presenting the subject title printed in bold, italic and
underlined. It is preceeded by the 'go to' symbol. The
number of the page upon which the subject begins, is
indicated within the brackets. For example: KCross
References (T1).

Introduction
Machine Description
2 2
9811/5700-7
Machine Description
The JCB Rough Terrain Fork Lift
This is a self-propelled, seated-operator, rough terrain
counterbalance truck for operation on unimproved natural
terrain and disturbed terrain. The machine has an integral
front-mounted mast and carriage. The carriage is normally
fitted with a pair of forks or other load carrying attachment
which can pick up a load through forward motion and raise
or lower it to a suitable height for transport and discharge
in another place.
Note: The illustration(s) show a typical machine model;
your machine may look different from the model shown.
Intended Use
The machine is intended to be used under normal
conditions for the applications described in this manual. If
the machine is used for other purposes or in dangerous
environments, for example in a flammable atmosphere or
in areas with dust containing asbestos, special safety
regulations must be followed and the machine must be
equipped for use in these environments.
Component Locations
– Items 1to 7: KFig 2. ( T3).
– Items 8to 22: KFig 3. ( T4).
1Mast
2Carriage
3FOPS Cab
4Engine Cover
5Hydraulic Tank
6Fuel Tank
7Quick Release Couplings (if fitted)
8Expansion Bottle
9Battery
10 Link Box Fuses
11 Exhaust
12 Engine
13 Water Separator
14 Transmission Oil Dipstick
15 Fuel Filter
16 Engine Oil Dipstick
17 Air Filter
18 Brake Fluid Reservoir
19 Radiator
20 Engine Oil Filler Cap
21 Front End Accessory Drive Belt
22 Radiator Cap
23 Air Filter Element Indicator

Introduction
Machine Description
3 3
9811/5700-7
Fig 2.

Introduction
Machine Description
4 4
9811/5700-7
T047530-4
Fig 3. Engine Compartment
20 9
22
19
11
17 12 23
8
21
10 13
18 1516 14

Introduction
Safety Check List
5 5
9811/5700-7
Safety Check List
P9-1003_3
Safety - Yours and Others
INT-1-3-1_3
All machinery can be hazardous. When a machine is
correctly operated and properly maintained, it is a safe
machine to work with. But when it is carelessly operated or
poorly maintained it can become a danger to you (the
operator) and others.
In this manual and on the machine you will find warning
messages. Read and understand them. They tell you of
potential hazards and how to avoid them. If you do not fully
understand the warning messages, ask your employer or
JCB distributor to explain them.
But safety is not just a matter of responding to the
warnings. All the time you are working on or with the
machine you must be thinking what hazards there might be
and how to avoid them.
Do not work with the machine until you are sure that you
can control it.
Do not start any job until you are sure that you and those
around you will be safe.
If you are unsure of anything, about the machine or the job,
ask someone who knows. Do not assume anything.
Remember
BE CAREFUL
BE ALERT
BE SAFE
General Safety
T1-043
!MWARNING
To operate the machine safely you must know the
machine and have the skill to use it. You must abide by
all relevant laws, health and safety regulations that
apply to the country you are operating in. The
Operator Manual instructs you on the machine, its
controls and its safe operation; it is not a training
manual. If you are a new operator, get yourself trained
in the skills of using a machine before trying to work
with it. If you don't, you will not do your job well, and
you will be a danger to yourself and others.
INT-1-4-1
!MWARNING
Care and Alertness
All the time you are working with or on the machine,
take care and stay alert. Always be careful. Always be
alert for hazards.
INT-1-3-5
!MWARNING
Clothing
You can be injured if you do not wear the proper
clothing. Loose clothing can get caught in the
machinery. Wear protective clothing to suit the job.
Examples of protective clothing are: a hard hat, safety
shoes, safety glasses, a well fitting overall, ear-
protectors and industrial gloves. Keep cuffs fastened.
Do not wear a necktie or scarf. Keep long hair
restrained. Remove rings, watches and personal
jewellery.
INT-1-3-6_2
!MWARNING
Alcohol and Drugs
It is extremely dangerous to operate machinery when
under the influence of alcohol or drugs. Do not
consume alcoholic drinks or take drugs before or
while operating the machine or attachments. Be aware
of medicines which can cause drowsiness.
INT-1-3-9_2

Introduction
Safety Check List
6 6
9811/5700-7
!MWARNING
Feeling Unwell
Do not attempt to operate the machine if you are
feeling unwell. By doing so you could be a danger to
yourself and those you work with.
8-1-2-4
!MWARNING
Mobile Phones
Switch off your mobile phone before entering an area
with a potentially explosive atmosphere. Sparks in
such an area could cause an explosion or fire
resulting in death or serious injury.
Switch off and do not use your mobile phone when
refuelling the machine.
INT-3-3-9
!MWARNING
Lifting Equipment
You can be injured if you use incorrect or faulty lifting
equipment. You must identify the weight of the item to
be lifted then choose lifting equipment that is strong
enough and suitable for the job. Make sure that lifting
equipment is in good condition and complies with all
local regulations.
INT-1-3-7_2
!MWARNING
Raised Equipment
Never walk or work under raised equipment unless it
is supported by a mechanical device. Equipment
which is supported only by a hydraulic device can
drop and injure you if the hydraulic system fails or if
the control is operated (even with the engine stopped).
Make sure that no-one goes near the machine while
you install or remove the mechanical device.
13-2-3-7_3
!MWARNING
Raised Machine
NEVER position yourself or any part of your body
under a raised machine which is not properly
supported. If the machine moves unexpectedly you
could become trapped and suffer serious injury or be
killed.
INT-3-3-7_1
!MDANGER
Lightning
Lightning can kill you. Do not use the machine if there
is lightning in your area.
5-1-1-2
!MWARNING
Machine Modifications
This machine is manufactured in compliance with
legislative and other requirements. It should not be
altered in any way which could affect or invalidate any
of these requirements. For advice consult your JCB
Distributor.
INT-1-3-10_2

Introduction
Safety Check List
7 7
9811/5700-7
Operating Safety
!MWARNING
Machine Condition
A defective machine can injure you or others. Do not
operate a machine which is defective or has missing
parts. Make sure the maintenance procedures in this
manual are completed before using the machine.
INT-2-1-2_2
!MWARNING
Machine Limits
Operating the machine beyond its design limits can
damage the machine, it can also be dangerous. Do not
operate the machine outside its limits. Do not try to
upgrade the machine performance with unapproved
modifications.
INT-2-1-4
!MWARNING
Engine/Steering Failure
If the engine or steering fails, stop the machine as
quickly as possible. Do not operate the machine until
the fault has been corrected.
INT-2-1-5
!MWARNING
Exhaust Gases
Breathing the machine exhaust gases can harm and
possibly kill you. Do not operate the machine in closed
spaces without making sure there is good ventilation.
If possible, fit an exhaust extension. If you begin to
feel drowsy, stop the machine at once and get into
fresh air.
INT-2-1-10_2
!MWARNING
Work Sites
Work sites can be hazardous. Inspect the site before
working on it. You could be killed or injured if the
ground gives way under your machine or if piled
material collapses onto it. Check for potholes and
hidden debris, logs, ironwork etc. Any of these could
cause you to lose control of your machine. Check for
utilities such as electric cables (overhead and
underground), gas and water pipes etc. Mark the
positions of the underground cables and pipes. Make
sure that you have enough clearance beneath
overhead cables and structures.
INT-2-2-1_2
!MWARNING
Communications
Bad communications can cause accidents. Keep
people around you informed of what you will be doing.
If you will be working with other people, make sure any
hand signals that may be used are understood by
everybody. Work sites can be noisy, do not rely on
spoken commands.
INT-2-2-3
!MWARNING
Parking
An incorrectly parked machine can move without an
operator. Follow the instructions in the Operator
Manual to park the machine correctly.
INT-2-2-4_2
!MWARNING
Banks and Trenches
Banked material and trenches can collapse. Do not
work or drive too close to banks and trenches where
there is danger of collapse.
INT-2-2-5
!MWARNING
Safety Barriers
Unguarded machines in public places can be
dangerous. In public places, or where your visibility is
reduced, place barriers around the work area to keep
people away.
INT-2-2-8

Introduction
Safety Check List
8 8
9811/5700-7
!MDANGER
Sparks
Explosions and fire can be caused by sparks from the
exhaust or the electrical system. Do not use the
machine in closed areas where there is flammable
material, vapour or dust.
INT-2-2-10
!MWARNING
Hazardous Atmospheres
This machine is designed for use in normal out door
atmospheric conditions. It should not be used in an
enclosed area without adequate ventilation. Do not
use the machine in a potentially explosive
atmosphere, i.e. combustible vapours, gas or dust,
without first consulting your JCB Distributor.
INT-2-1-14
!MCAUTION
Regulations
Obey all laws, work site and local regulations which
affect you and your machine.
INT-1-3-3
!MWARNING
Practise
You or others can be killed or seriously injured if you
do unfamiliar operations without first practising them.
Practise away from the work site on a clear area. Keep
other people away. Do not perform new operations
until you are sure you can do them safely.
INT-2-1-1
!MWARNING
Airborne particles of light combustible material such
as straw, grass, wood shavings, etc. must not be
allowed to accumulate within the engine compartment
or in the propshaft guards (when fitted). Inspect these
areas frequently and clean at the beginning of each
work shift or more often if required. Before opening
the engine cover, ensure that the top is clear of debris.
5-3-1-12_3
!MWARNING
Keep the machine controls clean and dry. Your hands
and feet could slide off slippery controls. If that
happens you could lose control of the machine.
2-2-3-6
!MWARNING
Electrical Power Cables
You could be electrocuted or badly burned if you get
the machine or its attachments too close to electrical
power cables.
You are strongly advised to make sure that the safety
arrangements on site comply with the local laws and
regulations concerning work near electric power lines.
Before you start using the machine, check with your
electricity supplier if there are any buried power
cables on the site.
There is a minimum clearance required for working
beneath overhead power cables. You must obtain
details from your local electricity supplier.
2-2-5-4
!MCAUTION
If you have an attachment which is not covered in the
Operator Manual do not install it, use it or remove it
until you have obtained, read and understood the
pertinent information. Install attachments only on the
machines for which they were designed.
5-5-1-1_2
!MWARNING
Use only the JCB approved attachments that are
specified for your machine. Operating with non-
specified attachments can overload the machine,
causing possible damage and machine instability
which could result in injury to yourself or others.
The use of non-approved attachments could invalidate
your warranty.
2-4-5-2_1

Introduction
Safety Check List
9 9
9811/5700-7
!MDANGER
Working Platform
Using the machine as a working platform is
hazardous; you can fall off and be killed or injured.
Never use the machine as a working platform.
5-1-5-9
!MWARNING
Machine Safety
Stop work at once if a fault develops. Abnormal
sounds and smells can be signs of trouble. Inspect
and repair before resuming work.
8-1-2-3
!MWARNING
Touching hot surfaces can burn skin. The engine and
machine components will be hot after the unit has
been running. Allow the engine and components to
cool before servicing the unit.
10-1-1-40
!MWARNING
Travelling at High Speeds
Travelling at high speeds can cause accidents. Do not
reverse in a high gear with full throttle. Always travel
at a safe speed to suit working conditions.
INT-5-3-3
!MWARNING
The engine has exposed rotating parts. Switch OFF the
engine before working in the engine compartment. Do
not use the machine with the engine cover open.
5-2-6-5
!MWARNING
You could be killed or seriously injured if you operate
a machine with a damaged or missing ROPS/FOPS. If
the Roll Over Protection Structure (ROPS)/Falling
Objects Protection Structure (FOPS) has been in an
accident, do not use the machine until the structure
has been renewed. Modifications and repairs that are
not approved by the manufacturer may be dangerous
and will invalidate the ROPS/FOPS certification.
INT-2-1-9_6
!MCAUTION
Fork Spacing
Loads can fall off incorrectly spaced forks. Always
space the forks correctly for the load. Make sure the
forks are completely under the load before lifting.
5-1-4-2
!MCAUTION
One-Fork Lifting
A load lifted on one fork can slip off. Never lift a load
with one fork.
5-1-4-3
!MCAUTION
Unloading
Never unload the forks by stopping the machine
suddenly. Follow the procedures in the Operator
Manual for unloading.
5-1-4-4_2
!MCAUTION
Uneven Ground
Loads stacked on uneven ground can topple. Never
stack loads on uneven ground.
5-1-4-5
!MWARNING
Scaffolding
Overloaded scaffolding can collapse. Never load
scaffolding beyond the regulation capacity.
5-1-4-6
!MCAUTION
Overhead Clearance
A raised mast can strike overhead objects. Always
check for overhead clearance before raising the mast.
9-1-3-1
!MWARNING
Mast/Travelling
Operating the mast and carriage while travelling can
cause accidents. You will not have total control. Never
operate the mast and carriage while travelling.
9-1-3-2

Introduction
Safety Check List
10 10
9811/5700-7
!MDANGER
Forks/Working Platform
Using the forks alone as a working platform is
hazardous; you can fall off and be killed or injured.
Never use the forks as a working platform.
5-1-5-3
!MWARNING
Forks/Turning
The forks project in front of the machine. Make sure
there is enough clearance for the forks when making
turns.
5-1-5-4_2
!MWARNING
High Loads
A high load can block your view and reduce the
machine's stability. Travel with the load low to the
ground. Travel slowly and with caution over rough,
muddy or loose surfaces.
5-1-3-2
!MWARNING
Slopes
Always drive a LOADED machine FORWARD UPHILL
and in REVERSE DOWNHILL.
Always drive an UNLOADED machine in REVERSE
UPHILL and FORWARD DOWNHILL.
9-1-3-3
!MWARNING
Hillsides
Operating the machine on hillsides can be dangerous
if proper precautions are not taken. Ground conditions
can be changed by rain, snow, ice etc. Check the site
carefully. Operate in first gear on hillsides, when
applicable, keep all attachments low to the ground.
Never coast down a hill with the engine off or the
transmission in neutral.
INT-2-2-7
!MWARNING
Visibility
Accidents can be caused by working in poor visibility.
Use your lights to improve visibility. Keep the road
lights, windows and mirrors clean.
Do not operate the machine if you cannot see clearly.
5-1-4-7
!MWARNING
Keep Your Hands and Feet Inside the Vehicle
When using the machine, keep your hands and feet
clear of moving parts. Keep your hands and feet within
the operator compartment while the vehicle is in
motion.
13-1-1-17
!MWARNING
Controls
You or others can be killed or seriously injured if you
operate the control levers from outside the machine.
Operate the control levers only when you are correctly
seated.
0179_2
!MCAUTION
Passengers
Passengers in or on the machine can cause accidents.
Do not carry passengers.
INT-2-2-2_1
!MWARNING
Fires
If your machine is equipped with a fire extinguisher,
make sure it is checked regularly. Keep it in the correct
machine location until you need to use it.
Do not use water to put out a machine fire, you could
spread an oil fire or get a shock from an electrical fire.
Use carbon dioxide, dry chemical or foam
extinguishers. Contact your nearest fire department as
quickly as possible. Firefighters should use self-
contained breathing apparatus.
INT-3-2-7_2
